A 24V DC power supply is a constant voltage LED driver that provides a steady 24-volt output to compatible low-voltage lighting systems. The primary advantage of a 24V LED power supply over its 12V power supplies counterpart is its ability to support longer runs of LED tape light with less voltage drop. By operating at a higher voltage, 24V systems require less current (amperage) for the same amount of power, making them a more efficient choice for larger, professional-grade lighting installations.
Applications for a 24V LED Power Supply
While suitable for many projects, a 24V LED driver is the preferred choice for specific applications that benefit from its efficiency over long distances.
- Long-Run LED Tape Lighting: Perfect for architectural accents, large cove lighting, and any installation requiring a continuous run of LED strip light beyond 16-20 feet.
- Commercial & Retail Spaces: Ideal for outfitting stores, restaurants, and offices where longer wire runs from the driver to the fixture are necessary.
- Architectural-Grade Fixtures: Many high-performance linear fixtures, light bars, and outdoor lighting systems are designed specifically for 24V power.
- Large-Scale Landscape Lighting: Efficiently powers extensive outdoor lighting schemes with multiple fixtures connected to a single 24V power supply.
How to Choose the Right 24V Driver
Selecting the correct driver is critical for a successful installation. Pay attention to these factors:
1. Wattage Capacity
Calculate the total wattage of all 24V lights you plan to connect to the driver. To ensure safety and longevity, always choose a driver with a wattage capacity at least 20% greater than your total load. For example, if your lights require 75 watts, you should select a driver with a capacity of 90 watts or more.
2. Form Factor
The physical design of your 24V power supply should match your installation needs.
- Plug-in Adapters: A simple plug-and-play solution for powering smaller, individual 24V fixtures or short tape light runs.

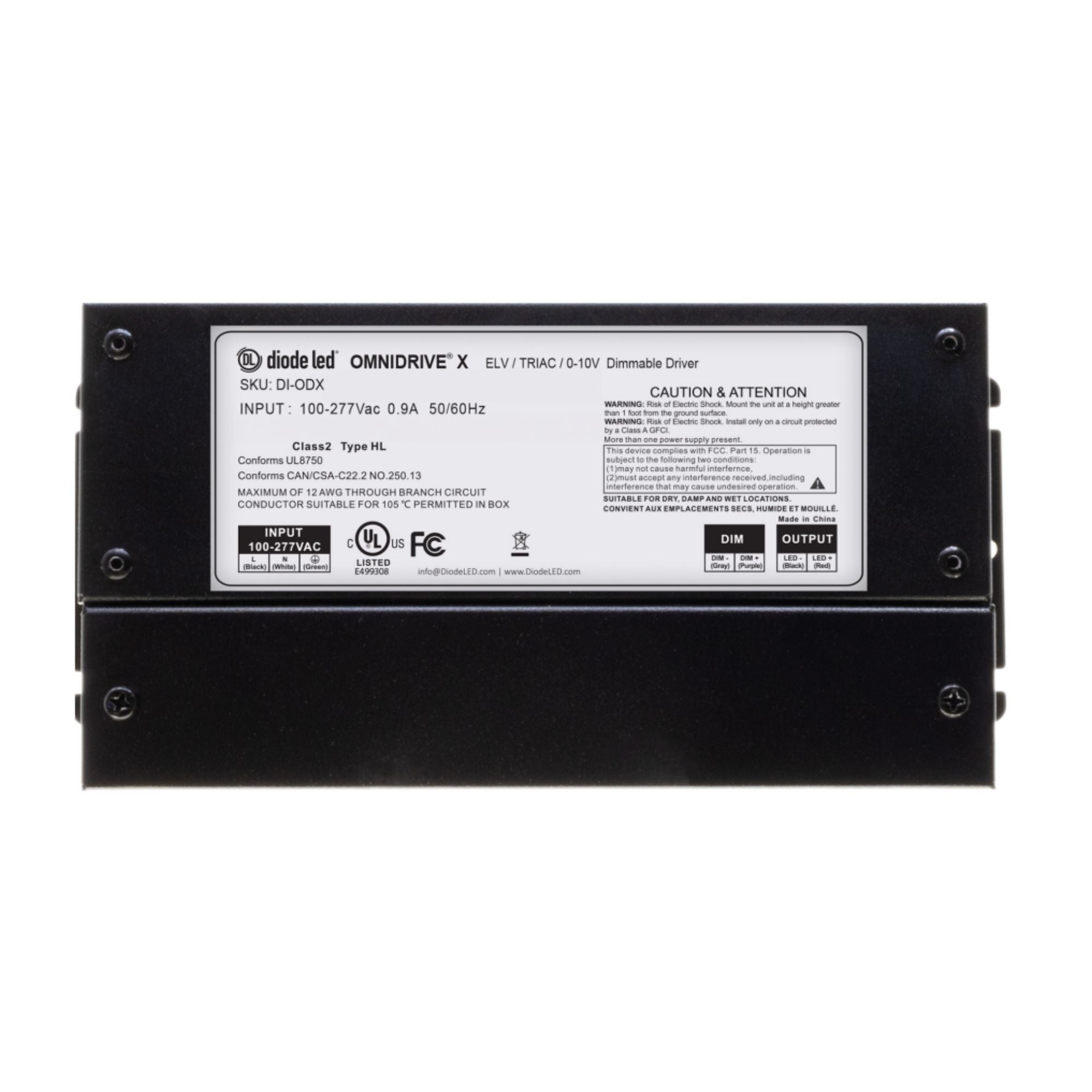

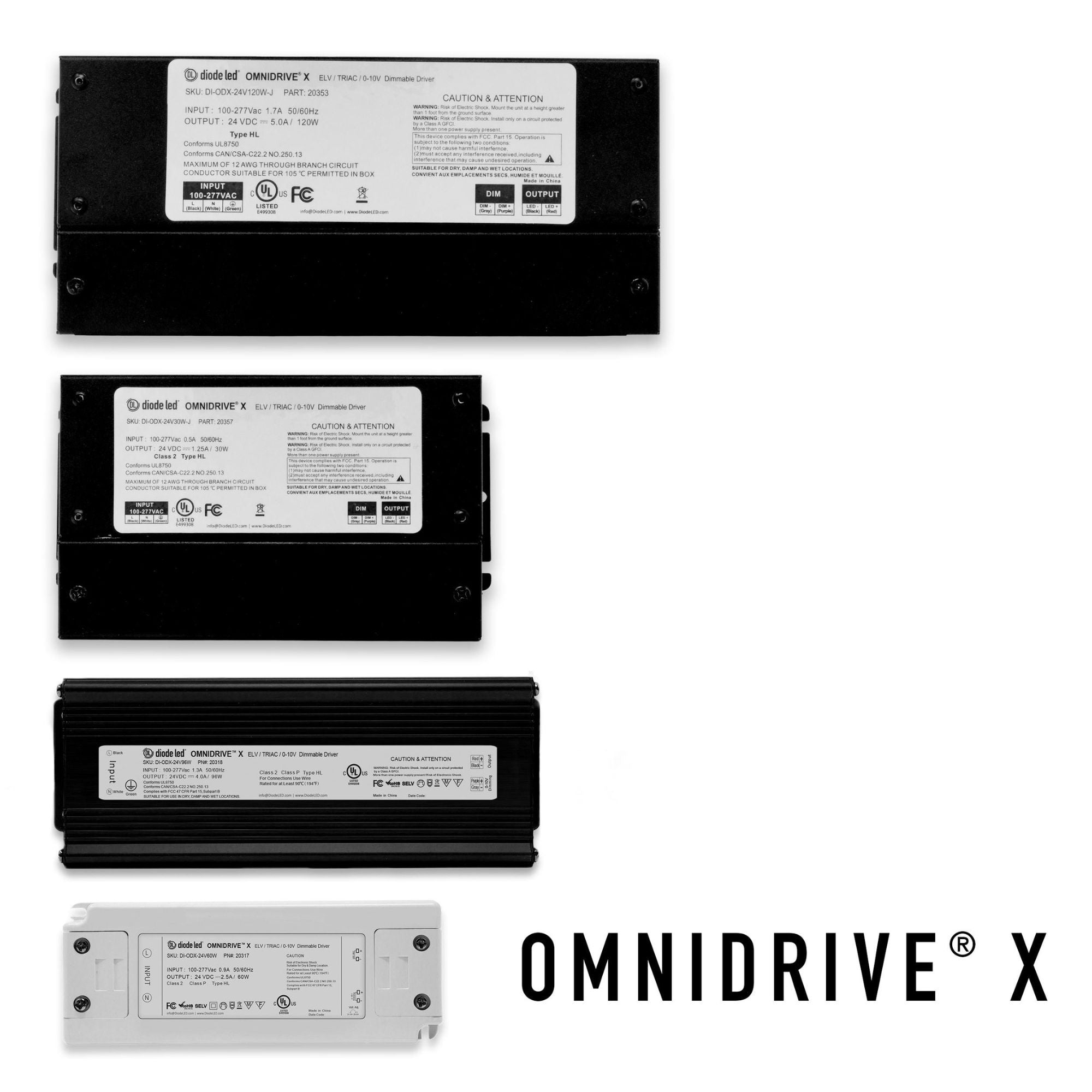

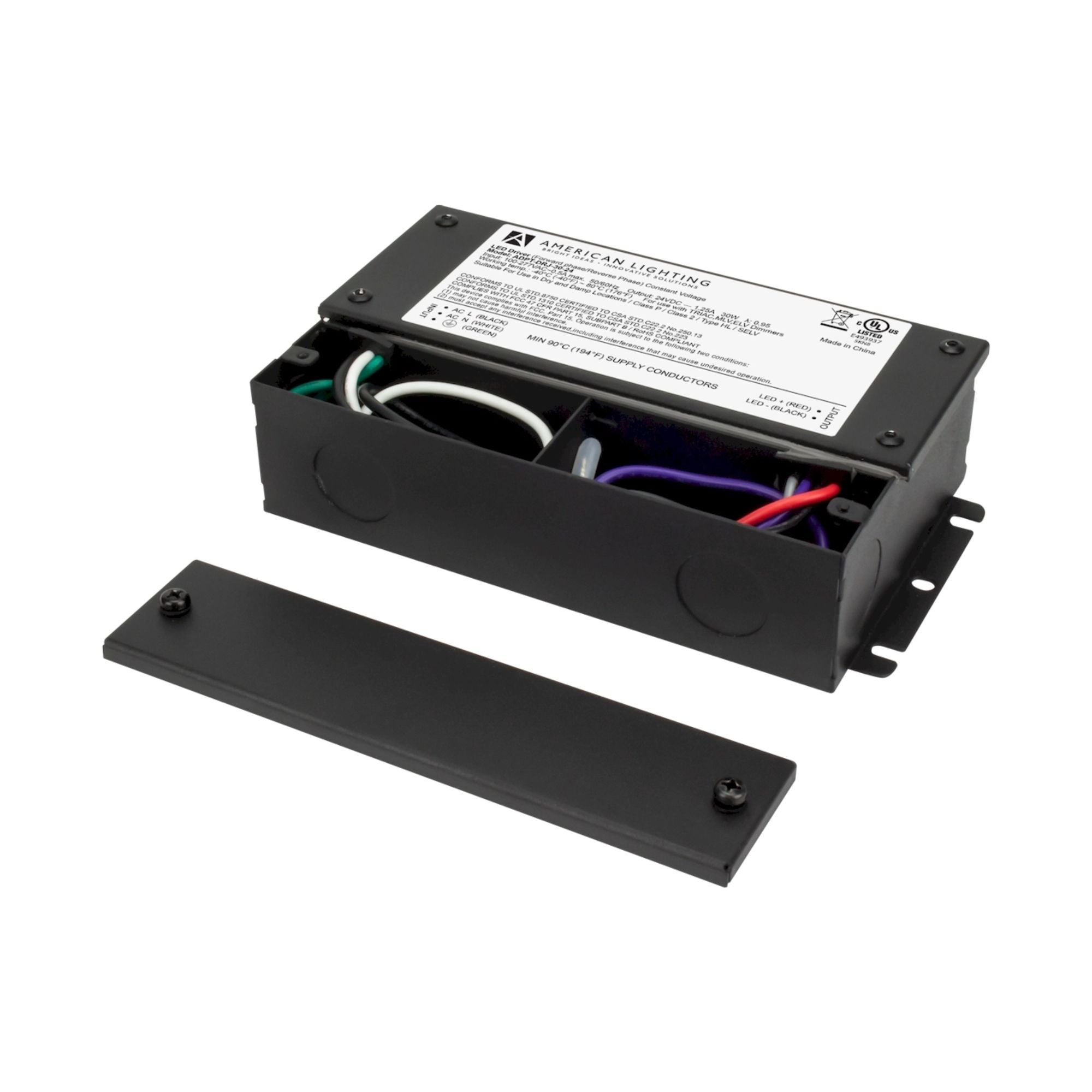

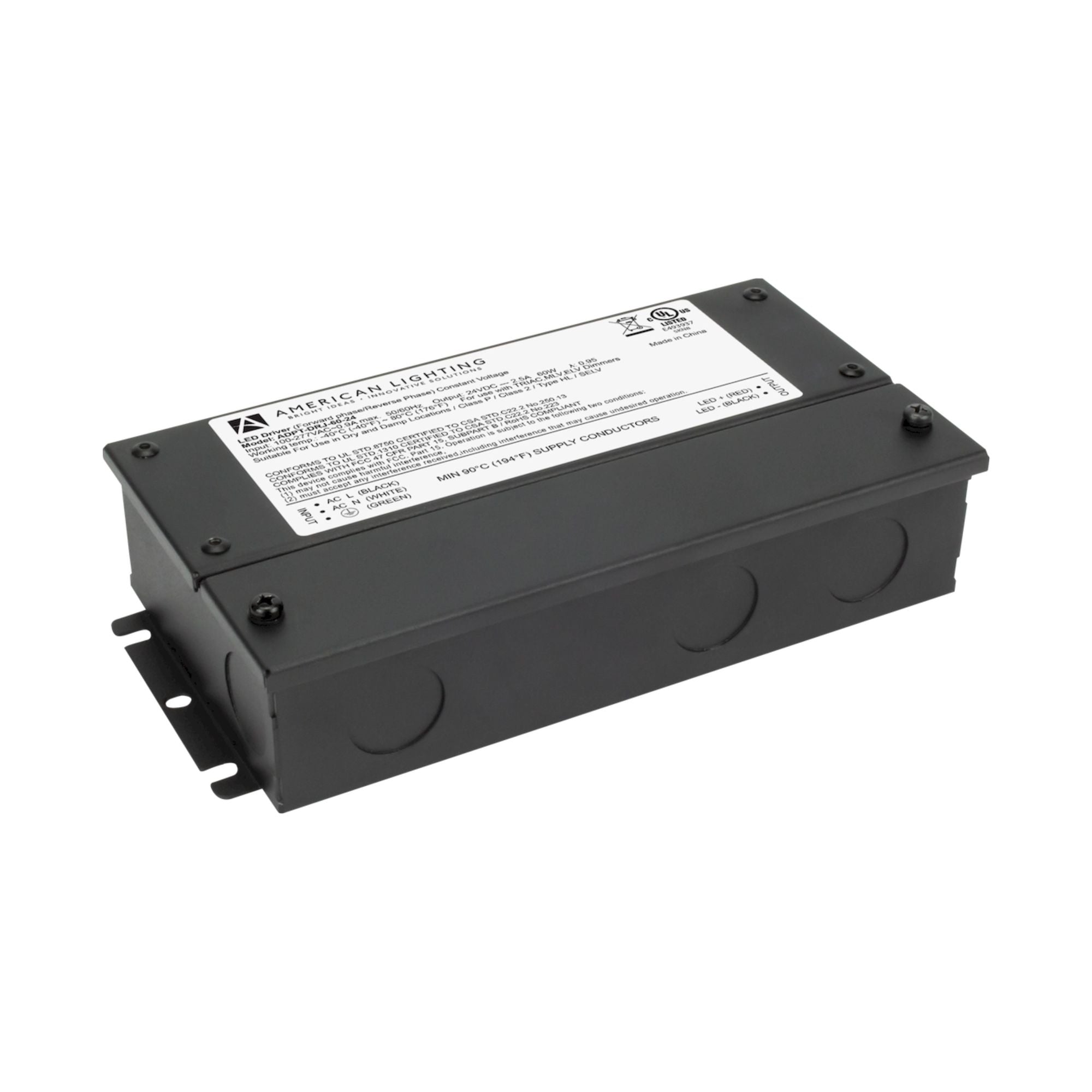

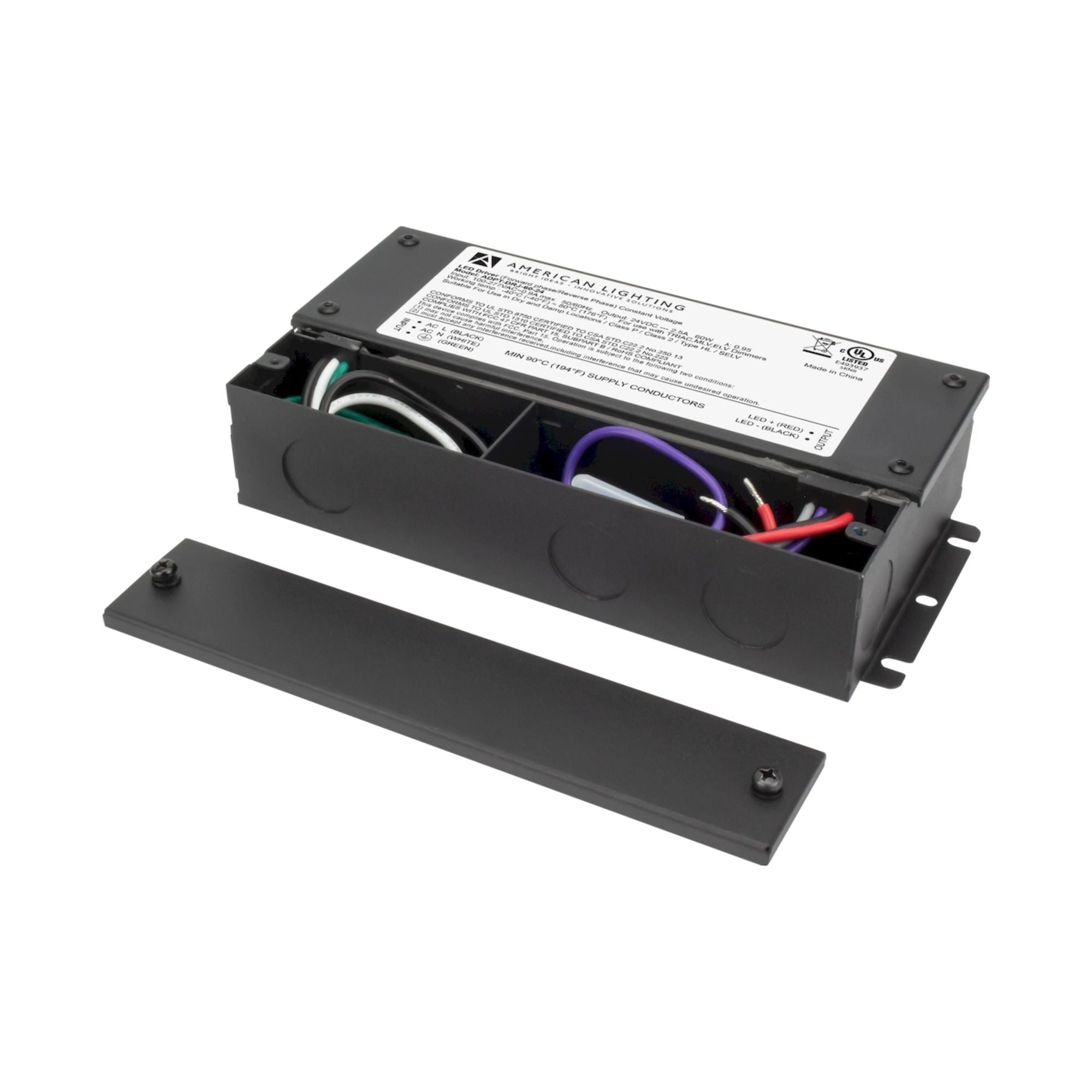

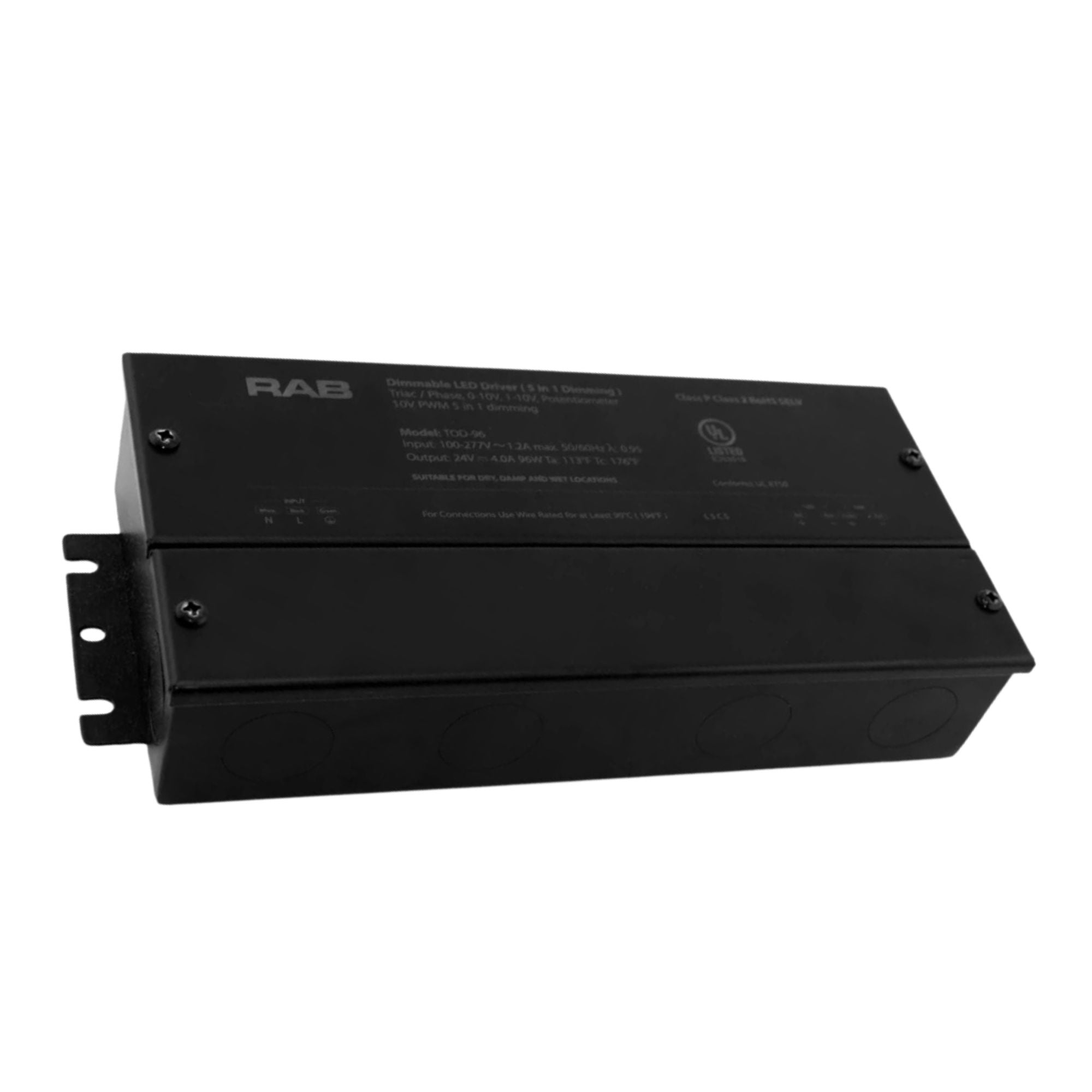

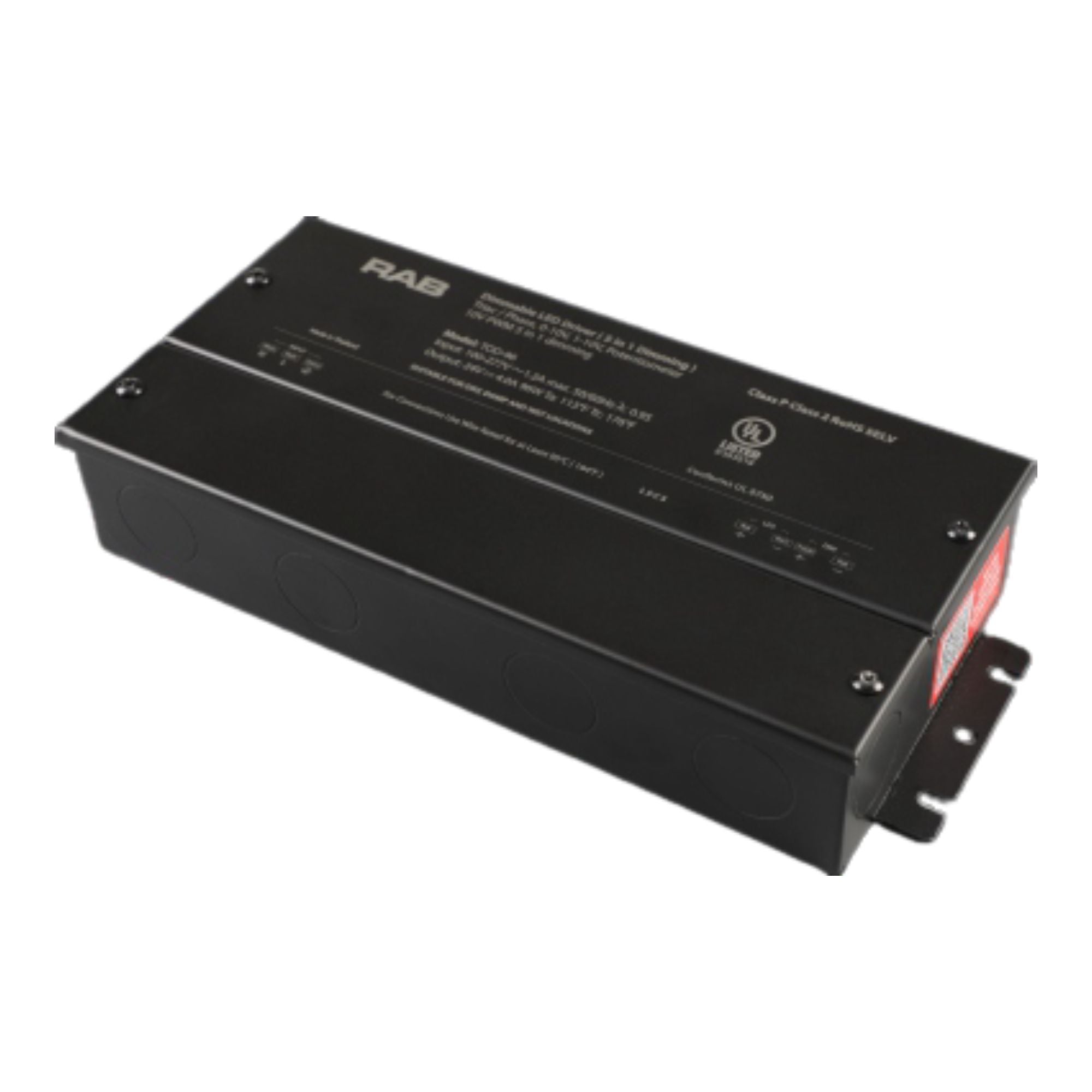

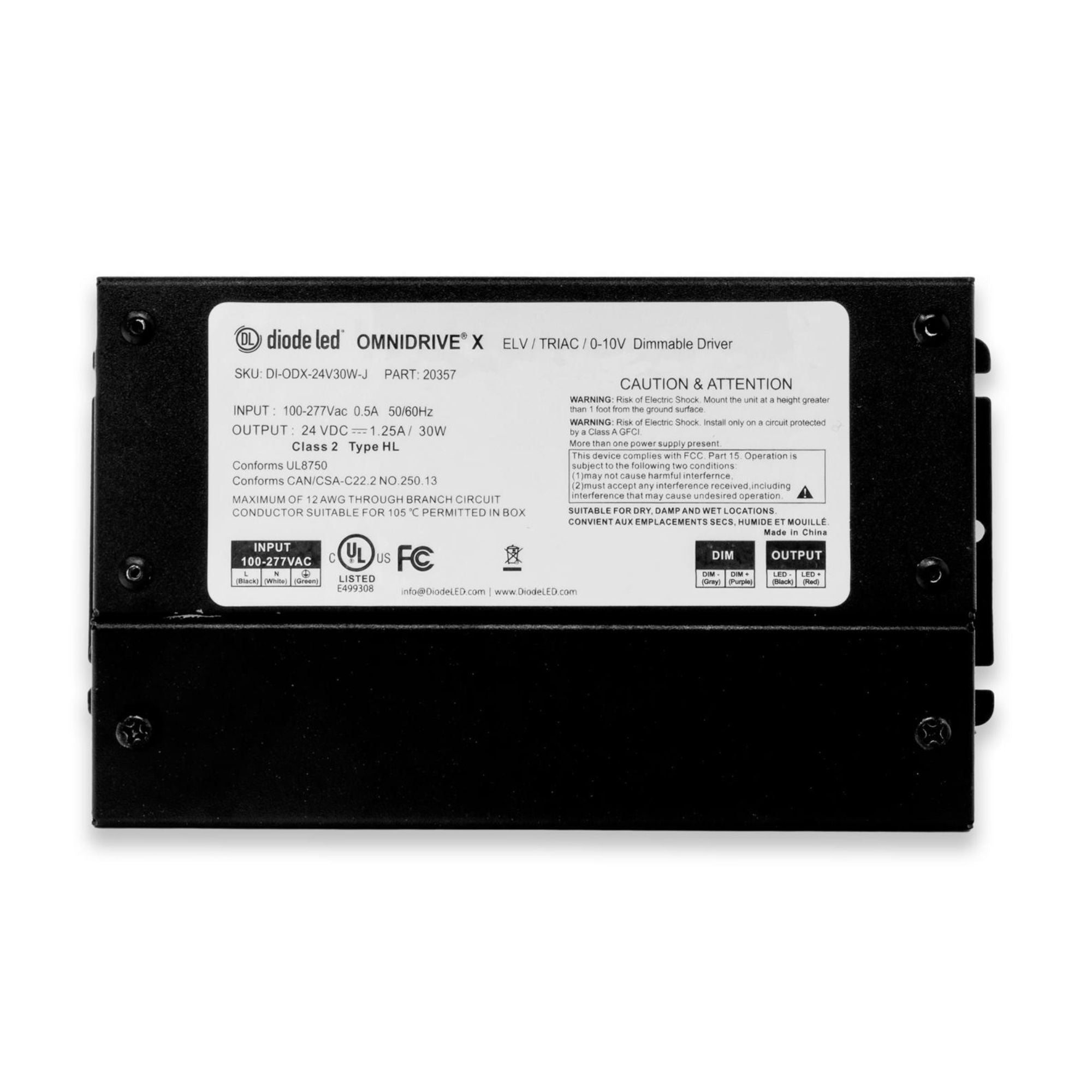

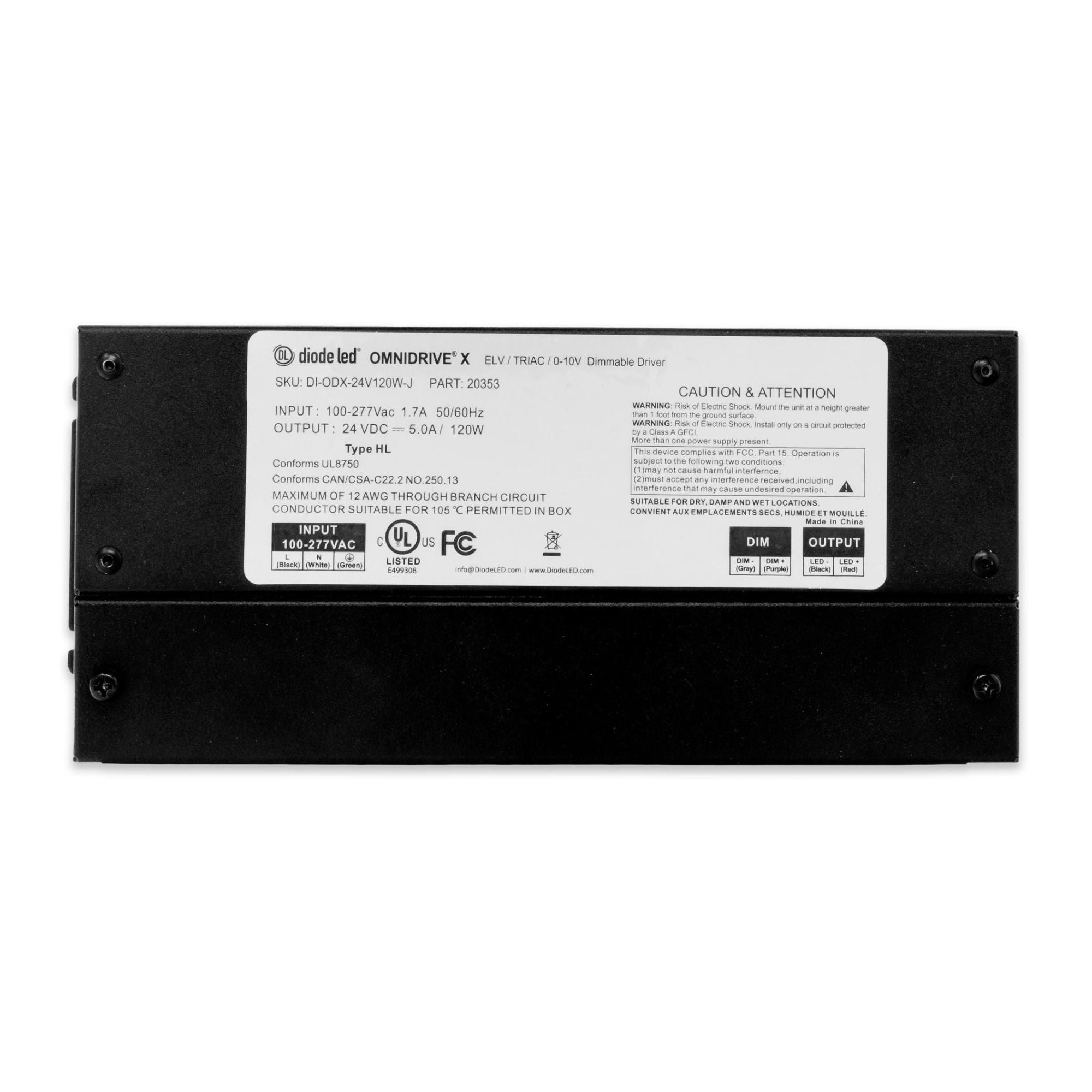

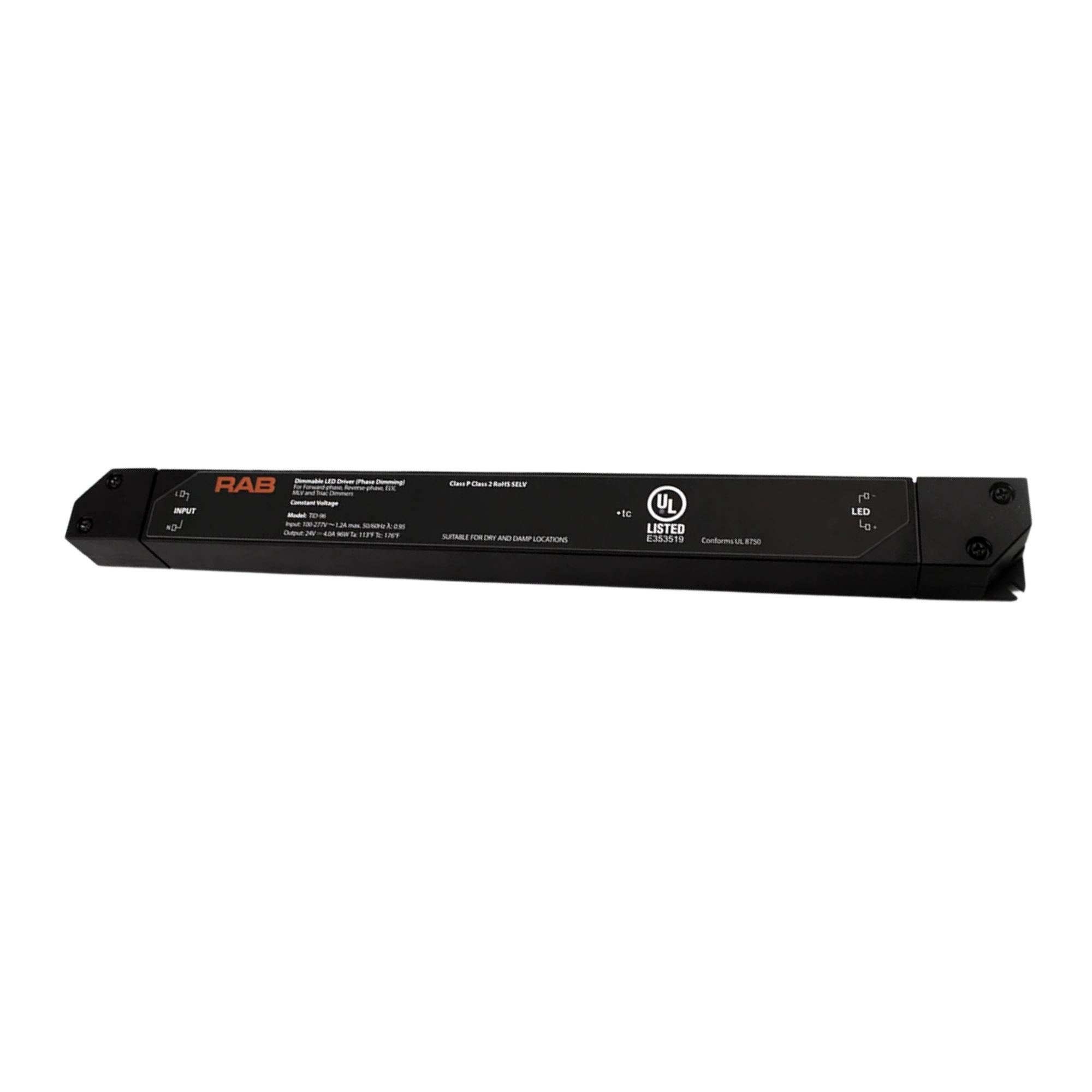

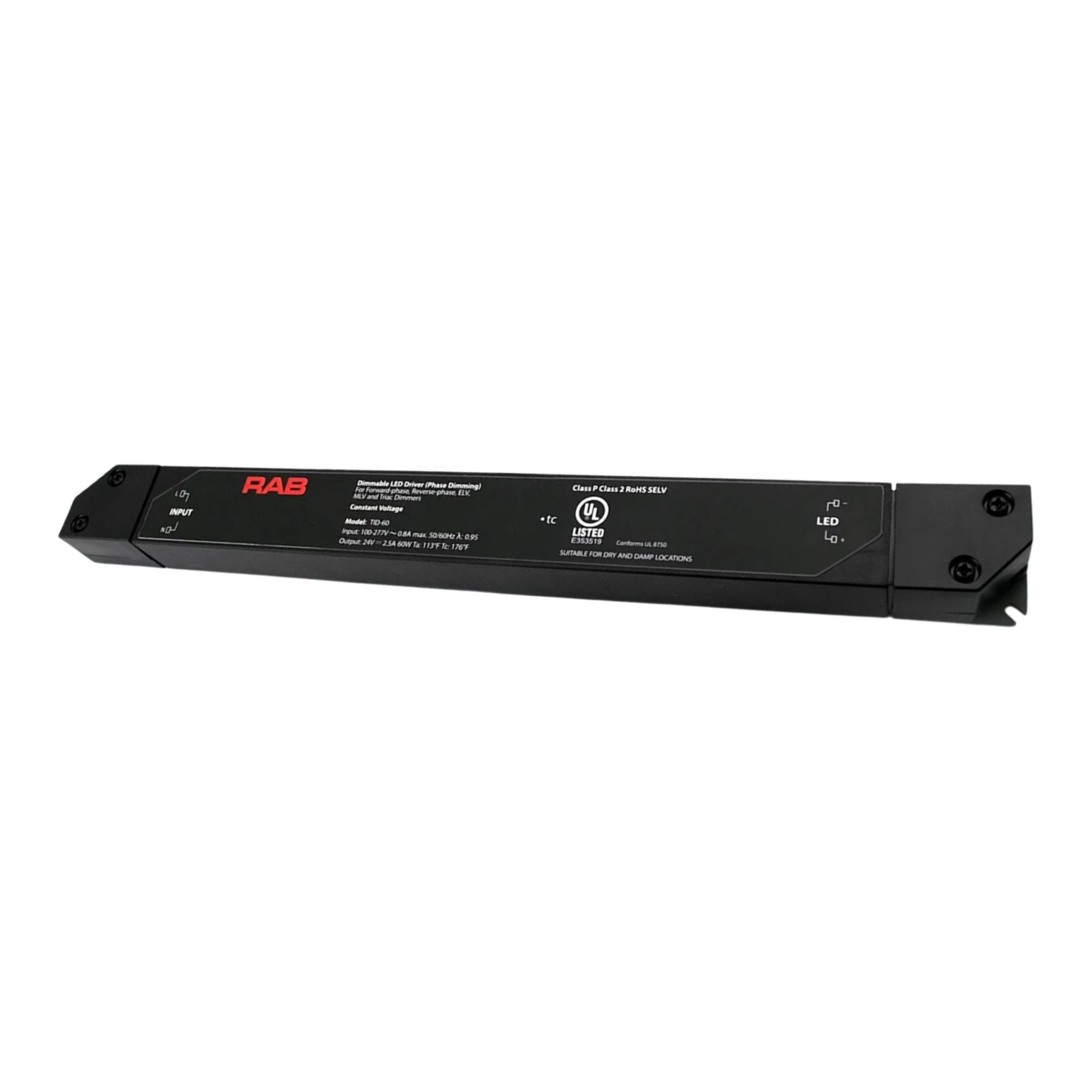

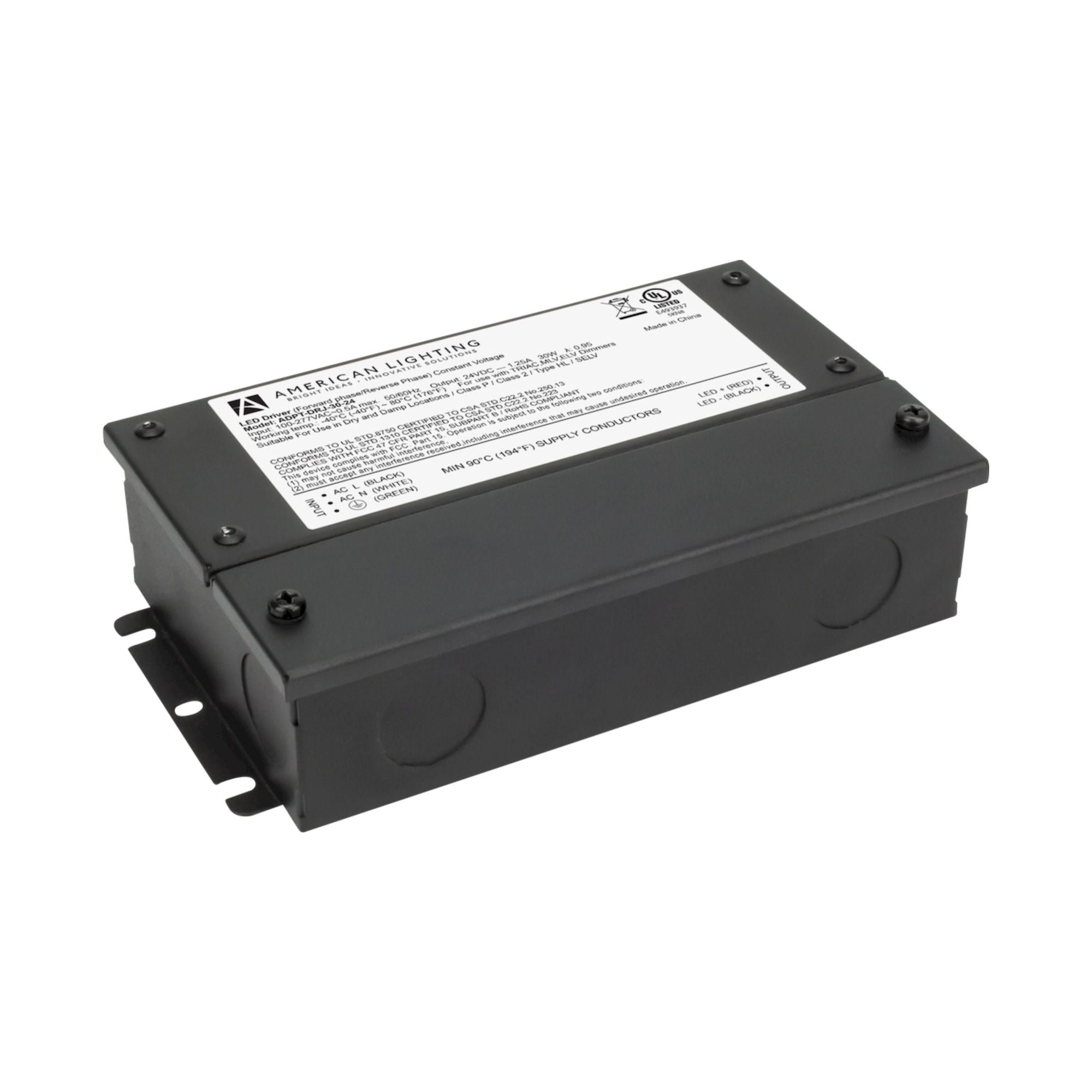

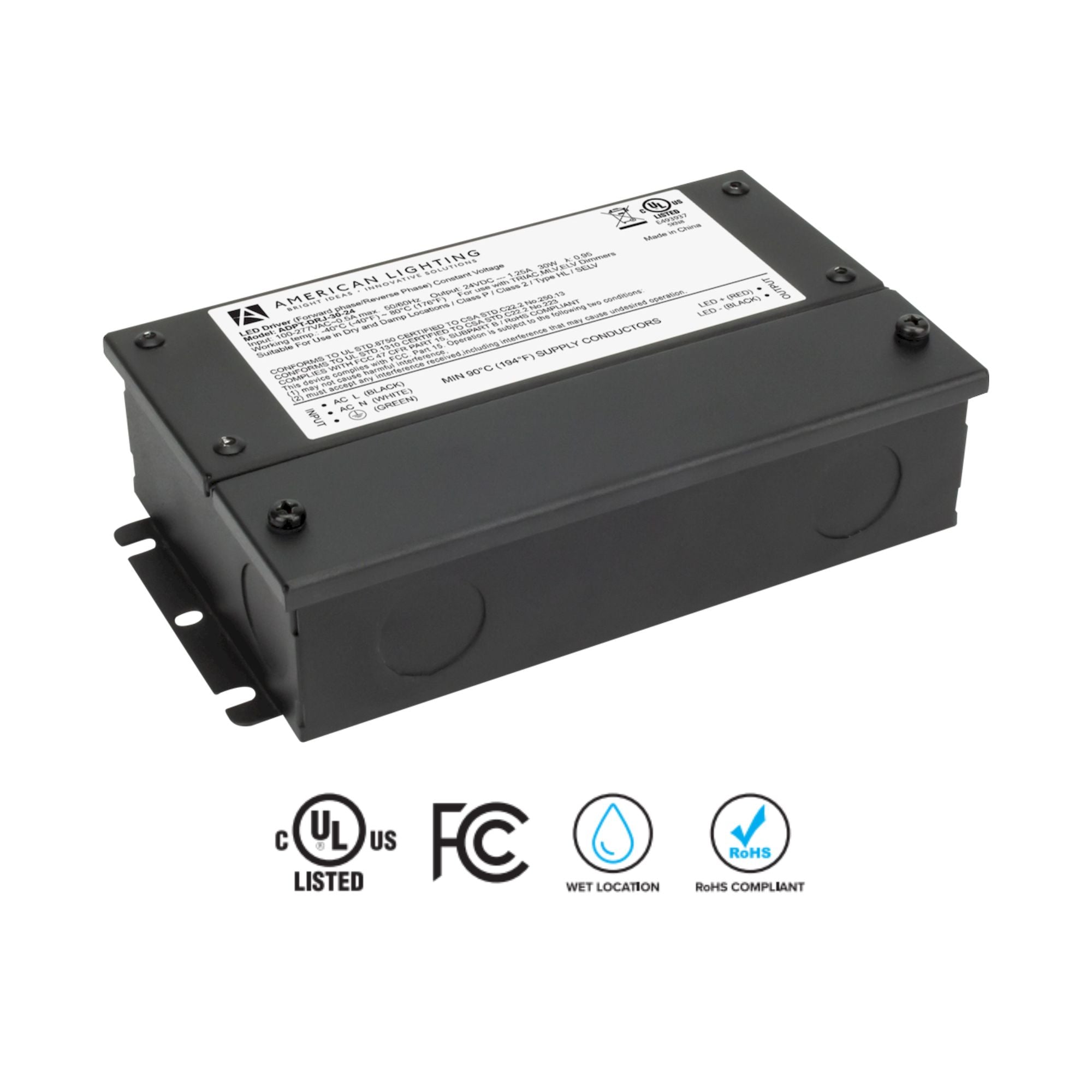

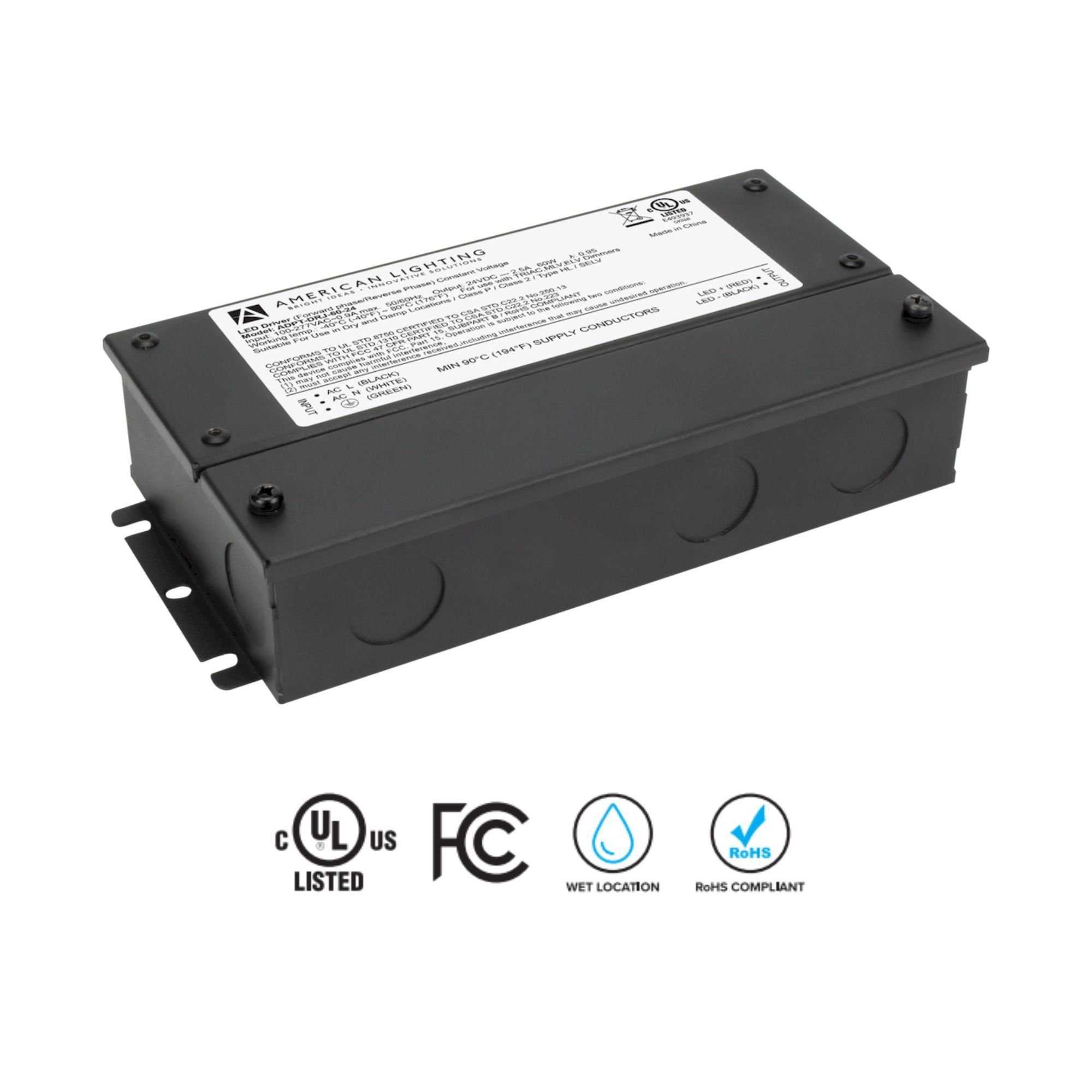

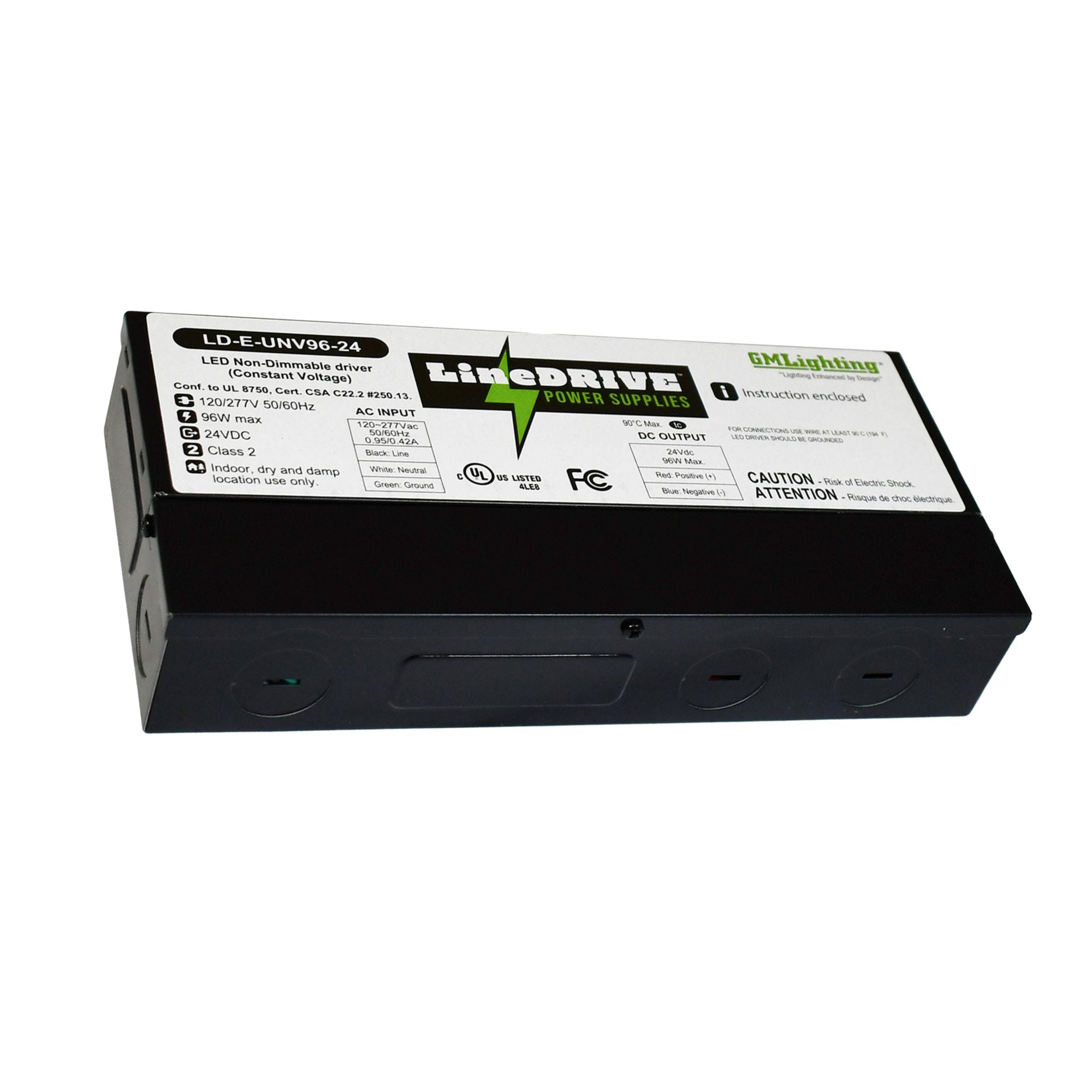

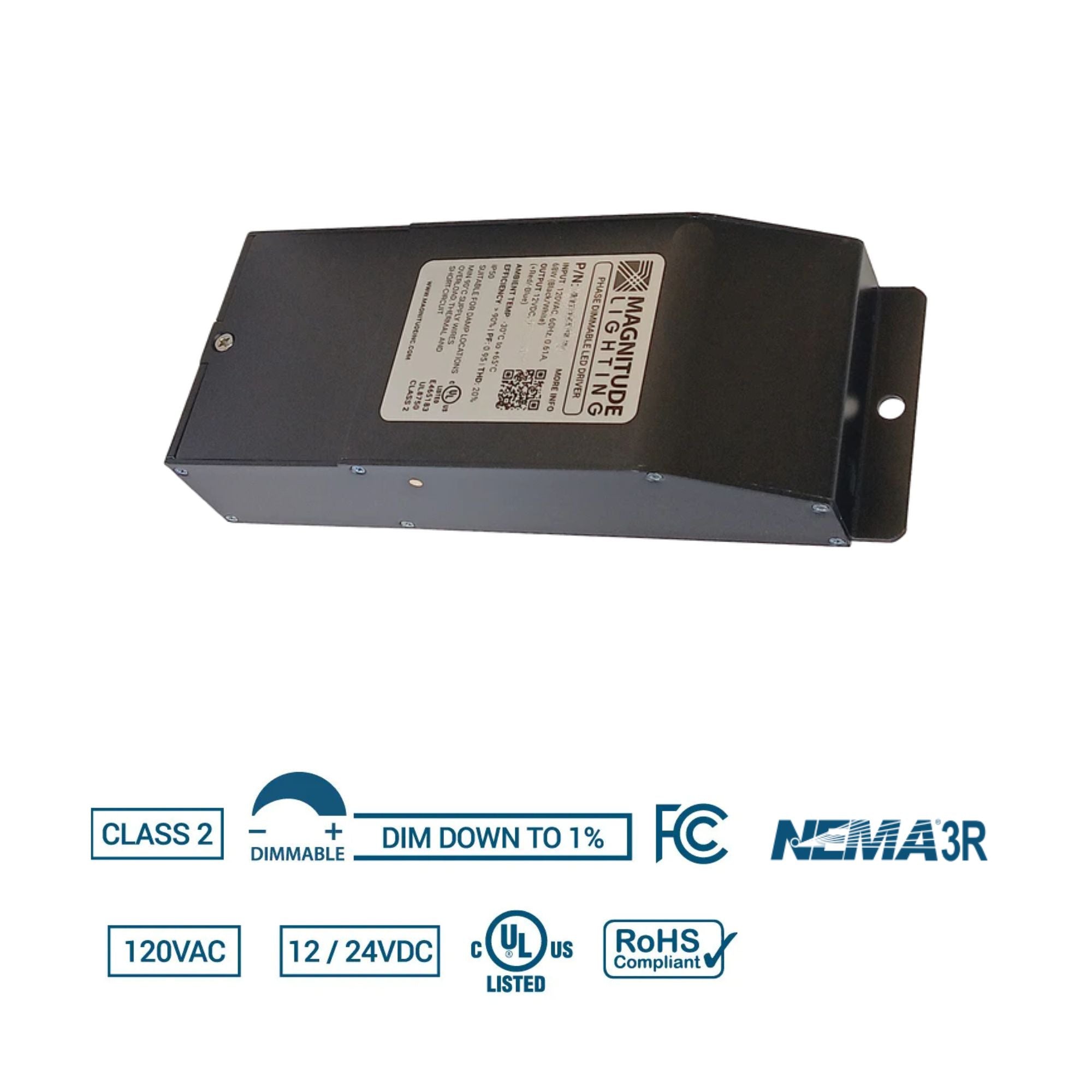

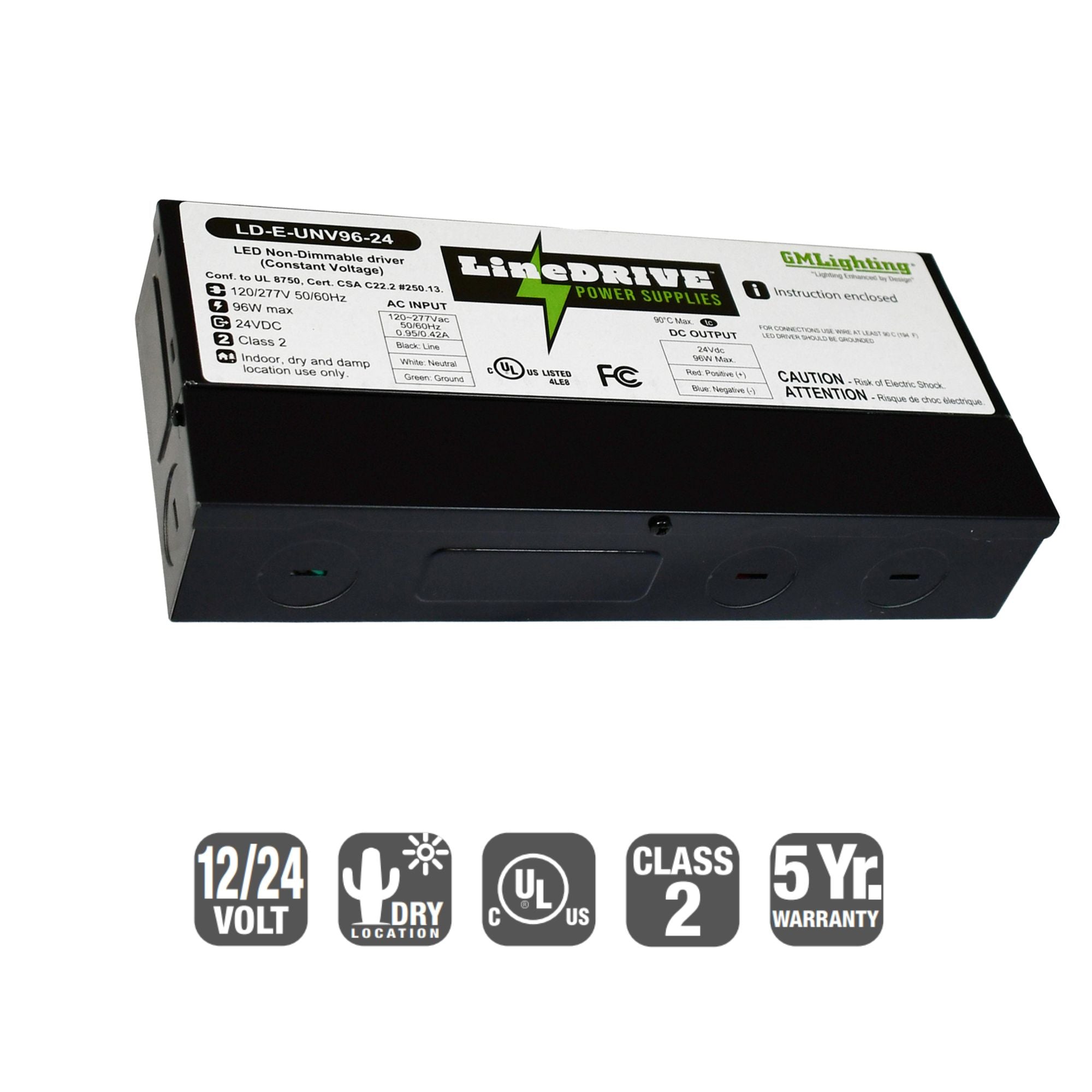

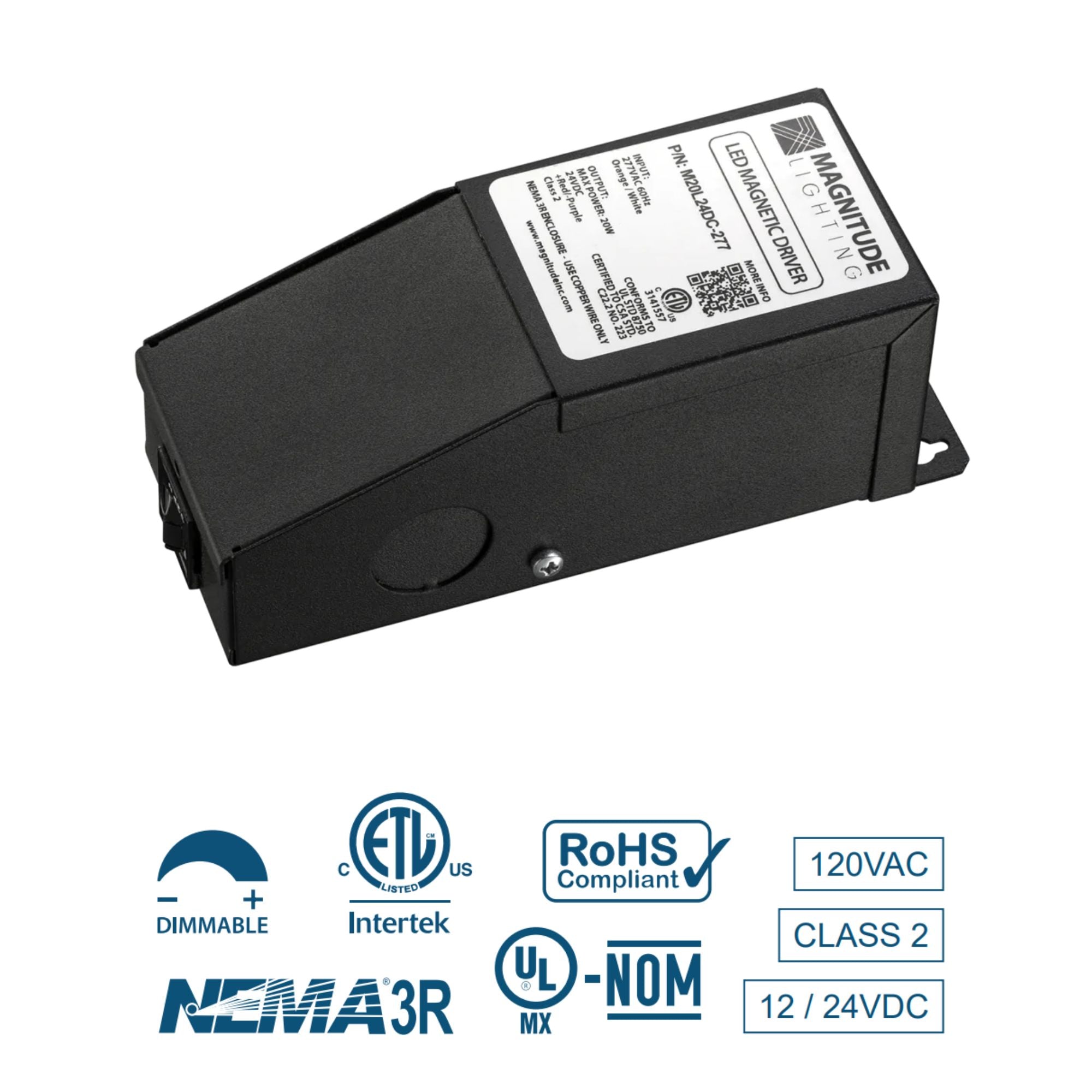

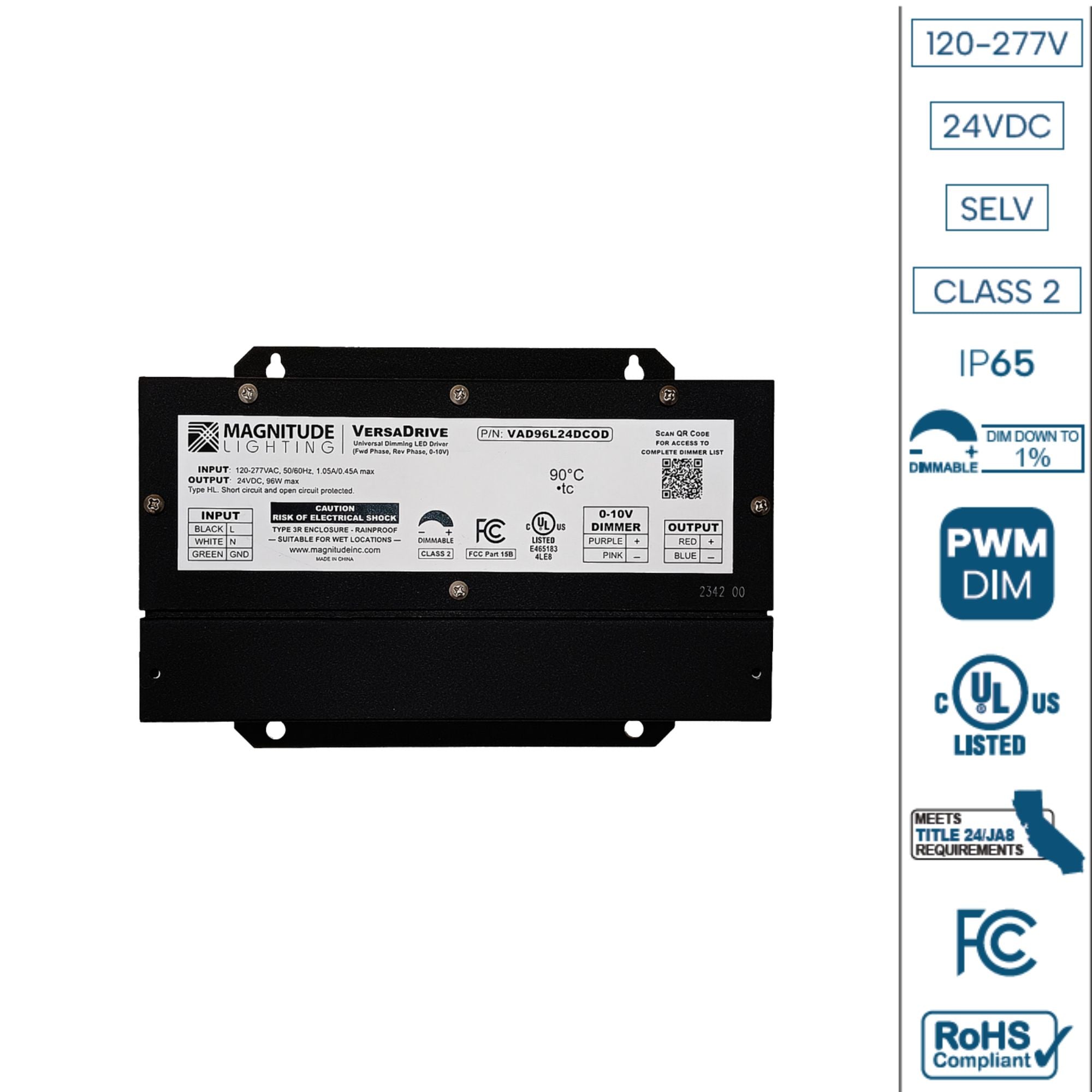

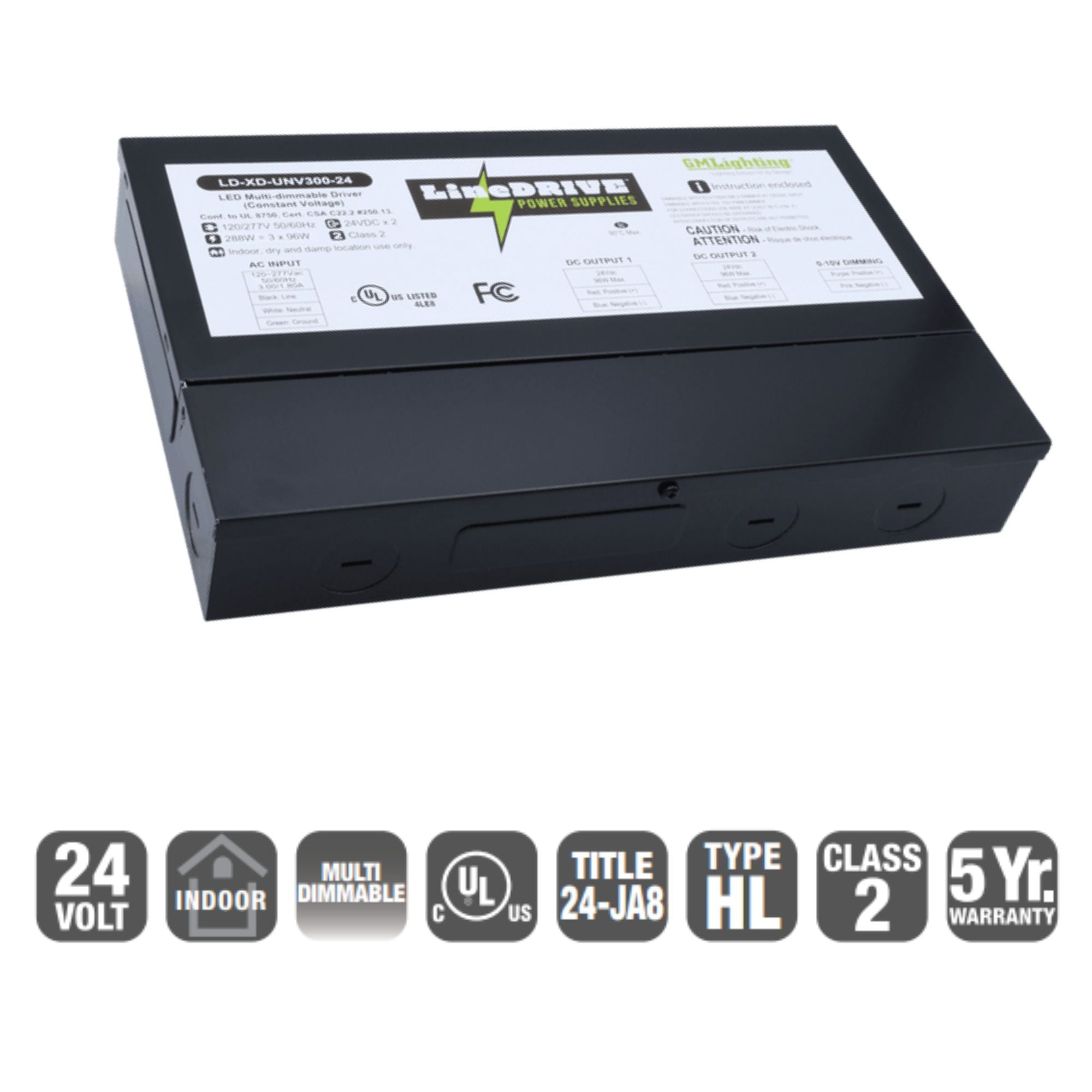

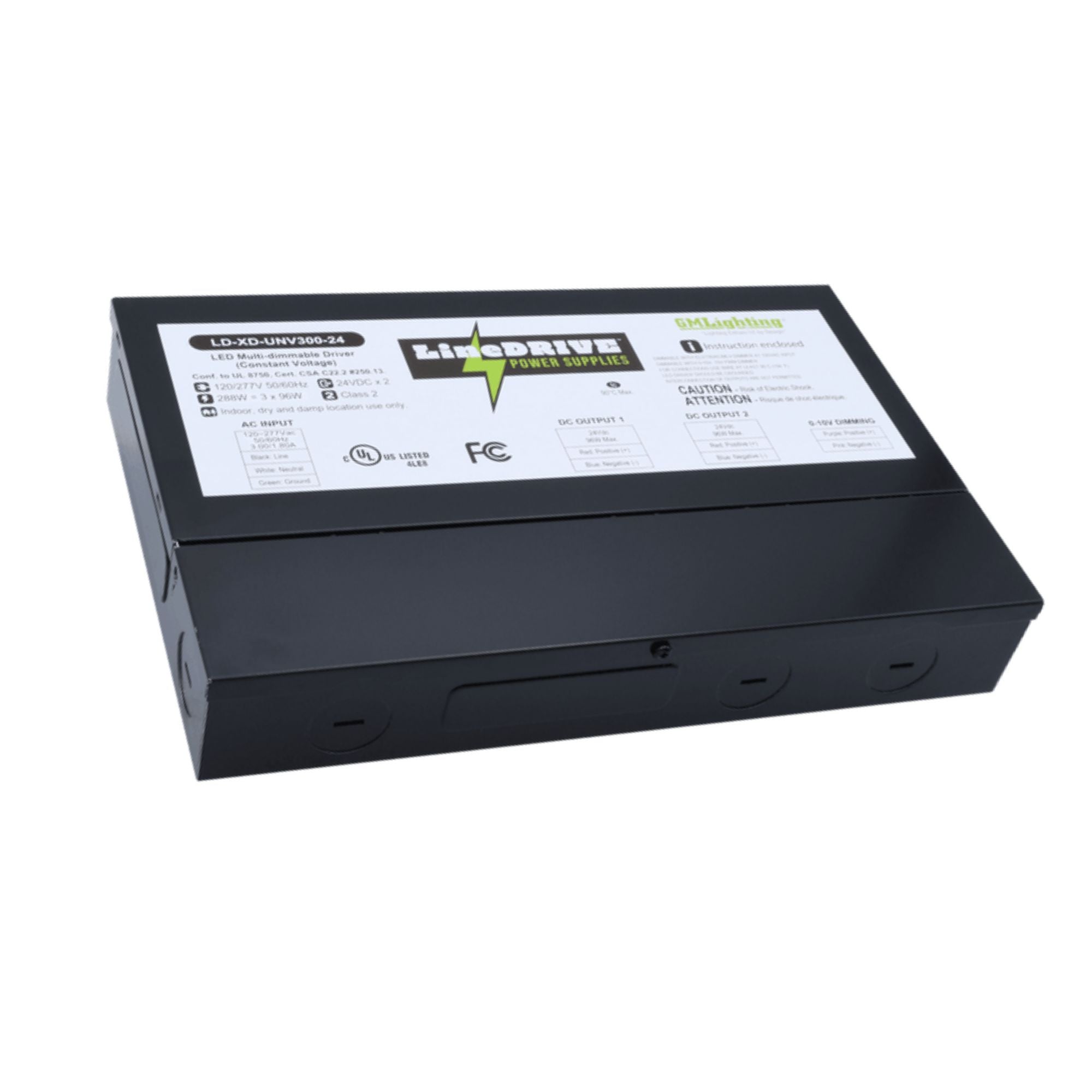

- Hardwired Drivers: Professional-grade drivers enclosed in a metal case, designed for permanent, concealed installation in commercial or high-end residential projects.

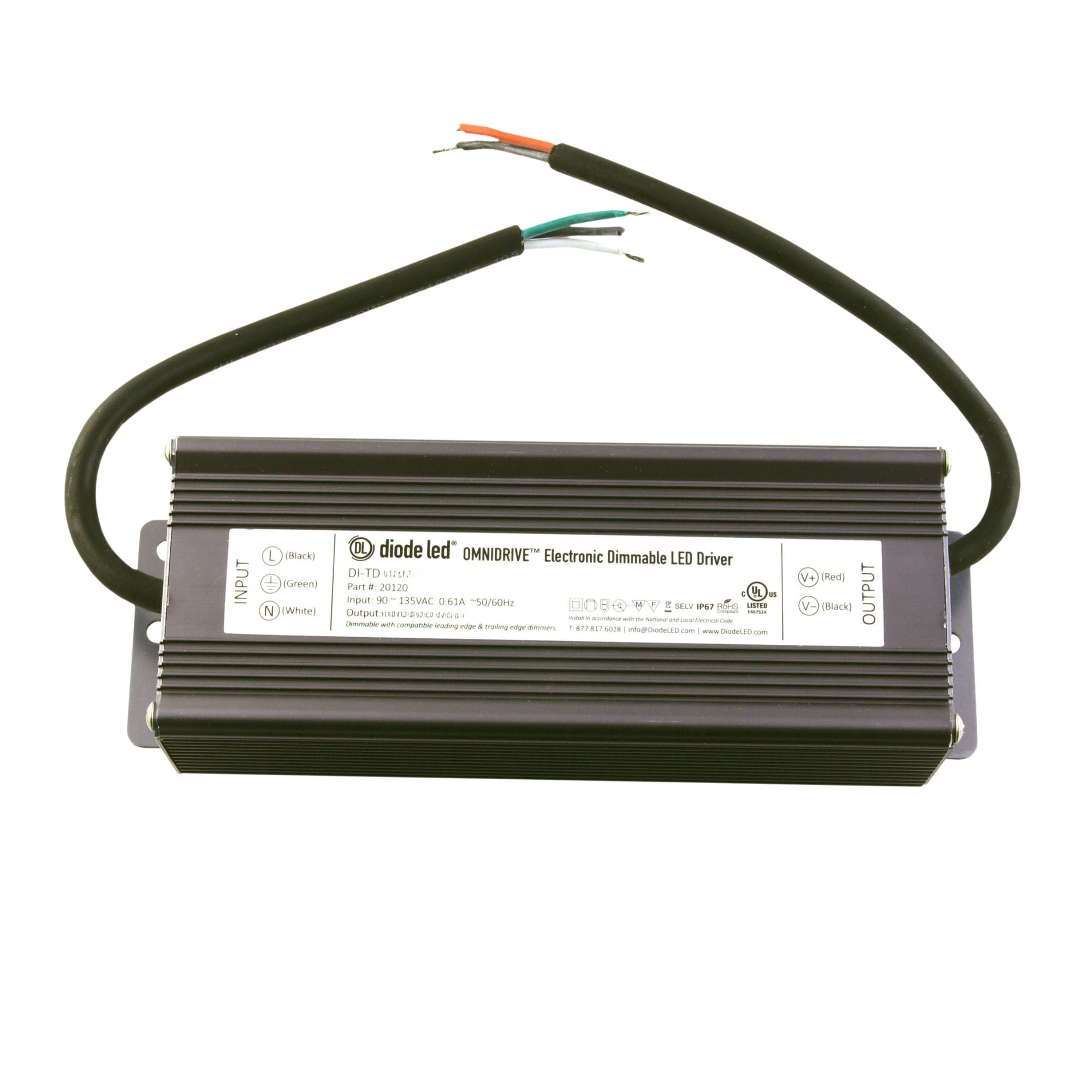

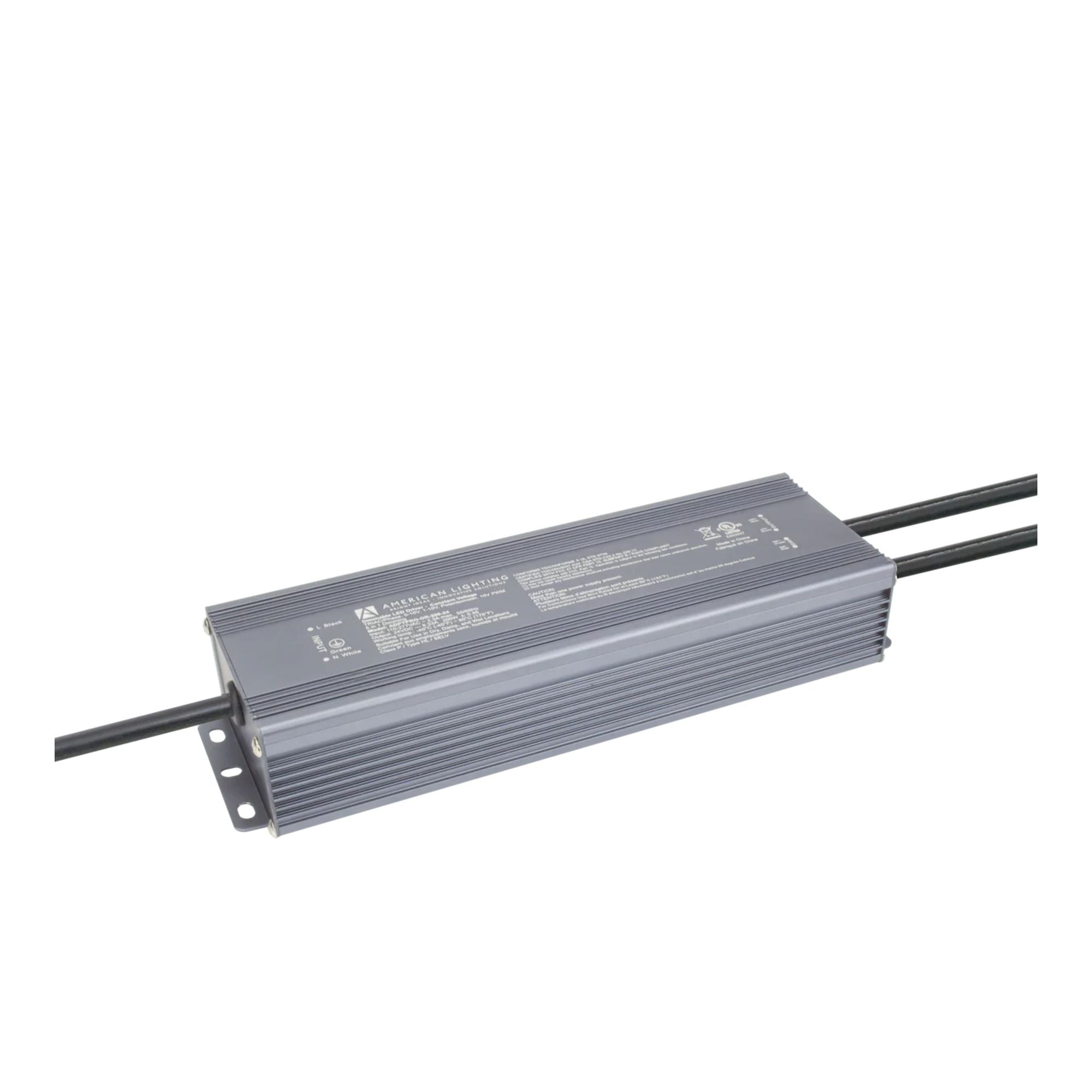

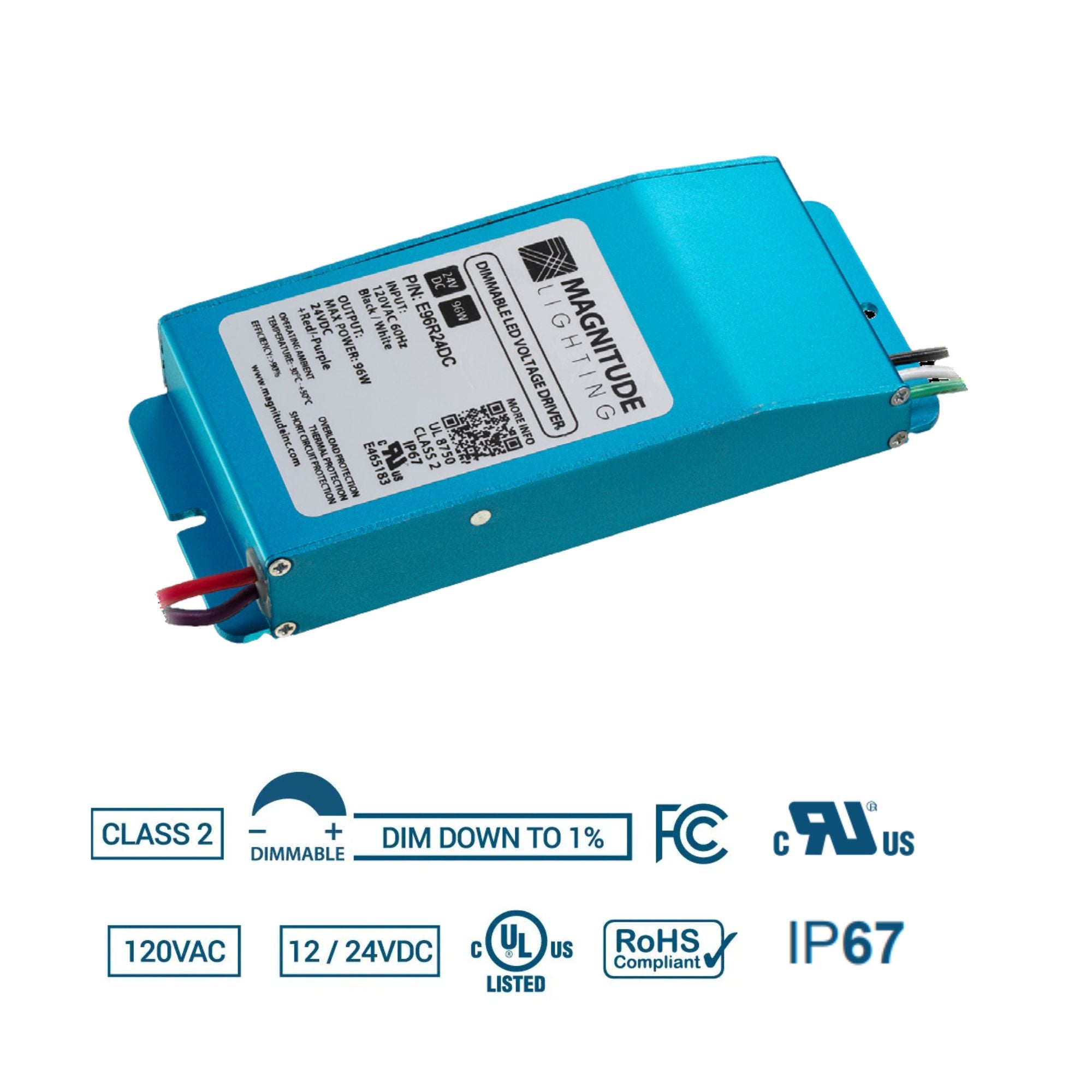

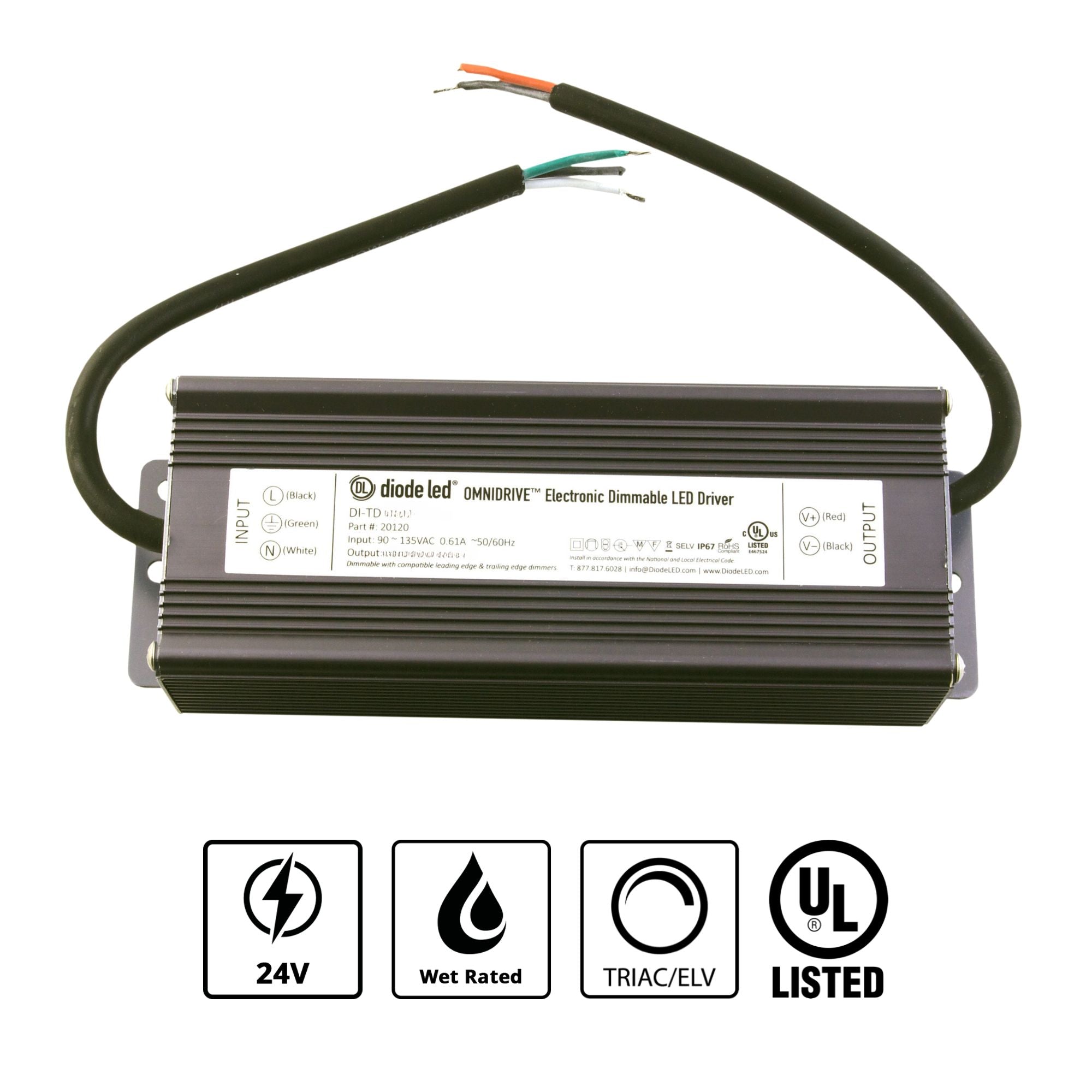

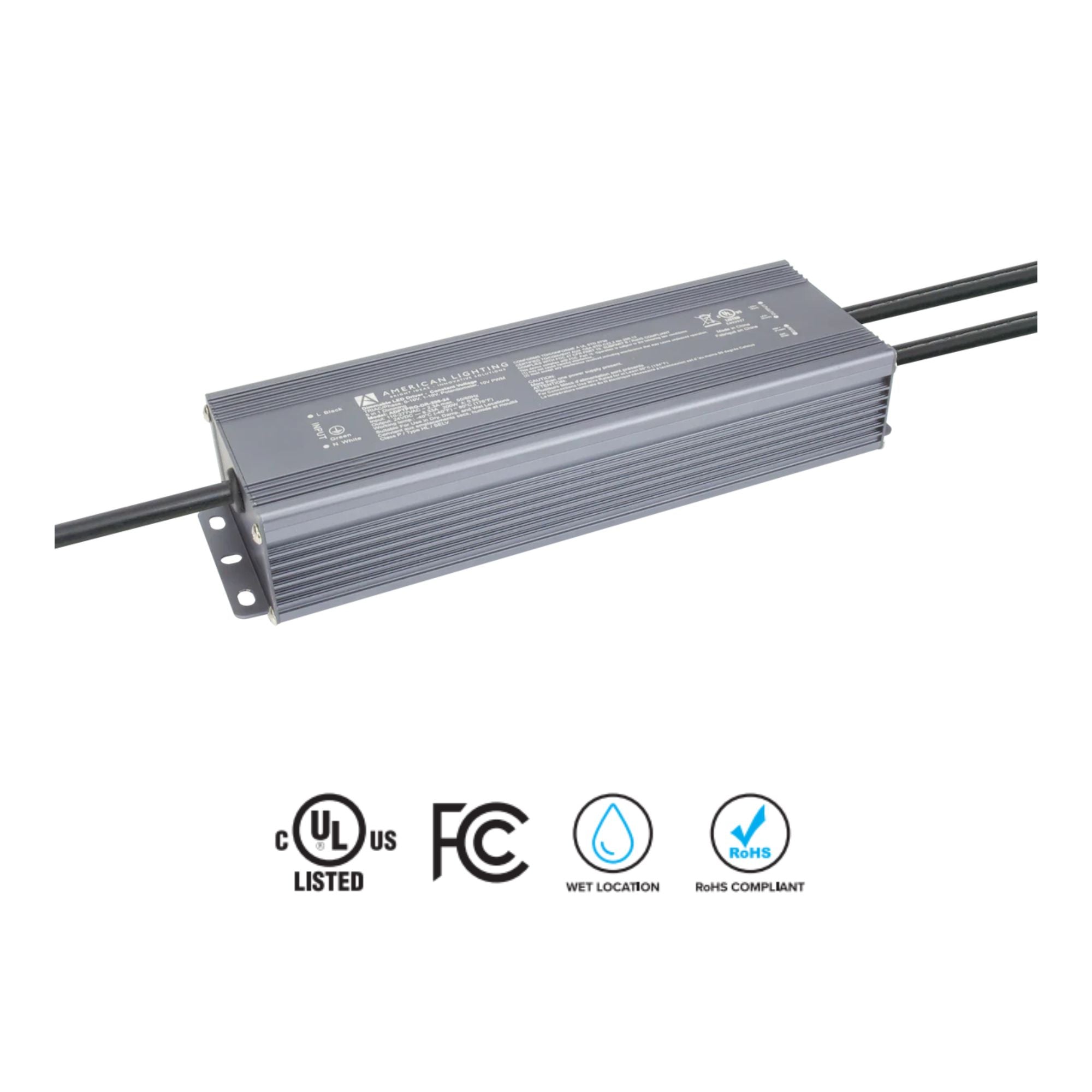

- Waterproof Drivers: For any outdoor or damp location use, select a driver with an IP67 or higher rating to ensure it is protected from the elements.
3. Dimming Capabilities

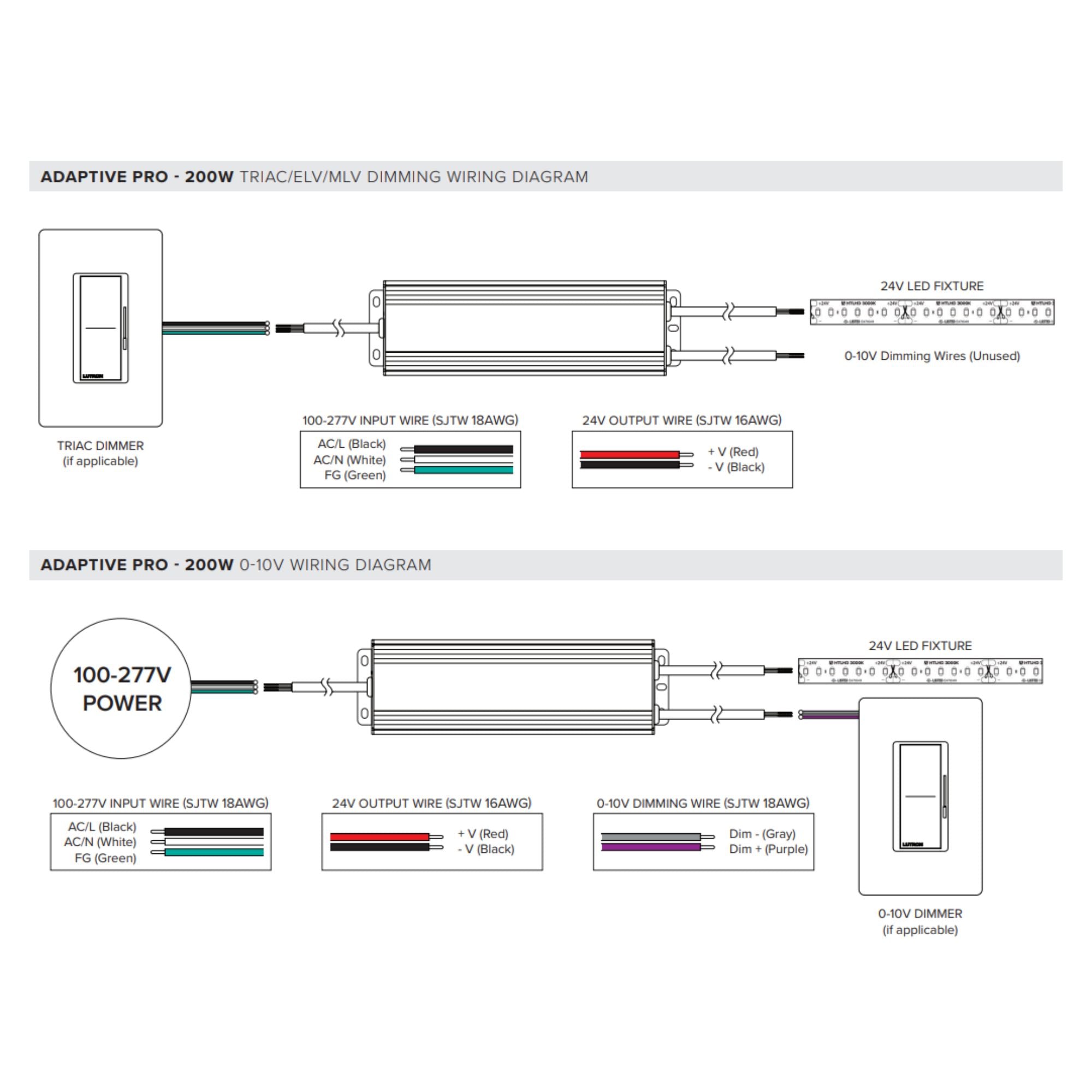

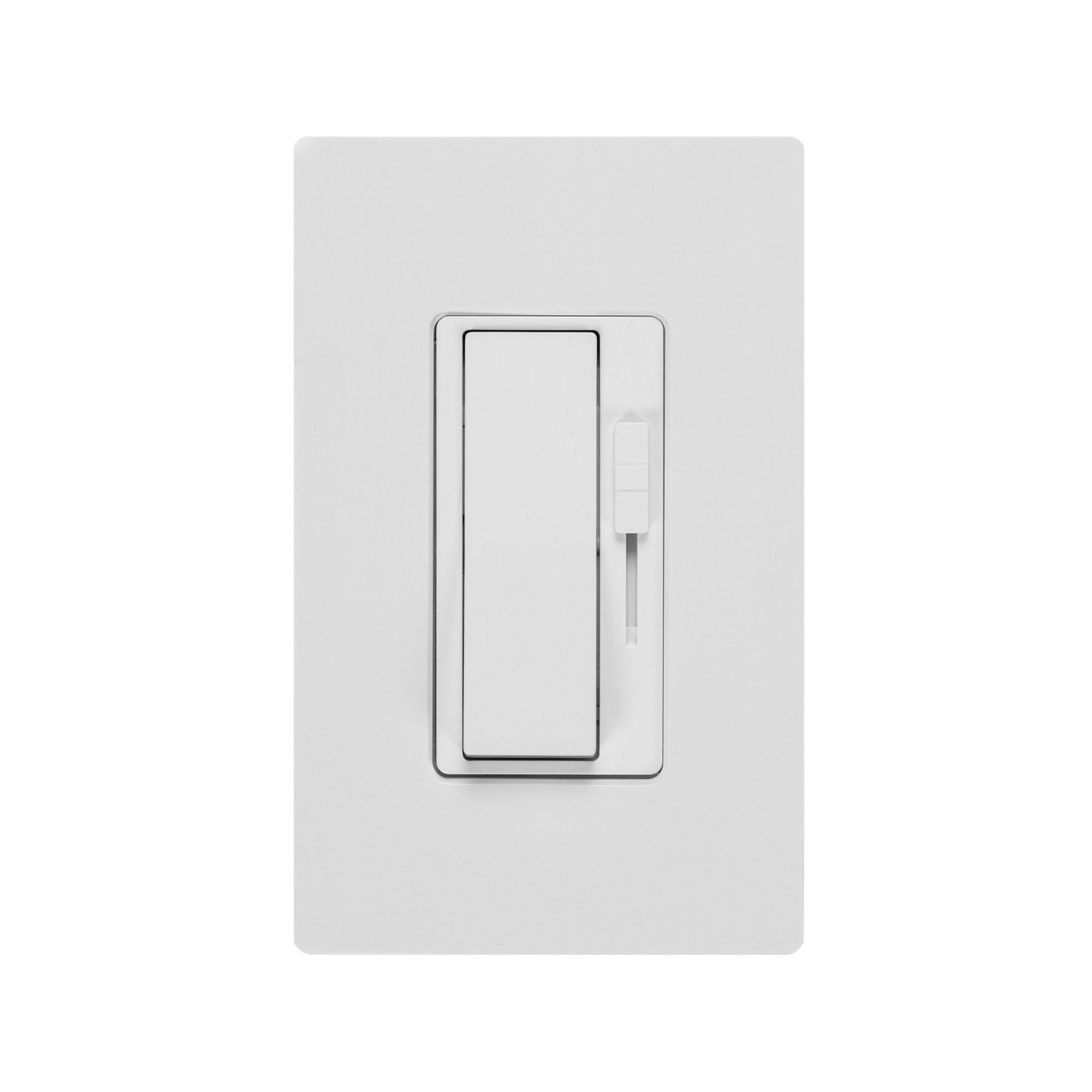

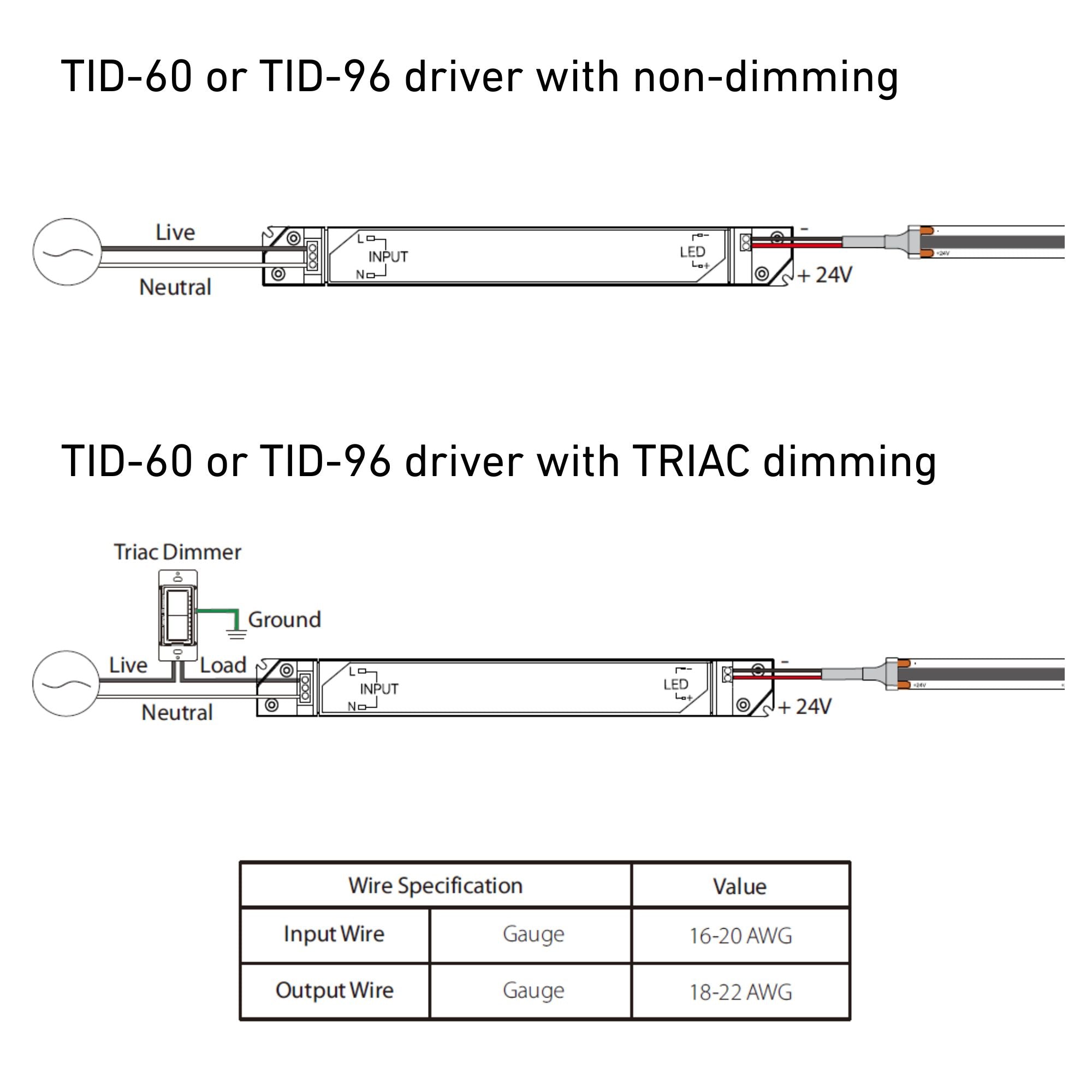

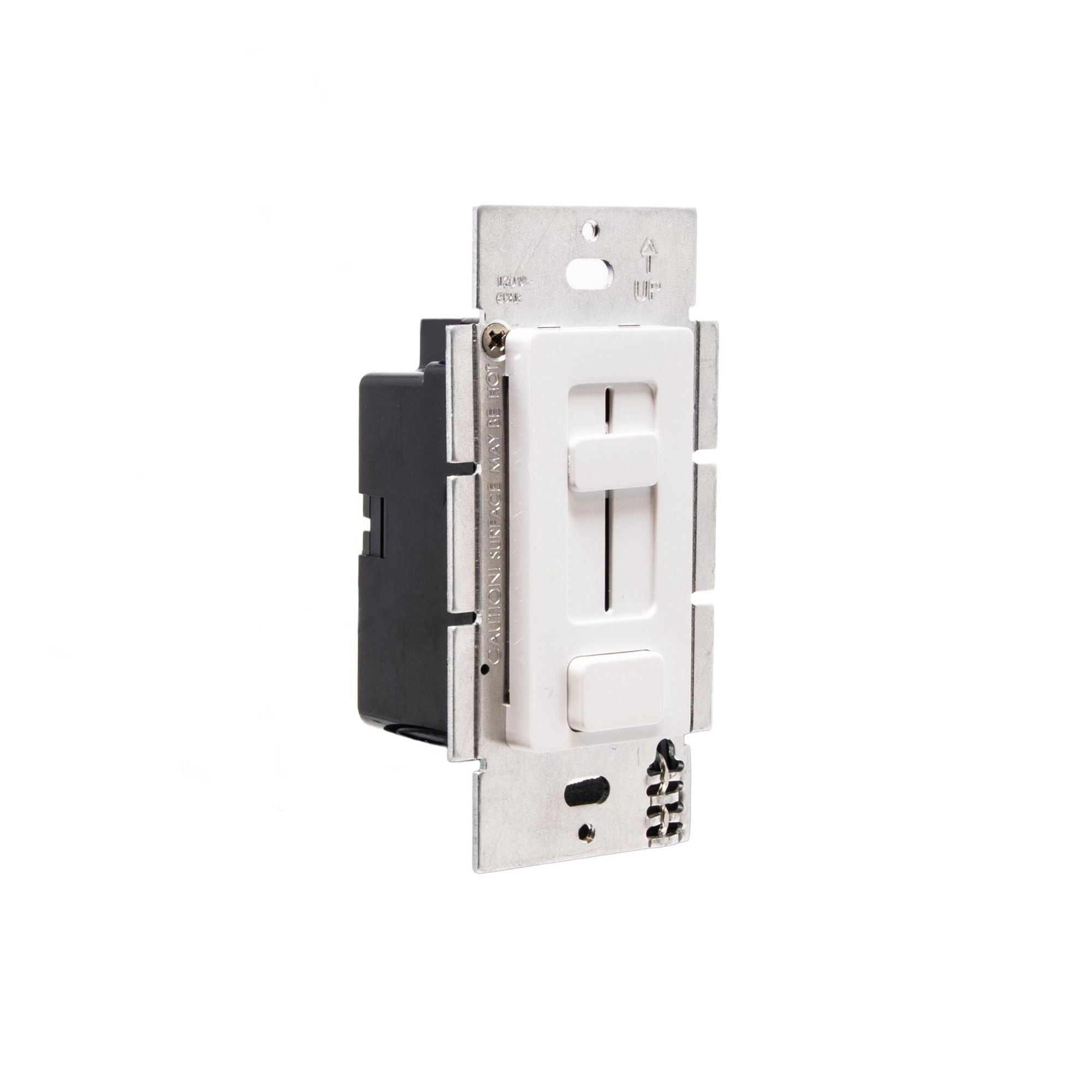

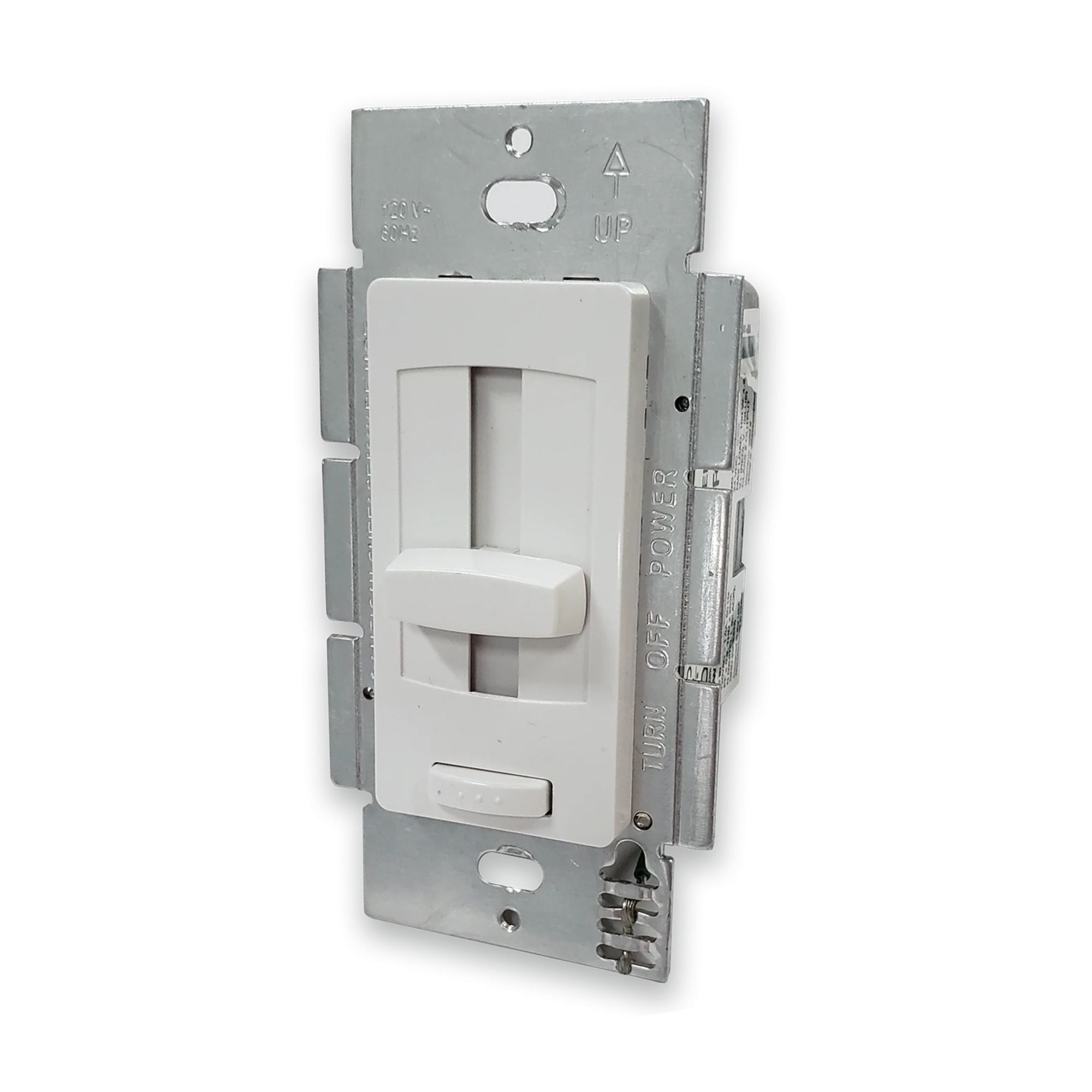

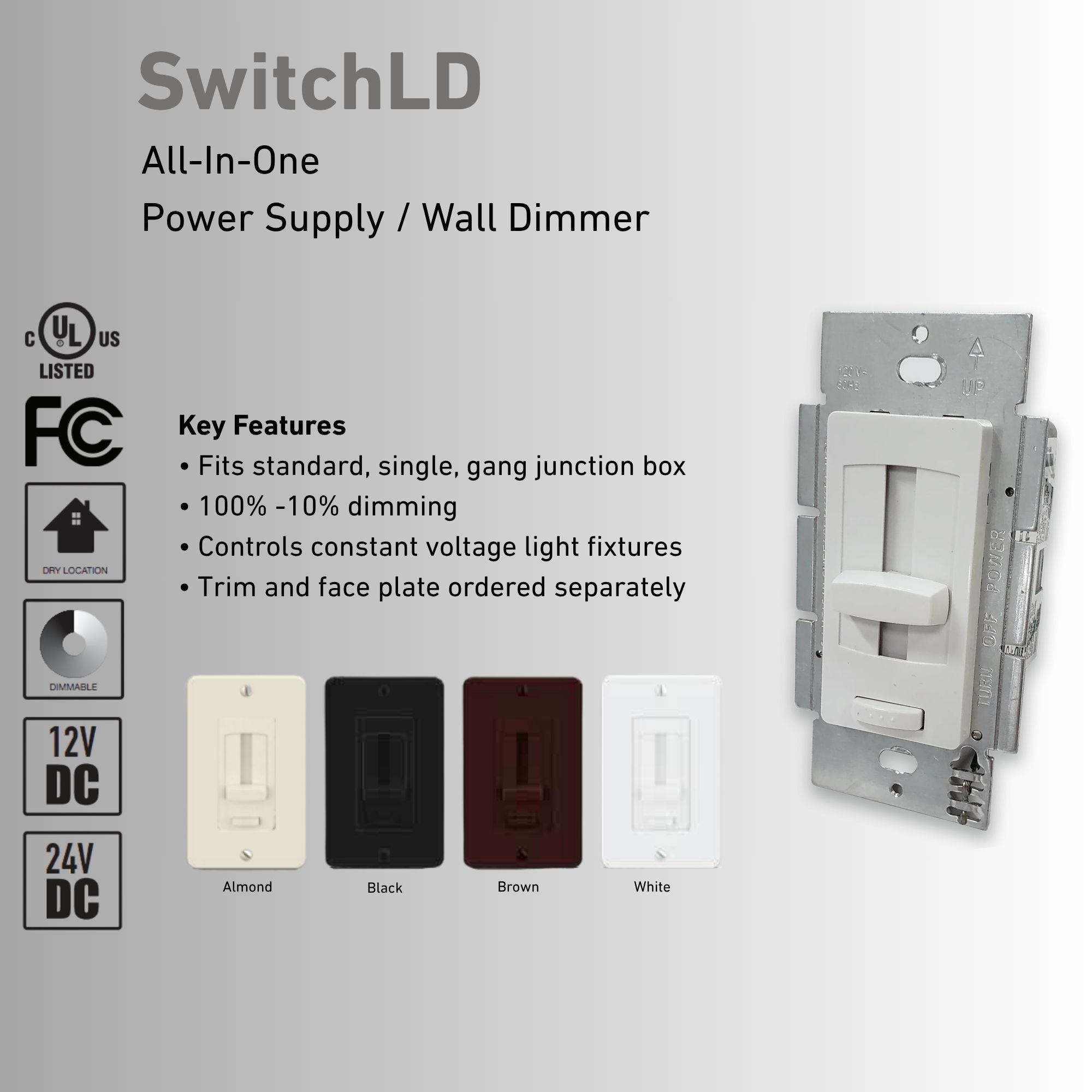

To control the brightness of your lights, you need a dimmable 24V LED driver. Verify that the driver's dimming protocol (e.g., Triac, ELV, 0-10V) is compatible with your wall switch or control system for smooth, effective dimming.
For fixtures that require regulated current rather than 24V constant-voltage output, review our constant-current LED drivers and match the driver to the fixture specification.
Find Your 24V Power Supply Today
For large-scale projects that demand efficiency and flawless performance, a 24V power supply is the superior choice. Bees Lighting carries a complete range of powerful and reliable drivers for any application. Browse our collection to find the perfect constant voltage LED driver for your next project.
