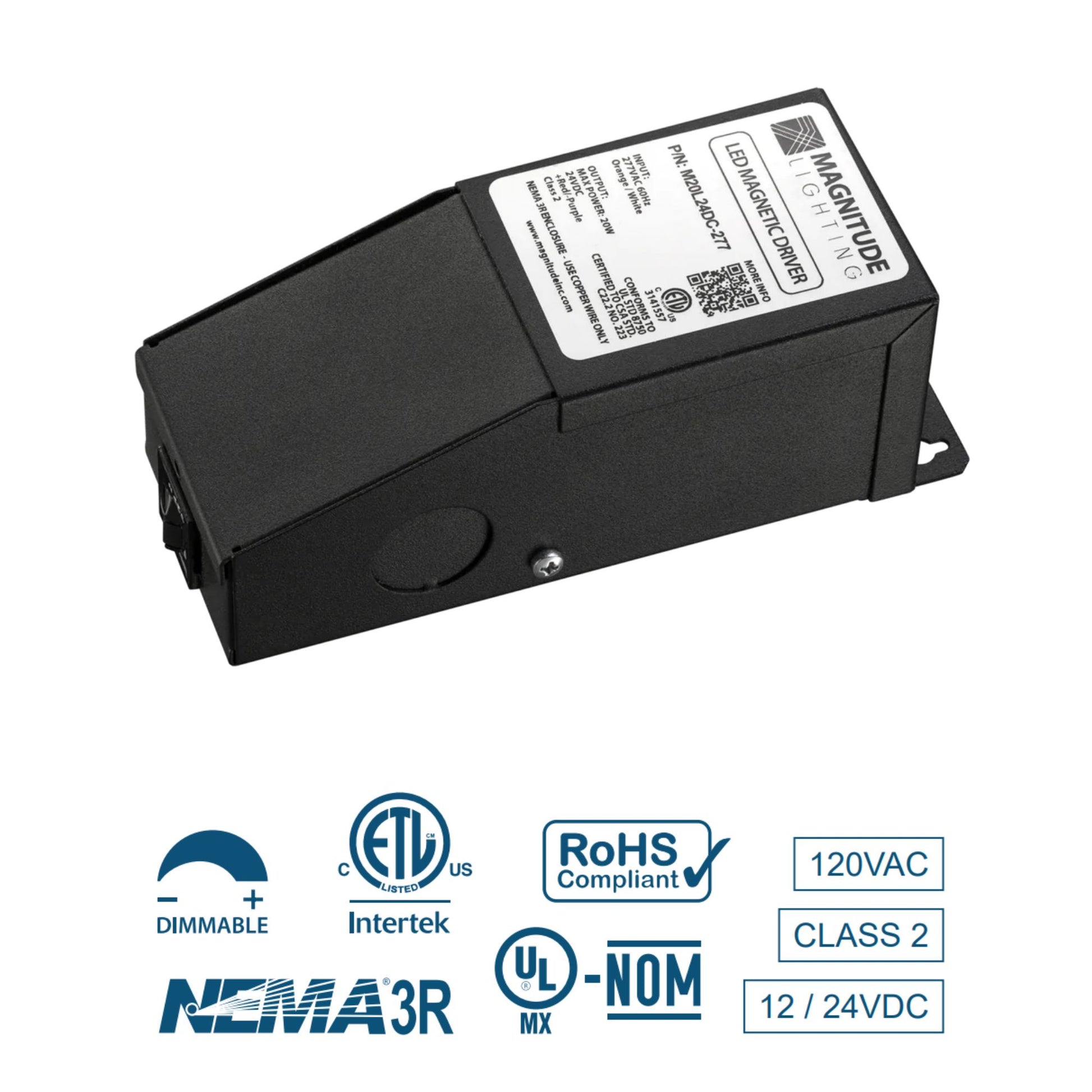

M-Series 300W 24VDC Magnetic Phase Dimmable LED Driver, 120V
Available in stock (24)
About this item
About this item
- 24VDC Constant Voltage Output: 300W magnetic LED driver for 24V LED tape and linear lighting loads
- Phase Dimming (MLV TRIAC): Leading (forward) edge MLV TRIAC dimmer only; dims down to 1%
- 120VAC Input: 120VAC ±5%, 50/60Hz input for standard line-voltage feeds
- Integrated Junction Box: Coated metal enclosure with multiple 7/8 in. knockouts and 2-hole flange mounting
- Built-In Protection: Primary and secondary circuit breakers (manual reset) to protect driver and LED load
We process payments securely and do not store credit card information.
Description
Description

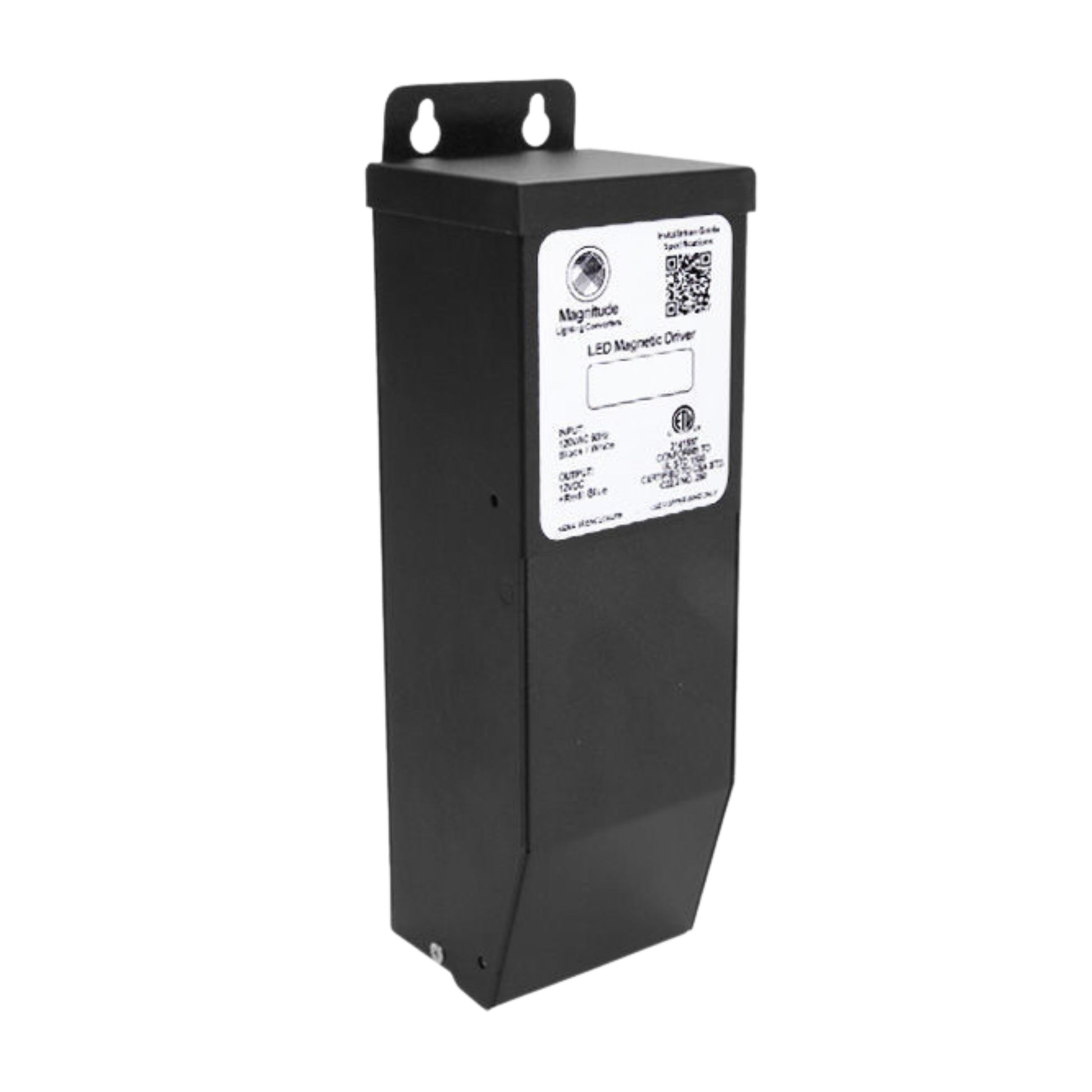

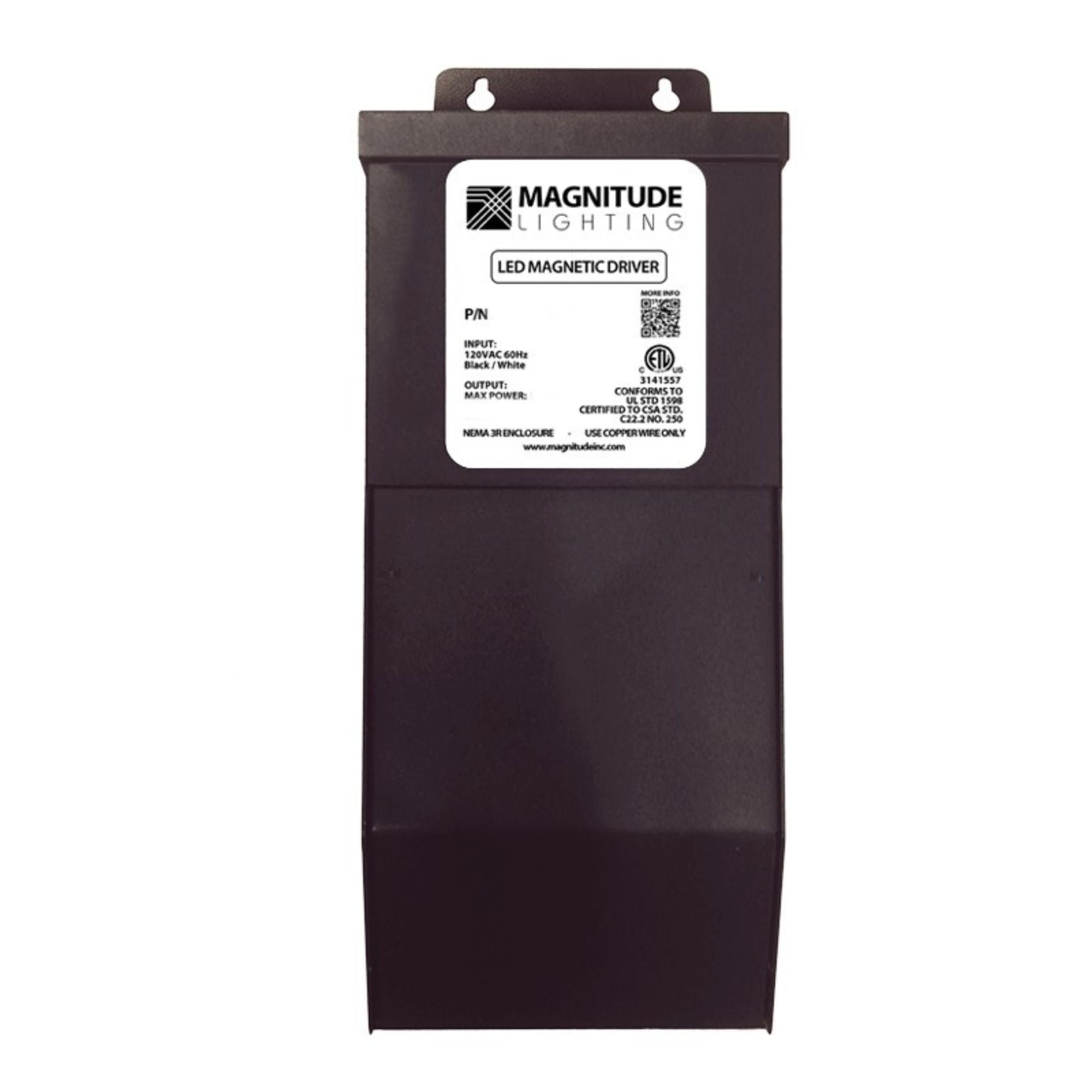

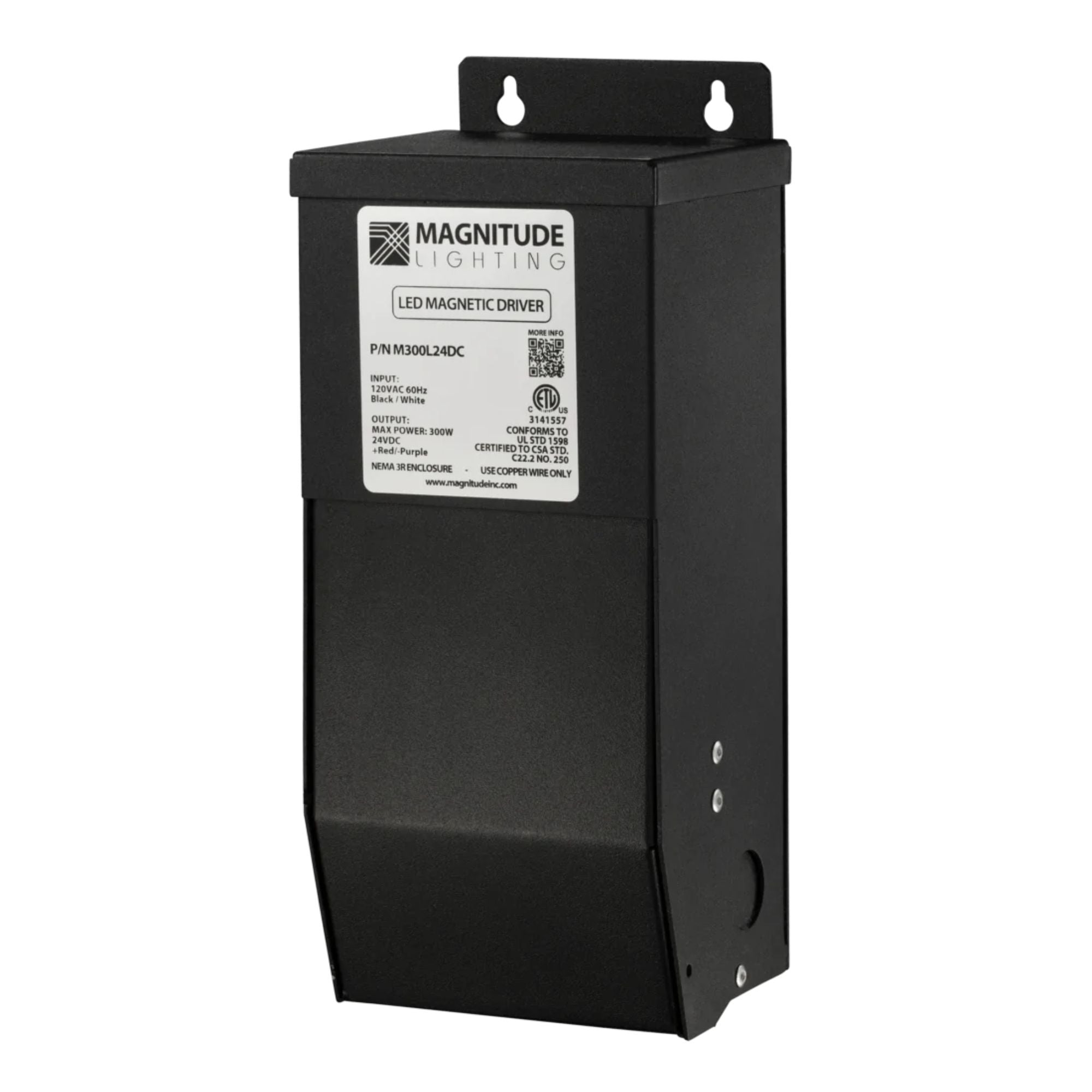

Magnitude Lighting M-Series 300W LED Driver — 24V DC
M300L24DC is a Magnitude Lighting LED Driver rated 300W with 120VAC input and 24V DC Constant Voltage output. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and supports dimming down to 1%. The coated metal housing includes an Integrated Junction Box with multiple 7/8 in. knockouts for streamlined wiring and mounting.
Key Features
- Power: 300W max
- Input Voltage: 120VAC ± 5%, 50/60Hz
- Output Voltage: 24VDC
- Dimming: Phase dimmable with leading (forward) edge MLV TRIAC dimmer only; 1% minimum dimming level

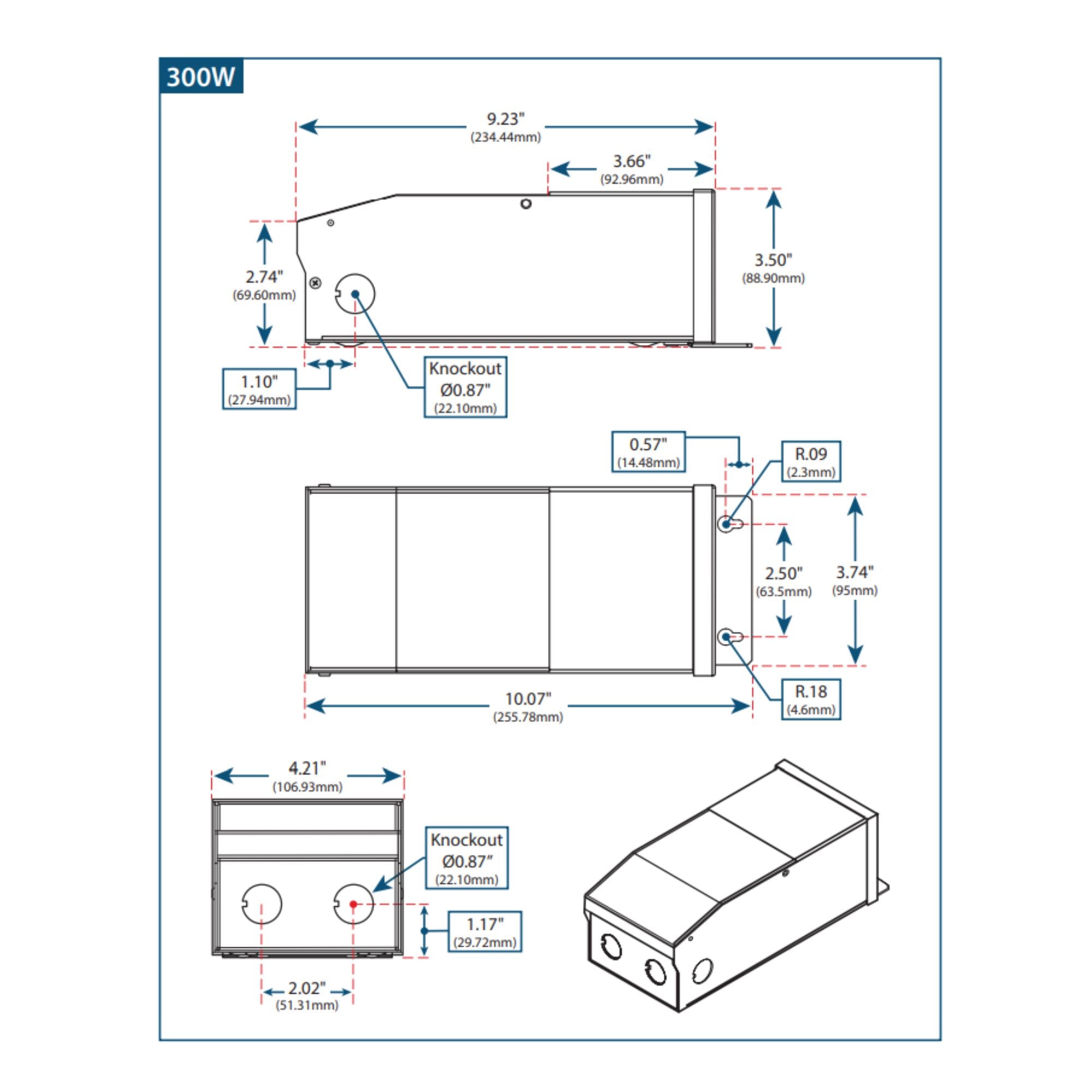

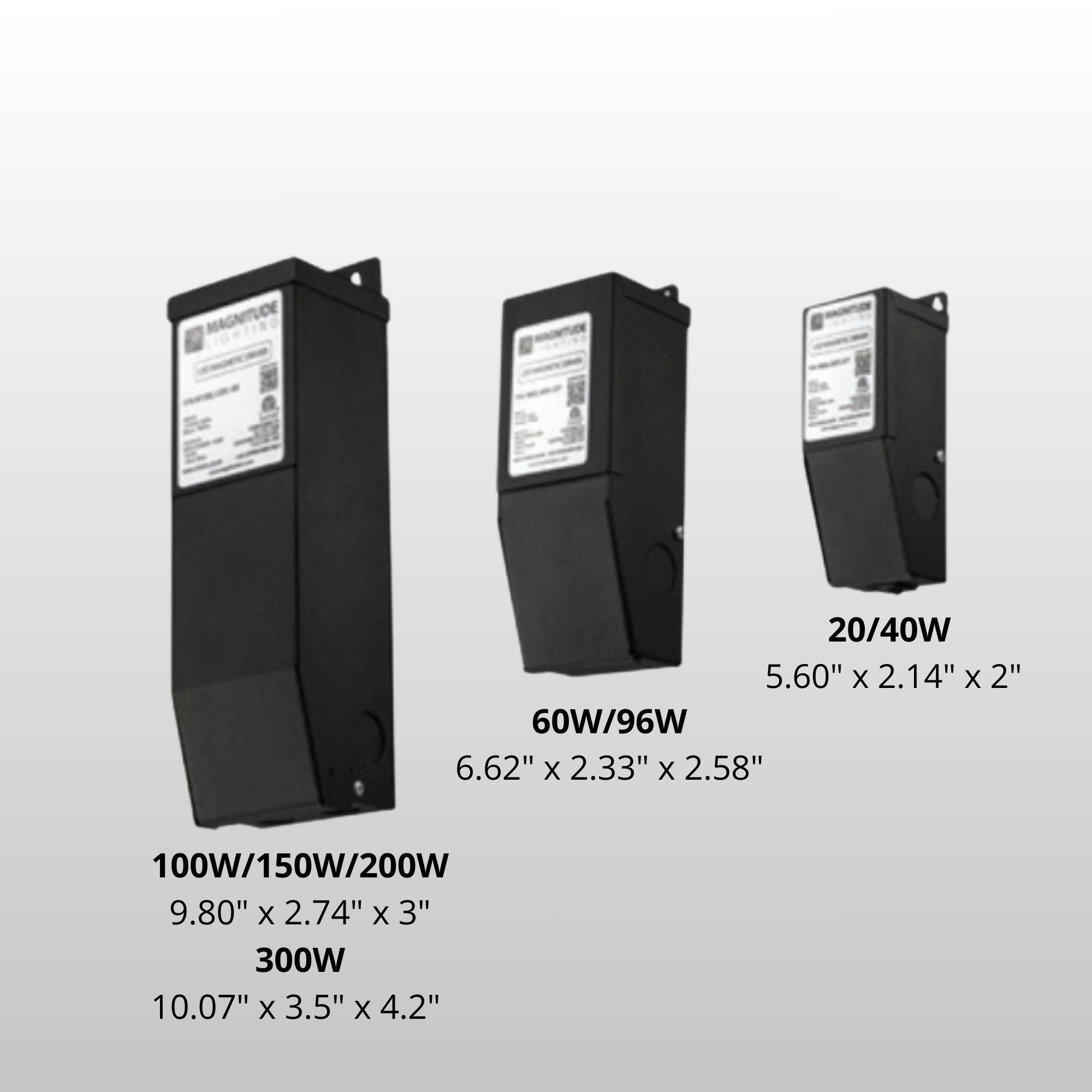

- Dimensions: 10.07 in. L x 4.20 in. W x 3.50 in. H
- Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts; 2-hole flange mount
- Environmental: Dry & Damp
- Certifications: ETL Listed; Conforms to UL STD 2108; C22.2 No. 223
- Protection: Primary & secondary circuit breakers; manual reset
Physical Design & Installation

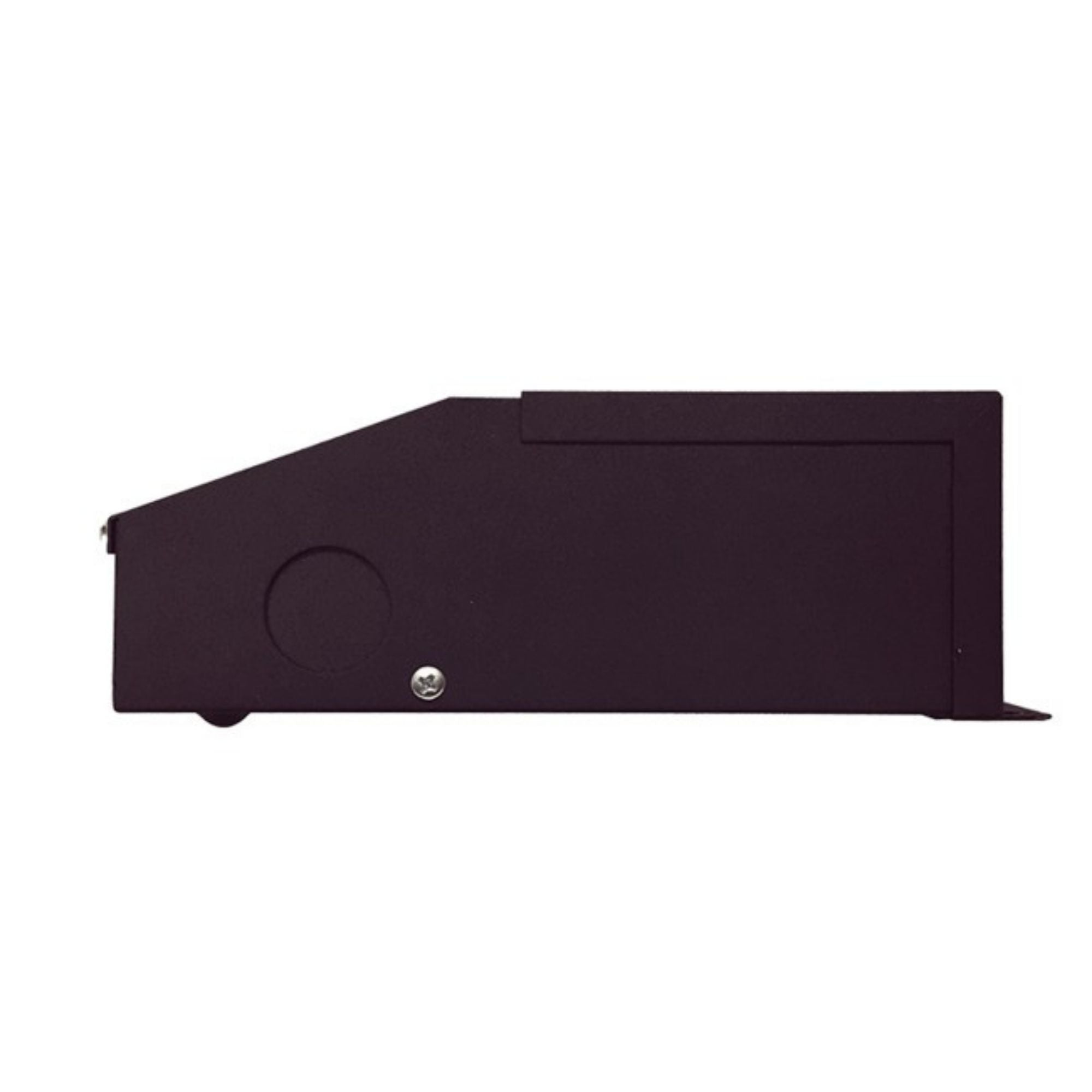

Built in a coated metal enclosure with an Integrated Junction Box and multiple 7/8 in. knockouts to route line and low-voltage conductors. Mount using the 2-hole flange and maintain the specified 5 in. minimum installation spacing.
Dimming & Controls
Phase dimming is supported with a standard leading-edge (forward phase) MLV TRIAC dimmer only. Output is 24V DC Constant Voltage for compatible 24V LED loads; minimum dimming level is 1%.
Performance & Build
Designed with primary and secondary circuit breaker protection (manual reset) to help protect both the driver and connected LED load. Rated for Dry & Damp environments and ETL Listed per UL 2108 and C22.2 No. 223.

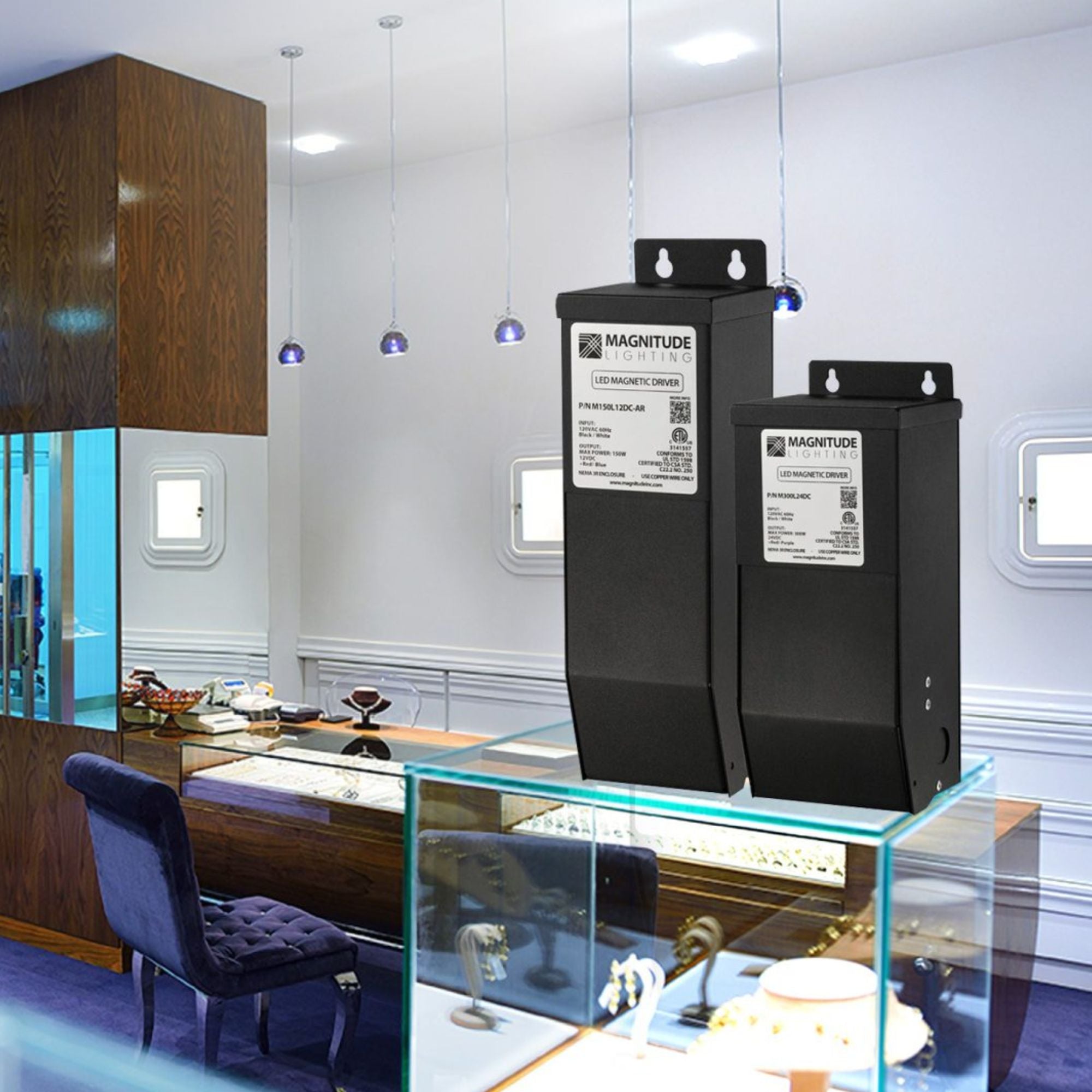

Typical Applications
- 24V LED tape and accent lighting
- Linear and under-cabinet lighting systems
- Residential and commercial dimmable LED retrofits
- Dry and damp location installations
