OMNIDRIVE X 200W 24VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (199)
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Dimming: Multi-Protocol (ELV, TRIAC, 0-10V)
- Input Voltage: Universal 120-277V
- Enclosure: Integrated Junction Box for outdoor use
- Protection: Automatic recovery from fault conditions
We process payments securely and do not store credit card information.
Description
Description
Diode LED OMNIDRIVE X 200W Driver — 24V DC
The Diode LED DI-ODX-24V200W-J is a high-performance 200W LED Driver designed for versatile applications with a 24V DC output. It supports multi-protocol dimming including ELV, TRIAC, and 0-10V systems, providing seamless integration with various lighting controls. This driver operates on a universal input voltage of 120-277V and features an Integrated Junction Box for secure outdoor installations.
Key Features
- Power: 200W maximum load
- Input Voltage: 120-277V AC
- Output Voltage: 24V DC
- Dimming: ELV, TRIAC, 0-10V
- Minimum Load: No minimum load required

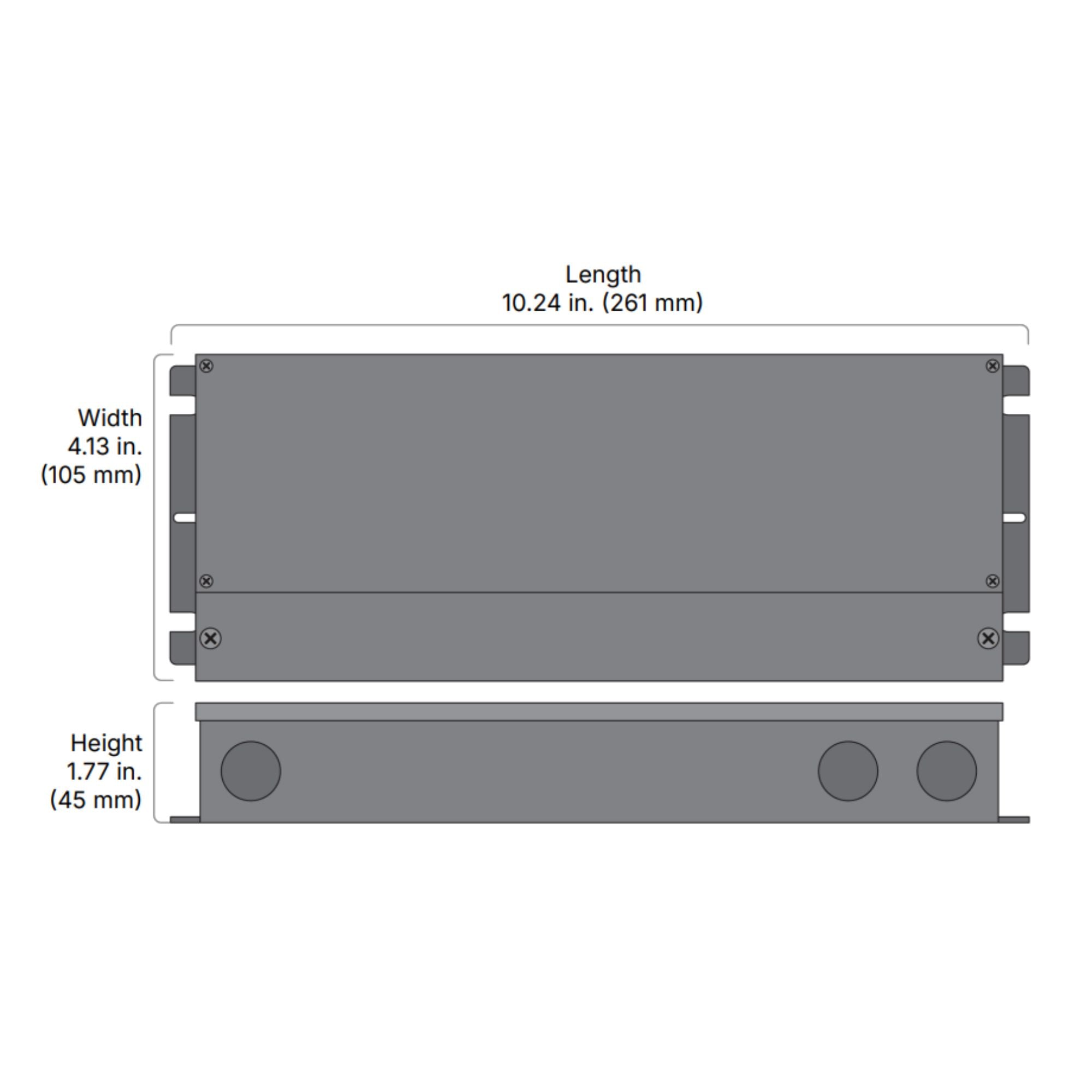

- Dimensions: 10.24 in. L x 4.13 in. W x 1.77 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R for wet locations
- Certifications: cULus, UL 1310, FCC Part 15
Physical Design & Installation
The driver is housed in a robust enclosure with an integrated junction box, suitable for outdoor and wet locations, ensuring durability and ease of installation.
Dimming & Controls
Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers flexibility in lighting control without a minimum load requirement.
Performance & Build
Features include automatic recovery from short circuit and over-voltage conditions, ensuring reliable operation. It is NEMA 3R rated for outdoor use.
Typical Applications
- Outdoor lighting systems
- Commercial LED installations
- Architectural lighting projects
- Residential landscape lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocols are supported by the DI-ODX-24V200W-J?
What dimming protocols are supported by the DI-ODX-24V200W-J?
Is there a minimum load requirement for the DI-ODX-24V200W-J?
Is there a minimum load requirement for the DI-ODX-24V200W-J?
Does the DI-ODX-24V200W-J include an integrated junction box?
Does the DI-ODX-24V200W-J include an integrated junction box?
What input voltage range does the DI-ODX-24V200W-J support?
What input voltage range does the DI-ODX-24V200W-J support?
What is the IP rating of the DI-ODX-24V200W-J?
What is the IP rating of the DI-ODX-24V200W-J?
