E-Series 60W 24VDC Dimmable LED Driver, Class 2, 120V, NEMA 3R, UL Enclosure
Available in stock (27)
About this item
About this item
- 60W Constant Voltage Output: Regulated 24V DC output for compatible 24V LED tape and fixtures
- TRIAC Dimming to 1%: Forward-phase dimmable for smooth low-end control (minimum dimming level 1%)
- 120VAC Input: 120VAC ± 10%, 50/60 Hz input for standard line-voltage installs
- Integrated Junction Box: Built-in wiring compartment with two 1/4 in. trade size (3/8 in.) knockouts for clean connections
- Protection & Efficiency: Short circuit and over-voltage auto-reset protection with >90% efficiency
We process payments securely and do not store credit card information.
Description
Description

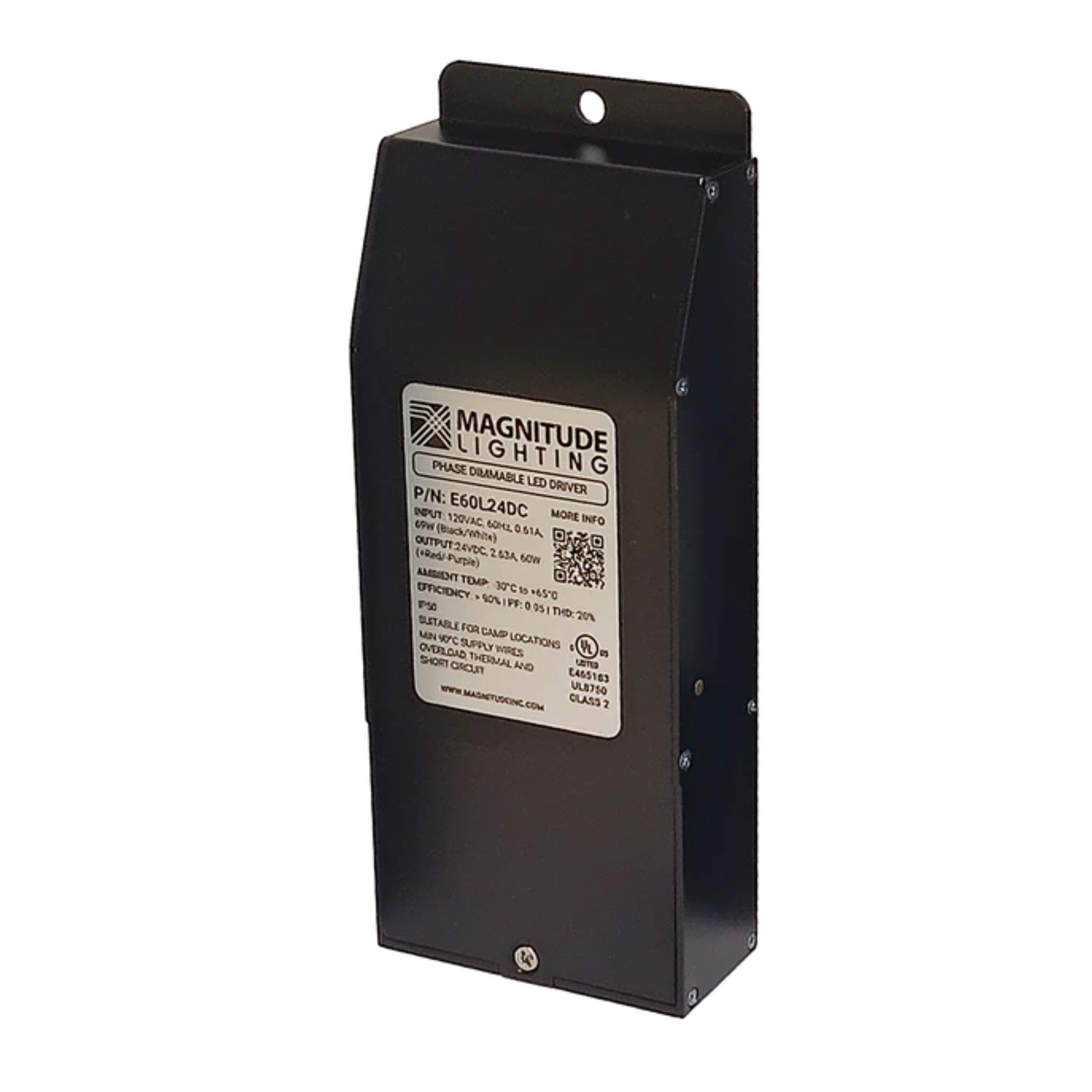

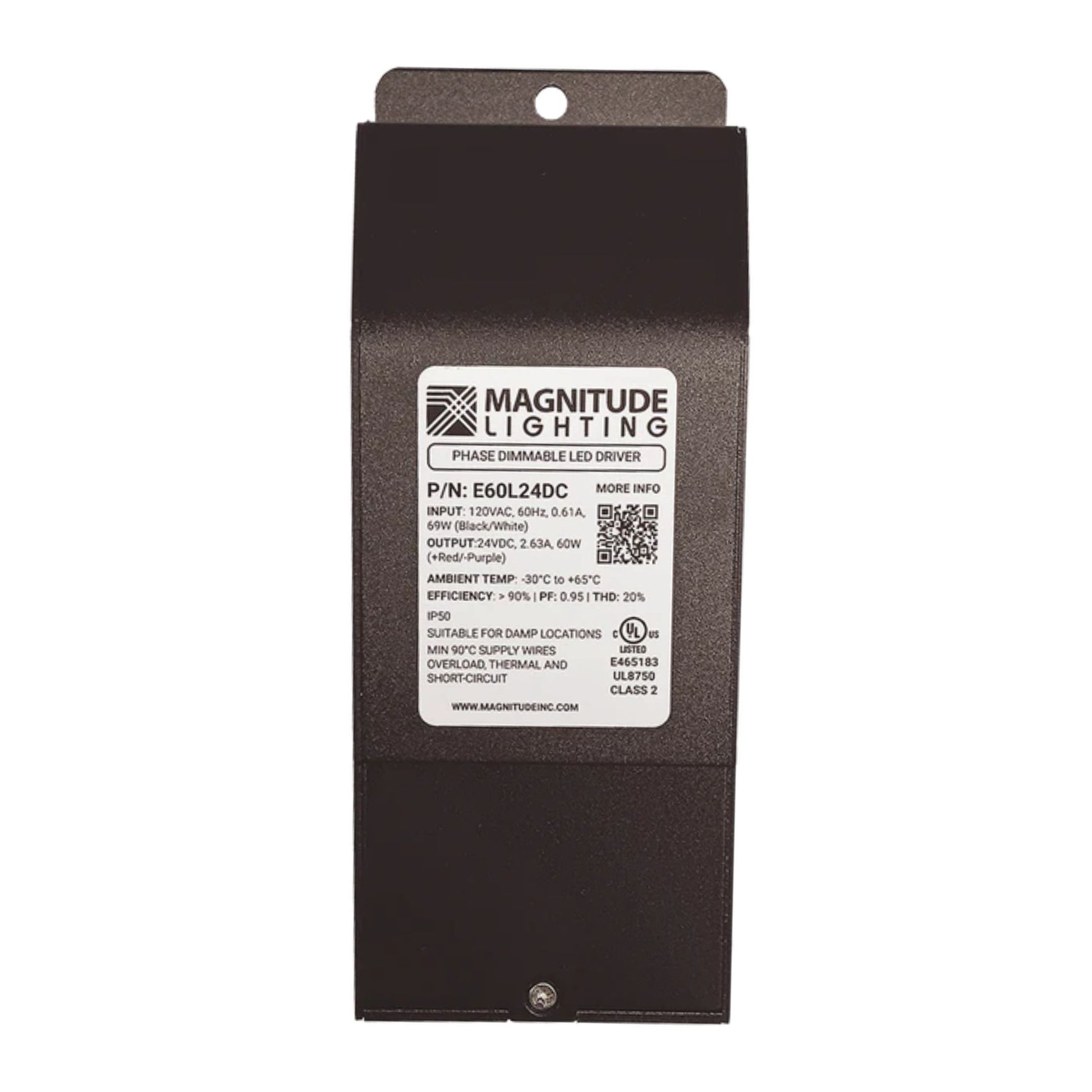

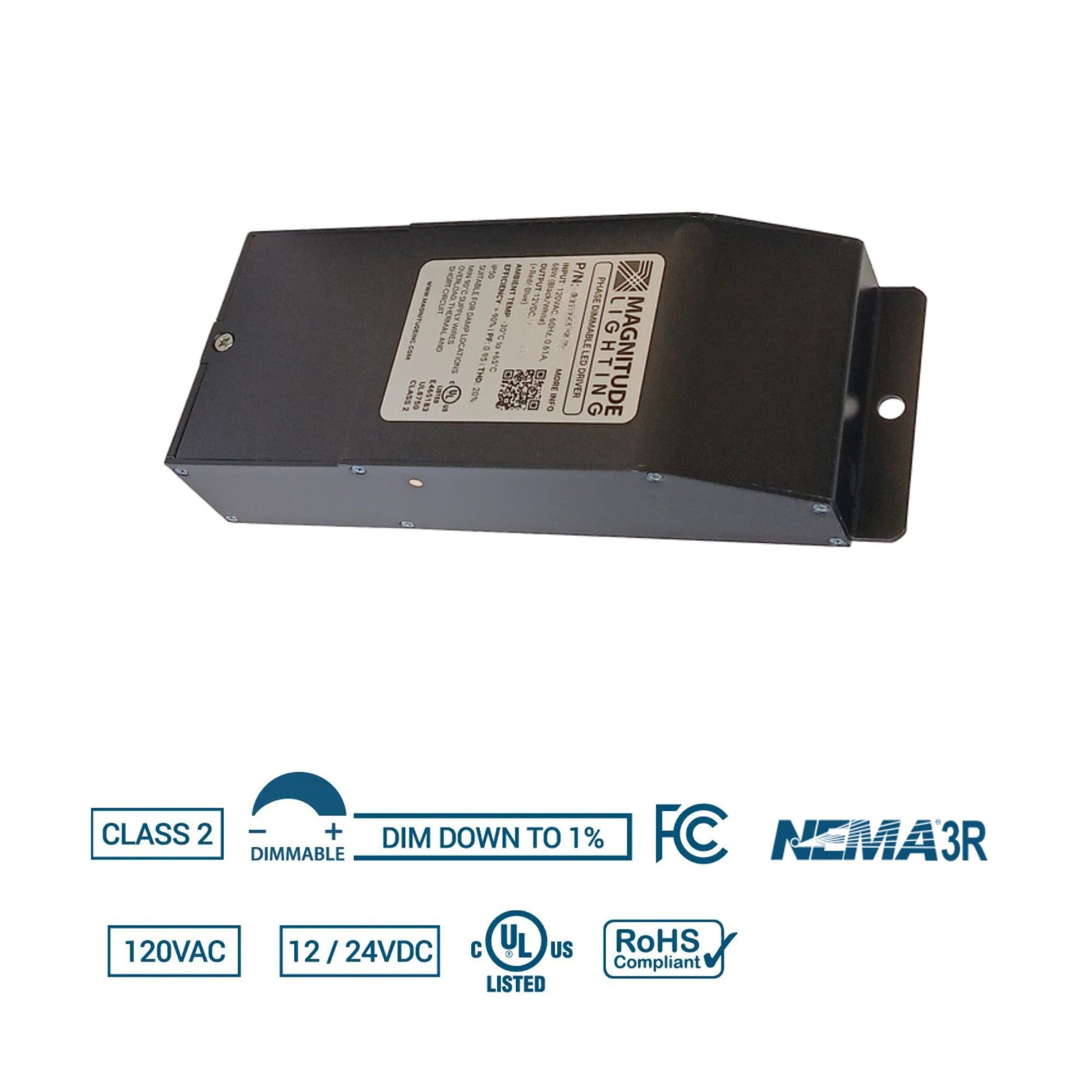

Magnitude Lighting E-Series 60W LED Driver — 24V DC
E60L24DC is a Magnitude Lighting LED Driver rated 60W with 120VAC input and regulated 24V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and is UL8750 Class 2 for compatible low-voltage LED loads. The compact aluminum housing includes an Integrated Junction Box (integrated wiring compartment) with knockouts for streamlined installation.
Key Features
- Power: 60W maximum load
- Input Voltage: 120VAC ± 10%, 50/60 Hz
- Output Voltage: 24.0VDC at max load
- Output Current: 2.63A at max load (24VDC)
- Dimming: Forward-phase (TRIAC) dimmable, minimum dimming level 1%
- Minimum Load: 8W
- Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
- Enclosure Type: Integrated Junction Box with integrated wiring compartment and two 1/4 in. trade size (3/8 in.) knockouts
- IP Rating: NEMA 3R
- Certifications: UL8750, Class 2
Physical Design & Installation
Powder-coated aluminum housing designed for compact, easy-to-conceal mounting. The Integrated Junction Box provides a dedicated wiring compartment and includes two 1/4 in. trade size (3/8 in.) knockouts for conduit/strain-relief fittings.
Dimming & Controls
Supports forward-phase (TRIAC) dimming and is specified to dim down to 1%. For stable dimming performance, maintain the specified 8W minimum load on the driver output and use compatible forward-phase dimmers.
Performance & Build
Designed for high efficiency (>90%) to help reduce operating temperature. Protection includes short circuit and over-voltage auto-reset. UL8750 Class 2 construction and a NEMA 3R enclosure support demanding installations where a wiring compartment and weather-resistant housing are required.
Typical Applications
- 24V LED tape light runs (STD, HD, and COB types per compatibility chart)
- Under-cabinet and cove lighting systems
- Signage and architectural accent lighting
- Indoor or outdoor low-voltage LED installations requiring a NEMA 3R driver
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming method does this driver use?
What dimming method does this driver use?
Is there a minimum load requirement for dimming or operation?
Is there a minimum load requirement for dimming or operation?
Does it include an integrated junction box for wiring?
Does it include an integrated junction box for wiring?
What input voltage does it accept?
What input voltage does it accept?
What is the enclosure rating?
What is the enclosure rating?
This 60W 24VDC dimmable LED driver receives high praise from customers. Shoppers highlighted "great quality" materials and "impressive" finish. Customers report "good value" and fast delivery, with one noting they "got the product faster than usual." The driver performed well for commercial use, prompting repeat purchases.

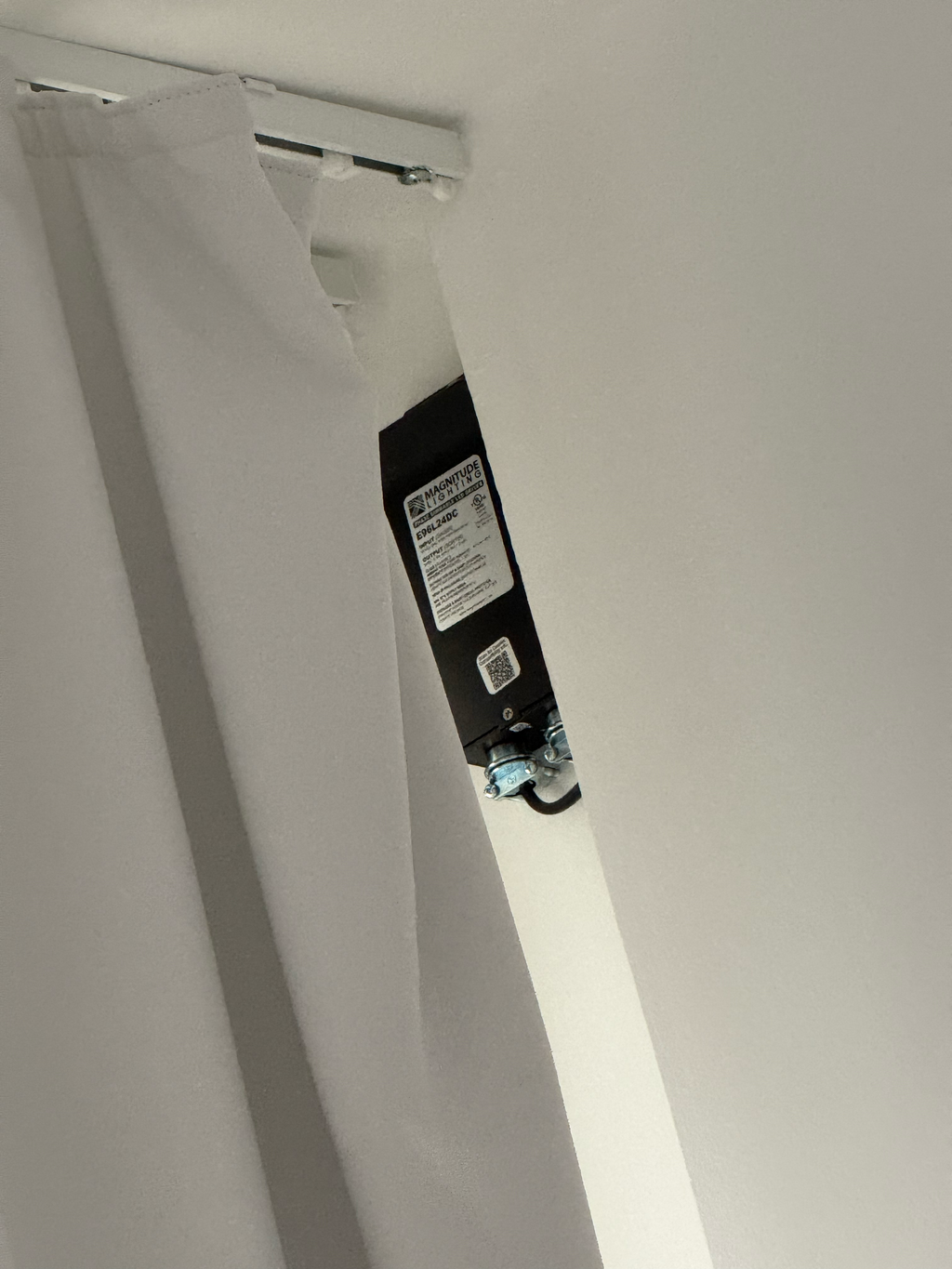

Perfect fit for my strip lights shinning down my curtains.
