RAB Lighting TID 60W LED Driver 24V DC Universal Dimming, 120-277V
Available in stock (200)
About this item
About this item
- Output Voltage: Delivers a consistent 24V DC output for reliable LED performance.
- Dimming: Features universal dimming compatibility with TRIAC, ELV, and 0-10V systems.
- Input Voltage: Operates efficiently across a wide range of 120-277V input voltages.

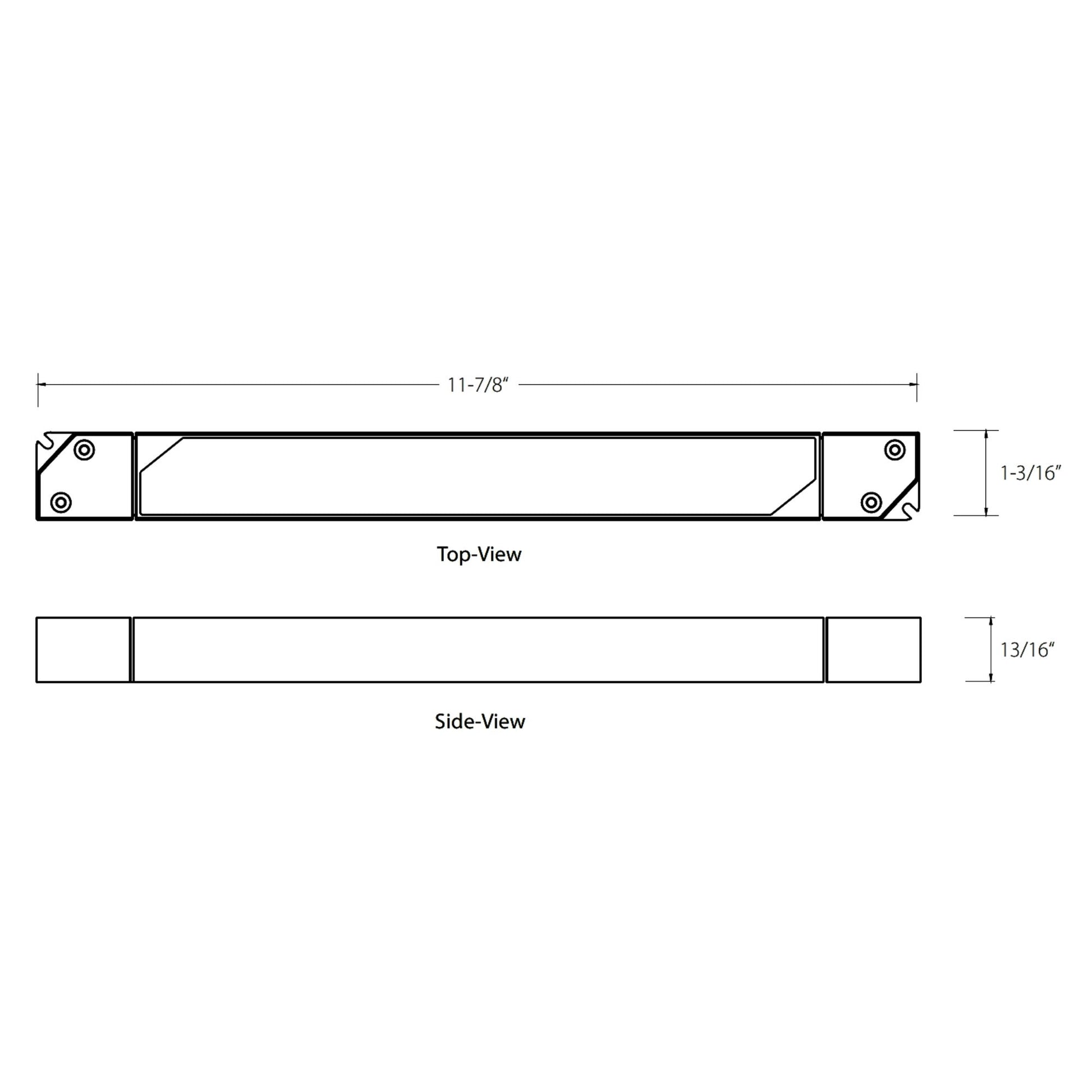

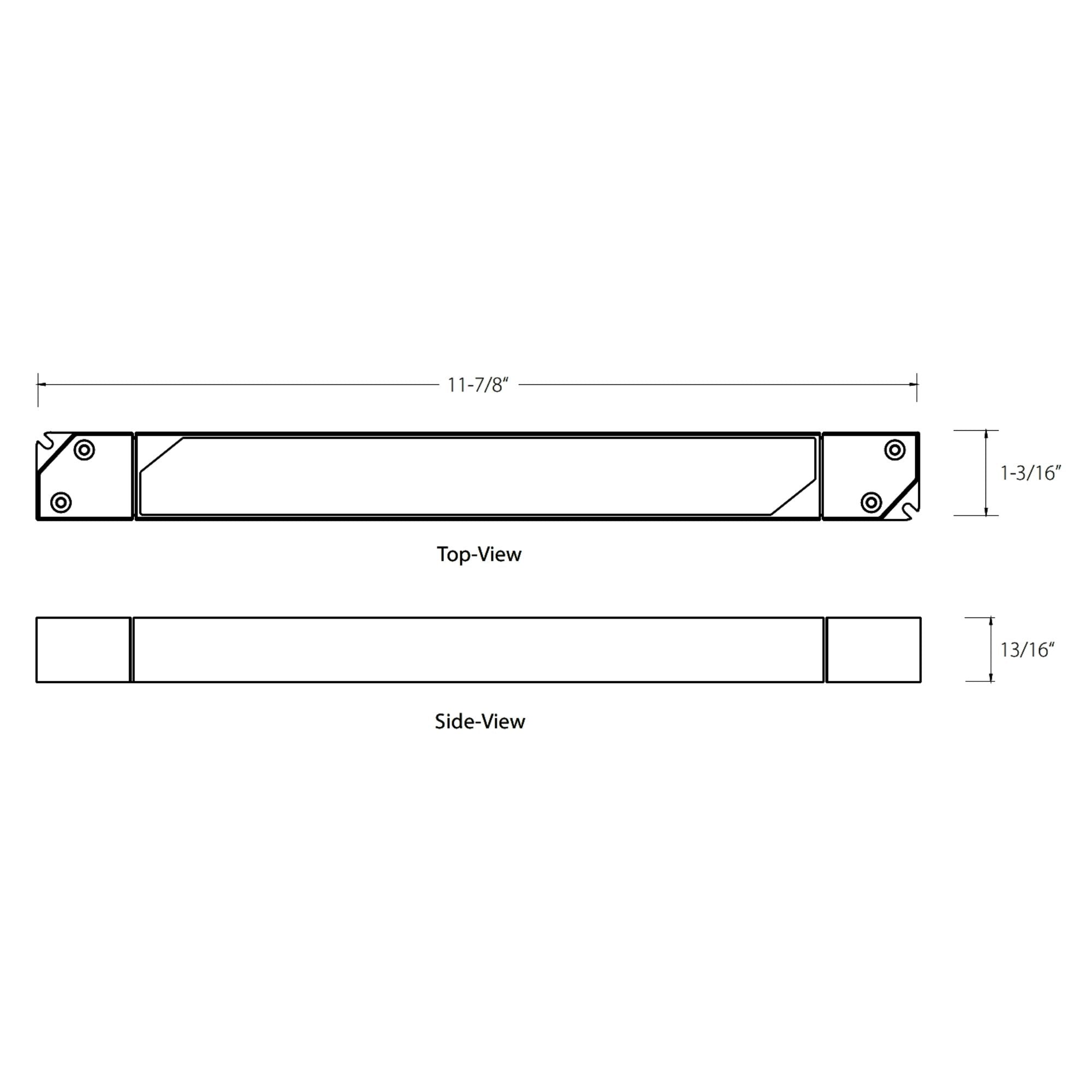

- Enclosure: Compact design with dimensions of 11.90 in. L x 1.20 in. W x 0.79 in. H for easy integration.
- Protection: IP20 rated for indoor use, ensuring safety in damp environments.
We process payments securely and do not store credit card information.
Description
Description

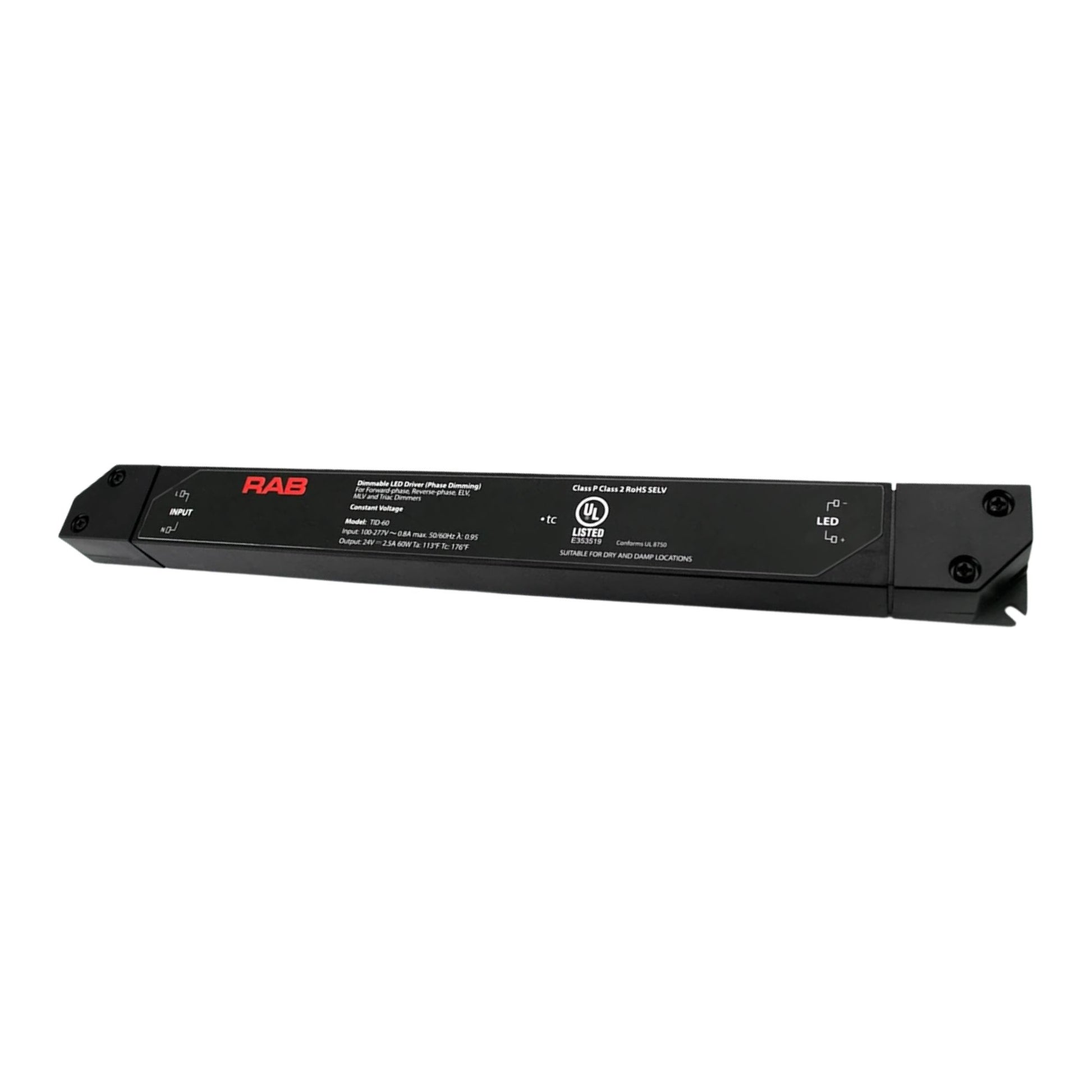

RAB Lighting TID-60 60W LED Driver — 24V DC
The RAB Lighting TID-60 is a versatile LED Driver designed for high-performance lighting applications. With a power rating of 60W, it provides a stable 24V DC output, making it ideal for constant voltage LED systems. This driver supports universal dimming, compatible with TRIAC, ELV, and 0-10V dimmers, ensuring seamless integration into various lighting setups. The Class 2 rating and IP20 enclosure make it suitable for indoor use in damp environments. The compact design, measuring 11.90 in. L x 1.20 in. W x 0.79 in. H, allows for easy installation.
Key Features
- Power Output: Provides a maximum output of 60W for efficient LED operation.
- Output Voltage: Consistent 24V DC output for reliable LED performance.
- Dimming Compatibility: Supports TRIAC, ELV, and 0-10V dimming systems for versatile control.
- Input Voltage Range: Operates on a wide input voltage range of 120-277V.
- Dimensions: Compact size of 11.90 in. L x 1.20 in. W x 0.79 in. H for easy installation.
- Enclosure Type: IP20 rated for indoor use, suitable for damp environments.
- Class 2 Rating: Ensures safety and compliance with electrical standards.
- Certifications: UL Listed and Title 24 JA8 compliant for quality assurance.
- Warranty: Backed by a 5-year limited warranty for peace of mind.
Physical Design & Installation
The driver features a compact design with an IP20 rated enclosure, suitable for indoor installations. Its dimensions allow for easy integration into various lighting setups.
Dimming & Controls

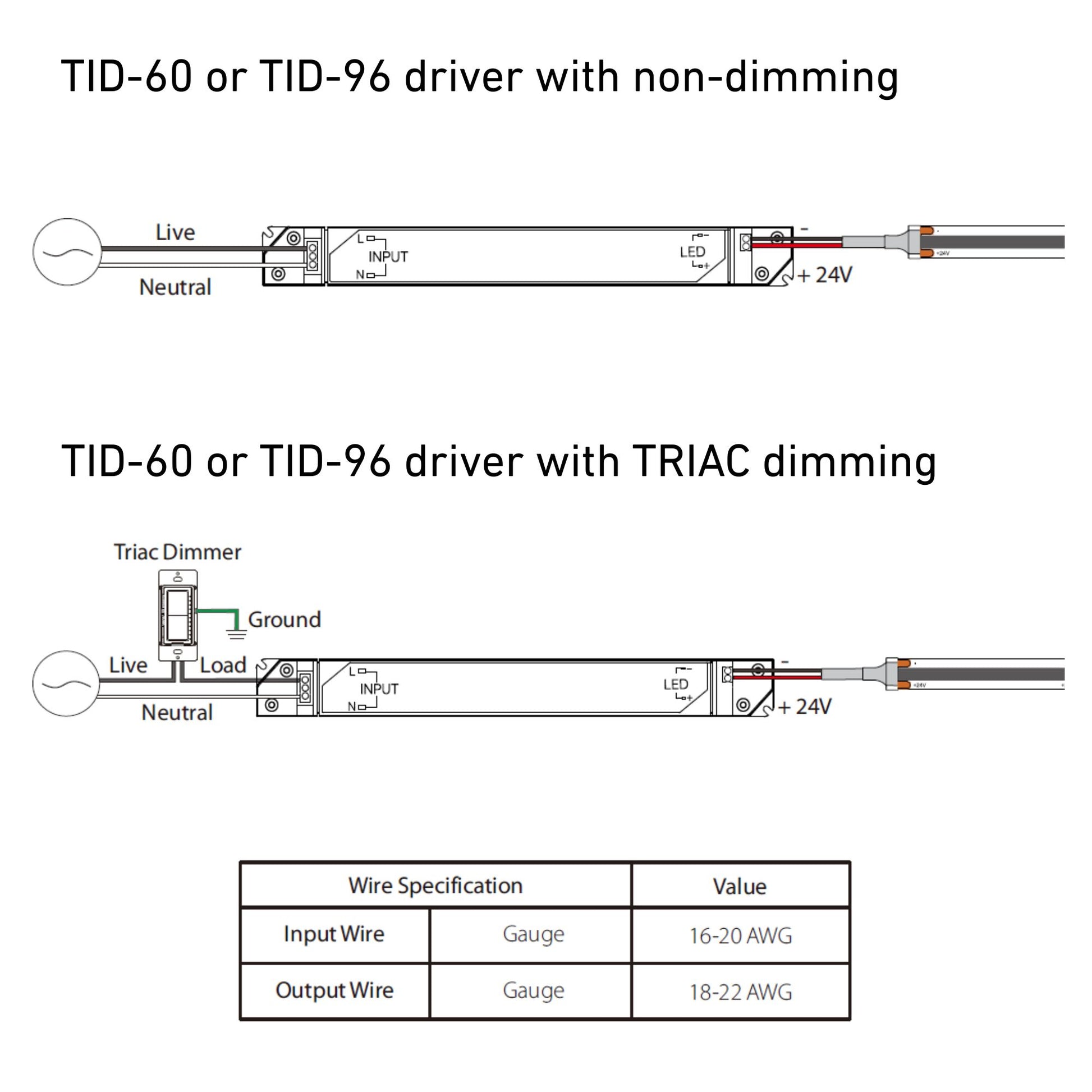

Compatible with TRIAC, ELV, and 0-10V dimming systems, the driver offers universal dimming capabilities. It operates efficiently across a 120-277V input range.
Performance & Build
Built with protection against short circuit, over-voltage, and thermal overload. The Class 2 compliance and IP20 rating ensure reliable performance in damp environments.
Typical Applications
- Commercial indoor lighting
- Residential LED installations
- Architectural lighting projects
- Retail lighting solutions
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
