American Lighting Adaptive 30W LED Driver 24V DC, Multi-Protocol Dimming, Wet Rated, 120-277V
Available in stock (19120)
About this item
About this item
- Output Voltage: Delivers a steady 24V DC output, ideal for consistent LED performance.
- Dimming: Supports multi-protocol dimming including TRIAC, MLV, and ELV for versatile lighting control.
- Input Voltage: Operates efficiently across a wide range of 120-277V AC input voltages.
- Enclosure: Features a robust aluminum enclosure with integrated wiring compartment for easy installation.
- Protection: Wet rated and Class 2 compliant, ensuring safe operation in various environments.
We process payments securely and do not store credit card information.
Description
Description

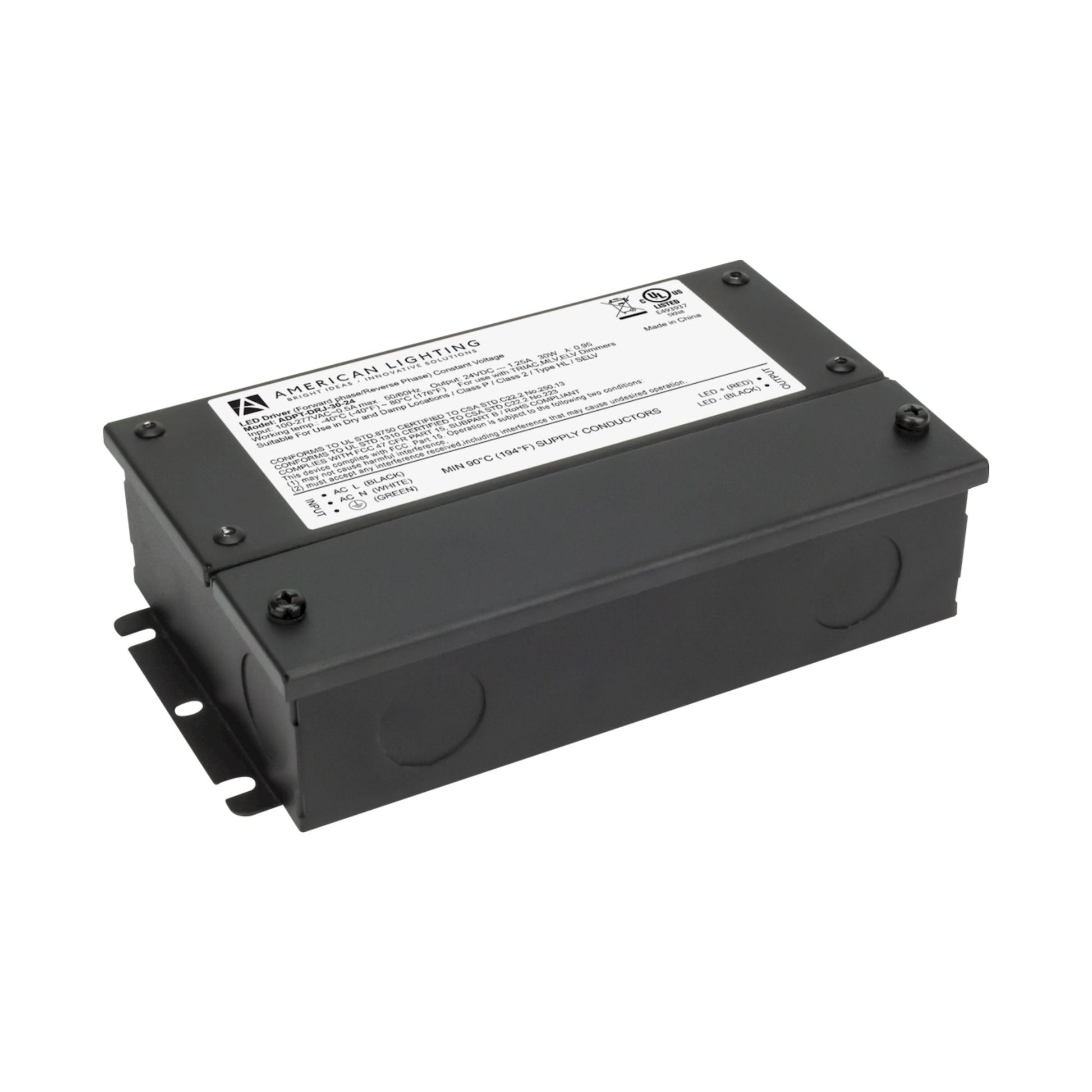

American Lighting Adaptive ADPT-DRJ-30-24 30W LED Driver — 24V DC
The American Lighting ADPT-DRJ-30-24 is a reliable 30W LED Driver designed to provide a consistent 24V DC output for various LED applications. This Constant Voltage driver is compatible with a wide range of dimming protocols, including TRIAC, MLV, and ELV, making it ideal for under cabinet lights, tape lights, and other LED fixtures. With an input voltage range of 120-277V, it offers flexibility for different installation environments. The driver is housed in a durable aluminum enclosure with an Integrated Junction Box, ensuring easy and secure installation.
Key Features
- Power Output: Provides a maximum power output of 30W for efficient LED operation.
- Output Voltage: Consistent 24V DC output for stable LED performance.
- Dimming Compatibility: Supports TRIAC, MLV, and ELV dimming protocols for versatile lighting control.
- Minimum Load: Operates efficiently with a minimum load of 3W.

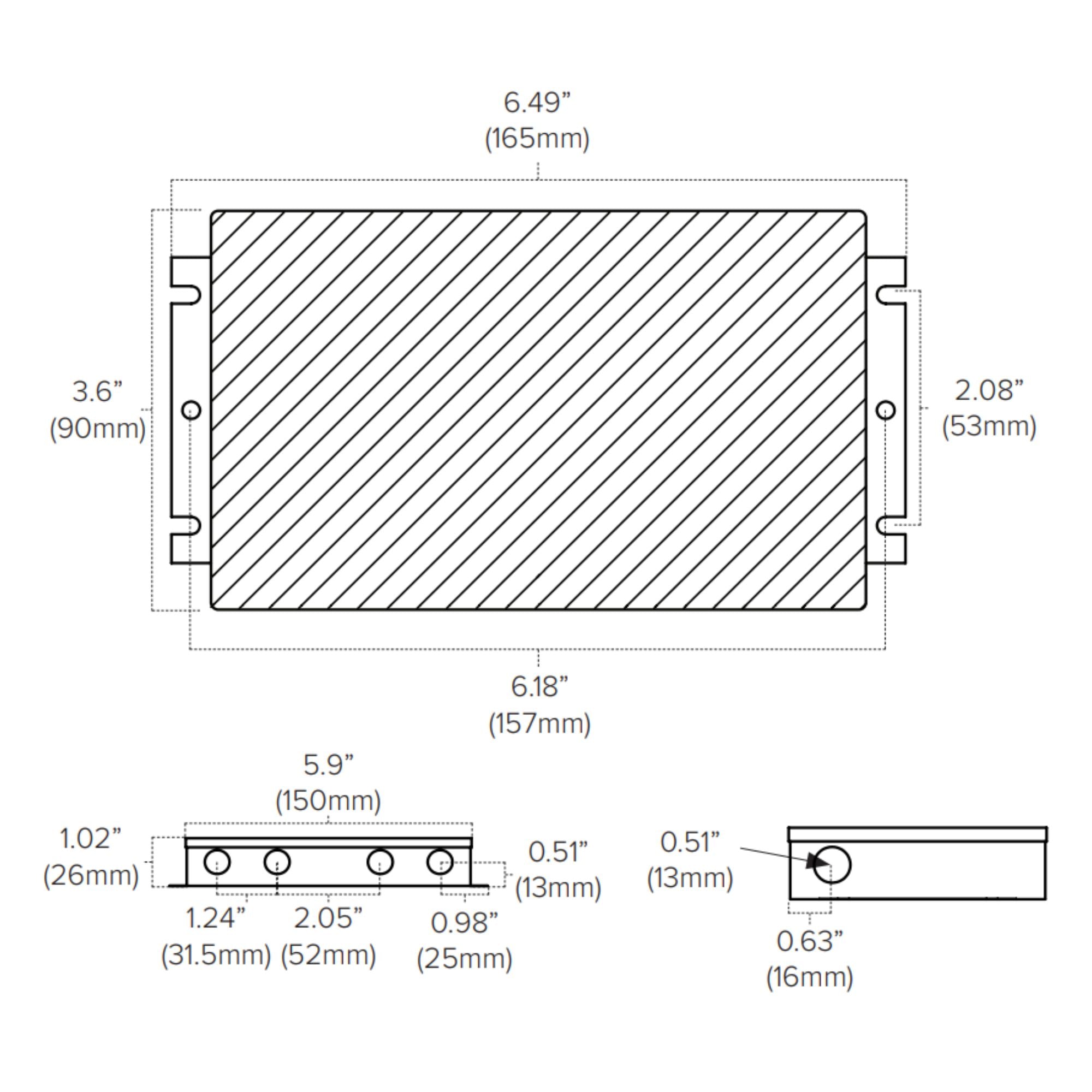

- Dimensions: Compact design measuring 6.50 in. L x 3.62 in. W x 1.02 in. H for easy integration.
- Enclosure Type: Durable aluminum enclosure with integrated wiring compartment for secure installation.
- IP Rating: Wet location rated for safe use in various environments.
- Class 2 Compliance: Ensures safe operation with low risk of electrical hazards.

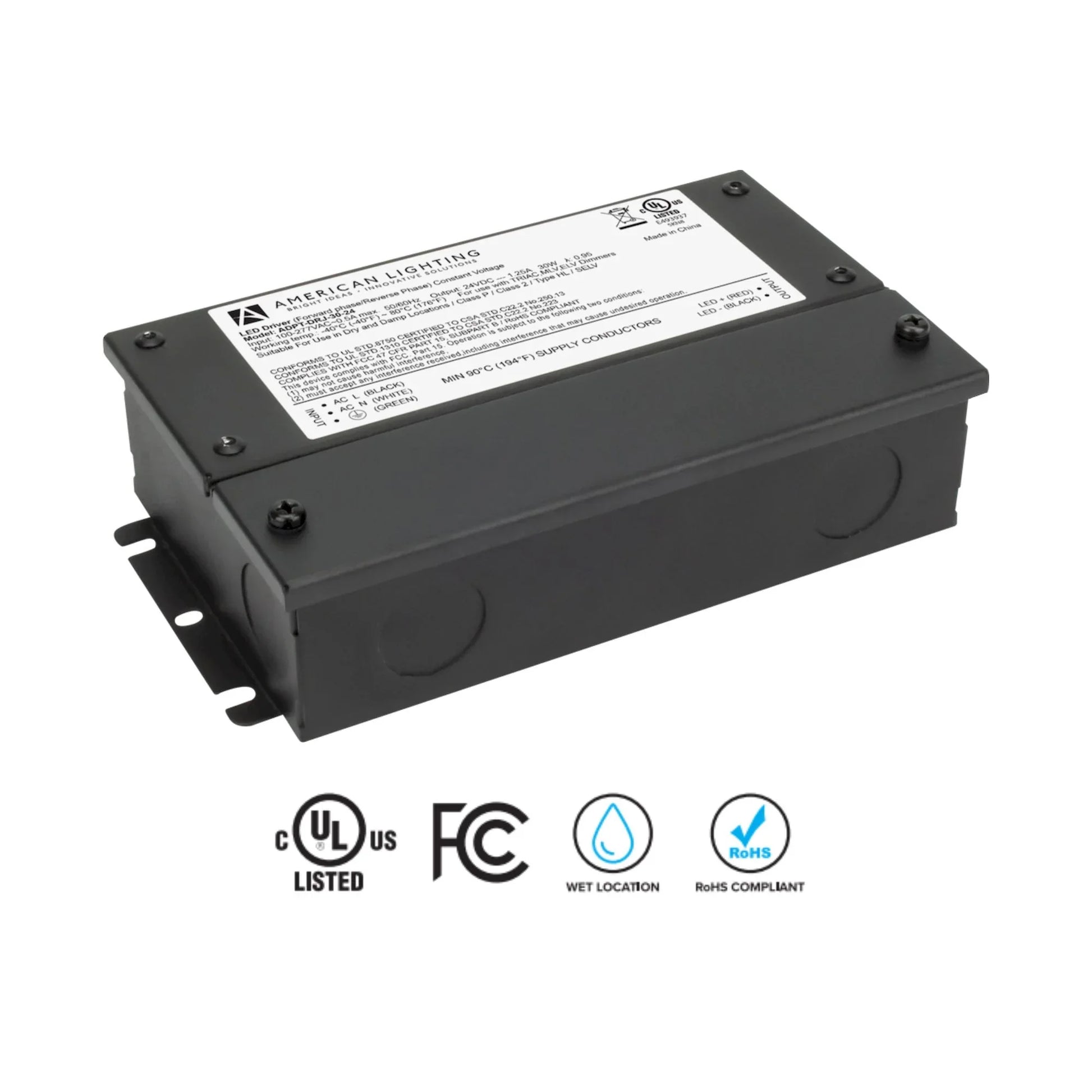

- Certifications: cULus Listed, FCC compliant for quality assurance.
Physical Design & Installation

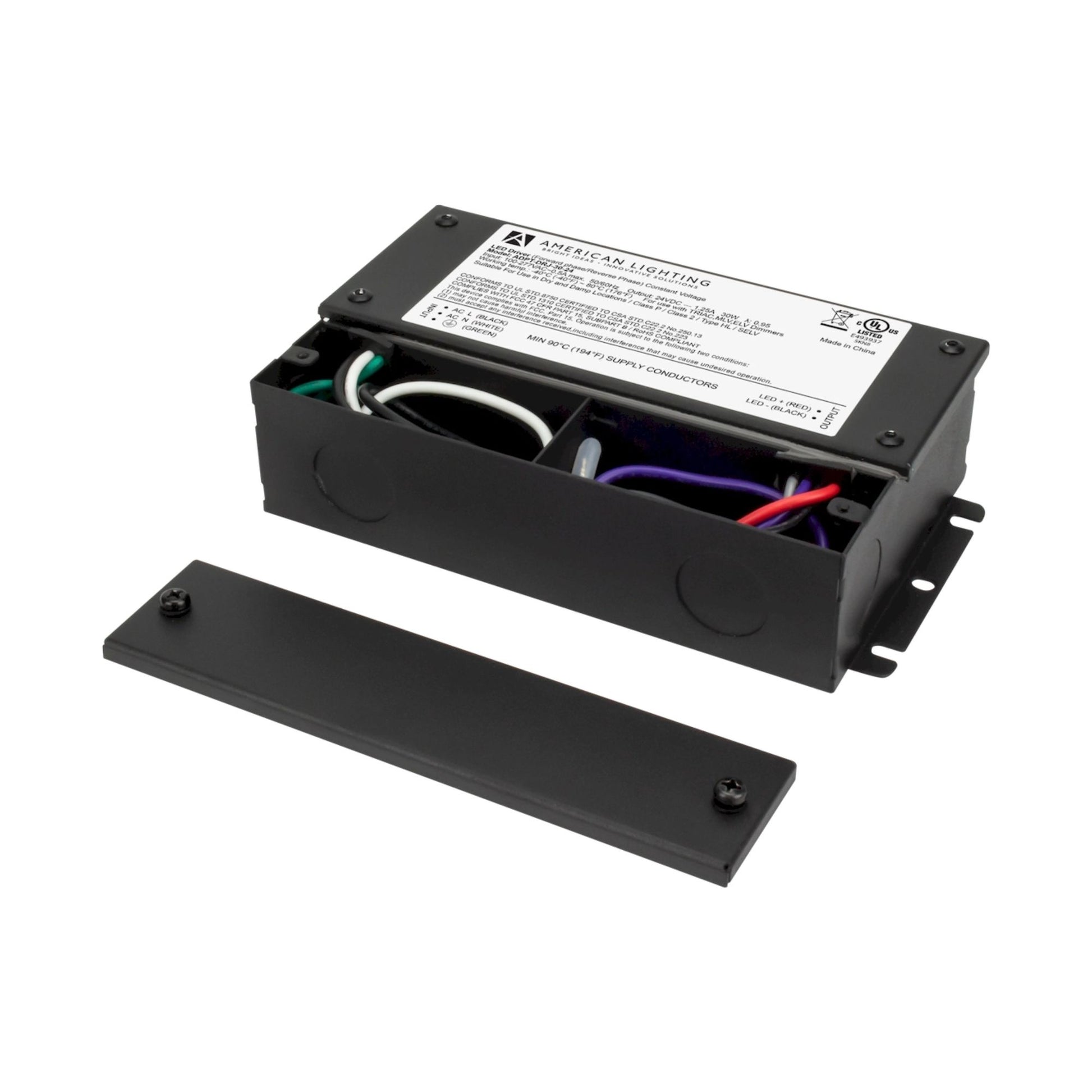

The driver features a robust aluminum enclosure with integrated knockouts, facilitating straightforward installation and wiring.

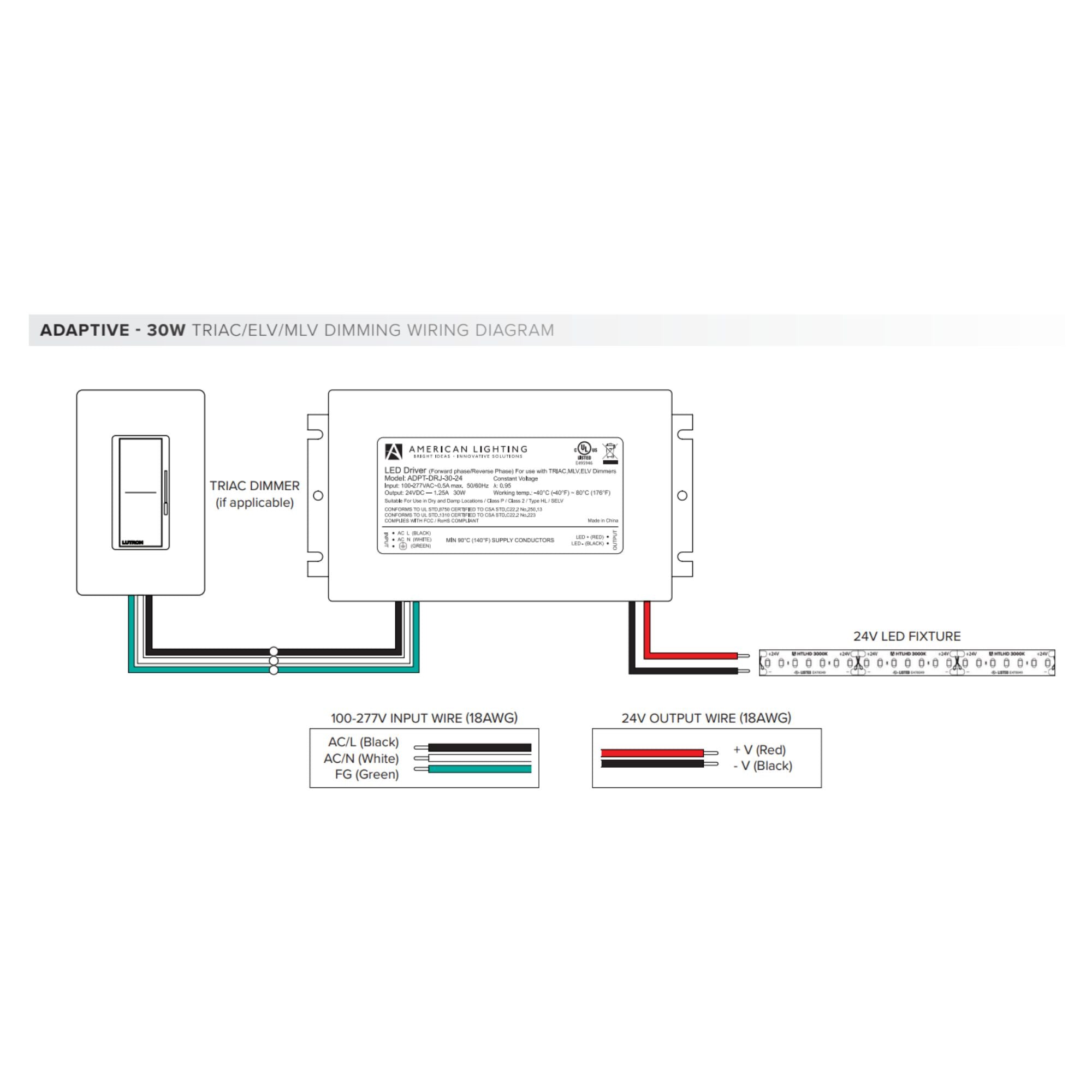

Dimming & Controls
Compatible with a range of dimming systems including TRIAC, MLV, and ELV, it supports a minimum load of 3W, ensuring flexibility in lighting design.
Performance & Build
Equipped with short circuit, over-load, and over-temperature protections, this driver is Class 2 compliant and wet rated, ensuring reliable performance.
Typical Applications

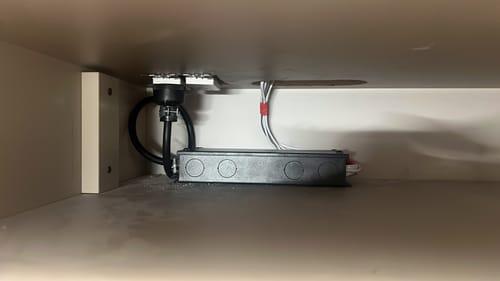

- Under cabinet lighting
- Tape light installations
- Outdoor LED fixtures
- Commercial lighting projects
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
