OMNIDRIVE X 30W 24VDC LED Dimmable Driver with Junction Box, 120-277V
Available in stock (199)
About this item
About this item
- Output Voltage: 24V DC
- Dimming: Universal (ELV, TRIAC, 0-10V)
- Input Voltage: 120-277V
- Enclosure: Integrated Junction Box
- Protection: Auto-recovery after fault
We process payments securely and do not store credit card information.
Description
Description

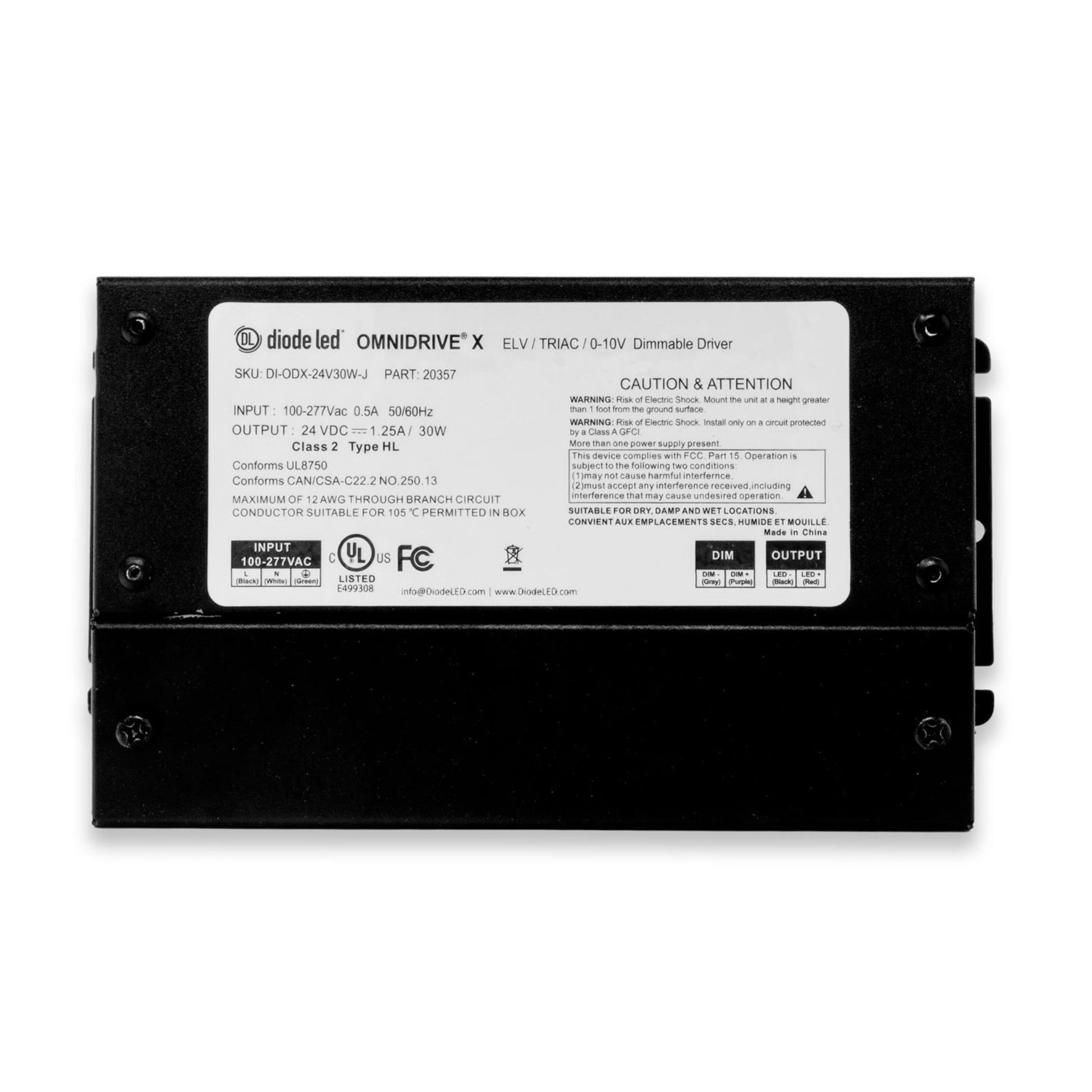

Diode LED OMNIDRIVE X 30W Driver — 24V
The Diode LED DI-ODX-24V30W-J is a versatile 30W constant voltage LED Driver designed for high-performance dimming. It supports 120-277V input and delivers a consistent 24V DC output. This driver features universal dimming capabilities, compatible with ELV, TRIAC, and 0-10V systems, and includes an Integrated Junction Box for ease of installation.
Key Features
- Power: 30W
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: Universal (ELV, TRIAC, 0-10V)
- Minimum Load: No Minimum Load

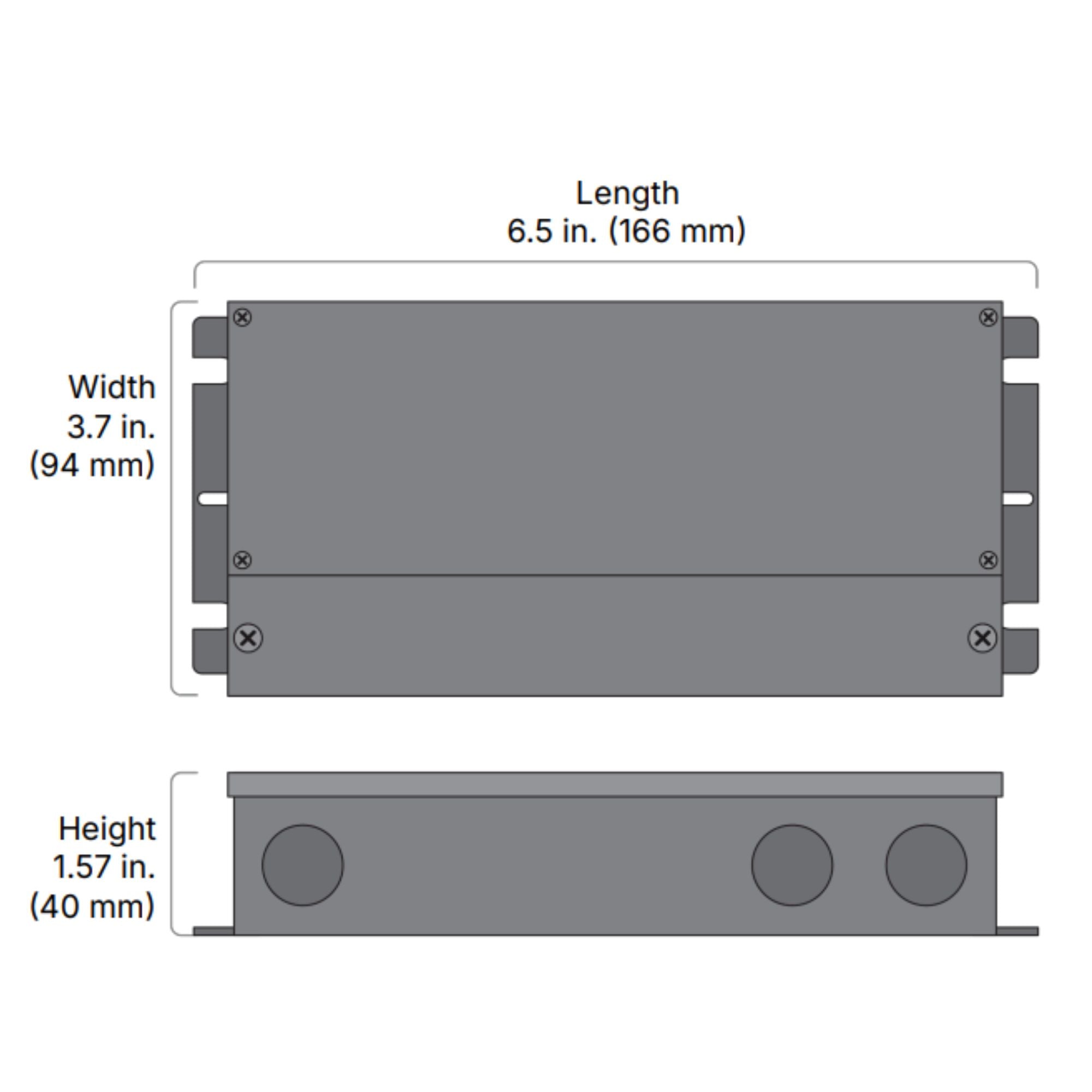

- Dimensions: 6.5 in. L x 3.7 in. W x 1.57 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: NEMA 3R
- Class 2: Yes
- Certifications: cULus, JA8 compliant
Physical Design & Installation

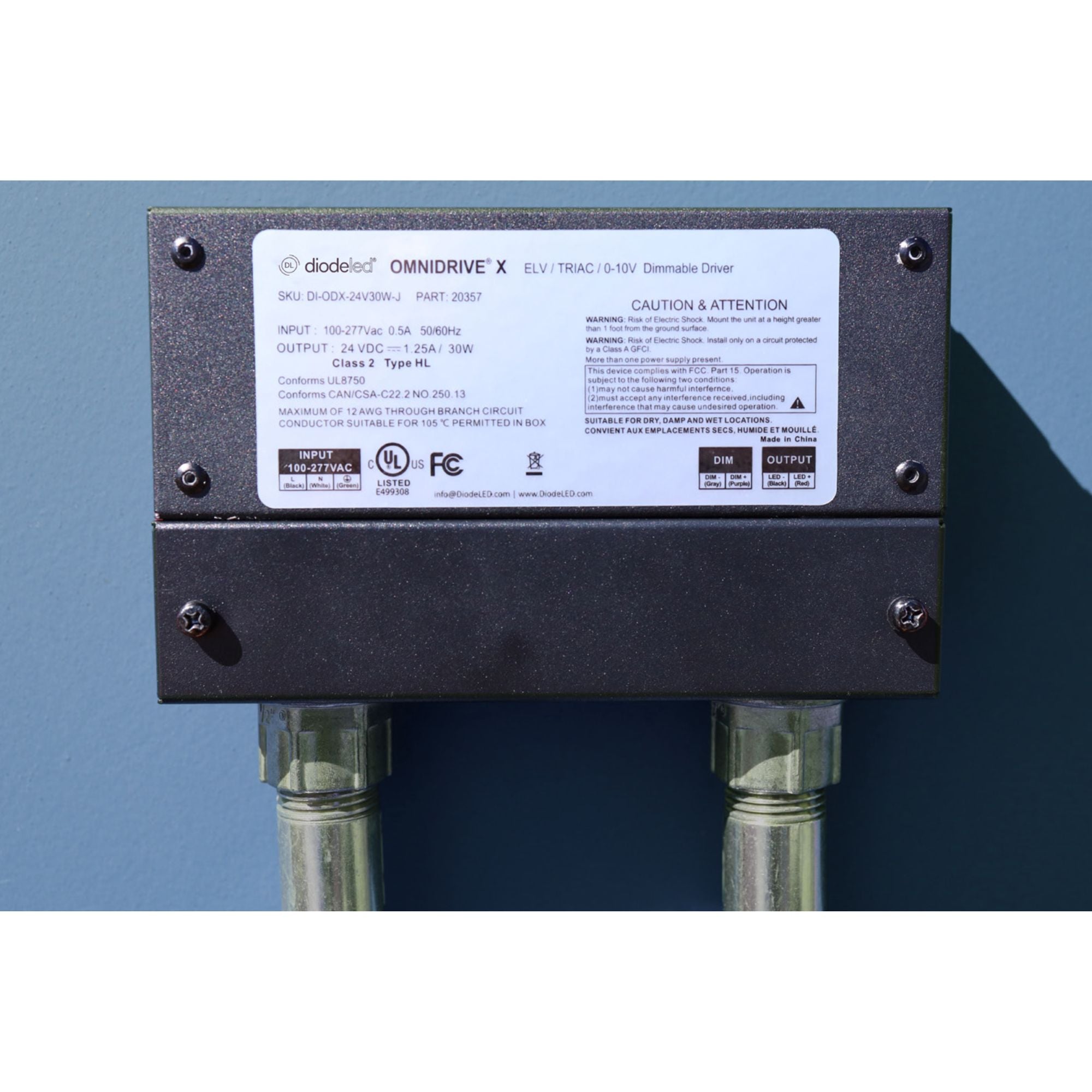

The driver is housed in a durable enclosure with an Integrated Junction Box, suitable for outdoor installations.
Dimming & Controls

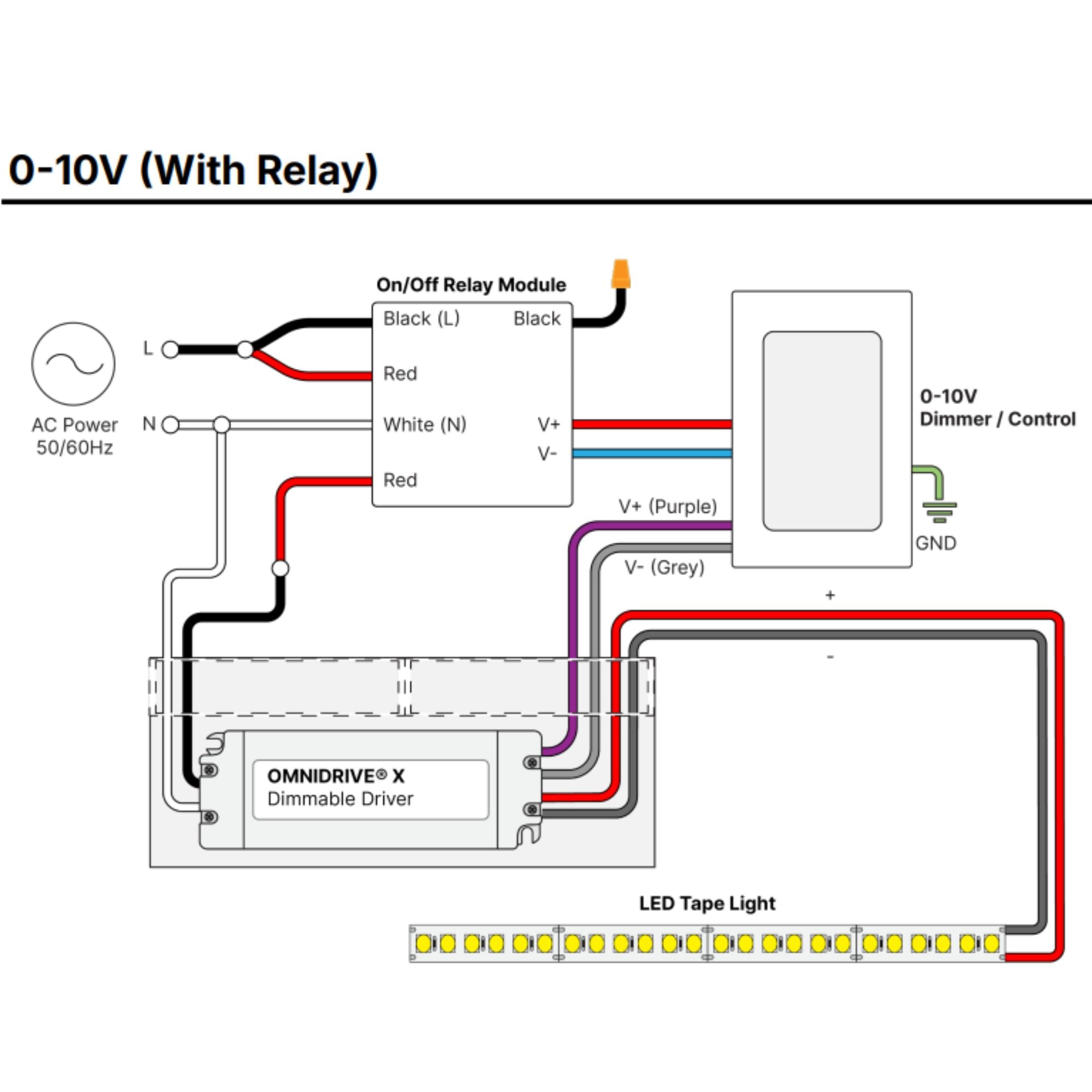

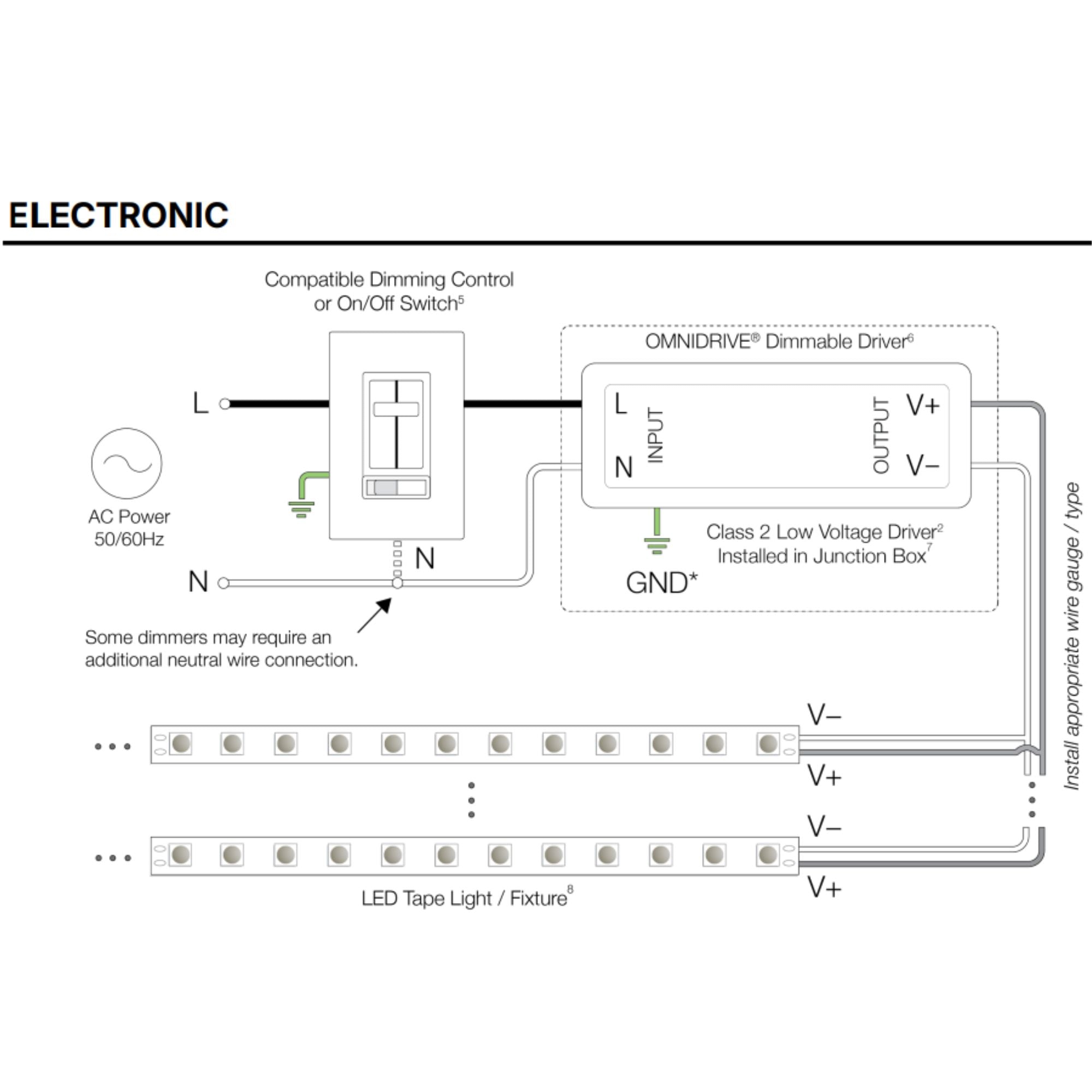

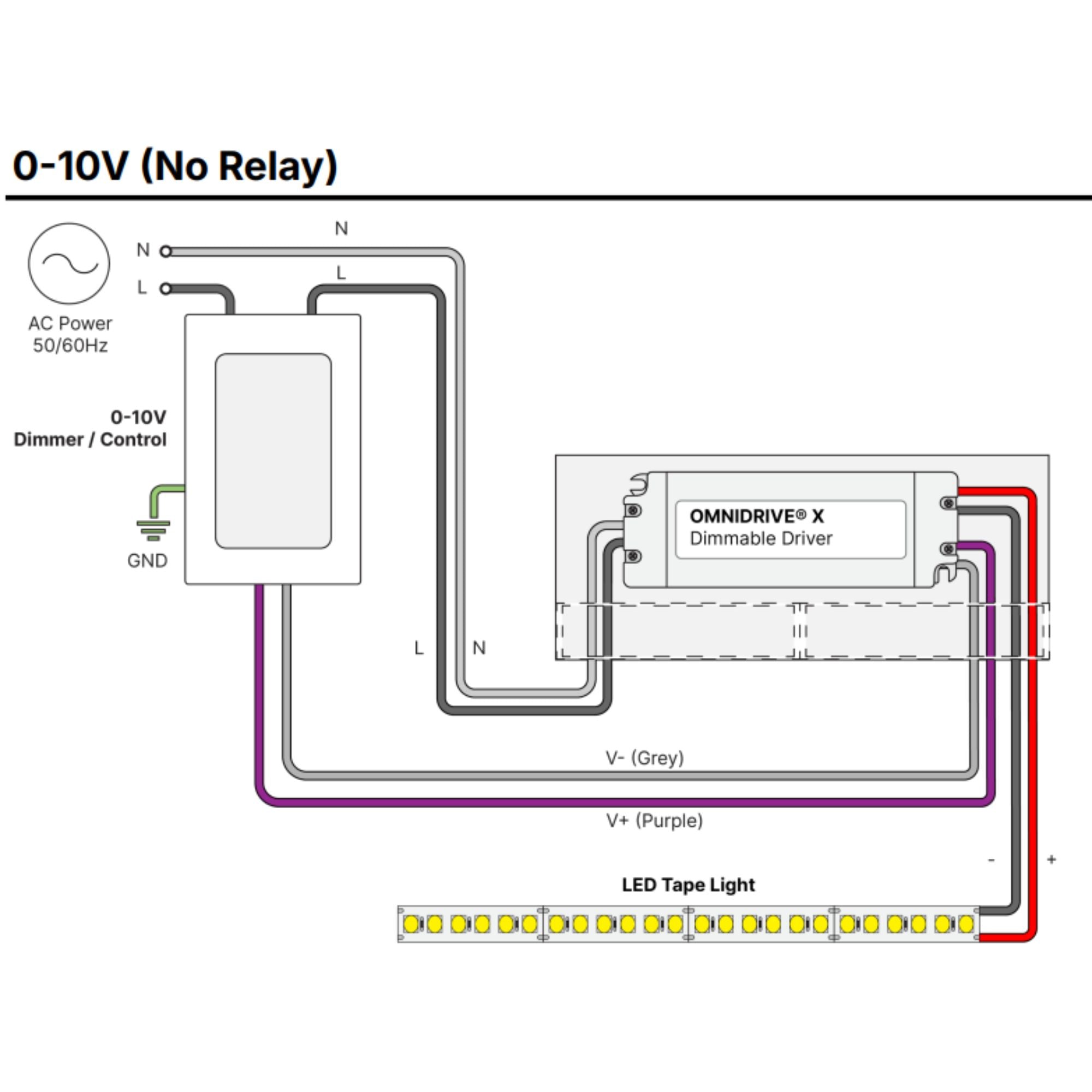

Compatible with ELV, TRIAC, and 0-10V dimming systems, this driver offers seamless dimming with no minimum load requirement.
Performance & Build
Features include automatic recovery after fault conditions, Class 2 compliance, and NEMA 3R rating for wet locations.
Typical Applications
- Outdoor lighting
- Architectural lighting
- Commercial installations
- Residential lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocols are supported by the DI-ODX-24V30W-J?
What dimming protocols are supported by the DI-ODX-24V30W-J?
Is there a minimum load requirement for the DI-ODX-24V30W-J?
Is there a minimum load requirement for the DI-ODX-24V30W-J?
Does the DI-ODX-24V30W-J include an integrated junction box?
Does the DI-ODX-24V30W-J include an integrated junction box?
What is the input voltage range for the DI-ODX-24V30W-J?
What is the input voltage range for the DI-ODX-24V30W-J?
What is the IP rating of the DI-ODX-24V30W-J?
What is the IP rating of the DI-ODX-24V30W-J?
