OMNIDRIVE 80W 12V Omnidrive Electronic Dimmable LED Driver, 120VAC
In stock
About this item
About this item
- Output Power: 80W with 24V DC output
- Dimming Capability: Compatible with listed dimmers
- Input Voltage: 120V AC
- Enclosure Type: IP67 rated for wet locations
- Protection Features: Short circuit and over current protection
We process payments securely and do not store credit card information.
Description
Description

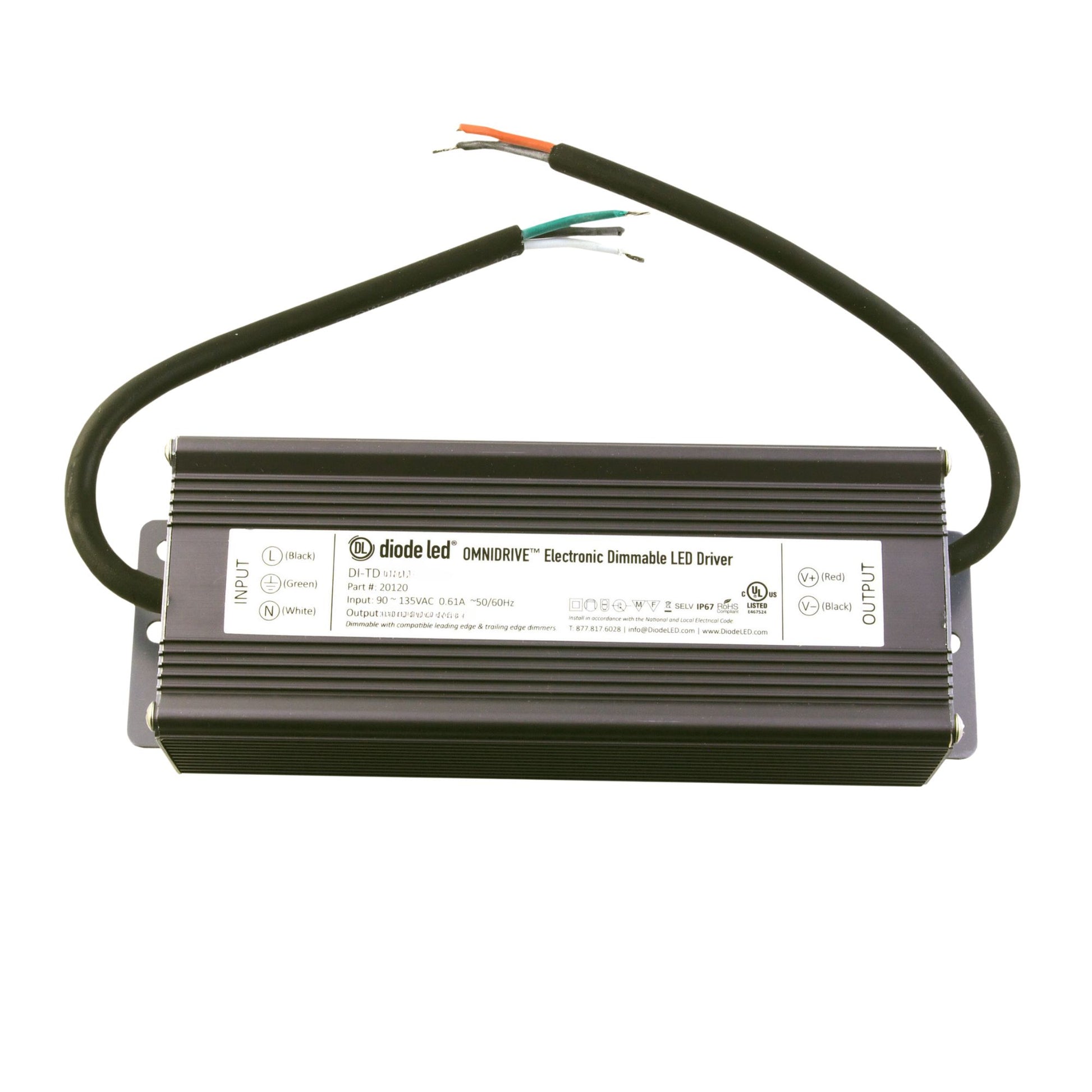

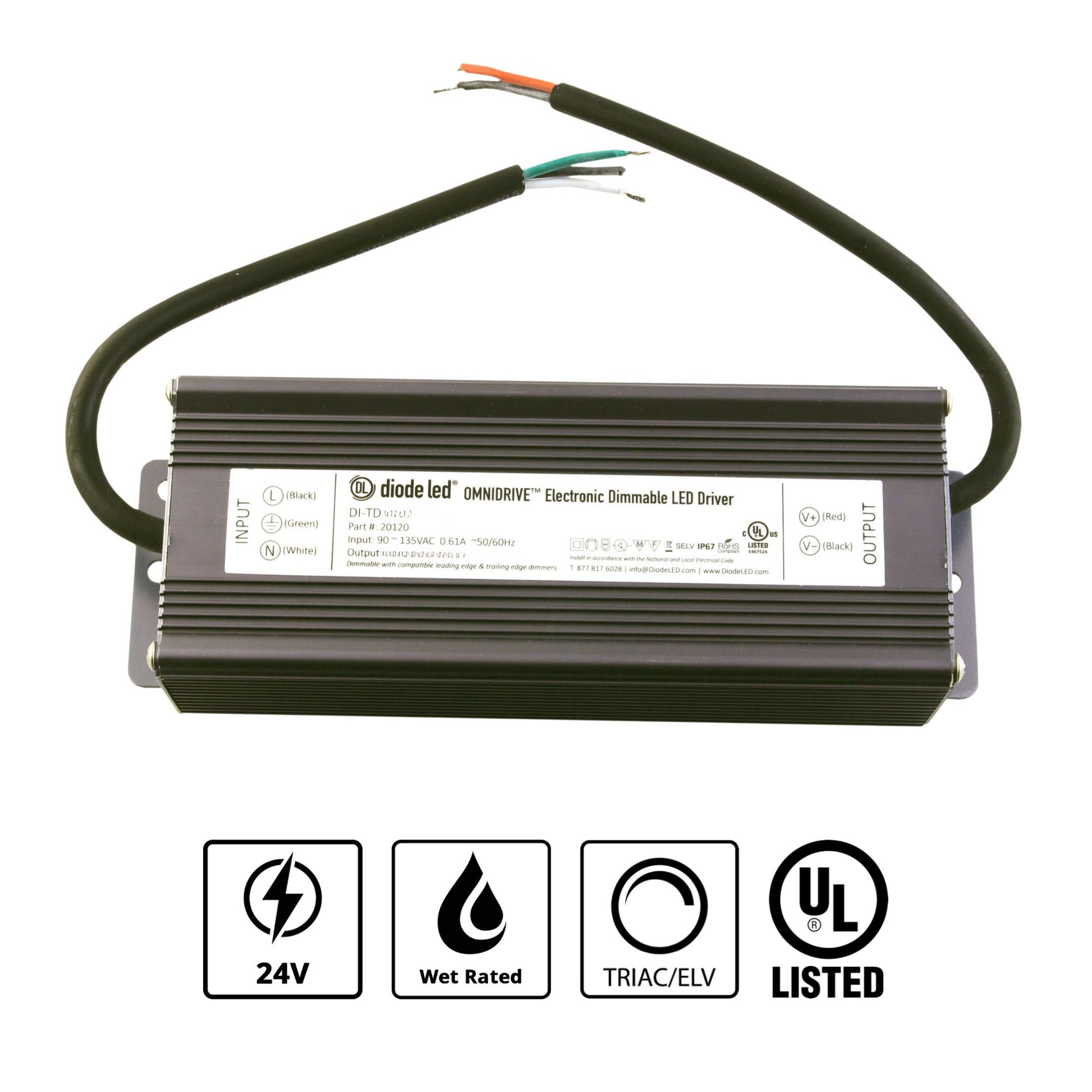

Diode LED OMNIDRIVE 80W Driver — 24V DC
The DI-TD-24V-80W is an 80W constant voltage LED Driver providing a 24V DC output. It operates on a 120V input and supports dimming with compatible dimmers. This driver is Class 2 compliant and features an IP67 rated enclosure, making it suitable for both indoor and outdoor installations.
Key Features
- Power: 80W
- Input Voltage: 120V AC
- Output Voltage: 24V DC
- Dimming: Compatible with listed dimmers
- Minimum Load: 60% for dimming

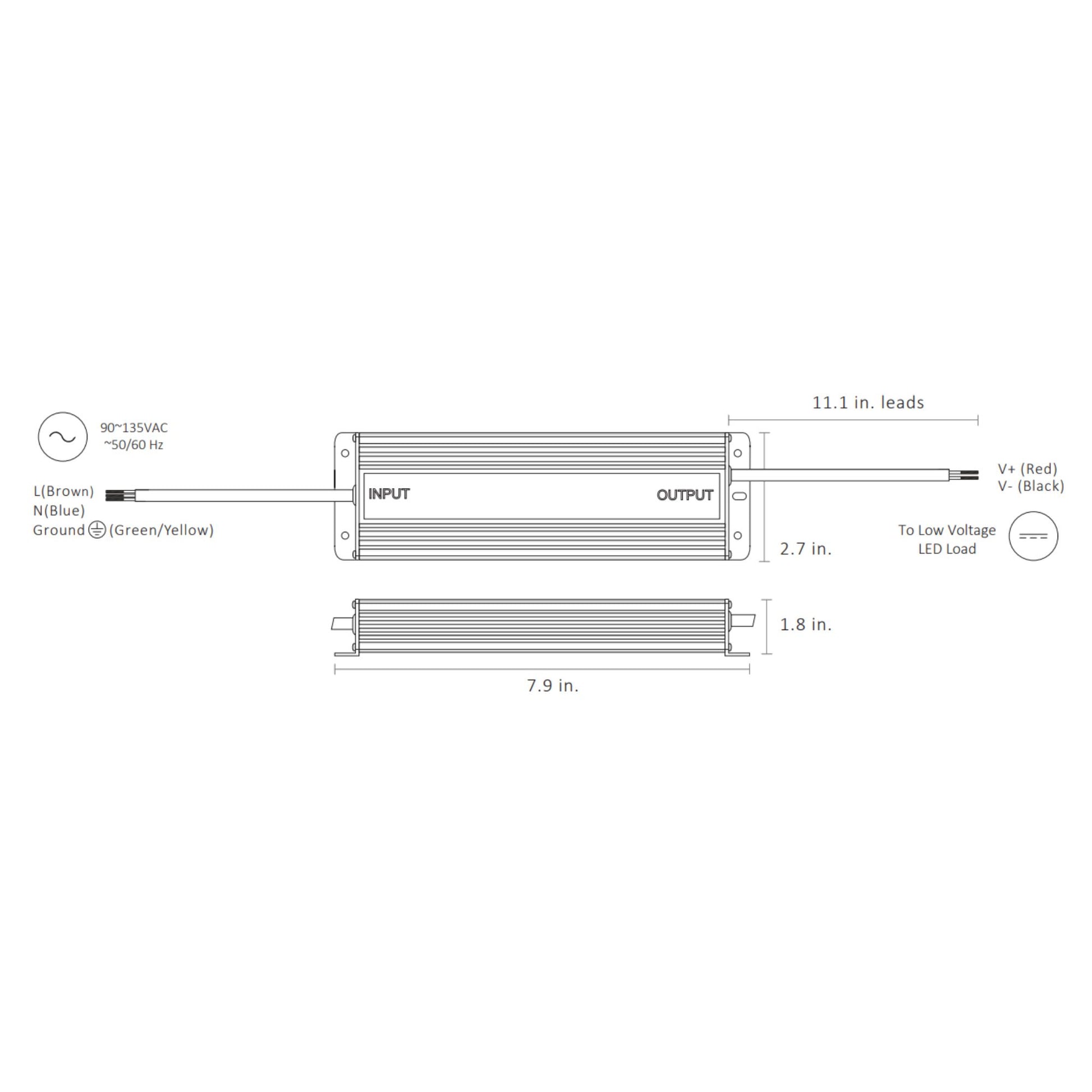

- Dimensions: 7.9 in. L x 2.7 in. W x 1.8 in. H
- Enclosure Type: IP67 rated
- Class 2: Yes
- Certifications: cULus, UL, CSA
Physical Design & Installation
The driver features a robust enclosure designed for wet locations, ensuring durability and reliability in various environments.
Dimming & Controls
Compatible with a range of dimmers listed on the OMNIDRIVE compatibility list. Requires a minimum load of 60% for optimal dimming performance.
Performance & Build
Equipped with short circuit and over current protection, the driver ensures safe operation. It is Class 2 compliant and IP67 rated for wet locations.
Typical Applications
- Outdoor lighting installations
- Wet location environments
- Commercial lighting projects
- Residential lighting systems
