American Lighting LED-DRJ LED-DRJ-96-24 96W LED Driver

American Lighting LED-DRJ 96W LED Driver 24V DC, Non-Dimming, Integrated Junction Box, Indoor/Outdoor - 120-277V

$113.13

~~$0.00~~

Description

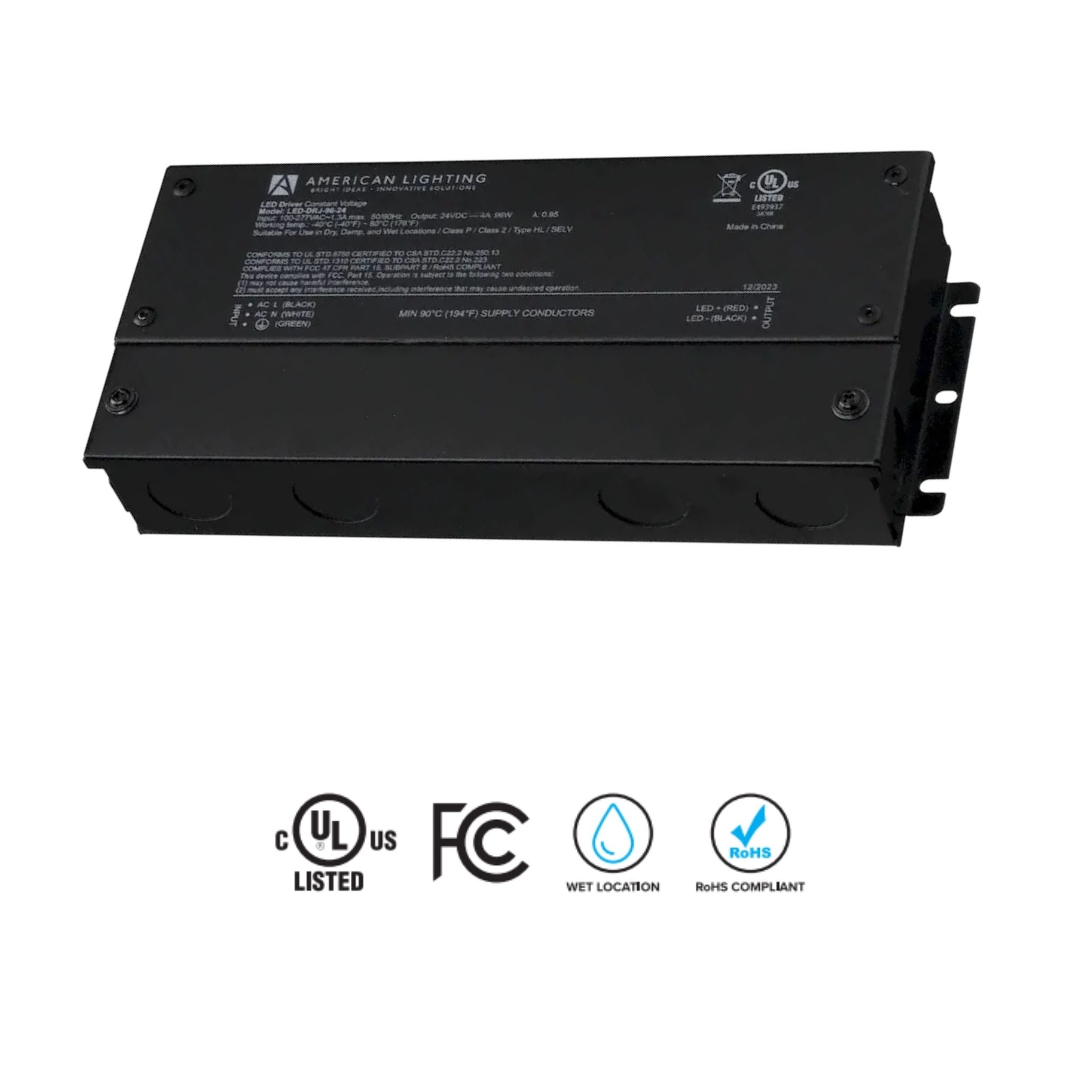

American Lighting LED-DRJ LED-DRJ-96-24 96W LED Driver — 24V DC

The American Lighting LED-DRJ-96-24 is a robust 96W LED Driver designed to deliver a consistent 24V DC output. This constant voltage driver is ideal for both indoor and outdoor applications, thanks to its wet location rating. With an input voltage range of 120-277V, it offers flexibility for various installations. Although non-dimmable, it is perfect for applications where primary side dimming is not needed. The driver features a Class 2 rating and comes with an integrated junction box for streamlined installation.

Key Features

Power Output: Delivers a stable 96W output at 24V DC for reliable lighting performance.
Input Voltage Range: Compatible with 120-277V AC, accommodating a wide range of power sources.
Non-Dimmable: Designed for applications where dimming is not required, ensuring straightforward operation.
Minimum Load: Requires a minimum load of 9.6W for optimal performance.

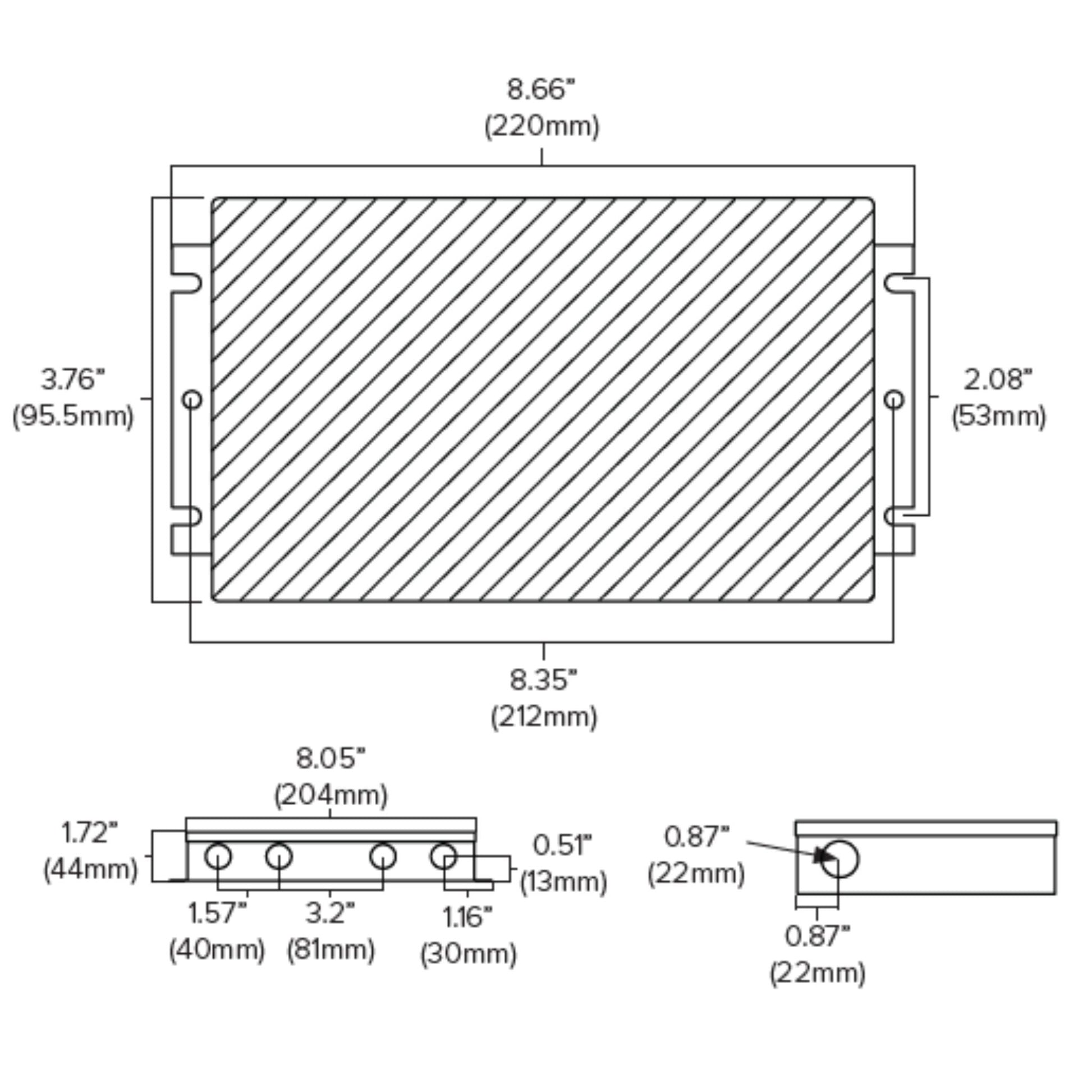

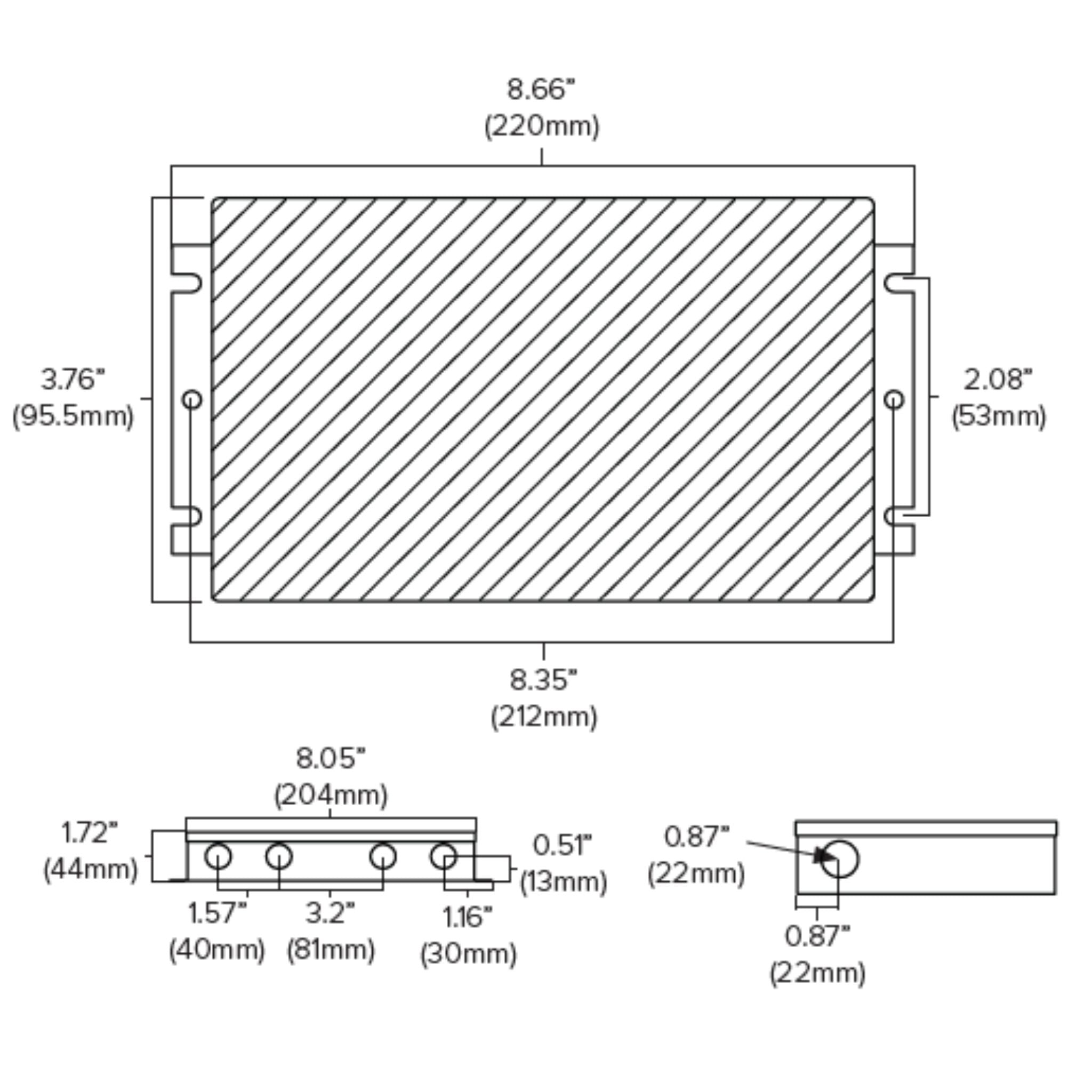

Dimensions: Compact design measuring 8.66 in. L x 3.76 in. W x 1.72 in. H for easy integration into various setups.
Enclosure Type: Sturdy aluminum housing with integrated junction box for secure and efficient installation.
IP Rating: Wet location rated, suitable for both indoor and outdoor environments.
Class 2 Compliance: Meets Class 2 standards for safe and efficient operation.
Certifications: cULus Listed, ensuring compliance with safety standards.

Physical Design & Installation

The driver features a compact aluminum housing with an integrated junction box, facilitating easy installation and wiring. Its slim design allows for versatile placement in various settings.

Dimming & Controls

This driver is non-dimmable, making it suitable for installations where dimming is not required. It operates efficiently with a minimum load requirement of 9.6W.

Performance & Build

Equipped with short circuit, over-voltage, and thermal protection, this driver ensures reliable performance. It is Class 2 compliant and wet location rated, making it suitable for diverse environments.

Typical Applications

Outdoor lighting installations
Indoor commercial lighting
Architectural lighting projects
LED strip lighting systems

Specifications

Dimensions

Length/Depth

8.66 in

Width/Diameter

3.76 in

Height

1.72 in

Weight

2.95 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

96.0W

Amps Rating

4.0 A

Item Details

MPN

LED-DRJ-96-24

Brand

American Lighting

UPC

714176073309

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Class 2, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-96-24 driver dimmable?

No, the LED-DRJ-96-24 driver is non-dimmable and is designed for applications where dimming is not required.

What is the input voltage range for the LED-DRJ-96-24 driver?

The input voltage range for the LED-DRJ-96-24 driver is 120-277V AC.

Does the LED-DRJ-96-24 driver include an integrated junction box?

Yes, the LED-DRJ-96-24 driver features an integrated junction box for easy installation.

What is the minimum load requirement for the LED-DRJ-96-24 driver?

The minimum load requirement for the LED-DRJ-96-24 driver is 9.6W.

Is the LED-DRJ-96-24 driver suitable for outdoor use?

Yes, the LED-DRJ-96-24 driver is wet location rated, making it suitable for both indoor and outdoor use.
