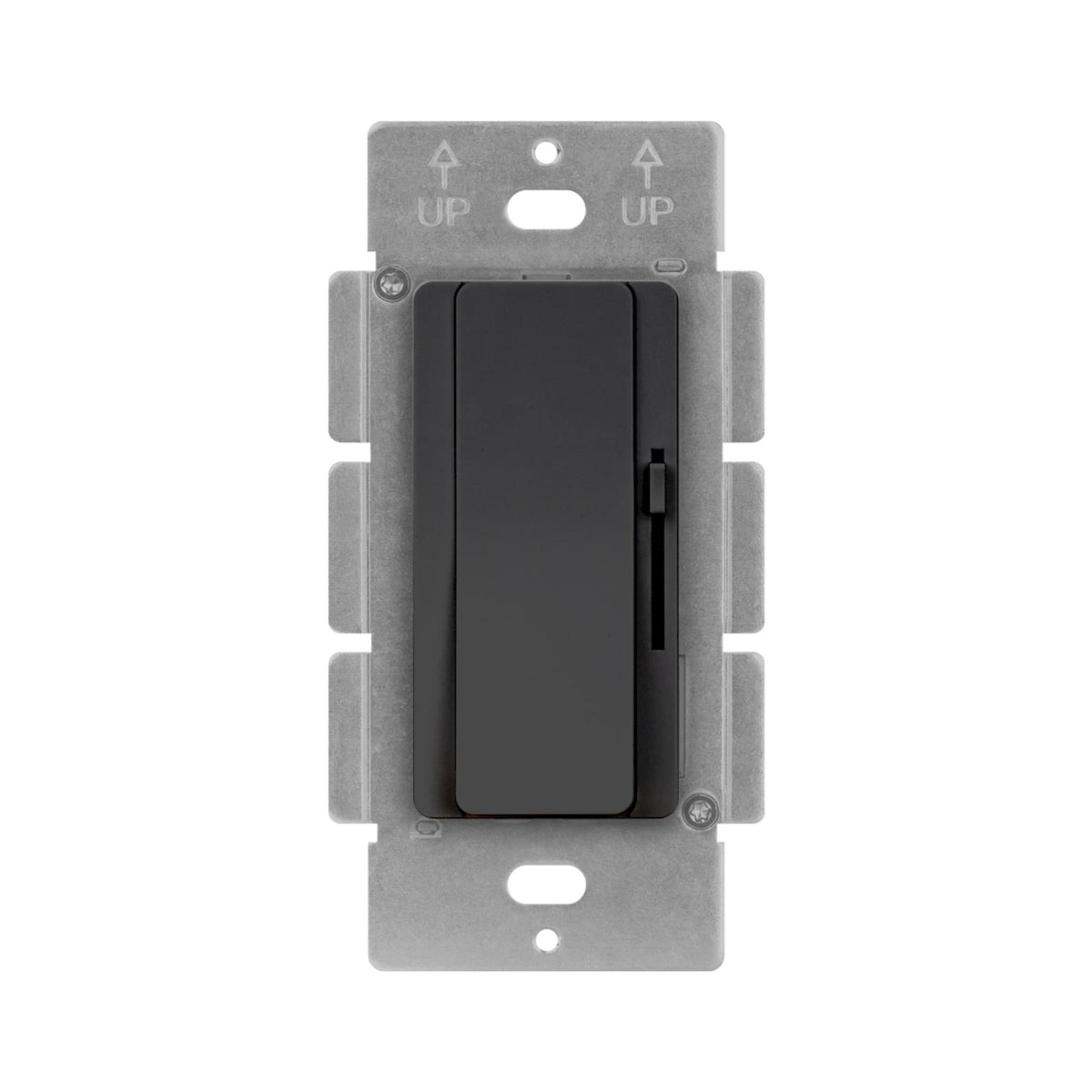

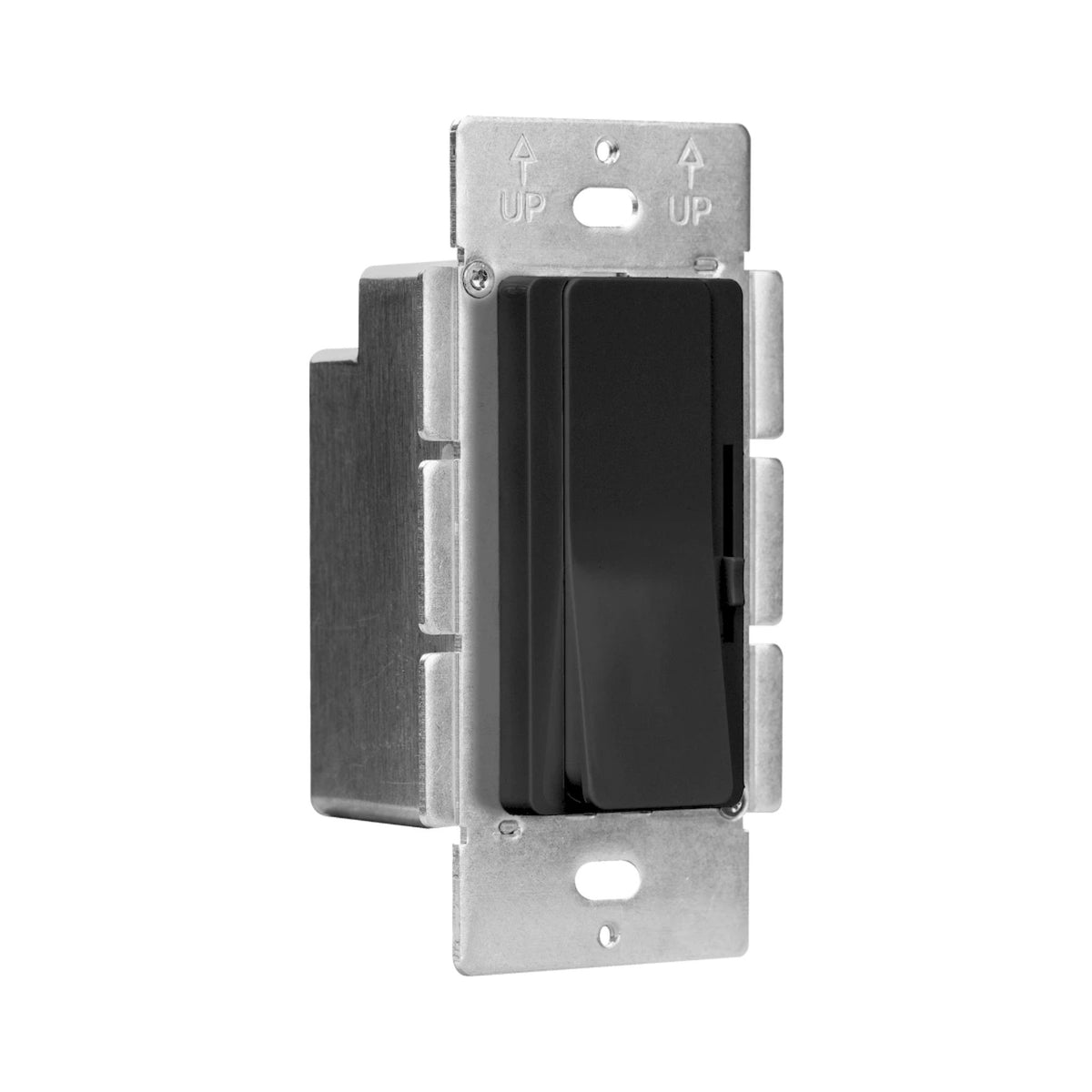

American Lighting NAVI DIM 96W 24VDC LED Driver PWM Dimming, Black
Out of stock
About this item
About this item
- Power Output: 96W at 24VDC Constant Voltage for reliable low-voltage LED operation.
- Dimming Performance: Integrated 0.3-100% PWM dimming with a 16kHz frequency for flicker-free control.
- Input Voltage: Standard 120VAC 60Hz input for residential and commercial applications.
- Enclosure Design: All-in-one in-wall design fits standard single-gang recessed electrical boxes.
- Safety Protections: Built-in short circuit, thermal runaway, and over-voltage protection.
We process payments securely and do not store credit card information.
Description
Description
American Lighting NAVI DIM 96W LED Driver — 24VDC
The American Lighting NAVI-96-24-BK is a high-performance 96W LED Driver and in-wall dimmer switch combined into a single 24VDC Constant Voltage unit. This Class 2 rated device simplifies installations by eliminating the need for separate power supplies and controls, fitting directly into a standard Integrated Junction Box or single-gang wall switch box.
Key Features
- Power Rating: 96W
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Dimming Protocol: 0.3-100% PWM
- Minimum Load: No minimum load required
- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: In-wall single gang mount
- IP Rating: Damp Rated
- Class Rating: Class 2

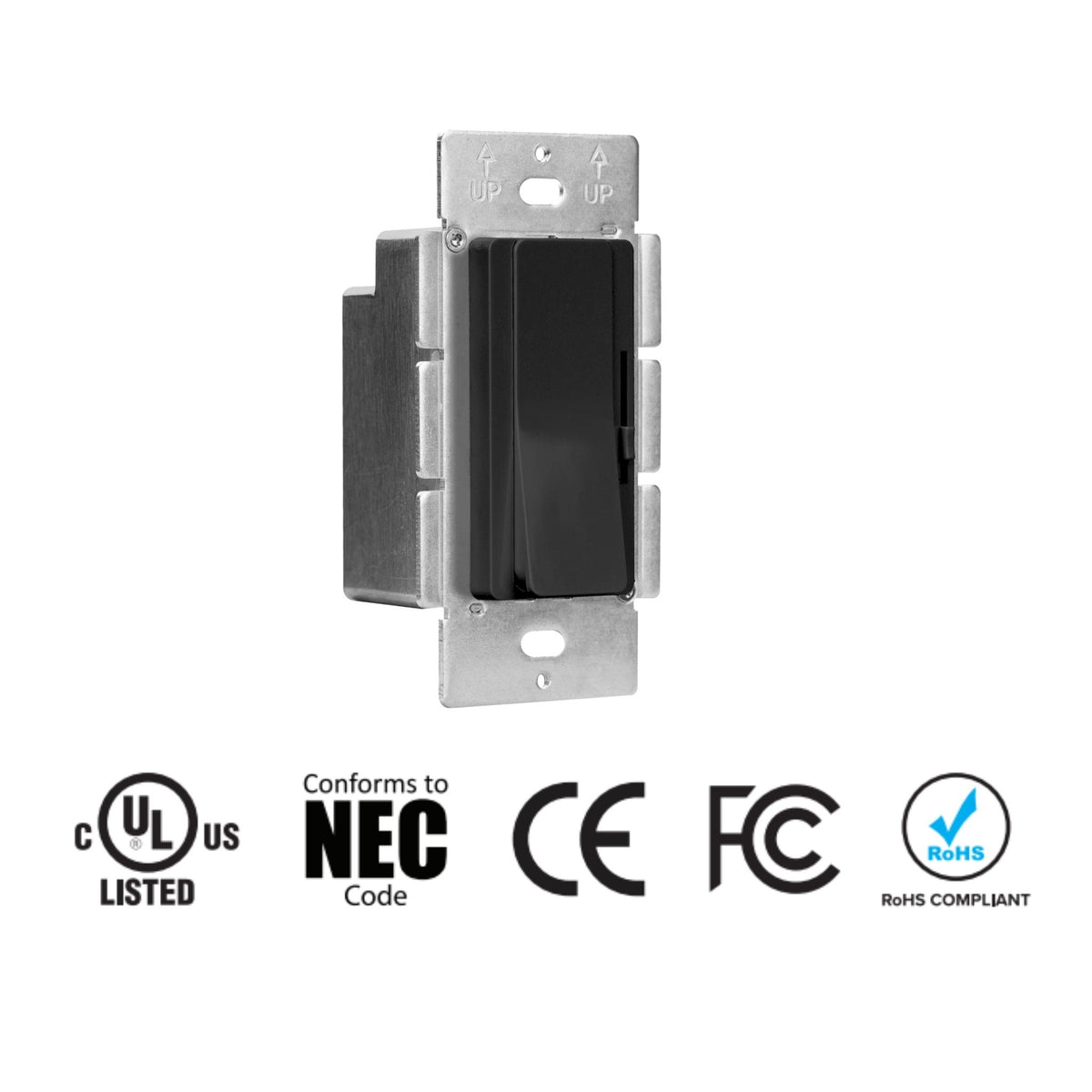

- Certifications: cULus Listed, FCC, Class P
Physical Design & Installation

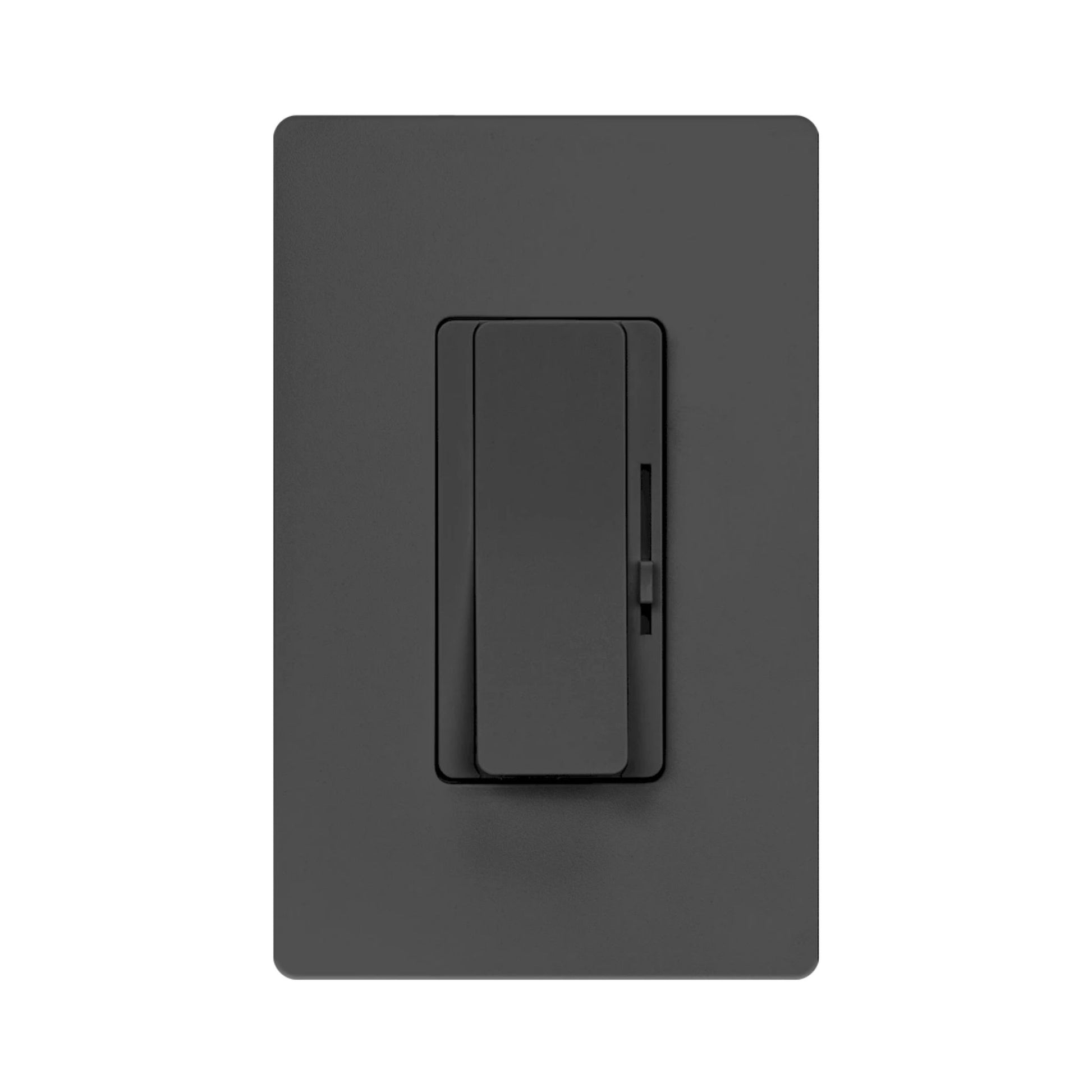

Constructed with a sleek black finish, this unit is designed to mount into standard single-gang recessed electrical boxes. It includes a voltage barrier partition to safely house both high-voltage and low-voltage circuits within the same switch box and fits most standard decora faceplate trims.
Dimming & Controls
The NAVI-96-24-BK utilizes a 16kHz PWM output with a gamma 2.2 curve to provide smooth, flicker-free dimming from 100% down to 0.3%. It features an on/off push switch and an adjustable voltage output dial to compensate for potential voltage drop in long wire runs.
Performance & Build
Engineered for longevity, this driver includes comprehensive protection against short circuits, thermal runaway, and over-voltage. It is Class 2 compliant and rated for use in both dry and damp indoor locations with a rated life of over 30,000 hours.
Typical Applications
- Residential LED tape lighting
- Under-cabinet accent lighting
- Commercial task lighting
- Hospitality cove lighting
