Mastering Complex Lighting: The Role of the 4 Way Light Switch

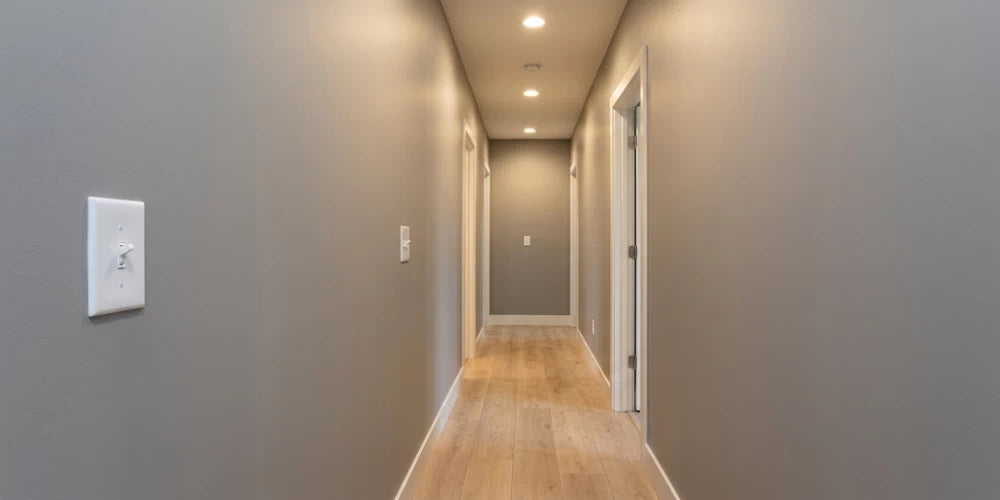

A 4 way light switch is a specialized device used in electrical circuits that require a single light (or group of lights) to be controlled from three or more distinct wall locations. While many people assume they can simply add more 3-way switches to a circuit, a four way switch is technically required as the "bridge" between two 3-way switches. This setup is common in large open-concept living areas, long hallways with multiple entrances, and multi-story commercial foyers.
Understanding the Multi-Switch Circuit Layout
A multi-switch circuit always follows a specific order to function correctly. The 4 way light switch is unique because it features four terminals (plus a ground) and is placed in the middle of the circuit:
- The "Sandwich" Configuration: Every 4-way circuit begins with a 3-way switch (connected to the power source) and ends with a 3-way switch (connected to the light). Any number of four way switch units are then placed between them.
- No Common Terminal: Unlike a 3-way switch, a 4 way light switch does not have a "common" terminal. Instead, it has two pairs of traveler terminals. It simply "flips" the connection between the two sets of traveler wires to change the light's state.
Choosing Your 4-Way Design: Rocker vs. Toggle
Because these switches are often part of a larger bank of controls, matching the aesthetic of your existing wall control is essential:
- 4 Way Rocker: The 4 way rocker (decorator style) provides a uniform, modern look. Like its 3-way counterpart, the paddle does not have "On/Off" markings, ensuring a clean appearance in any position.
- 4 Way Toggle: For industrial spaces or traditional homes, the 4 way toggle maintains the classic lever aesthetic. These are often used in workshops or basements where a tactile, heavy-duty feel is preferred.
4 Way Light Switch Installation and Box Volume Considerations
Because a complex circuit switch involves four traveler wires entering and exiting the device, the back of the electrical box can become crowded.
- Wire Count: A 4-way installation requires a higher level of wire management. Ensure you are using an appropriately sized junction box to meet NEC (National Electrical Code) volume requirements.
- Amperage Match: Ensure your 4 way light switch matches the circuit amperage—15A for most homes and 20A for commercial or kitchen circuits.
- Consistency: If you are upgrading to a 4 way rocker, you will likely need to upgrade the 3-way switches in the circuit as well to ensure the colors and styles match across the room.
