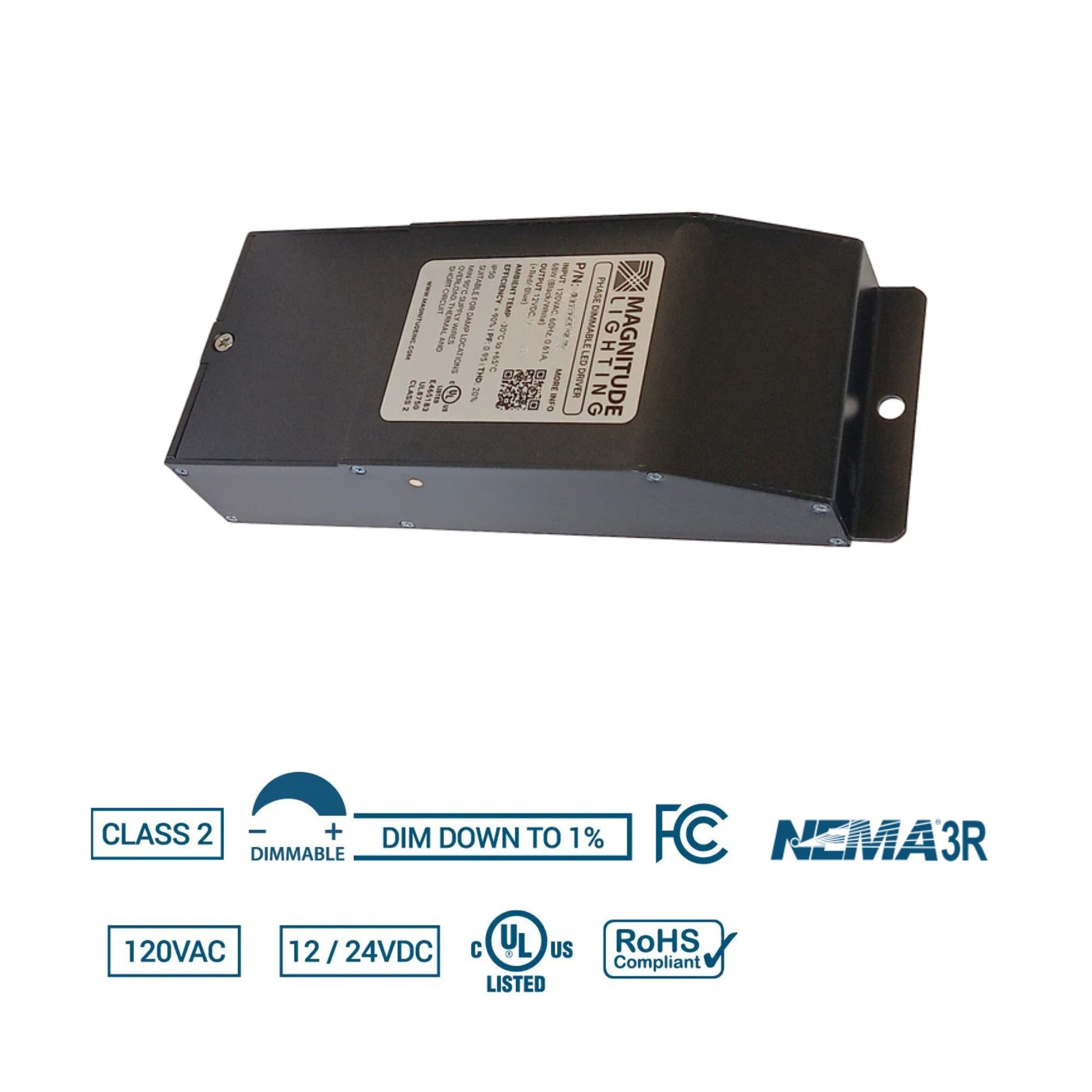

E-Series 75W 24VDC Dimmable LED Driver, Class 2, 120V, NEMA 3R, UL Enclosure
Available in stock (36)
About this item
About this item
- 75W at 24V DC Output: Constant voltage driver for 24VDC LED tape and fixtures up to 75W max load.
- TRIAC Dimming to 1%: Forward-phase dimmable performance with a 1% minimum dimming level.
- 120VAC Input: 120VAC ±10% input range, 50/60Hz, 0.72A input current at 120VAC (24VDC model).
- Integrated Junction Box: Integrated wiring compartment with two 1/4 in. trade size (3/8 in.) knockouts for clean installs.
- Built-In Protection: Short circuit and over-voltage auto-reset protection for reliable operation.
We process payments securely and do not store credit card information.
Description
Description

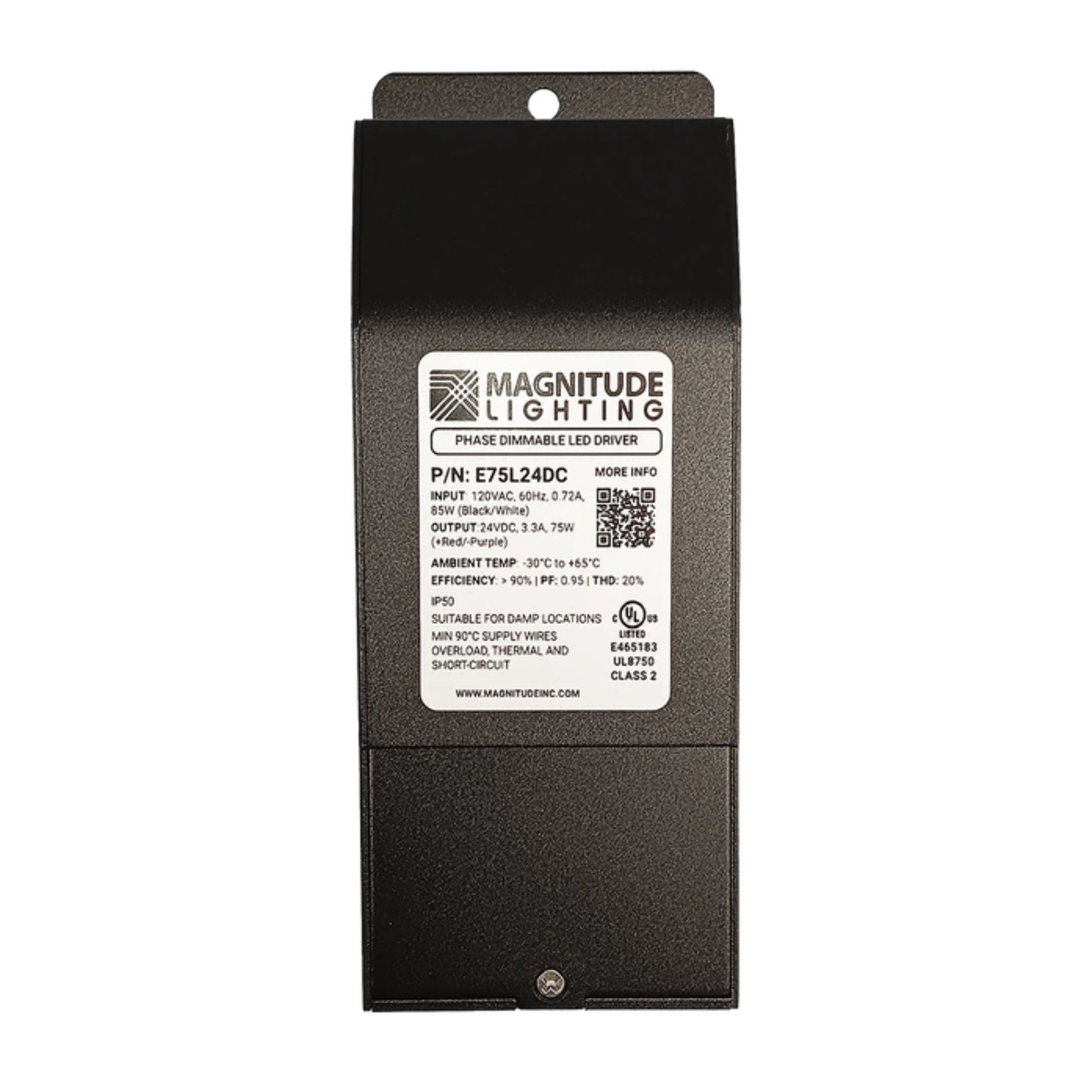

Magnitude Lighting E-Series 75W LED Driver — 24V DC
E75L24DC is a Magnitude Lighting E-Series LED Driver rated 75W with 120VAC input and 24V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and is UL8750 Class 2. The compact aluminum housing includes an Integrated Junction Box (integrated wiring compartment) with knockouts for streamlined wiring.
Key Features
- Power: 75W maximum load
- Input Voltage: 120VAC ±10%
- Input Frequency: 50/60Hz
- Output Voltage: 24V DC constant voltage
- Dimming: Forward-phase (TRIAC) dimmable, minimum dimming level 1%
- Minimum Load: 8W
- Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
- Enclosure Type: Integrated wiring compartment (junction box), two 1/4 in. trade size (3/8 in.) knockouts
- IP/NEMA Rating: NEMA 3R
- Certifications: UL8750, Class 2
Physical Design & Installation

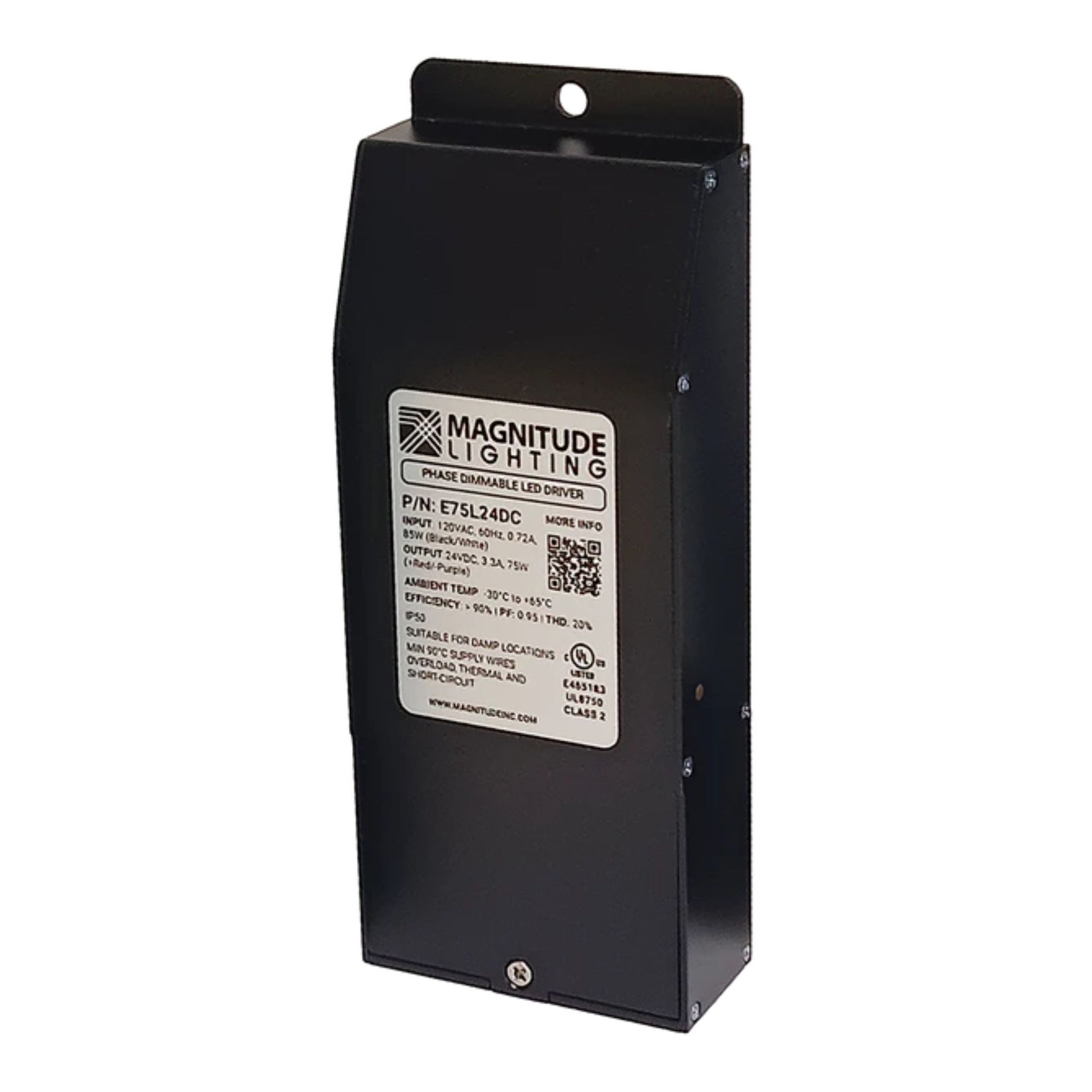

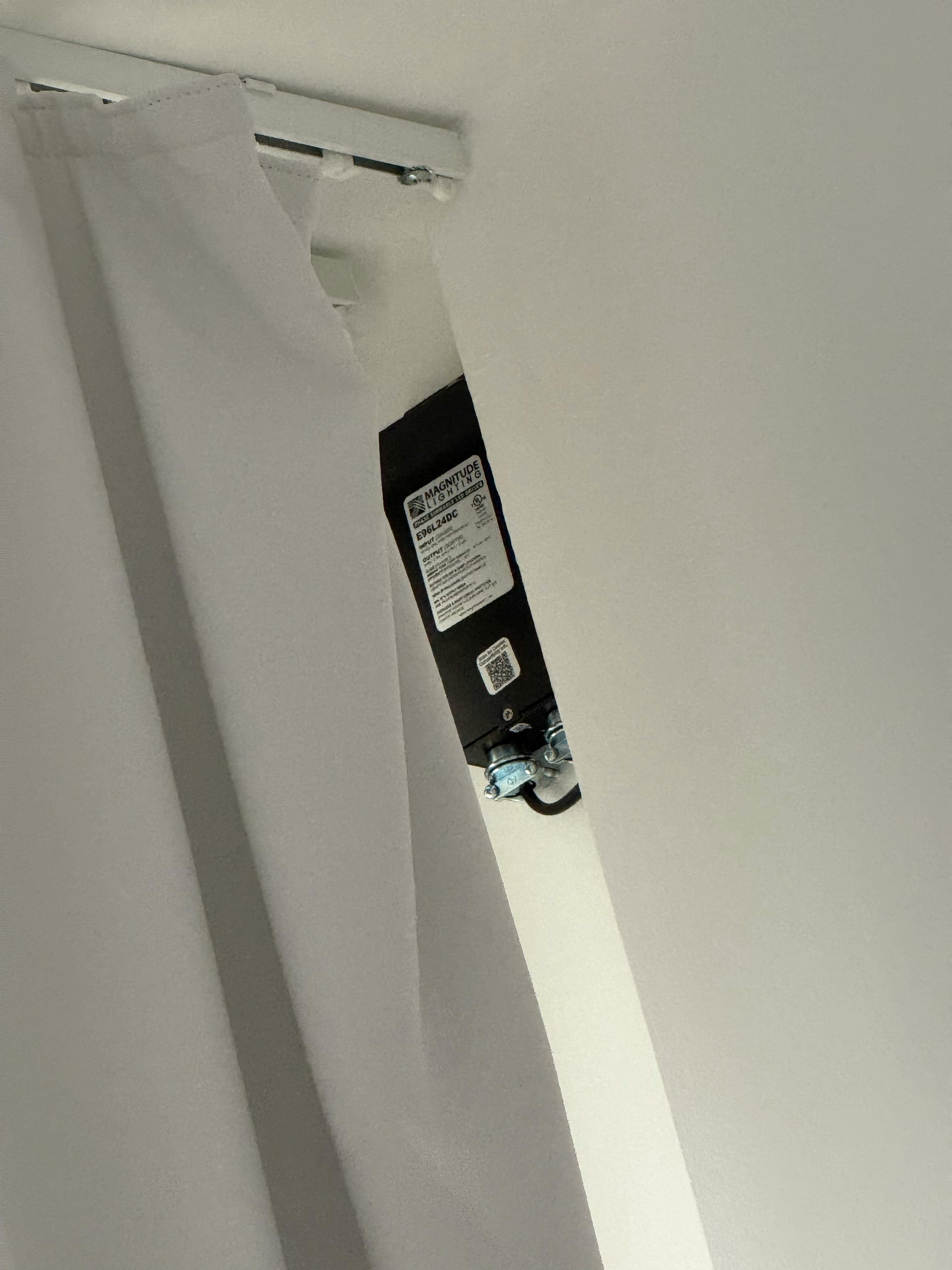

Aluminum, powder-coated housing designed for easy concealment. Includes an Integrated Junction Box with two knockouts and mounting features noted as a one-hole flange mount with two key holes in the wire housing for secure installation.
Dimming & Controls

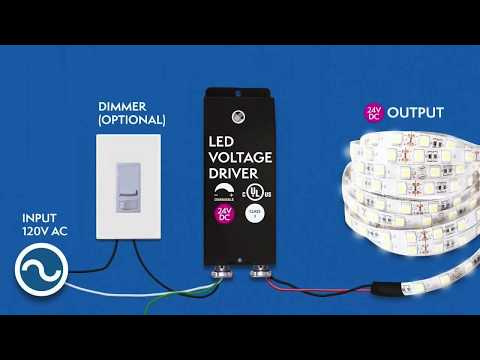

Supports forward-phase (TRIAC) dimming and is specified to dim down to 1% minimum dimming level. For stable dimming performance, maintain at least the specified 8W minimum load on the driver output.
Performance & Build
High-efficiency design (>90% at 24VDC) with short circuit and over-voltage auto-reset protection. UL8750 Class 2 construction and NEMA 3R enclosure support durable operation across the specified ambient range (-30°C to +65°C).
Typical Applications
- 24VDC LED tape light runs
- Under-cabinet and cove lighting systems
- Accent lighting for millwork and displays
- Architectural linear lighting retrofits
