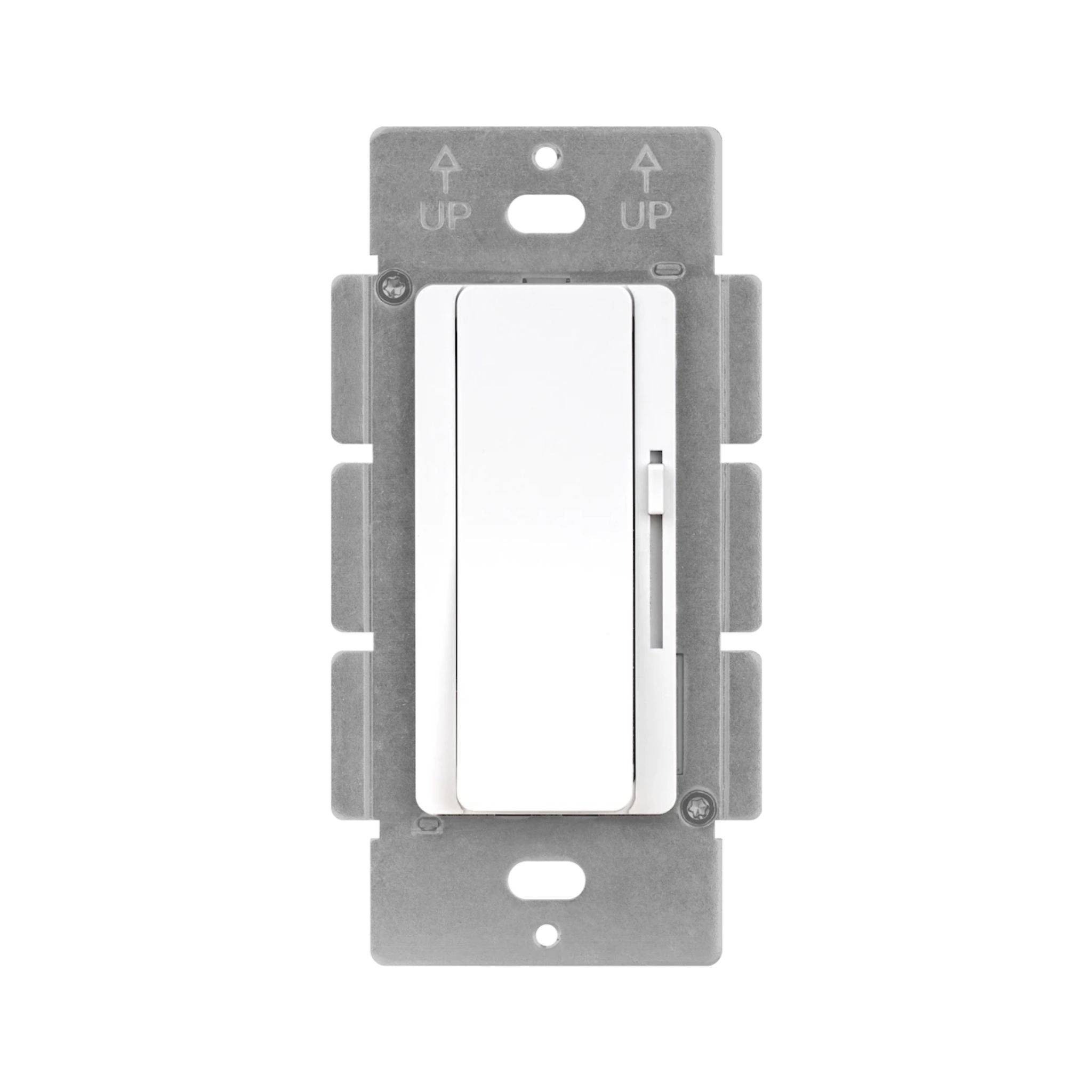

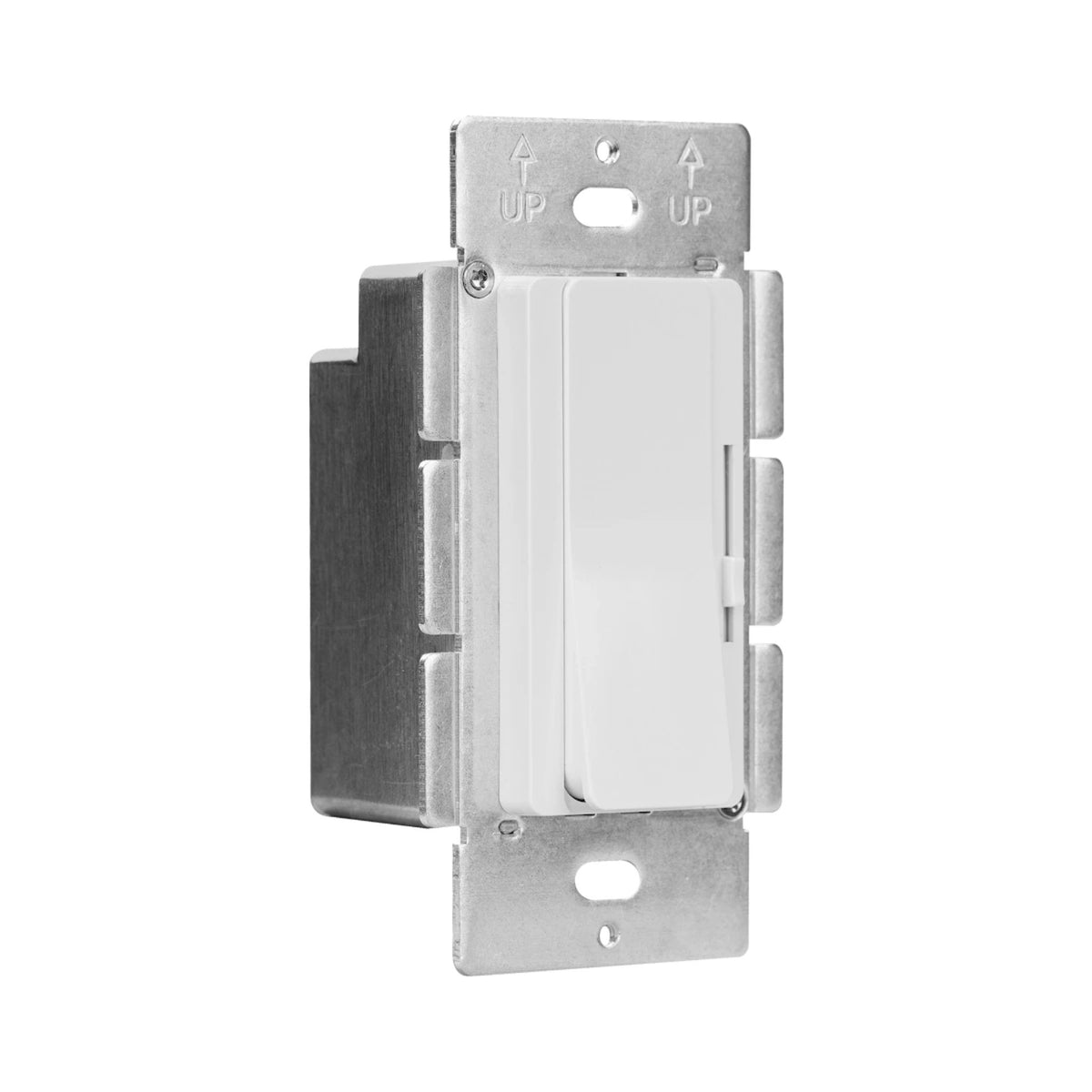

American Lighting Navi Dim 60W 24VDC LED Driver Integrated Dimmer, White
Out of stock
About this item
About this item
- Output Power: Delivers a constant 24VDC output at 60W for reliable LED performance.
- Integrated Dimming: Features a built-in in-wall dimmer with a 0.3-100% PWM dimming range.
- Input Voltage: Operates on standard 120VAC 60Hz line voltage.
- Enclosure Design: Designed to fit into standard single-gang recessed electrical boxes for a clean look.
- Safety Protections: Includes short circuit, thermal runaway, and over voltage protection for long-term durability.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Navi Dim 60W LED Driver — 24VDC
The American Lighting NAVI-60-24-WH is a 60W 24VDC LED Driver and in-wall dimmer combination. This Constant Voltage unit accepts 120V AC input and is Class 2 rated for safety. Designed to fit a standard Integrated Junction Box or single-gang recessed electrical box, it eliminates compatibility issues between drivers and switches.
Key Features
- Power Output: 60W
- Output Voltage: 24V DC
- Input Voltage: 120V AC
- Dimming Range: 0.3-100% PWM
- Minimum Load: No minimum load required
- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: Single-gang in-wall mount
- Efficiency: 91% at max load

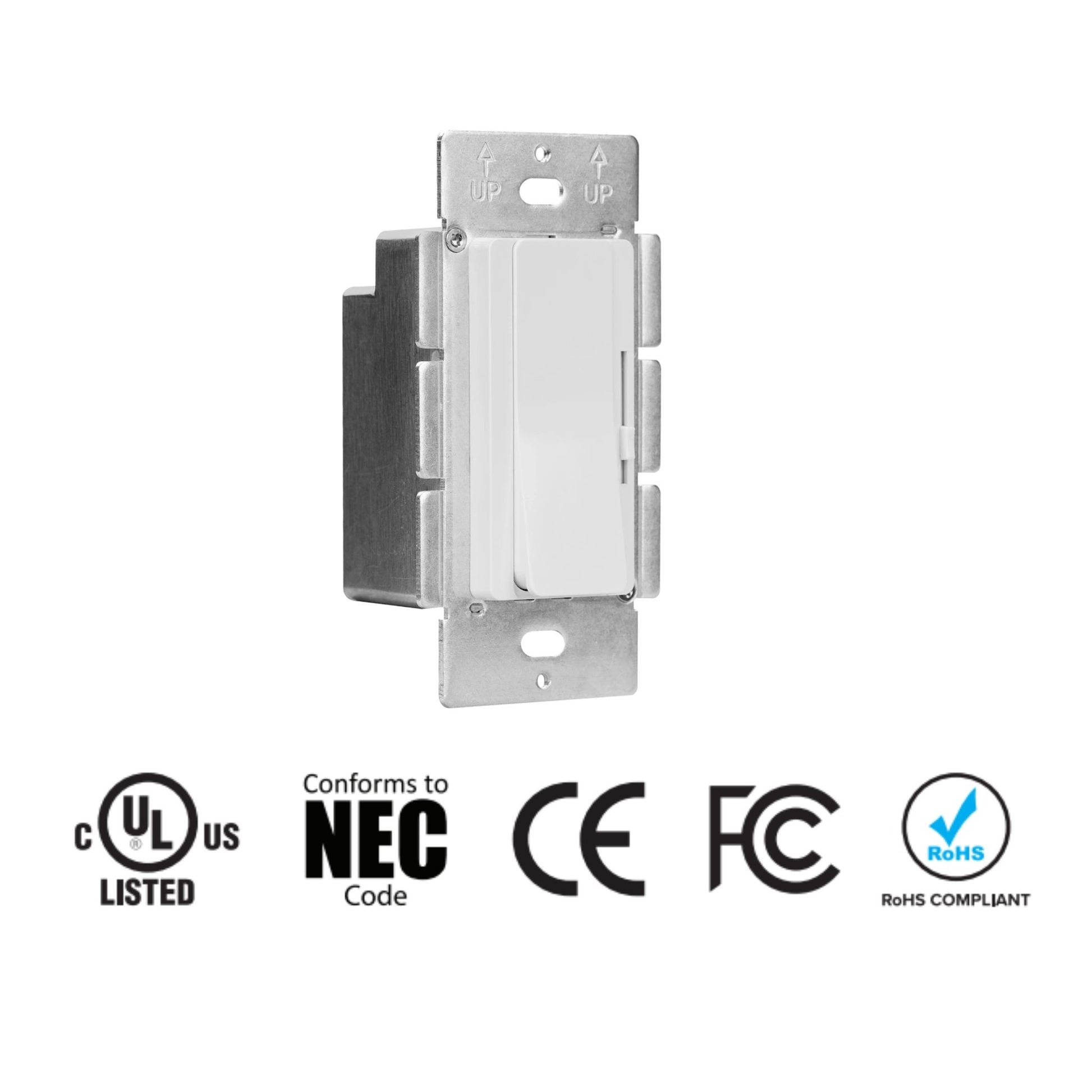

- Certifications: cULus Listed, Class 2, FCC
- Finish: White
Physical Design & Installation

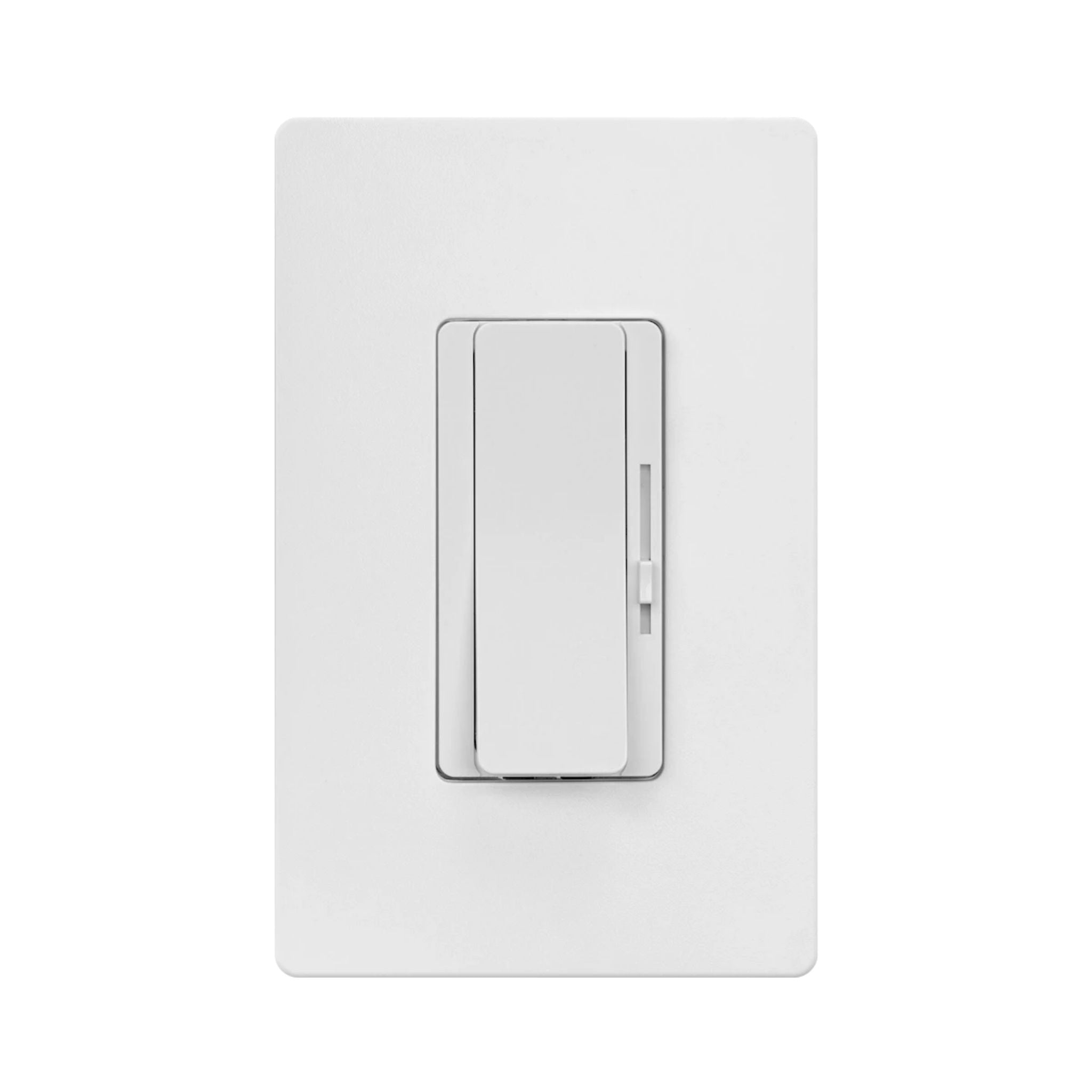

The NAVI-60-24-WH features a compact design that fits into standard single-gang recessed electrical boxes. It includes a voltage barrier partition to allow for the installation of high and low voltage circuits within the same switch box. The unit is finished in white and is compatible with standard decora faceplate trims.
Dimming & Controls
This all-in-one unit provides smooth 0.3-100% dimming using a 16kHz PWM output and a gamma 2.2 curve. It functions as a single pole or 3-way dimmer with an on/off push switch. An adjustable voltage output dial is included to address potential voltage drop over long runs, and there is no minimum load requirement for flicker-free operation.
Performance & Build
Built for reliability, this driver includes integrated protections against short circuits, thermal runaway, and over voltage. It is Class 2 rated and suitable for use in dry and damp locations. The power failure memory feature ensures the unit recalls previous settings after an interruption.
Typical Applications
- LED Tape Light Installations
- Under-cabinet Lighting
- Accent and Cove Lighting
- Residential and Commercial Remodels
