VersaDrive 96W 24VDC LED Driver with 5-Way Dimming, Class 2, 120-277V
Available in stock (45)
About this item
About this item
- 24VDC Constant Voltage Output: 96W max load with PWM output at 3.9 KHz for consistent LED tape performance
- 5-Way Universal Dimming: Forward phase, reverse phase, 0-10V, PWM, and potentiometer dimming; dims down to 1%
- Universal Input: 120-277VAC ±10%, 50/60Hz for broad commercial and residential compatibility
- Outdoor-Rated Enclosure: Stamped steel, powder coat housing with Integrated Junction Box and 1/2 in. trade size knockouts
- Built-In Protection: Over voltage, over temperature (auto-recovery), overload (current limit), and short circuit (auto-recovery)
We process payments securely and do not store credit card information.
Description
Description

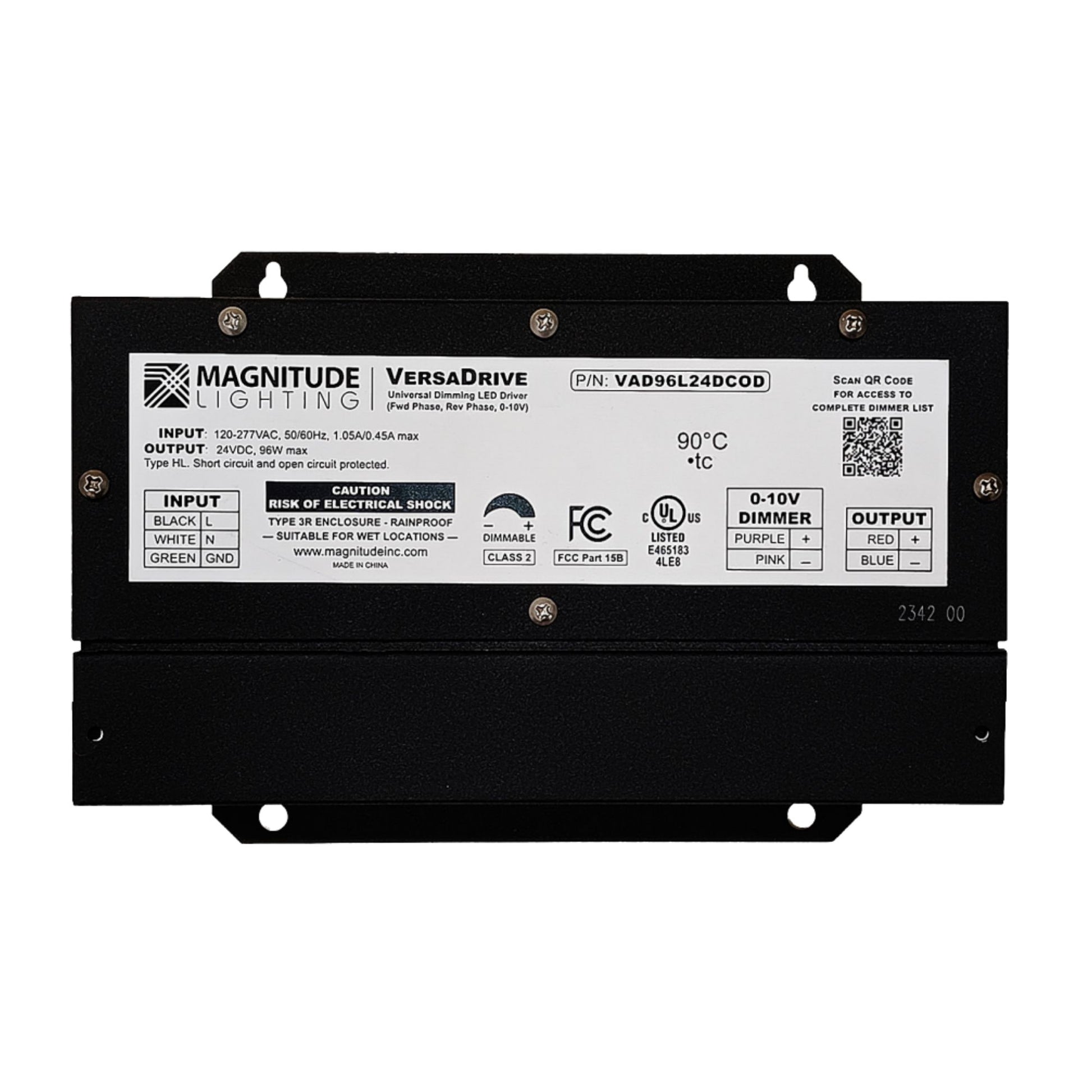

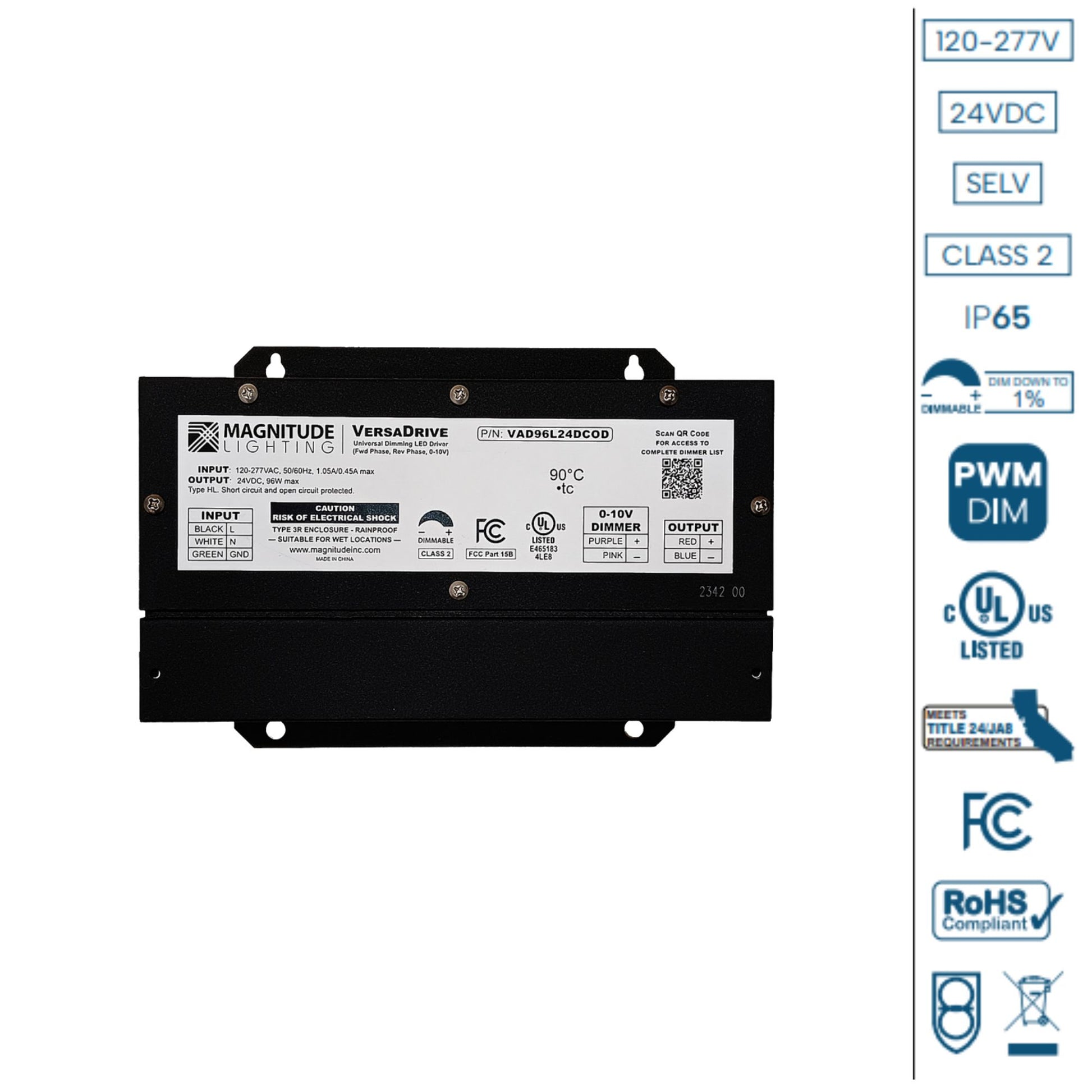

Magnitude Lighting VersaDrive 96W LED Driver — 24V DC
VAD96L24DCOD is a Magnitude Lighting VersaDrive LED Driver rated 96W with universal 120-277VAC input and 24V DC Constant Voltage output. It features 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, and potentiometer) with smooth dimming down to 1%. Built in a stamped steel, powder-coated housing with an Integrated Junction Box, it is designed for wet-location installations with IP65 and NEMA 3R enclosure ratings.
Key Features
- Power: 96W maximum load
- Input Voltage: 120-277VAC ±10%
- Output Voltage: 24VDC
- Dimming: 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, potentiometer); minimum dim level 1%
- Minimum Load for Dimming: 8W
- Dimensions: 8.1 in. L x 5.6 in. W x 1.7 in. H
- Enclosure Type: Integrated Junction Box with 1/2 in. trade size knockouts; stamped steel, powder coat finish
- IP / Enclosure Rating: IP65 / NEMA 3R
- Class Rating: Class 2
- Certifications: UL Listed; California Title 24 / JA8
Physical Design & Installation
The driver uses a stamped steel, powder-coated enclosure and includes an Integrated Junction Box with 1/2 in. trade size knockouts for streamlined conduit and line-voltage wiring. Lever style connectors are pre-installed on all wire leads to reduce installation time.
Dimming & Controls

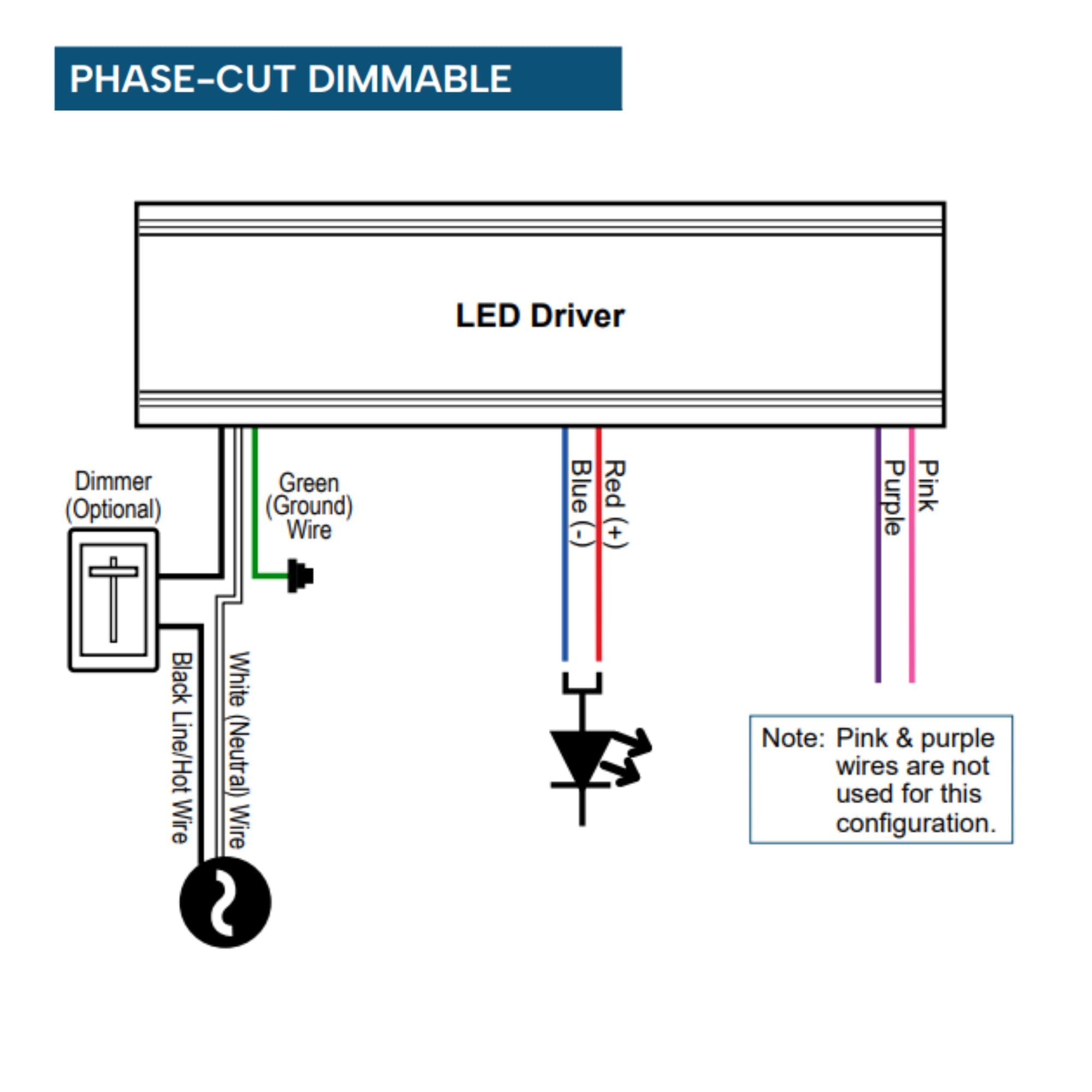

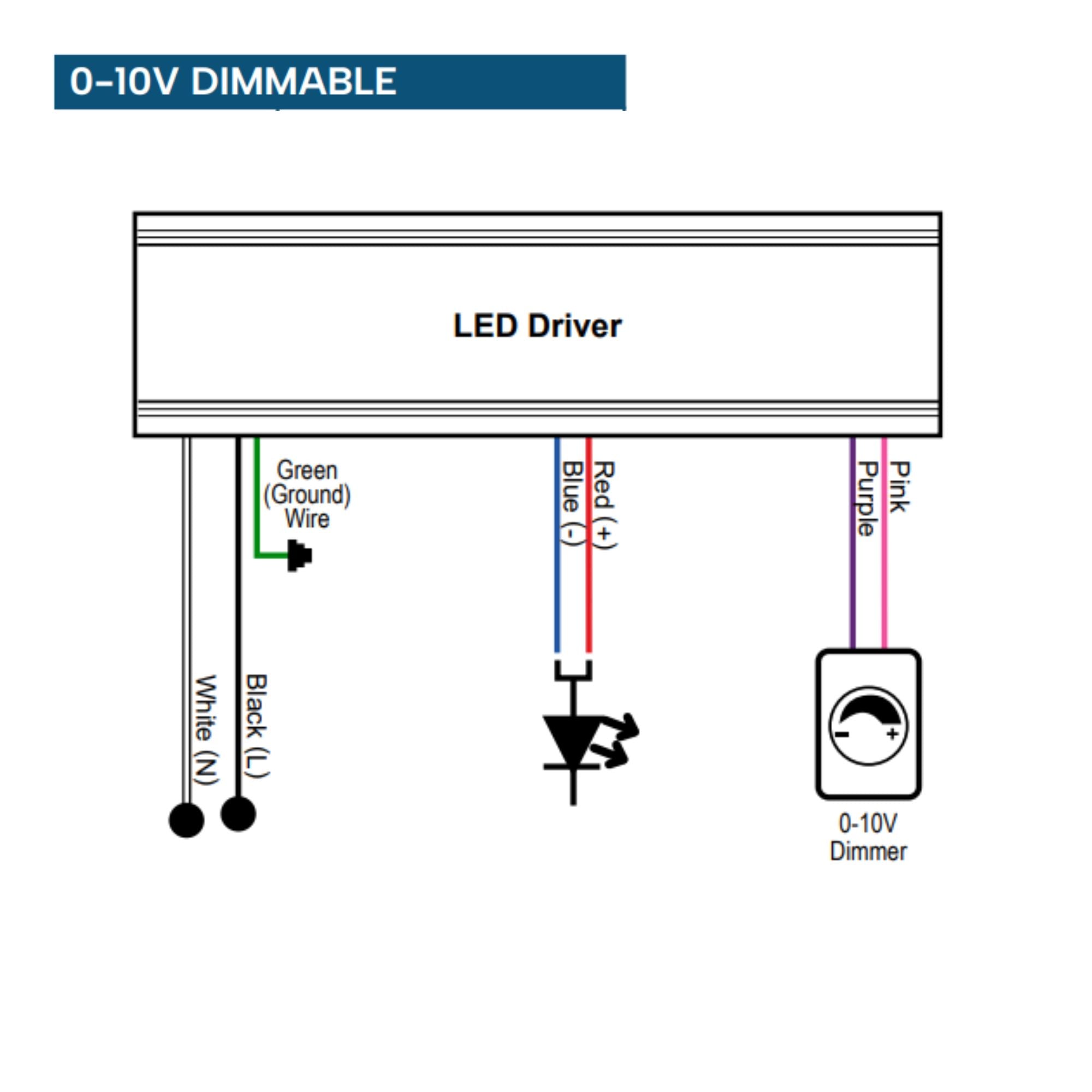

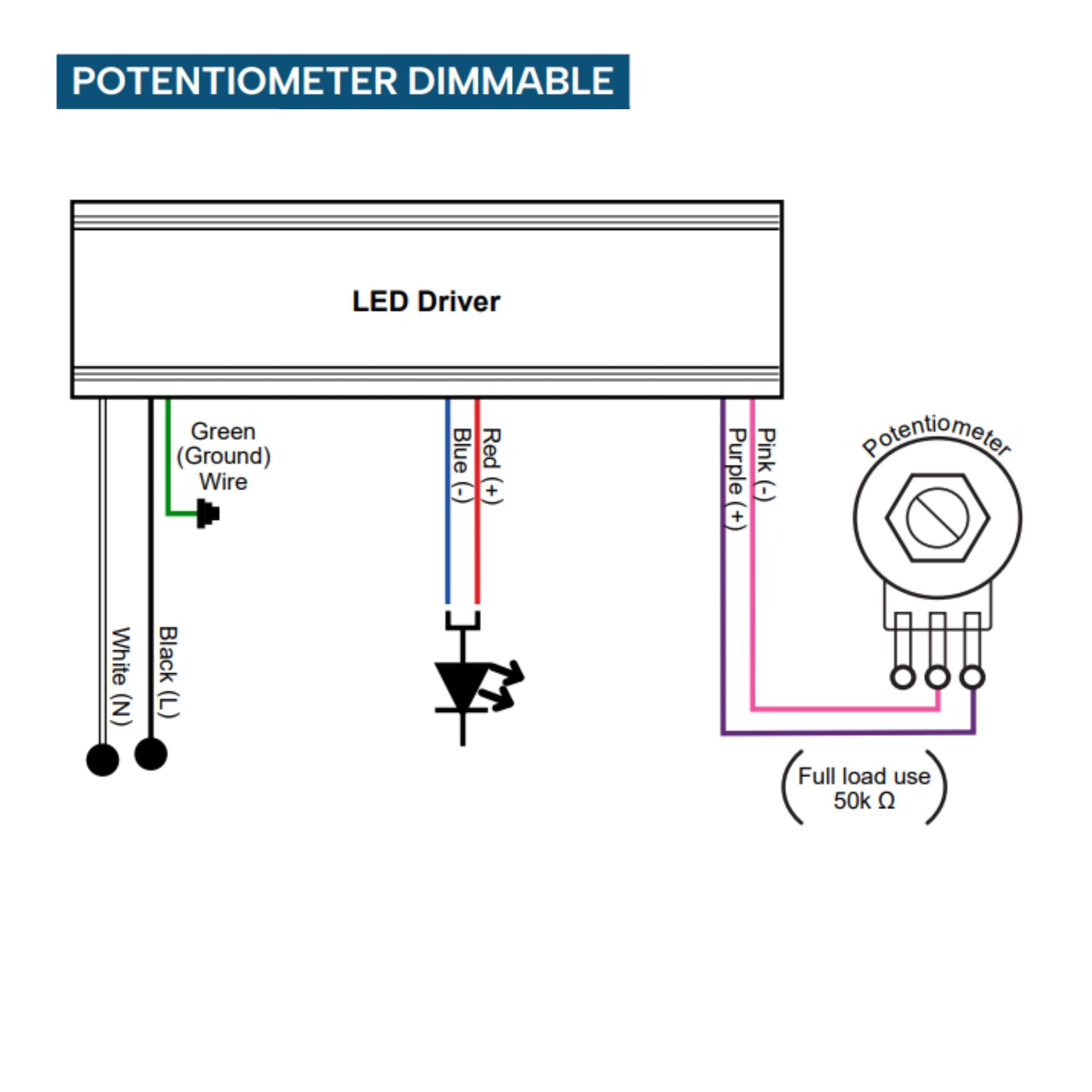

This VersaDrive model supports multi-protocol control: phase-cut dimming on 120V systems and 0-10V dimming across 120-277V systems, plus PWM and potentiometer dimming options. Output dimming is PWM at 3.9 KHz and is designed for smooth, flicker-free performance down to 1%. For stable dimming performance, maintain at least 8W connected load.
Performance & Build
Protection features include over voltage protection, over temperature protection with auto-recovery, overload protection with current limiting, and short circuit protection with auto-recovery. The enclosure is rated IP65 and NEMA 3R for outdoor exposure, and the driver is Class 2 and UL Listed.
Typical Applications
- Outdoor LED tape and linear accent lighting
- Wet-location architectural details and facades
- Signage and perimeter lighting using 24VDC constant voltage loads
- Commercial and residential installations requiring multi-protocol dimming
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming methods are supported by this driver?
What dimming methods are supported by this driver?
Is there a minimum load requirement for smooth dimming?
Is there a minimum load requirement for smooth dimming?
Does it include an integrated junction box for wiring?
Does it include an integrated junction box for wiring?
What input voltage range can it accept?
What input voltage range can it accept?
What is the IP and enclosure rating for this driver?
What is the IP and enclosure rating for this driver?
