Magnitude Lighting JB-Series Junction Box LED Driver, 3-Channel, 3x96W (288W Total), 24VDC, Phase Dimmable, 120V Input, Surface Mount, White (JB-3-E96R24DC-SW)
Magnitude Lighting JB-Series Junction Box LED Driver, 3-Channel, 3x96W (288W Total), 24VDC, Phase Dimmable, 120V Input, Surface Mount, White (JB-3-E96R24DC-SW)
Available in stock (20)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 3-Channel Multi-Output: Three independent 96W channels (288W total) for controlling multiple LED zones from a single driver
- Phase Dimmable to 1%: Smooth dimming down to 1% with leading edge TRIAC dimmers for superior light control

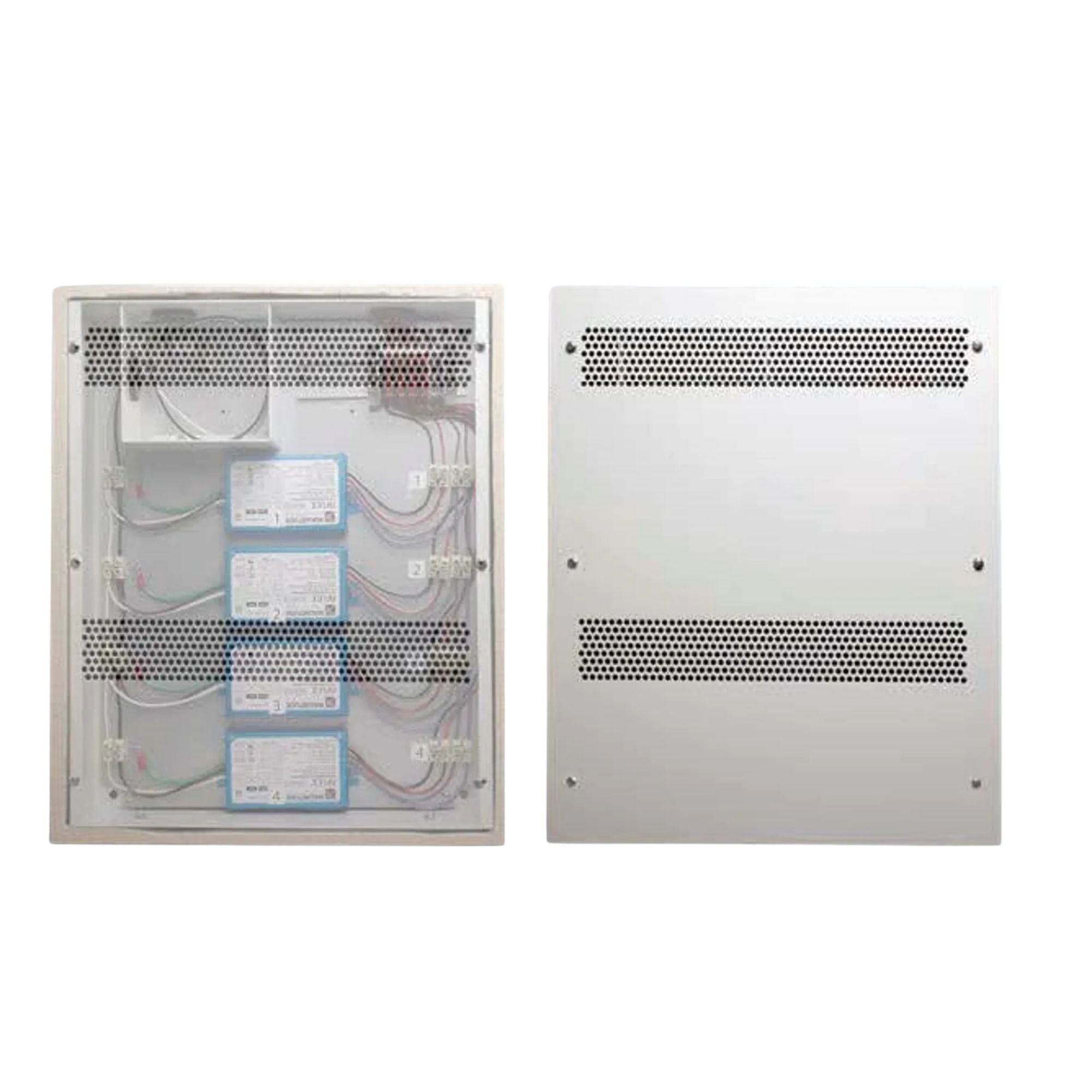

- Integrated Junction Box: Pre-wired high-quality metal junction box with multiple 1⅛" knock-outs for quick installation
- Class 2 Multi-Channel: Each channel rated at 96W max load with 24VDC output and auto-reset protection
- Professional-Grade Quality: >90% efficiency, UL2108 listed, wide operating temperature range, 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Magnitude Lighting JB-3-E96R24DC-SW Junction Box LED Driver - 3-Channel
The Magnitude Lighting JB-3-E96R24DC-SW is a premium multi-channel constant voltage electronic LED driver engineered for professional multi-output residential and commercial lighting applications. This 3-channel junction box delivers three independent 96W outputs (288W total) at 24VDC, featuring Class 2 multi-channel specification with high-quality metal construction. The integrated junction box includes multiple 1⅛" knock-outs and comes pre-wired for quick and easy installation, making it the perfect product for multi-output applications requiring independent channel control.
JB-3-E96R24DC-SW Features
- 3-Channel Multi-Output: Three independent 96W channels (288W total) for controlling multiple LED zones from a single driver
- Class 2 Multi-Channel: Each channel rated at 96W max load with 24.0 VDC output voltage and 4.16A output current
- Phase Dimmable to 1%: Smooth dimming down to 1% with leading edge TRIAC dimmers for superior light control

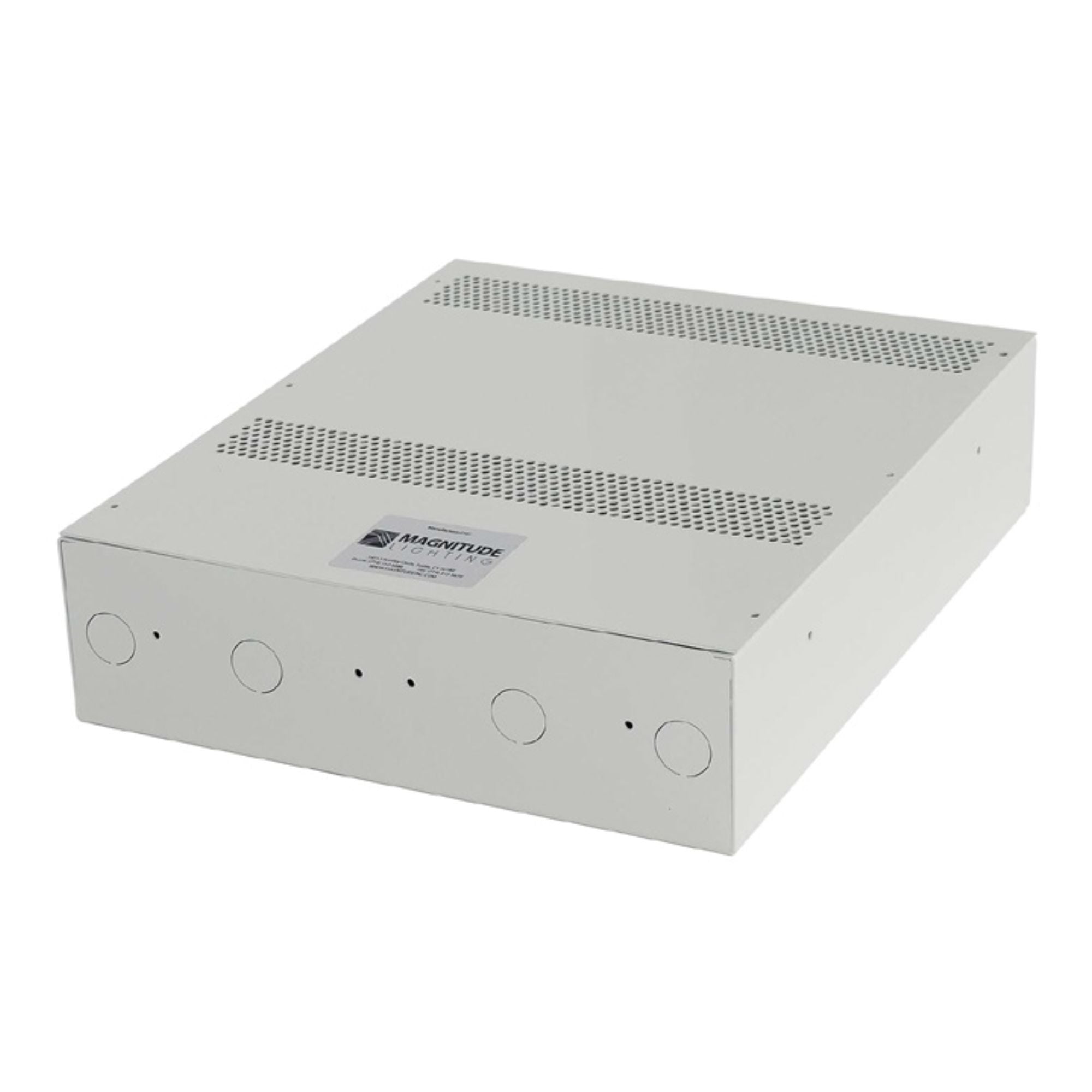

- Integrated Junction Box: High-quality metal junction box with multiple 1⅛" knock-outs for easy installation
- Pre-Wired Design: Comes pre-wired for quick installation, reducing labor time and complexity
- Surface or Recessed Mount: Flexible mounting options for various installation requirements
- 120VAC Input: Standard 120VAC ± 10%, 50/60Hz input voltage with 0.85A per driver input current
- High Efficiency: >90% efficiency with 0.95 power factor for reduced energy consumption
- Auto-Reset Protection: Short circuit and over-voltage auto-reset protection for reliable operation
- UL2108 Listed: Certified for safety and code compliance for dry locations
- Wide Operating Temperature: -30°C to +50°C (-22°F to 122°F) for versatile installations
- 5-Year Warranty: Professional-grade reliability backed by Magnitude Lighting
- White Finish: Clean, professional appearance for surface mount installations
Dimensions
- Surface Mount (Up to 9 Channels): Length 33.70" (855.98mm), Width 14.00" (355.6mm), Depth 4.17" (106.0mm)
- Recessed Mount (Up to 9 Channels): Length 34.70" (881.0mm), Width 15.00" (381.0mm), Depth 4.17" (106.0mm)
What's Included

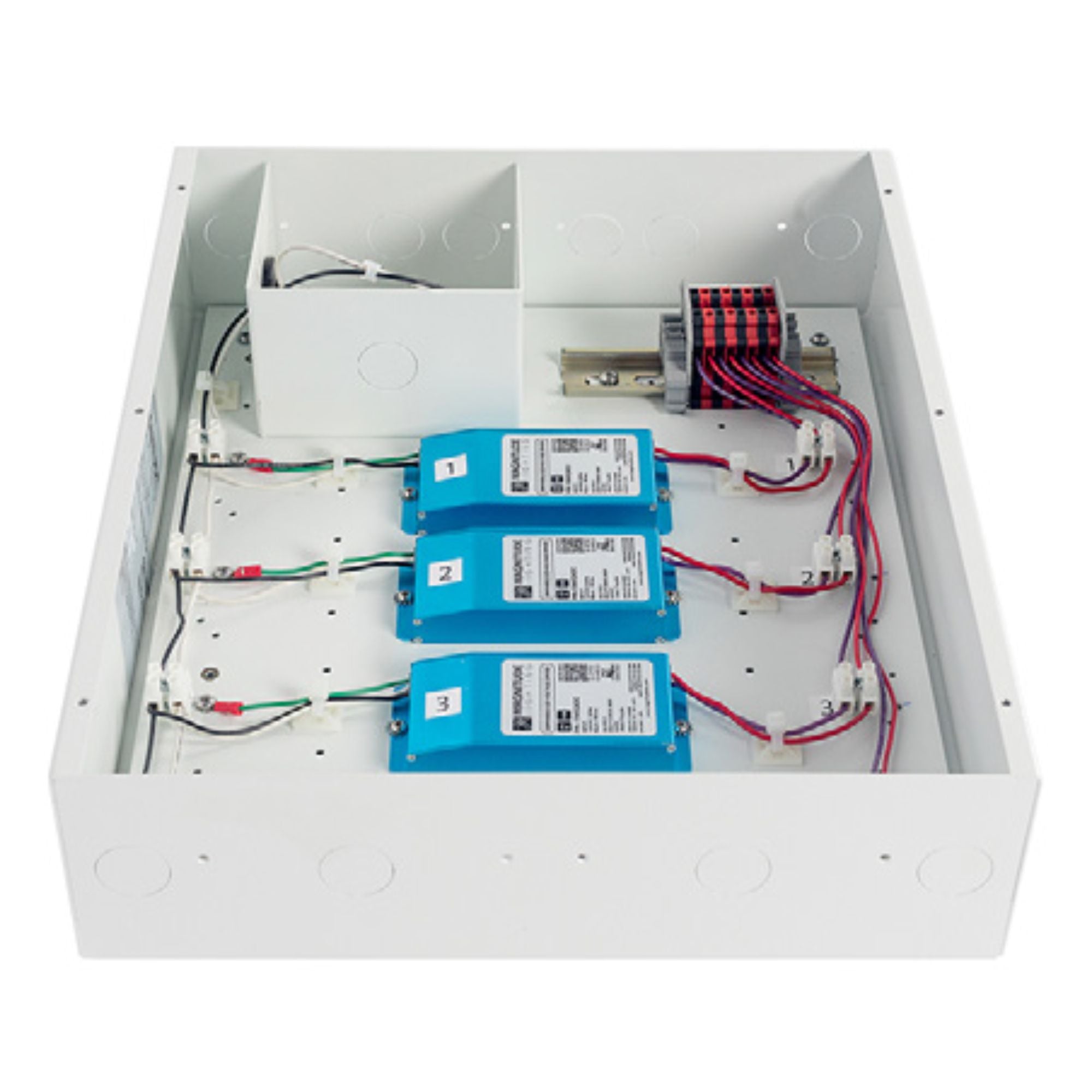

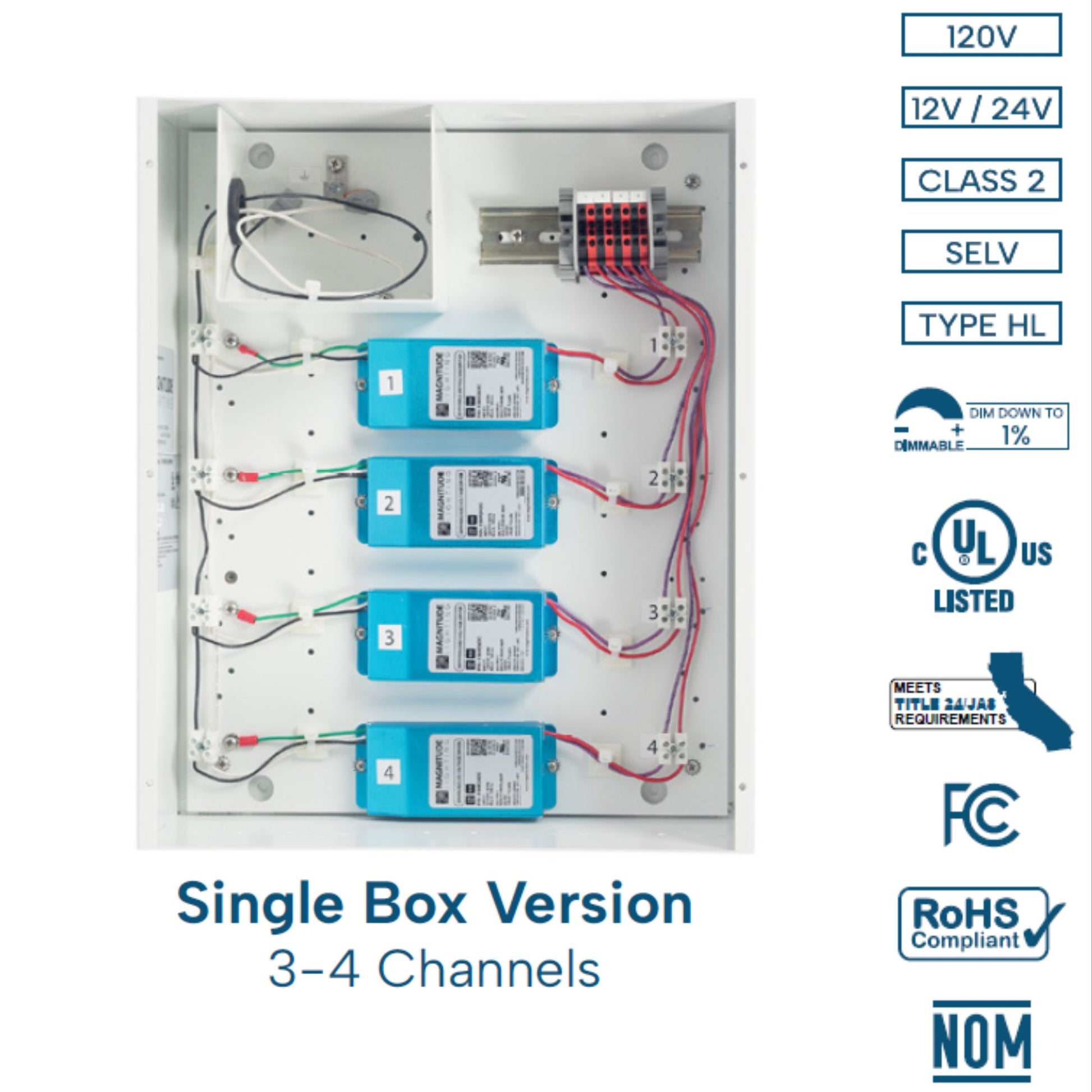

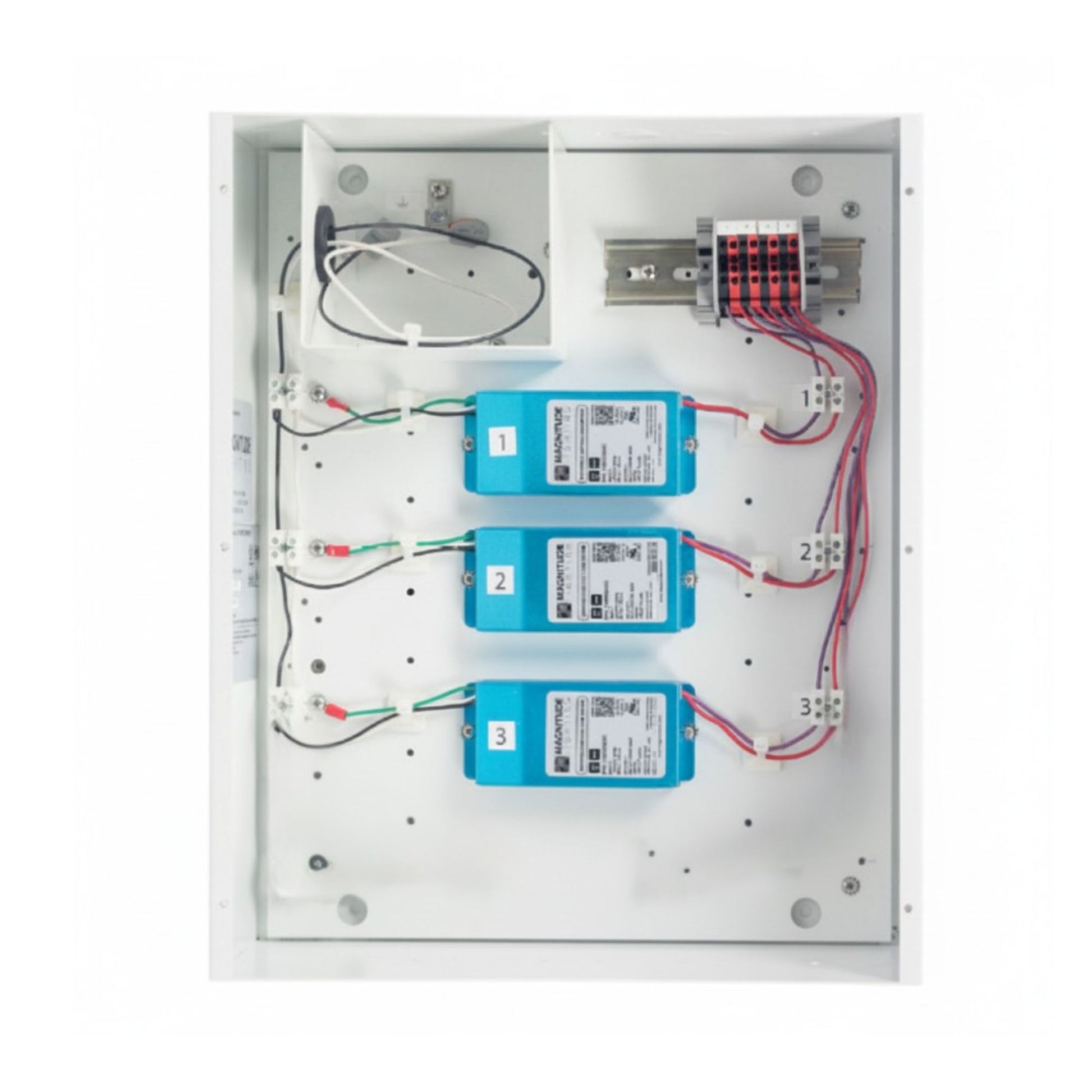

- 1x JB-3-E96R24DC-SW Junction Box with 3 integrated E-Series LED drivers
- Pre-wired connections
- Multiple 1⅛" knock-outs
- Mounting hardware
- Installation instructions
Not Included (Sold Separately): LED fixtures/tape lights, dimmer switches, additional wiring (if needed)
Perfect Applications
- Multi-zone residential lighting control
- Commercial LED tape light installations
- Architectural linear lighting systems
- Under-cabinet and cove lighting with multiple zones
- Retail display and accent lighting
- Hospitality and restaurant lighting
Why Choose Magnitude Lighting JB-Series
Magnitude Lighting delivers professional-grade multi-channel LED driver solutions engineered for superior performance and flexibility. The JB-3-E96R24DC-SW combines three independent 96W Class 2 channels with integrated junction box design, phase dimming to 1%, high efficiency >90%, auto-reset protection, and pre-wired installation. With UL2108 listing, surface or recessed mount options, wide operating temperature range, 5-year warranty, and Magnitude Lighting's reputation for quality, the JB-Series delivers long-term reliability and value for multi-output LED lighting applications.
Why Buy From Us: As an authorized Magnitude Lighting dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
