Magnitude Lighting M-Series M40L24DC-AR 40W Driver | Integrated Junction Box

M-Series 12/24VDC Constant Voltage Magnetic LED Driver - Bees Lighting

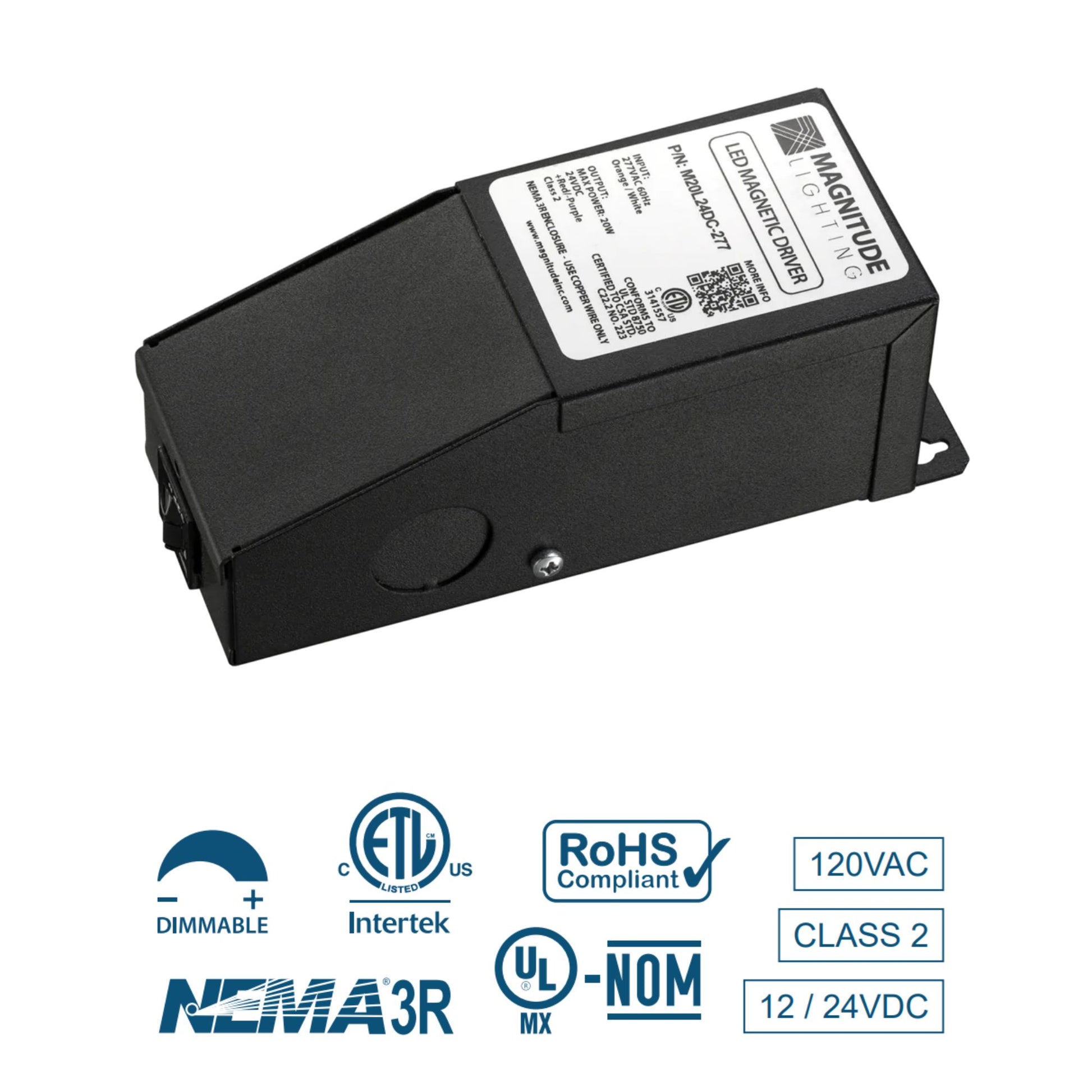

M-Series 40W 24VDC Magnetic Phase Dimmable LED Driver, Class 2, 120V

$89.64

$89.64 ~~$0.00~~

Description

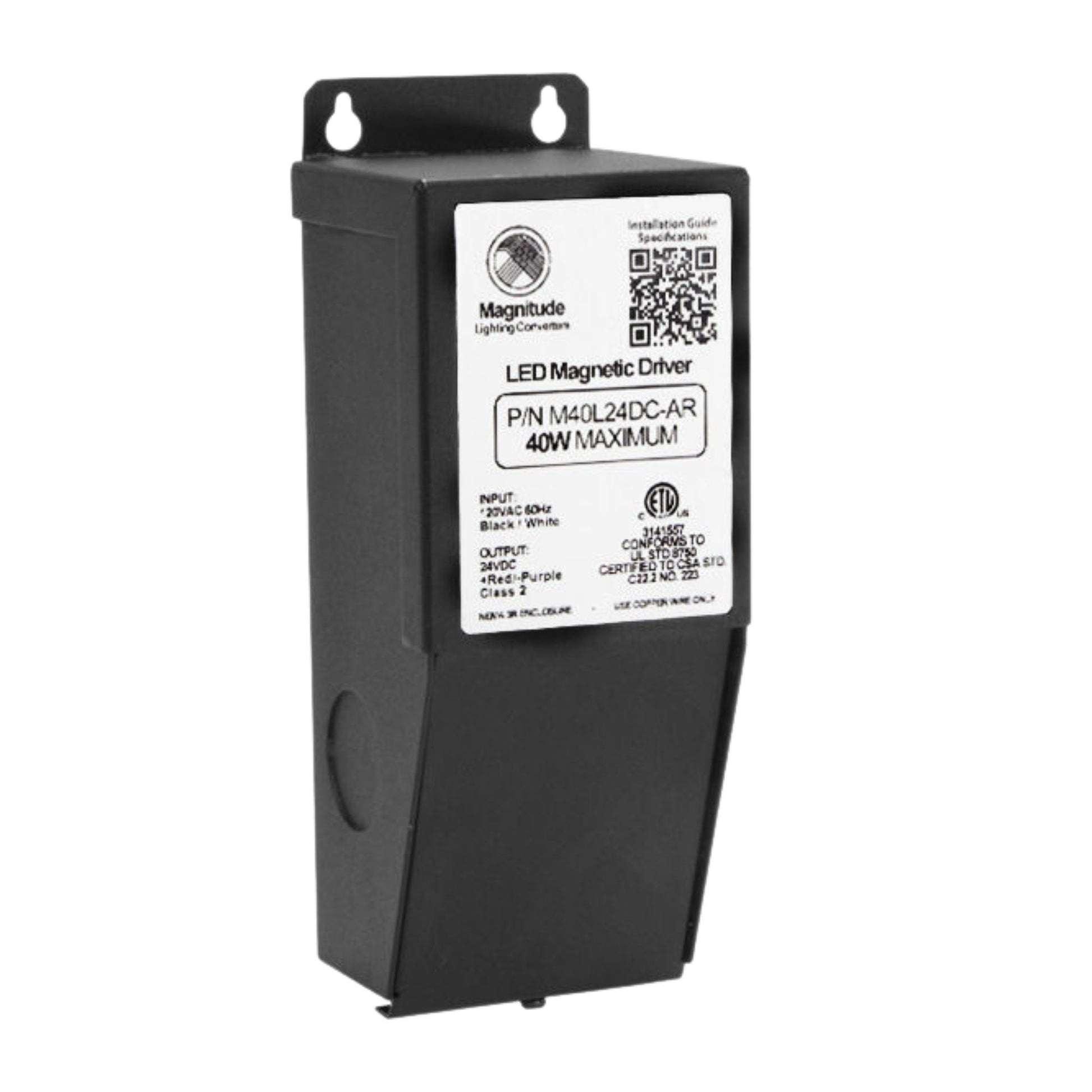

Magnitude Lighting M-Series 40W LED Driver — 24V DC

M40L24DC-AR is a 40W LED Driver with 120VAC input and 24V DC Constant Voltage output for 24V LED tape, tube, and linear lighting. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is listed as Class 2. The coated metal housing is an Integrated Junction Box with multiple 7/8 in. knockouts for streamlined installation.

Key Features

Power: 40W max load
Input Voltage: 120VAC ± 5%, 50/60Hz
Output Voltage: 24VDC constant voltage
Dimming: Phase dimmable, leading (forward) edge MLV TRIAC dimmer only
Minimum Dimming Level: 1%

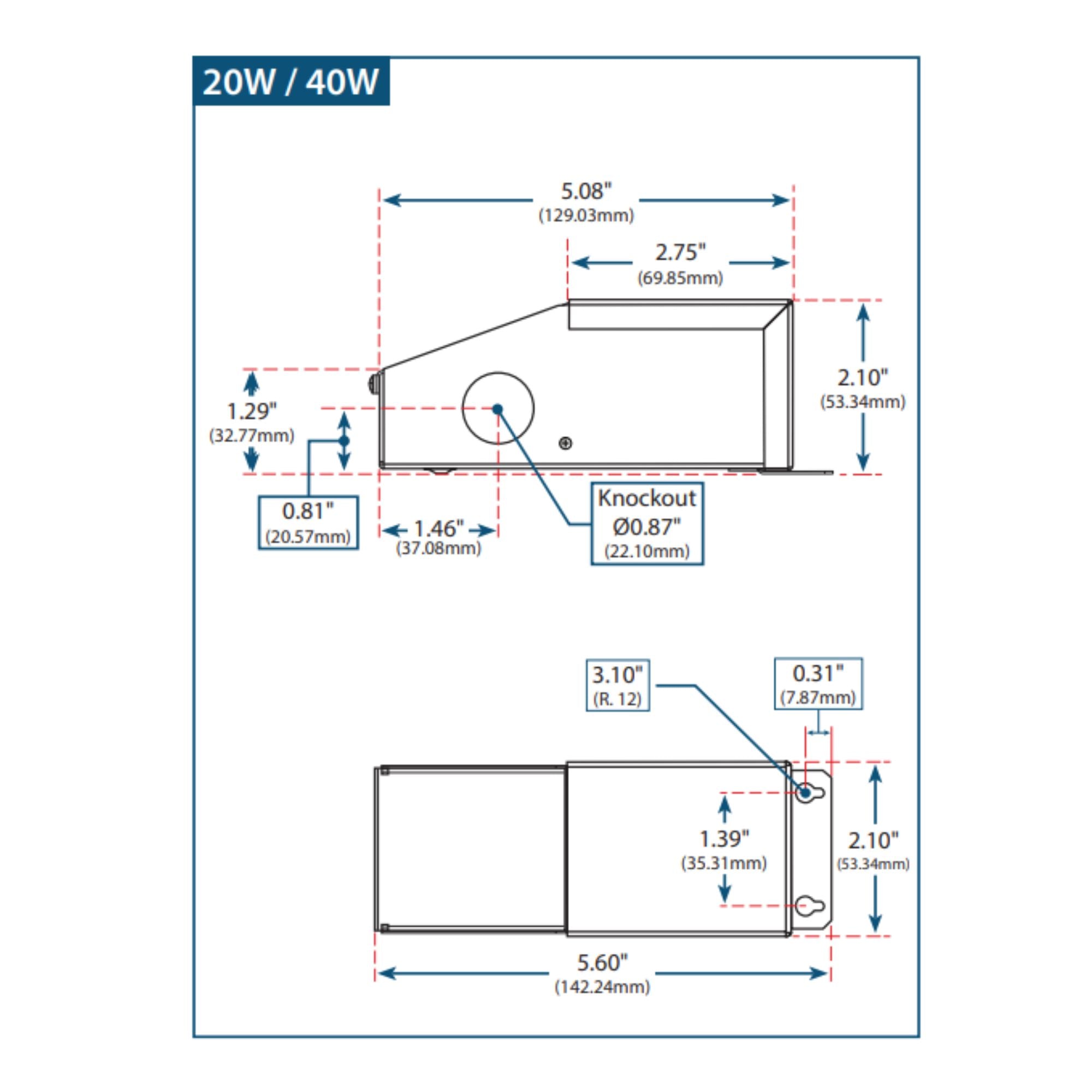

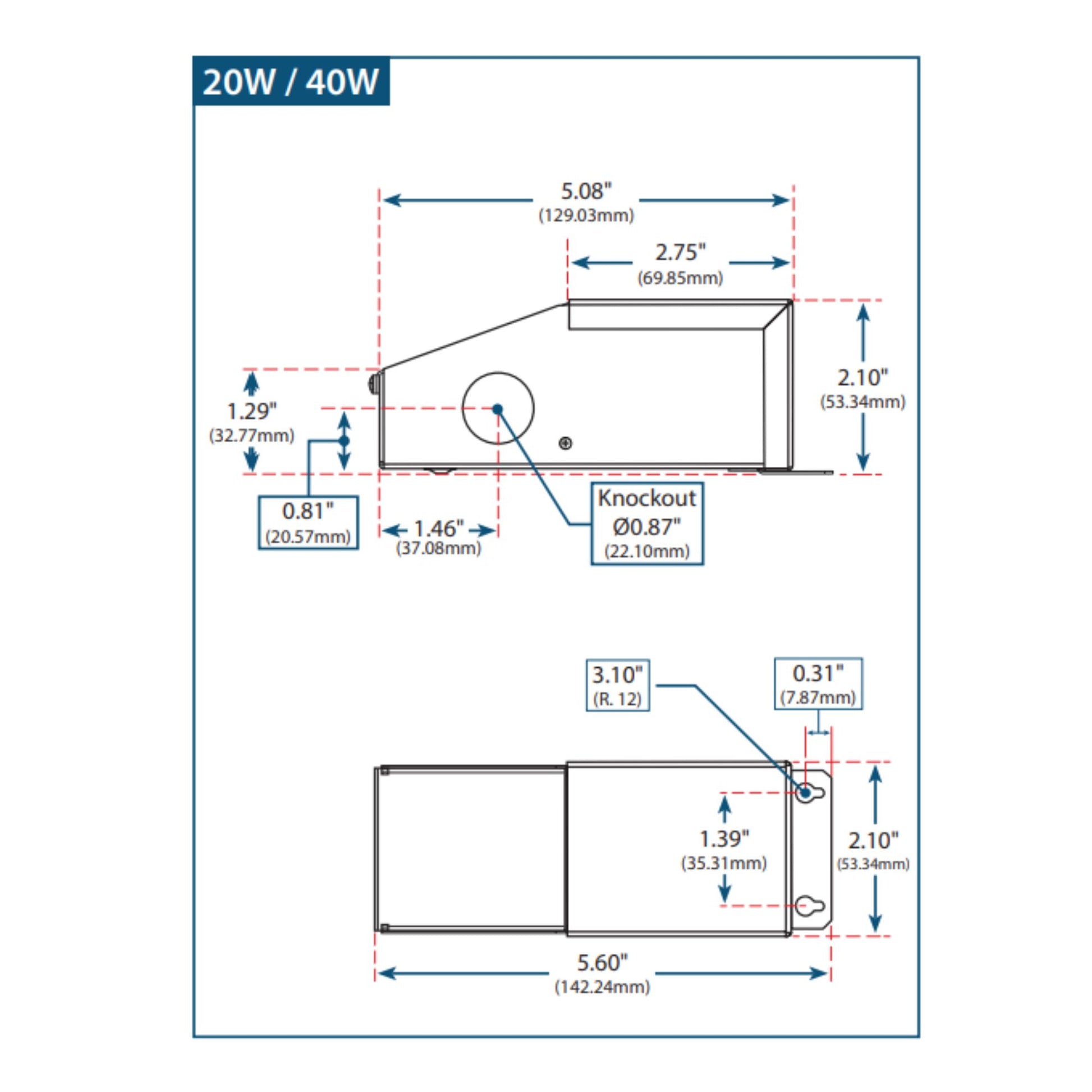

Dimensions: 5.60 in. L x 2.00 in. W x 2.14 in. H
Enclosure Type: Integrated Junction Box, coated metal, multiple 7/8 in. knockouts, 2-hole flange mount
Environmental: Dry & Damp
Class 2: Yes
Certifications: ETL Listed; Conforms to UL STD 2108; C22.2 NO. 223

Physical Design & Installation

Coated metal enclosure with an Integrated Junction Box and multiple 7/8 in. knockouts for conduit entry and wiring compartment access. Mounts via 2-hole flange mount; maintain 5 in. minimum installation spacing as specified.

Dimming & Controls

Phase dimming is supported with a standard leading (forward) edge MLV TRIAC dimmer only. Dimming performance is specified down to 1% minimum dimming level. Input is 120VAC ± 5% at 50/60Hz; output is 24VDC constant voltage for compatible 24V LED loads.

Performance & Build

Built-in primary and secondary auto-reset circuit breakers provide protection for the driver and connected LED load. Rated Class 2 and designed for dry and damp environments with an operating temperature range of -30°C to +45°C.

Typical Applications

24V LED tape and undercabinet lighting
Linear and tube-style LED fixtures requiring 24VDC constant voltage
Residential and commercial dimmable accent lighting
Damp-location installations where a junction-box style driver is preferred

Specifications

Dimensions

Length/Depth

5.6 in

Width/Diameter

2 in

Height

2.14 in

Weight

2.2 lb

Documents

Style & Materials

Material

Metal

Characteristics & Features

Dimmable

Yes

Electrical Information

Voltage

120V

Output Voltage

24V DC

Wattage Rating

40.0W

Amps Rating

0.4 A

Item Details

MPN

M40L24DC-AR

Brand

Magnitude Lighting

Family

M-Series

UPC

857814006038

Warranty & Certifications

Product Warranty

5 Years

Product Rating

Class 2, Damp Rated, NEMA 3R

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What dimmer type is compatible with this driver?

It is phase dimmable with a leading (forward) edge MLV TRIAC dimmer only.

Does this driver require a minimum load for dimming?

The provided specification lists a 1% minimum dimming level but does not state a minimum load requirement; size the LED load within the 40W maximum.

Does it include an integrated junction box?

Yes. It is an integrated junction box design with multiple 7/8 in. knockouts for wiring and conduit entry.

What is the input voltage?

120VAC ± 5% at 50/60Hz.

What environmental rating does the spec list?

The specification lists the environmental rating as Dry & Damp.
