M-Series 150W 24VDC Magnetic Phase Dimmable LED Driver, 120V

Vendor: Magnitude Lighting

SKU: M150L24DC-AR

Quick Ship
$132.41
$132.41 $0.00
Shipping calculated at checkout.
Buy More, Save More: Get 10% Off 3+ Auto-applied in cart.
Voltage: 24V DC
Wattage: 150W
Safety: Auto Reset

Available in stock (46)

Must be ordered in quantities of .

About this item
  • 24VDC Constant Voltage Output: 150W driver for 24V LED tape, linear, and tube lighting loads.
  • Phase Dimming Compatibility: Leading (forward) edge MLV TRIAC dimmer only; dims down to 1%.
  • 120VAC Input: Designed for 120VAC, 50/60Hz power systems.
  • Integrated Junction Box: Coated metal enclosure with multiple 7/8 in. knockouts for streamlined wiring.
  • Built-In Protection: Primary and secondary auto-reset circuit breakers help protect the driver and LED load.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

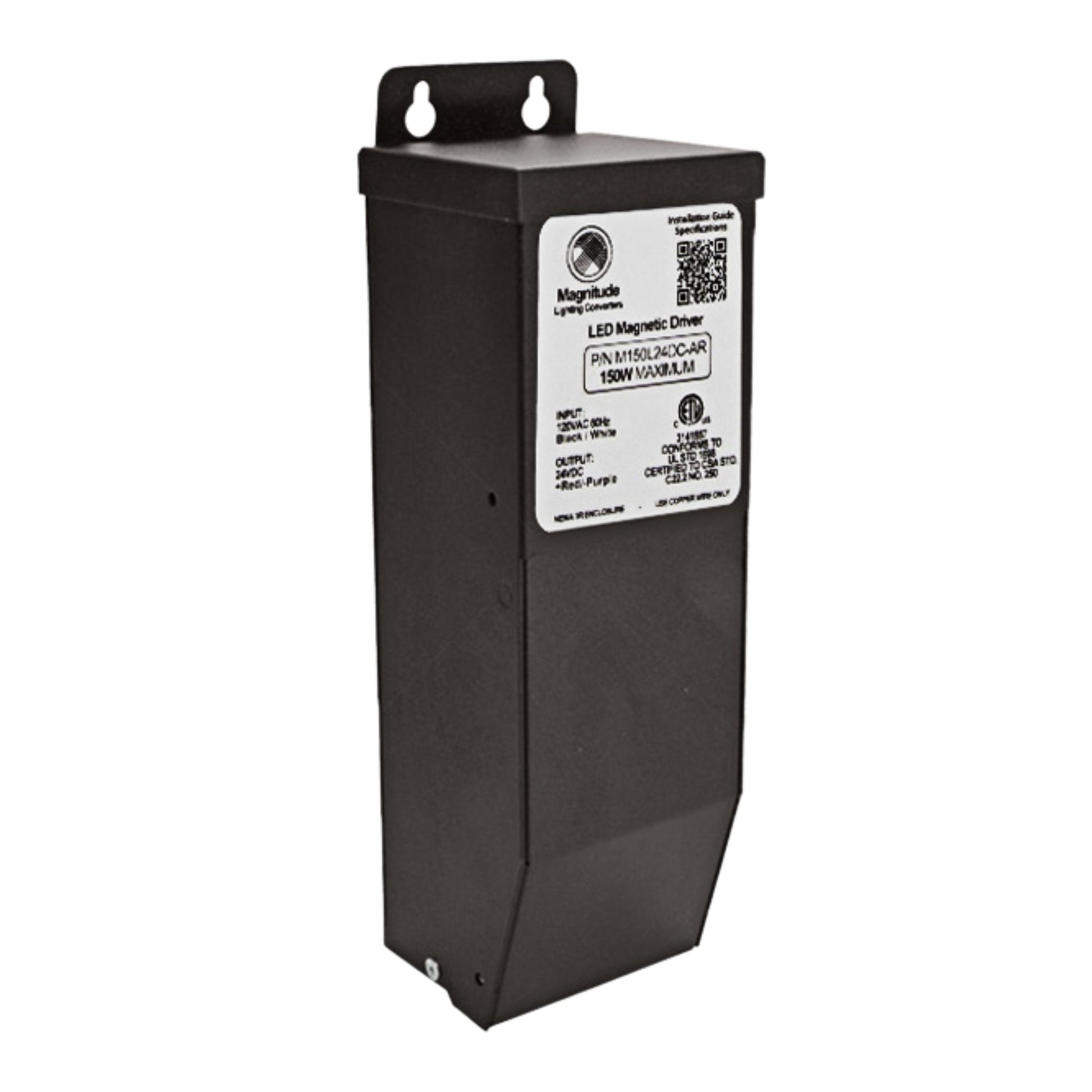

Magnitude Lighting M-Series 150W LED Driver — 24V DC

M150L24DC-AR is a 150W Constant Voltage LED Driver with 120VAC input and 24V DC output for 24V LED lighting systems. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is built in a coated metal housing with an Integrated Junction Box and multiple 7/8 in. knockouts. This model includes primary and secondary auto-reset circuit breakers for load and driver protection.

Key Features

  • Power: 150W max
  • Input Voltage: 120VAC ± 5%, 50/60Hz
  • Output Voltage: 24VDC
  • Driver Type: Constant Voltage (magnetic)
  • Dimming: Phase dimmable with leading (forward) edge MLV TRIAC dimmer only
  • Minimum Dimming Level: 1%

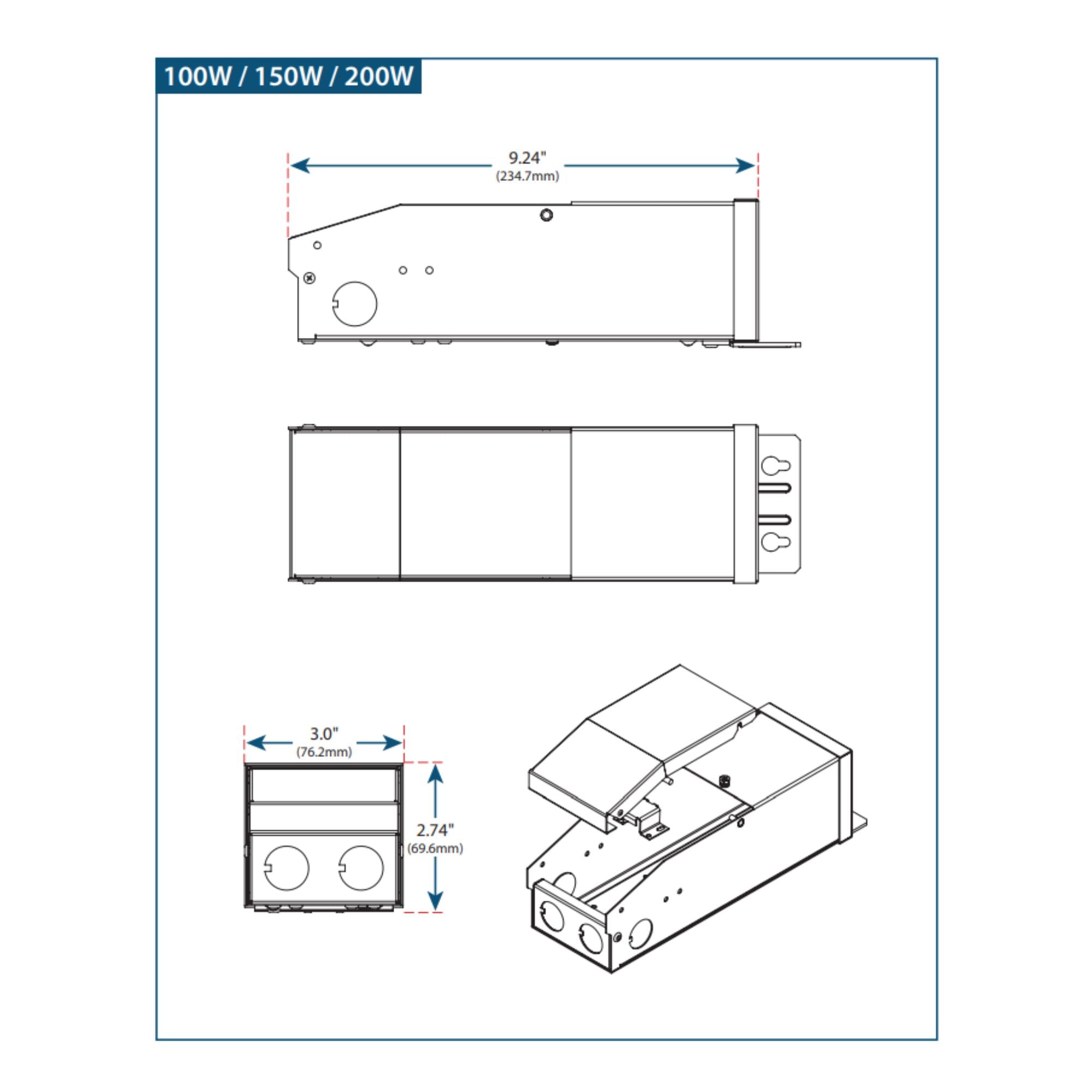

  • Dimensions: 9.80 in. L x 3.00 in. W x 2.74 in. H
  • Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts
  • Environmental: Dry & Damp

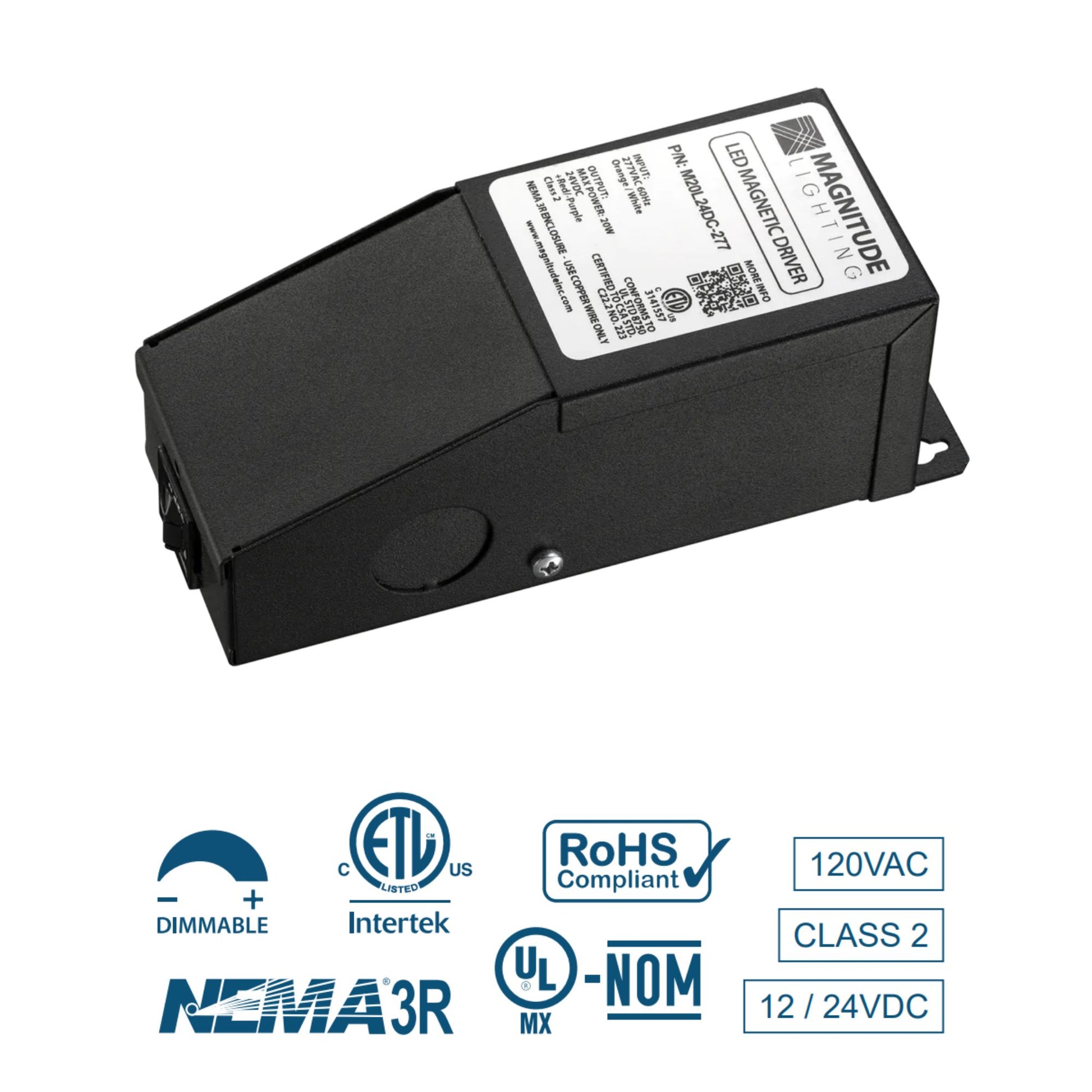

  • Listings: ETL Listed; conforms to UL STD 2108; C22.2 No. 223

Physical Design & Installation

Housed in a coated metal enclosure designed for contractor-friendly mounting and wiring. The Integrated Junction Box includes multiple 7/8 in. knockouts to simplify conduit entry and field connections.

Dimming & Controls

Phase dimming is supported with a leading (forward) edge MLV TRIAC dimmer only. Dimming performance is specified down to 1% minimum dimming level. Use a compatible MLV TRIAC control and follow standard phase-dimming wiring practices for 120VAC input and 24VDC output systems.

Performance & Build

Designed with primary and secondary auto-reset circuit breakers to help protect both the driver and the connected LED load. Rated for Dry & Damp environments and ETL Listed to UL STD 2108 with C22.2 No. 223 conformity.

Typical Applications

  • 24V LED tape and accent lighting
  • Linear and undercabinet lighting systems
  • Residential and commercial retrofits using MLV TRIAC dimmers
  • Dry or damp indoor areas

Specifications

Dimensions

Length/Depth
9.8 in
Width/Diameter
3 in
Height
2.74 in
Weight
5.4 lb

Documents

Style & Materials

Material
Metal

Characteristics & Features

Dimmable
Yes

Electrical Information

Voltage
120V
Output Voltage
24V DC
Wattage Rating
150.0W
Amps Rating
1.32 A

Item Details

MPN
M150L24DC-AR
Brand
Magnitude Lighting
Family
M-Series
UPC
857814006069

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Damp Rated, NEMA 3R

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What dimmer type is compatible with this driver?
It is phase dimmable with a leading (forward) edge MLV TRIAC dimmer only.

Does this driver require a minimum load for smooth dimming?
The provided specification text does not list a minimum load requirement; size the connected 24V load appropriately within the 150W maximum.

Does it include an integrated junction box for wiring?
Yes. It is built with an integrated junction box and multiple 7/8 in. knockouts for installation.

What is the input voltage for this model?
120VAC (120VAC ± 5%), 50/60Hz.

What is the IP rating for this driver?
An IP rating is not provided in the manufacturer specification text; the environmental rating listed is Dry & Damp.
