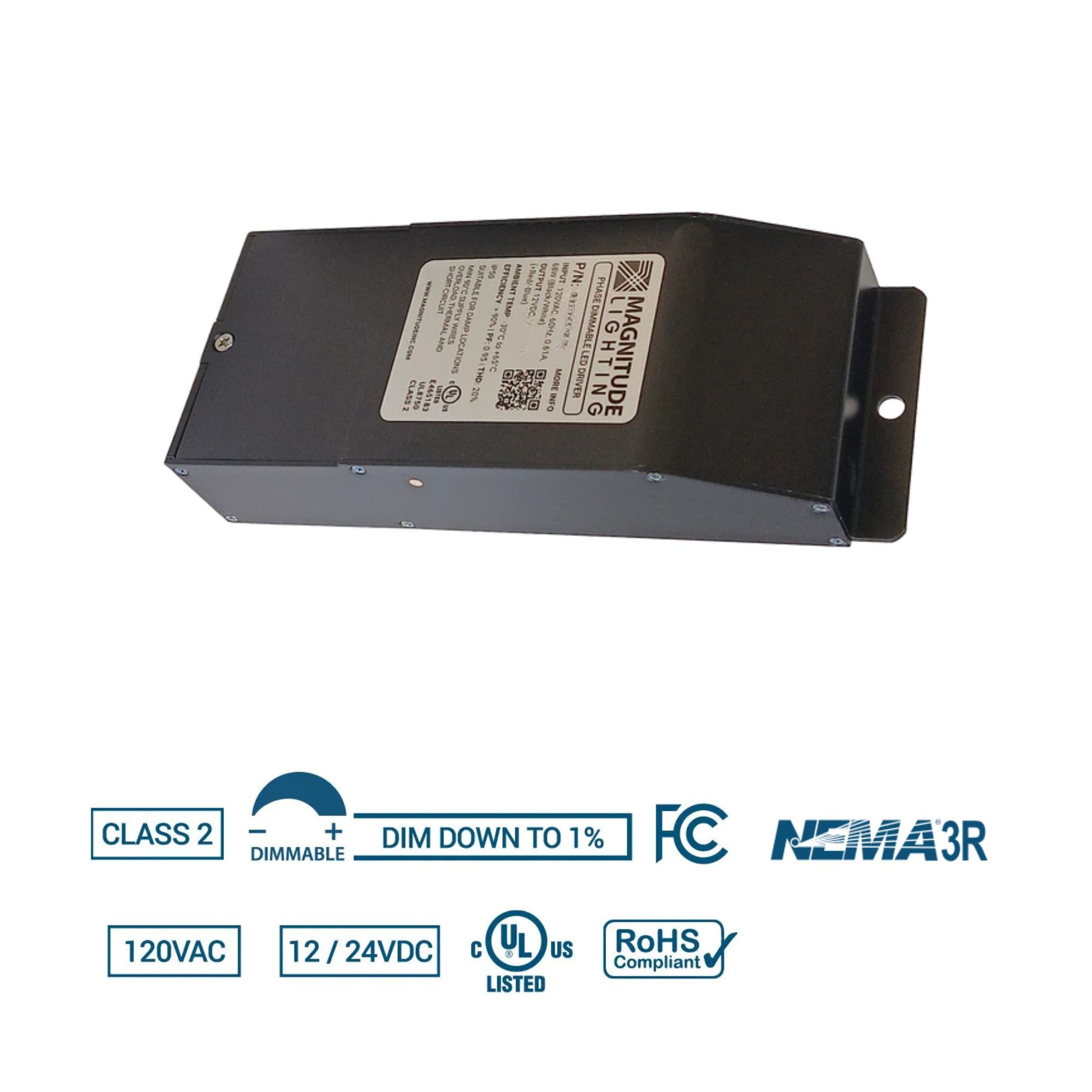

E-Series 96W 24VDC Dimmable LED Driver, Class 2, 120V, NEMA 3R, UL Enclosure
Available in stock (57)
About this item
About this item
- 96W at 24V DC Output: Constant voltage driver for 24V LED loads up to 96W (4.16A max).
- Forward-Phase Dimming: TRIAC dimmable down to 1% with a specified 8W minimum load.
- 120VAC Input: 120VAC ±10%, 50/60Hz input with 0.85A input current (24VDC model).
- Integrated Junction Box: Built-in wiring compartment with two 1/4 in. trade size (3/8 in.) knockouts for clean installs.
- Protection & Efficiency: Short circuit and over-voltage auto-reset protection with >90% efficiency.
We process payments securely and do not store credit card information.
Description
Description

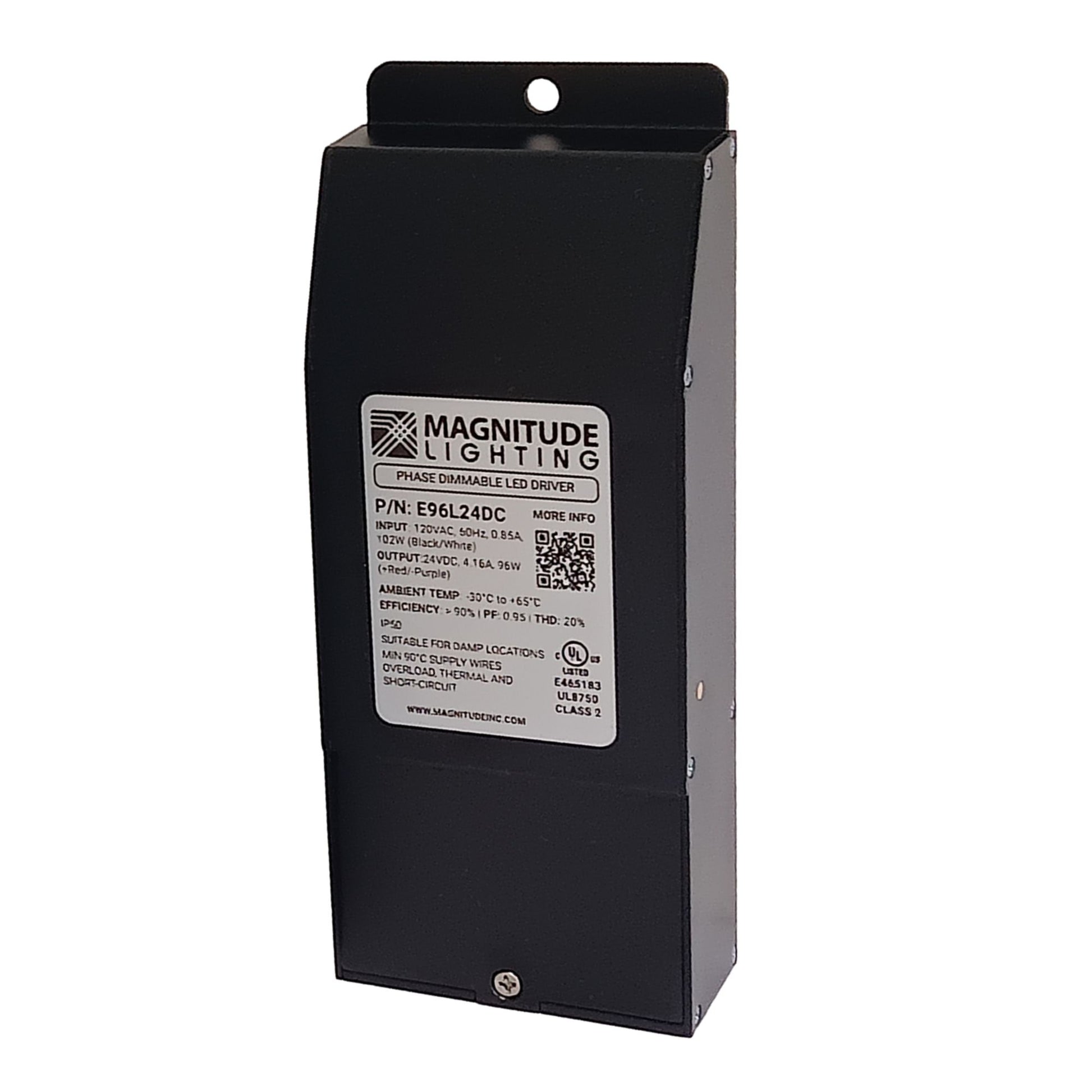

Magnitude Lighting E-Series 96W LED Driver — 24V DC
E96L24DC is a Magnitude Lighting E-Series LED Driver delivering 96W of Constant Voltage power with a regulated 24V DC output from a 120VAC supply. It supports forward-phase (TRIAC) dimming down to 1% and is UL8750 Class 2 for compatible low-voltage LED systems. The compact aluminum housing includes an Integrated Junction Box with knockouts for streamlined wiring.
Key Features
- Power: 96W maximum load
- Input Voltage: 120VAC ±10%, 50/60Hz
- Output Voltage: 24V DC constant voltage
- Output Current: 4.16A max (24VDC)
- Dimming: Forward-phase (TRIAC) dimmable to 1%
- Minimum Load: 8W

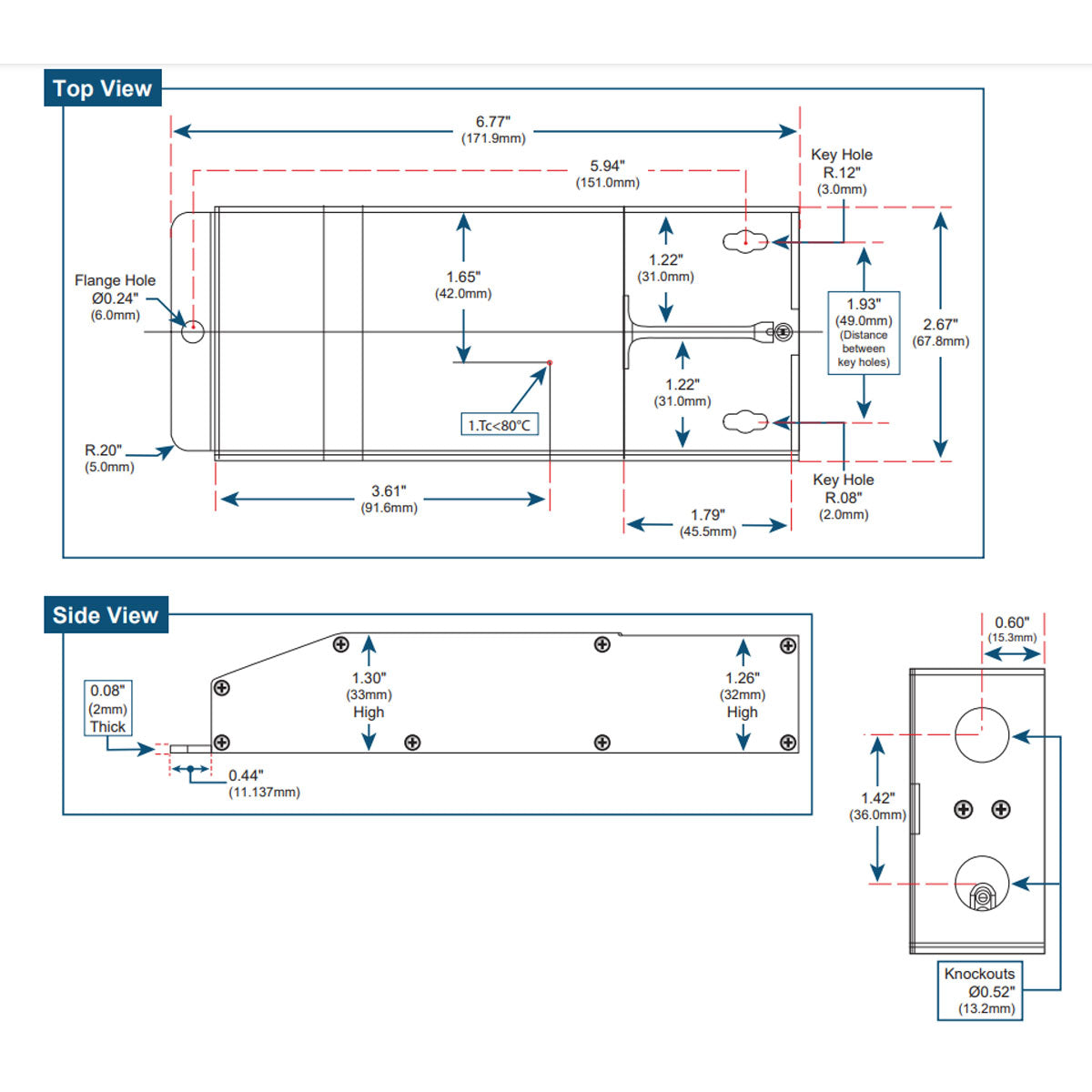

- Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
- Enclosure Type: Integrated Junction Box with wiring compartment and two 1/4 in. trade size (3/8 in.) knockouts
- IP/NEMA Rating: NEMA 3R
- Certifications: UL8750, Class 2
Physical Design & Installation
Aluminum, powder-coated enclosure designed for easy concealment in architectural and retrofit installs. The Integrated Junction Box provides a dedicated wiring compartment and includes two 1/4 in. trade size (3/8 in.) knockouts for conduit/strain-relief fittings. Mounting is via one-hole flange mount with two key holes in the wire housing.
Dimming & Controls
Forward-phase (TRIAC) dimming is supported and specified to dim down to 1%. For stable dimming performance, maintain the specified minimum connected LED load of 8W and use compatible forward-phase dimmers on the 120VAC input.
Performance & Build
Designed for high efficiency (>90%) to help reduce operating temperature. Protection includes short circuit and over-voltage auto-reset. UL8750 Class 2 construction and a NEMA 3R enclosure support demanding installations where a weather-resistant driver housing is required.
Typical Applications
- 24V LED tape and linear LED runs
- Under-cabinet and cove lighting systems
- Signage and architectural accents
- Indoor or outdoor driver mounting where NEMA 3R is required
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming method does this driver use?
What dimming method does this driver use?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does it include an integrated junction box for wiring?
Does it include an integrated junction box for wiring?
What are the input and output voltages?
What are the input and output voltages?
What is the enclosure rating?
What is the enclosure rating?
