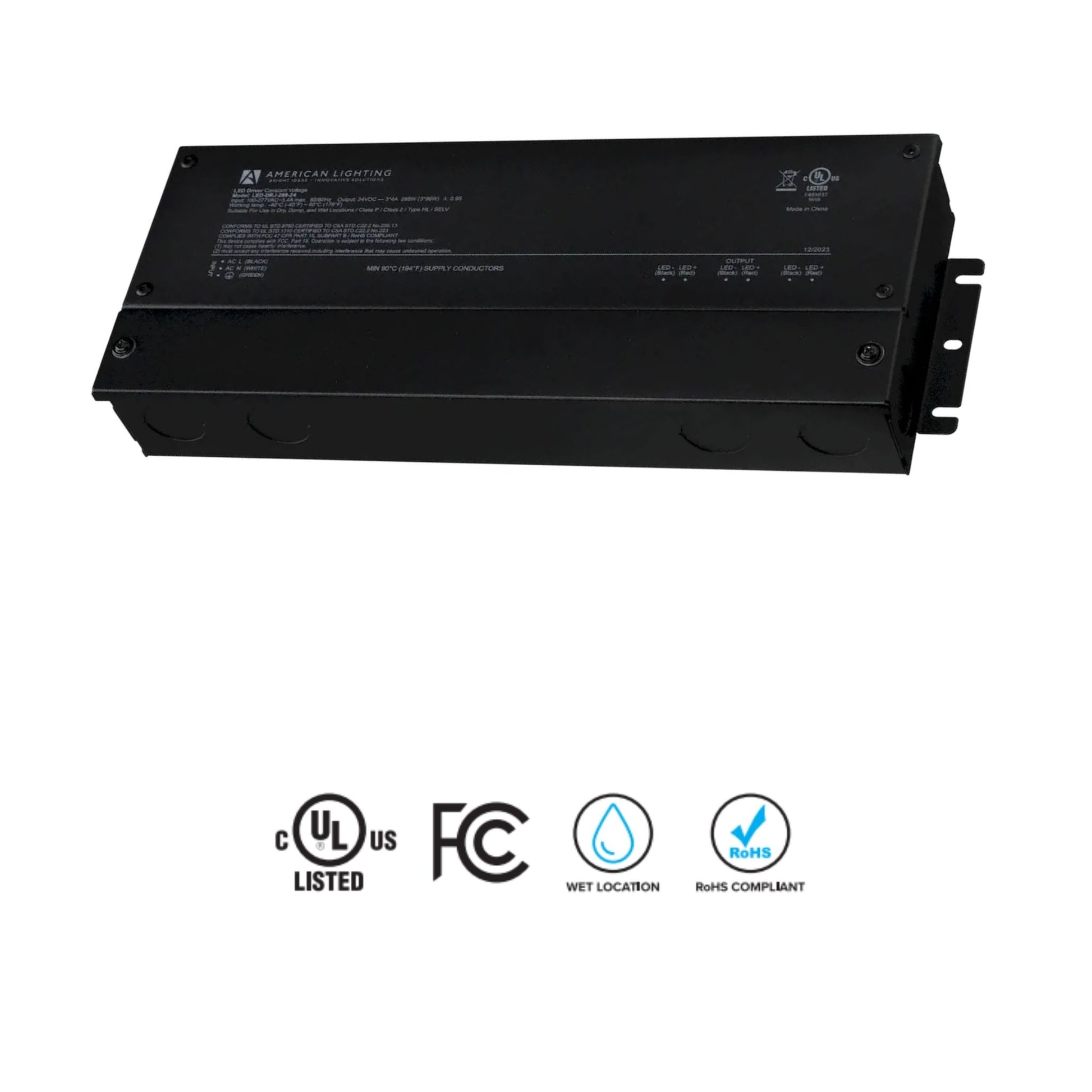

American Lighting LED-DRJ LED-DRJ-288-24 288W LED Driver — 24V DC

The American Lighting LED-DRJ-288-24 is a high-performance LED Driver delivering 288W of power at 24V DC. This Constant Voltage driver is designed for non-dimming applications, making it perfect for installations where primary side dimming is not required. With an input voltage range of 120-277V AC, it offers flexibility for various installation environments. The driver is housed in a durable aluminum enclosure with an Integrated Junction Box, ensuring ease of installation and protection against environmental factors. The LED-DRJ-288-24 is Class 2 rated and wet location approved, making it suitable for both indoor and outdoor use.

Key Features

• Power Output: Provides a total output of 288W, divided into three 96W channels for versatile LED configurations.
• Output Voltage: Consistent 24V DC output for reliable LED performance.
• Input Voltage: Accepts a wide range of 120-277V AC, suitable for various electrical systems.
• Dimming: Non-dimmable design, ideal for constant voltage applications without dimming requirements.
• Minimum Load: Requires a minimum load of 28.8W for optimal performance.

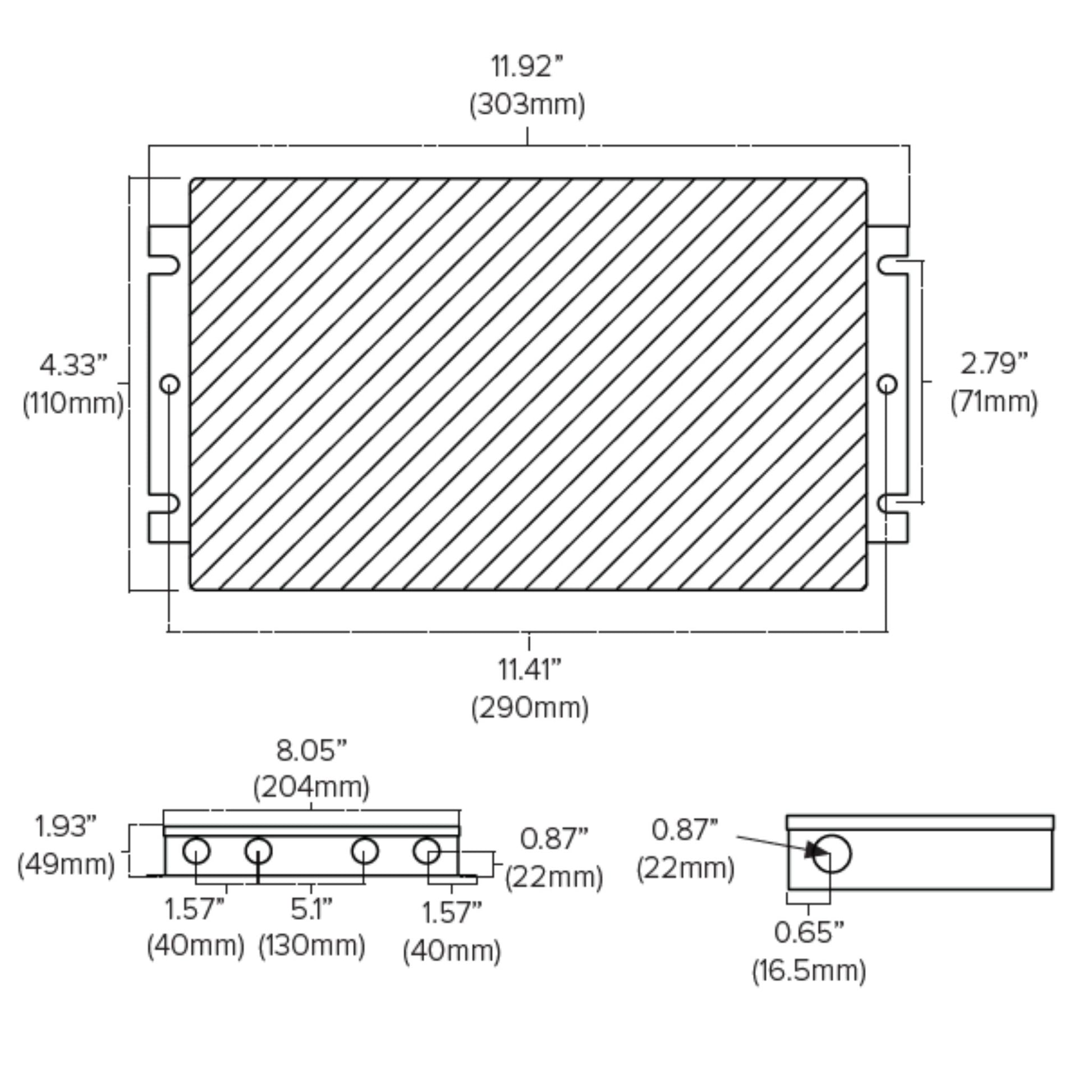

• Dimensions: Compact design measuring 11.85 in. L x 4.33 in. W x 1.93 in. H, fits easily into tight spaces.
• Enclosure Type: Durable aluminum housing with integrated junction box for secure and easy installation.
• IP Rating: Rated for wet locations, suitable for both indoor and outdoor installations.
• Class 2 Compliance: Meets Class 2 safety standards for low voltage applications.
• Certifications: cULus Listed, ensuring compliance with safety and performance standards.

Physical Design & Installation

The driver features a robust aluminum enclosure with an integrated junction box, providing protection and ease of wiring. Its compact design allows for installation in confined spaces.

Dimming & Controls

This driver is designed for non-dimming applications, ensuring stable power delivery without the need for dimming controls. It requires a minimum load of 28.8W for optimal operation.

Performance & Build

Equipped with built-in protections against short circuit, over-current, over-voltage, and over-temperature, this driver ensures reliable performance. It is Class 2 compliant and wet location rated, suitable for various environments.

Typical Applications

• Commercial lighting installations
• Outdoor architectural lighting
• Indoor ambient lighting
• Signage and display lighting
