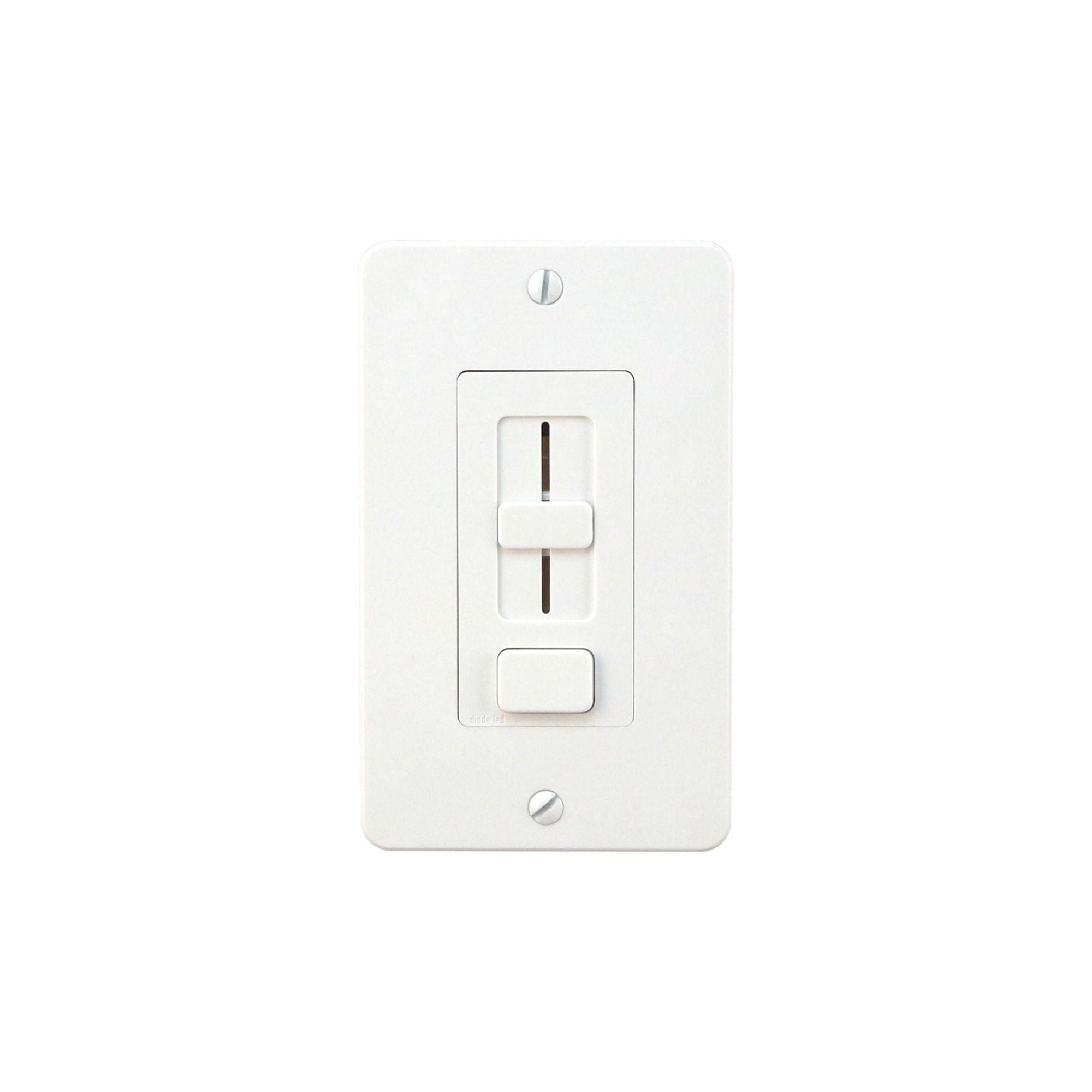

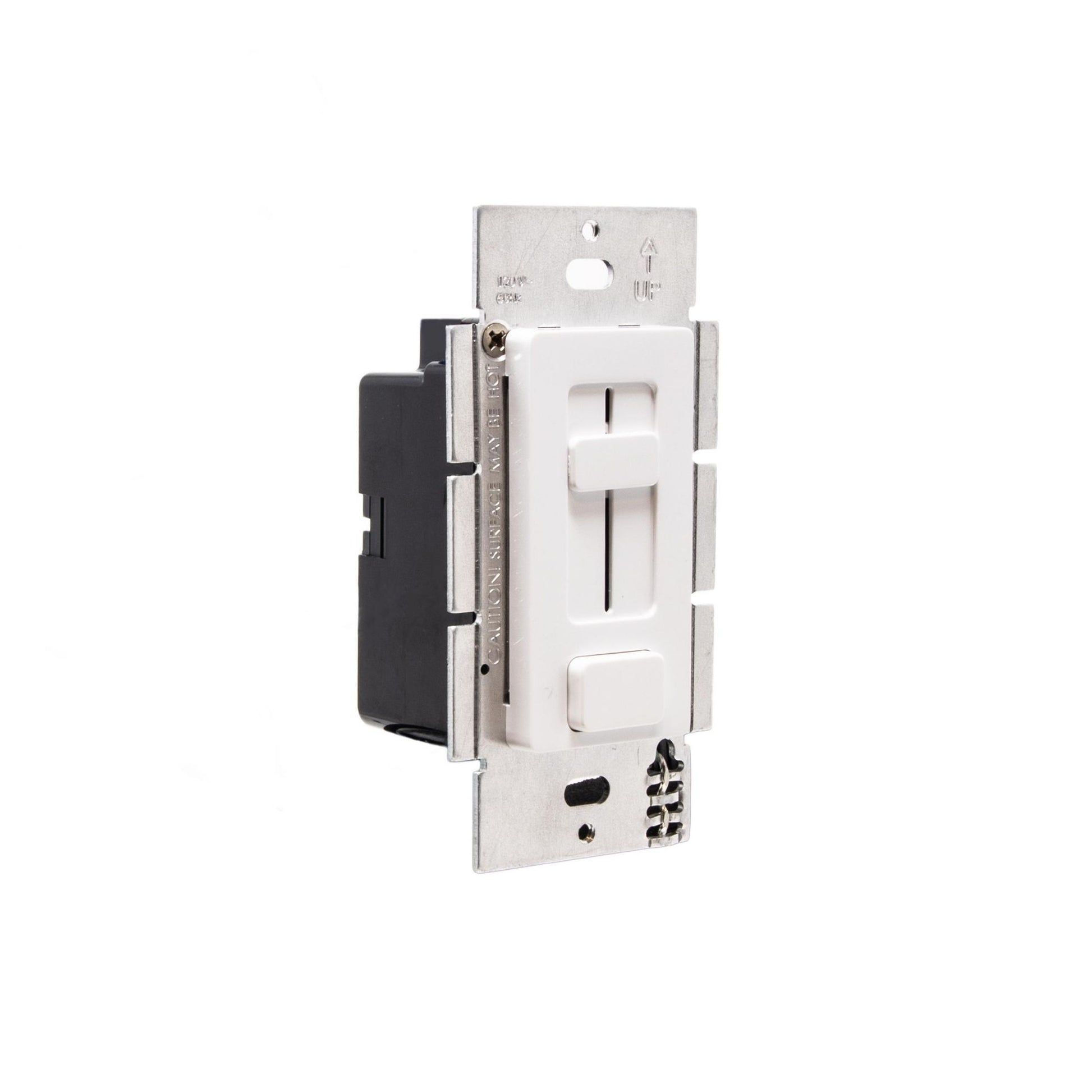

Diode LED SWITCHEX 60W LED Driver & Dimmer Switch, 24VDC, Integrated Dimmer, Single-Pole, 120VAC
Available in stock (199)
About this item
About this item
- Output Voltage & Power: Provides a constant 24VDC output with a maximum load capacity of 60W to power low-voltage LED tape and lightbars.
- Integrated Dimming: Features an all-in-one patented design that merges a power supply and wall dimmer for smooth 100% to 5% dimming.
- Input Voltage: Engineered for standard 120VAC (108-132VAC) 50/60Hz residential and commercial electrical systems.
- Enclosure & Fit: Designed to fit into a standard single-gang recessed electrical box for a streamlined installation.

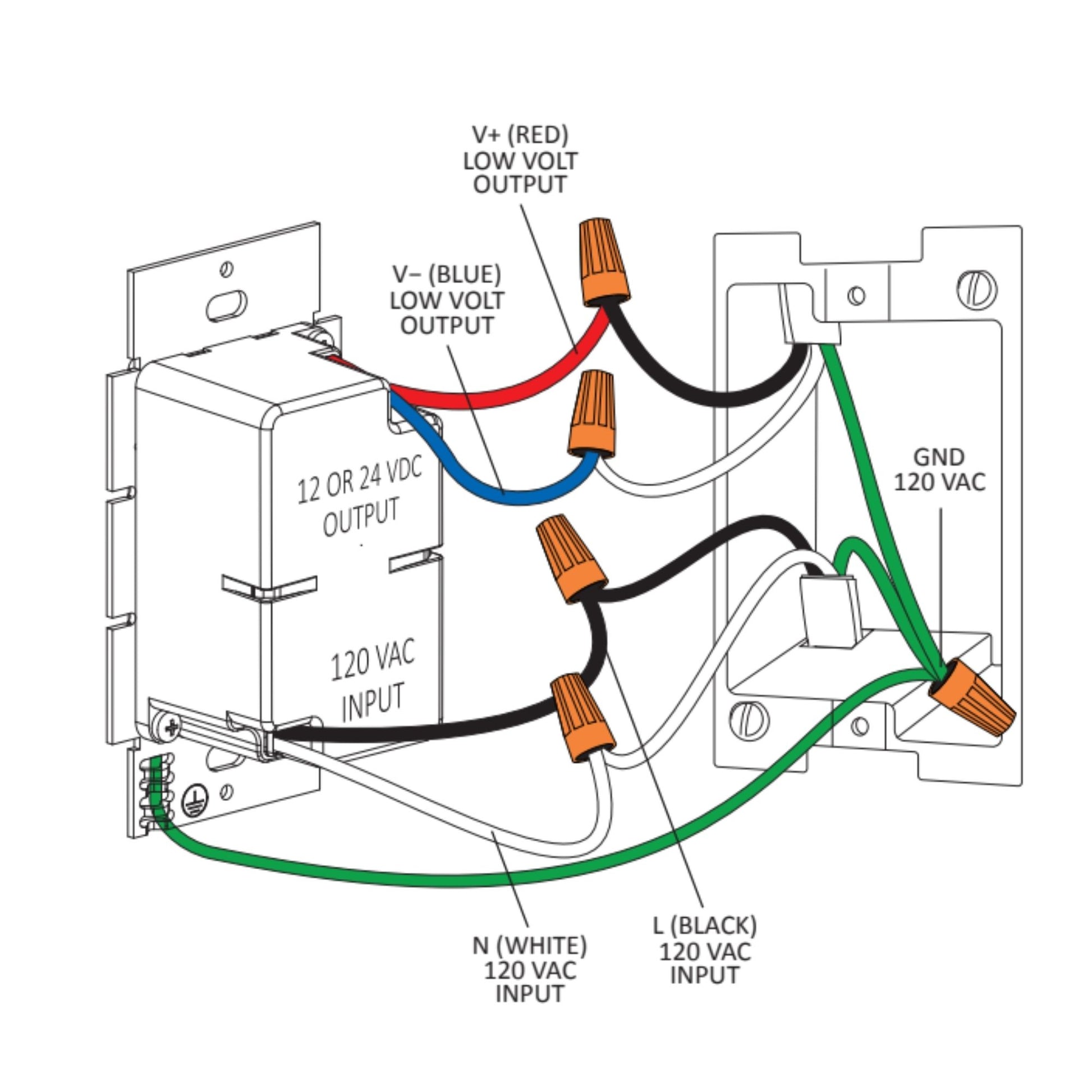

- Protection: Includes an internal voltage barrier partition to safely separate high and low voltage circuits in the same switch box.
We process payments securely and do not store credit card information.
Description
Description
Diode LED SWITCHEX DI-24V-SE-60W 60W LED Driver — 24VDC DC
The Diode LED SWITCHEX DI-24V-SE-60W LED Driver and dimmer switch is an innovative all-in-one solution that merges a 60W power supply with a reliable wall dimmer. This 24VDC Constant Voltage driver eliminates compatibility issues between separate components by fitting directly into a standard electrical gang box. It is an ideal choice for simplifying low-voltage LED installations, offering a Class 2 safety rating and power failure memory that returns to the previous setting once power is restored.
Key Features
- Power Output: Delivers a maximum load of 60W at 2.5A for 24VDC lighting systems.
- Input Voltage: Accepts a standard 120VAC input with a range of 108-132VAC.
- Output Voltage: Provides a stable 24VDC output for compatible LED products.
- Dimming Range: Features a superior 100% to 5% smooth, flicker-free dimming range.
- Minimum Load: Engineered with no minimum load requirement for maximum application flexibility.

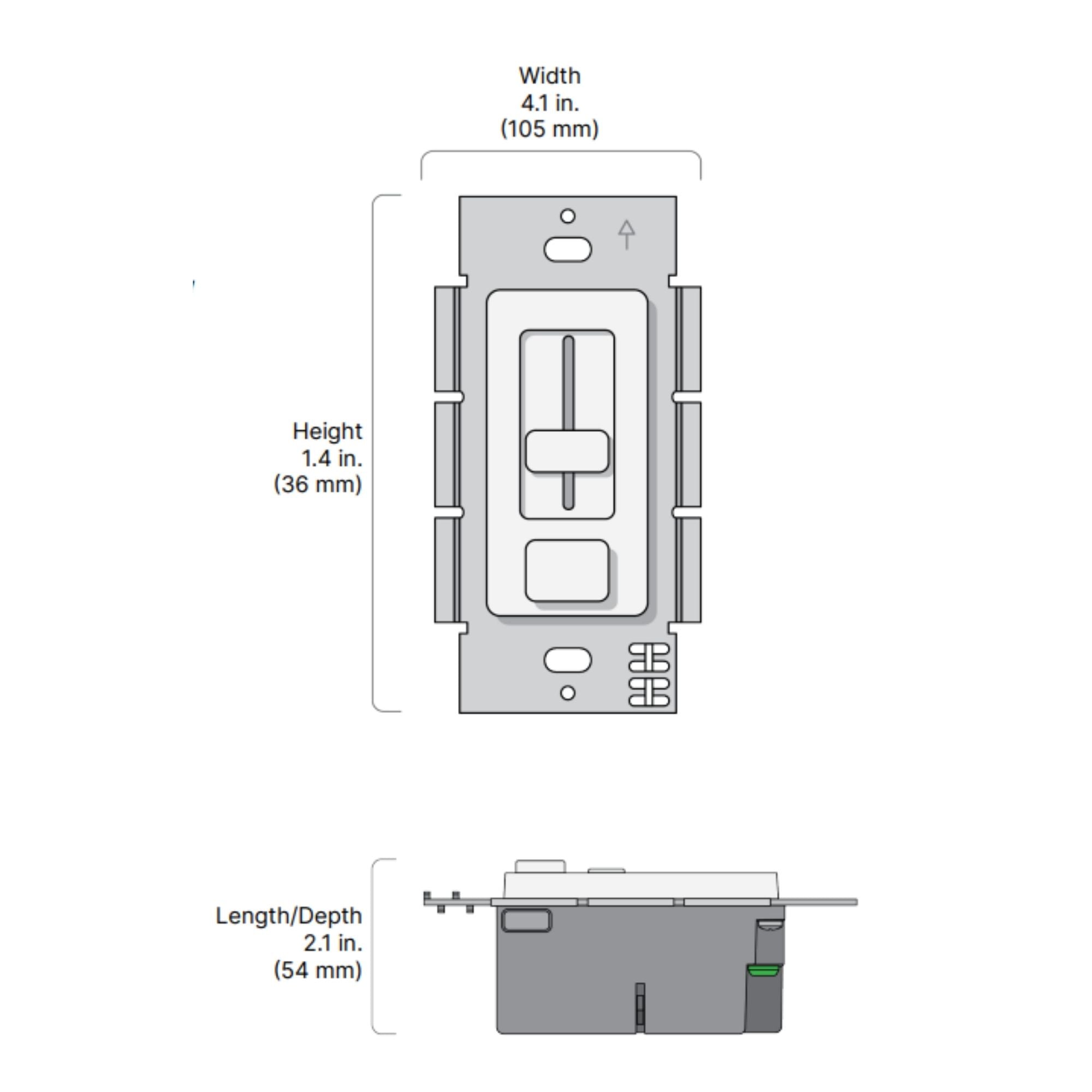

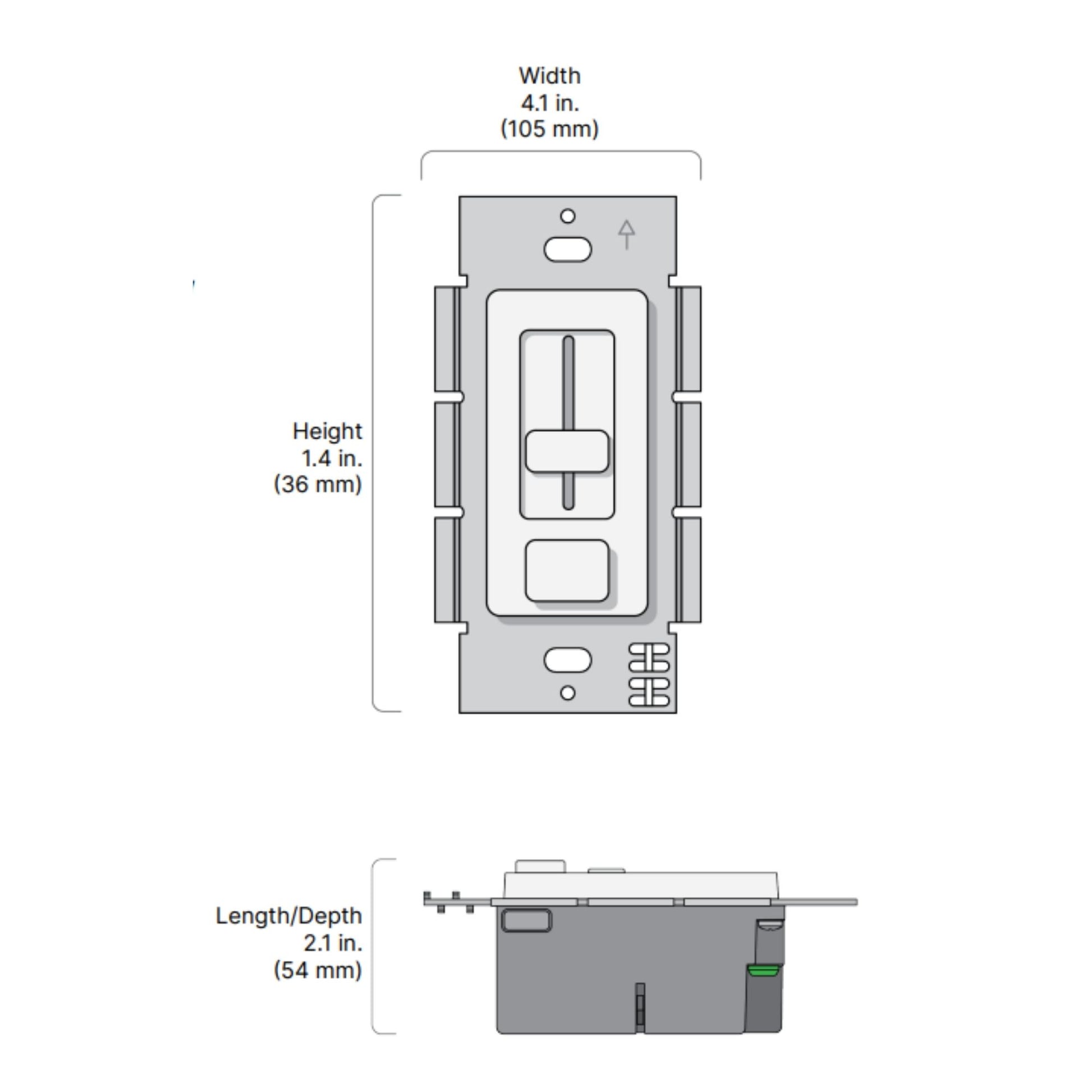

- Dimensions: Compact housing measuring approximately 4.1 in. L x 2.1 in. W x 1.4 in. H.
- Enclosure Type: Integrated wall switch design that fits into a single-gang electrical box.
- Class 2 Status: UL Listed Class 2 power supply ensures safe and compliant low-voltage operation.
- Efficiency: High-performance design with an efficiency/power factor of 0.69.
- Certifications: UL Listed for US and Canada and FCC approved for Class B digital devices.
Physical Design & Installation

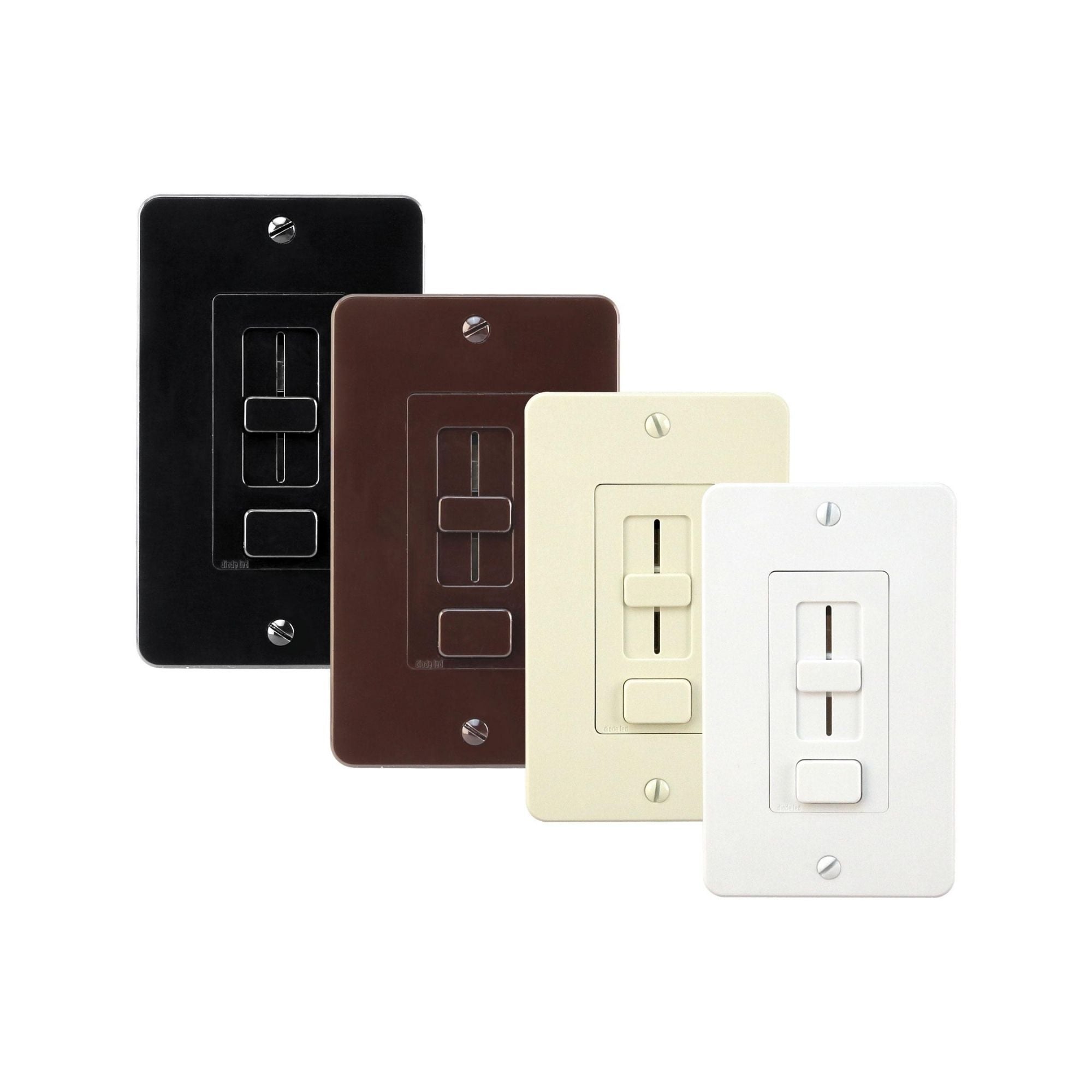

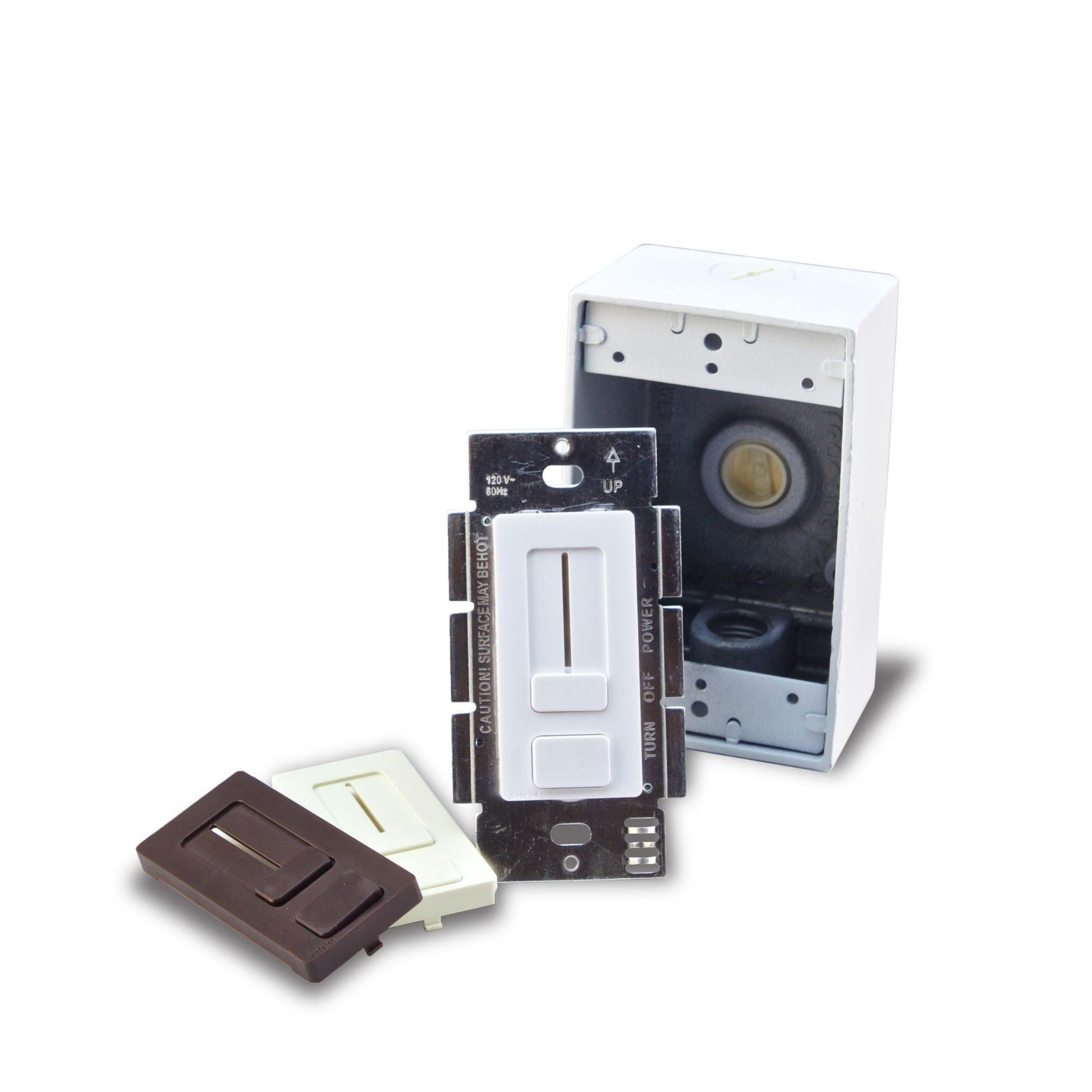

The SWITCHEX unit is specifically designed for installation in standard recessed electrical wall boxes. It comes with three interchangeable faceplates (Glossy White, Light Almond, and Brown) to match various interior decors. The included voltage barrier partition allows for the safe installation of high and low voltage circuit conductors within the same switch box, streamlining the labor for professional contractors.
Dimming & Controls

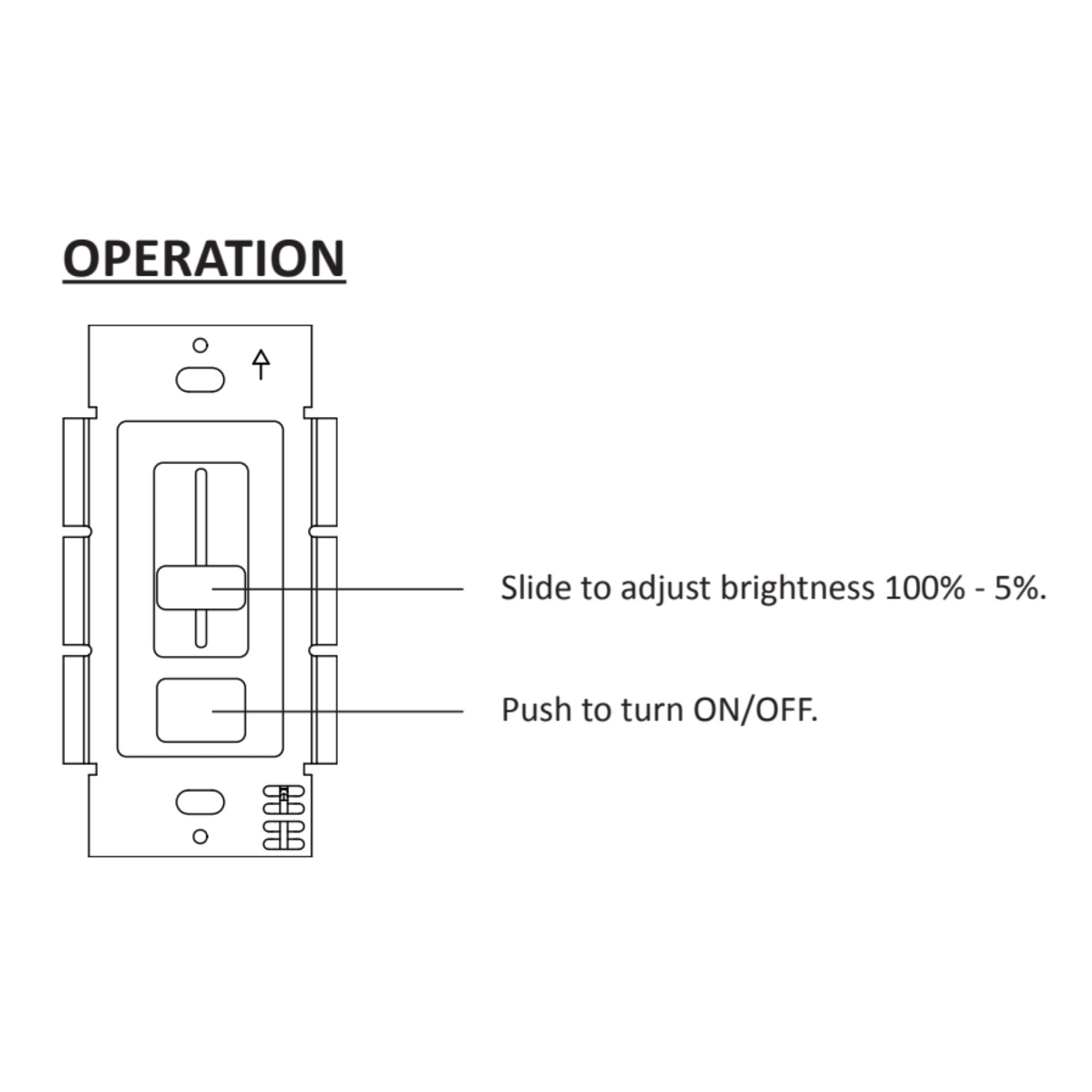

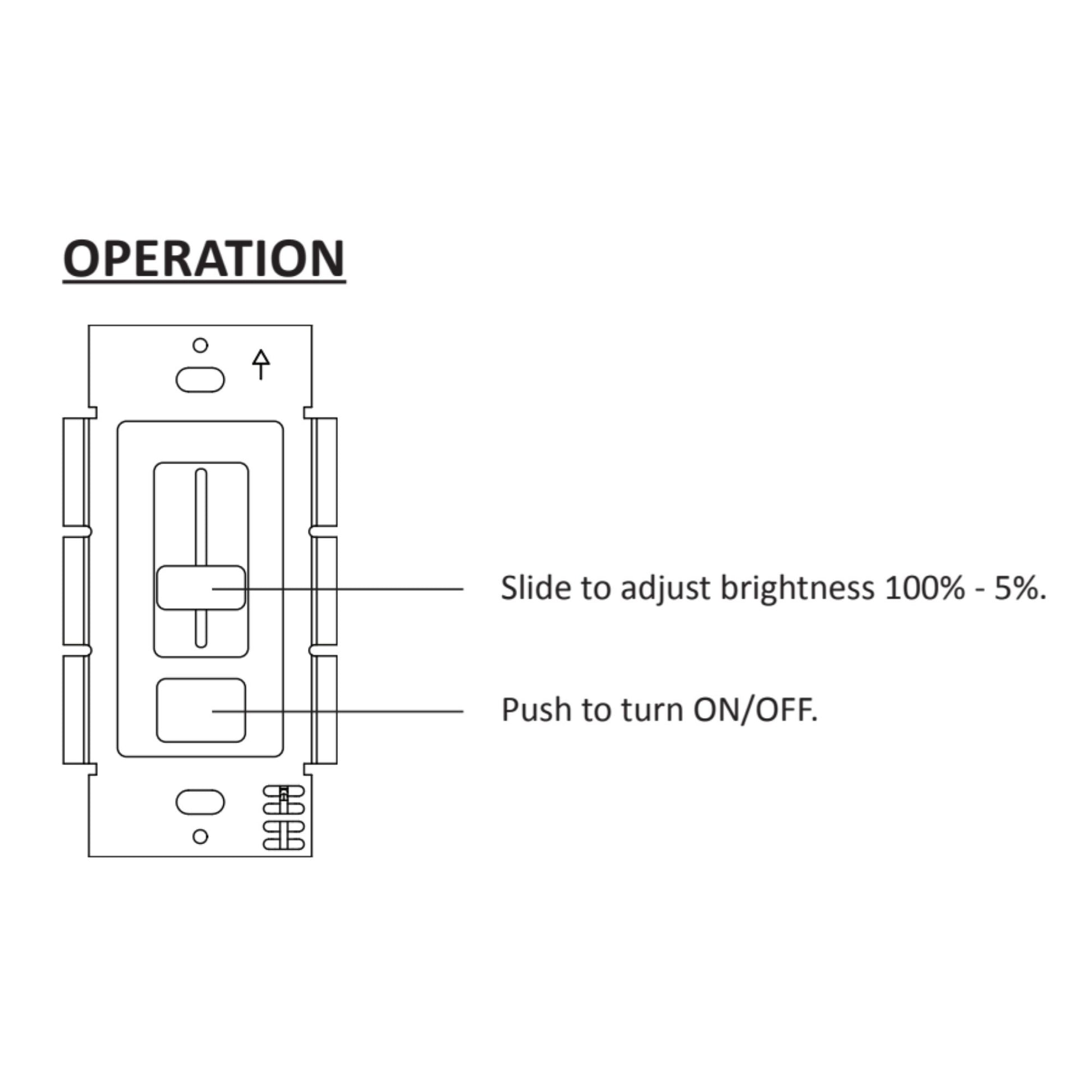

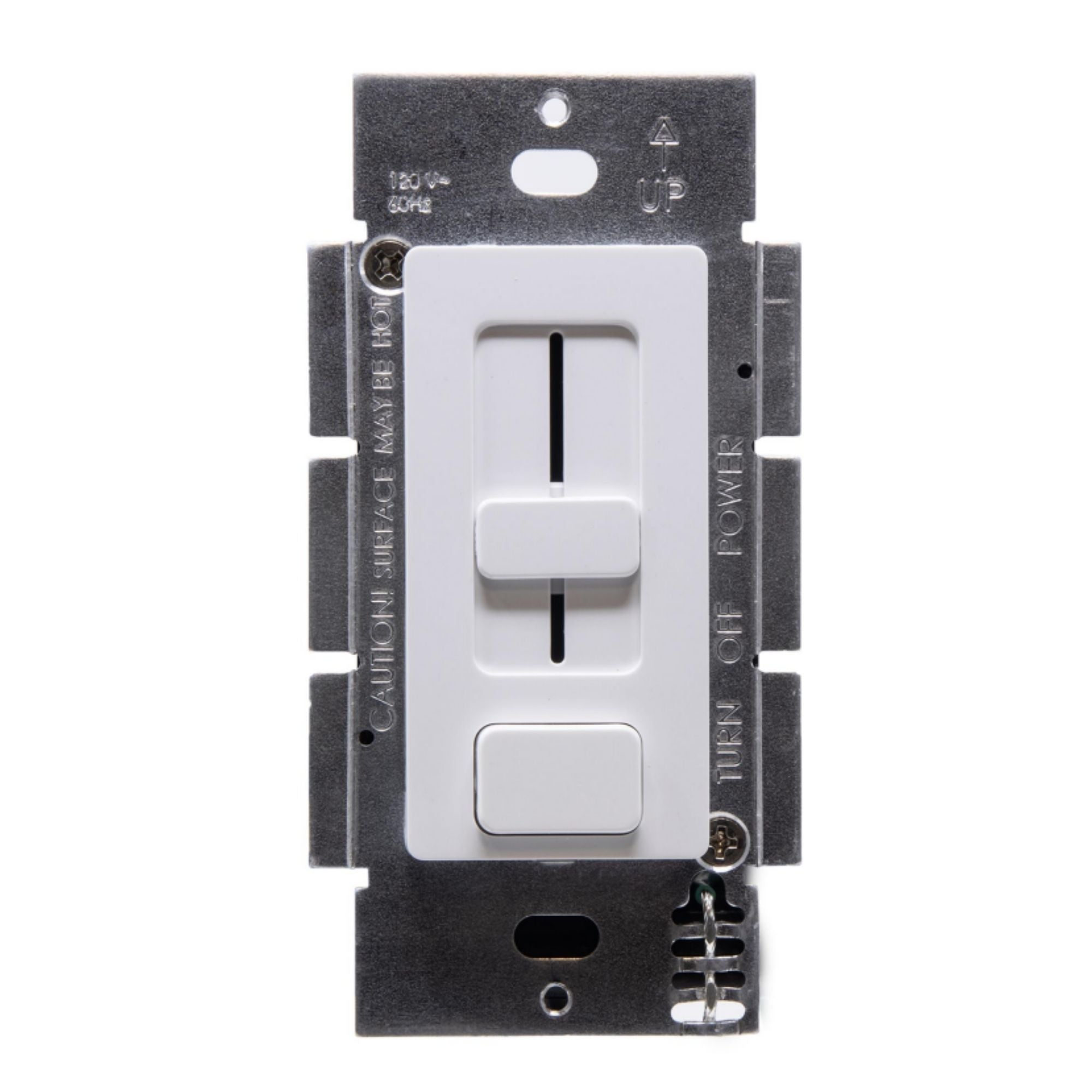

This integrated unit provides architectural-grade 100%-5% dimming for constant voltage LED fixtures. The sliding dimmer lever allows for intuitive manual control, while the preset on/off switch maintains the desired light level. An adjustable voltage output dial is also located on the unit to help mitigate voltage drop across longer wire runs.
Performance & Build
The DI-24V-SE-60W is engineered for reliability with a standby power consumption of ?0.5W and protection against common electrical faults. It is rated for indoor and damp locations (IP20), making it suitable for kitchens and bathrooms. The unit is backed by a 5-year warranty, ensuring long-term performance in residential and commercial projects.
Typical Applications
- Residential under-cabinet LED tape lighting in kitchens.
- Accent and cove lighting in dry or damp-rated indoor environments.
- Commercial retail display lighting requiring localized, integrated dimming control.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
