Collection: T8 U-Bend LED Bulbs

T8 U-bend LED bulbs provide linear illumination in a folded format for compact troffers and other corresponding fixtures. Their curved shape places both lamp ends on the same side, with different bend widths serving different socket layouts.

Compare (0/5)

4 products

Satco LED T8 U-Bend Lamps - Field Selectable - Bees Lighting

SATCO|NUVO

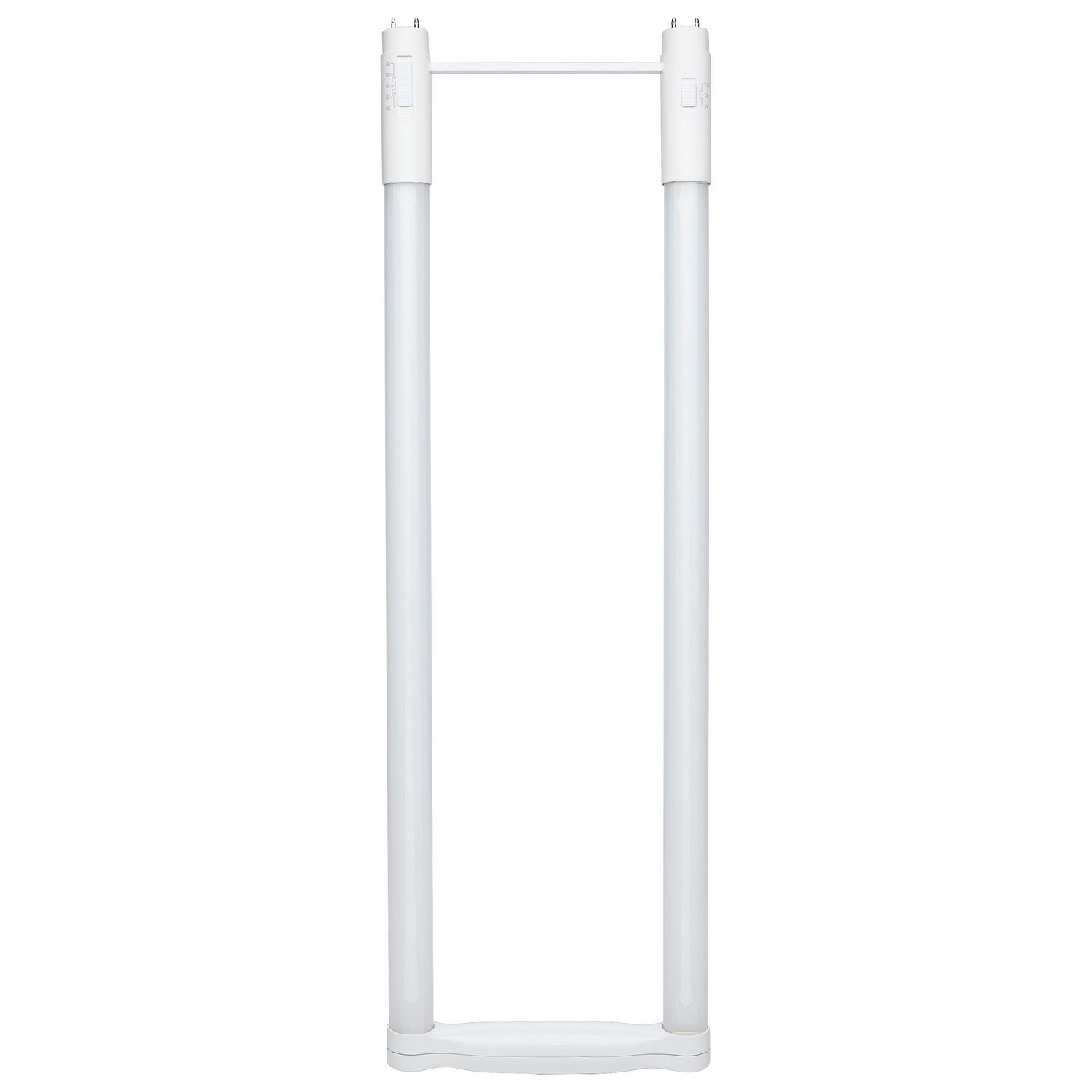

T8 U Bend LED Bulb U6, 12W|13W|15W, 2200lm, 3000K to 6500K, Type A+B, Single|Dual End

Regular price $227.40
Sale price Regular price $0.00
Unit price
$18.95per item
RAB Field-Adjustable, Hybrid T8 U-Bend - Bees Lighting
Quick Ship

RAB Lighting

T8 U Bend LED Bulb U6, 12W|13W|15W, 2200lm, 3000K to 6000K, Type A+B, Single|Dual End

Regular price $264.00
Sale price Regular price $0.00
Unit price
$22.00per item
RAB Field-Adjustable, Hybrid T8 U-Bend - Bees Lighting
Quick Ship

RAB Lighting

T8 U Bend LED Bulb U1, 12W|13W|15W, 2200lm, 3000K to 6000K, Type A+B, Single|Dual End

Regular price $264.00
Sale price Regular price $0.00
Unit price
$22.00per item
Satco LED T8 U-Bend Lamps - Field Selectable - Bees Lighting

SATCO|NUVO

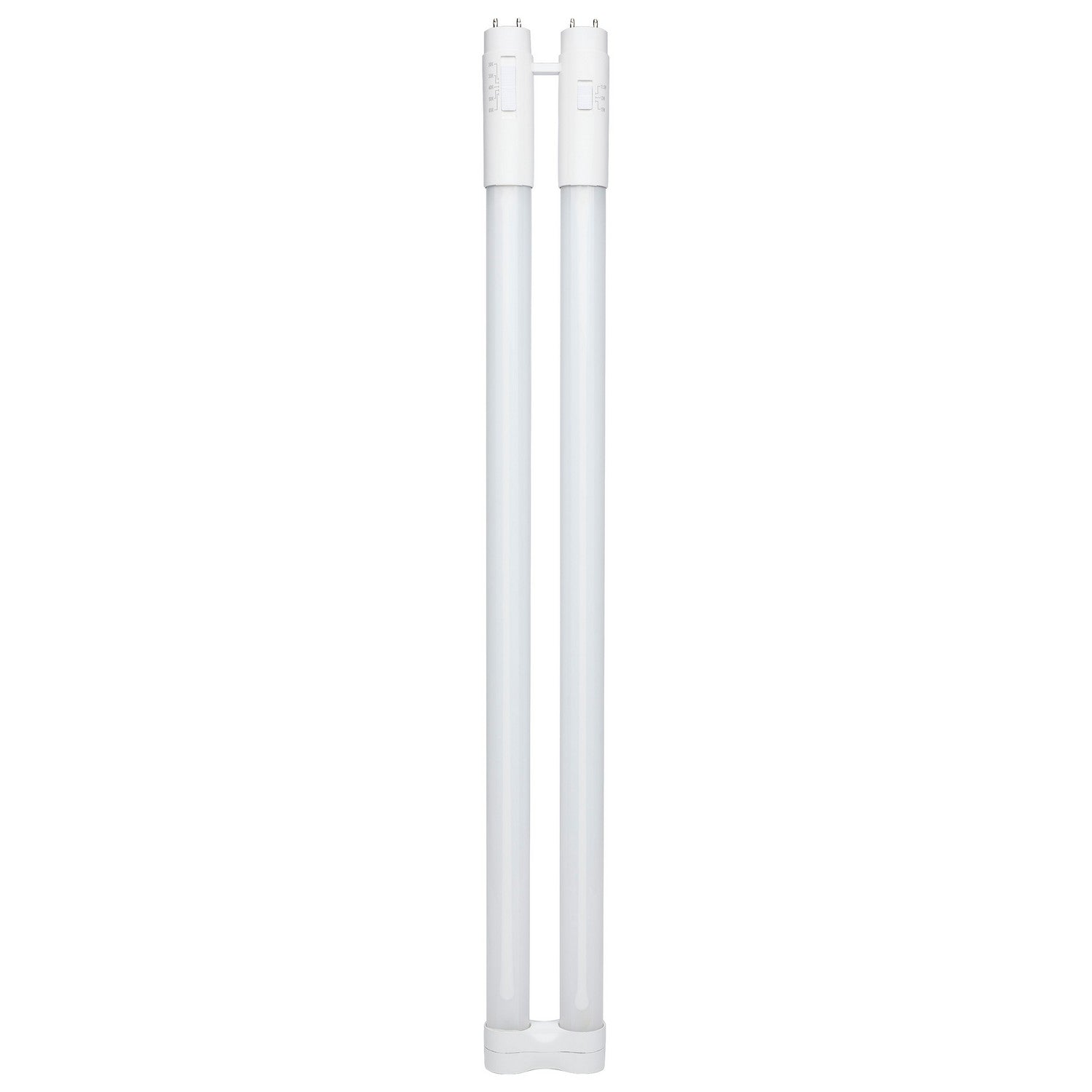

T8 U Bend LED Bulb U1, 12W|13W|15W, 2200lm, 3000K to 6500K, Type A+B, Single|Dual End

Regular price $239.40
Sale price Regular price $0.00
Unit price
$19.95per item

T8 U-Bend LED Bulbs for Compact Troffer Lighting

T8 U-bend LED bulbs fold a linear lamp into a compact U shape, placing both ends on the same side. This arrangement provides a longer light-emitting path within the shorter footprint of a square fixture, making these lamps a familiar format in 2×2 commercial troffers.

These U shaped light bulbs provide general illumination in offices, classrooms, retail spaces, and healthcare interiors. LED replacements bring lower lamp wattage and color-temperature options to existing U-bend fixture layouts.

Key Advantages of U-Shaped LED Tubes

  • Compact Format: The folded tube provides two parallel illuminated sections within a short fixture footprint, supporting the lamp arrangement used in compact troffers.
  • Energy Savings: A 15W LED replacement for a 32W fluorescent lamp reduces lamp wattage by approximately 53%. Lower consumption can make a meaningful difference across rooms with multiple fixtures and long operating hours.
  • Color Temperature Options: Fixed and selectable-CCT designs support different visual environments, from neutral-white office lighting to cooler illumination for active work areas.
  • Retrofit Flexibility: Ballast-compatible, ballast-bypass, and hybrid designs provide different paths for converting fluorescent U-bend fixtures to LED.

Understanding T8 U-Bend Shapes and Bases

T8 describes a nominal one-inch tube diameter. The U-bend shape turns that tube back on itself, with narrow and wide bends providing different spacing between the two lamp legs.

  • Narrow and Wide Bends: Bend width corresponds to the spacing of the fixture’s two socket pairs. Overall lamp length and leg spacing together describe the physical layout.
  • G13 Medium Bi-Pin Base: Each end has two pins spaced nominally 13 mm apart. This is the same base designation commonly used by straight T8 LED bulbs.
  • Light Output: Lumens describe the amount of light a lamp produces. The fixture reflector and diffuser then help distribute that light across the room.

Common Applications for U-Shaped Light Bulbs

U shaped light bulbs are commonly associated with compact troffer fixtures in suspended ceilings. Their folded format supports general overhead lighting without requiring the length of a straight four-foot lamp.

  • Offices: General illumination for workstations, meeting rooms, and shared work areas.
  • Schools: Overhead lighting for classrooms, administrative offices, and other learning spaces.
  • Retail Spaces: Ambient lighting for sales floors, service areas, and back offices.
  • Healthcare Interiors: General lighting for reception areas, corridors, and administrative spaces.

Planning a U-Bend LED Retrofit

A curved fluorescent replacement project begins with the original lamp designation and bend dimensions. Type A replacements retain a compatible ballast, Type B replacements bypass it, and hybrid Type A+B lamps support either installation approach.

The broader LED tube lights collection explains other linear and specialty replacement formats. Within the U-bend format, lumens, actual wattage, and color temperature provide useful ways to compare lighting performance.

Frequently Asked Questions

What is the difference between a U-bend and a straight T8 tube?

A U-bend tube folds the lamp into a compact shape, placing both ends on the same side, while a straight tube extends between opposite ends of a fixture. T8 identifies a nominal one-inch tube diameter, not the bend width or overall lamp dimensions.

Can a U-bend LED bulb replace a straight tube?

U-bend and straight tubes serve different fixture layouts. A U-bend places both lamp ends on the same side, while a straight tube spans sockets at opposite ends of the fixture.

Do U-bend LED bulbs require a ballast?

Type A lamps operate with a compatible fluorescent ballast, while Type B lamps bypass the ballast and connect to the specified line voltage. Hybrid Type A+B lamps support either installation method, using the corresponding compatibility requirements and wiring instructions.

How much energy can a U-bend LED replacement save?

A 15W LED replacement for a 32W fluorescent lamp reduces lamp wattage by approximately 53%. Total system savings also depend on ballast losses, the installation method, and operating hours.

Why are U-shaped light bulbs used in compact troffers?

The folded lamp path fits a longer light-emitting format into a shorter fixture footprint, making it useful in many 2×2 troffers. The fixture reflector and diffuser also influence how evenly light reaches the room.

What is the difference between narrow and wide U-bend lamps?

Narrow and wide bends have different spacing between their two parallel lamp legs. That spacing corresponds to the fixture’s socket layout, while overall length describes how far the lamp extends into the fixture.

What base do T8 U-bend LED bulbs use?

T8 U-bend LED bulbs commonly use G13 medium bi-pin bases. Each lamp end has two pins spaced nominally 13 mm apart, the same base designation commonly found on straight T8 tubes.

Are U-bend LED tubes dimmable?

Some are dimmable, but the supported method can depend on installation mode. A hybrid lamp may support dimming through a compatible ballast in Type A mode without offering the same capability when wired for Type B operation.

What color temperature works well for offices and classrooms?

Neutral-white light around 3500K–4000K is a useful starting point for general workspaces, while 5000K creates a cooler appearance. Selectable-CCT lamps allow adjustment within their stated range, helping coordinate the replacement with nearby lighting and room finishes.

Can U-bend LED bulbs operate in enclosed fixtures?

Enclosed-fixture-rated U-bend LED lamps are designed for operation in covered fixtures within their stated operating conditions. This rating is useful for troffers with lenses or other enclosed lamp compartments.
