American Lighting LED-DRJ LED-DRJ-30-24 30W LED Driver

American Lighting LED-DRJ 30W LED Driver 24V Non-Dimmable, Wet Rated, Indoor/Outdoor - 120-277V

$54.54

~~$0.00~~

Description

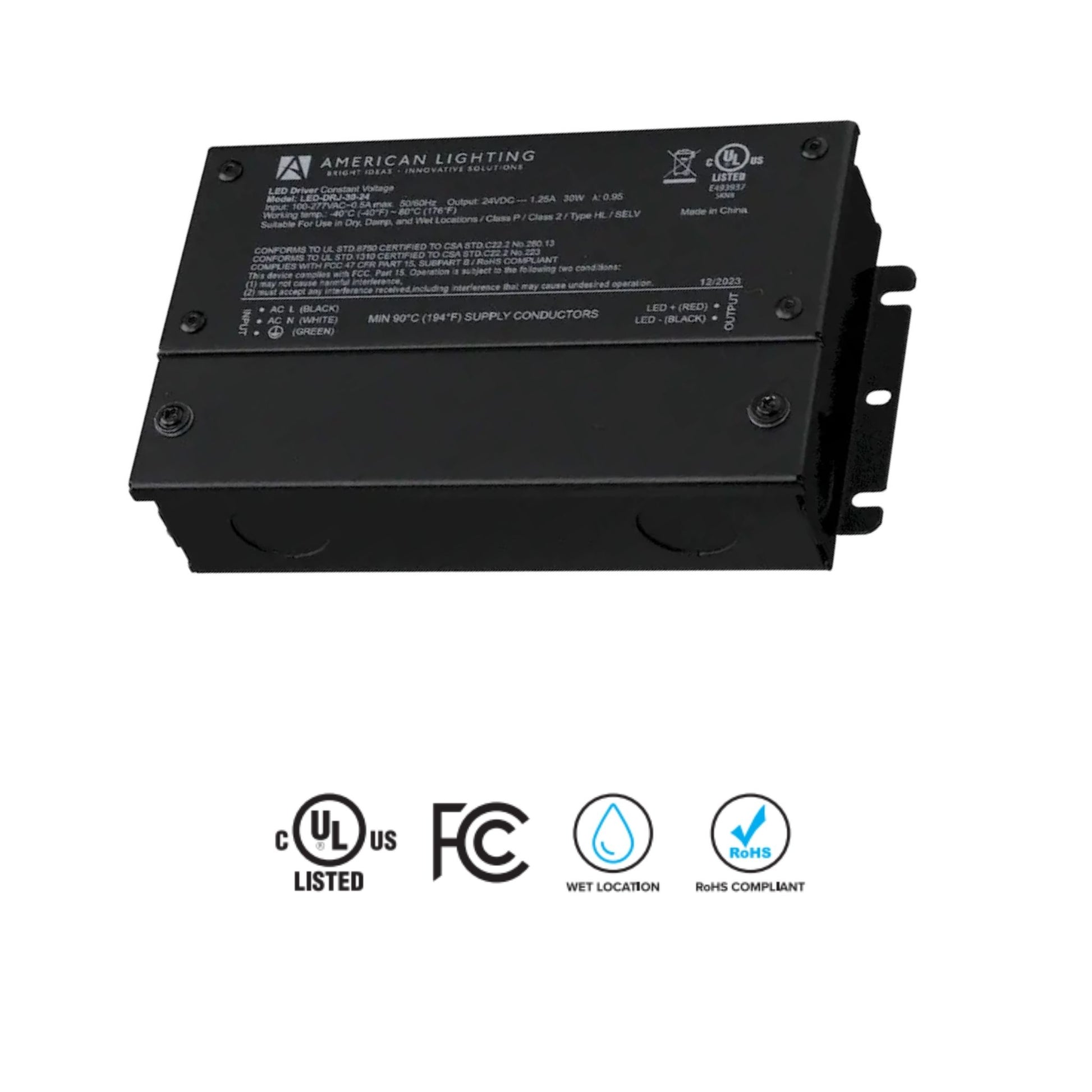

American Lighting LED-DRJ LED-DRJ-30-24 30W LED Driver — 24V DC

The American Lighting LED-DRJ-30-24 is a robust 30W LED Driver designed for reliable performance in both indoor and outdoor settings. With an input voltage range of 120-277V AC and an output of 24V DC, this Constant Voltage driver is ideal for various LED applications. It features a Class 2 rating and a durable aluminum housing with an Integrated Junction Box, making it suitable for wet locations. The LED-DRJ-30-24 is non-dimmable, ensuring consistent power delivery without the need for dimming controls.

Key Features

Power Output: Provides a maximum power output of 30W, suitable for a range of LED lighting applications.
Input Voltage: Compatible with a wide input voltage range of 120-277V AC for versatile installation.
Output Voltage: Supplies a stable 24V DC output, perfect for constant voltage LED systems.
Dimming: Non-dimmable design for straightforward installations where dimming is not required.
Minimum Load: Requires a minimum load of 3W for optimal performance.

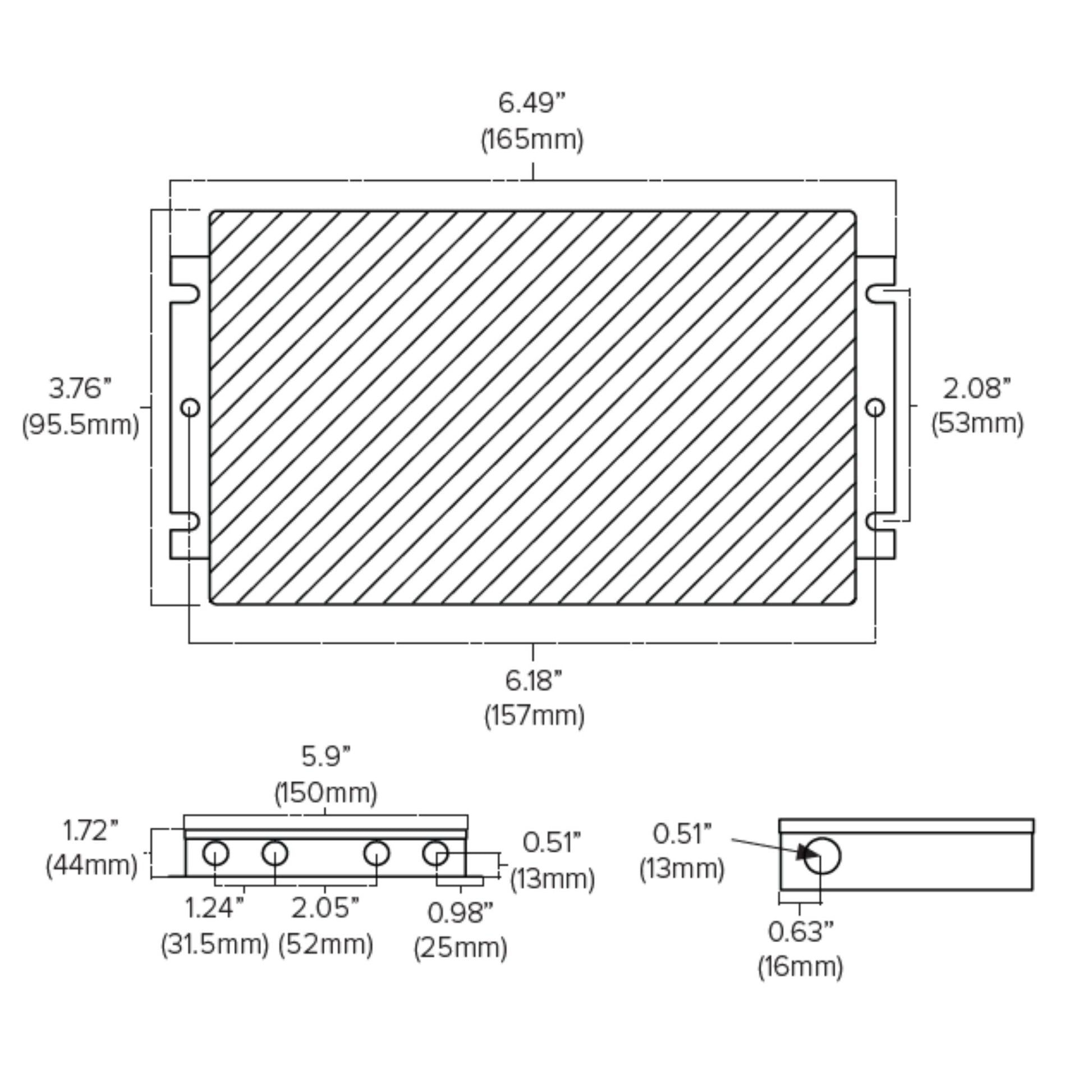

Dimensions: Compact size of 6.49 in. L x 3.76 in. W x 1.72 in. H for easy integration into various setups.

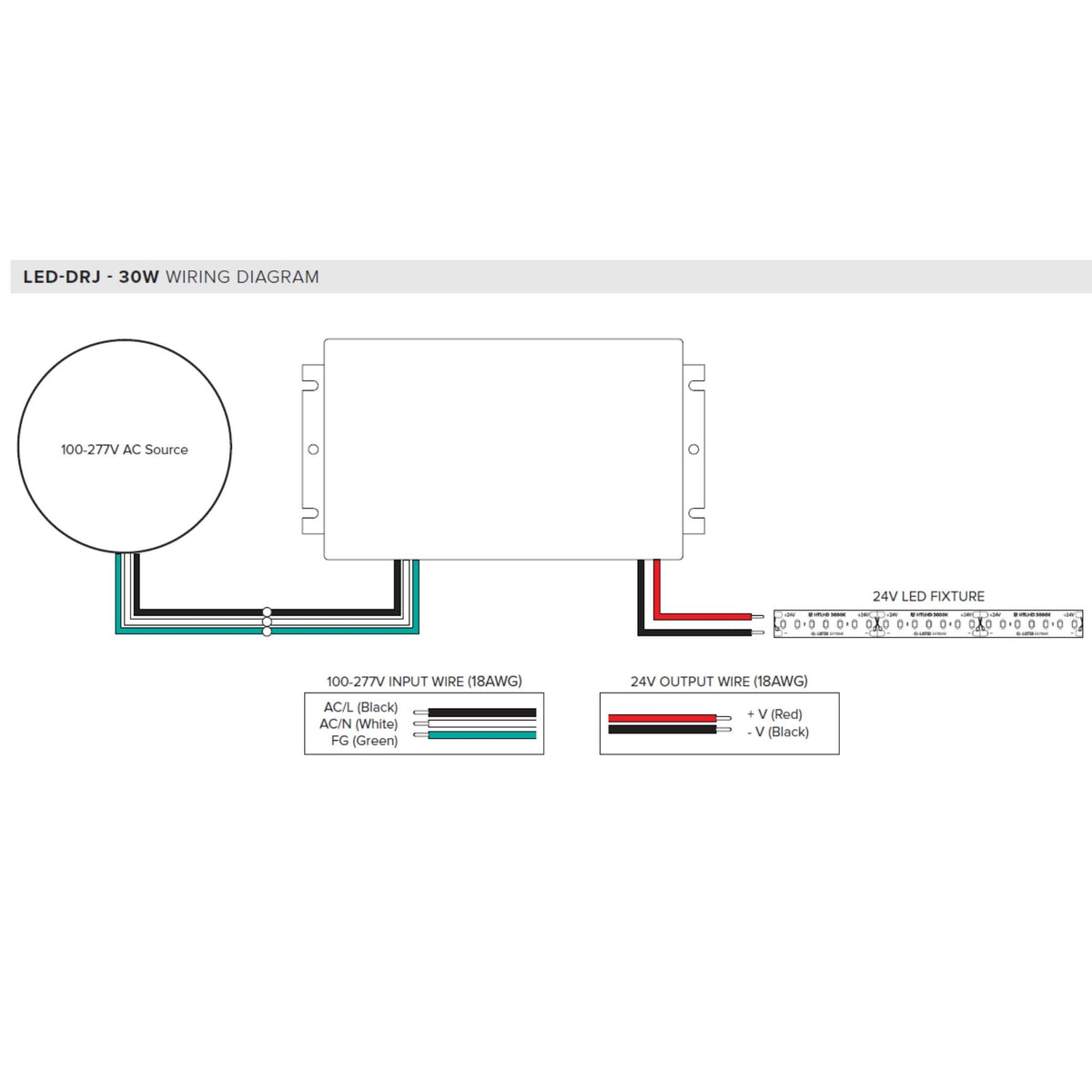

Enclosure Type: Sturdy aluminum housing with integrated junction box for secure and convenient wiring.
IP Rating: Wet location rated, suitable for both indoor and outdoor environments.
Certifications: cULus Listed, ensuring compliance with safety standards.

Physical Design & Installation

The driver features a compact aluminum enclosure with an integrated junction box, providing a streamlined installation process and protection against environmental factors.

Dimming & Controls

This driver is non-dimmable, designed for applications where dimming is not necessary, ensuring consistent power delivery without the need for additional controls.

Performance & Build

Equipped with short circuit, over-current, over-voltage, and over-temperature protections, this driver ensures reliable operation. It is Class 2 compliant and wet location rated.

Typical Applications

Outdoor LED lighting installations
Indoor commercial lighting projects
Architectural lighting designs
General LED applications requiring constant voltage

Specifications

Dimensions

Length/Depth

6.49 in

Width/Diameter

3.76 in

Height

1.72 in

Weight

2.09 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

30.0W

Amps Rating

1.25 A

Item Details

MPN

LED-DRJ-30-24

Brand

American Lighting

UPC

714176073262

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Class 2, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-30-24 driver dimmable?

No, the LED-DRJ-30-24 driver is non-dimmable and designed for applications where dimming is not required.

What is the input voltage range for the LED-DRJ-30-24?

The input voltage range for the LED-DRJ-30-24 is 120-277V AC.

Does the LED-DRJ-30-24 include an integrated junction box?

Yes, the LED-DRJ-30-24 features an integrated junction box for easy installation.

What is the minimum load requirement for the LED-DRJ-30-24?

The minimum load requirement for the LED-DRJ-30-24 is 3W.

Is the LED-DRJ-30-24 suitable for wet locations?

Yes, the LED-DRJ-30-24 is wet location rated, making it suitable for both indoor and outdoor use.
