American Lighting LED-DRJ LED-DRJ-60-24 60W LED Driver

American Lighting LED-DRJ 60W LED Driver 24V Non-Dimming, Wet Rated, Indoor/Outdoor - 120-277V

$71.64

~~$0.00~~

Description

American Lighting LED-DRJ LED-DRJ-60-24 60W LED Driver — 24V DC

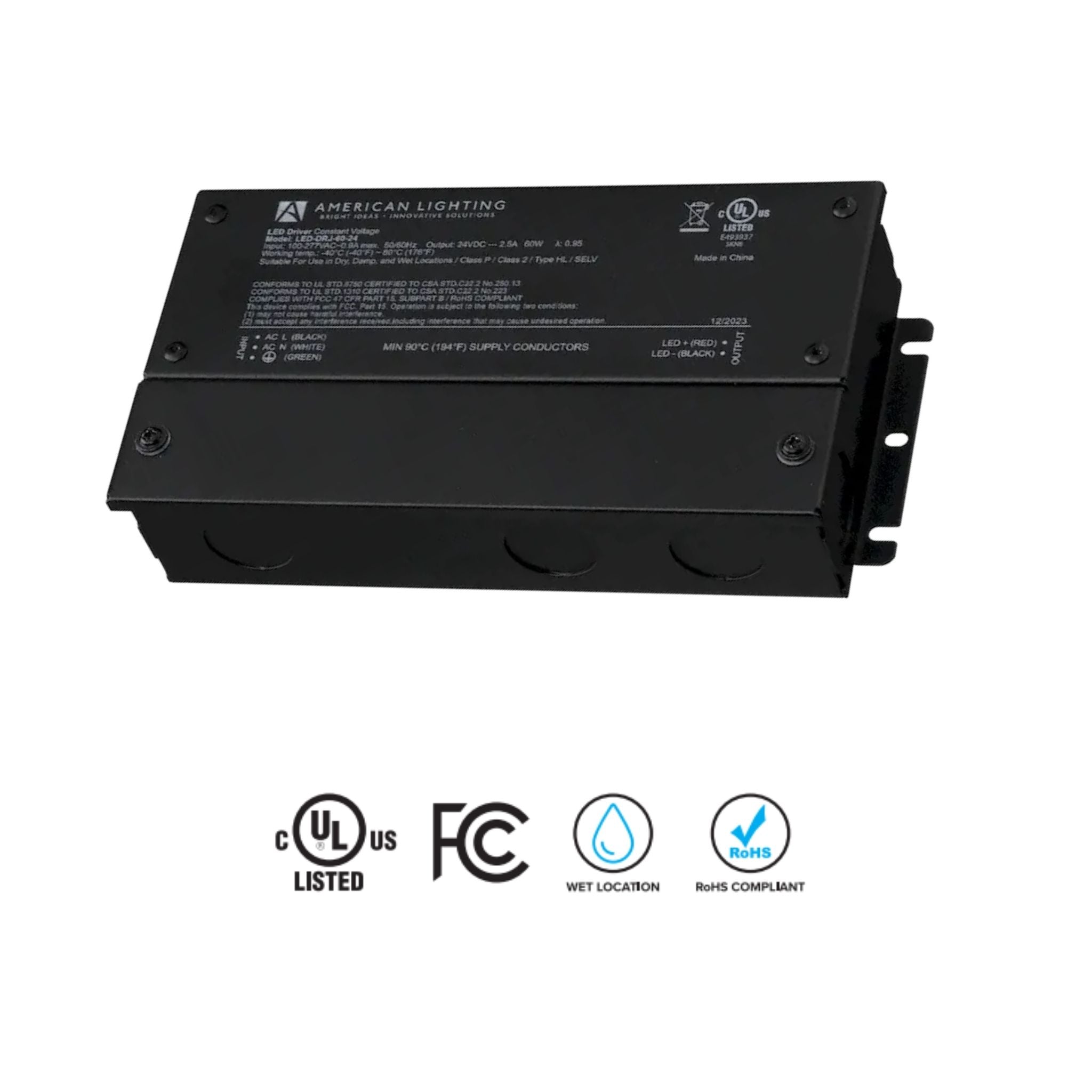

The American Lighting LED-DRJ-60-24 is a robust 60W LED Driver designed for both indoor and outdoor applications. With an input range of 120-277V and a constant 24V DC output, this driver ensures reliable power delivery for your LED installations. It is a non-dimmable unit, making it ideal for straightforward, non-dimming setups. The driver is Class 2 rated and features a durable aluminum housing with an Integrated Junction Box, ensuring safety and ease of installation.

Key Features

Power Output: Delivers a consistent 60W power output for optimal LED performance.
Input Voltage: Operates efficiently with 120-277V AC input, accommodating various electrical systems.
Output Voltage: Provides a stable 24V DC output, suitable for a wide range of LED applications.
Dimming: Specifically designed for non-dimming applications, simplifying installation.
Minimum Load: Requires a minimum load of 6W to operate effectively.

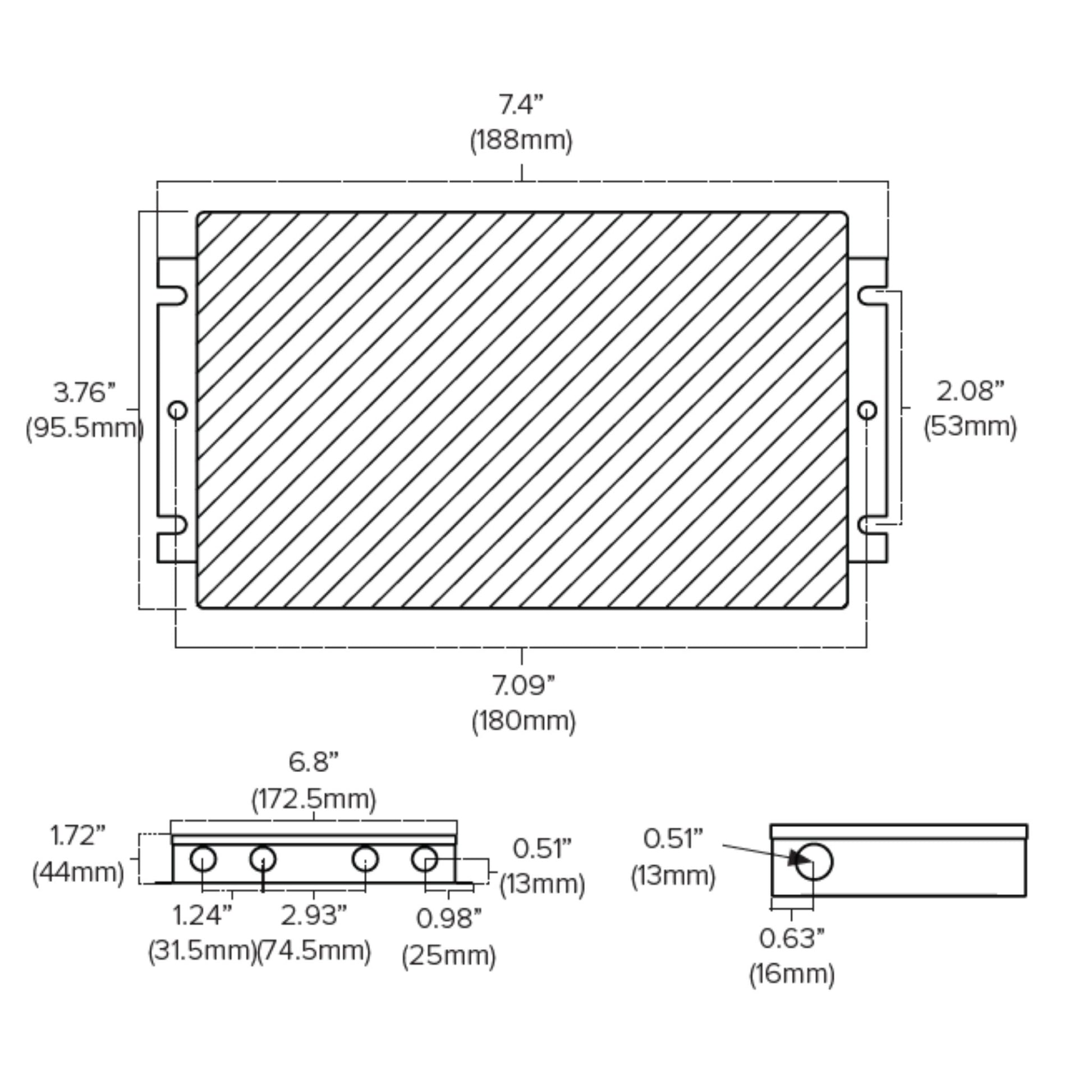

Dimensions: Compact design measuring 7.4 in. L x 3.76 in. W x 1.72 in. H for easy integration into various setups.
Enclosure Type: Sturdy aluminum housing with integrated junction box for secure and flexible wiring.
IP Rating: Rated for wet locations, ensuring durability in challenging environments.
Class 2: Complies with Class 2 safety standards for low-voltage applications.
Certifications: cULus Listed, ensuring compliance with safety and performance standards.

Physical Design & Installation

The driver features a compact aluminum enclosure with an integrated junction box, facilitating secure and flexible installations in various environments.

Dimming & Controls

This driver is designed for non-dimming applications, making it ideal for installations where primary side dimming is not required. It requires a minimum load of 6W.

Performance & Build

Equipped with short circuit, over-current, over-voltage, and over-temperature protections, this driver ensures reliable performance. It is Class 2 compliant and wet location rated.

Typical Applications

Outdoor lighting installations
Indoor commercial lighting
Architectural lighting projects
LED strip lighting systems

Specifications

Dimensions

Length/Depth

7.4 in

Width/Diameter

3.76 in

Height

1.72 in

Weight

2.38 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

60.0W

Amps Rating

2.5 A

Item Details

MPN

LED-DRJ-60-24

Brand

American Lighting

UPC

714176073286

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Class 2, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-60-24 driver dimmable?

No, the LED-DRJ-60-24 driver is designed for non-dimming applications.

What is the minimum load requirement for this driver?

The minimum load requirement for the LED-DRJ-60-24 driver is 6W.

Does the driver include an integrated junction box?

Yes, the LED-DRJ-60-24 driver features an integrated junction box for secure installations.

What input voltage range does this driver support?

The LED-DRJ-60-24 driver supports an input voltage range of 120-277V AC.

Is the LED-DRJ-60-24 driver suitable for wet locations?

Yes, the driver is wet location rated, making it suitable for both indoor and outdoor use.
