LED Tube Lights & Fluorescent Replacements
LED tube lights provide replacement options for fluorescent lighting in commercial and industrial interiors. Choosing an LED replacement for fluorescent tubes requires matching the lamp’s dimensions, base, and electrical configuration to the fixture. A suitable fluorescent tube replacement can reduce energy use and maintenance requirements without replacing the entire fixture.
Key Advantages of Switching to LED Tube Lighting
LED tubes offer energy-saving and long-life options for fluorescent retrofit projects.
- Energy Savings: Compare the lamp and system wattage of tube lights at the required light output. Savings depend on the existing fluorescent system and the selected replacement.
- Long Service Life: Selected LED tube lights are rated for 50,000 hours or more. Verify the chosen lamp’s rating and operating conditions when estimating maintenance intervals.
- Instant Start-Up: LED tubes provide light without a fluorescent-style warm-up period. Correct ballast or driver compatibility remains important for stable operation.
- Mercury-Free Light Source: LED tubes do not use the mercury found in fluorescent lamps. Handle removed fluorescent lamps according to the applicable disposal requirements.
Choosing the Right LED Replacement Tube
Tube diameter and installation type describe different aspects of compatibility. The “T” identifies a tubular shape, and the number indicates diameter in eighths of an inch.
- T8 LED bulbs: T8 describes a 1-inch diameter.
- T5 LED bulbs: T5 describes a 5/8-inch diameter. Check the specific lamp’s output and electrical requirements.
- T12: T12 describes a 1½-inch diameter. Replacing a fluorescent T12 lamp requires checking the proposed LED replacement’s specified compatibility.
For LED tube lights, the electrical configuration is just as important as physical fit:
- Type A (Plug-and-Play): Operates with a compatible existing ballast. Confirm the exact ballast model against the lamp manufacturer’s compatibility information.
- Type B (Ballast Bypass): Operates from line voltage after the specified fixture conversion. Single end and dual end configurations have different power connections and may have different lampholder requirements.
- Type C (External Driver): Uses a compatible external LED driver. Driver and control compatibility must be established for the selected system.
2 ft and 4 ft LED Tube Lights
2 ft LED tube lights provide a shorter linear format for two-foot lamp positions in fixtures such as compact troffers and strips. The two-foot designation describes nominal length, not tube diameter: T5 and T8 identify different diameters and base arrangements.
4 ft LED bulbs provide linear illumination in four-foot fixtures commonly used in offices, workshops, and commercial interiors. A 4 ft LED tube light may use ballast-compatible, ballast-bypass, or external-driver operation; length alone does not identify its electrical configuration. For either length, match the lamp designation, actual dimensions, base, and electrical configuration to the fixture.
Understanding LED Tube Bases
Standard Bi-Pin Bases
- G13 Medium Bi-Pin: Commonly associated with T8 and T12 lamps, with nominal pin spacing of 13 mm.
- G5 Miniature Bi-Pin: Commonly associated with T5 lamps, with nominal pin spacing of 5 mm.
Specialty 8-Foot Bases
Long fluorescent replacement lamps may use different connections. Identify the existing lamp and socket before selecting a replacement.
- Fa8 (Single Pin): Uses one centered pin at each end of the lamp.
- R17d (Recessed Double Contact): Uses recessed double contacts. The base designation alone does not establish suitability for refrigeration, outdoor exposure, or wet locations.
Specialty Shapes

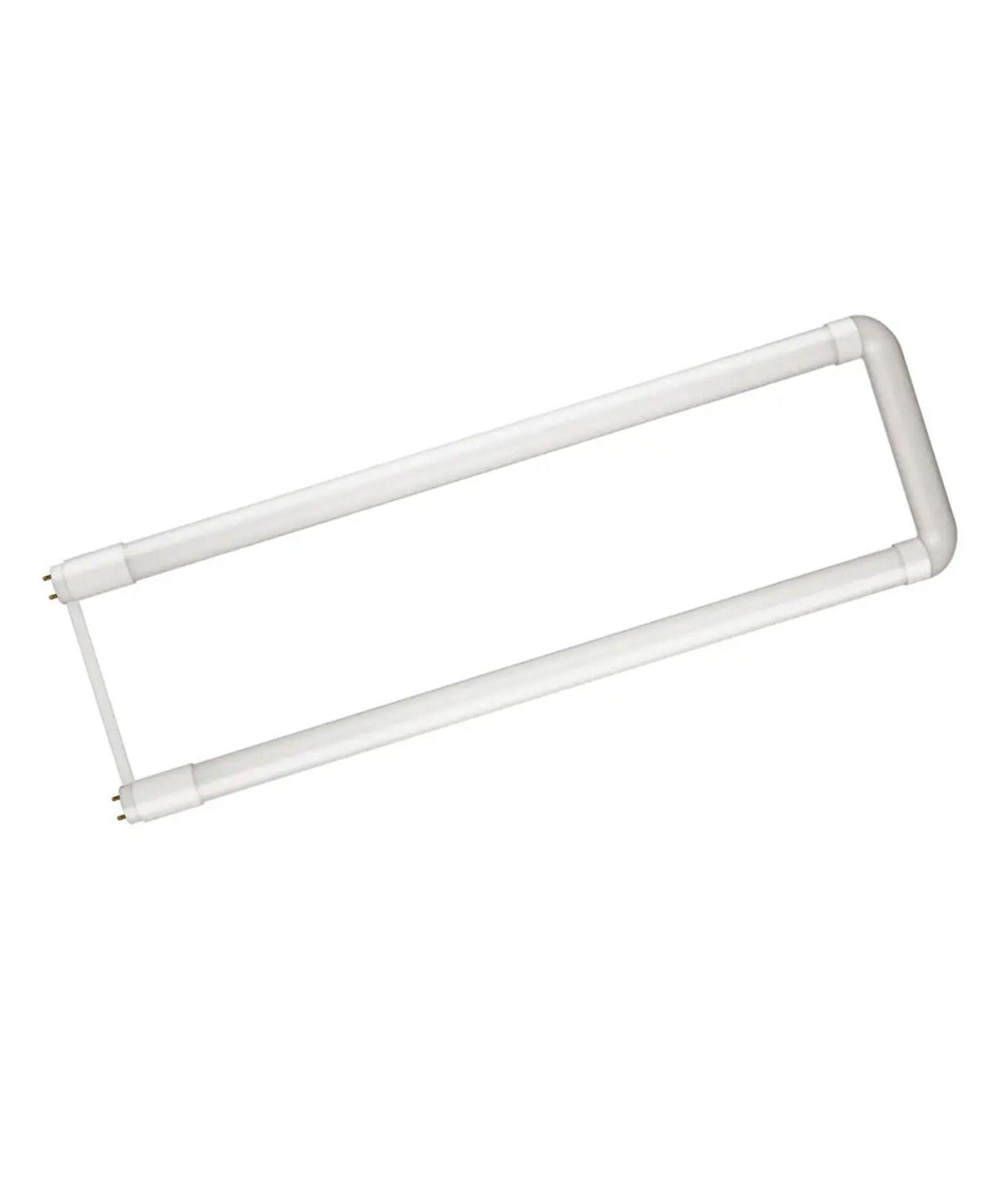

U-bend LED bulbs fit corresponding bent-lamp fixture layouts, while circline LED bulbs suit compatible circular fixtures. Check the required shape, dimensions, and electrical arrangement rather than treating either as a substitute for a straight tube.
Sign and Emergency Lighting Applications
For illuminated signage, compare LED sign tubes against the sign’s required lamp length, socket configuration, and light distribution. A matching base does not by itself confirm suitability for the sign’s environment.

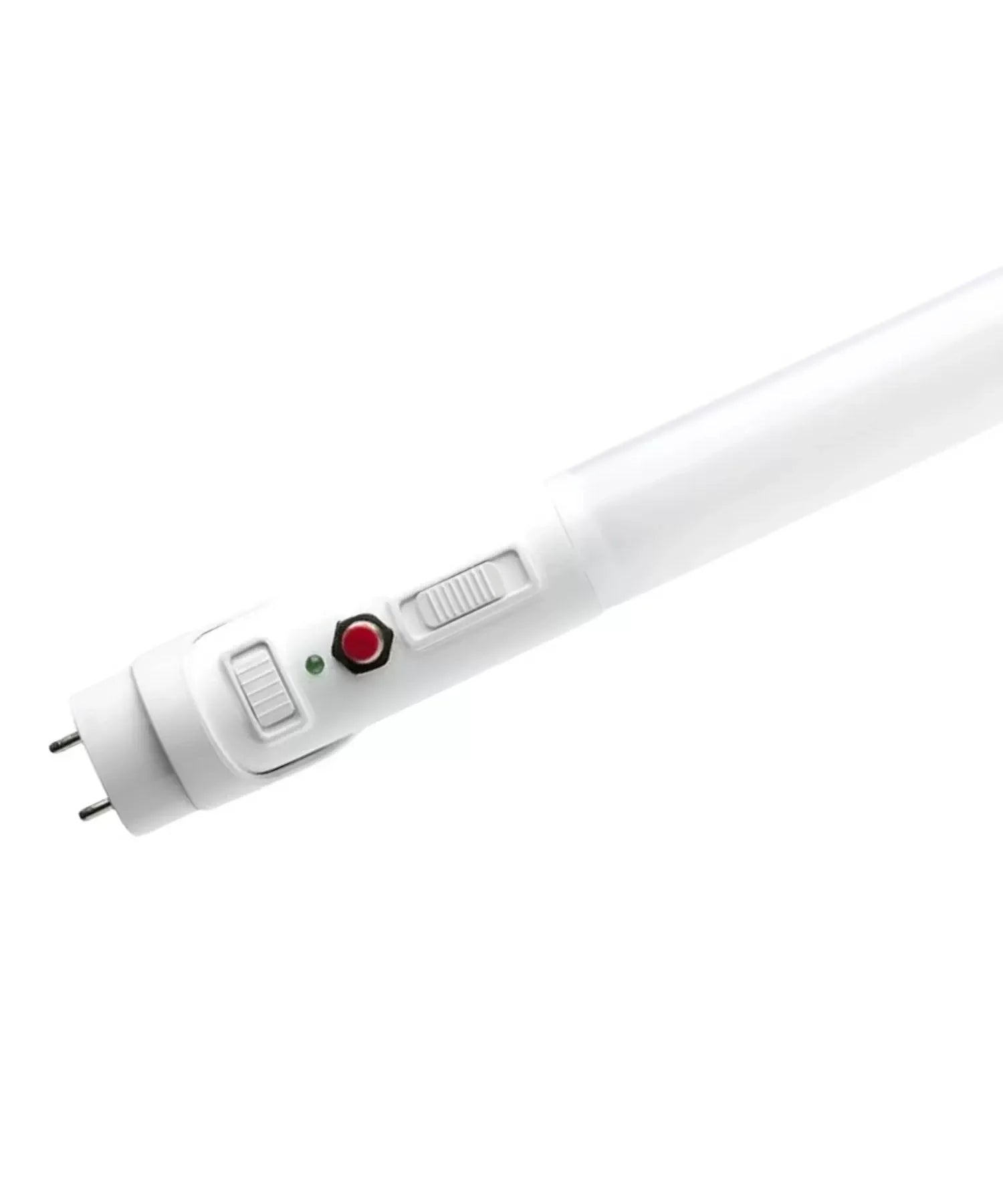

Emergency LED tube lights require application-specific selection. Confirm how the selected lamp operates with the intended emergency power arrangement before specifying it for the fixture.
Planning a Fluorescent Tube Retrofit
For an office, workshop, or commercial retrofit, match the fluorescent tube replacement to the fixture before comparing brightness, color temperature, and rated life. The broader LED light bulbs collection covers other replacement formats when a linear lamp is not required.
Compare LED tube lights by their stated system requirements so the planned linear LED upgrade addresses both light output and installation compatibility.
