Juno Track Lighting: Directional J-Type LED Fixtures
Juno track lighting uses J-Type connections to mount compatible directional fixtures on an approved track system. The collection includes integrated-LED heads for residential accents, retail displays, artwork, and interior task lighting, with optical designs ranging from concentrated spots to broader beams and wall washing.
J type track lighting is one compatibility category within the wider range of track lighting systems. Select the correct adapter version and confirm the installed rail's requirements before replacing or adding fixtures.
Identifying J-Type Track and Compatible Components
The correct J track light rail must be identified through its manufacturer label, model information, and compatibility documentation. The term 2-wire track lighting appears in descriptions of J-Type systems, but wire count or an assumed contact-spacing measurement should not be used alone to approve a fixture.

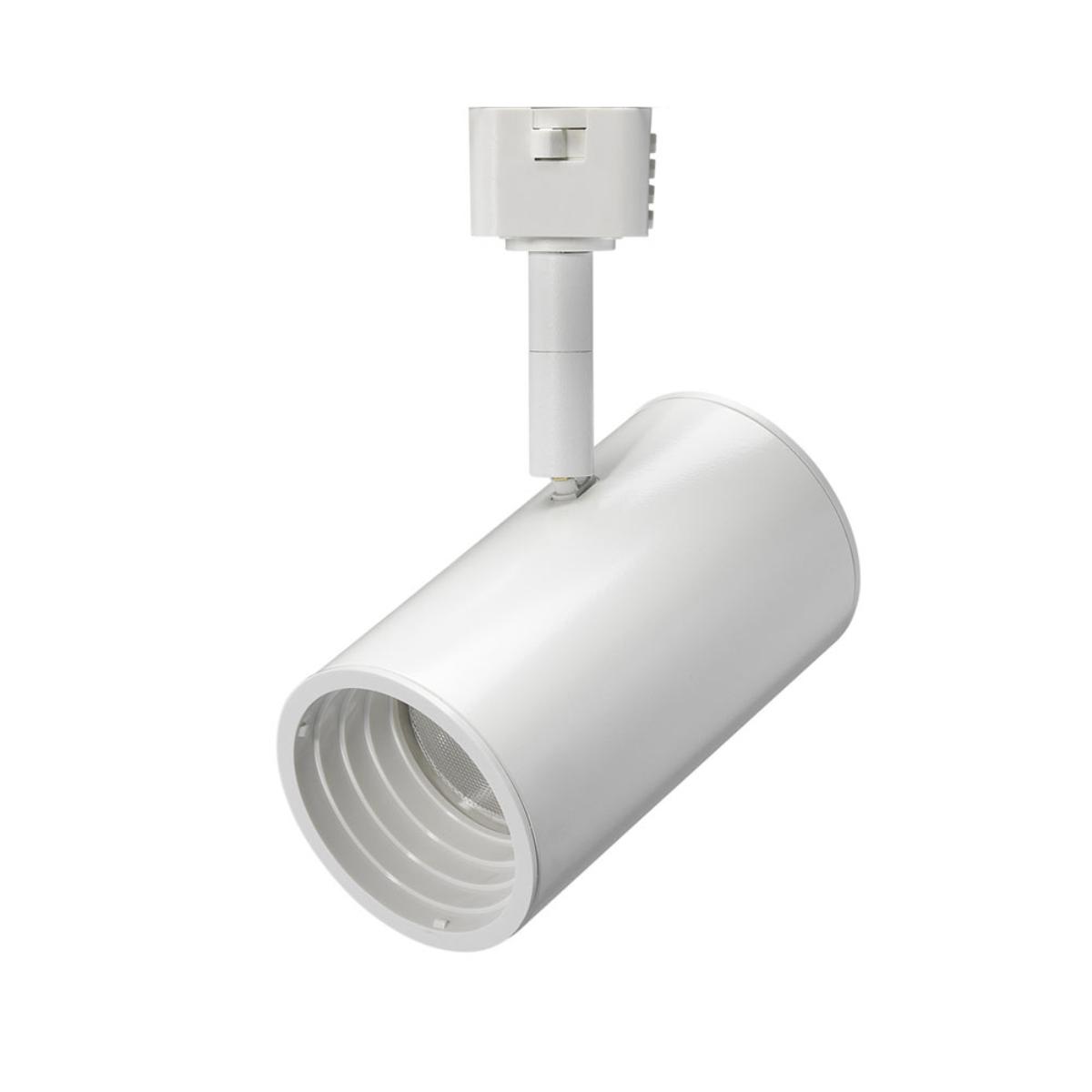

H-Type and L-Type heads are not direct substitutes for J-Type heads. WAC fixtures are offered in distinct connection versions, while the Juno Trac-Lites R605L identifies compatibility with Juno Trac-Lites and Trac-Master systems. Match the exact fixture and rail rather than relying only on a familiar brand name or similar adapter appearance.
- Juno Track Lights: Integrated-LED heads combine their light source, optics, and driver in one fixture. Fixed and adjustable beam designs provide different approaches to accent and task illumination.
- J-Track Rail: Rail length, mounting arrangement, circuit configuration, and power-feed position are separate system-planning decisions. A head's J-Type designation does not establish approval for every rail or circuit arrangement.
- Connectors and Power Feeds: Separately selected components must match the installed system. Check the specific connection, orientation, and electrical requirements before joining or extending rails.
The Versatility of J-Type Track Lighting Fixtures
Juno track light fixtures support different lighting effects through their optics and aiming mechanisms. Compact cylindrical and bullet profiles provide focused illumination without the visual scale of larger fixtures, while wall-wash designs distribute light across broader vertical surfaces.
- Highlight Artwork: Narrower spot optics concentrate light on framed pieces, merchandise, and architectural details. WAC Silo X10 heads include interchangeable 25° and 35° lenses, while selected Ocularc heads use interchangeable beam films.
- Illuminate Work Areas: Broader fixed beams can distribute directed light across counters, shelving, and displays. WAC Charge examples include fixed 45° and 55° beam designs.
- Wash Interior Walls: WAC Ocularc wall-wash heads use asymmetrical optics to spread illumination across wall surfaces. Their distribution differs from simply aiming a narrow spotlight toward a wall.

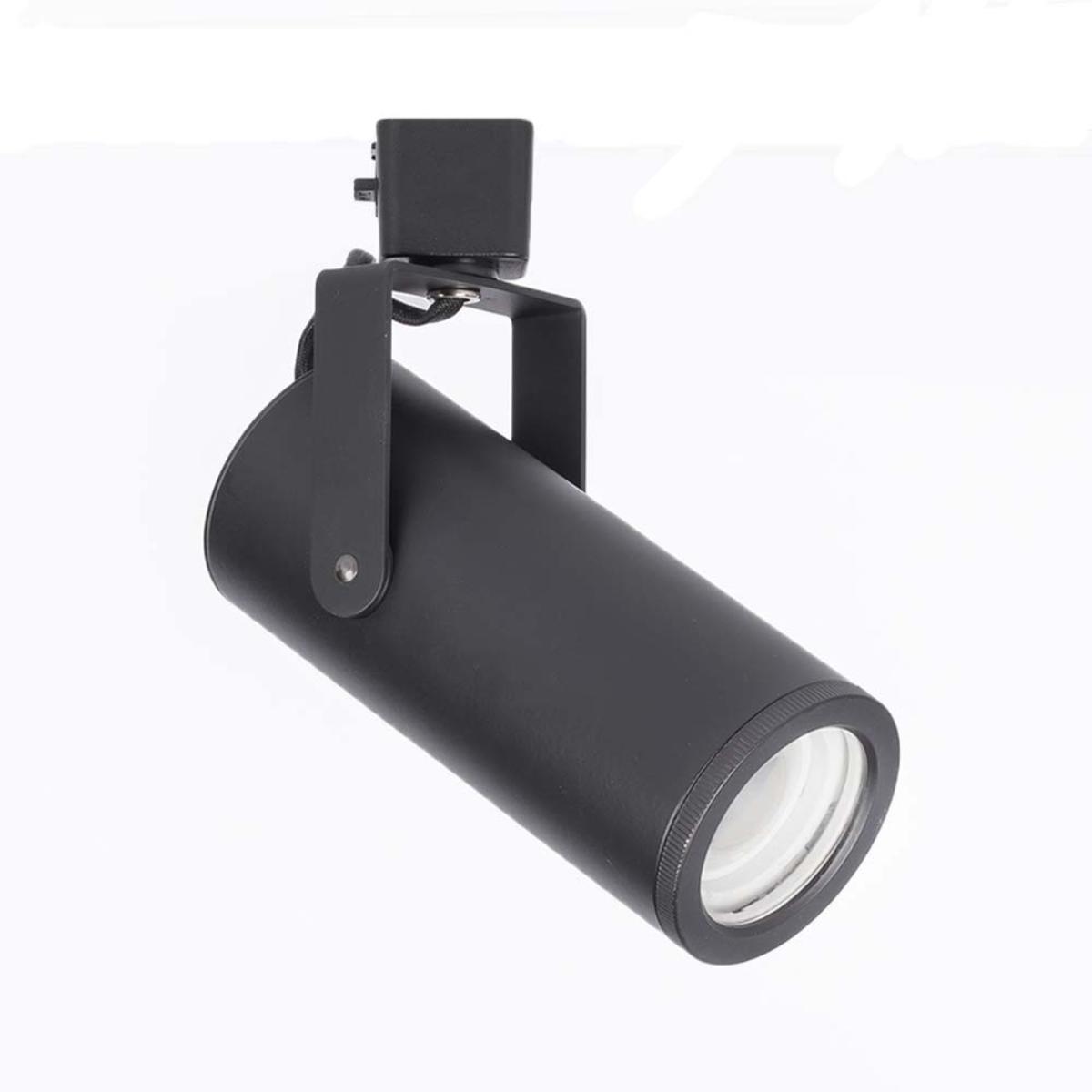

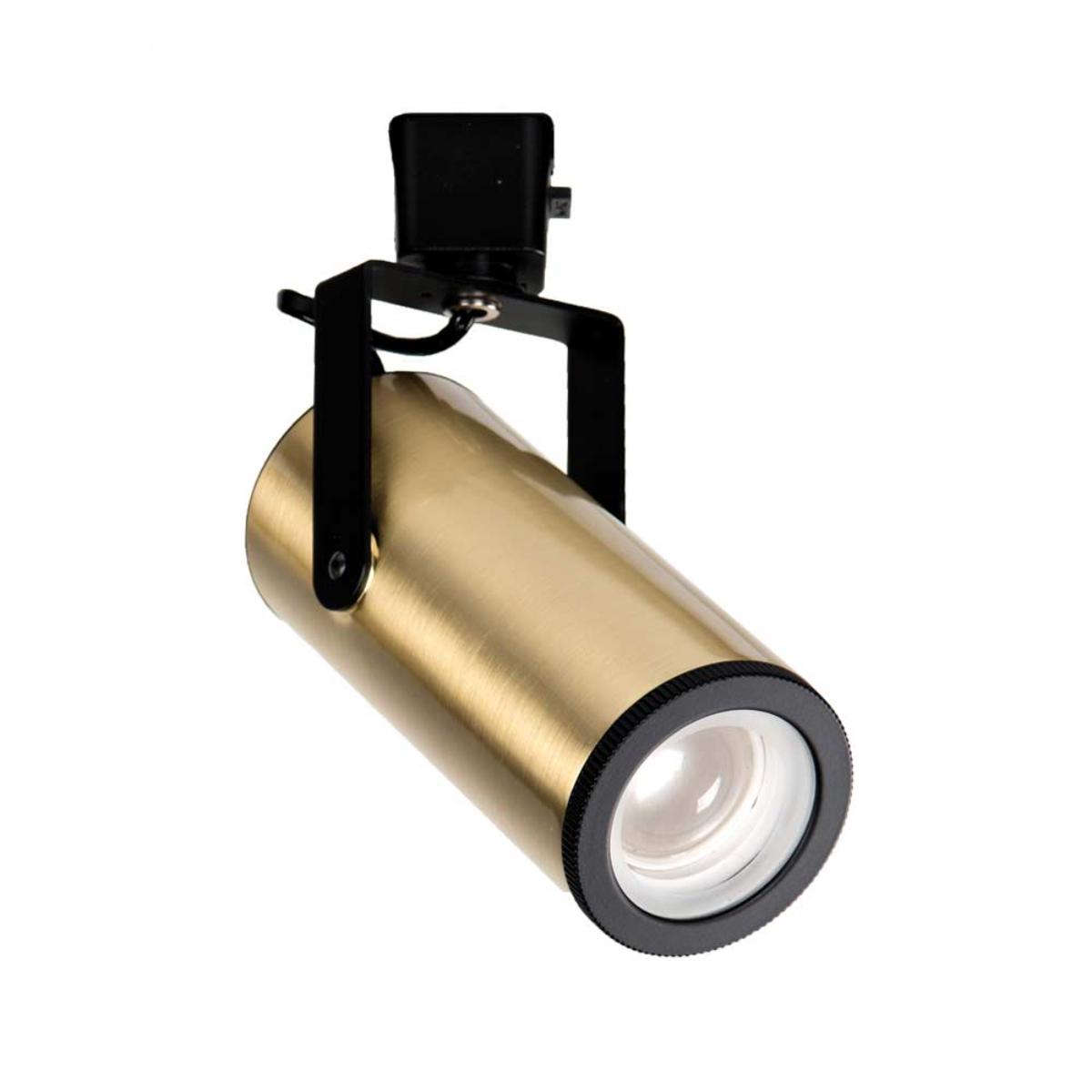

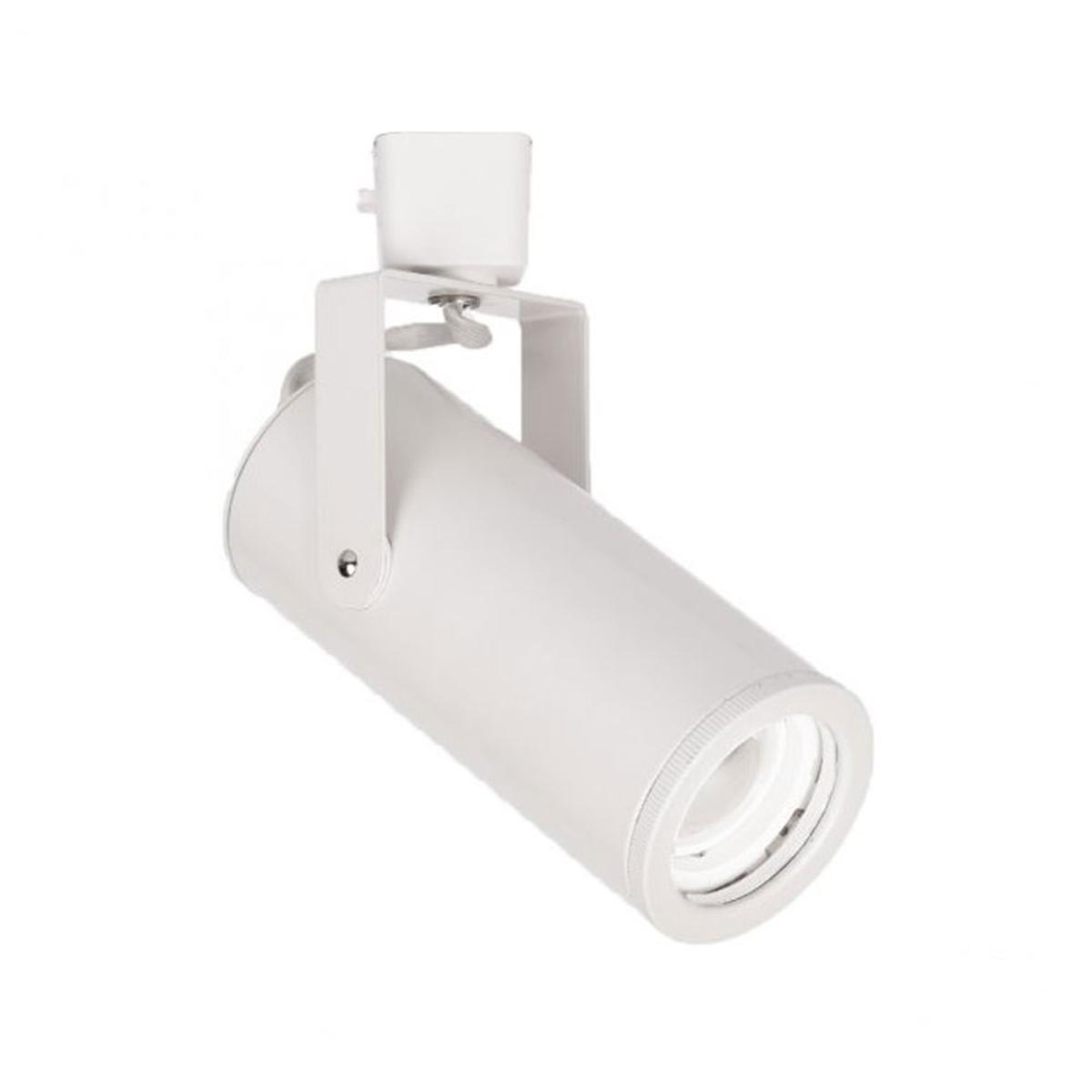

- Adjust the Optical Spread: WAC Silo X20 and X42 heads provide continuously adjustable 15°–50° beams. Turning the optical mechanism changes beam spread, while the aiming joints independently change its direction.
Compare these J-Type versions with the broader selection of LED track heads, confirming the required connection before selecting a fixture.
Construction, Output, and Color Quality
Die-cast aluminum housings combine durable construction with thermal management. Depending on the model, concealed drivers, compact bodies, baffled front covers, frosted TIR lenses, and removable optical caps support a streamlined appearance and controlled illumination.
Light output varies by model and beam setting. For example, the WAC Silo X42 delivers 1670 lumens at its 15° setting and 2345 lumens at 50°, illustrating why delivered output and beam intensity should be considered together rather than comparing wattage alone.
Color-rendering specifications also differ. Reviewed WAC heads include 90 or 90+ CRI designs, while the Juno Trac-Lites R605L specifies a minimum 80 CRI. Fixed 3000K and selectable white-light options serve different requirements; selectable CCT does not automatically provide smart or wireless controls.
Integrated LEDs can provide useful illumination at lower input power than higher-wattage lamp arrangements with comparable performance. Model-specific 50,000-hour ratings support long-life lighting design, but rated life is not a guarantee of identical performance under every operating condition.
Power, Dimming, and Installation Planning
The reviewed Juno track lights operate from 120V track with integral LED drivers. Dimming requirements differ: Silo fixtures specify compatible ELV controls, selected WAC families support ELV and TRIAC dimming, and the Juno Trac-Lites fixture requires factory-approved phase dimmers.
Check minimum dimming levels, fixture clearance, aiming range, location rating, and system capacity when planning the installation. Adding a compatible head still requires sufficient electrical and mechanical capacity within the approved track arrangement.
Why Choose J-Type Track Lighting?
J type track lighting provides directional flexibility for changing displays, artwork, and task areas. Selecting the appropriate fixed, interchangeable, adjustable, or wall-wash optics makes the lighting effect more purposeful than choosing fixtures by appearance alone.
A coordinated Juno track lighting installation matches the rail, fixture connection, power feed, controls, and approved accessories. This preserves the intended system operation while allowing individual heads to direct light toward the surfaces that need it.
