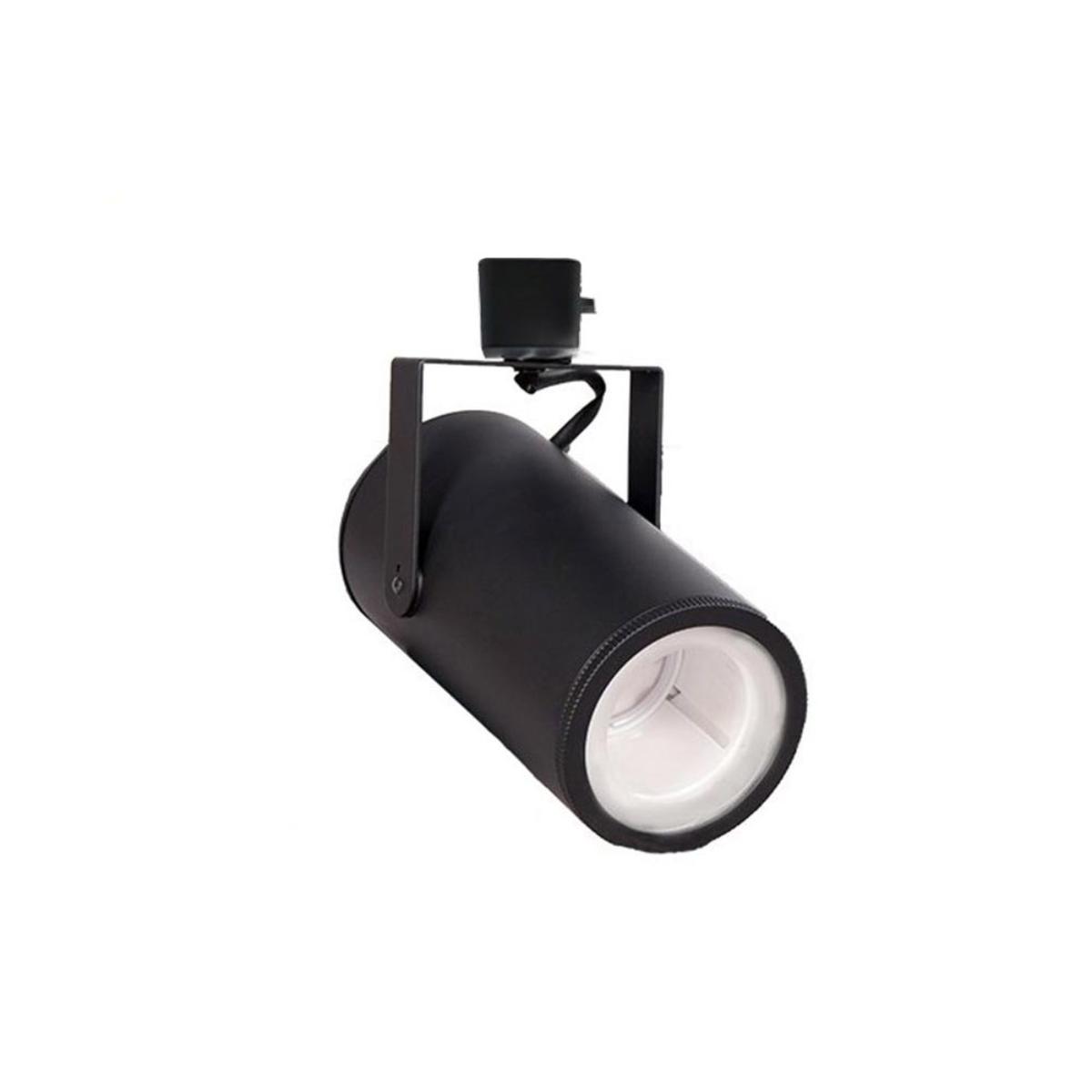

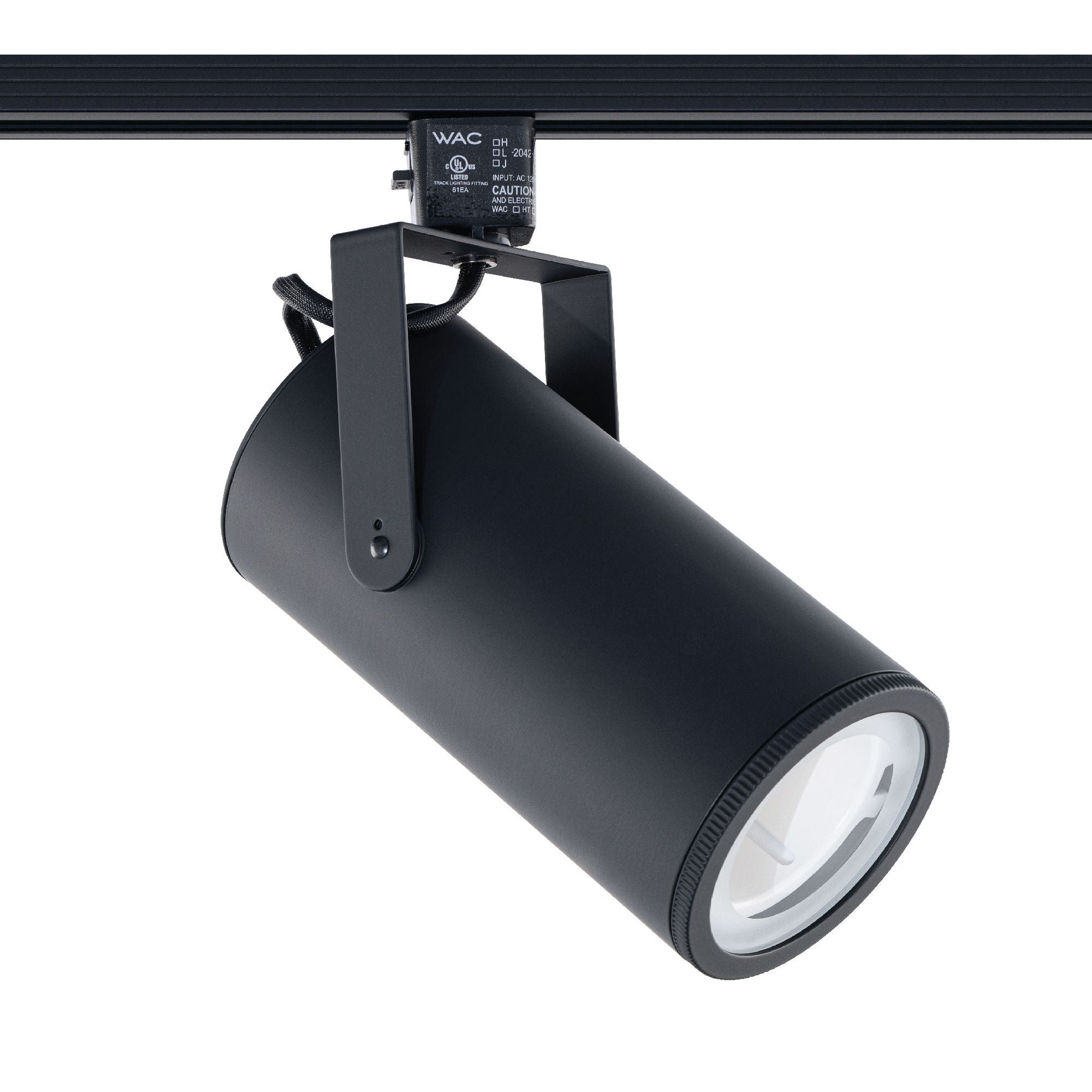

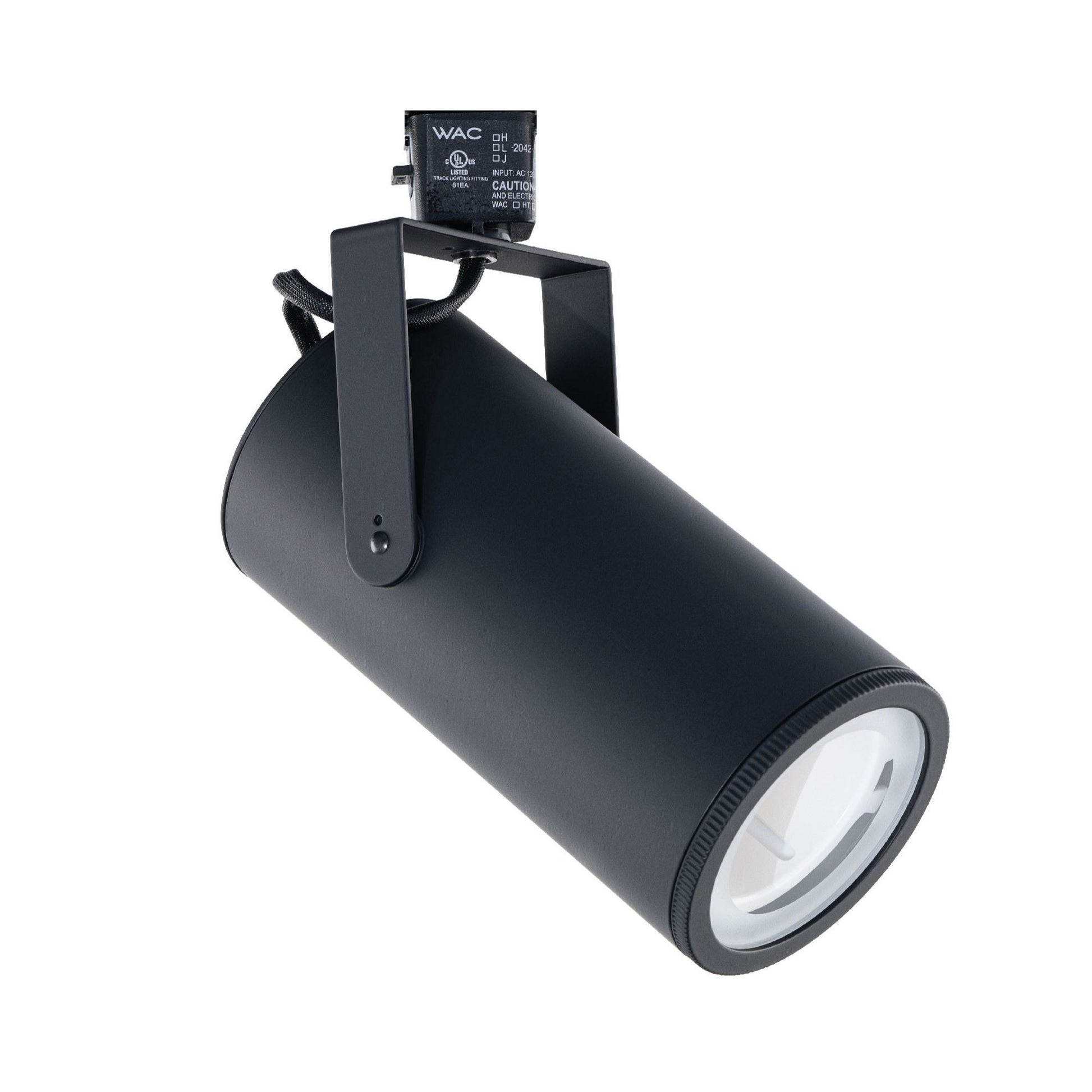

WAC Lighting Silo X42 J-2042-930-BK LED Track Head

Bring flexible accent lighting to residential, retail and commercial spaces with this 42W integrated LED track head for J/J2 track systems. Its powder-coated black finish and slender die-cast aluminum housing pair with a continuously adjustable 15°–50° beam. Warm 3000K light with 90 CRI helps render merchandise, artwork and interior finishes accurately.

Key Features

• Variable Beam: Continuously adjustable from 15° to 50° for focused accents or broader illumination.
• System Configuration: J/J2 track version identified by the J prefix.
• Integrated Light Source: High-output COB LED with an integral driver.
• Light Output: 1670 lumens at 15° and 2345 lumens at 50° for the 3000K configuration.
• Color Quality: 3000K warm white light with 90 CRI.
• Center Beam Intensity: 10,500 CBCP at 15° and 2180 CBCP at 50°.
• Electrical Input: 42W at 120VAC, 50/60Hz.
• Dimming: Electronic low-voltage dimming from 100% to 5%.
• Housing: Die-cast aluminum with a rotatable front face and removable front cap for lenses or accessories.
• Accessory Capacity: Accommodates one lens accessory and one glare-control accessory.
• Service Life and Warranty: 50,000-hour rated life and a 5-year WAC Lighting product warranty.
• Listings and Compliance: UL and cUL Listed; Title 24 JA8-2016 compliant.

Construction & Design

The slender die-cast aluminum housing has a powder-coated black finish. A rotatable front face supports beam adjustment, while the removable front cap provides access for compatible lenses and glare-control accessories.

Light Output & Performance

The high-output COB LED produces 1670 lumens at 15° and 2345 lumens at 50°. It outperforms a 150W PAR38 halogen lamp while consuming 42W. Its continuously adjustable optics allow the beam to change from a narrow accent to a wider spread. The 3000K source provides 90 CRI and a 50,000-hour rated life.

Electrical & Installation

J-2042-930-BK is designed for J/J2 track systems; match the head to a compatible J/J2 track system for installation. It operates at 120VAC, 50/60Hz and consumes 42W. The integrated LED and integral driver eliminate the need to select a separate lamp for initial installation. Electronic low-voltage (ELV) dimming supports adjustment from 100% to 5%.

Compatible Accessories

• Colored Flat Lenses: LENS-25-AMB amber, LENS-25-BLU blue, LENS-25-GRN green and LENS-25-RED red.
• Optical Flat Lenses: LENS-25-FR frosted, LENS-25-SPR spread and LENS-25-BEL beam elongating.
• Black Cross Louver: LENS-25P-CRL-BK.
• Black Snoot: LENS-25-SNOOT-BK.
• Honeycomb Louver: LENS-25-HCL.

The head accommodates one lens accessory and one glare-control accessory.

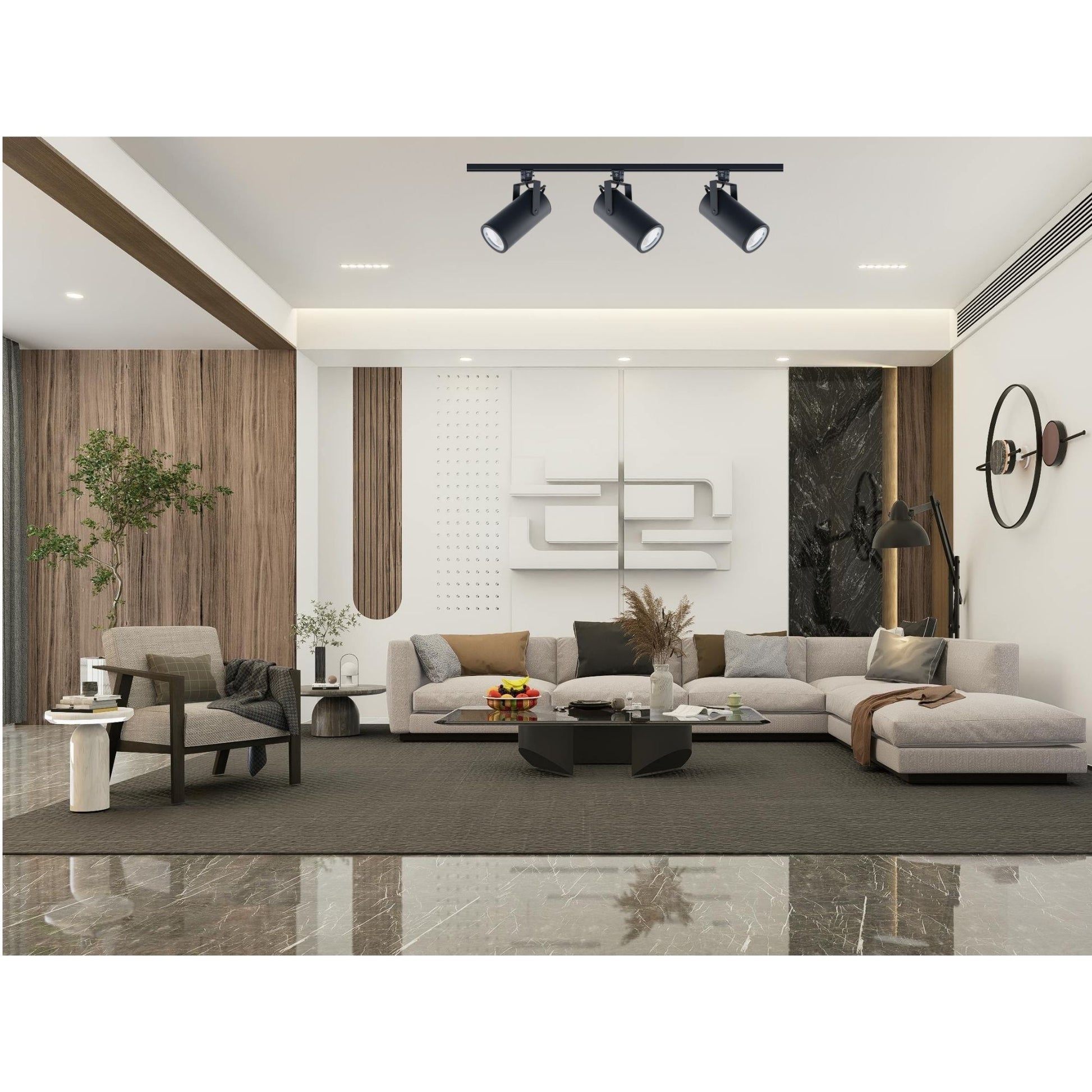

Typical Applications

• Retail merchandise and display accents.
• Residential artwork and decorative focal points.
• Commercial feature lighting.

What's Included

• WAC Lighting J-2042-930-BK black track head with integrated COB LED and integral driver.
