Description

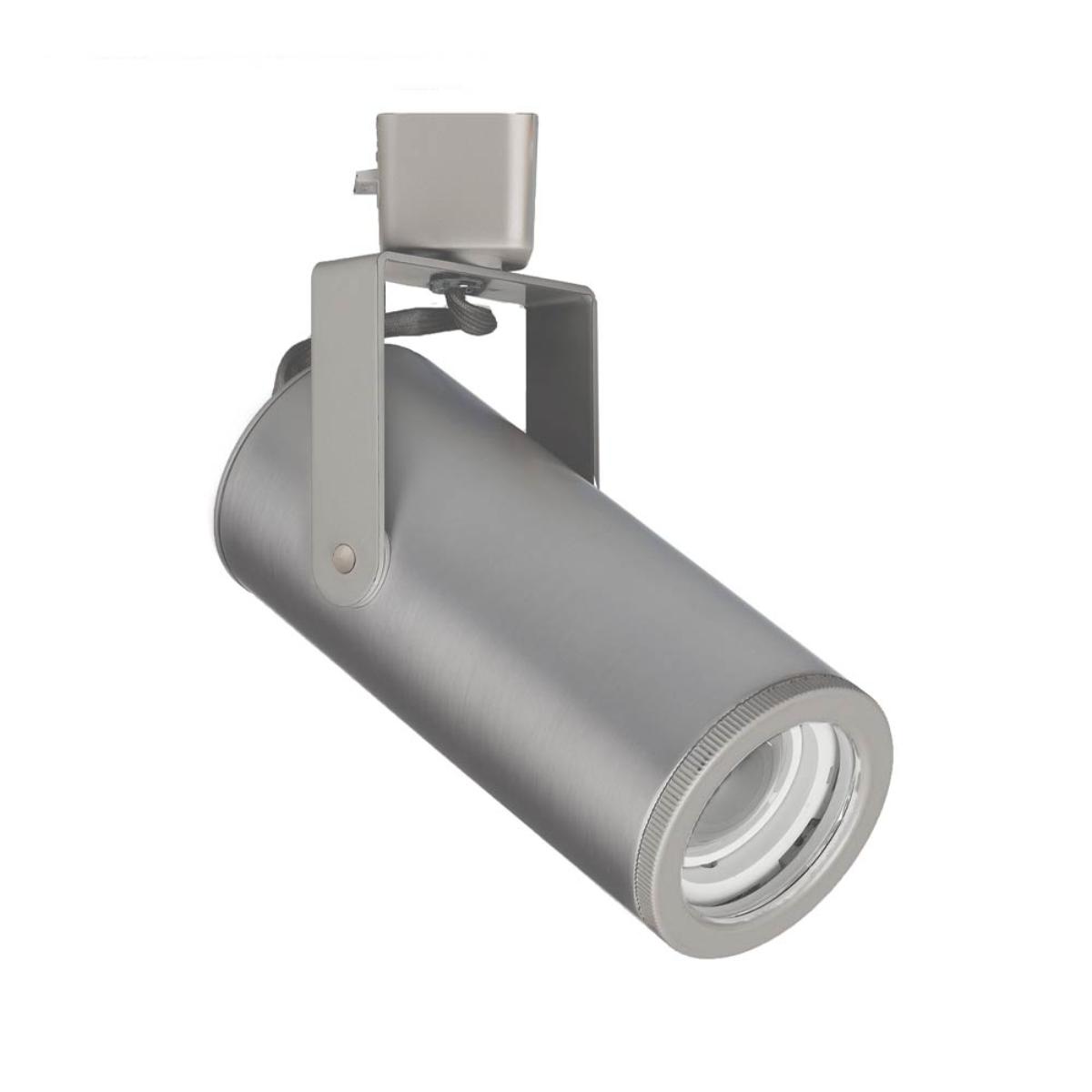

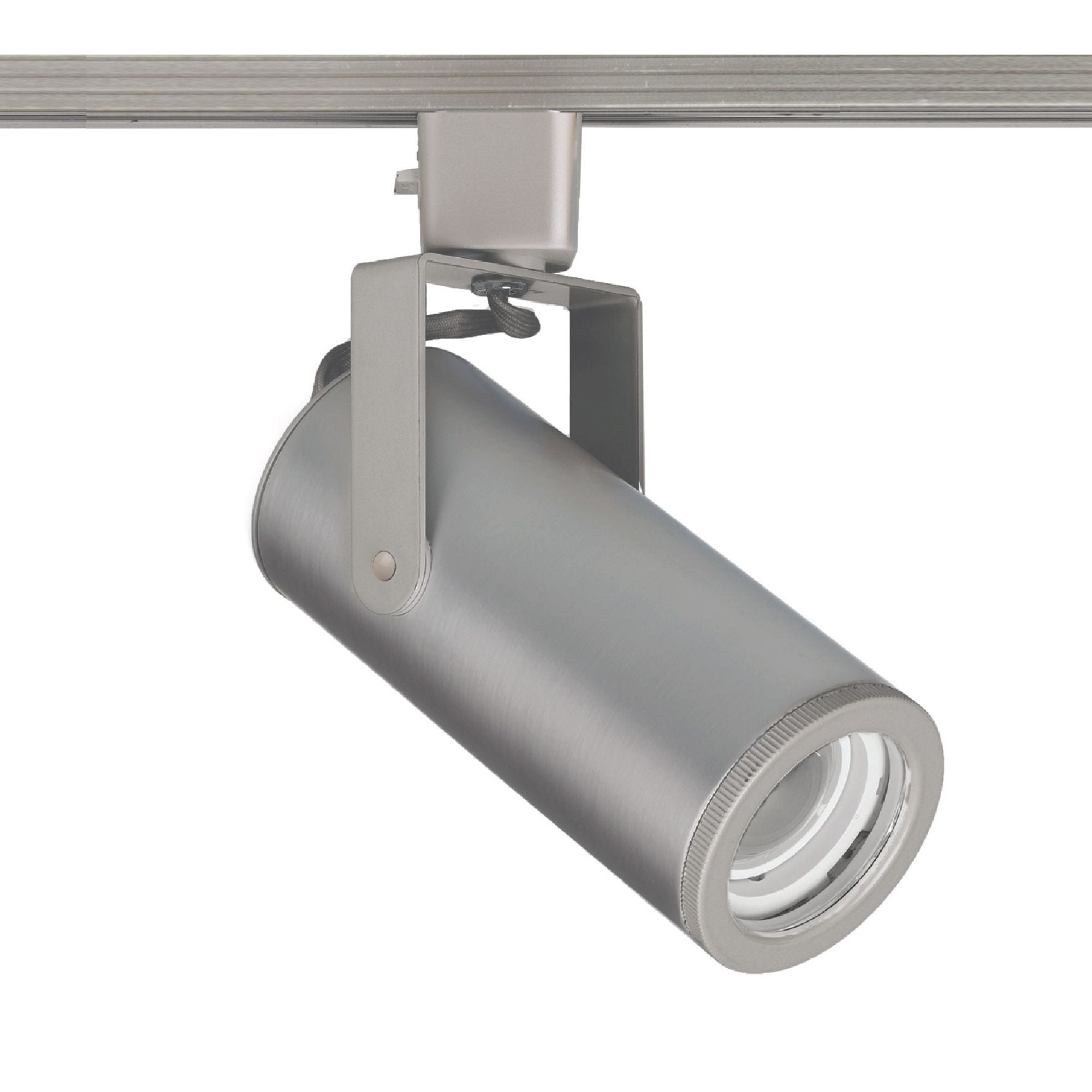

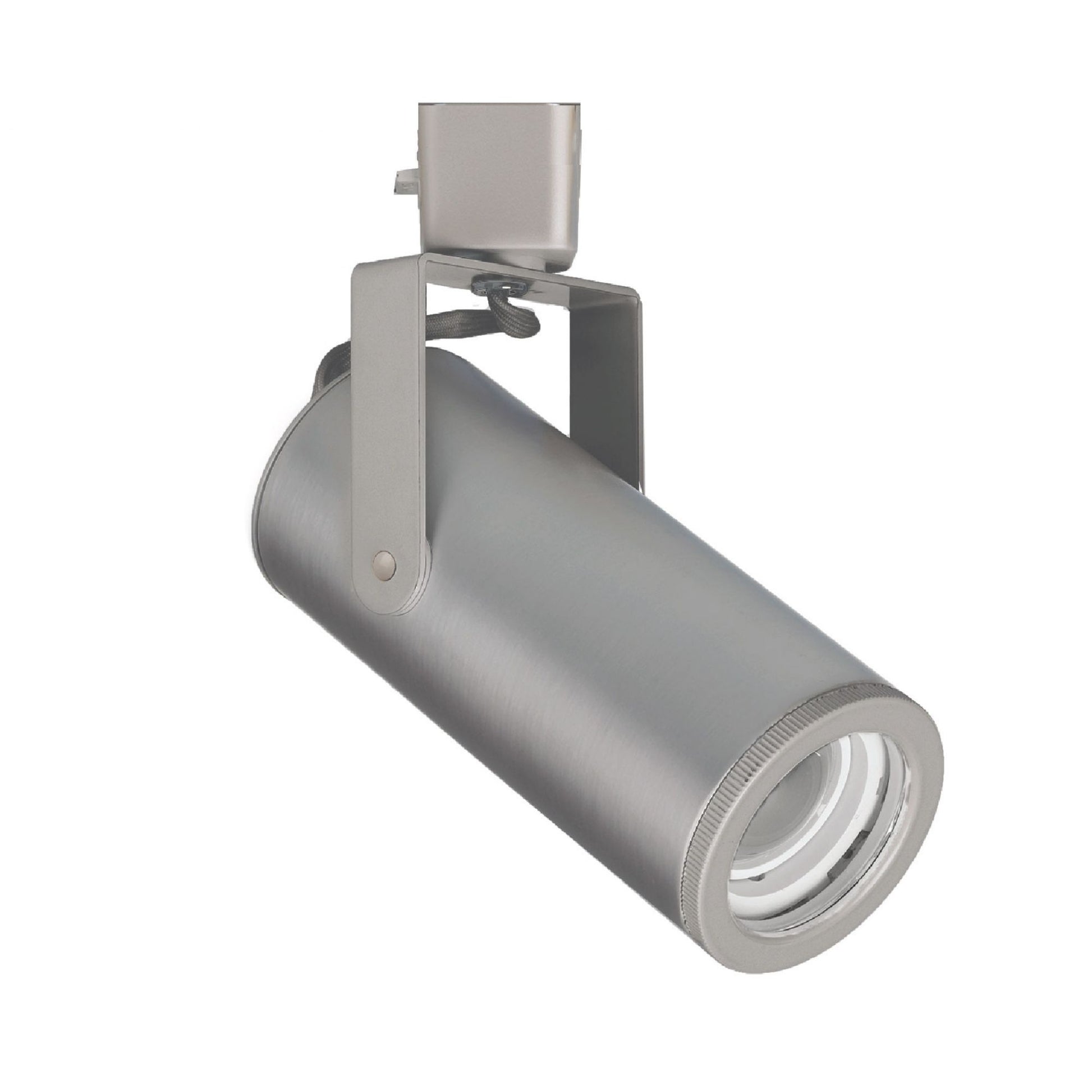

WAC Lighting Silo X20 J-2020-930-BN LED Track Head

The WAC Lighting Silo X20 J-2020-930-BN pairs an anodized Brushed Nickel die-cast aluminum housing with a 20W COB LED and a continuously adjustable 15°–50° beam. Its fixed 3000K warm-white light and 90 CRI suit residential accents, retail displays and lower-mounted commercial interiors. Output varies with beam setting: 785 lumens at 15° and 1080 lumens at 50°. This version fits J-Type (Juno) track.

Key Features

  • Track Compatibility: J-Type (Juno).
  • Light Source: 20W high-output COB LED.
  • Color Quality: Fixed 3000K, 90 CRI.
  • Beam Adjustment: Continuously adjustable from 15° to 50°, rotatable front face.
  • Spot Performance: 15°, 785 delivered lumens, 6840 CBCP.
  • Flood Performance: 50°, 1080 delivered lumens, 1295 CBCP.
  • Dimming: Electronic low voltage (ELV), 100% to 5% with a compatible dimmer.
  • Construction: Die-cast aluminum, removable front cap.
  • Finish: Anodized Brushed Nickel.

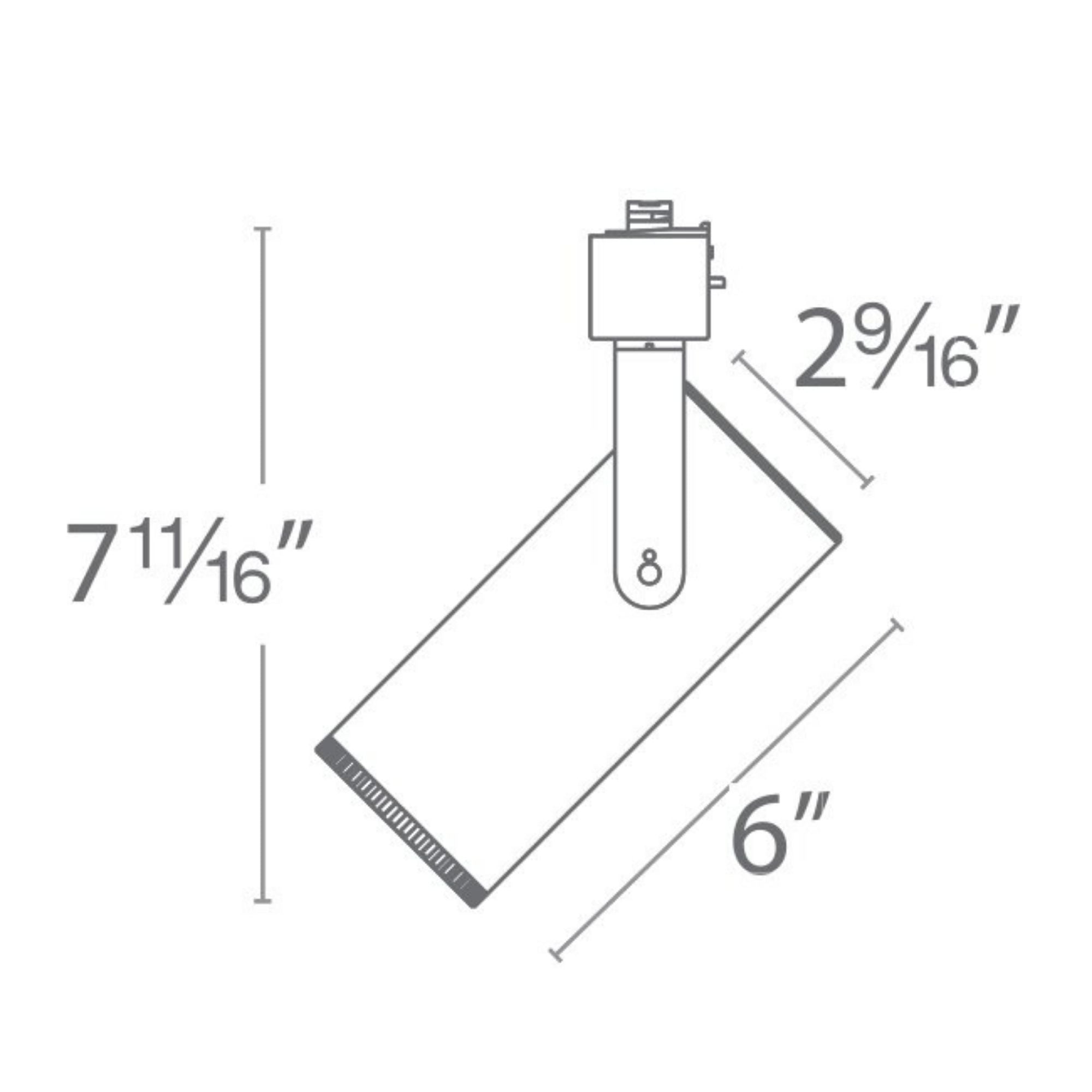

  • Dimensions: 6 in body length, 2 9/16 in across, 7 11/16 in illustrated overall height.
  • Electrical: 120V AC, 50/60Hz, integral concealed driver.
  • Rated Life & Listing: 50,000 hours, UL and cUL listed.

Construction & Design

The anodized Brushed Nickel die-cast aluminum housing combines the LED, optics and thermal management in a slender cylindrical design. The rotatable front face adjusts beam spread continuously, while the removable front cap provides access to the optical assembly. The integral driver is concealed within the fixture. Body dimensions are 6 in long and 2 9/16 in across, with an overall height of 7 11/16 in in the illustrated angled position.

Light Output & Performance

The 20W COB LED produces fixed 3000K light with 90 CRI. At the 15° spot setting, output is 785 delivered lumens and 6840 CBCP, concentrating light on smaller features. At the 50° flood setting, output is 1080 delivered lumens and 1295 CBCP, spreading illumination across a wider area. The beam adjusts continuously between these endpoints through the rotatable front face, rather than exchanging separate spot and flood lenses. Compatible ELV dimmers provide 100% to 5% dimming. Rated life is 50,000 hours.

Electrical & Installation

The WAC Lighting J-2020-930-BN operates at 20W, 120V AC, 50/60Hz with an integral driver concealed within the fixture. Choose J-Type (Juno) track for this version, not H-Type (Halo) or L-Type (Lightolier). Use a compatible electronic low voltage (ELV) dimmer for the specified 100% to 5% dimming range. The fixture is UL and cUL listed.

Typical Applications

  • Residential feature and accent lighting.
  • Retail merchandise displays.

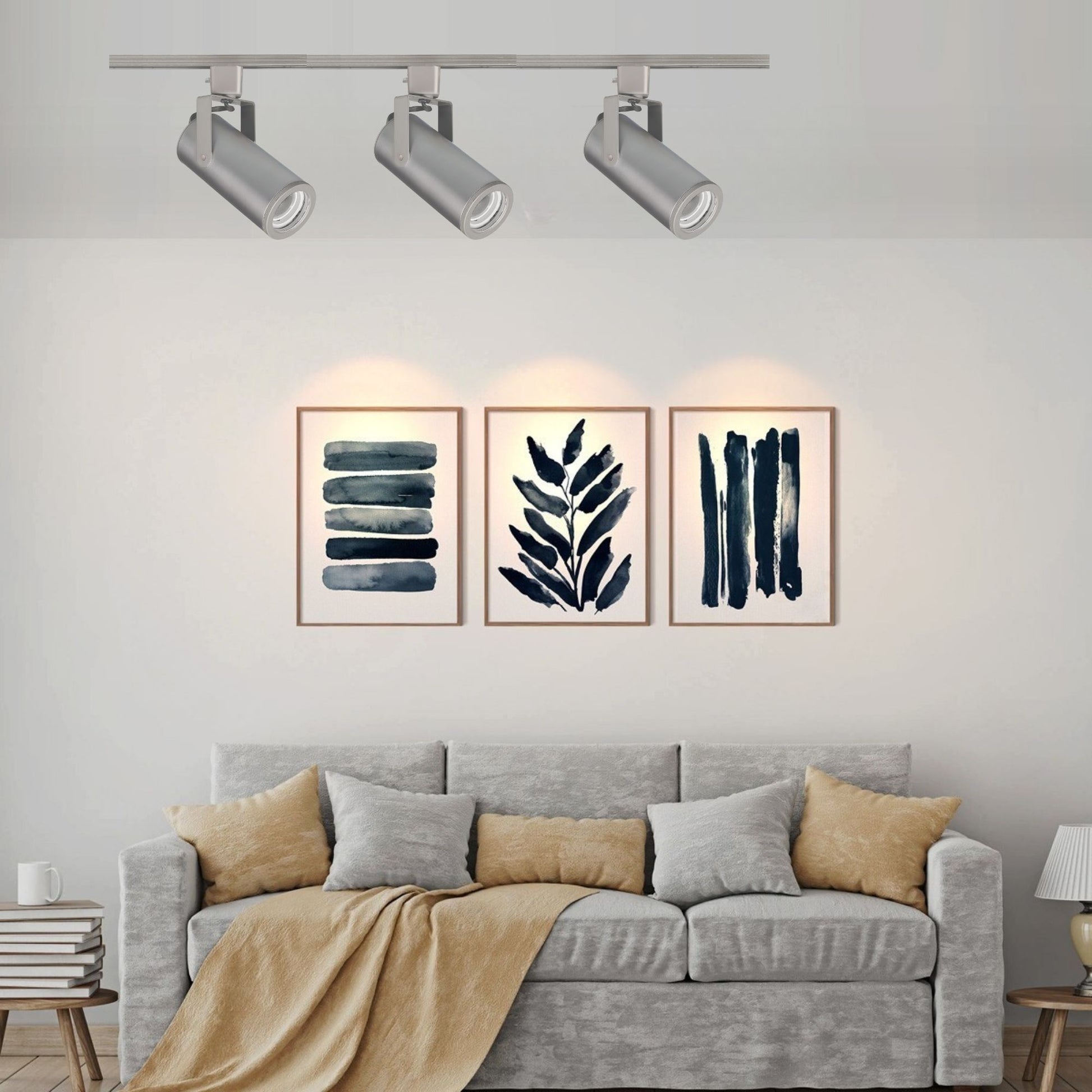

  • Artwork and decorative feature lighting.
  • Lower-mounted commercial interior lighting.

What's Included

  • One WAC Lighting Silo X20 J-2020-930-BN Brushed Nickel track head with integrated COB LED, continuously adjustable 15°–50° optics and integral driver.

Specifications

Dimensions

Length/Depth
6 in
Width/Diameter
2.5 in
Height
7.75 in
Weight
1.43 lb

Style & Materials

Finish
Brushed Nickel
Material
Aluminum
Style
Transitional
Shape
Heads

Characteristics & Features

Lamp Source
LED
Base Type
LED Module
Bulb Included
Yes
Integrated LED
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
3000K
Color Rendering
90 CRI
Delivered Lumens
1115
Beam Angle
15 - 50
Dimmable
Yes

Electrical Information

Voltage
120V
Total Wattage
20W
Bulb Wattage
20W

Item Details

MPN
J-2020-930-BN
Brand
WAC Lighting
Family
Silo
UPC
790576429847

Warranty & Certifications

Product Warranty
5 Year Functional, 2 Year Finish
Lamp Life
50000 hours
Product Rating
ETL, cETL
Safety Listing
UL, cUL

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Which track system does the WAC Lighting J-2020-930-BN use?

The WAC Lighting J-2020-930-BN uses J-Type (Juno) track. Select this version for a matching J-Type installation, not H-Type (Halo) or L-Type (Lightolier) track.

How does beam adjustment work on the WAC Lighting J-2020-930-BN?

The WAC Lighting J-2020-930-BN has a rotatable front face that continuously adjusts the beam from 15° to 50°. It changes from a concentrated spot to a wider flood without exchanging separate beam lenses.

Is the WAC Lighting J-2020-930-BN dimmable?

Yes, the WAC Lighting J-2020-930-BN supports electronic low voltage (ELV) dimming from 100% to 5% with a compatible dimmer. It operates at 20W, 120V AC, 50/60Hz and has an integral concealed driver.

What light output and color does the WAC Lighting J-2020-930-BN provide?

The WAC Lighting J-2020-930-BN provides fixed 3000K light with 90 CRI. At 15°, it delivers 785 lumens and 6840 CBCP; at 50°, it delivers 1080 lumens and 1295 CBCP. Its COB LED has a rated life of 50,000 hours.

What are the dimensions and finish of the WAC Lighting J-2020-930-BN?

The WAC Lighting J-2020-930-BN has a 6 in body length, measures 2 9/16 in across and has an overall height of 7 11/16 in in the illustrated angled position. Its die-cast aluminum housing has an anodized Brushed Nickel finish.
