WAC Lighting OCULARC Track Head, J-Type, Brushed Nickel, Selectable CCT, 2255 Lumens, 55° Beam Angle
Out of stock
About this item
About this item
- System Compatibility: Designed for J-Type track systems, ensuring seamless integration.
- Selectable CCT: Offers a range of color temperatures from 2700K to 5000K for versatile lighting.
- Beam Angle Options: Includes 55° pre-installed beam film, with interchangeable 40° and 20° options.
- High Lumens Output: Delivers up to 2255 lumens, outperforming 100W halogen PAR38.
- Adjustable Aiming: Features 350° horizontal and 90° vertical aiming for precise light direction.
We process payments securely and do not store credit card information.
Description
Description

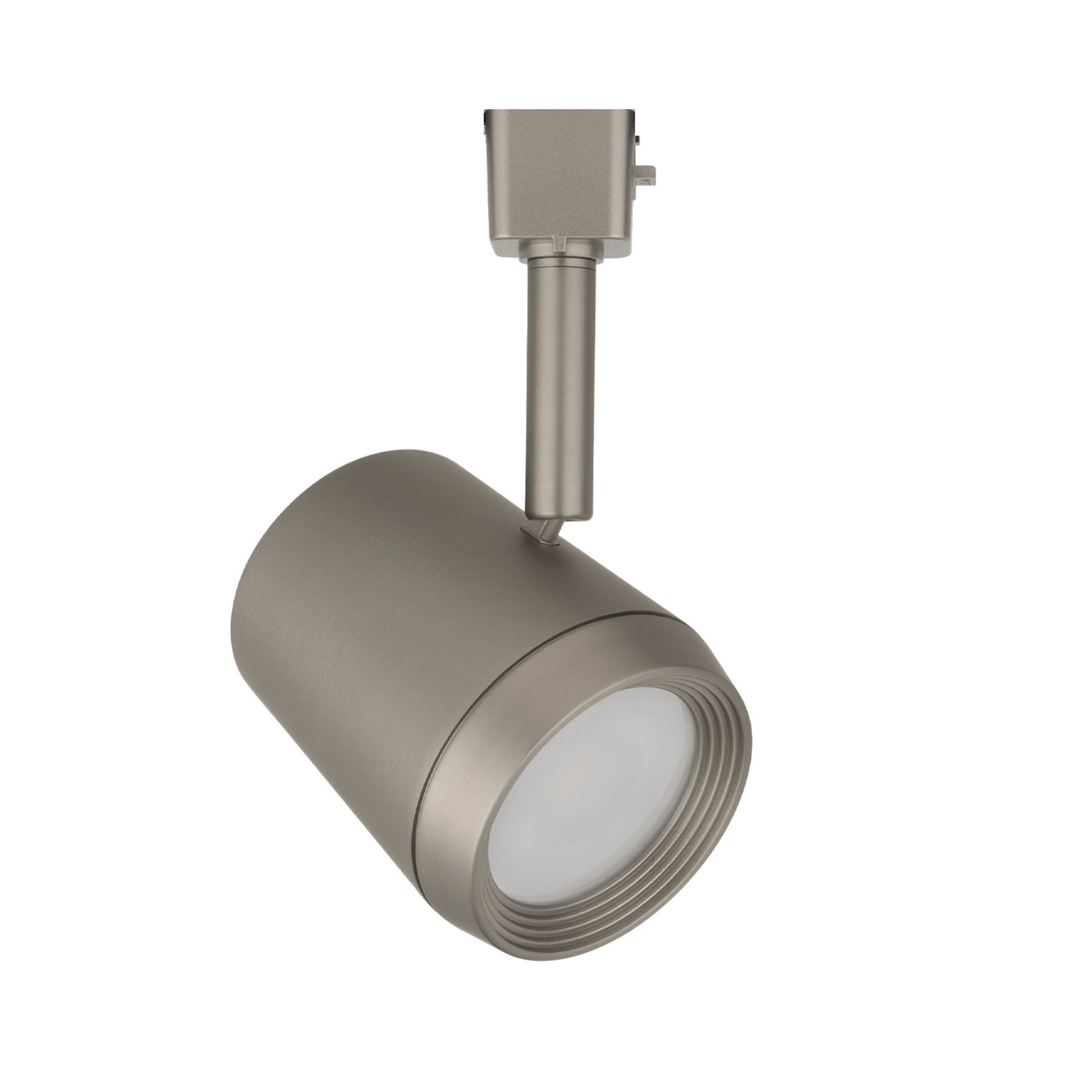

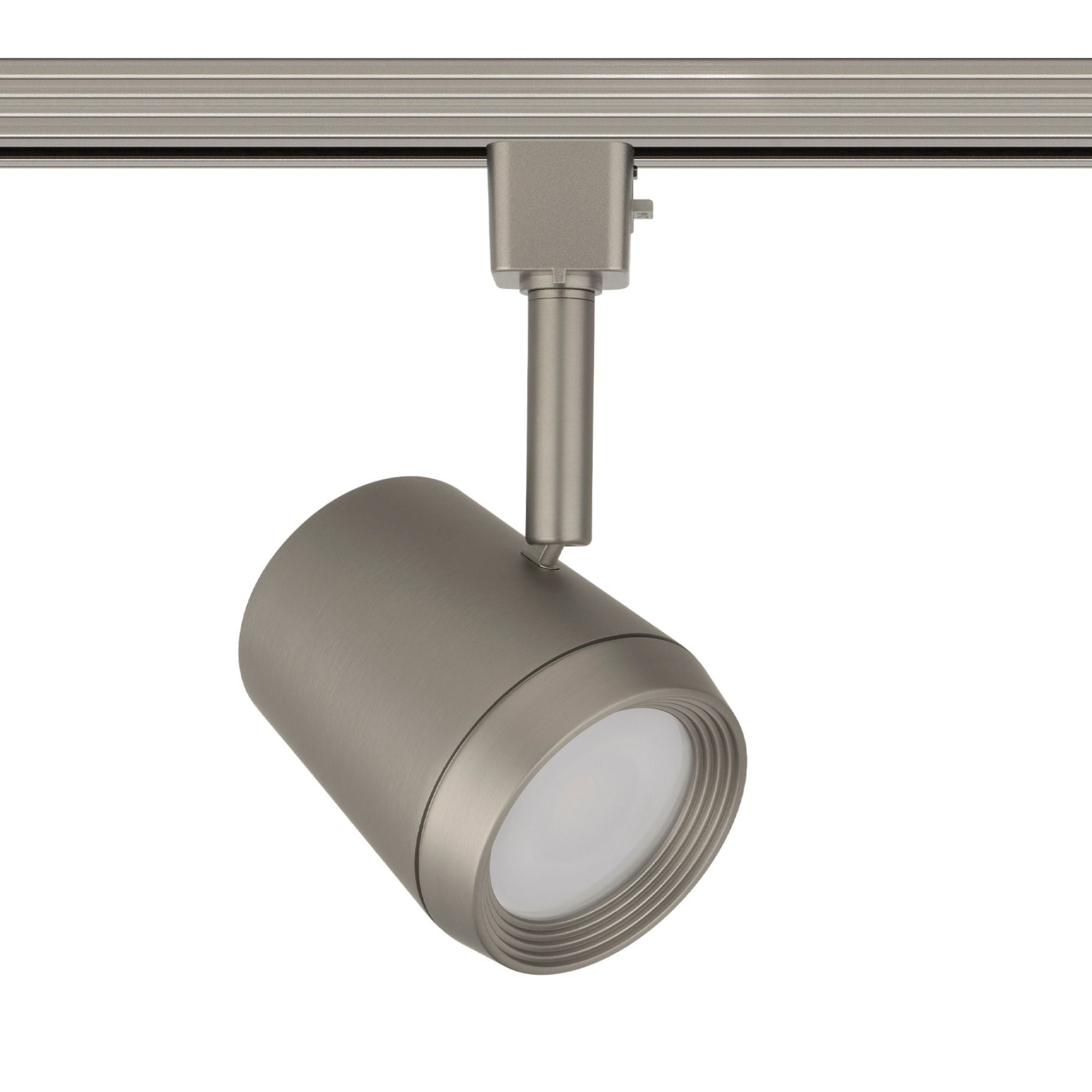

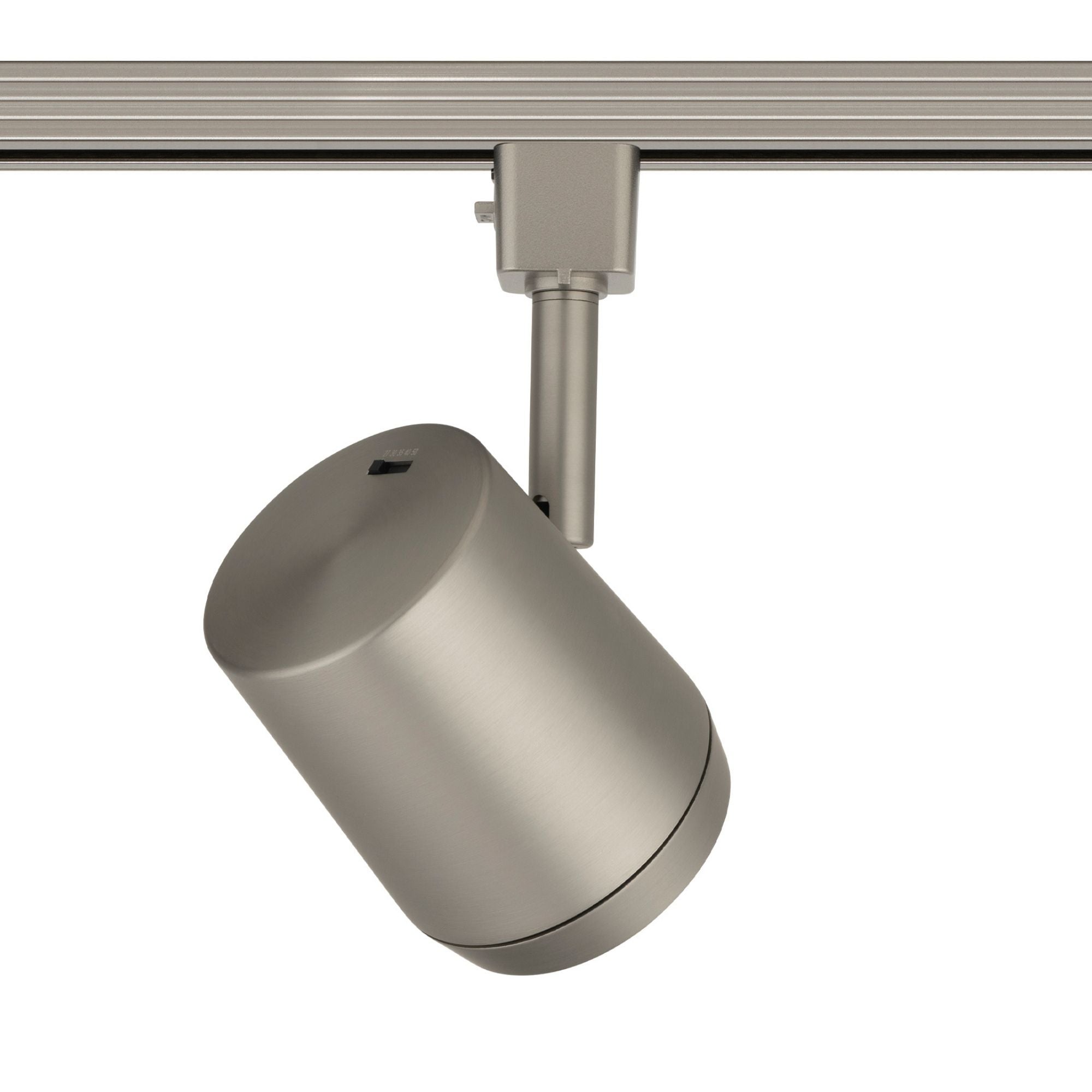

WAC Lighting OCULARC Track Head — Brushed Nickel & Selectable CCT
The WAC Lighting J-7030-CS-BN track head in brushed nickel is a versatile lighting solution for J-Type track systems. With a 29W power consumption and 120V operation, this fixture offers a high output of 2255 lumens and a selectable CCT range from 2700K to 5000K.
Key Features
- Voltage: Operates at 120V, compatible with standard track lighting systems.
- Wattage: Consumes 29W, providing efficient energy use.
- Lumens: Produces a maximum of 2255 lumens for bright illumination.
- CCT Range: Selectable color temperatures from 2700K to 5000K.
- Aiming Angles: 350° horizontal and 90° vertical for flexible lighting direction.
- Beam Angles: Includes 55° pre-installed, with 40° and 20° options.
- CRI: High color rendering index of 90+ for accurate color representation.
- Certifications: ETL & cETL Dry Location Listed, Title 24 JA8 Compliant.
- Track System: Specifically designed for J-Type track systems.
Core Design & Adjustability
Constructed from die-cast aluminum with a baffled front cover for glare control, this track head is finished in electroplated brushed nickel. It offers 350° horizontal and 90° vertical aiming for optimal adjustability.
LED Illumination & Performance
Featuring a high output COB LED with a 90+ CRI, this track head delivers up to 2255 lumens with selectable CCT options. It is designed to outperform traditional 100W halogen PAR38 lamps.
Power, Wiring & Compatibility
This track head is compatible with J-Type track systems and operates at 120V. It supports ELV and TRIAC dimming from 100% to 10%.

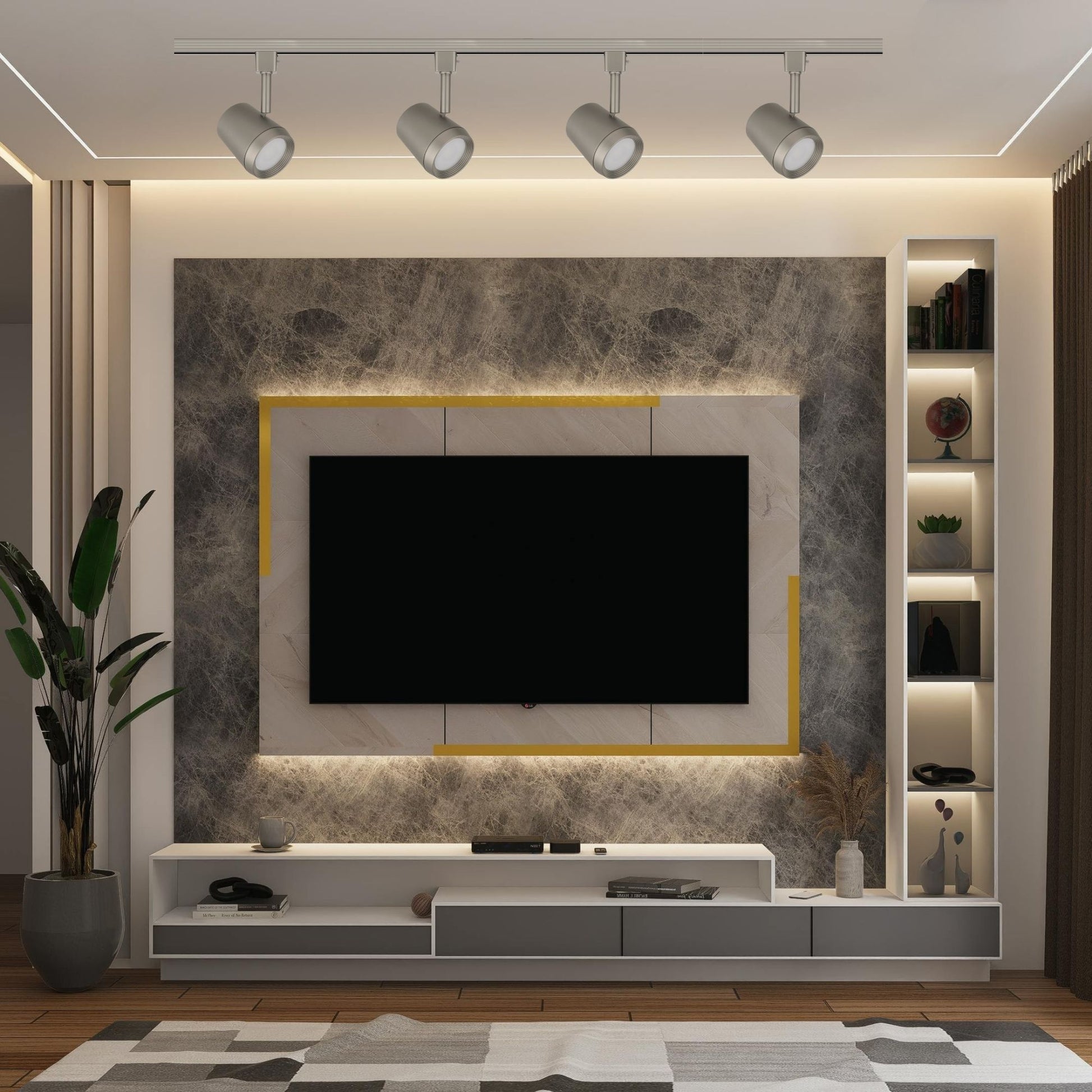

Where This Fixture Works Best
- Retail environments
- Residential spaces
- Art galleries
- Commercial offices
- Showrooms
What's Included
- Track head with pre-installed 55° beam film
- Interchangeable 40° beam film
- Option to remove film for 20° spot beam
Specifications
Specifications

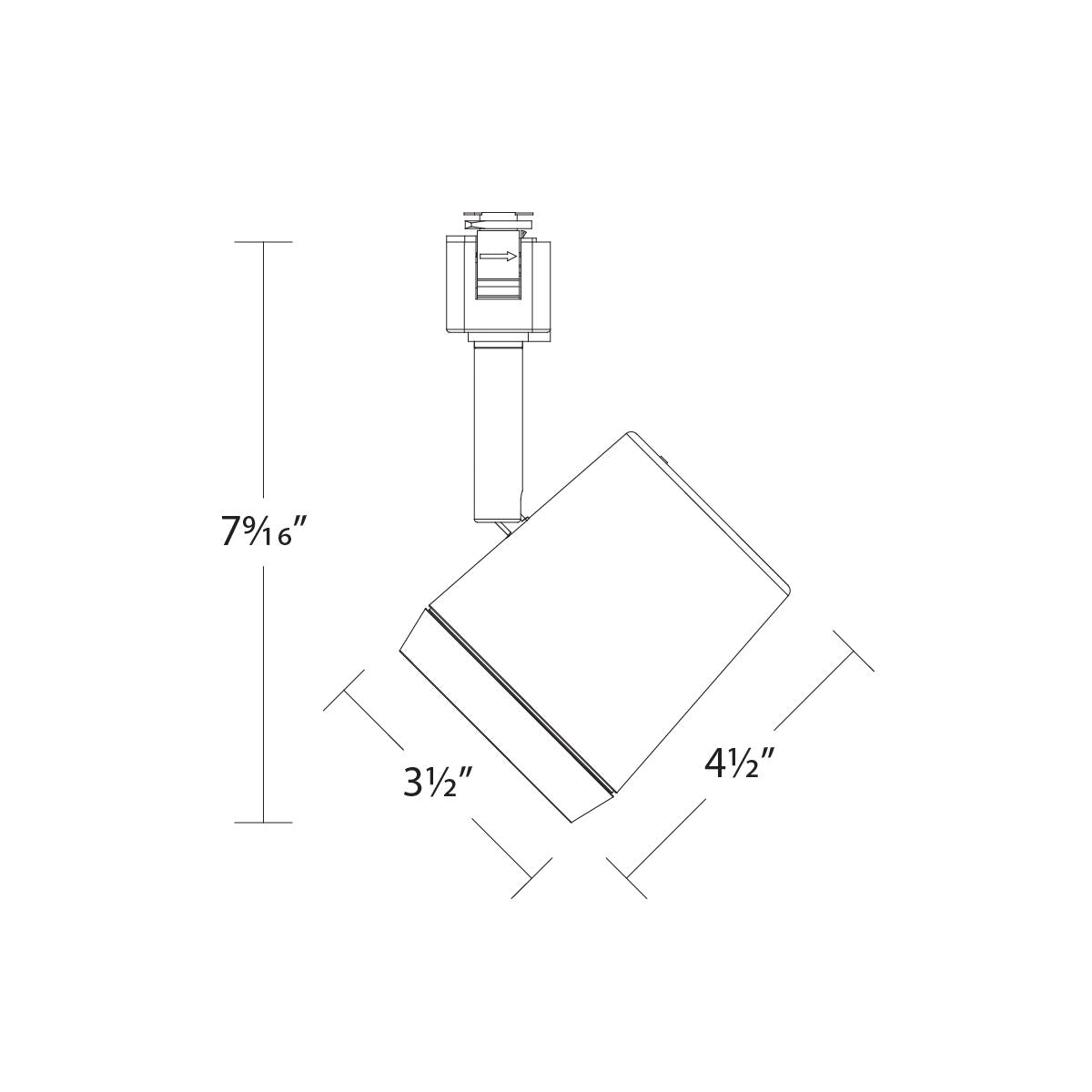

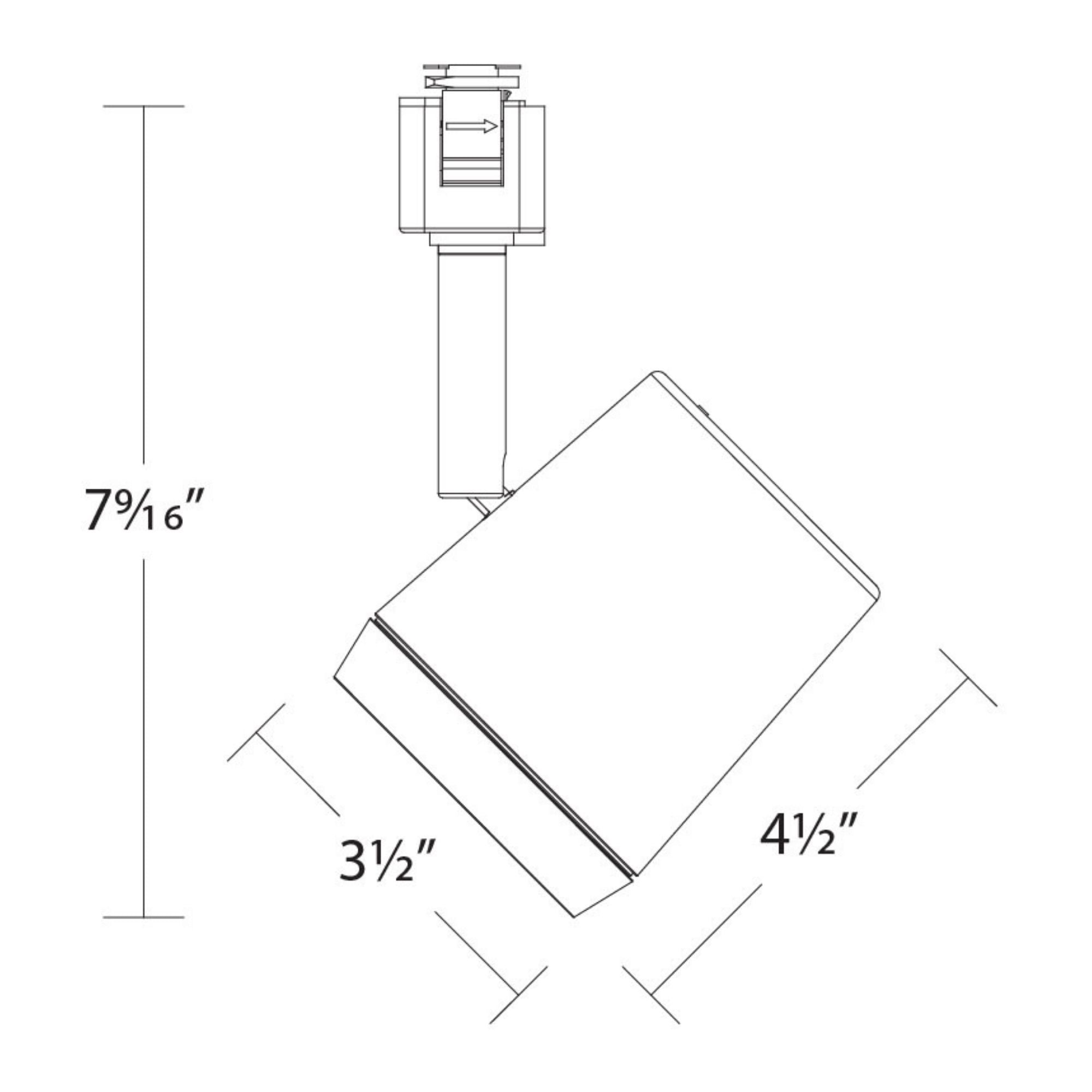

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this track head be used on a Halo track system?
Can this track head be used on a Halo track system?
Is the color temperature adjustable?
Is the color temperature adjustable?
Does this track head support dimming?
Does this track head support dimming?
What beam angles are available with this track head?
What beam angles are available with this track head?
What is the maximum lumens output of this track head?
What is the maximum lumens output of this track head?
