WAC Lighting Ocularc 3020W 22W J-Type LED Wall Wash Track Head 5CCT Black
Available in stock (354)
About this item
About this item
- Even Wall Illumination: Asymmetrical wall-wash optics spread light across feature walls and displays.
- Integrated LED Output: 22W, up to 1150 delivered lumens, 50,000-hour rated life at L70.
- Selectable Color Quality: Toolless 5CCT switch from 2700K to 5000K, 90+ CRI, 3-step MacAdam consistency.
- Flexible Aiming & Dimming: 350° horizontal and 90° vertical adjustment, ELV or TRIAC dimming from 100% to 10%.
- Black J-Type Design: Powder-coated die-cast aluminum, concealed driver, Juno track compatibility.
Description
Description

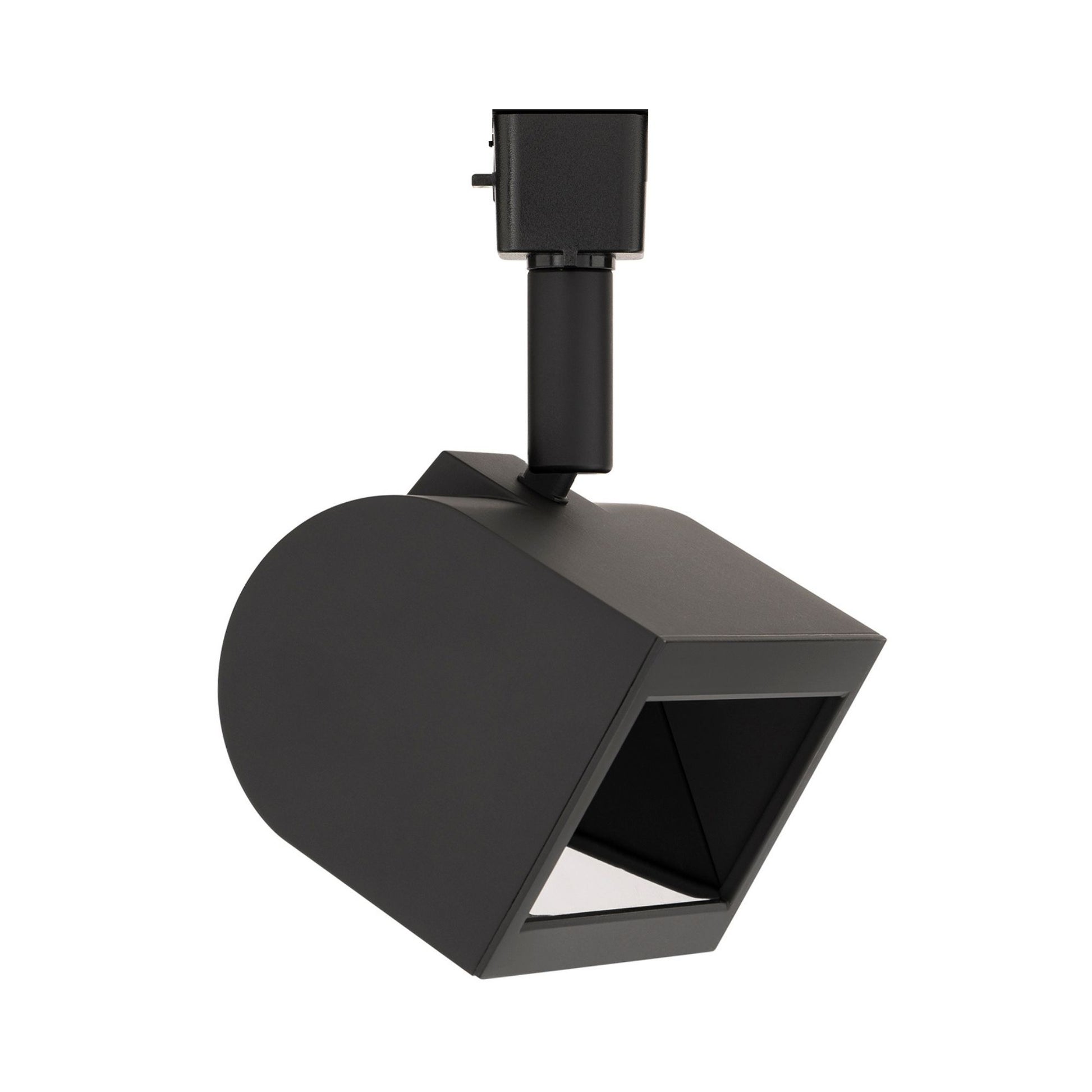

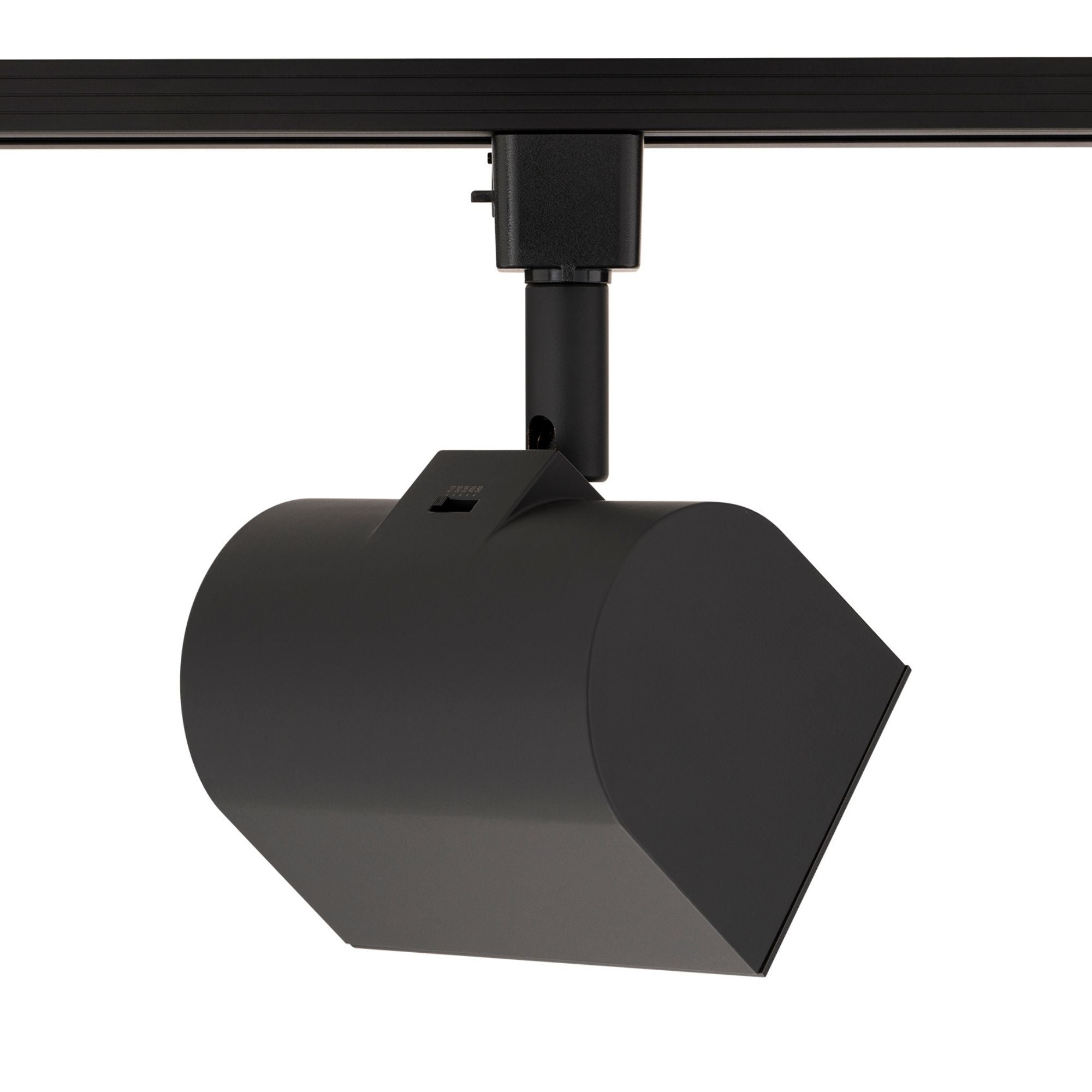

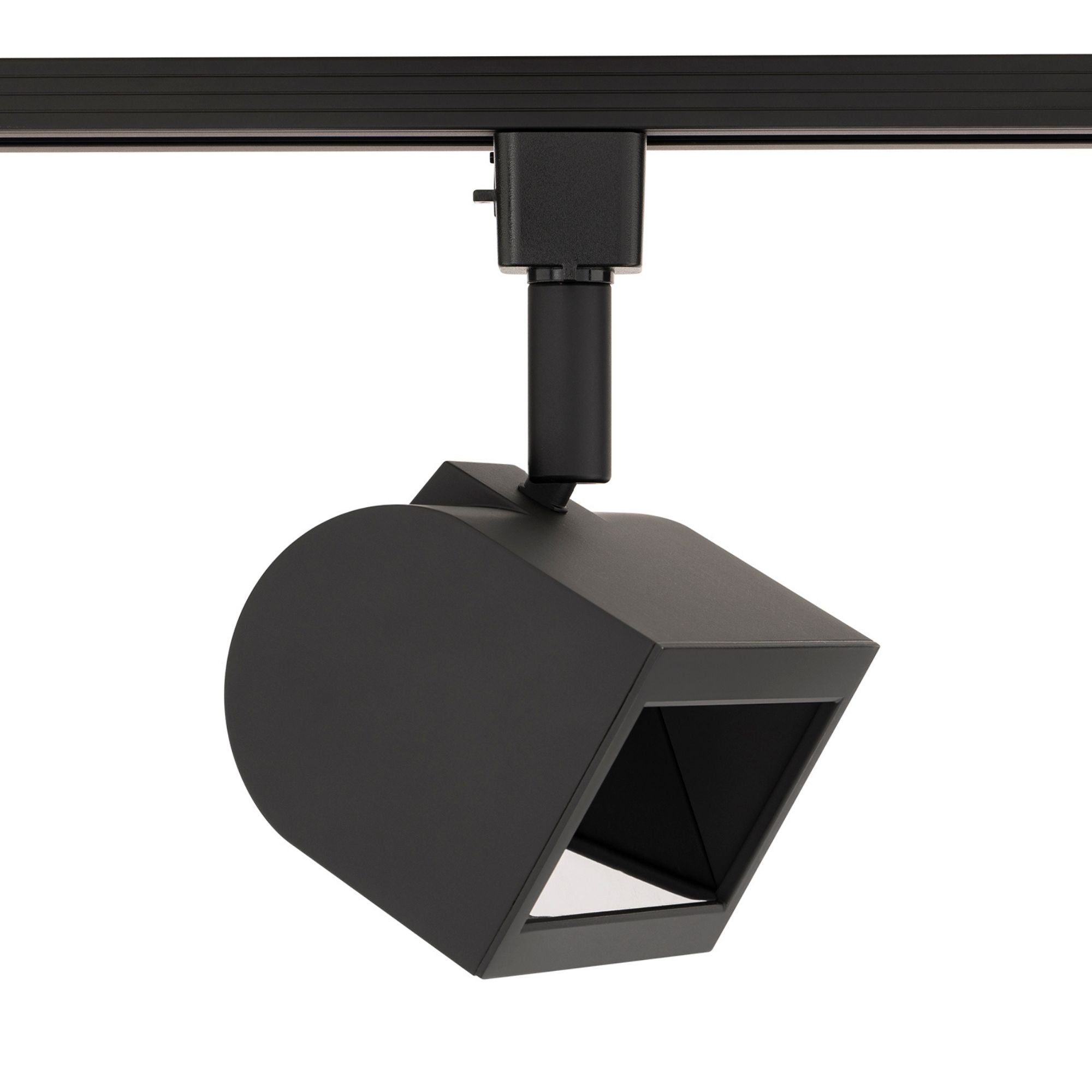

WAC Lighting Ocularc J-3020W-CS-BK LED Wall Wash Track Head
The WAC Lighting Ocularc J-3020W-CS-BK uses an asymmetrical optical distribution to spread light evenly across walls in residential spaces and lower-mounted commercial installations. Its integrated 22W SMD LEDs deliver up to 1150 lumens, with five selectable color temperatures to coordinate wall finishes, artwork and displays. The Black die-cast aluminum housing conceals an integral driver and offers flexible aiming. This version fits J-Type (Juno) track.
Key Features
- Track Compatibility: J-Type (Juno).
- Wall Wash Optics: Asymmetrical beam distribution for even wall illumination.
- LED Performance: 22W, up to 1150 delivered lumens.
- Color Selection: Toolless integrated 5CCT switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90+ CRI, 3-step MacAdam ellipse SMD LEDs.
- Aiming: 350° horizontal rotation, 90° vertical aiming.
- Dimming: ELV or TRIAC, 100% to 10% with a compatible dimmer.
- Construction: Die-cast aluminum, electrostatically powder-coated Black, concealed integral driver.
- Electrical: 120V AC, 50/60Hz, 0.93 power factor, less than 15% current THD.
- Rated Life: 50,000 hours at L70.
- Location & Standards: Dry locations, ETL and cETL listed, Title 24 JA8 compliant.
- Layout Guidance: 3 to 5 ft from the wall, 3 to 5 ft on center.
Construction & Design

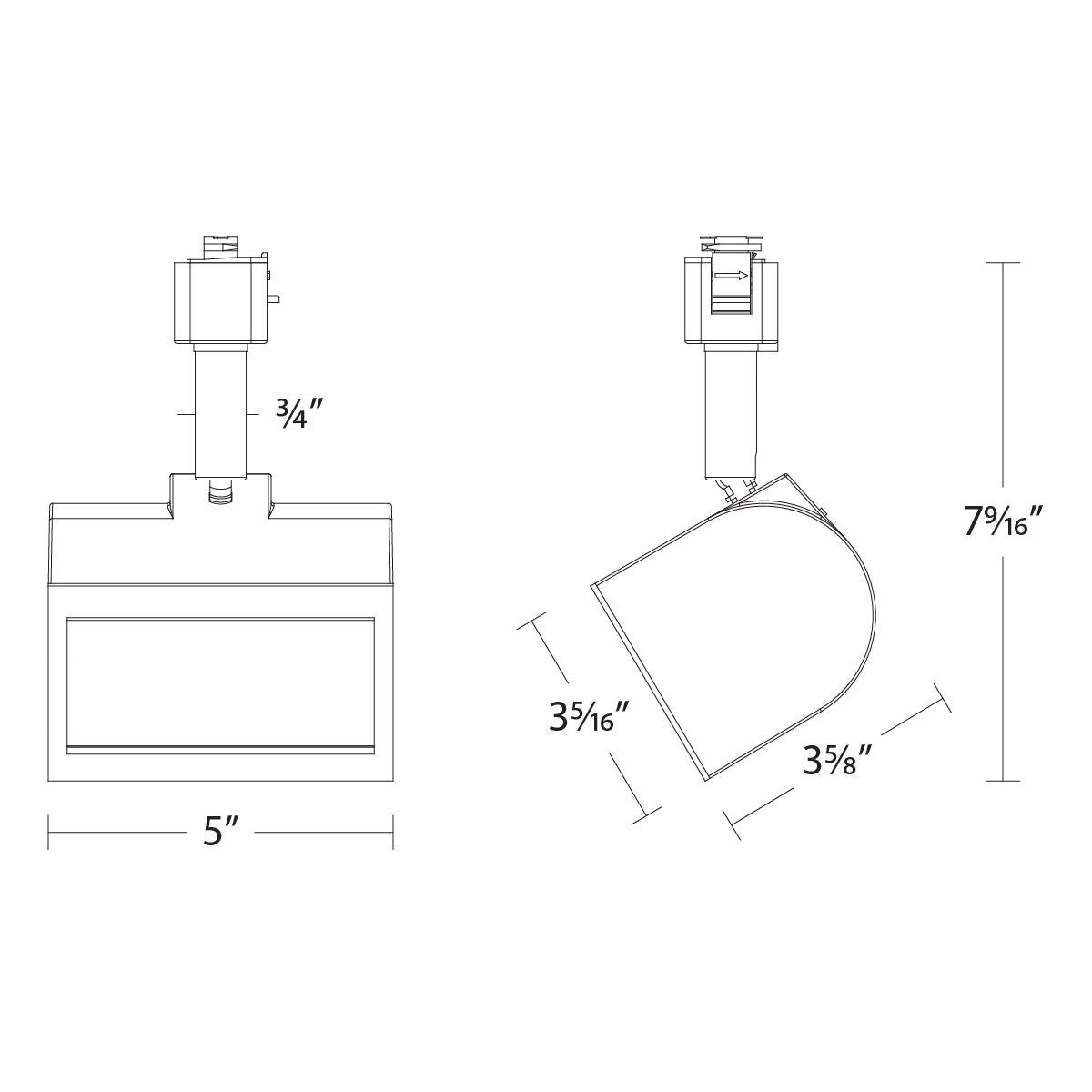

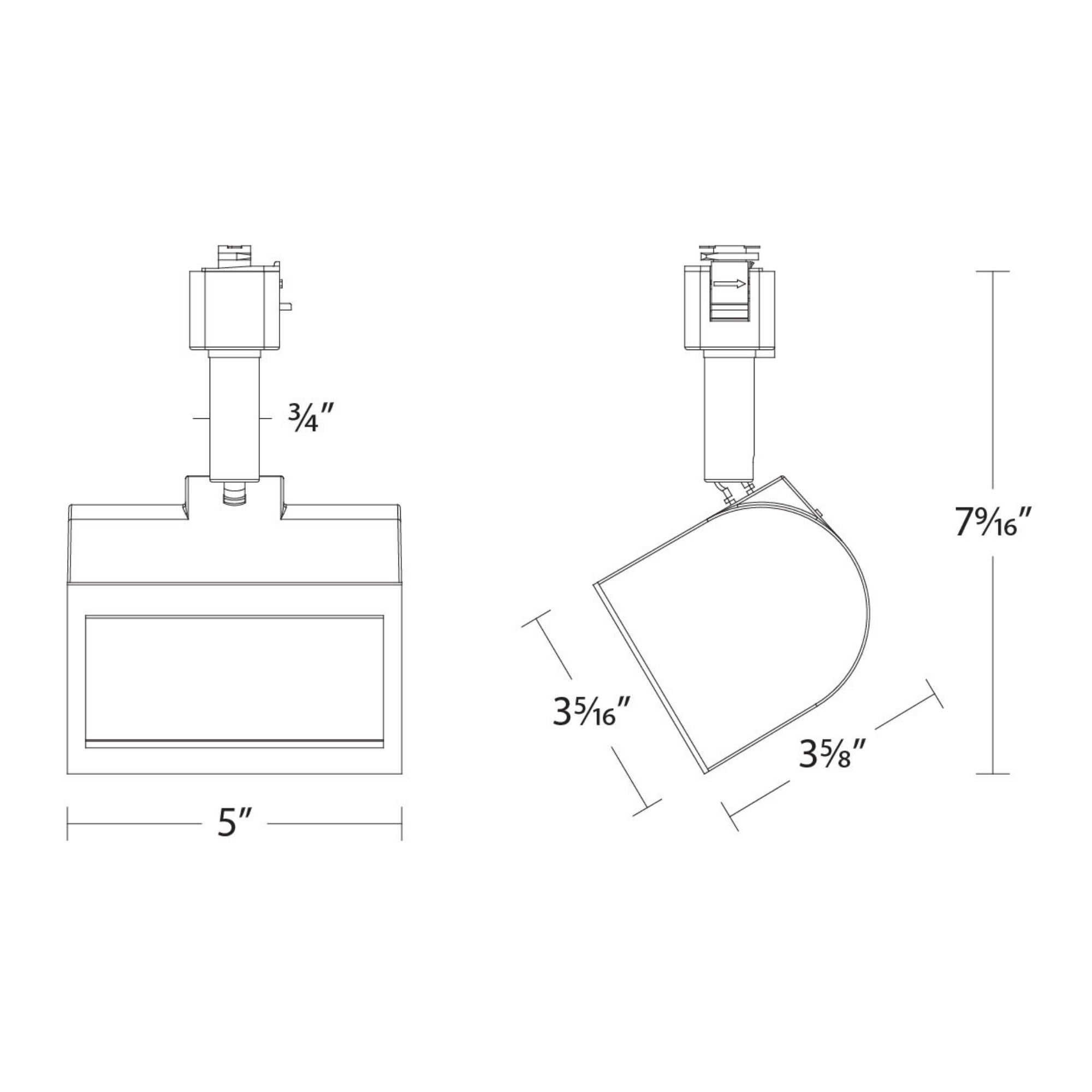

The die-cast aluminum housing has an electrostatically powder-coated Black finish and a rectangular opening designed for wall washing. The driver is concealed within the fixture, keeping the assembly self-contained. The head measures 5 in wide, with a 3 5/16 in face height and 3 5/8 in body depth. Overall height is 7 9/16 in in the illustrated angled position. Adjust 350° horizontally and 90° vertically to orient the wall-wash distribution.
Light Output & Performance
The integrated 22W SMD LEDs provide up to 1150 delivered lumens through an asymmetrical wall-wash distribution. This optic is designed for even wall illumination rather than interchangeable spot and flood beams. A discrete, toolless integrated switch selects 2700K, 3000K, 3500K, 4000K or 5000K. Color performance includes 90+ CRI and 3-step MacAdam consistency. Compatible ELV or TRIAC dimmers adjust output from 100% to 10%. Rated life is 50,000 hours at L70.
Electrical & Installation
The WAC Lighting J-3020W-CS-BK operates at 22W, 120V AC, 50/60Hz, with an integral driver, 0.93 power factor and less than 15% current THD. Use J-Type (Juno) track, not an H-Type or L-Type system. Install in dry locations within the -4°F to 104°F operating range. For wall washing, position fixtures 3 to 5 ft from the wall and 3 to 5 ft on center. The layout guide illustrates 30° tilted aiming with an 8 ft ceiling; adjust the layout to the space and desired coverage. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.

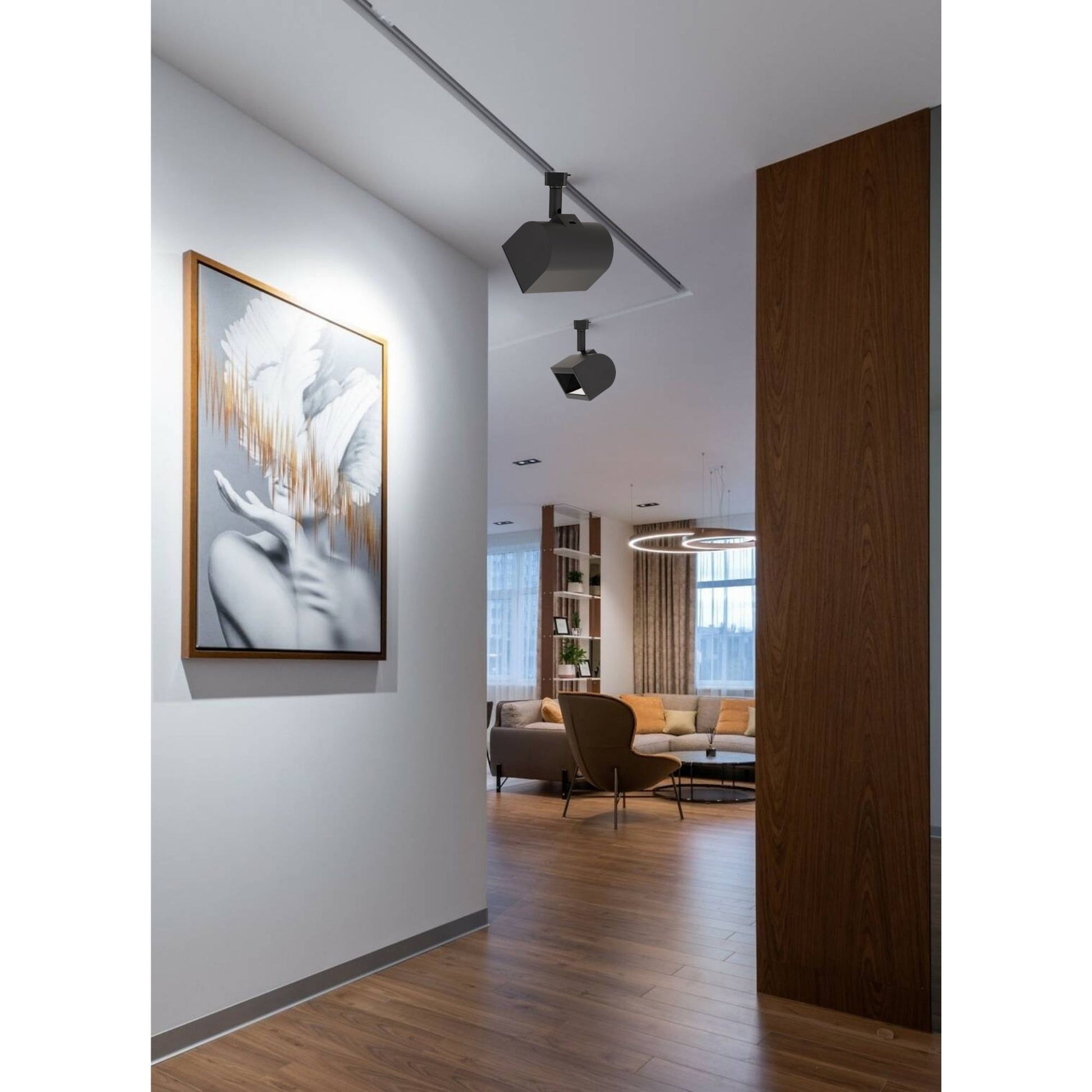

Typical Applications
- Residential feature-wall illumination.
- Retail display-wall lighting.
- Gallery and exhibition wall washing.
- Hospitality interior accent walls.
What's Included
- One WAC Lighting Ocularc J-3020W-CS-BK Black wall wash track head with integrated SMD LEDs, integral driver and integrated 5CCT selector.
