WAC Lighting OCULARC Track Head, J-Type, White, Selectable CCT, 2255 Lumens, 55° Beam Angle
Out of stock
About this item
About this item
- System Compatibility: Designed for J-Type track systems, ensuring seamless integration.
- Selectable CCT: Offers a range of color temperatures from 2700K to 5000K for versatile lighting applications.
- Beam Angle Options: Includes 55° beam film pre-installed, with interchangeable 40° and 20° options for tailored illumination.
- High Lumen Output: Delivers up to 2255 lumens, outperforming traditional 100W halogen lamps.
- Adjustability: Features 350° horizontal and 90° vertical aiming for precise light direction.
We process payments securely and do not store credit card information.
Description
Description

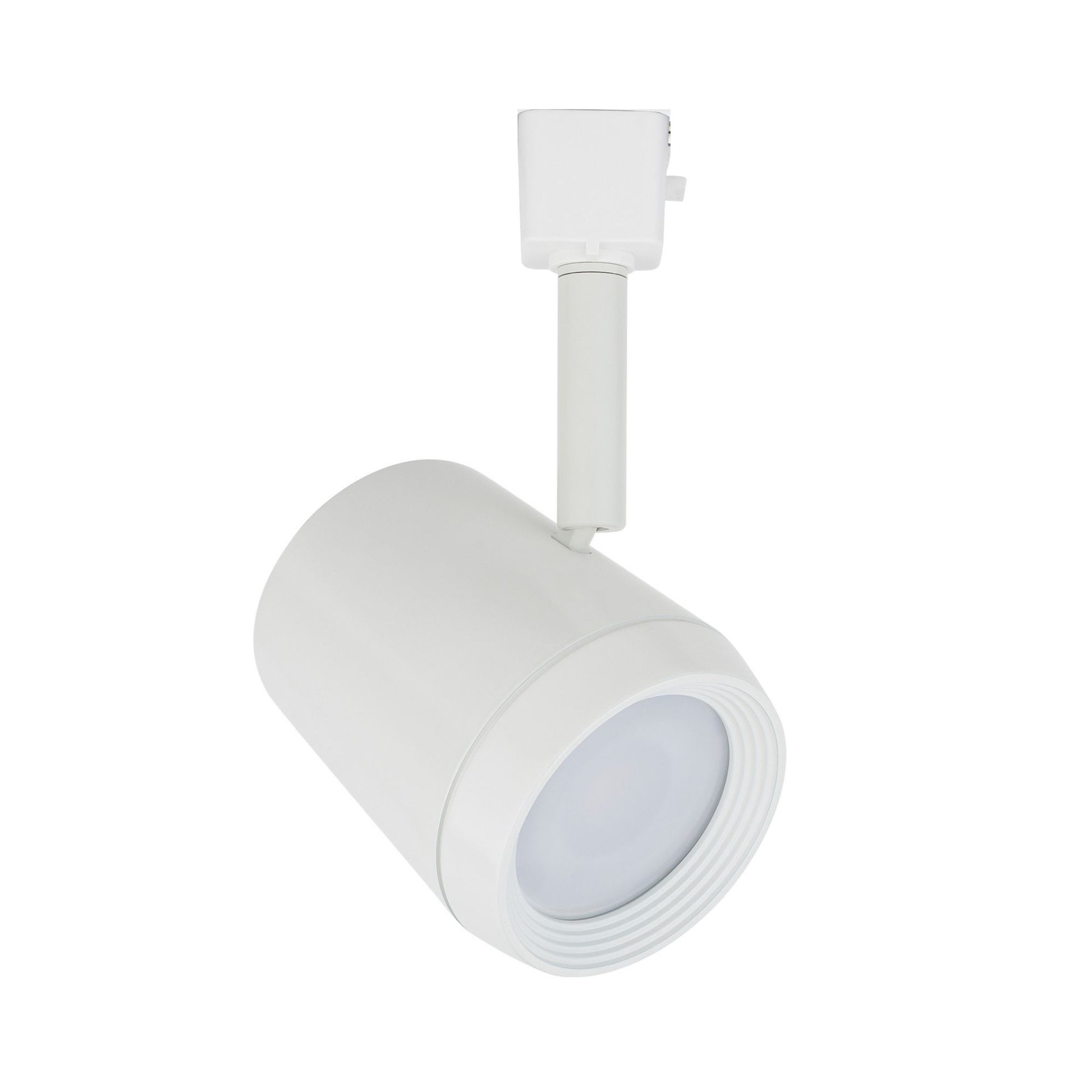

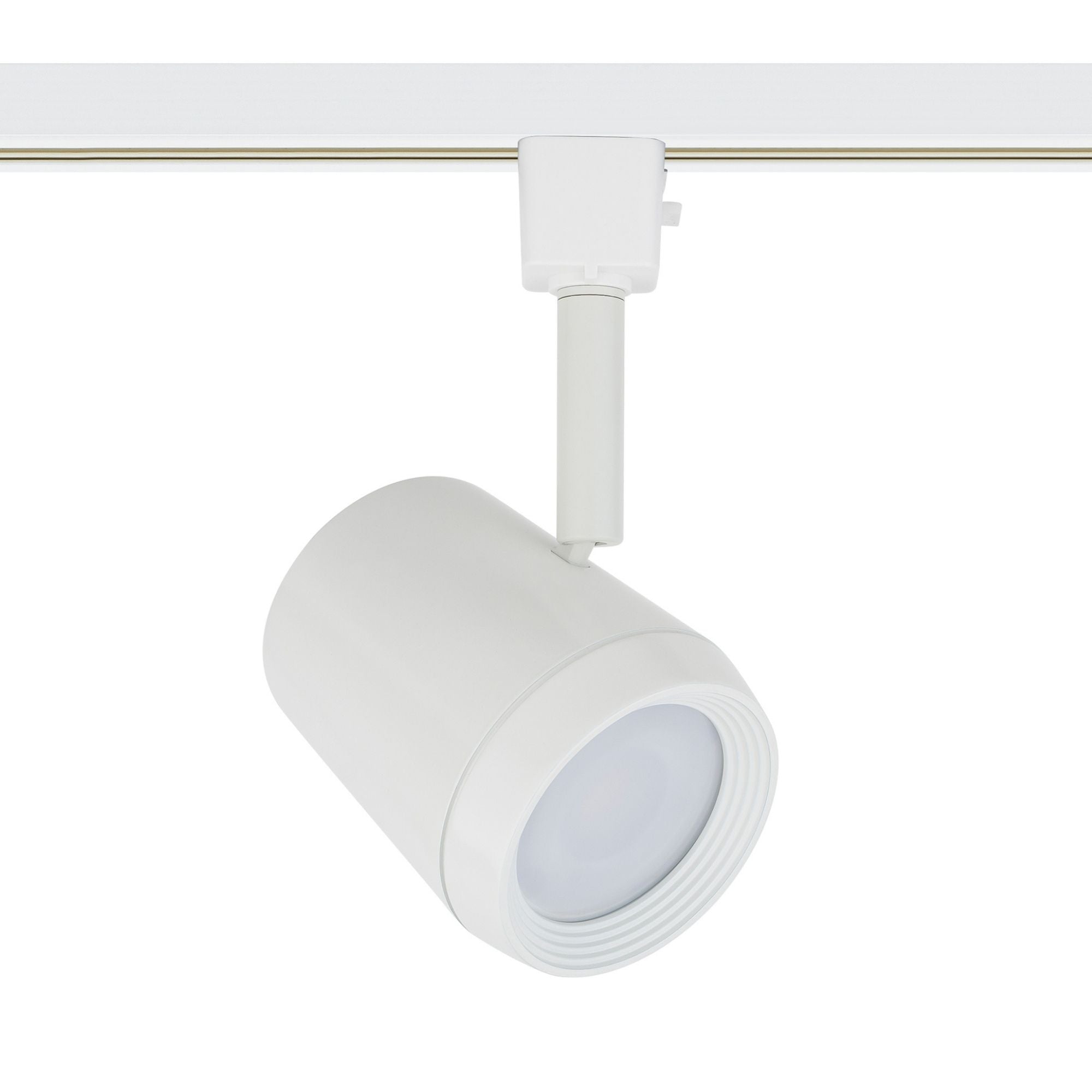

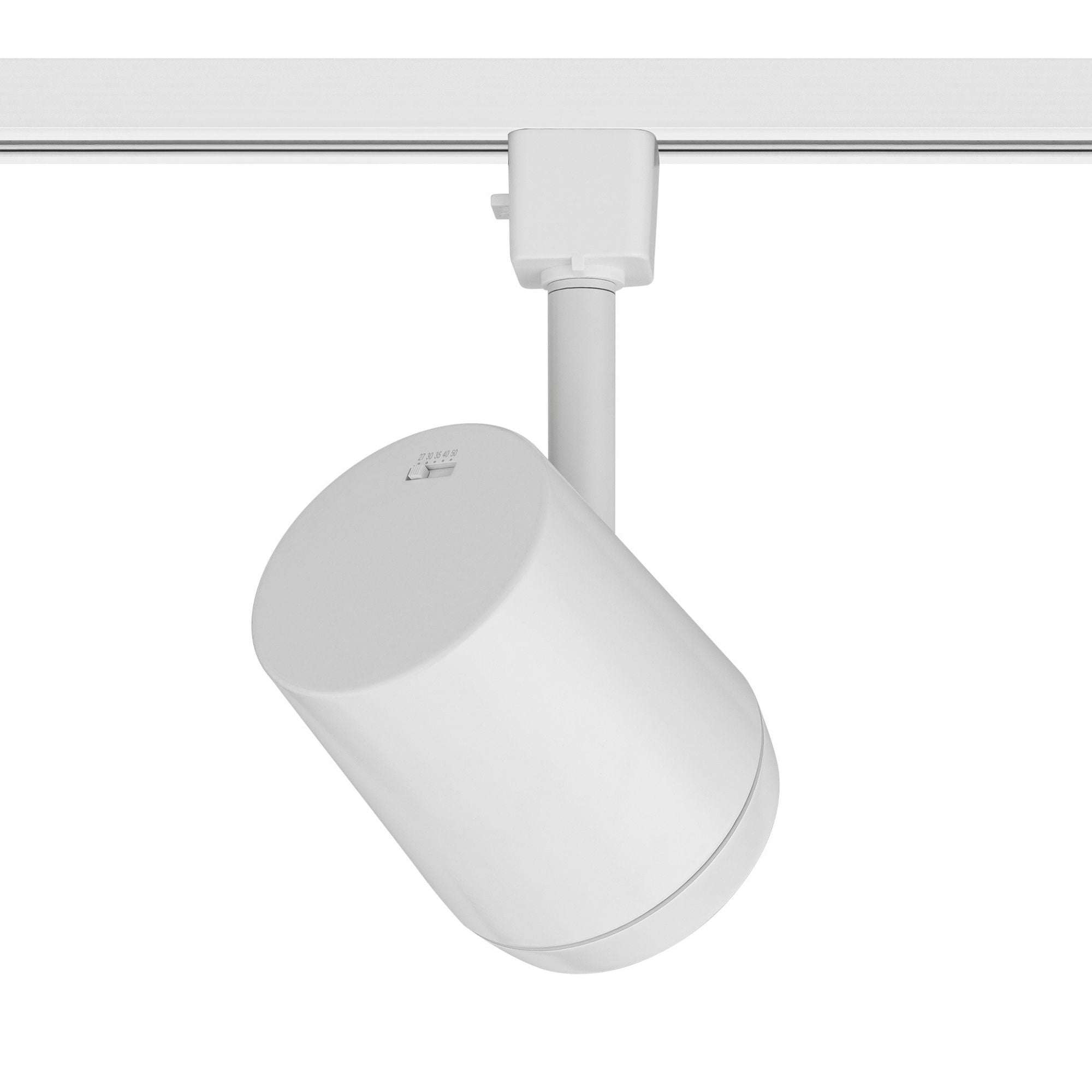

WAC Lighting OCULARC Track Head — White & Selectable CCT
The WAC Lighting J-7030-CS-WT track head in white is a versatile lighting solution designed for J-Type track systems. Constructed from die-cast aluminum, this fixture offers a high output of 2255 lumens and operates at 120V. It features a discrete 5-CCT switch for color temperature selection.
Key Features
- Voltage: Operates at 120V with a power factor of 0.98.
- Wattage: Consumes 29 watts, providing efficient energy use.
- Lumens: Produces a maximum of 2255 lumens for bright illumination.
- CCT Range: Selectable color temperatures from 2700K to 5000K.
- Beam Angles: Includes 20°, 40°, and 55° options for flexible lighting design.
- CRI: High color rendering index of 90+ for accurate color representation.
- Dimming: Compatible with ELV and TRIAC dimmers, dimming from 100% to 10%.
- Certifications: ETL & cETL listed, Title 24 JA8 compliant for dry locations.
- Construction: Durable die-cast aluminum with a baffled front cover for glare control.
- Finish Options: Available in electrostatically powder-coated white.
Core Design & Adjustability
The fixture's die-cast aluminum construction ensures durability, while its 350° horizontal and 90° vertical aiming capabilities allow for precise light placement. The white finish complements various interior designs.
LED Illumination & Performance
Equipped with a high output COB LED, this track head delivers 2255 lumens with selectable CCT options, ensuring optimal lighting performance with a CRI of 90+.
Power, Wiring & Compatibility
This track head is compatible with J-Type track systems, operating at 120V. It includes an integral driver and supports ELV and TRIAC dimming.
Where This Fixture Works Best
- Retail environments
- Residential spaces with high ceilings
- Art galleries
- Commercial offices
- Showrooms
What's Included
- Track head with pre-installed 55° beam film
- Interchangeable 40° beam film
- Option to remove film for 20° spot beam
Specifications
Specifications

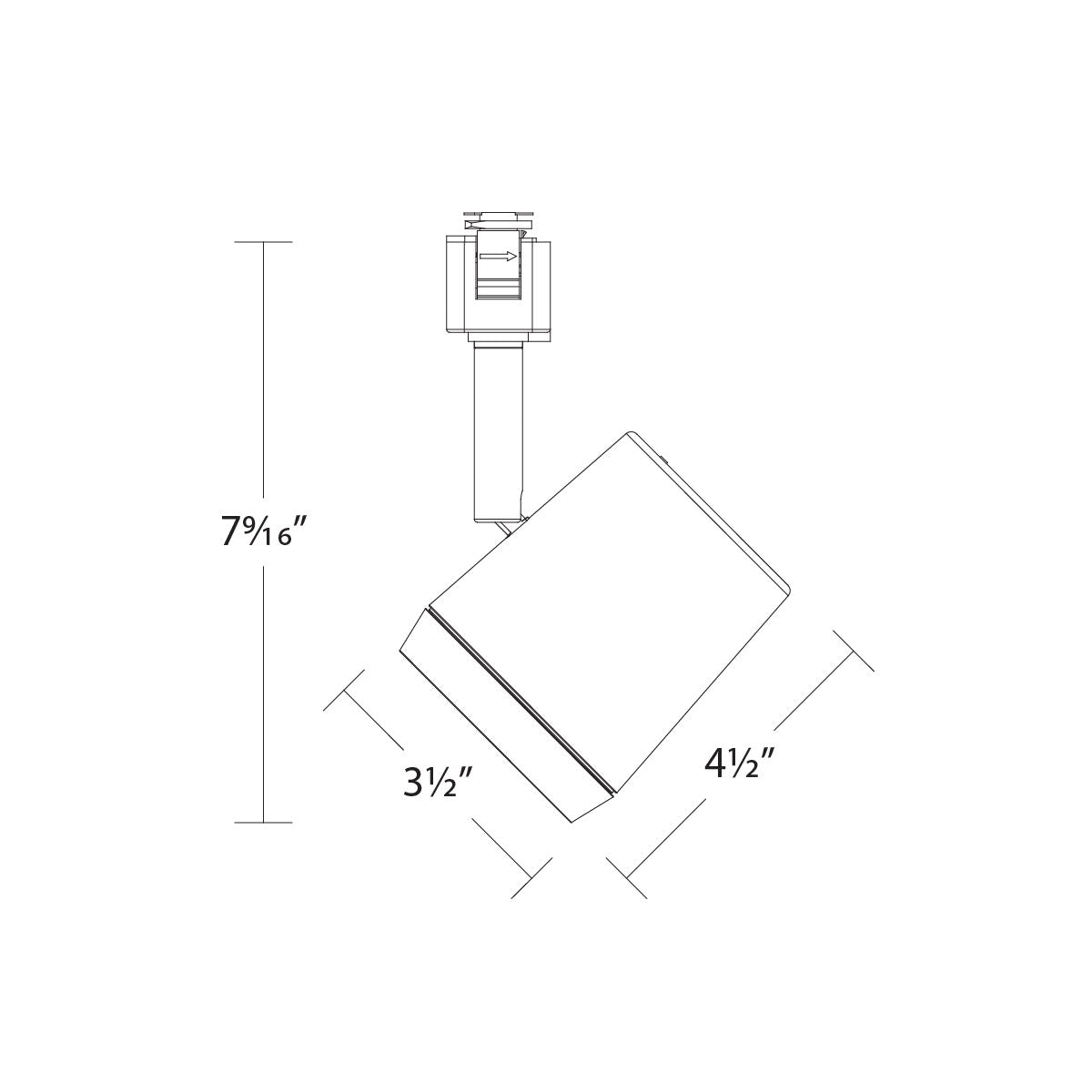

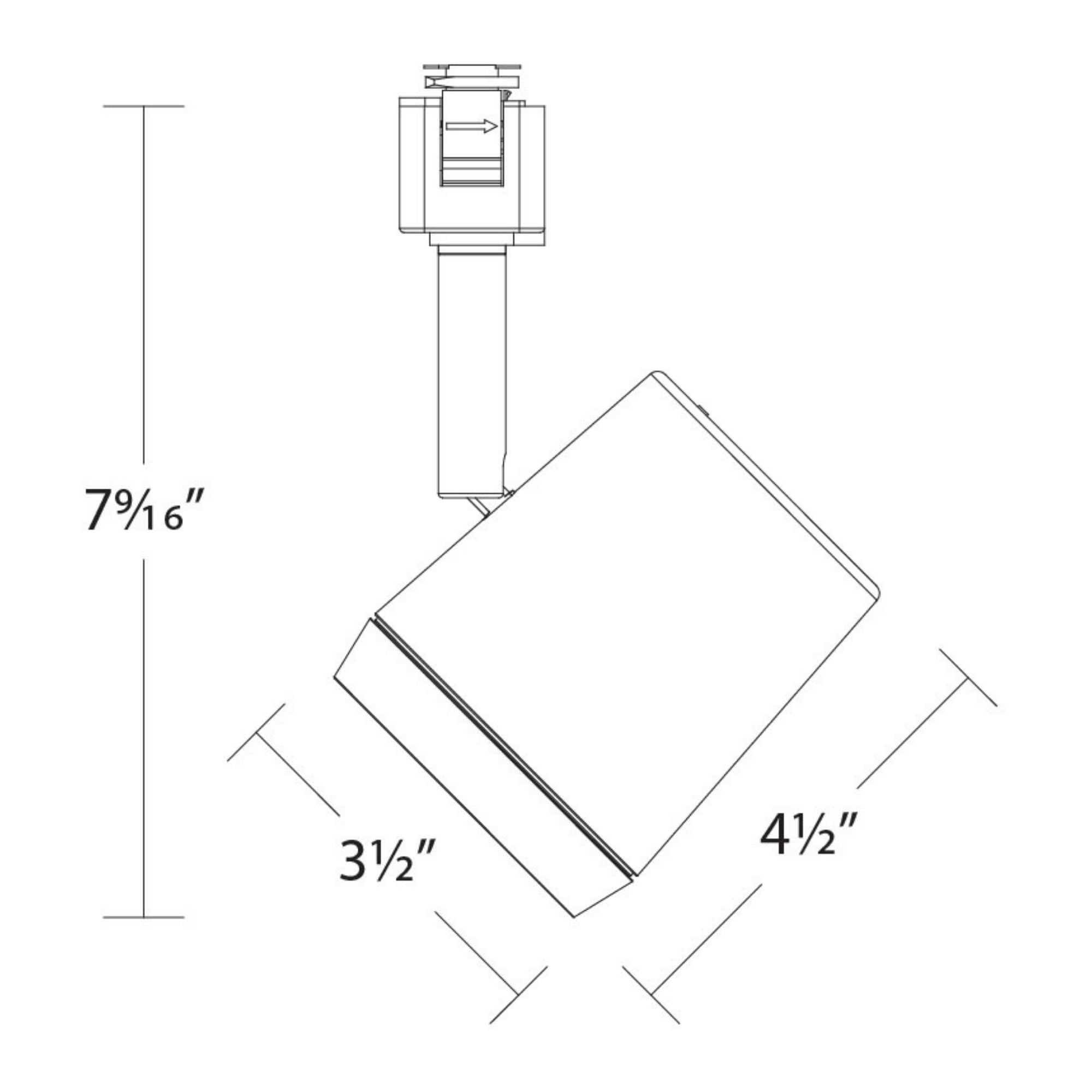

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this track head be used on a Halo track system?
Can this track head be used on a Halo track system?
Is the color temperature adjustable?
Is the color temperature adjustable?
What dimming options are available?
What dimming options are available?
What beam angles are included with this track head?
What beam angles are included with this track head?
What is the maximum lumen output of this track head?
What is the maximum lumen output of this track head?
