WAC Lighting Silo X42 J-2042-930-BN LED Track Head

The WAC Lighting Silo X42 J-2042-930-BN combines a 42W COB LED with a continuously adjustable 15°–50° beam for residential, retail and commercial accent lighting. Its anodized Brushed Nickel die-cast aluminum housing integrates the optics, thermal management and concealed driver. Fixed 3000K warm-white light with 90 CRI delivers 1670 lumens at 15° and 2345 lumens at 50°. This version fits J-Type (Juno) track.

Key Features

• Track Compatibility: J-Type (Juno).
• Light Source: 42W high-output COB LED.
• Color Quality: Fixed 3000K, 90 CRI.
• Beam Adjustment: Continuously adjustable 15°–50°, rotatable front face.
• Spot Performance: 15°, 1670 delivered lumens, 10500 CBCP.
• Flood Performance: 50°, 2345 delivered lumens, 2180 CBCP.
• Dimming: Electronic low voltage (ELV), 100% to 5% with a compatible dimmer.
• Construction: Die-cast aluminum, removable front cap, anodized Brushed Nickel finish.
• Dimensions: 7 7/16 in body length, 3 11/16 in across, 9 7/16 in illustrated overall height.
• Electrical: 120V AC, 50/60Hz, concealed integral driver.
• Rated Life: 50,000 hours.
• Standards: UL and cUL listed, Title 24 JA8-2016 compliant.

Construction & Design

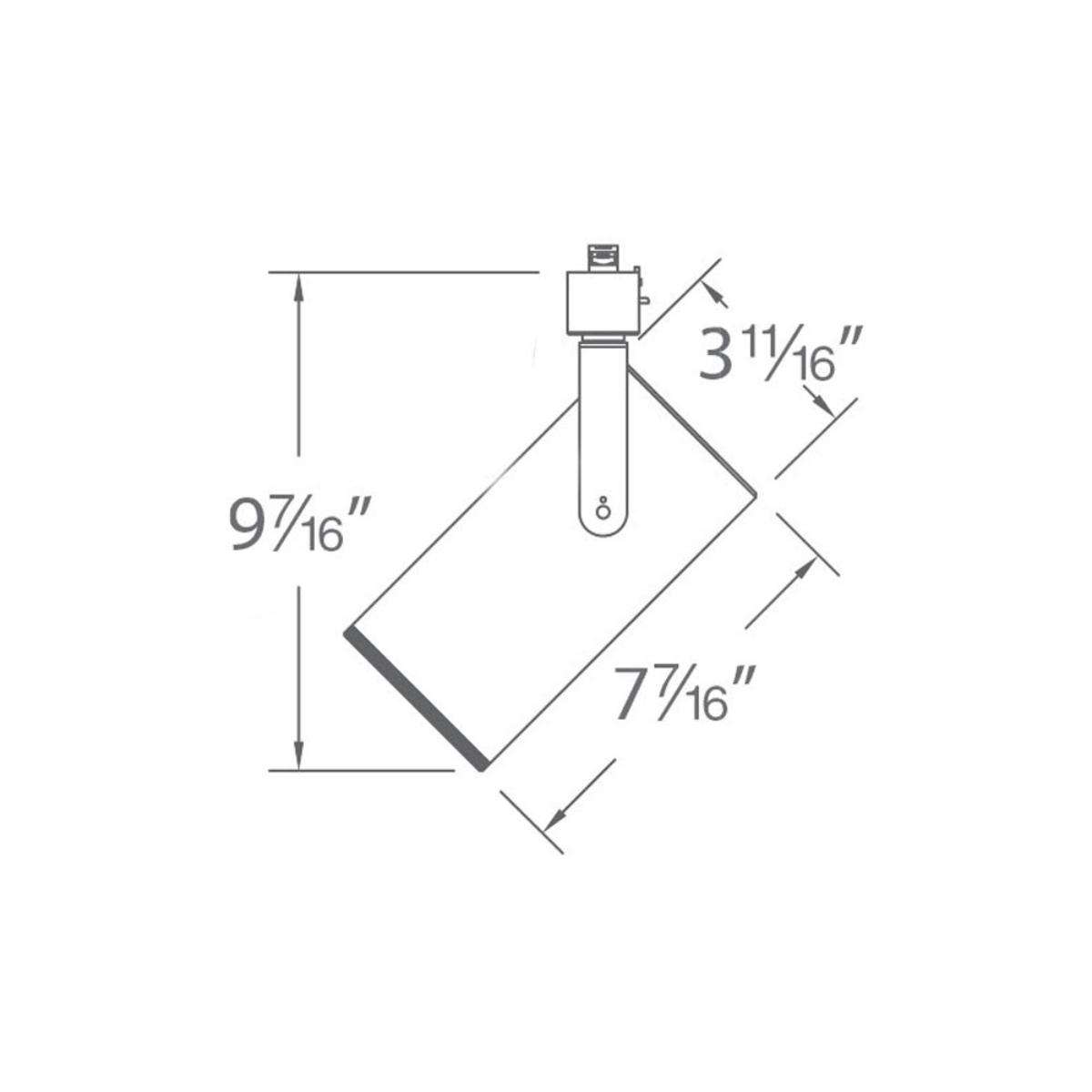

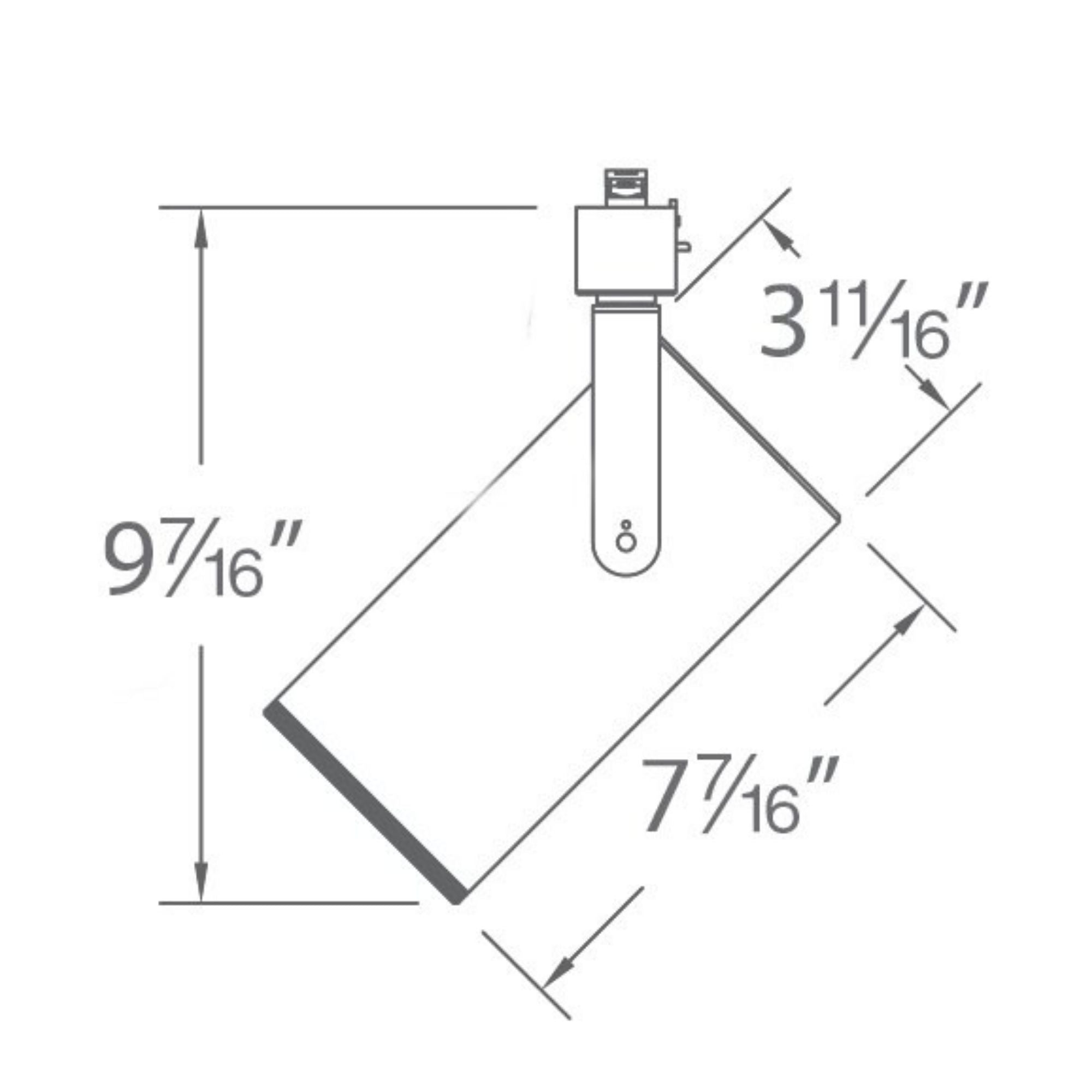

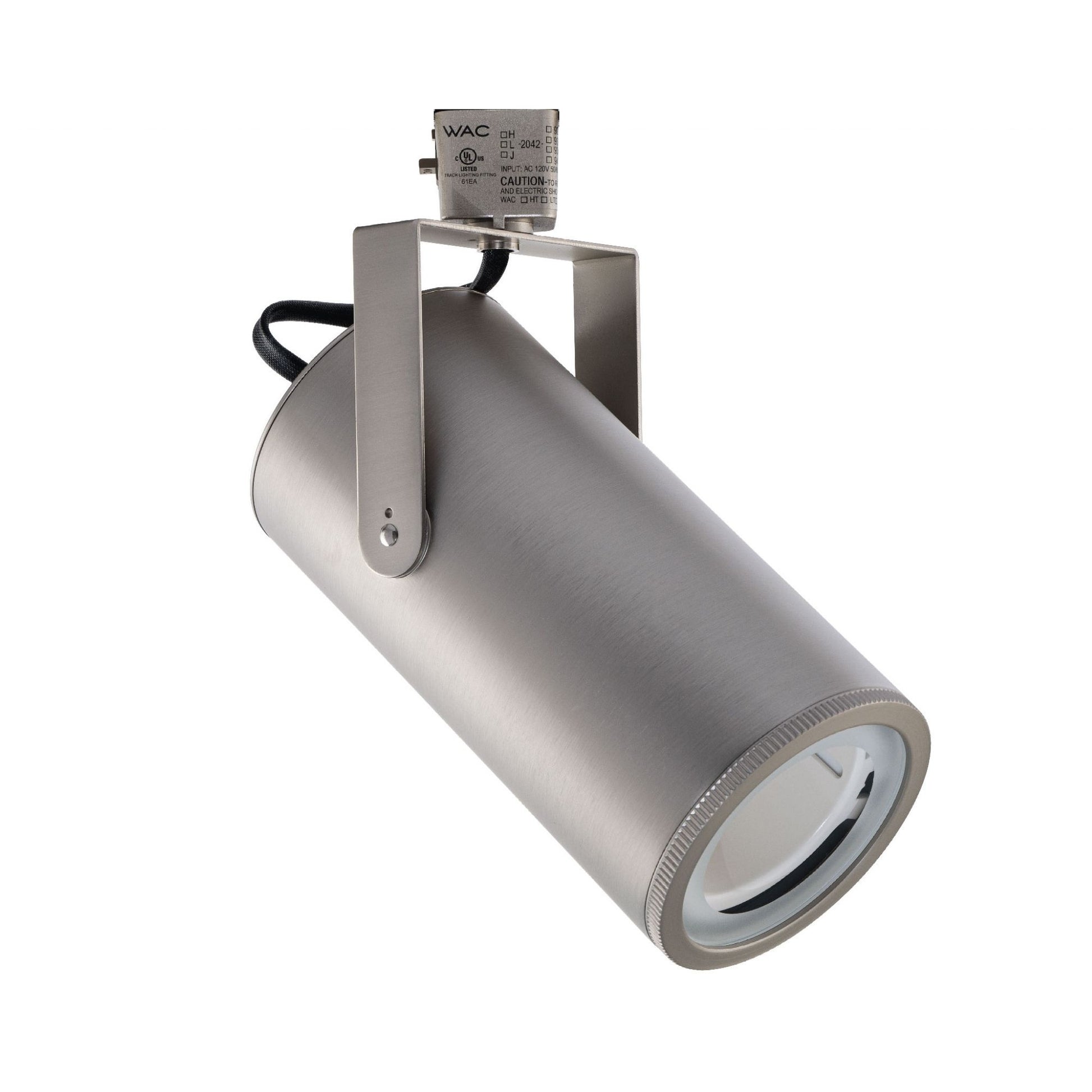

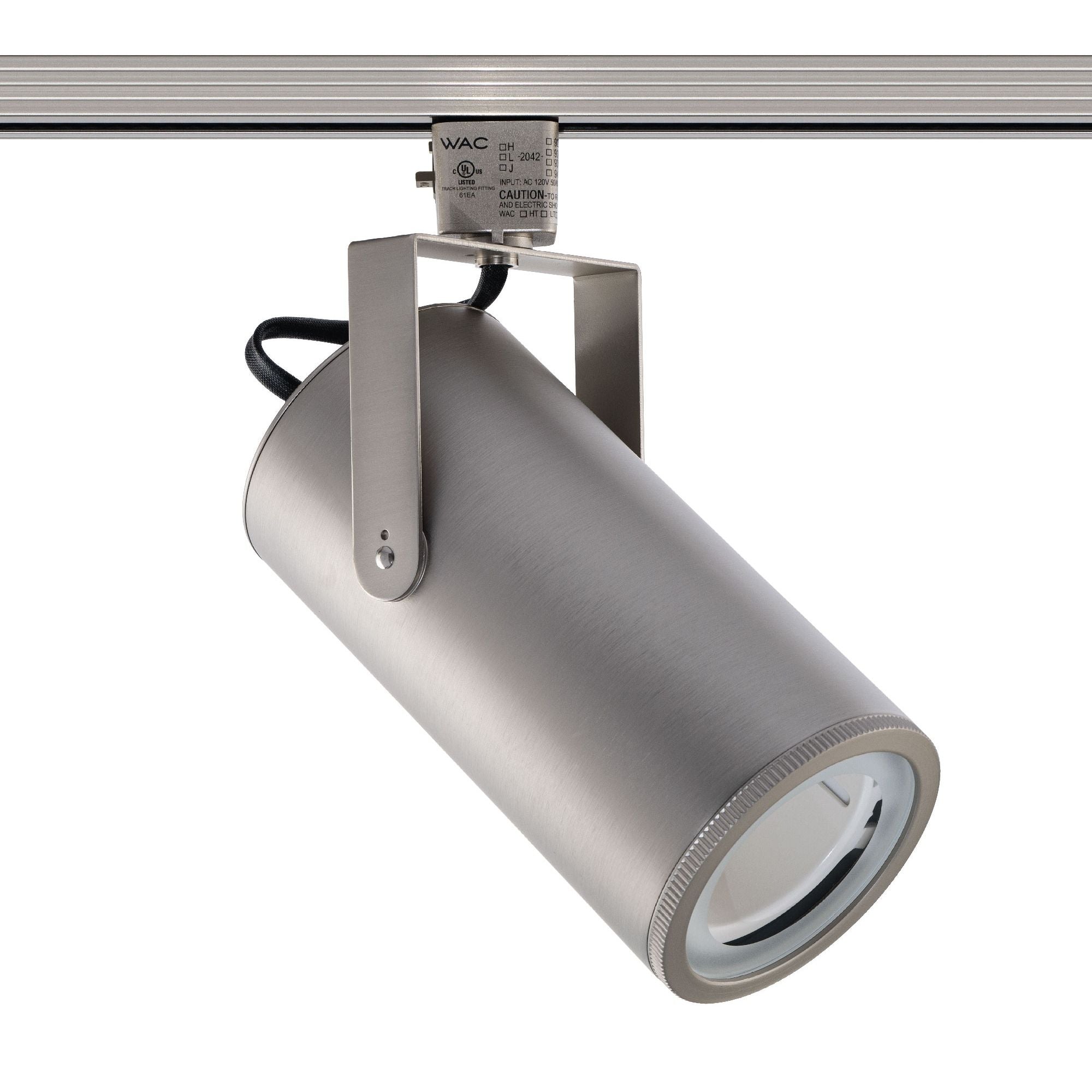

The anodized Brushed Nickel die-cast aluminum housing provides a cylindrical profile with integrated LED, optical and thermal components. The rotatable front face controls beam spread, and the removable front cap provides optical access. The integral driver is concealed within the fixture. The body measures 7 7/16 in long and 3 11/16 in across, with an overall height of 9 7/16 in in the illustrated angled position.

Light Output & Performance

The 42W COB LED produces fixed 3000K light with 90 CRI. At the 15° spot setting, it delivers 1670 lumens and 10500 CBCP for concentrated accent illumination. At the 50° flood setting, it delivers 2345 lumens and 2180 CBCP for broader coverage. Beam spread adjusts continuously through the rotatable front face, rather than exchanging separate spot and flood lenses. Compatible ELV dimmers adjust brightness from 100% to 5%. Rated life is 50,000 hours.

Electrical & Installation

The WAC Lighting J-2042-930-BN operates at 42W, 120V AC, 50/60Hz using an integral concealed driver. Select J-Type (Juno) track for this version, not H-Type (Halo) or L-Type (Lightolier). Use a compatible electronic low voltage (ELV) dimmer for the specified 100% to 5% dimming range. The fixture is UL and cUL listed and Title 24 JA8-2016 compliant.

Typical Applications

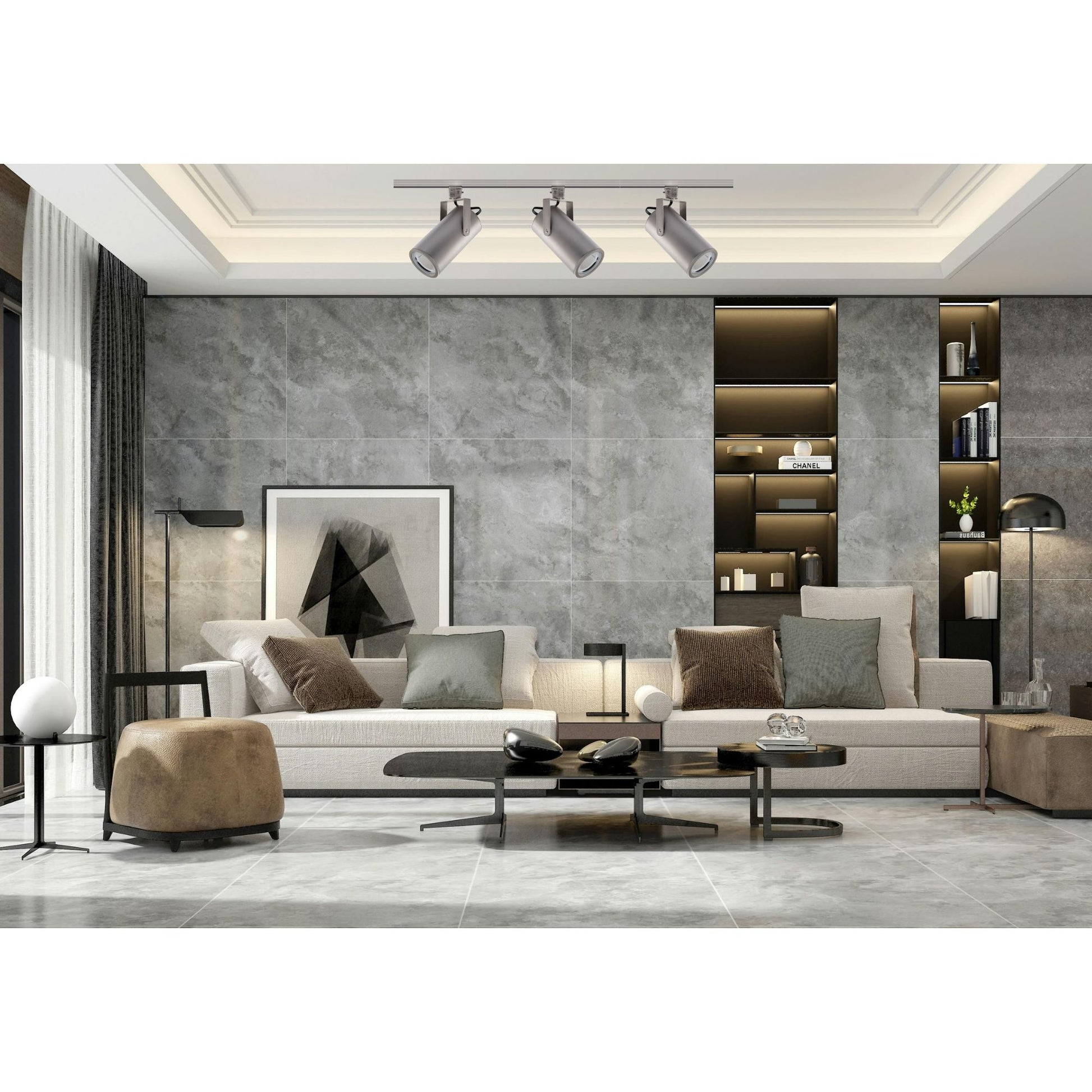

• Residential architectural accents.
• Retail merchandise and showroom displays.
• Artwork and exhibition feature lighting.
• Commercial interior accent lighting.

What's Included

• One WAC Lighting Silo X42 J-2042-930-BN Brushed Nickel track head with integrated COB LED, continuously adjustable 15°–50° optics and integral driver.
