WAC Lighting Silo X10 10W J-Type LED Track Head 3000K Beam Adjustable Brushed Nickel
Available in stock (108)
About this item
About this item
- Compact Accent Output: 10W COB LED, 790 delivered lumens for residential and retail accent lighting.
- Two Included TIR Lenses: Pre-installed 35° lens, supplied 25° lens, 1545 and 2575 CBCP respectively.
- Warm Color Rendering: 3000K light with 90 CRI for artwork, merchandise and interior finishes.
- Flexible Light Control: 350° horizontal and 90° vertical aiming, ELV dimming from 100% to 5%.
- Brushed Nickel Juno Design: Die-cast aluminum, removable front cap, concealed driver, J-Type track.
Description
Description

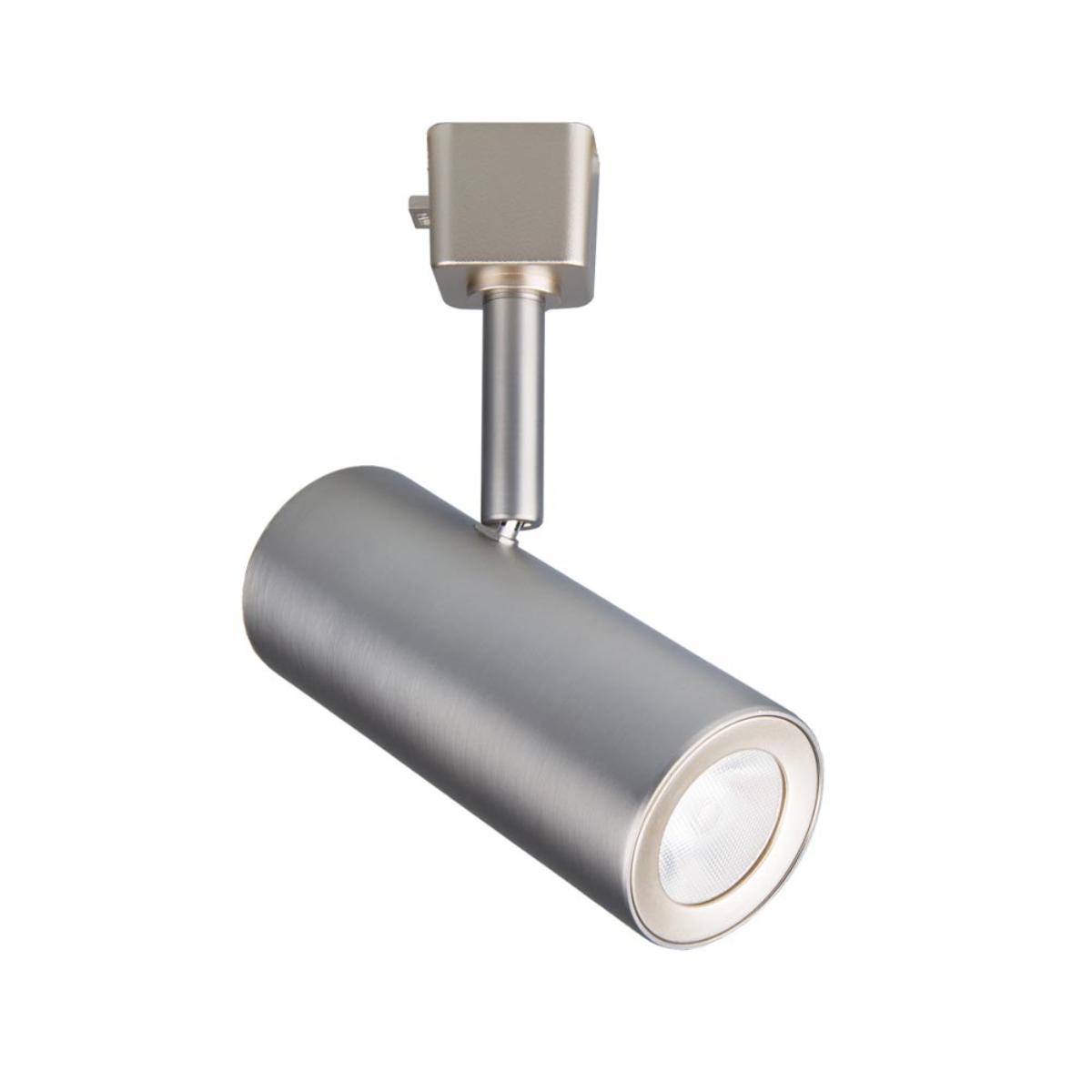

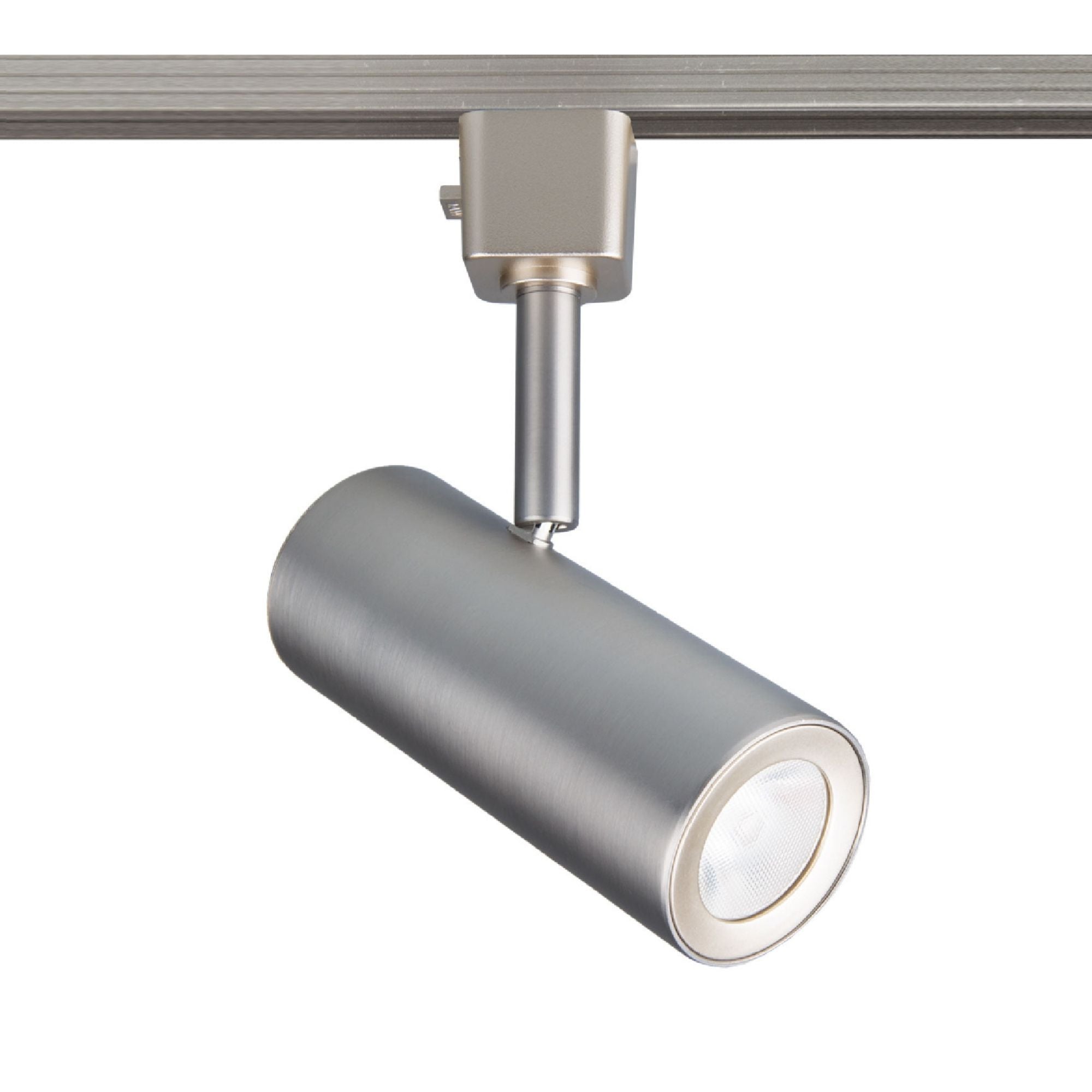

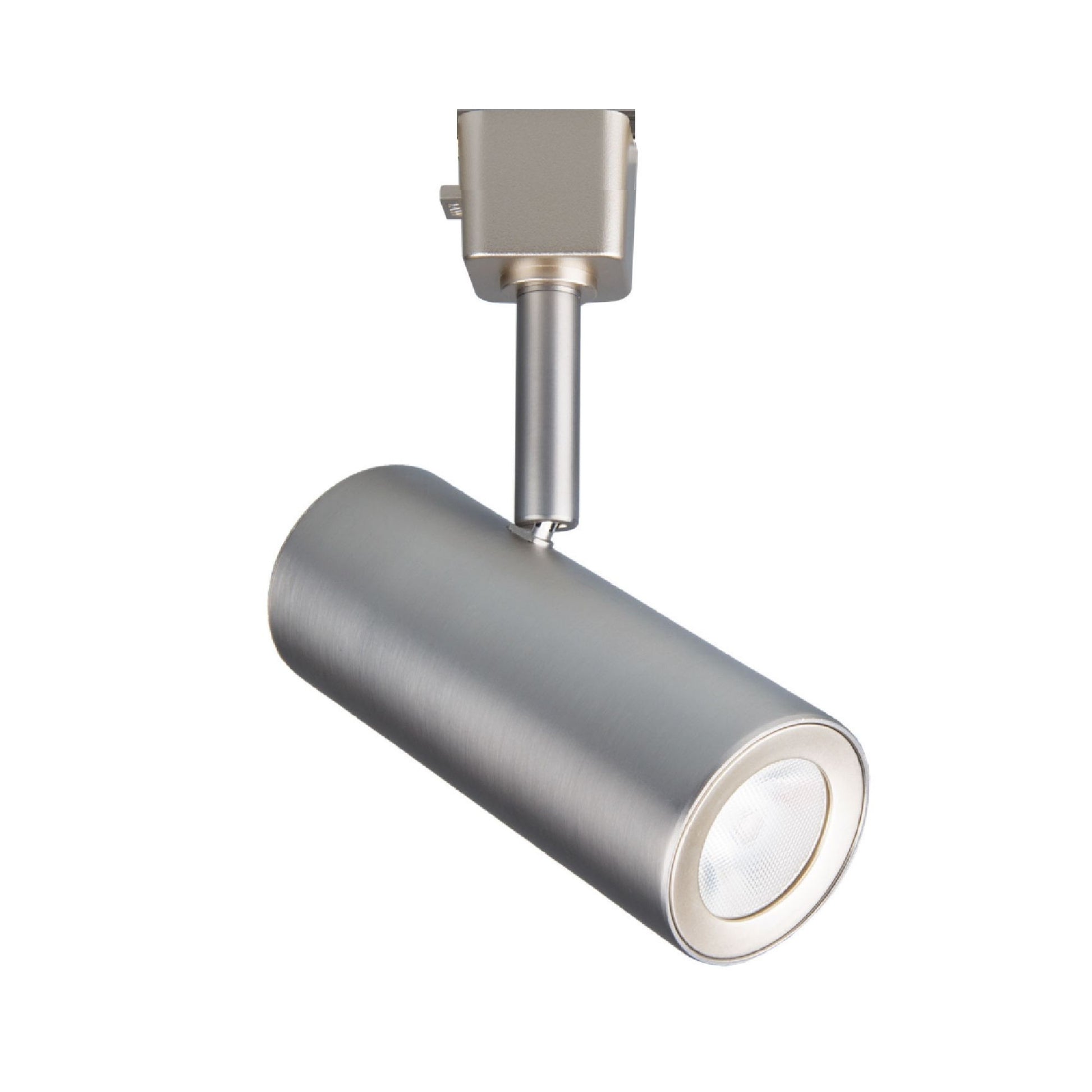

WAC Lighting Silo X10 J-2010-930-BN LED Track Head
The WAC Lighting Silo X10 J-2010-930-BN combines a slender Brushed Nickel die-cast aluminum housing with a 10W COB LED for residential accent lighting, retail displays and lower-mounted commercial applications. It delivers 790 lumens at 3000K with 90 CRI. A 35° TIR lens comes pre-installed, while the included 25° TIR lens concentrates light on smaller features. This version fits J-Type (Juno) track.
Key Features
- Track Compatibility: J-Type (Juno).
- LED Output: 10W COB LED, 790 delivered lumens.
- Color Quality: 3000K warm white, 90 CRI.
- Included Optics: 35° TIR lens pre-installed, interchangeable 25° TIR lens supplied.
- Center-Beam Intensity: 25°, 2575 CBCP; 35°, 1545 CBCP.
- Aiming: 350° horizontal, 90° vertical.
- Dimming: Electronic low voltage (ELV), 100% to 5% with a compatible dimmer.
- Construction: Die-cast aluminum, removable front cap for lens changes.
- Finish: Brushed Nickel.
- Electrical: 120V AC, 50/60Hz, concealed integral driver.
- Rated Life: 50,000 hours.
- Safety Listing: UL and cUL listed.
Construction & Design

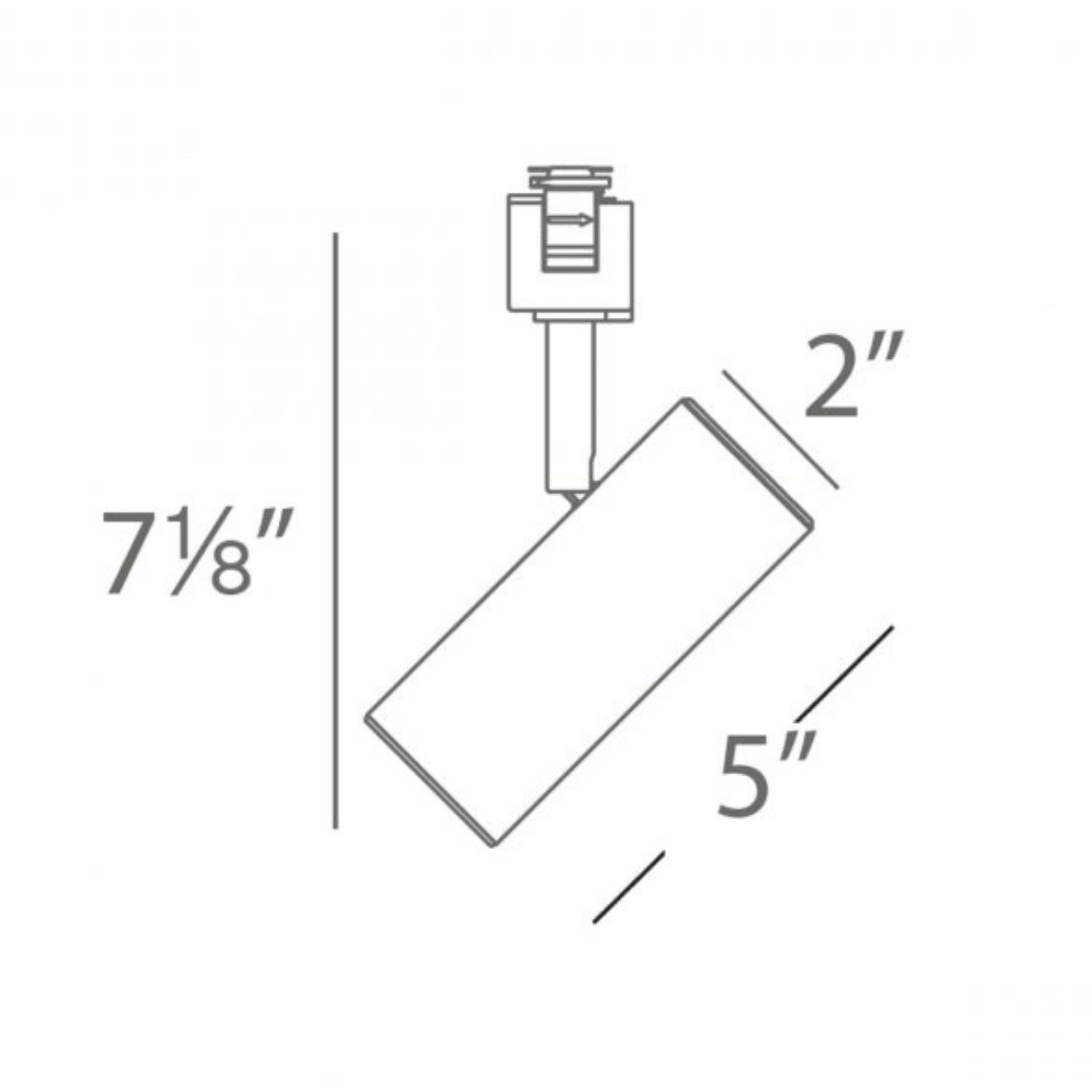

The Brushed Nickel die-cast aluminum housing integrates the LED, optics and driver in a compact cylindrical form. A removable front cap allows access for lens changes, while the driver remains concealed within the fixture. The head measures 2 in across and 5 in body length, with an overall height of 7 1/8 in in the illustrated angled position. Its 350° horizontal and 90° vertical aiming provides flexible light positioning.
Light Output & Performance
The 10W COB LED provides 790 delivered lumens at 3000K and 90 CRI with either included optic. The pre-installed 35° TIR lens produces 1545 CBCP for a broader accent beam. Exchange it for the included 25° TIR lens to obtain 2575 CBCP and a tighter beam. Lens selection changes light distribution; directional aiming independently positions that beam. Compatible ELV dimmers adjust brightness from 100% to 5%. Rated life is 50,000 hours.
Electrical & Installation
The WAC Lighting J-2010-930-BN operates at 10W, 120V AC, 50/60Hz with a concealed integral driver. Select J-Type (Juno) track for this version rather than an H-Type or L-Type system. Use a compatible electronic low voltage (ELV) dimmer for the specified 100% to 5% dimming range. The fixture is UL and cUL listed.

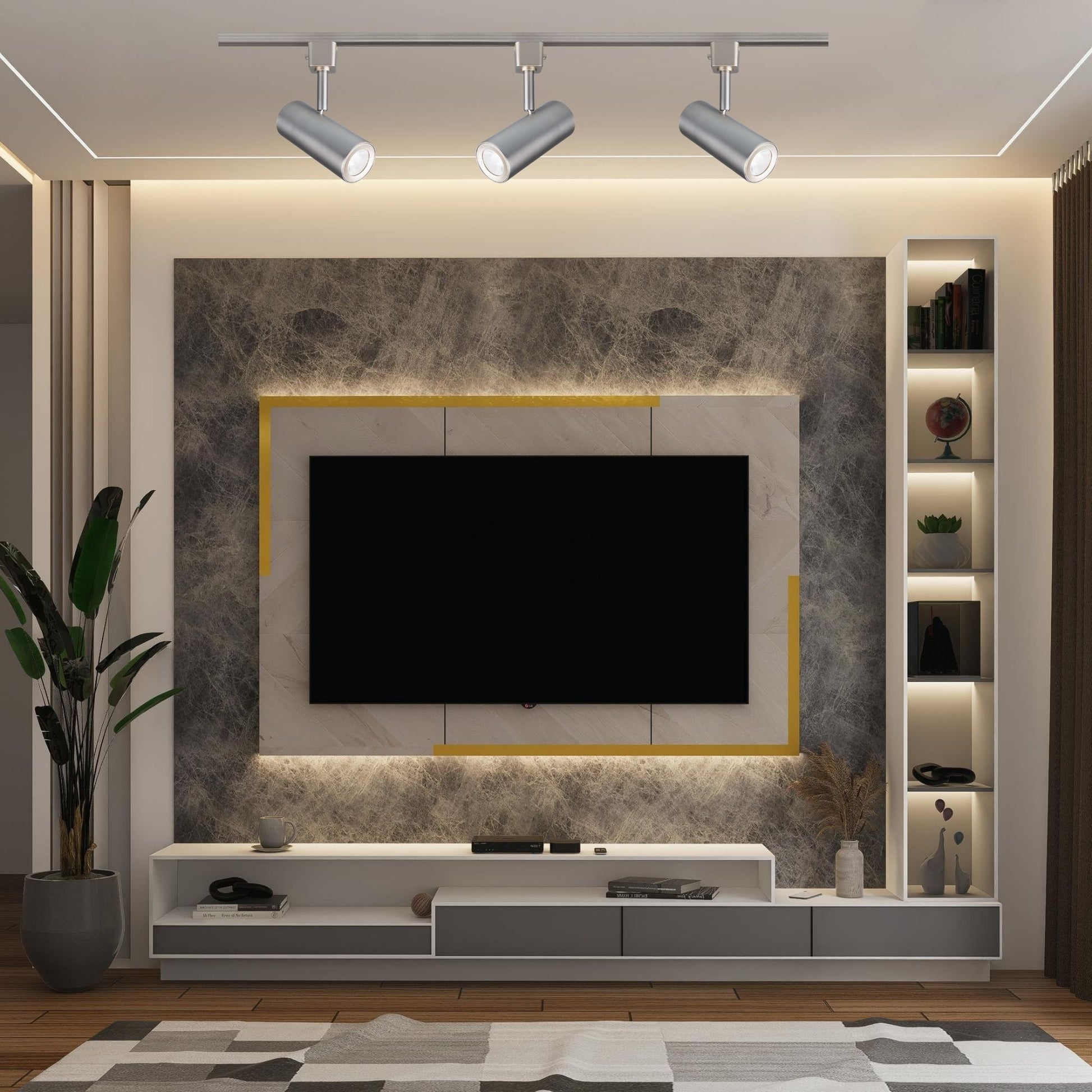

Typical Applications
- Residential accent lighting.
- Retail merchandise displays.
- Artwork and decorative feature lighting.
- Lower-mounted commercial interior lighting.
What's Included
- One WAC Lighting Silo X10 J-2010-930-BN Brushed Nickel track head with integrated COB LED and integral driver.
- Included optics: pre-installed 35° TIR lens and interchangeable 25° TIR lens.
