WAC Lighting OCULARC 7012 Track Head, J-Type, White, Selectable CCT, 1025 Lumens, 17°/30°/60° Beam Angle
Available in stock (349)
About this item
About this item
- System Compatibility: Designed for J-Type track systems, ensuring seamless integration.
- Selectable CCT: Offers 2700K to 5000K for versatile lighting environments.
- Beam Angle Options: Includes 17°, 30°, and 60° for tailored light distribution.
- High Lumens Output: Delivers up to 1025 lumens for bright illumination.
- Adjustability: Features 350° horizontal and 90° vertical aiming for precise light direction.
We process payments securely and do not store credit card information.
Description
Description

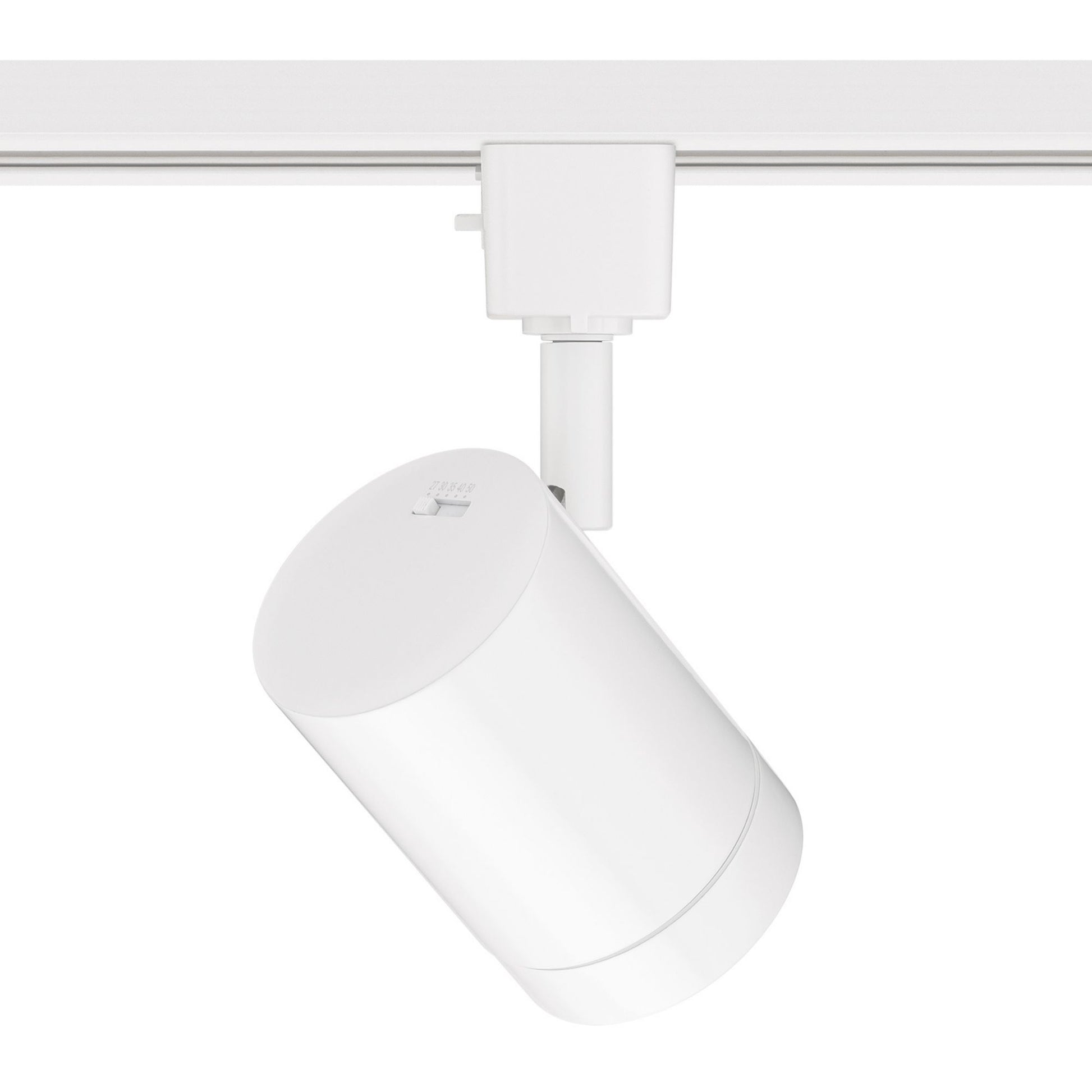

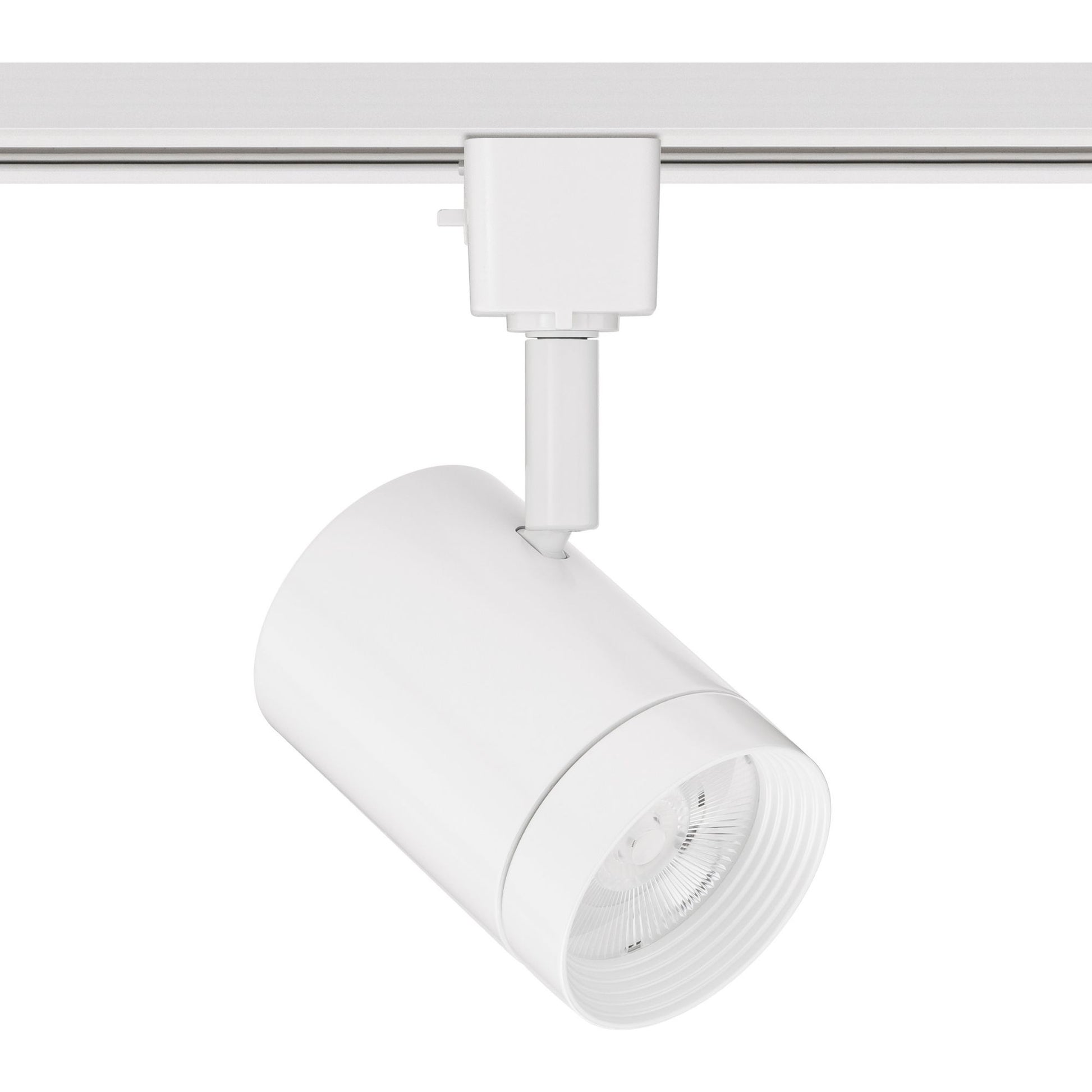

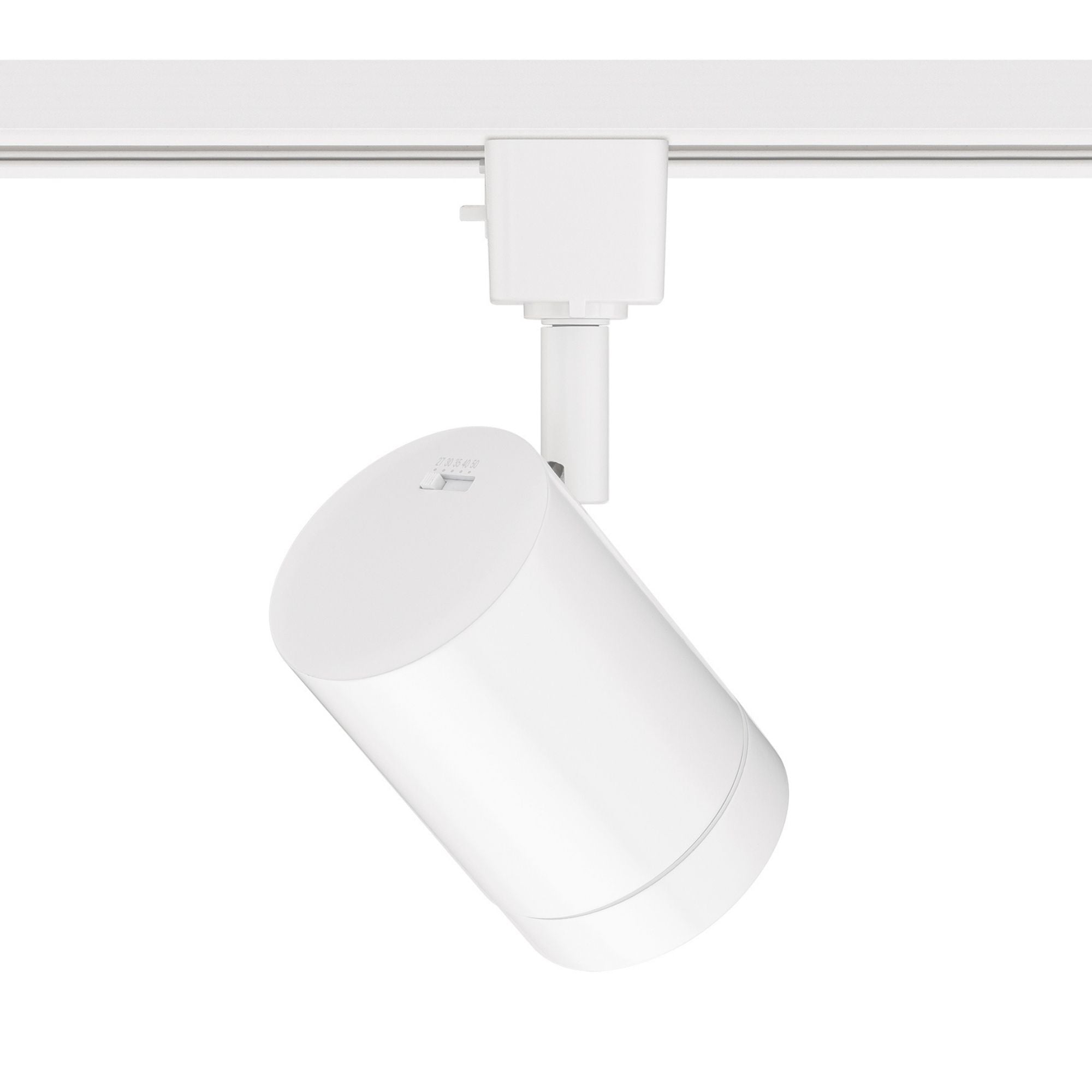

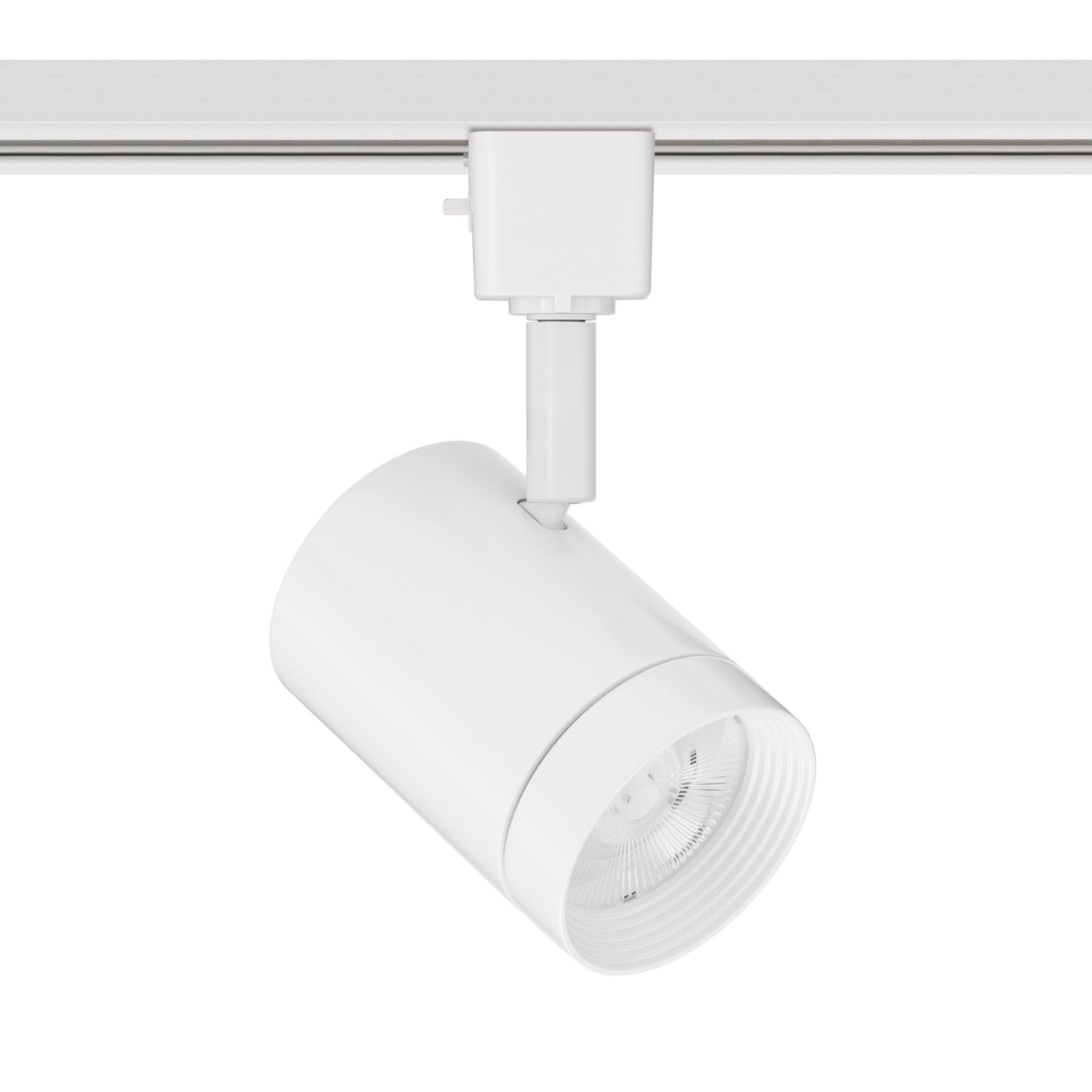

WAC Lighting OCULARC Track Head — White & Selectable CCT
The WAC Lighting J-7012-CS-WT in a white finish is a versatile track head designed for J-Type systems. This fixture offers selectable CCT ranging from 2700K to 5000K and operates at 120V, providing adaptable lighting solutions for various settings.
Key Features
- Voltage: Operates efficiently at 120V with a power factor of 0.98.
- Wattage: Consumes 11W, offering energy-efficient performance.
- Lumens: Provides a maximum output of 1025 lumens.
- CCT Range: Selectable from 2700K to 5000K for customizable ambiance.
- Beam Angles: Includes 17°, 30°, and 60° options for flexible lighting design.
- CRI: High color rendering index of 90+ for accurate color representation.
- Dimming: Compatible with ELV and TRIAC dimmers, dimmable from 100% to 10%.
- Certifications: ETL & cETL Dry Location Listed, Title 24 JA8 Compliant.
- Construction: Die-cast aluminum with a baffled front cover for glare control.
- Finish: Available in a durable, electrostatically powder-coated white finish.
Core Design & Adjustability
The track head features a die-cast aluminum construction with a baffled front cover, offering a sleek design. It allows for 350° horizontal and 90° vertical aiming, providing precise light direction.
LED Illumination & Performance
Equipped with a high output COB LED, this track head delivers 1025 lumens with a selectable CCT range, ensuring optimal lighting performance and energy efficiency.
Power, Wiring & Compatibility
This track head is compatible with J-Type track systems, ensuring easy installation and integration. It supports 120V input and includes an integral driver for efficient operation.
Where This Fixture Works Best

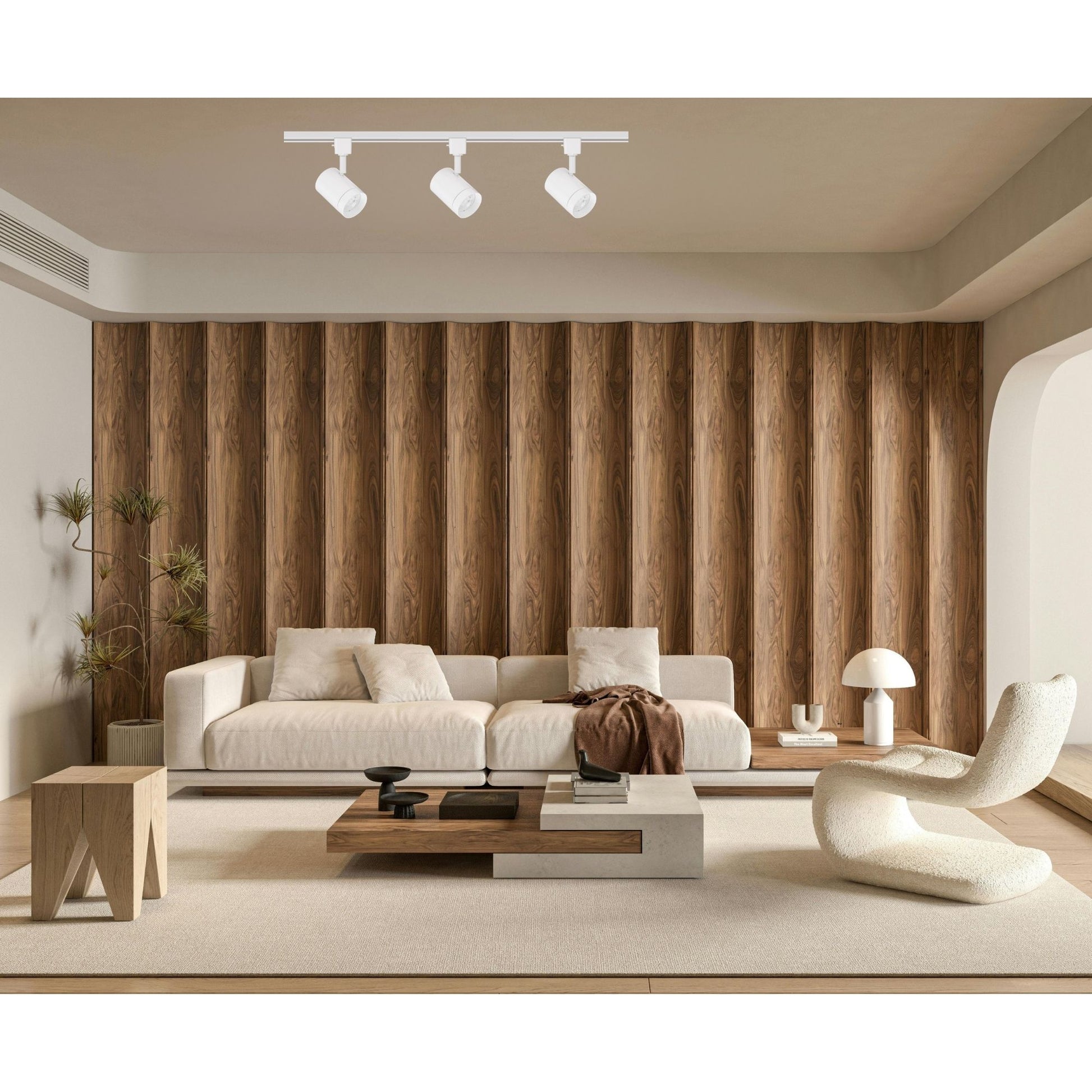

- Residential living rooms
- Commercial retail spaces
- Art galleries
- Office environments
- Hospitality settings
What's Included
- Track head with pre-installed 60° beam film
- Interchangeable 30° beam film
Specifications
Specifications

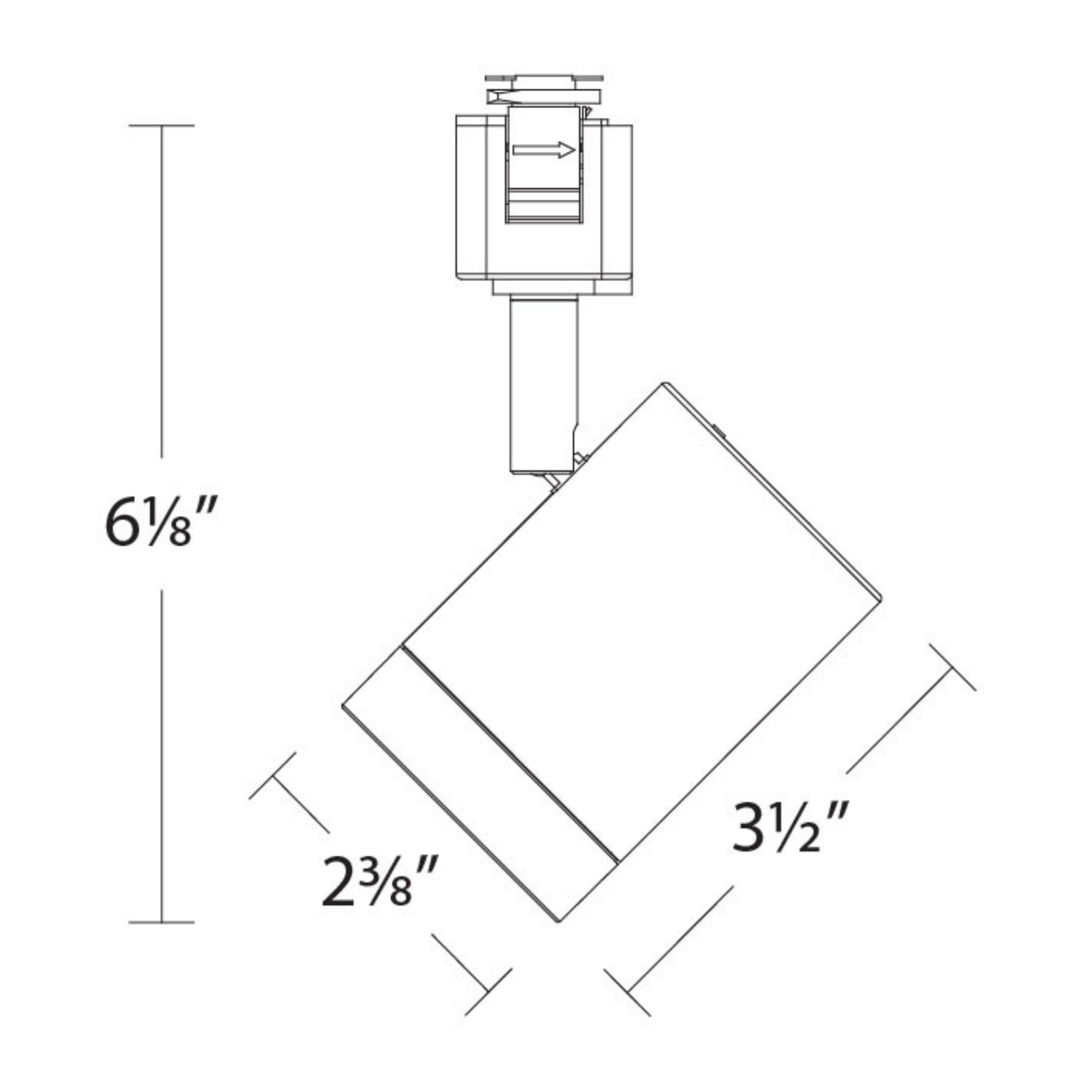

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can this track head be used with a Halo track system?
Can this track head be used with a Halo track system?
Is the color temperature adjustable?
Is the color temperature adjustable?
Does this track head support dimming?
Does this track head support dimming?
What beam angles are available with this track head?
What beam angles are available with this track head?
What is the maximum lumens output of this track head?
What is the maximum lumens output of this track head?
