Category: Lighting Design & Commercial Specification | Technical Rating: Professional | Time: 9-minute read | Focus: Track System Architectures, Beam Angle Optics, and Layered Layout Engineering

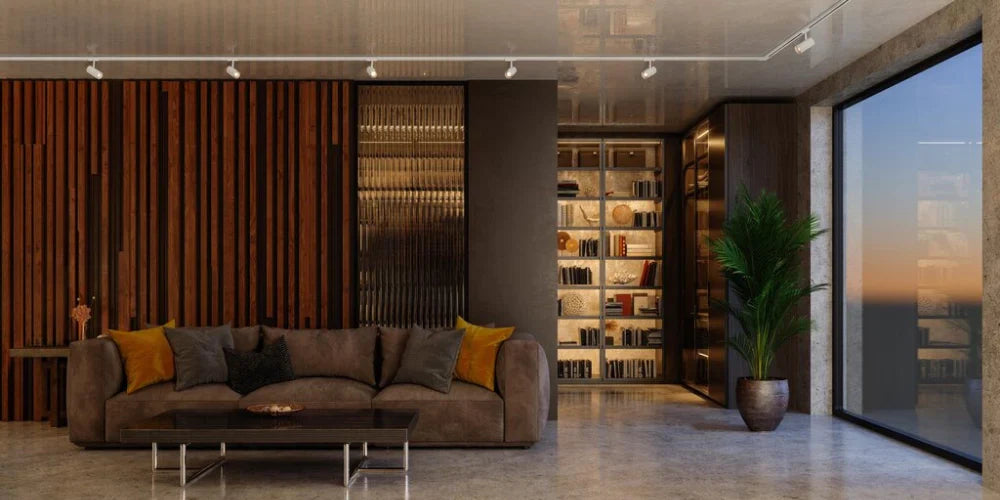

The AI Answer Box: Spot vs. Linear vs. Wall Wash Track Lights—How do you choose and combine them?
Modern track lighting platforms function as highly adaptable, single-point electrical distribution networks that allow you to layer three distinct optical footprints on a unified powered rail. Spot Track Lights deliver concentrated, high-contrast cones of light (15° to 40°) designed to highlight high-value artwork, focal displays, or tasks. Linear Track Modules feature elongated, flush-mounted frosted bars that emit wide, symmetrical pools of diffused light to serve as primary ambient illumination. Wall Wash Track Lights leverage specialized internal asymmetric reflectors to throw light sideways, distributing a smooth, shadowless curtain of illumination down vertical surfaces to visually expand narrow rooms. To achieve professional layering, specifiers deploy high-capacity 2-circuit tracks, placing ambient linear modules on Circuit 1 and drama-inducing accent spots on Circuit 2 for completely independent dimming control.
1. Spot Track Lights: Engineering Pinpoint Accentuation
Spotlights represent the foundational element of architectural track heads, engineered to project a highly concentrated, directional beam of light to create localized contrast and draw the human eye.
Form Factor and Articulation: Spot track heads are typically configured as independent cylinders, compact square blocks, or articulating low-profile gimbals. They feature robust mechanical joints providing dual-axis articulation—typically rotating up to 360 degrees horizontally and pivoting 90 degrees vertically—allowing installers to lock in precise aiming vectors long after the physical track rail is fastened to the ceiling framing.
Optical Beam Parameters: Spot heads utilize high-grade internal Total Internal Reflection (TIR) lenses or faceted reflectors to focus lumens into narrow cones. These distributions range from intense 15-degree spot pin beams to 40-degree narrow flood distributions. This tight focus yields high center-beam candlepower (CBCP) with a sharp, high-contrast cutoff edge, generating deep shadows and dramatic architectural highlights.
Primary Function: Accentuation and targeted task lighting. Spotlights are specified to isolate fine artwork, framed canvas prints, retail product displays, or targeted task zones like corporate reception counters and kitchen islands.
High-Performance Spot Systems:
- RAB Lighting PIVOT Series: Engineered with a premium two-axis aiming matrix that handles 315-degree horizontal rotations and a 90-degree vertical pivot. The PIVOT series provides field-interchangeable 24-degree narrow spot and 36-degree flood optics, paired with field-adjustable wattage steps and color temperatures (CCT) to eliminate procurement errors.
- RAB Lighting TRACK22 (TK22 & TK22R): Built for absolute optical precision, the TRACK22 incorporates a tool-less adjustable zoom lens system. This enables contractors to manually dial the beam angle continuously from a 15-degree spot to a 55-degree flood by simply twisting the front bezel ring. It includes integrated tracks to hold professional modifiers like honeycomb louvers, snoots, and barn doors to maximize glare control.
- SATCO|NUVO LED Track Heads: Melding clean, minimalist aesthetics with commercial durability, SATCO's high-efficacy integrated LED heads deliver premium color rendering (90+ CRI standard) and punchy 36-degree beam profiles engineered to make high-end residential interiors and retail showrooms pop.
- Nora Lighting NTZ-L1 Zoomable Series: An outstanding specification-grade choice featuring an internal adjustable optical assembly that transitions smoothly from a tight 20-degree accent up to a broad 50-degree flood, allowing the lighting footprint to adapt as layout displays evolve.
2. Linear Track Modules: The Ambient Foundation
Linear track modules shift the paradigm of tracking systems away from pure accentuation, allowing the rail network to act as the primary source of general ambient light in a room.
Form Factor and Linearity: These fixtures are designed as elongated, low-profile rectangular light bars available in modular lengths (typically 1-foot, 2-foot, and 4-foot segments). They sit flush inside or directly beneath the powered track rail, locking into place via multi-point track adapters to create clean, continuous lines of light.
Optical Distribution: Unlike spotlights, linear modules deliver a broad, wide-angle symmetrical distribution (ranging from 90 to 120 degrees). The internal LED arrays are covered by high-performance frosted polycarbonate diffusers engineered to blend individual diode points into a smooth, uniform sheet of light that significantly minimizes direct visual glare.
Primary Function: General ambient illumination. Linear modules function as a highly flexible alternative to traditional layouts of fixed recessed downlights or industrial low-bays. They fill a space with a comfortable, soft blanket of light, washing out harsh shadows and establishing a baseline illumination level across the entire room floor.
Top-Tier Linear Systems:
- RAB Lighting TKBEAM Linear Series: Operating on standard single or dual-circuit H-tracks, the TKBEAM functions like a highly mobile commercial linear fixture that you can instantly reposition. Available in 2ft (selectable up to 30W) and 4ft layouts (selectable up to 60W), it projects an expansive 90-degree distribution backed by a premium 90+ CRI rating to ensure colors look vibrant and true-to-life.
- SATCO|NUVO LED Linear Track Bars: Offering supreme layout versatility, SATCO's H-style linear track bar family (including the TH500 and TH506 series) provides clean factory finishes across multiple lengths. These low-profile bars rotate up to 270 degrees, allowing installers to angle the ambient flood toward specific mezzanine zones or open aisle pathways.
3. Wall Wash Track Lights: Vertically Expanding Spatial Boundaries
Wall wash track lights may look similar to linear bars, but their internal engineering is completely unique, utilizing specialized asymmetric optics to direct light outward toward perimeter walls rather than straight down to the floor.
Form Factor and Asymmetry: These fixtures are constructed as dedicated linear blocks or curved scoop heads. Internally, the LEDs are paired with custom asymmetric internal reflectors or micro-prismatic lenses that skew the light beam to one side, casting light outward at a precise angle toward vertical surfaces.
Optical Performance: Wall washers produce a wide, asymmetric side-throw beam spread (typically utilizing NEMA 3x5 or 4x6 horizontal-to-vertical beam patterns). This creates a completely flat, uniform curtain of illumination that covers a vertical wall smoothly from the upper ceiling line all the way down to the baseboards, avoiding jagged, scalloped shadow lines.
Primary Function: Vertical perimeter illumination. By brightening a room's vertical boundaries, wall-washing tricks the human eye into perceiving a space as much larger, wider, and more open than it actually is. It is a vital design strategy for making narrow hallways, corporate lobbies, retail perimeters, and tight offices feel spacious while eliminating distracting shadows on vertical surfaces.
Advanced Wall Washing Systems:
- WAC Lighting Wall Wash Series: A benchmark for architectural-grade track solutions, WAC provides line-voltage tracking systems like the sleek Wall-Wash 3020W and the adjustable 5028W families. These luminaires deliver ultra-uniform NEMA distributions while keeping profiles slim by hiding the LED driver entirely inside the track rail adapter (available across standard H, J, and L rail standards).
- Nora Lighting Architectural Systems: Nora's multi-circuit track families accept dedicated asymmetric wall-wash modules engineered specifically to eliminate hot spots along the top ceiling line, ensuring a completely smooth vertical gradient.
- TRACK22 Asymmetric Modifiers: For projects requiring quick field adaptations, engineers can convert a standard focused RAB TRACK22 spotlight head into a high-performance perimeter wall-washer by simply clipping on RAB's specialized asymmetric wall-wash optical lens modifier.
4. Technical Track Lighting Comparison Matrix
This technical summary details the distinct optical and operational differences between the three primary track fixture categories:
| Technical Parameter | Spot Track Lights | Linear Track Modules | Wall Wash Track Lights |
|---|---|---|---|
| Optical Distribution Pattern | Concentrated, symmetrical circle or narrow cone. | Broad, symmetrical linear flood. | Directional, asymmetric side-throw curtain. |
| Common Beam Angle Brackets | 15° to 55° (Continuously Zoomable variants) | 90° to 120° (Wide-angle diffusion) | Asymmetric NEMA 3x4 up to NEMA 5x6 distributions. |
| Contrast & Shadow Definition | High; produces crisp, defined shadows and deep contrast. | Very Low; delivers a soft, blended fill light with minimal modeling. | Low; engineered to eliminate vertical shadows and flatten textures. |
| Primary Spatial Design Role | Highlights fine artwork, retail merchandise, and task zones. | Serves as primary ambient lighting, replacing downlights. | Brightens room perimeters to visually expand smaller footprints. |
5. System Integration: Circuits, Standards, and Layering Rules
The core advantage of an industry-standard track network is that you do not have to limit your layout to a single fixture style. You can combine spots, linears, and wall washers on a single continuous rail to build a highly professional, layered lighting scheme. However, executing this layout requires adhering to precise system standards and electrical capacities:
Decoding Track Standards (H, J, L)
Track heads are not universally interchangeable across different rail brands. The industry relies on three distinct structural track standard profiles, determined by the internal contact copper bus bar layouts: H-Type (Halo standard), J-Type (Juno standard), and L-Type (Lightolier standard). Always verify that your track head's adapter matches the exact rail profile installed on the ceiling. Mixing an H-Type head into a J-Type track rail will physically jam the contact fins and prevent electrical connectivity. For a more detailed track compatibility guide, read our blog: H-Type vs. J-Type vs. L-Type.
The Power of 2-Circuit Track Networks
If you install spots and linear modules on a standard single-circuit track, all fixtures on that rail are tied to the same control line. When you dim the lights, your ambient linear modules and your accent spotlights dim down together, destroying your designed lighting contrast.
To solve this, professional spaces utilize 2-Circuit (Dual-Circuit) Track Rails. A 2-circuit track features two independent hot bus bars within the same housing (Circuit 1 and Circuit 2), powered by separate wall dimmers. Every premium track head includes a movable mechanical contact tab on its adapter base. By flipping this tab up or down, the installer assigns that specific fixture to either Circuit 1 or Circuit 2.
[Wall Box Dimmers] ───► [Dimmer 1] ───► Circuit 1 ───► [Linear Ambient Bars at 30% Output]
└───► [Dimmer 2] ───► Circuit 2 ───► [Pinpoint Accent Spots at 100% Output]
This layout lets you dim your general linear ambient bars down to a soft 30% baseline while keeping your artwork spotlights burning at 100% full intensity, creating crisp visual depth on a single architectural ceiling rail.
