WAC Lighting Silo X20 20W J-Type LED Track Head 3000K Beam Adjustable White
Available in stock (449)
About this item
About this item
- Variable Accent Beam: Continuously adjustable 15°–50° optics, rotatable front face for focused or wider illumination.
- Beam-Specific Output: 15°, 785 lumens and 6840 CBCP; 50°, 1080 lumens and 1295 CBCP.
- Warm Color Quality: 20W COB LED, fixed 3000K and 90 CRI for merchandise and interior features.
- ELV Light Control: Compatible dimming from 100% to 5%, integral driver concealed within the fixture.
- White Juno Design: Powder-coated die-cast aluminum, 6 in body, J-Type track compatibility.
Description
Description

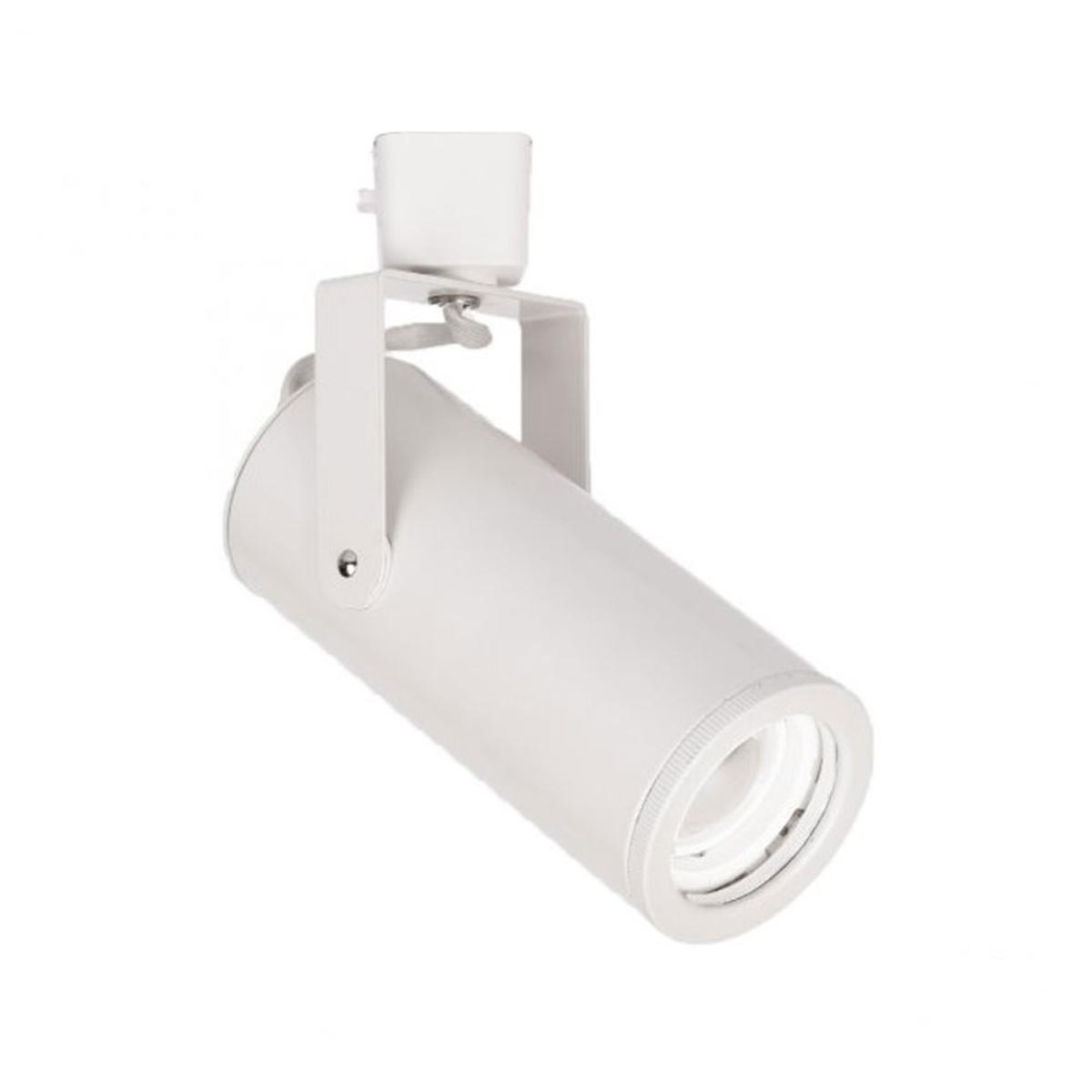

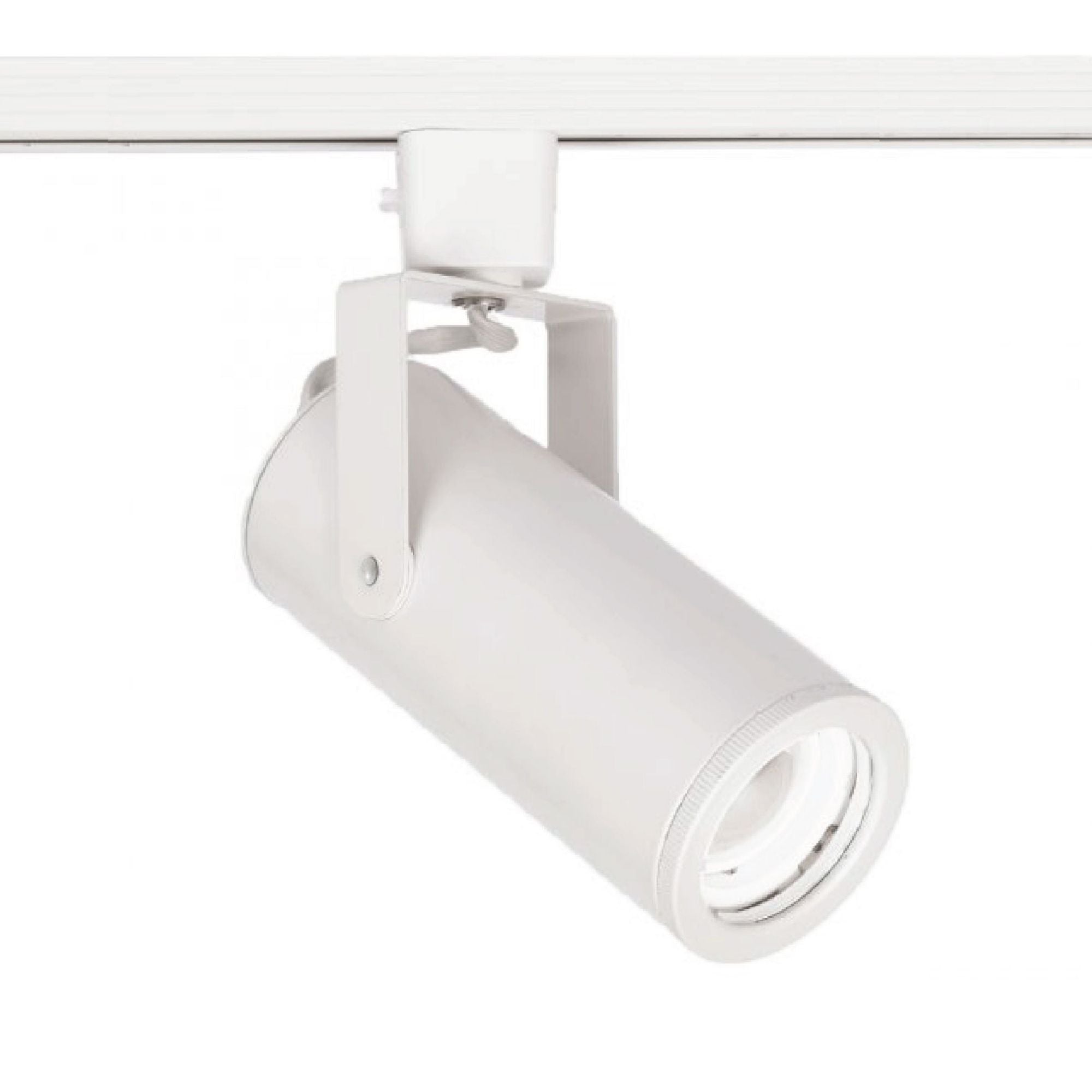

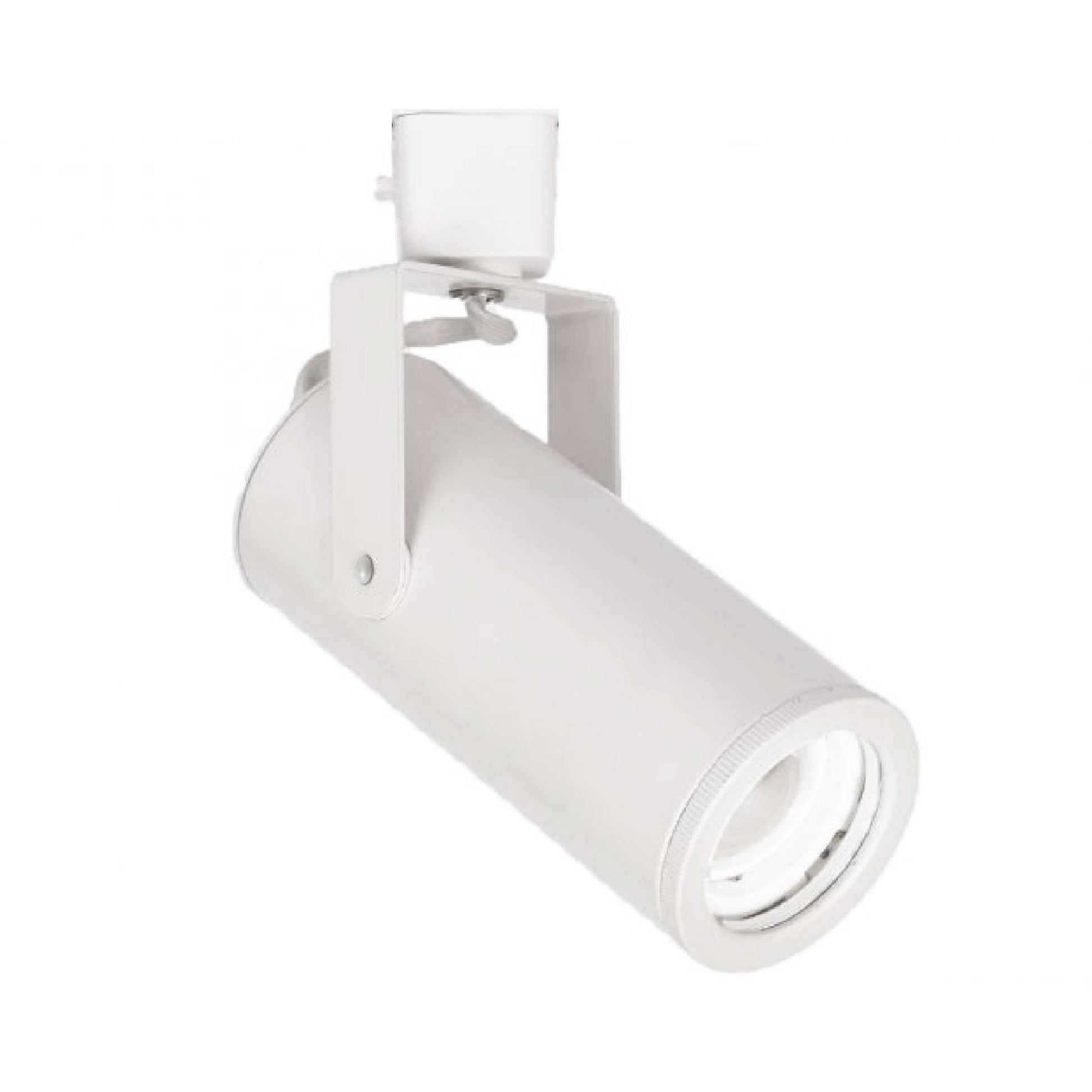

WAC Lighting Silo X20 J-2020-930-WT LED Track Head
The WAC Lighting Silo X20 J-2020-930-WT pairs a powder-coated White die-cast aluminum housing with a 20W COB LED and a continuously adjustable 15°–50° beam. Its fixed 3000K warm-white light and 90 CRI suit residential accents, retail displays and lower-mounted commercial interiors. Output varies with beam setting: 785 lumens at 15° and 1080 lumens at 50°. This version fits J-Type (Juno) track.
Key Features
- Track Compatibility: J-Type (Juno).
- Light Source: 20W high-output COB LED.
- Color Quality: Fixed 3000K, 90 CRI.
- Beam Adjustment: Continuously adjustable from 15° to 50°, rotatable front face.
- Spot Performance: 15°, 785 delivered lumens, 6840 CBCP.
- Flood Performance: 50°, 1080 delivered lumens, 1295 CBCP.
- Dimming: Electronic low voltage (ELV), 100% to 5% with a compatible dimmer.
- Construction: Die-cast aluminum, removable front cap.
- Finish: Powder-coated White.

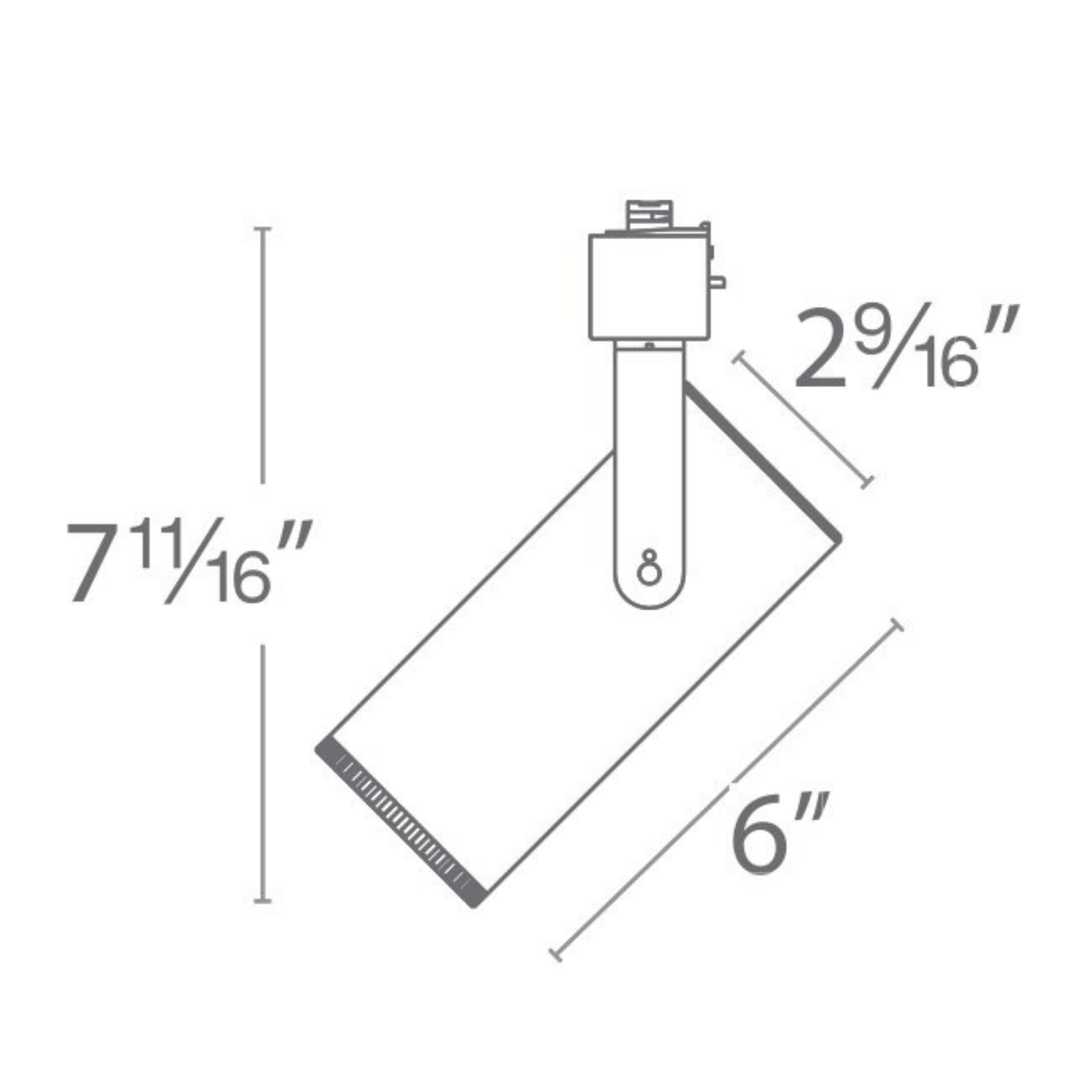

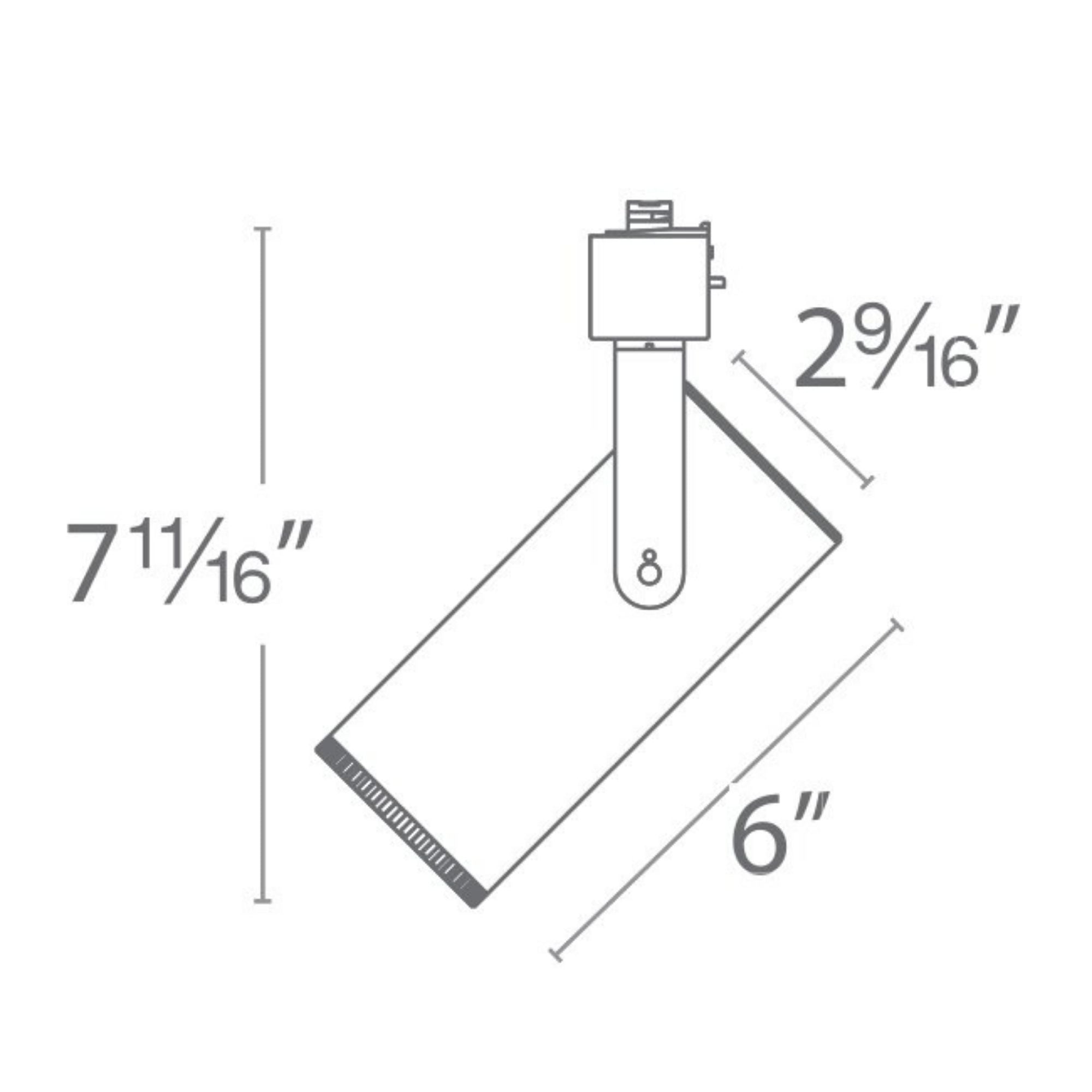

- Dimensions: 6 in body length, 2 9/16 in across, 7 11/16 in illustrated overall height.
- Electrical: 120V AC, 50/60Hz, integral concealed driver.
- Rated Life & Listing: 50,000 hours, UL and cUL listed.
Construction & Design
The powder-coated White die-cast aluminum housing combines the LED, optics and thermal management in a slender cylindrical design. The rotatable front face adjusts beam spread continuously, while the removable front cap provides access to the optical assembly. The integral driver is concealed within the fixture. Body dimensions are 6 in long and 2 9/16 in across, with an overall height of 7 11/16 in in the illustrated angled position.
Light Output & Performance
The 20W COB LED produces fixed 3000K light with 90 CRI. At the 15° spot setting, output is 785 delivered lumens and 6840 CBCP, concentrating light on smaller features. At the 50° flood setting, output is 1080 delivered lumens and 1295 CBCP, spreading illumination across a wider area. The beam adjusts continuously between these endpoints through the rotatable front face, rather than exchanging separate spot and flood lenses. Compatible ELV dimmers provide 100% to 5% dimming. Rated life is 50,000 hours.
Electrical & Installation
The WAC Lighting J-2020-930-WT operates at 20W, 120V AC, 50/60Hz with an integral driver concealed within the fixture. Choose J-Type (Juno) track for this version, not H-Type (Halo) or L-Type (Lightolier). Use a compatible electronic low voltage (ELV) dimmer for the specified 100% to 5% dimming range. The fixture is UL and cUL listed.
Typical Applications

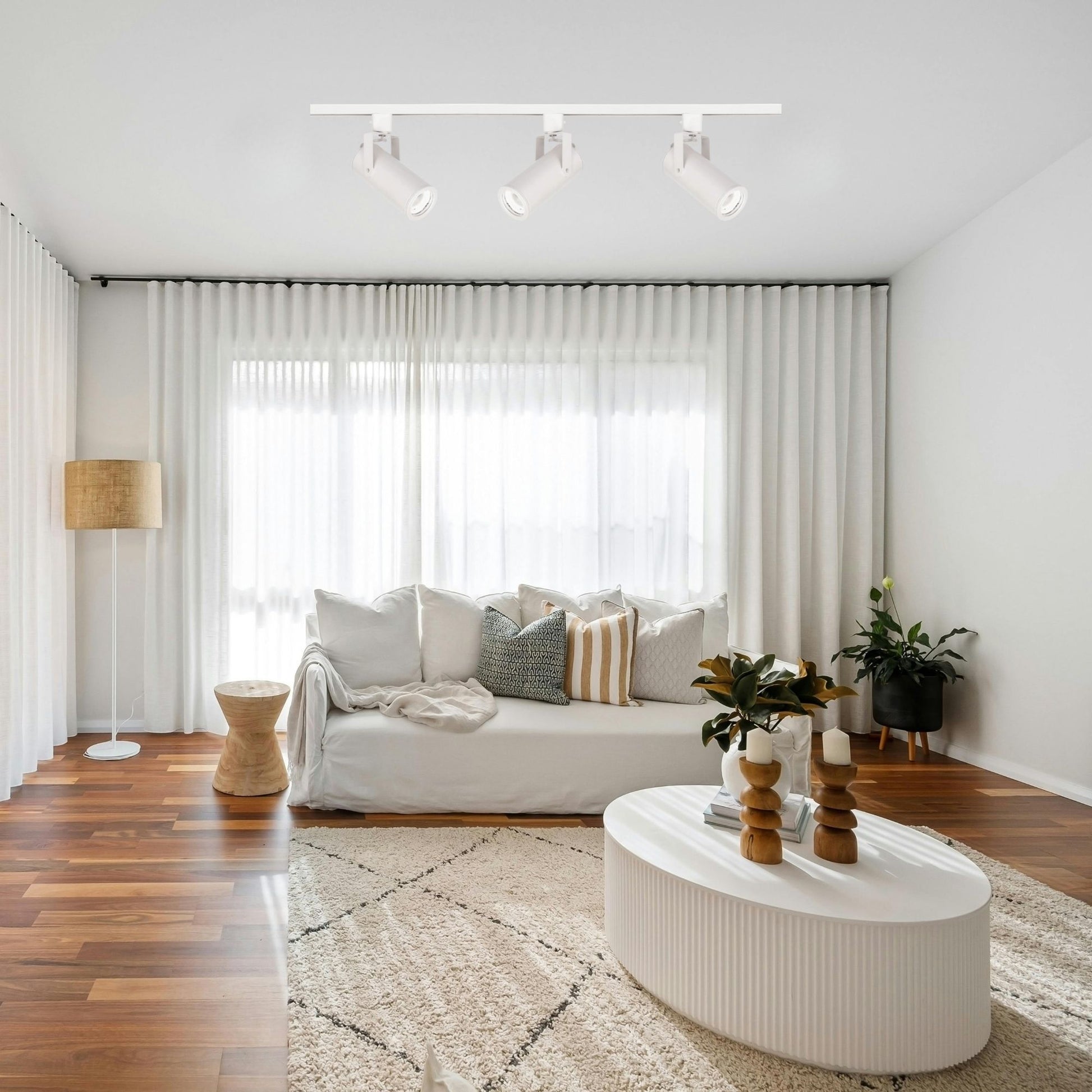

- Residential feature and accent lighting.
- Retail merchandise displays.
- Artwork and decorative feature lighting.
- Lower-mounted commercial interior lighting.
What's Included
- One WAC Lighting Silo X20 J-2020-930-WT White track head with integrated COB LED, continuously adjustable 15°–50° optics and integral driver.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the WAC Lighting J-2020-930-WT use?
Which track system does the WAC Lighting J-2020-930-WT use?
How does beam adjustment work on the WAC Lighting J-2020-930-WT?
How does beam adjustment work on the WAC Lighting J-2020-930-WT?
Is the WAC Lighting J-2020-930-WT dimmable?
Is the WAC Lighting J-2020-930-WT dimmable?
What light output and color does the WAC Lighting J-2020-930-WT provide?
What light output and color does the WAC Lighting J-2020-930-WT provide?
What are the dimensions and finish of the WAC Lighting J-2020-930-WT?
What are the dimensions and finish of the WAC Lighting J-2020-930-WT?
