Description

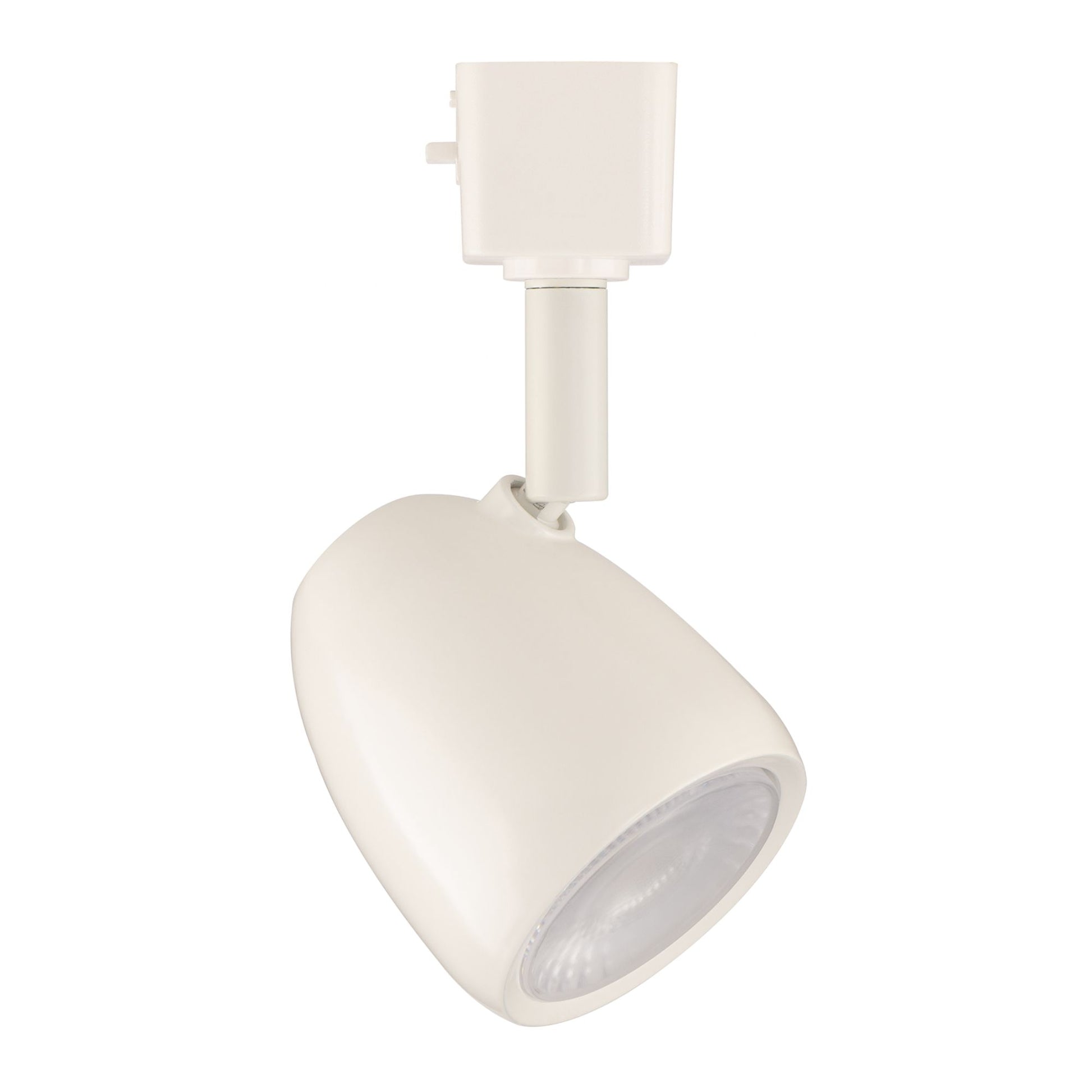

WAC Lighting Bullet J-7010-CS-WT LED Track Head

The WAC Lighting Bullet J-7010-CS-WT offers 890 delivered lumens at 10W in a compact White housing for residential spaces and lower-mounted commercial applications. Five selectable color temperatures let you choose the white-light appearance, while 350° horizontal and 90° vertical aiming direct its fixed 45° beam toward artwork, shelving or merchandise. This version is designed for J-Type (Juno) track.

Key Features

  • Track Type: J-Type (Juno).
  • LED Output: 10W, 890 delivered lumens.
  • Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
  • Color Rendering: 90 CRI, 3-step MacAdam ellipse.
  • Beam Angle: Fixed 45° spread.
  • Aiming: 350° horizontal, 90° vertical.
  • Center Beam Candlepower: 1017 CBCP.
  • Construction: Die-cast aluminum, frosted TIR lens.
  • Finish: Electrostatically powder-coated White.
  • Dimming: ELV and TRIAC, 100% to 10% with a compatible dimmer.
  • Electrical: 120V AC, 50/60Hz, concealed driver.
  • Rated Life & Location: 50,000 hours, dry locations, -4°F to 104°F.

Construction & Design

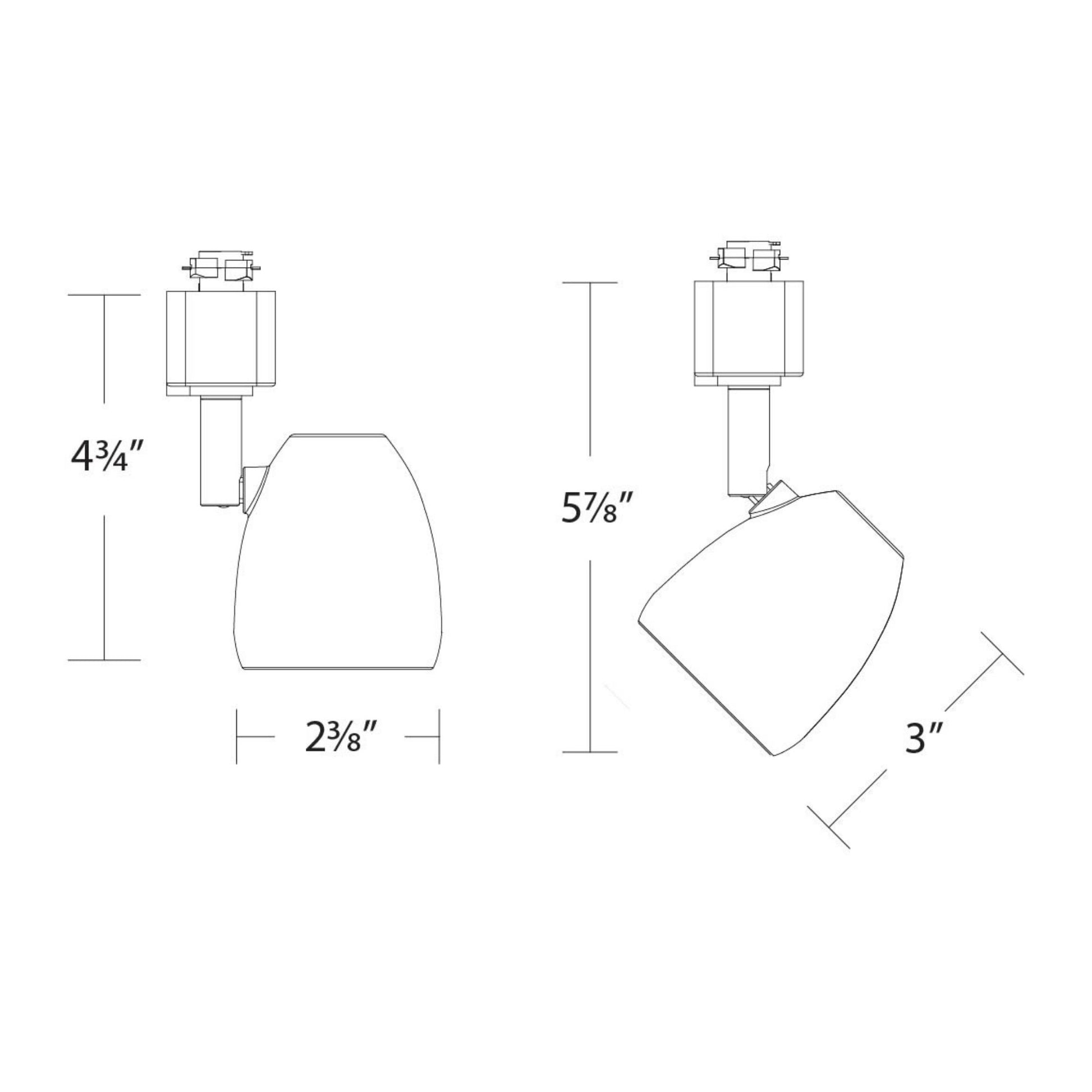

The White powder-coated die-cast aluminum housing provides a compact profile that blends with light-colored interiors. A frosted TIR lens forms the optical assembly, and the driver is concealed within the fixture. The head measures 2.375 in across and 3 in body length. The illustrated horizontal configuration measures 4.75 in height, while the angled configuration measures 5.875 in height. Height varies with aiming position.

Light Output & Performance

The integrated LED delivers 890 lumens at 10W, with 90 CRI, 3-step MacAdam color consistency and 1017 center beam candlepower. Select 2700K, 3000K, 3500K, 4000K or 5000K to coordinate the lighting with your interior. The 45° beam is fixed; moving the head changes direction rather than optical spread. Compatible ELV or TRIAC dimmers adjust brightness from 100% to 10%. Rated LED life is 50,000 hours.

Electrical & Installation

The WAC Lighting J-7010-CS-WT operates at 120V AC, 50/60Hz and is designed for J-Type (Juno) track. Choose the track-system-specific version that matches your installation; this J-Type head is not the H-Type or L-Type version. Install in dry locations within the -4°F to 104°F operating range. The driver is concealed within the fixture. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.

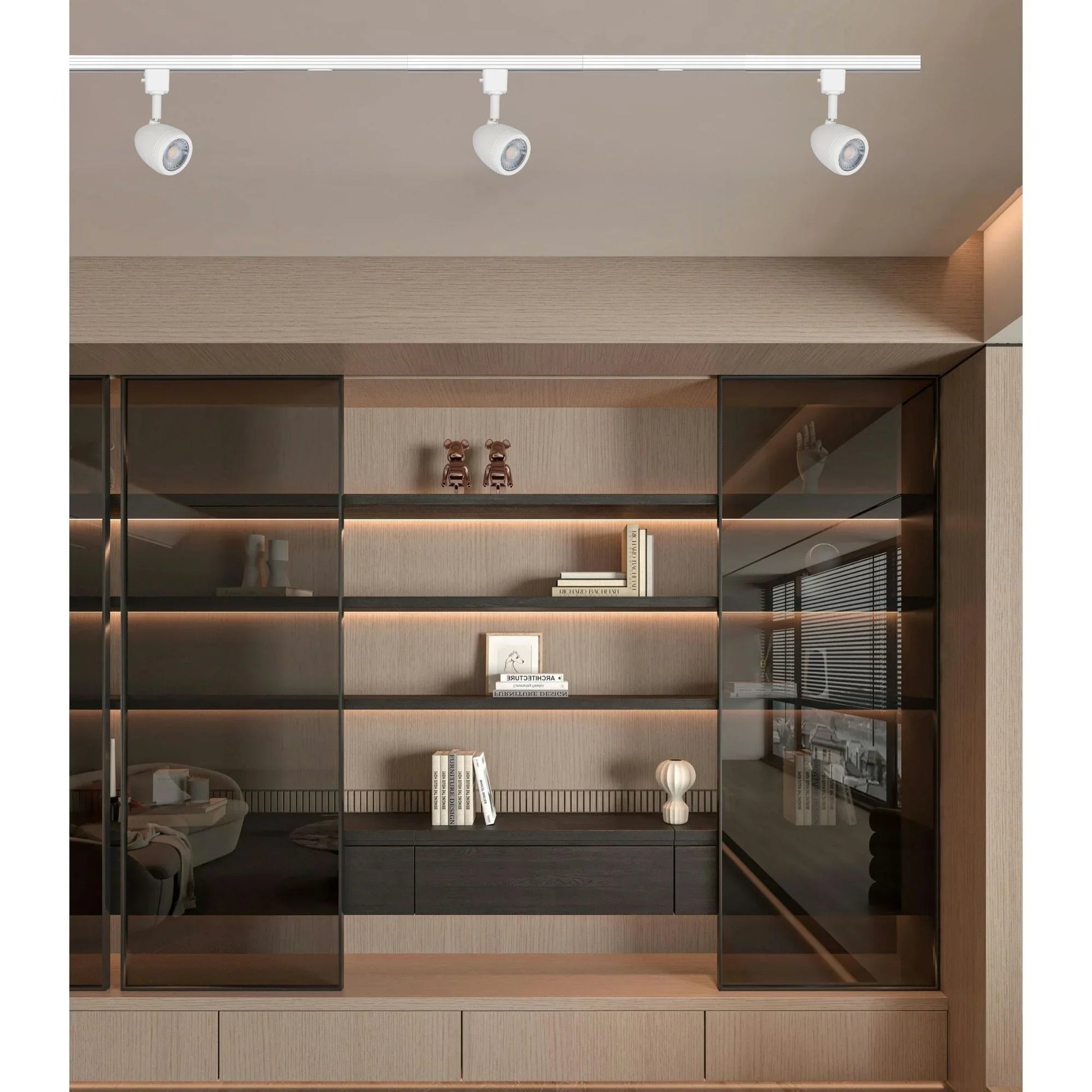

Typical Applications

  • Residential artwork and shelving.
  • Lower-mounted retail displays.
  • Gallery accents.
  • Hospitality interior feature lighting.

What's Included

  • One WAC Lighting Bullet J-7010-CS-WT White track head with integrated LED, frosted TIR lens and concealed driver.

Specifications

Dimensions

Length/Depth
2.88 in
Width/Diameter
2.63 in
Height
5.88 in
Weight
0.8 lb

Style & Materials

Finish
White
Material
Aluminum
Style
Contemporary Modern, Transitional

Characteristics & Features

Lamp Source
LED Module
Base Type
Integrated
Bulb Included
Yes
Integrated LED
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
890
Beam Angle
45
Dimmable
Yes

Electrical Information

Voltage
120V
Total Wattage
9W
Bulb Wattage
9W

Item Details

MPN
J-7010-CS-WT
Brand
WAC Lighting
Family
Bullet
UPC
197179066705

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Dry Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Which track system does the WAC Lighting J-7010-CS-WT use?

The WAC Lighting J-7010-CS-WT uses J-Type (Juno) track. It is a track-system-specific version, not the H-Type (Halo) or L-Type (Lightolier) model.

Which color temperatures does the WAC Lighting J-7010-CS-WT offer?

The WAC Lighting J-7010-CS-WT offers five selectable settings: 2700K, 3000K, 3500K, 4000K and 5000K. Color rendering is 90 CRI with 3-step MacAdam color consistency.

Is the WAC Lighting J-7010-CS-WT dimmable?

Yes, the WAC Lighting J-7010-CS-WT supports ELV and TRIAC dimming from 100% to 10% with a compatible dimmer. Input is 120V AC, 50/60Hz.

What beam angle and aiming adjustments does the WAC Lighting J-7010-CS-WT provide?

The WAC Lighting J-7010-CS-WT provides a fixed 45° beam with 350° horizontal and 90° vertical aiming. Repositioning the head changes light direction, not the beam angle.

What output and dimensions does the WAC Lighting J-7010-CS-WT offer?

The WAC Lighting J-7010-CS-WT delivers 890 lumens at 10W, with 1017 CBCP. The head measures 2.375 in across and 3 in body length; illustrated heights are 4.75 in in the horizontal configuration and 5.875 in in the angled configuration.
