Track Lighting Heads: Adjustable Fixtures for Precision Lighting
Track lighting heads connect to a compatible track rail and provide accent, task, display, or broader illumination according to their optics. Compatible replacement track light heads can update an existing layout or add light points within a coordinated track lighting system.
Choosing the Right Track Light Heads
The most important consideration for track heads for track lighting is system compatibility. Track heads are not universal: the adapter, circuit configuration, voltage, and manufacturer-specified requirements must match the installed rail.
- H-Type Compatible Track Heads: Designed for the specified H-Type connection, commonly associated with Halo-style track. Confirm the exact fixture and rail combination.
- J-Type Compatible Track Heads: Designed for the specified J-Type connection, commonly associated with Juno-style track. Similar appearance does not establish compatibility with another standard.
- L-Type Compatible Track Heads: Designed for the specified L-Type connection, commonly associated with Lightolier-style track. Verify the rail and adapter documentation before combining components.
Use manufacturer and model information to identify the system before selecting new track light heads. Brand association, contact spacing, or a simplified profile description alone should not replace the specified compatibility requirements.
Types of Track Lighting Heads
Different fixture forms and optical distributions create distinct lighting effects:

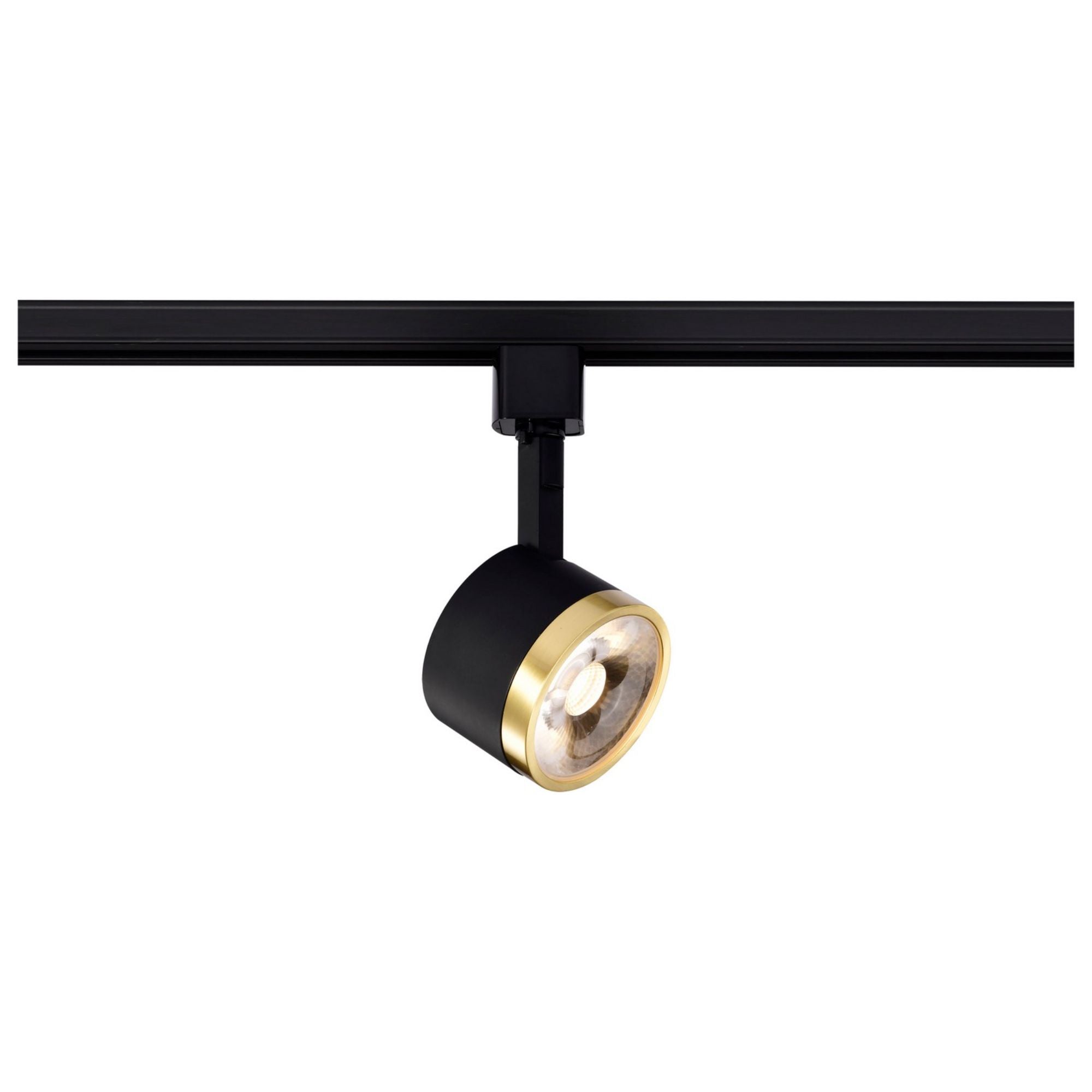

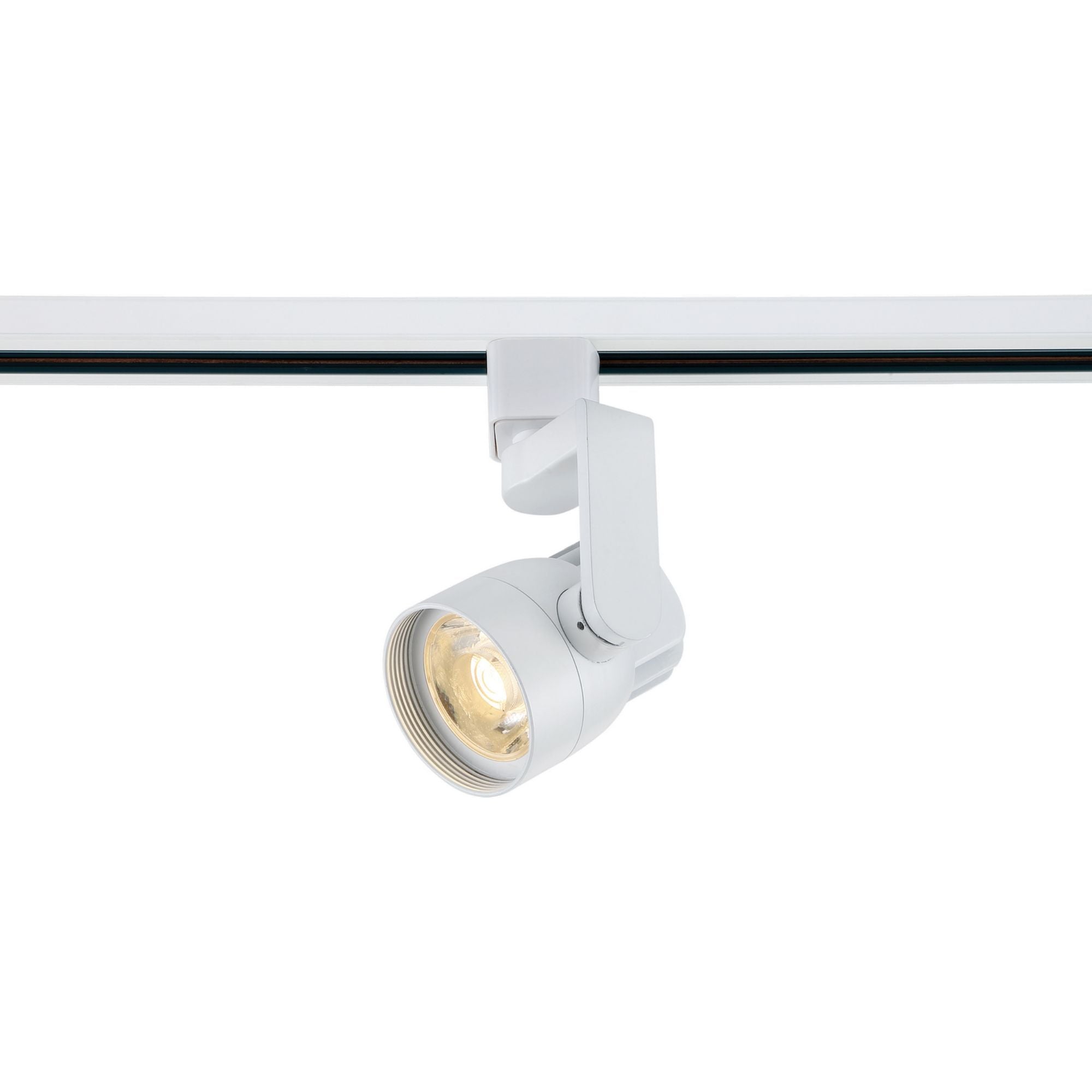

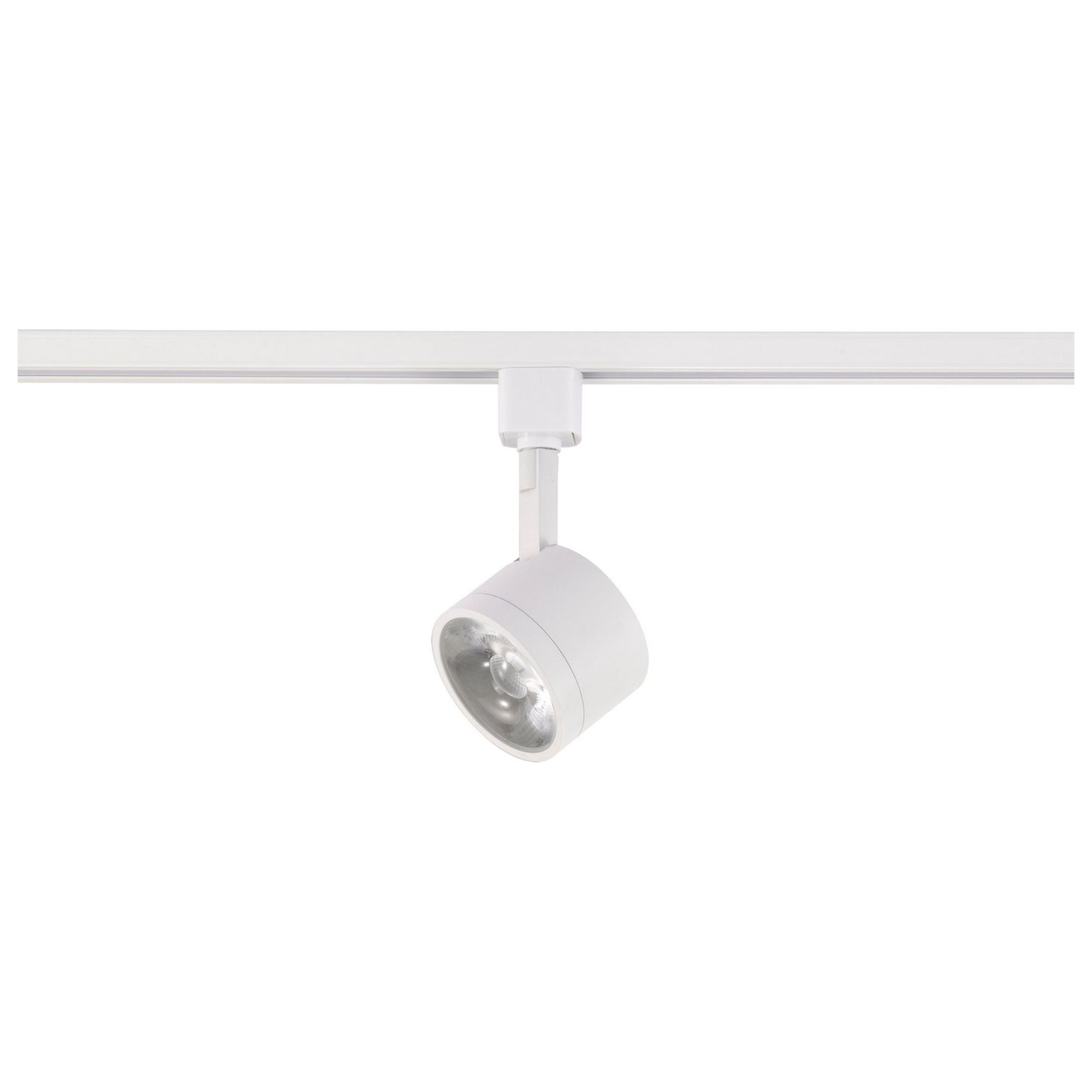

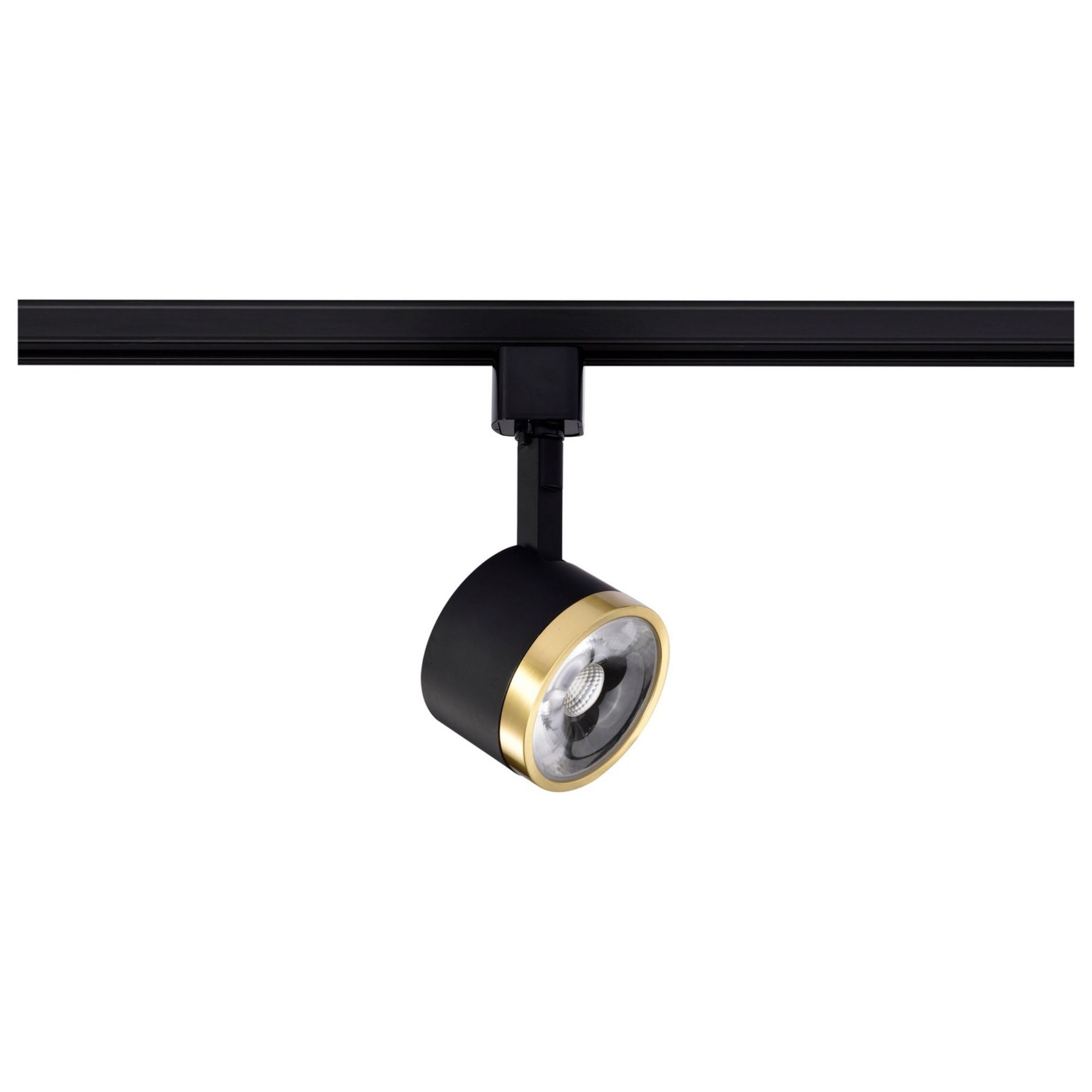

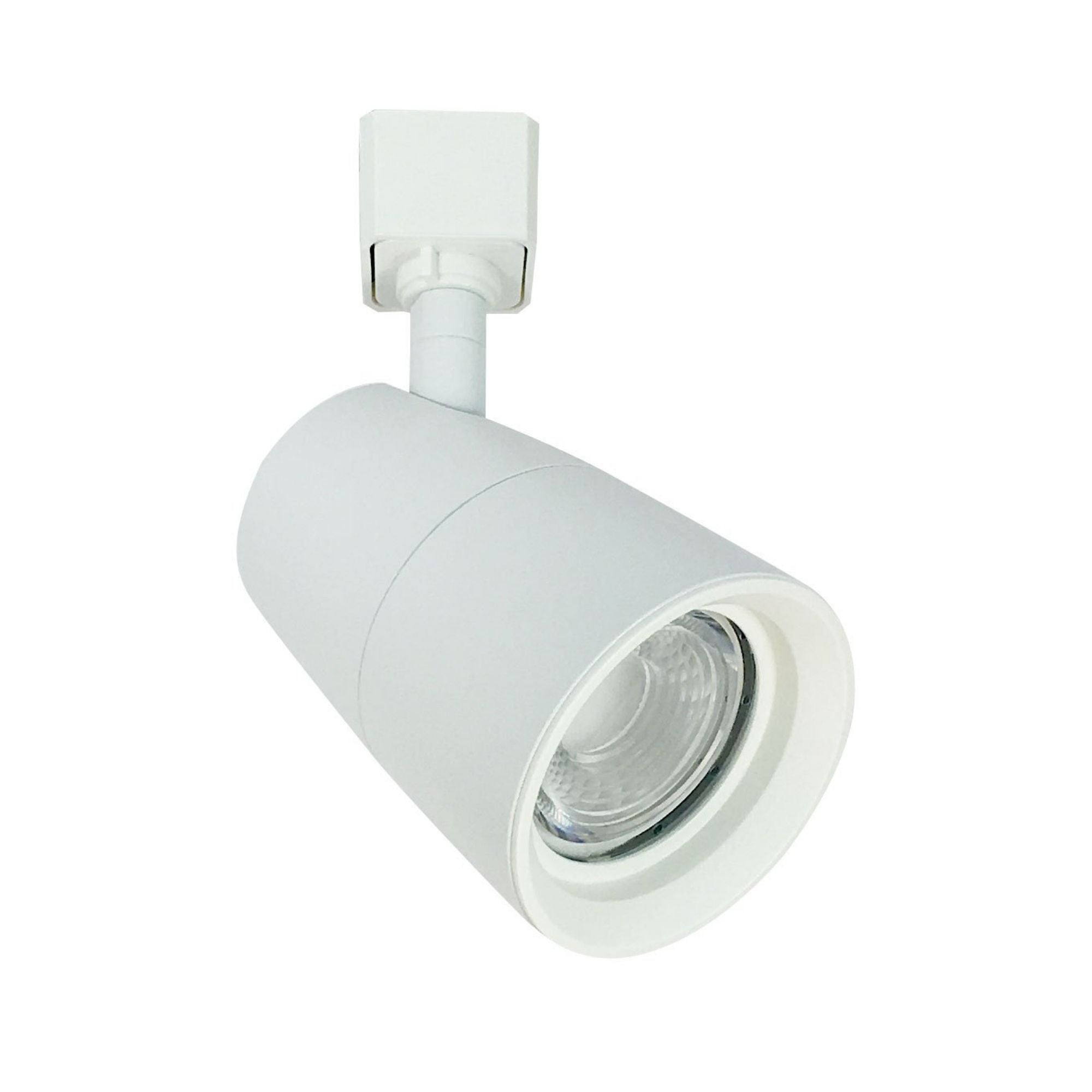

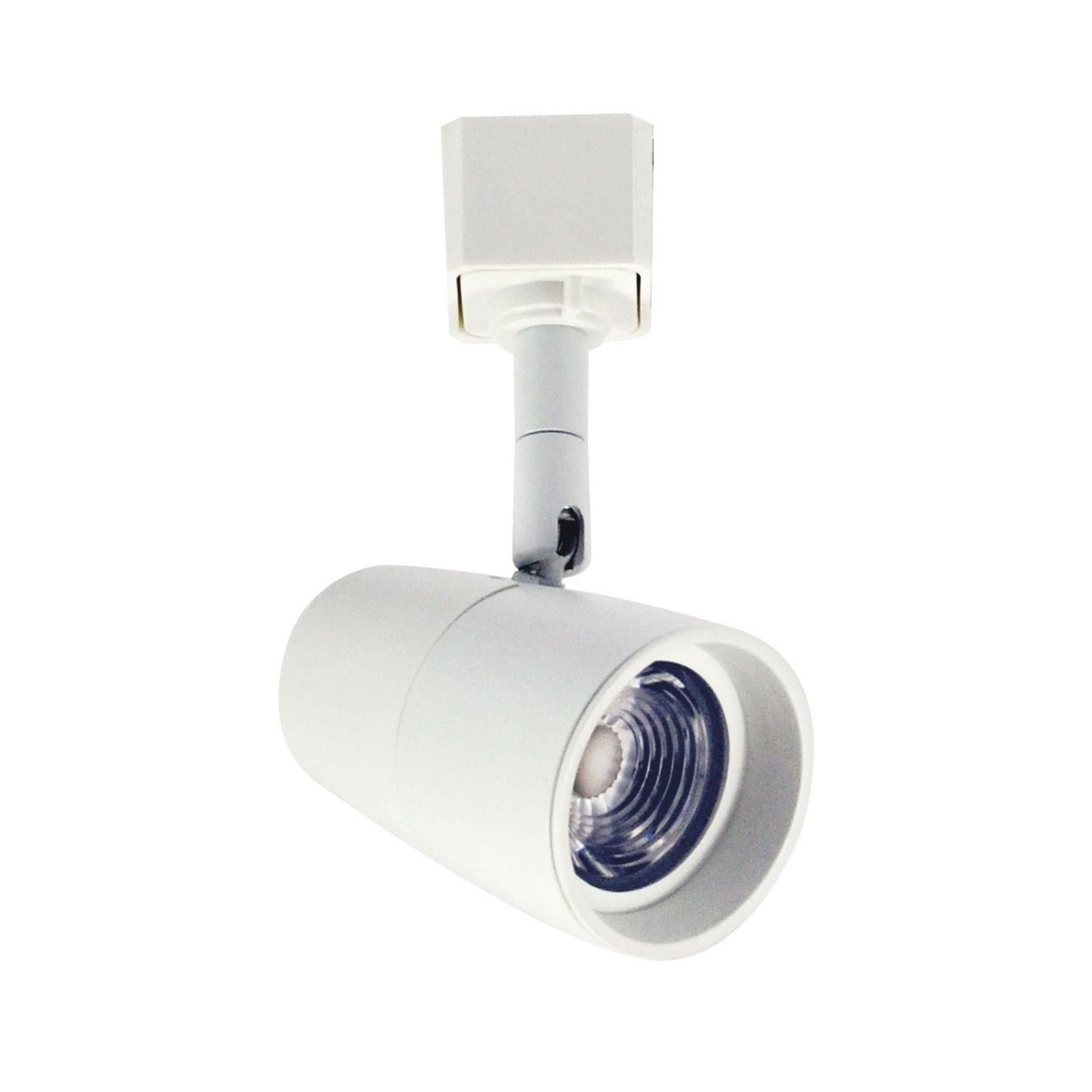

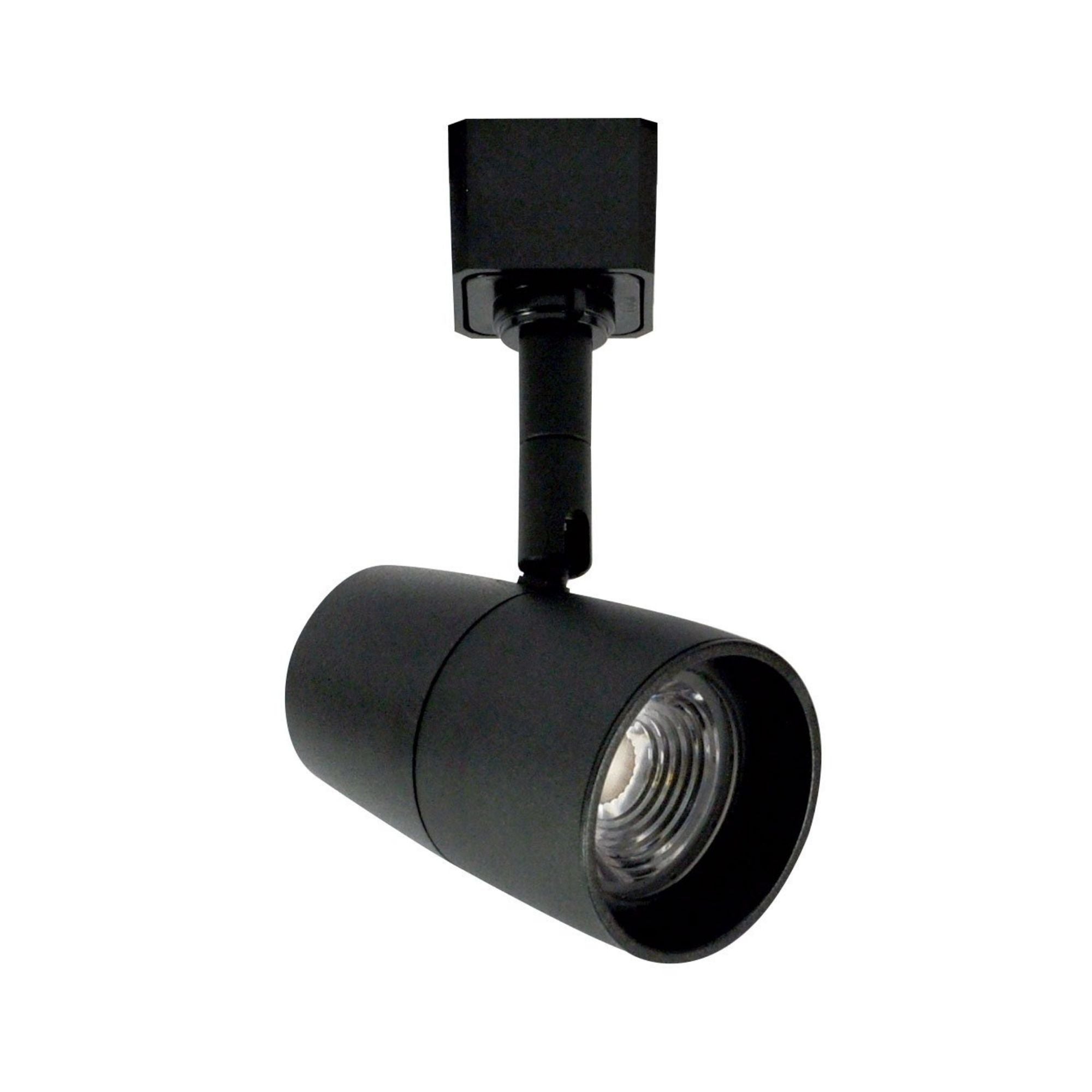

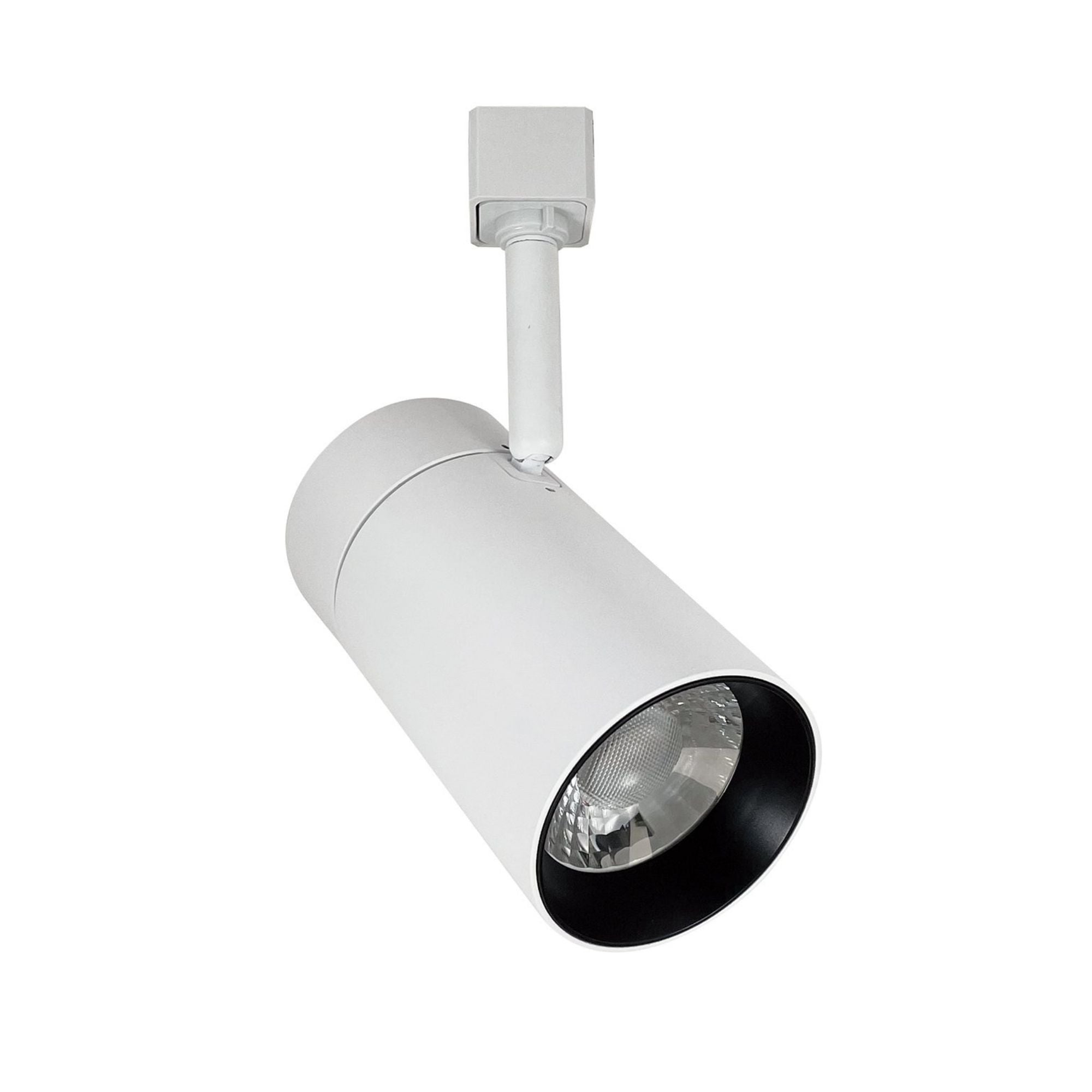

- Track Spot Lights: Directional track lighting heads rotate and tilt within their specified aiming ranges to highlight artwork, architectural details, or retail displays. Aiming changes the direction of light; it does not necessarily change beam width.
- Linear Track Heads: Elongated fixtures provide broader illumination along counters, aisles, or displays. The RAB Beam Linear design, for example, uses a 90-degree distribution rather than a concentrated spotlight beam.

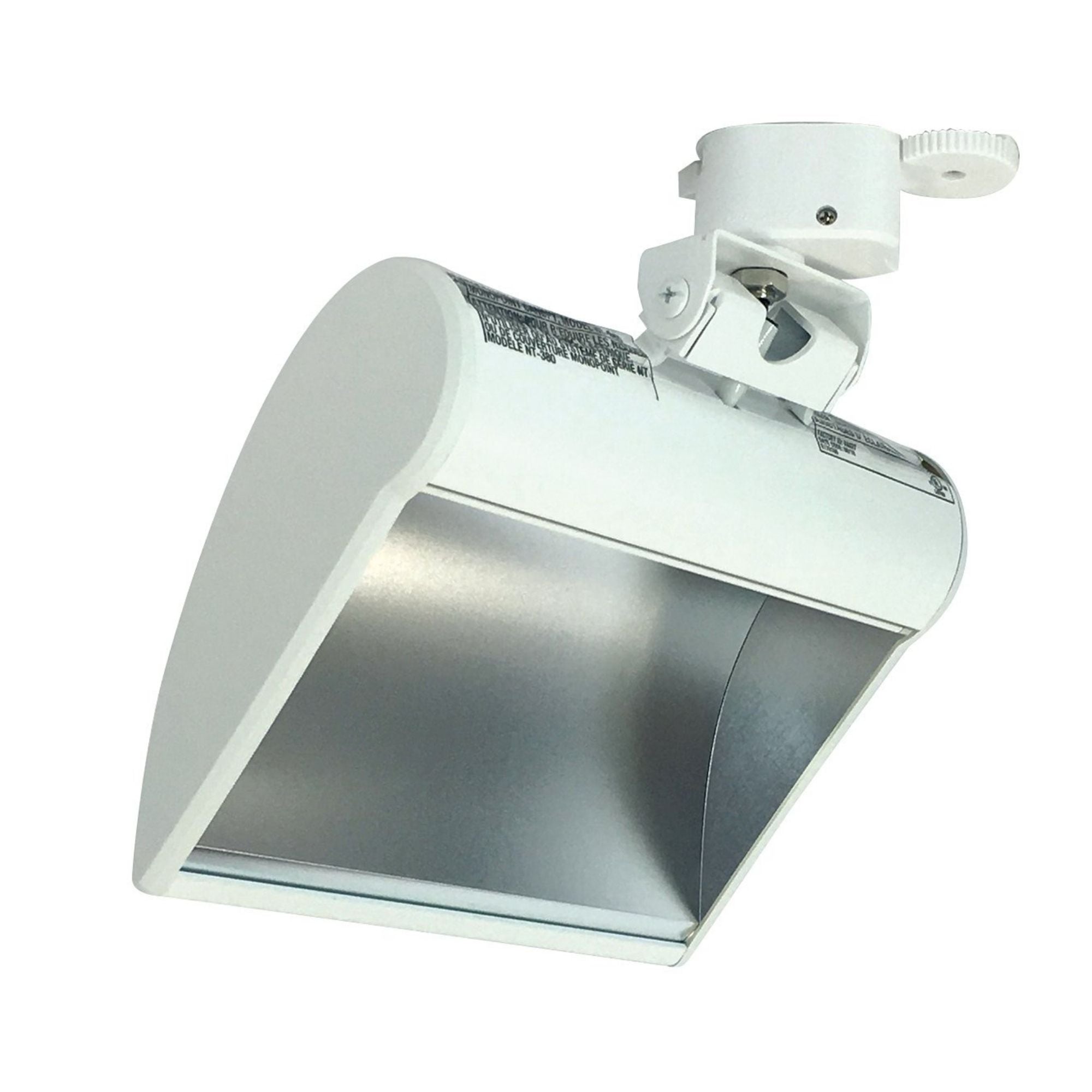

- Wall Wash Track Heads: Dedicated wall washers use optics intended to illuminate vertical surfaces evenly. Asymmetric designs require appropriate setback and spacing to achieve their intended distribution.
- Pendant Adapters: These are separate conversion components rather than lighting heads. An approved assembly may connect a suitable pendant to a compatible track, subject to its wiring, voltage, and support limits.
The Advantage of LED Track Heads
LED track heads combine light sources, optics, and drivers in compact fixture profiles. Their benefits depend on the model and the lamp or fixture being replaced:
- Energy Efficiency: LED track light heads can reduce power consumption compared with higher-wattage halogen or incandescent arrangements providing comparable useful illumination. Compare input wattage, delivered output, and beam distribution rather than assuming one savings percentage applies to every replacement.
- Longevity: Reviewed integrated-LED models specify rated lives of 30,000, 50,000, or 100,000 hours. These are model-specific ratings, not a guarantee of maintenance-free operation.
- Quality and Control: Fixed and selectable color temperatures, high-CRI options, and compatible dimming support different applications. Some heads offer adjustable optics or a separate dim-to-warm mode; these features are not universal.

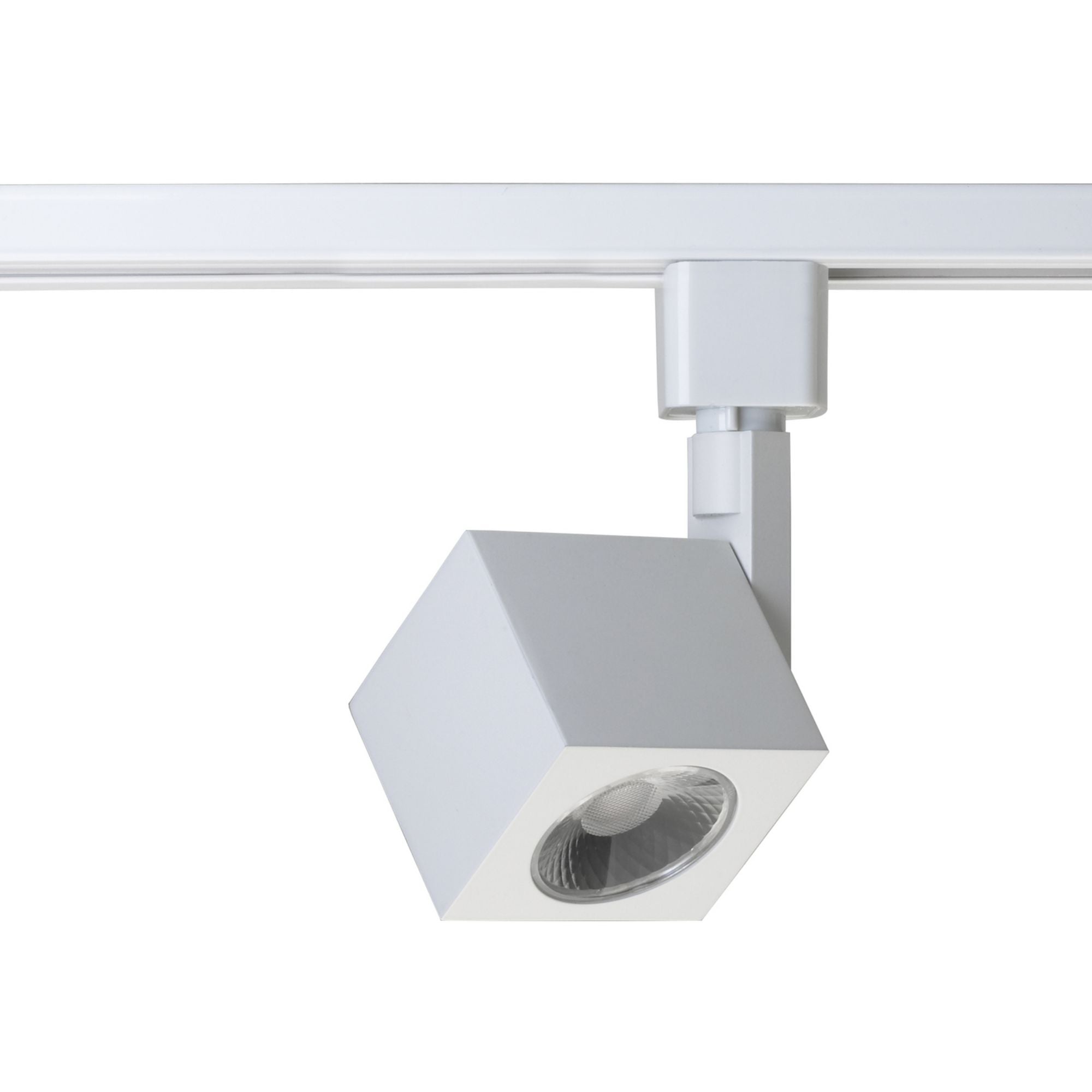

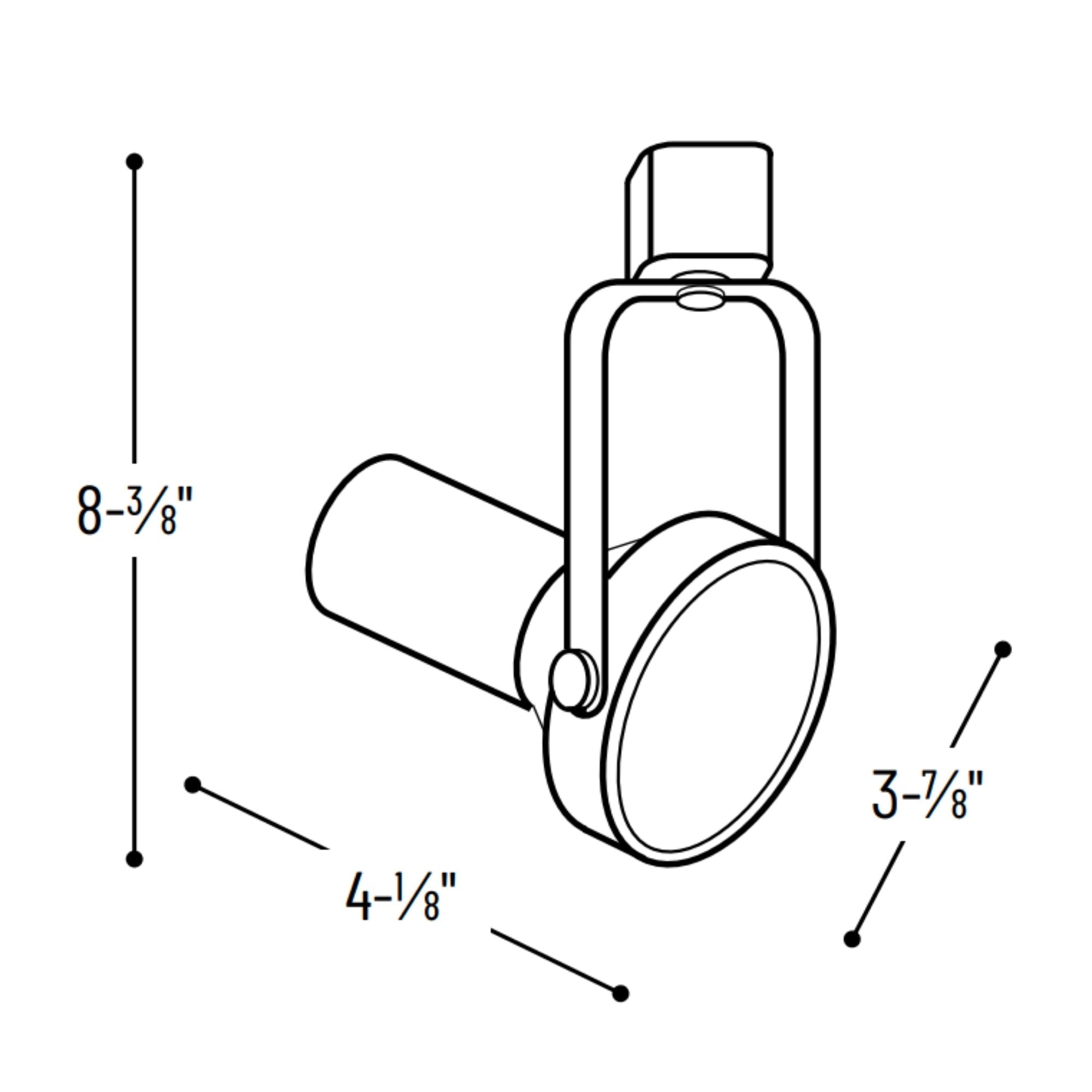

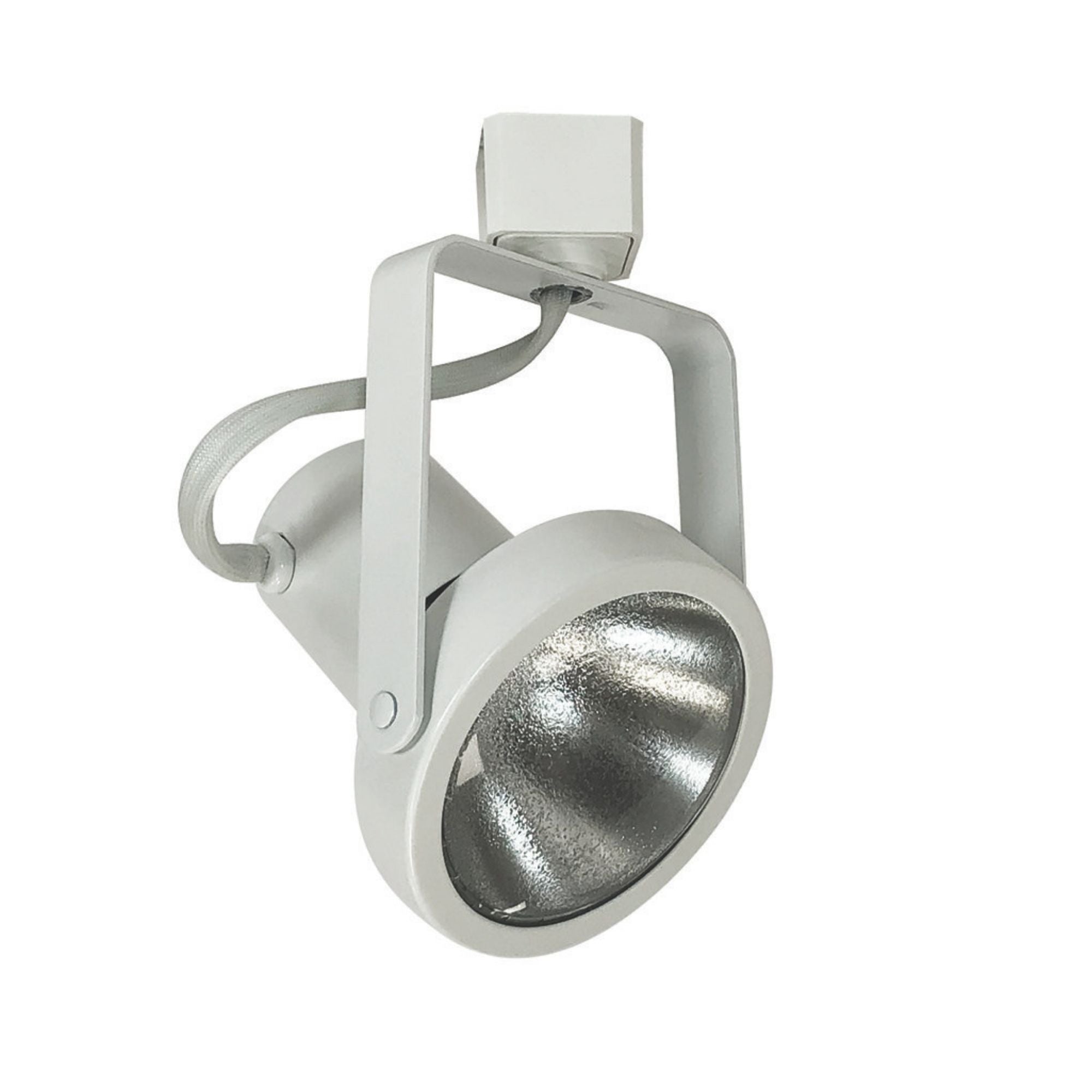

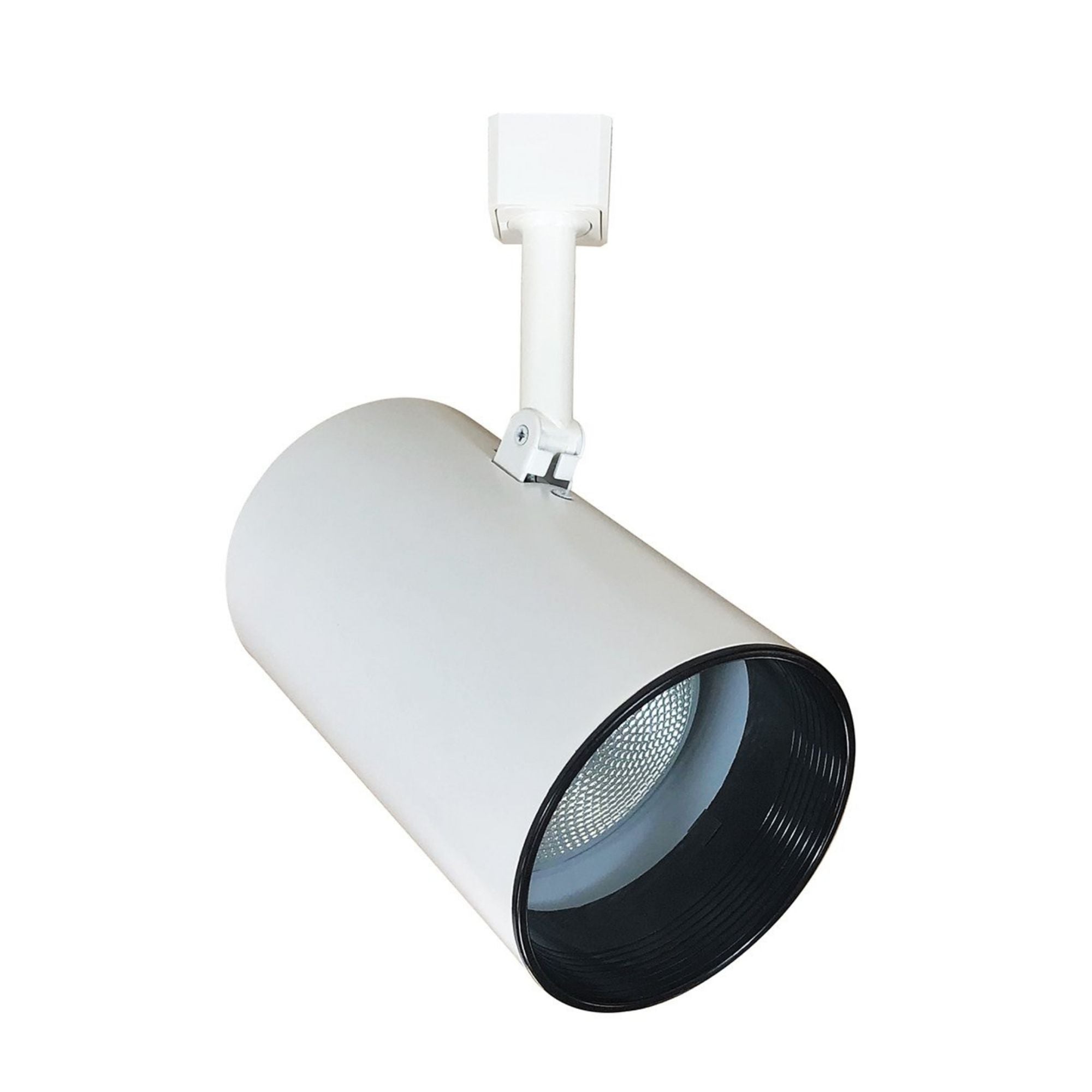

Construction includes die-cast aluminum housings, metal assemblies, and optical lenses selected for each design. Cylindrical, square, gimbal-ring, and linear forms provide different visual profiles and light distributions.
Integrated LEDs and Replaceable Lamps
Integrated-LED heads include their light source and do not require a separate bulb. Replaceable-lamp designs instead accept specified lamps, such as compatible PAR30 or PAR38 bulbs, within the socket's maximum rating.
A maximum lamp wattage is not the head's fixed power consumption. In a lamp-based fixture, the installed bulb determines much of the output, color quality, beam spread, and dimming behavior.
Track Lighting Applications and Benefits

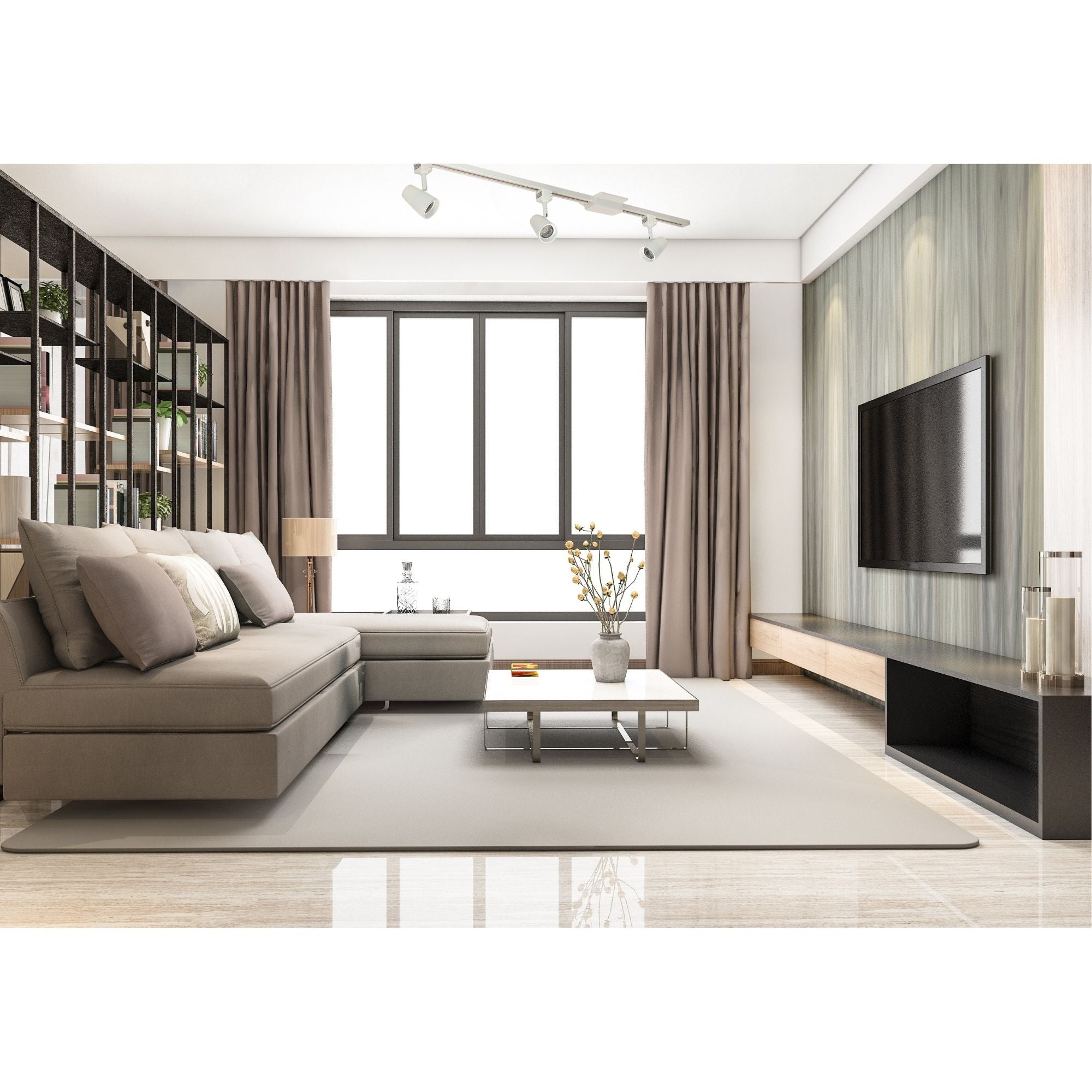

A track lighting head can serve several purposes when its output and optics suit the layout:

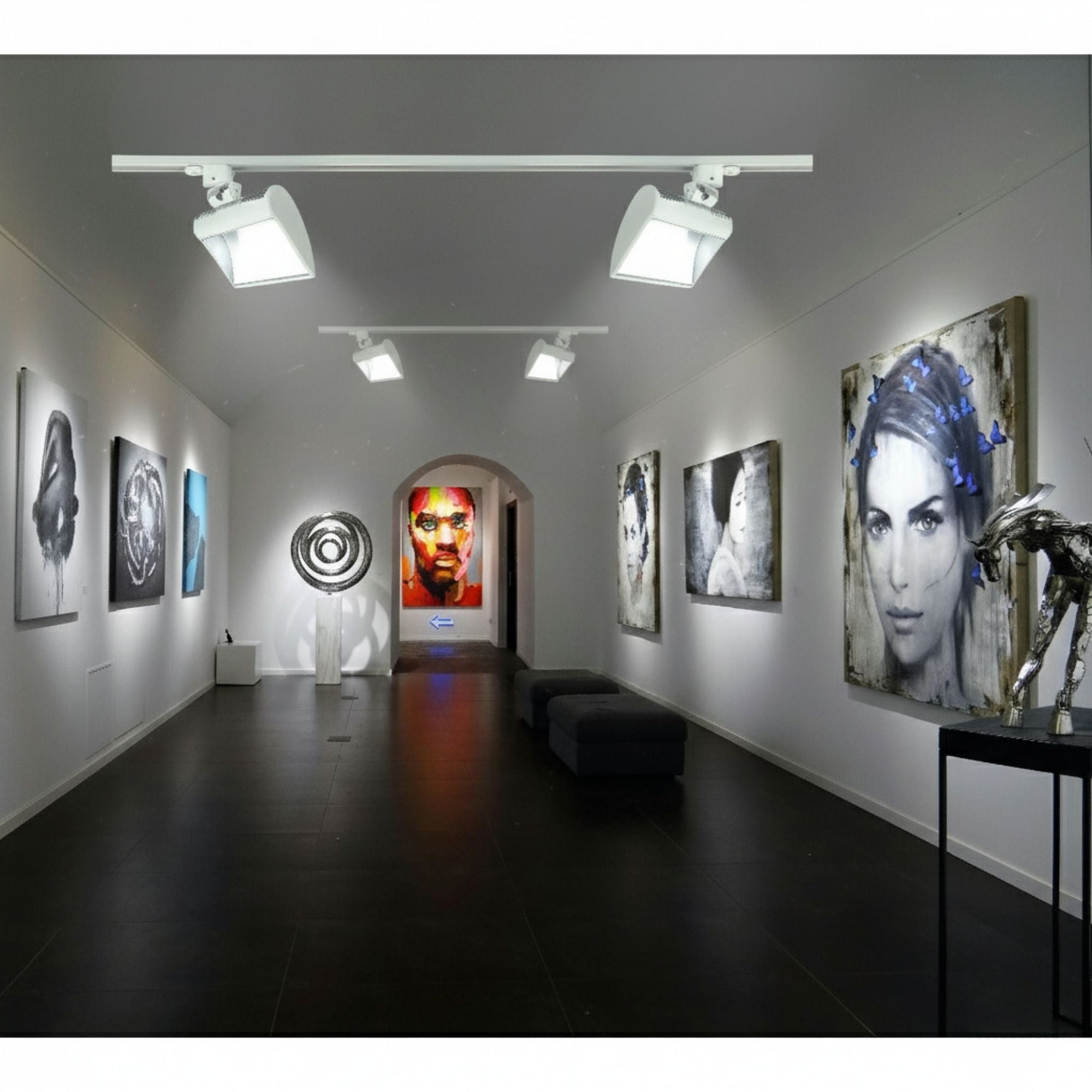

- Accent Lighting: Narrow-beam track spot lights concentrate attention on artwork, collections, and architectural details.

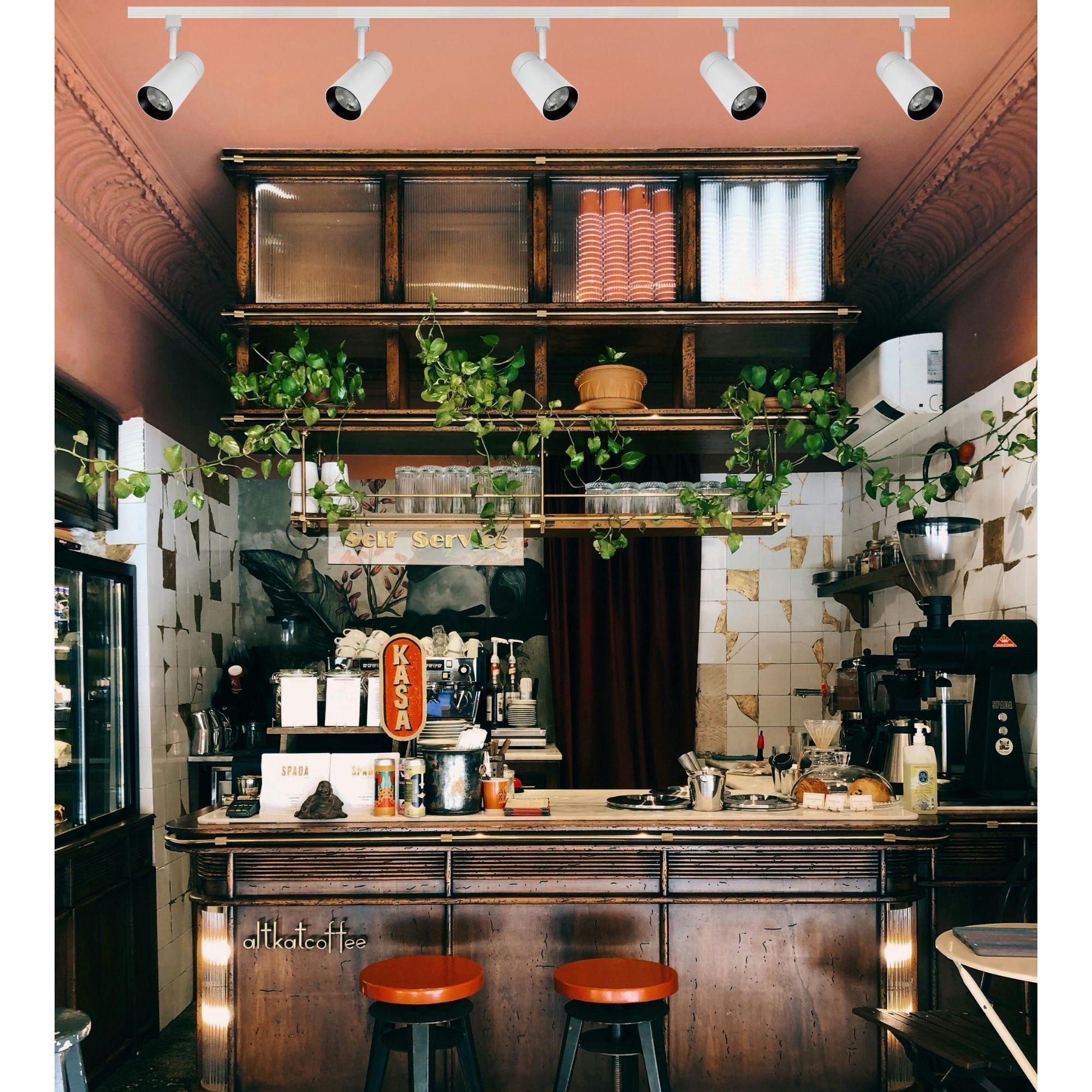

- Task Lighting: Adjustable heads can direct illumination onto counters, workstations, or craft areas. Mounting distance, beam coverage, and glare affect how well the light serves the task.

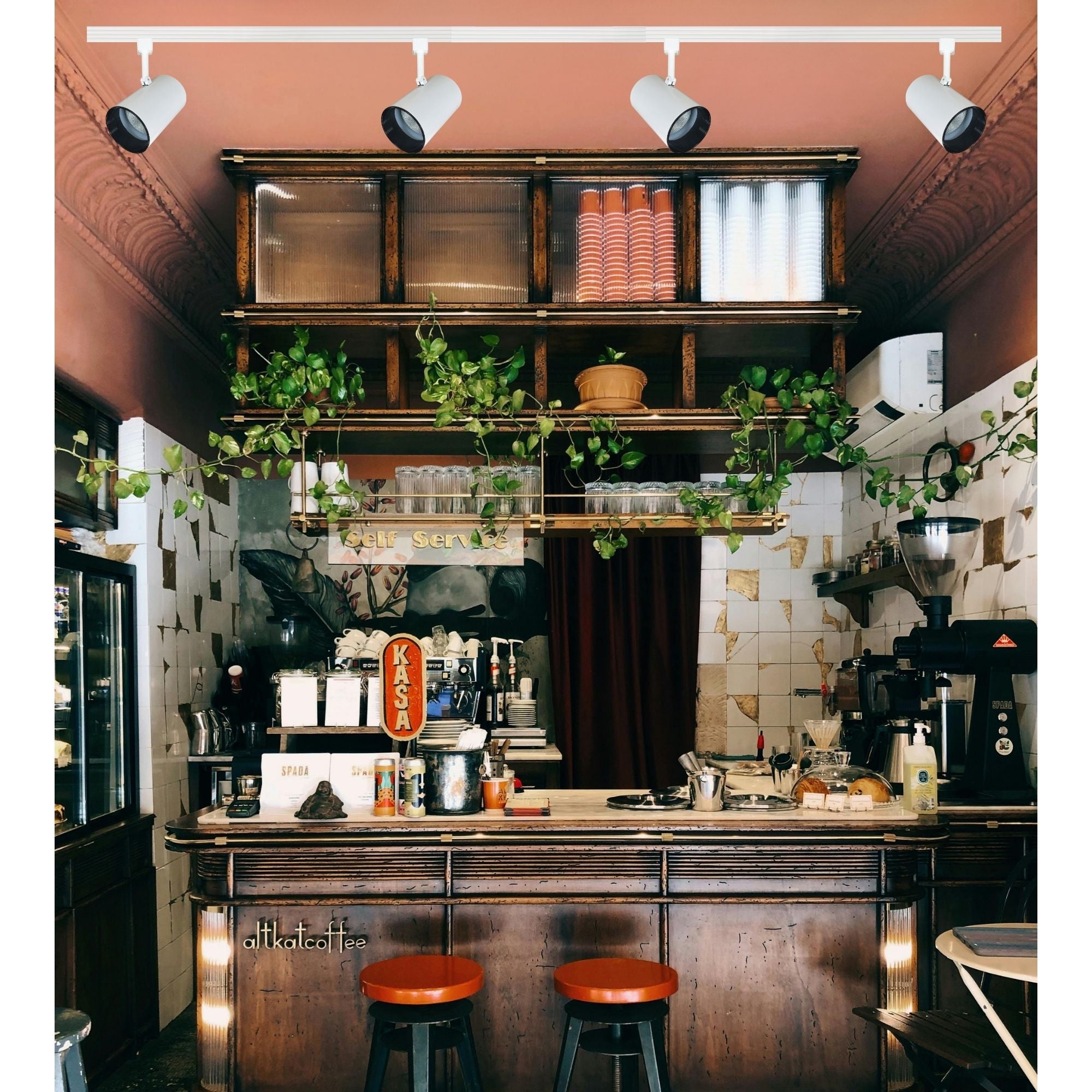

- Retail Displays: Compatible LED track heads can be aimed toward changing merchandise, while linear fixtures and wall washers support broader display illumination.
Adding or repositioning a track light head must follow the rail and fixture instructions, with power disconnected before handling connections. The complete layout must remain within the track's electrical and mechanical limits.
Dimming and Layout Planning
Match the fixture's driver or lamp to the specified dimming method and compatible control. Reviewed models include different phase-cut and ELV requirements, so one dimmer should not be assumed suitable for every head.
Track lighting heads work best as part of a coordinated arrangement of compatible rails, fixtures, and power components. Beam spread, aiming, color temperature, and mounting position determine the final lighting effect.
