Satco Nuvo TH484 Square Dual 24W H-Type LED Track Head 3000K 24 Degree Black
Out of stock
About this item
About this item
- Focused Dual Lighting: Fixed 24° beam, 2040 lumens total from 24W.
- Warm Color Quality: Fixed 3000K warm white, 90+ CRI.
- Adjustable Square Design: Dual square heads, black aluminum housing, PMMA optics.
- Brightness Control: Compatible 120V phase-cut TRIAC dimmers, 60Hz operation.
- Indoor H-Type Lighting: Single-circuit H-track compatibility, dry rated, 30,000-hour rated life.
Description
Description

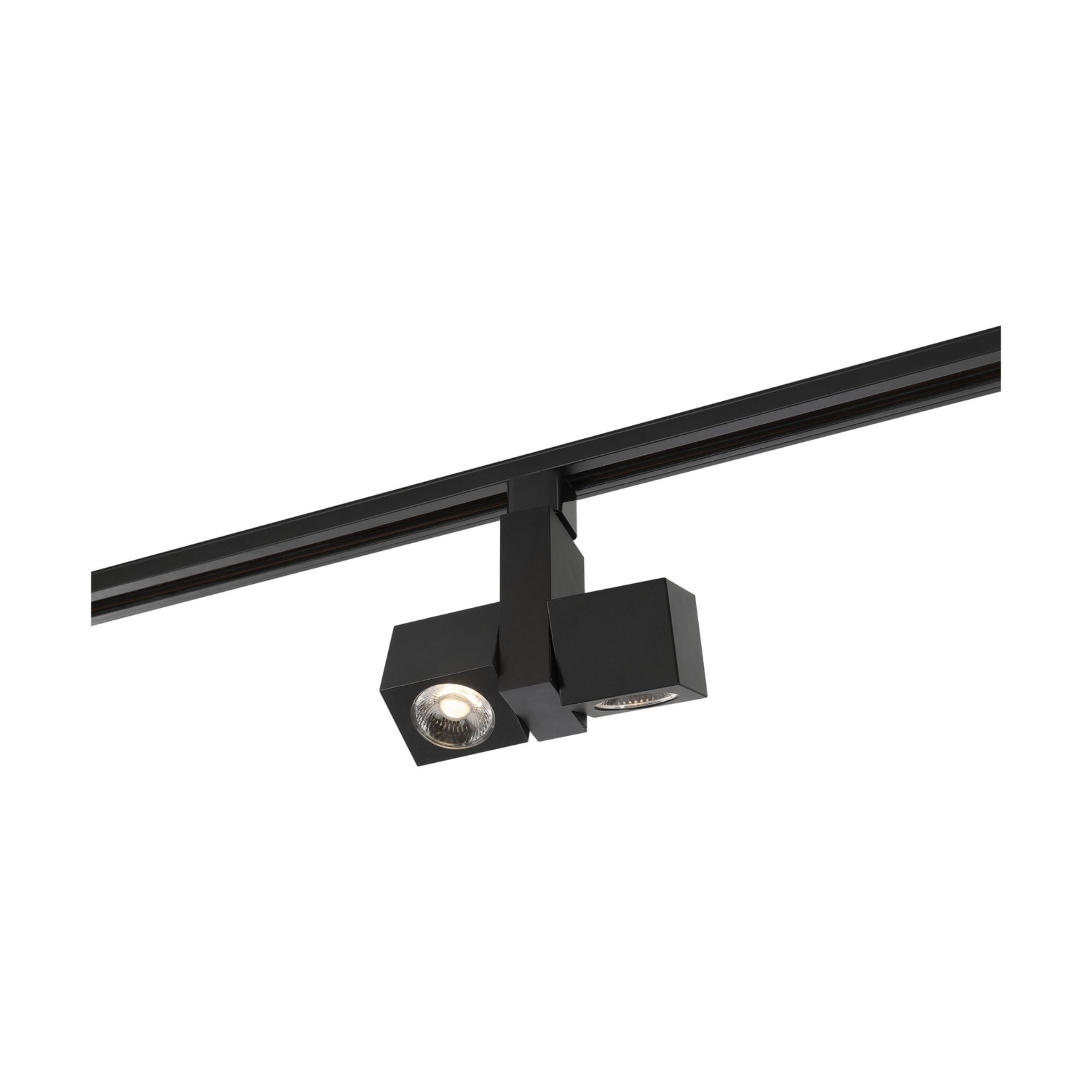

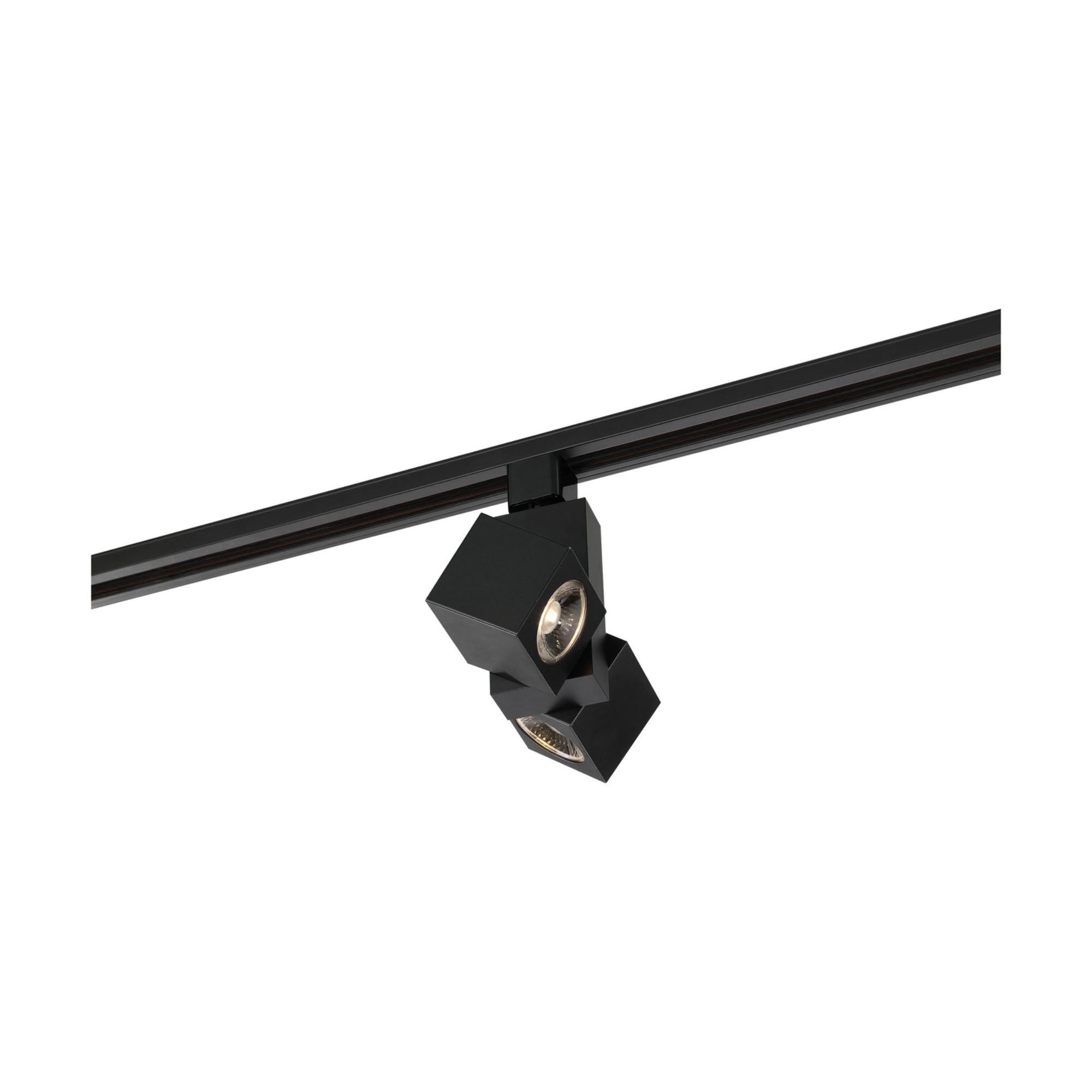

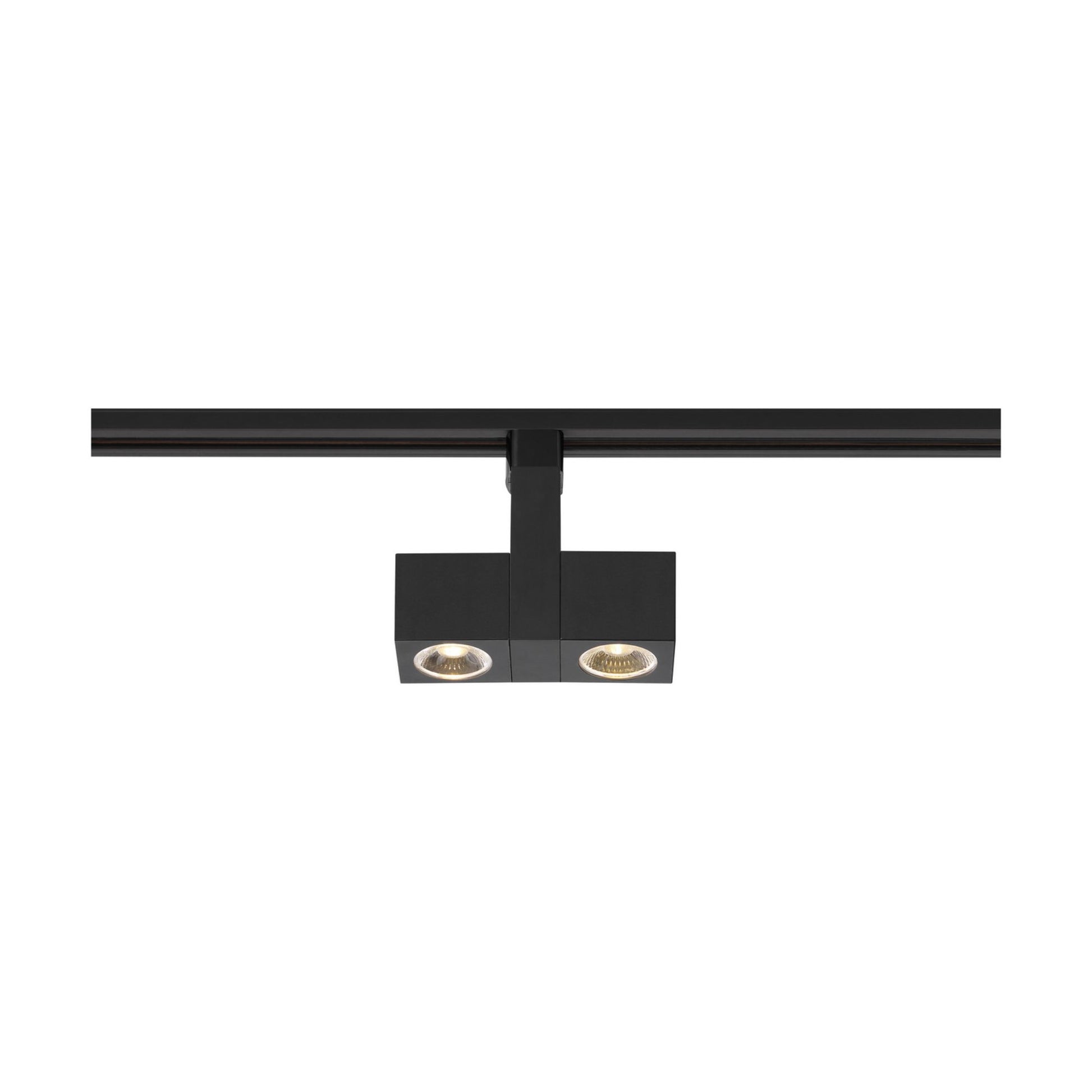

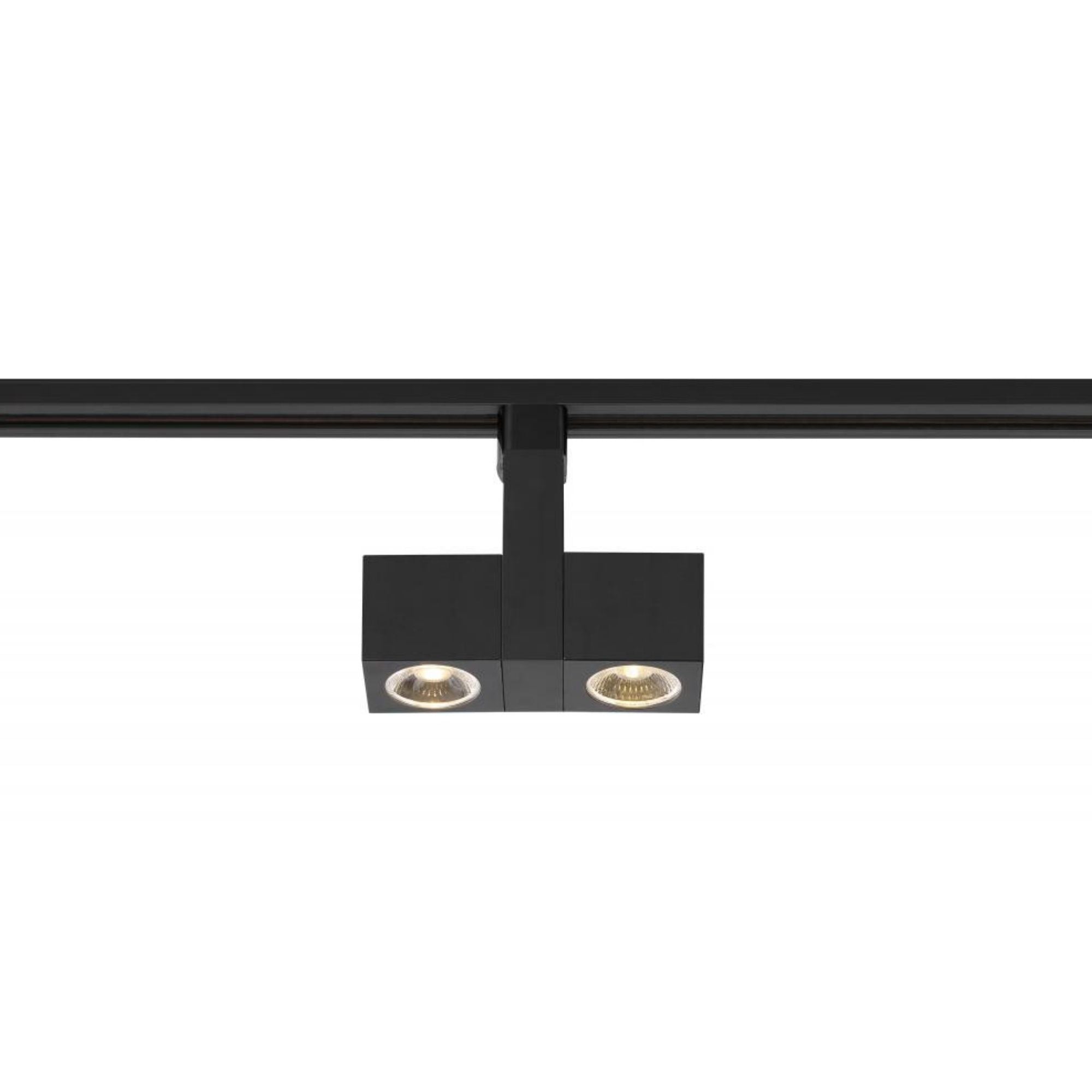

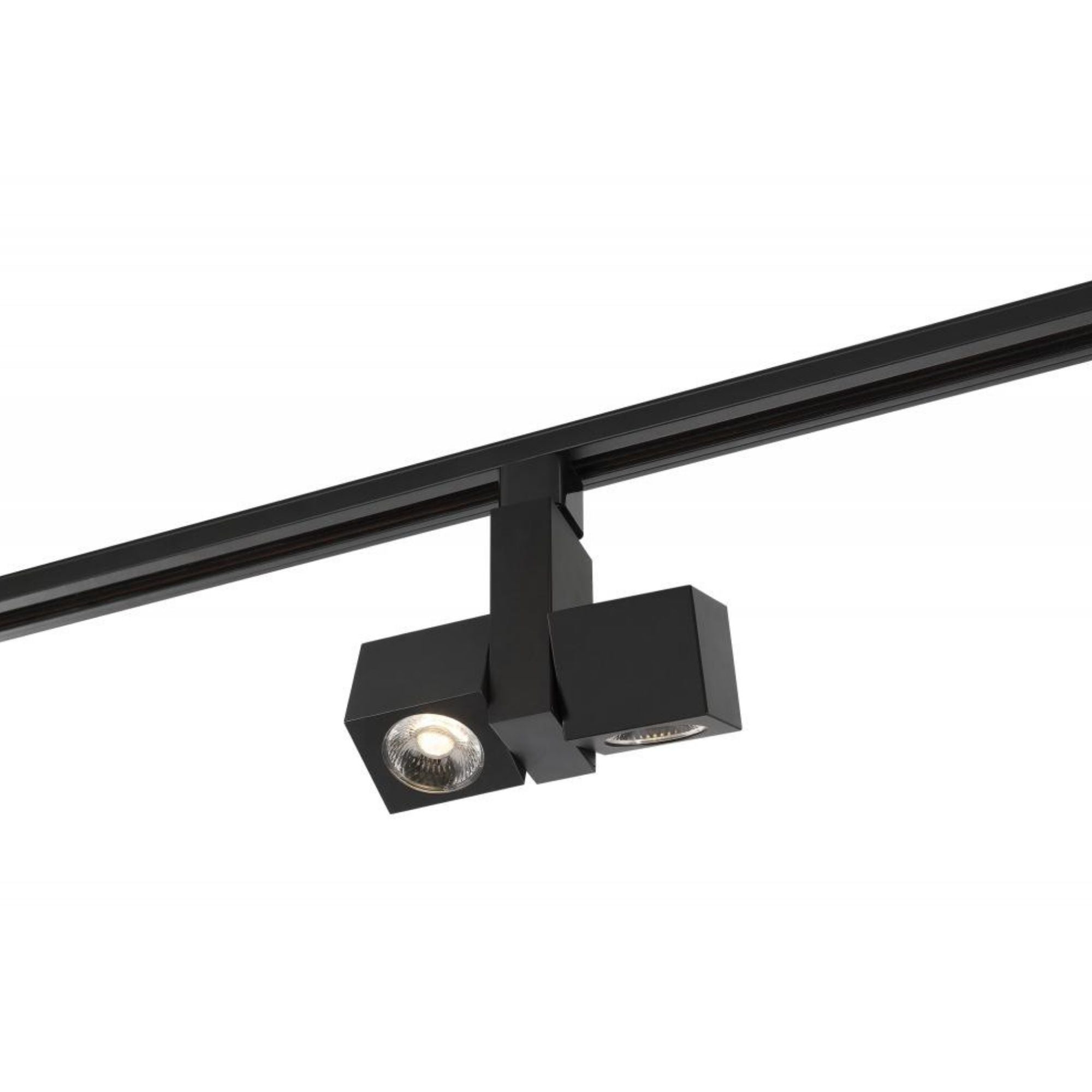

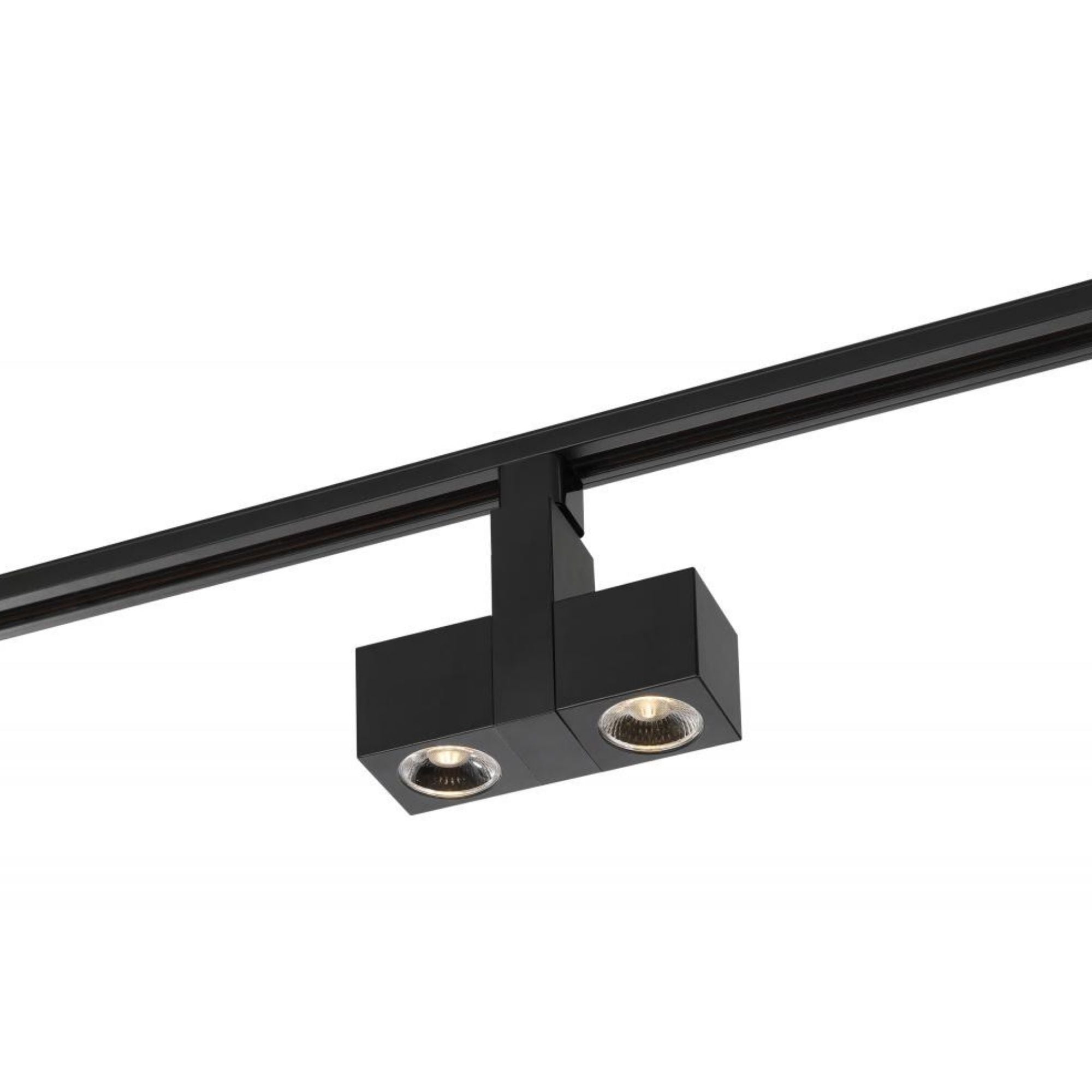

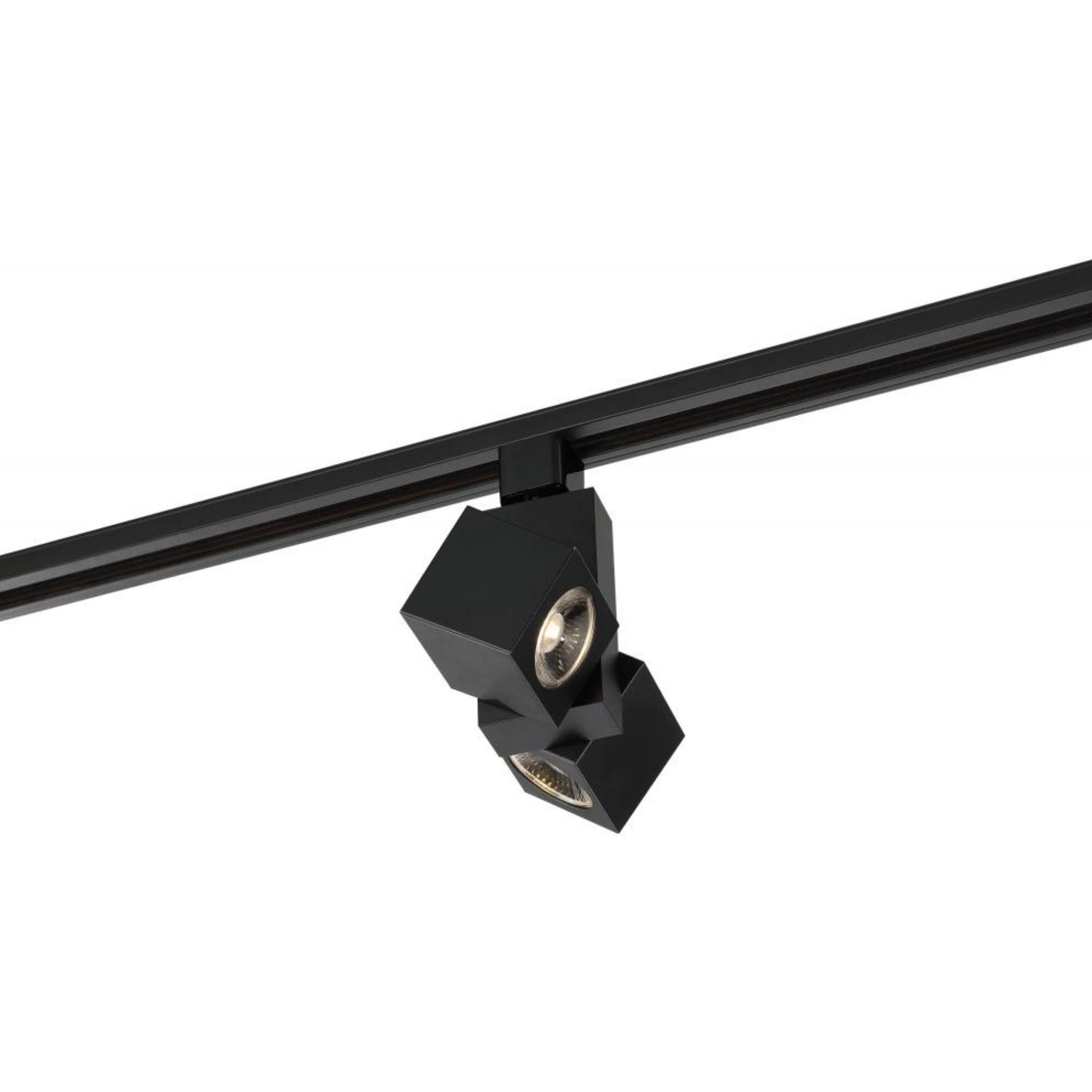

Satco Nuvo TH484 Square Dual LED Track Head
The Satco Nuvo TH484 pairs a black Square Dual design with fixed 24° beam optics for artwork and merchandise accents. Its 24W integrated LED delivers 2040 lumens total of 3000K warm white light with 90+ CRI. Adjustable square heads let you direct the light toward display details while maintaining the optical beam spread.
Key Features
- Track System: H-Type, single-circuit H-track compatibility.
- Design: Square Dual configuration, black finish.
- Light Source: Fixed 24W integrated LED.
- Light Output: 2040 lumens total.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam & Aiming: Fixed 24° spread, adjustable heads.
- Construction: Aluminum housing, PMMA lens.
- Electrical: 120V, 60Hz, 0.200A, power factor greater than 0.9.
- Dimming: Compatible 120V phase-cut TRIAC dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use, operating temperature 1.4°F to 113°F.
Construction & Design
The black aluminum housing combines two adjustable square heads with PMMA optics. Its angular form provides a clean architectural accent, while head adjustment helps aim illumination at artwork, merchandise and interior focal points.
Light Output & Performance
The Satco Nuvo TH484 delivers 2040 lumens total at 24W, with 3000K warm white light and 90+ CRI for detailed color rendering. The fixed 24° beam concentrates light on focal points. Wattage and color temperature are fixed, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH484 operates at 120V, 60Hz, draws 0.200A and has a power factor greater than 0.9. Its H-Type adapter supports single-circuit H-track lighting runs. Brightness is adjustable with compatible 120V phase-cut TRIAC dimmers. Install in dry indoor locations within the operating temperature range of 1.4°F to 113°F (-17°C to 45°C). Track rails, feeds and connectors are sold separately.
Compatible Accessories
Build your Square Dual lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Choose rail lengths, a power feed and connectors to suit your installation.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

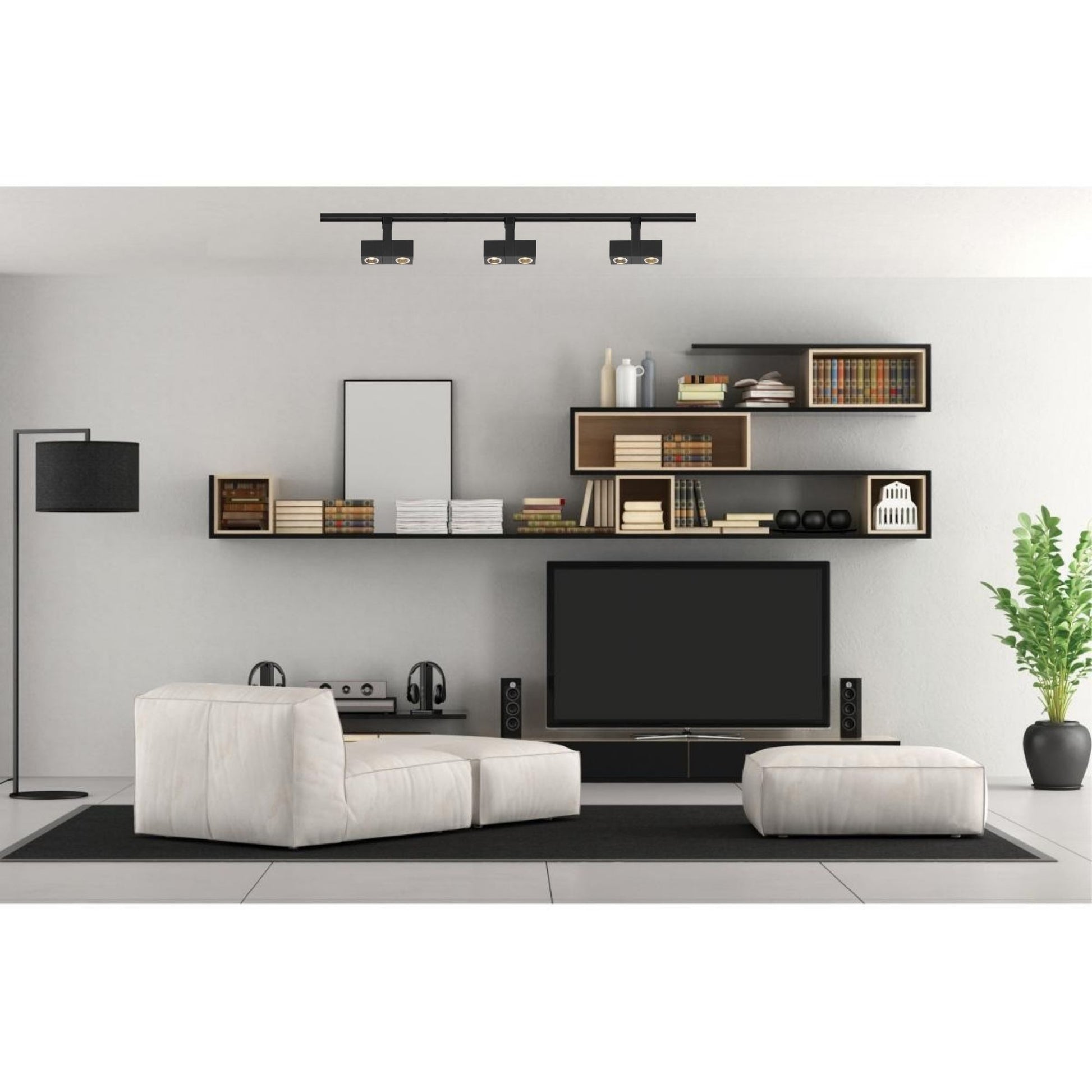

Typical Applications
- Retail merchandise displays.
- Gallery and artwork accents.
- Residential interior focal points.
- Showroom architectural accents.
What's Included
- Satco Nuvo TH484 black Square Dual track head with integrated LED and H-Type adapter.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
