Halo Track Lighting: H-Type Heads and System Components
Halo track lighting uses the H-Type connection standard to combine compatible fixtures with a coordinated rail and power-feed arrangement. Commonly described as a 3-wire track lighting configuration, this connection is used in single-circuit systems for directional task and accent illumination. Confirm the exact rail and fixture requirements rather than treating the H-Type designation as universal cross-brand approval.

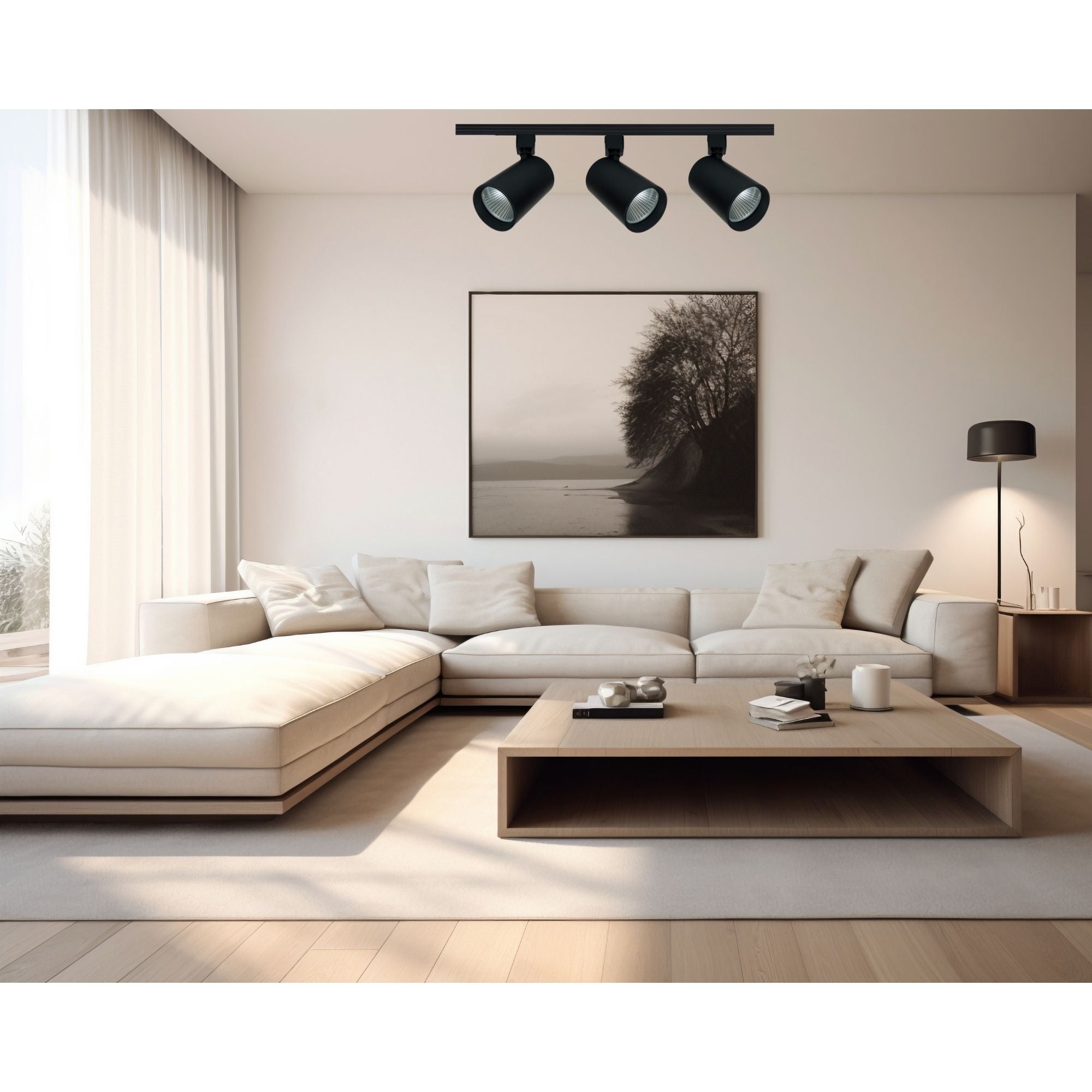

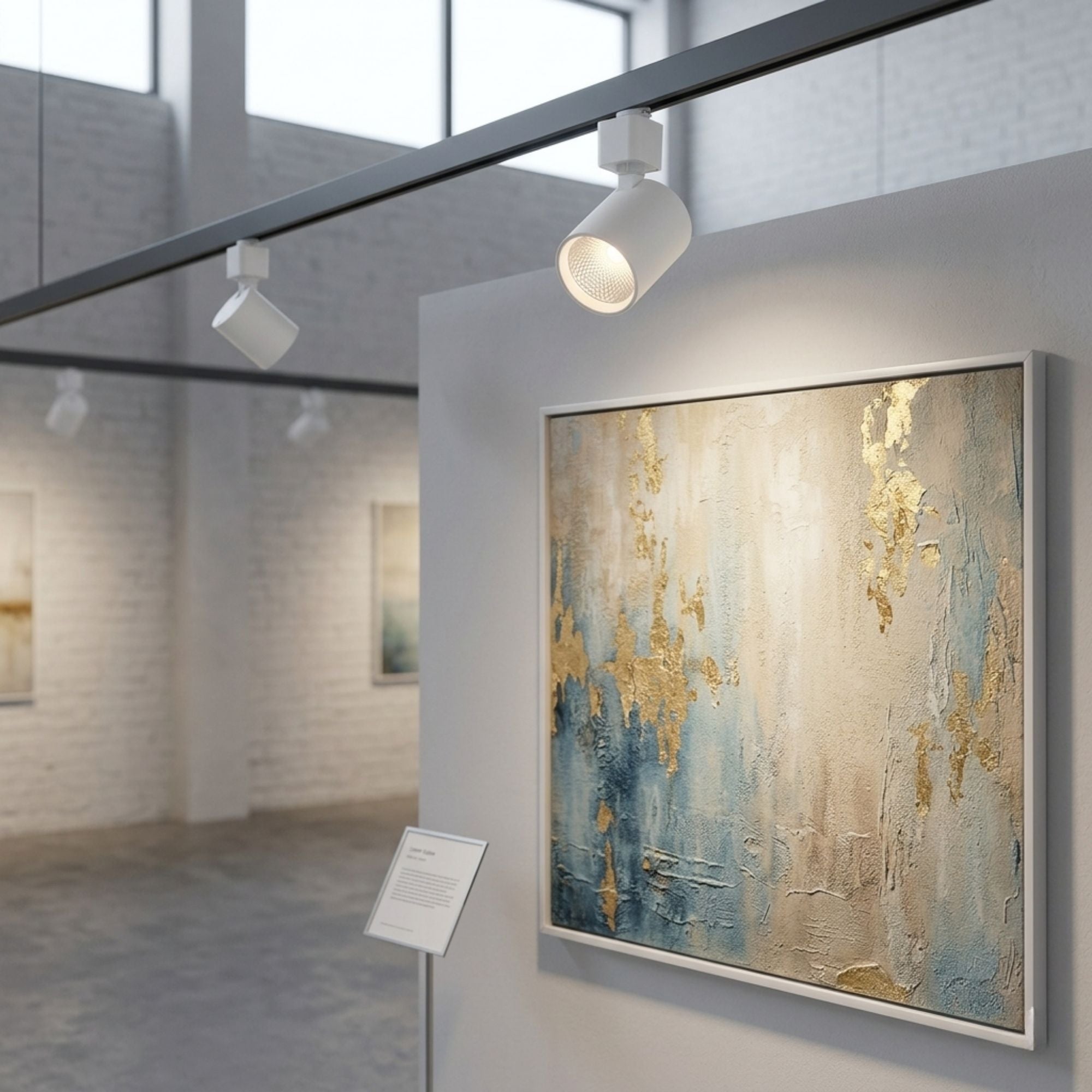

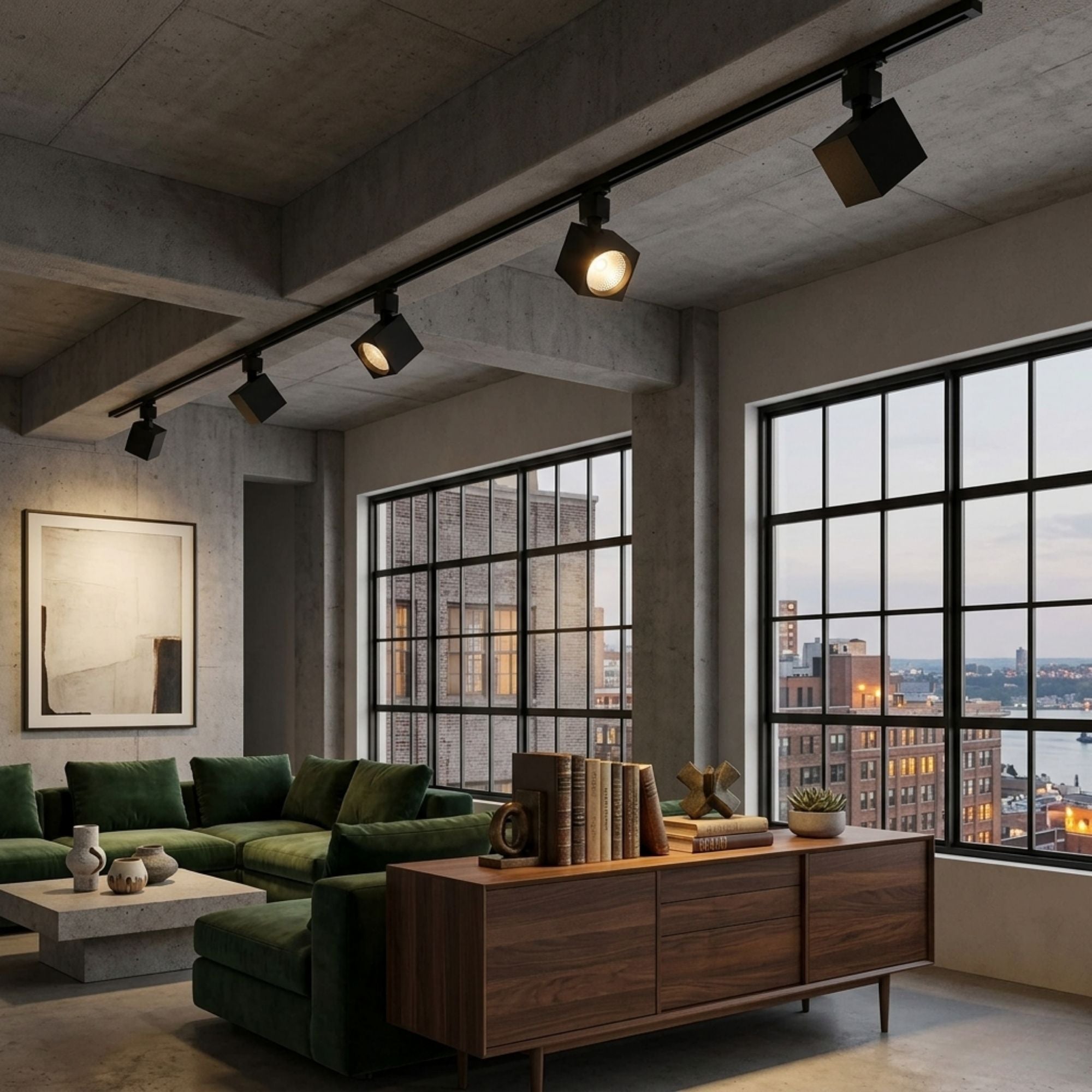

H track lighting supports adjustable illumination for artwork, merchandise, shelving, and living spaces. It forms one compatibility category within the wider range of track lighting systems.
Identifying and Utilizing H-Type Track Lighting
Identify H-Type track lighting using the manufacturer's rail label, model information, and adapter documentation. Contact count and appearance can help with identification, but neither replaces confirmation that the head is approved for the installed rail.
Compatible components work together to establish the layout:

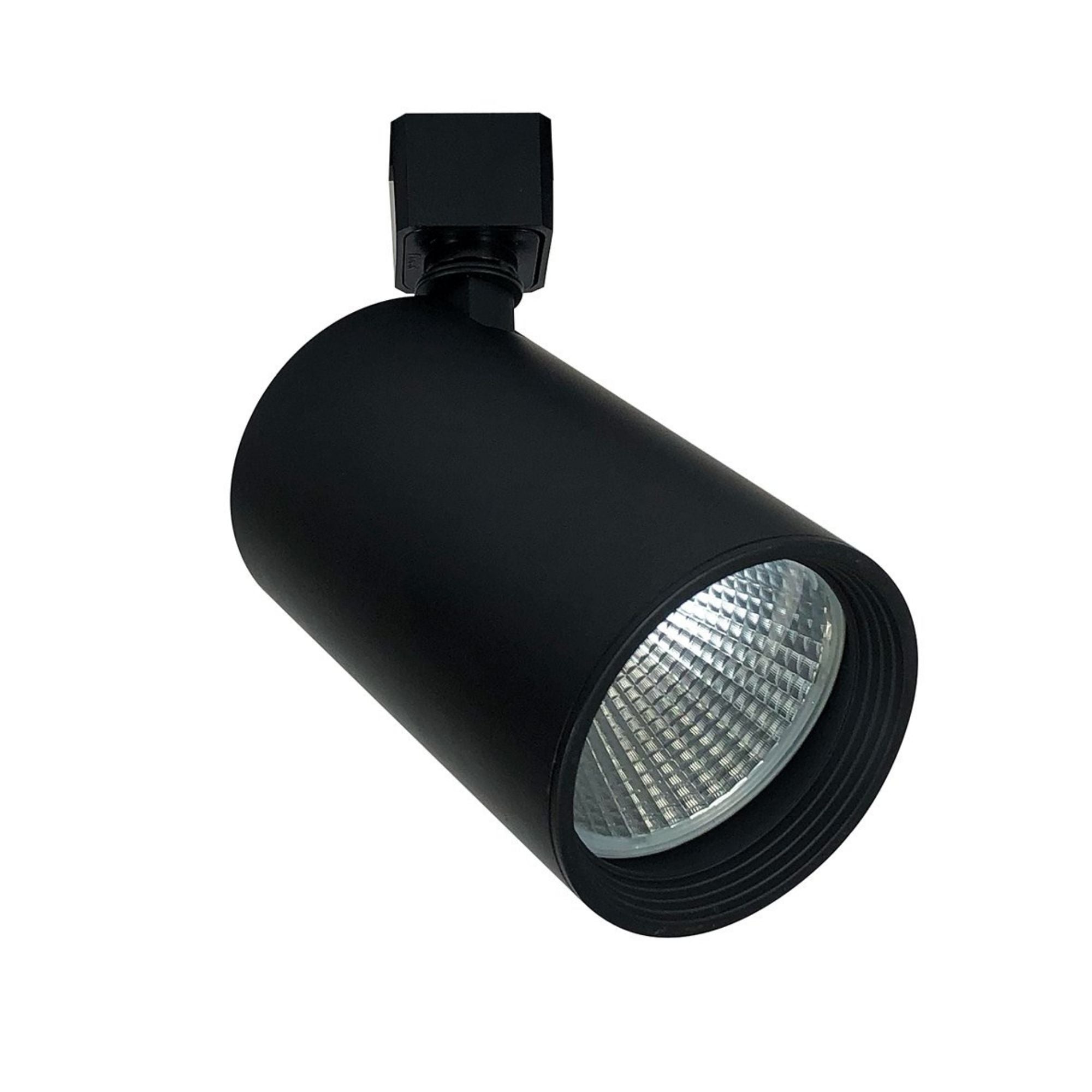

- H Track Lighting Heads: Adjustable spotlights, broader-beam fixtures, linear heads, and approved pendants provide different lighting effects. Compare track lighting heads while selecting the correct H-Type version.
- H-Track Rails: Rail length, finish, power-feed position, and approved mounting method determine how the system fits the space. Suspension or other mounting arrangements require the specified system hardware.
- Connectors and Accessories: Straight connectors, corners, T-connectors, and power feeds must match the rail system and circuit arrangement. Coordinate these parts before extending or changing a layout.
J-Type and L-Type fixtures are not direct substitutes for H-Type fixtures. Even among products described as H-Type, manufacturer-specific compatibility, listing, and warranty requirements remain important.
The Advantage of H Track Lighting Heads
H track lighting heads provide a choice of integrated-LED and replaceable-lamp designs. Cylindrical housings, open gimbal rings, decorative profiles, and linear fixtures support different visual styles and lighting distributions.

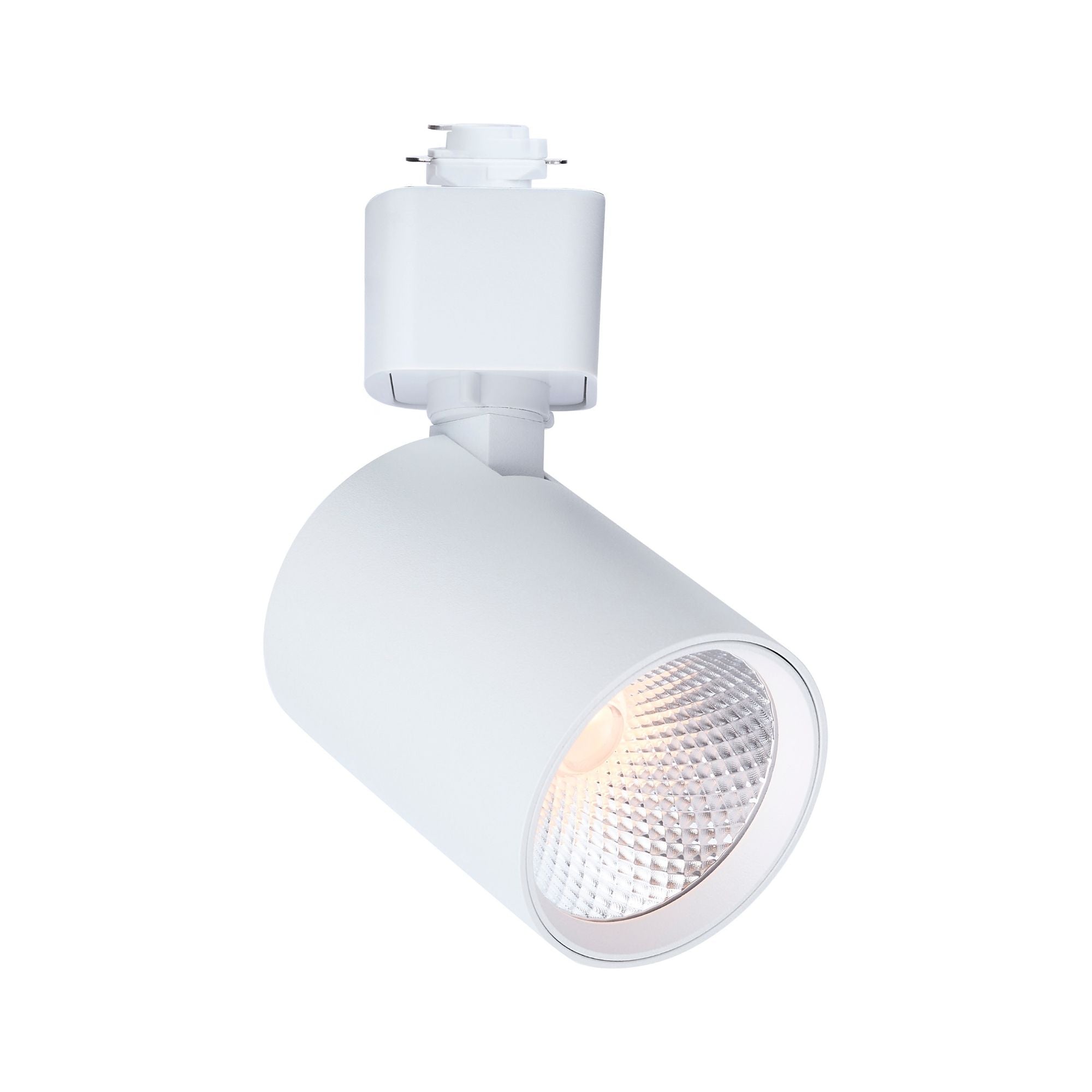

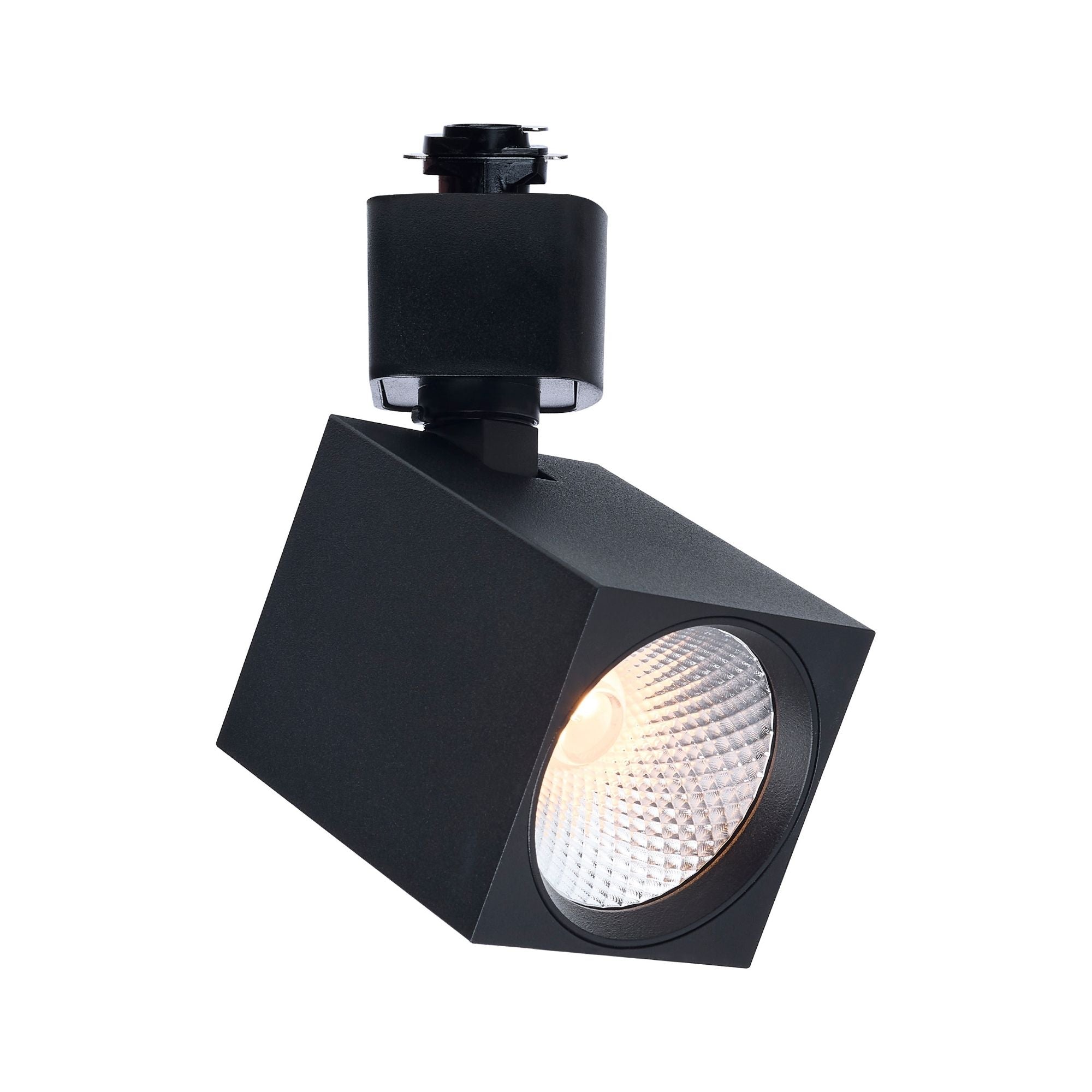

Integrated-LED examples include WAC Ocularc heads with selectable color temperature and interchangeable beam films, WAC Silo heads with continuously adjustable optics, and Satco Nuvo heads with fixed beam spreads. Nora linear heads provide a different distribution from a concentrated spotlight. Adjustable aiming changes the direction of the light; it does not mean every fixture has an adjustable beam angle.
Construction varies by model, including die-cast aluminum housings, aluminum-and-steel assemblies, and optical lenses or glare-control components. Compact profiles can reduce visual bulk while allowing individual heads to target displays or architectural features.
Replaceable-lamp heads allow the bulb to be changed independently of the fixture. Lamp shape, base, maximum wattage, beam spread, and dimming capability must suit the specified head. A socket's maximum wattage is not its fixed operating consumption.
LED Performance and Lighting Controls
Integrated-LED H type track lighting can provide useful task and accent illumination at lower input power than higher-wattage lamp arrangements with comparable performance. Reviewed fixtures include 90+ CRI options and model-specific rated lives of 30,000, 50,000, and 100,000 hours; these are not universal ratings for every H-Type fixture.
Fixed color temperature, selectable CCT, and dim-to-warm operation are distinct features. Selectable white-light settings do not automatically provide app control or wireless operation. Dimming depends on the driver or installed lamp, with reviewed fixtures specifying different ELV, TRIAC, and phase-cut requirements.
Compare delivered output, beam angle, mounting distance, and glare control when planning artwork, counter, or merchandise illumination. A narrow accent beam and a broad linear distribution serve different purposes even when both use an H-Type connection.
Why Choose an H-Type System?
A coordinated H track lighting layout allows compatible heads to be aimed and positioned for changing display or task needs. Approved connectors and accessories can support future layout changes within the rail's electrical and mechanical limits.
Packaged track lighting kits offer an alternative to selecting every starting component separately. Confirm that the chosen kit uses the required H-Type arrangement, because the broader kits category also includes other fixture constructions.
For suspended focal lighting, compare track lighting pendants with approved H-Type mounts. Where a single fixture is needed without a continuous rail, monopoint lighting provides a separate mounting approach that requires its own compatibility checks.
Halo track lighting provides a coordinated foundation for directional illumination. Matching the rail, heads, power feed, controls, and approved accessories preserves the system's intended operation while keeping task and accent lighting adaptable.
