Satco Nuvo TH494 Piston 12W H-Type LED Track Head 3000K 24 Degree Black
Out of stock
About this item
About this item
- Focused Accent Light: Fixed 24° beam, 1020 lumens from 12W.
- Warm Color Quality: Fixed 3000K warm white, 90+ CRI.
- Lightweight Piston Design: Black aluminum housing with PMMA lens.
- Brightness Control: Compatible 120V phase-cut TRIAC dimmers, 60Hz operation.
- Indoor H-Type Lighting: Single-circuit H-track compatibility, dry rated, 30,000-hour rated life.
Description
Description

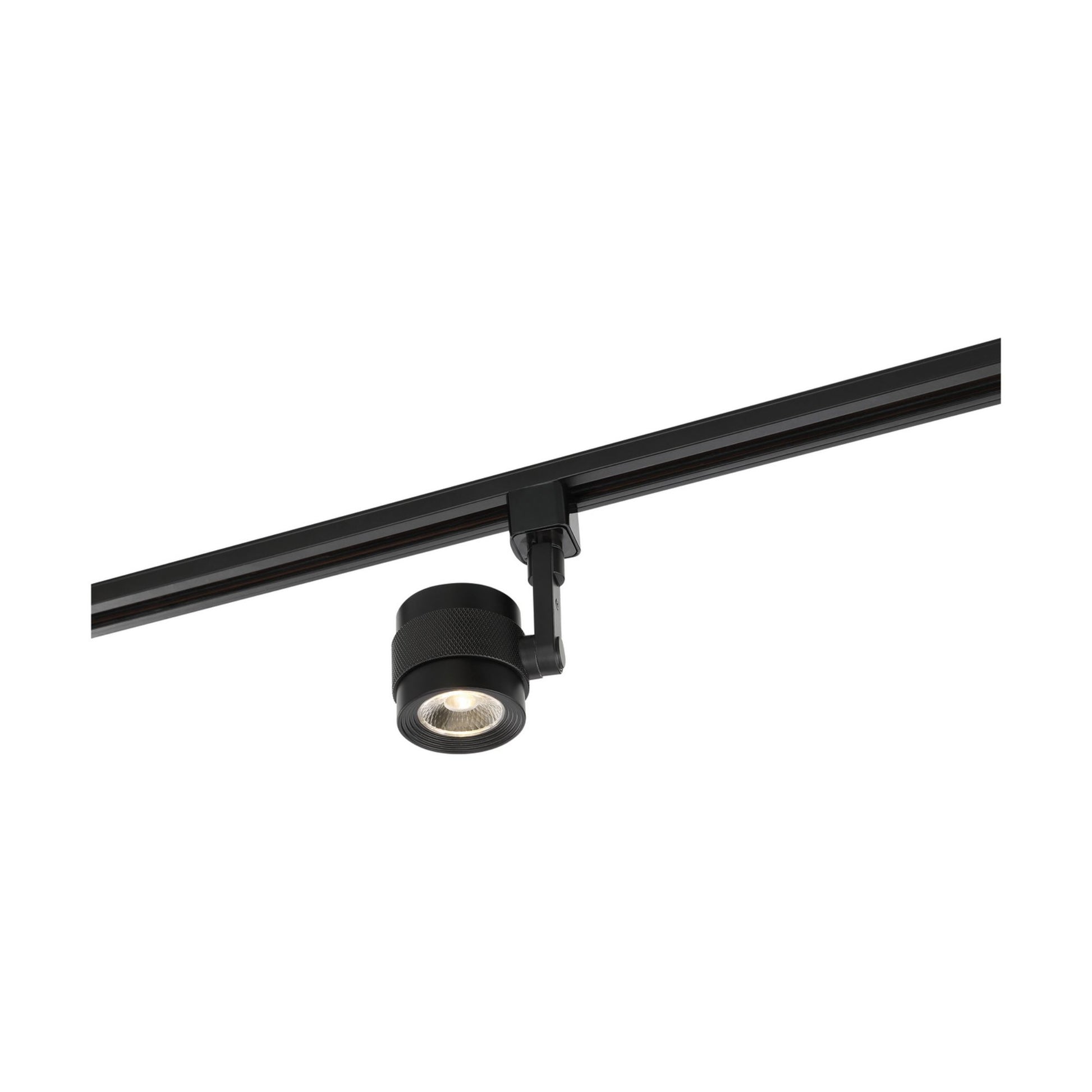

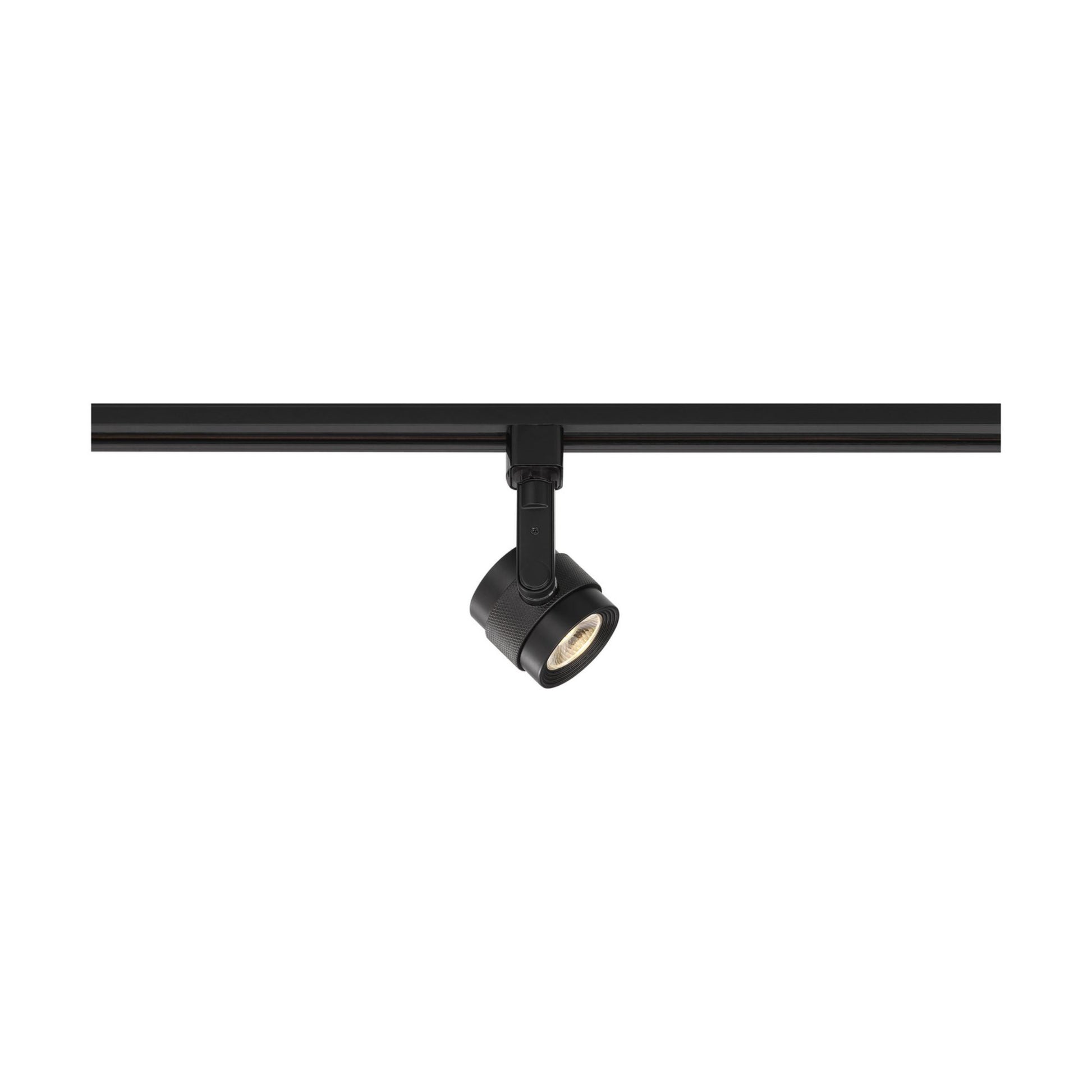

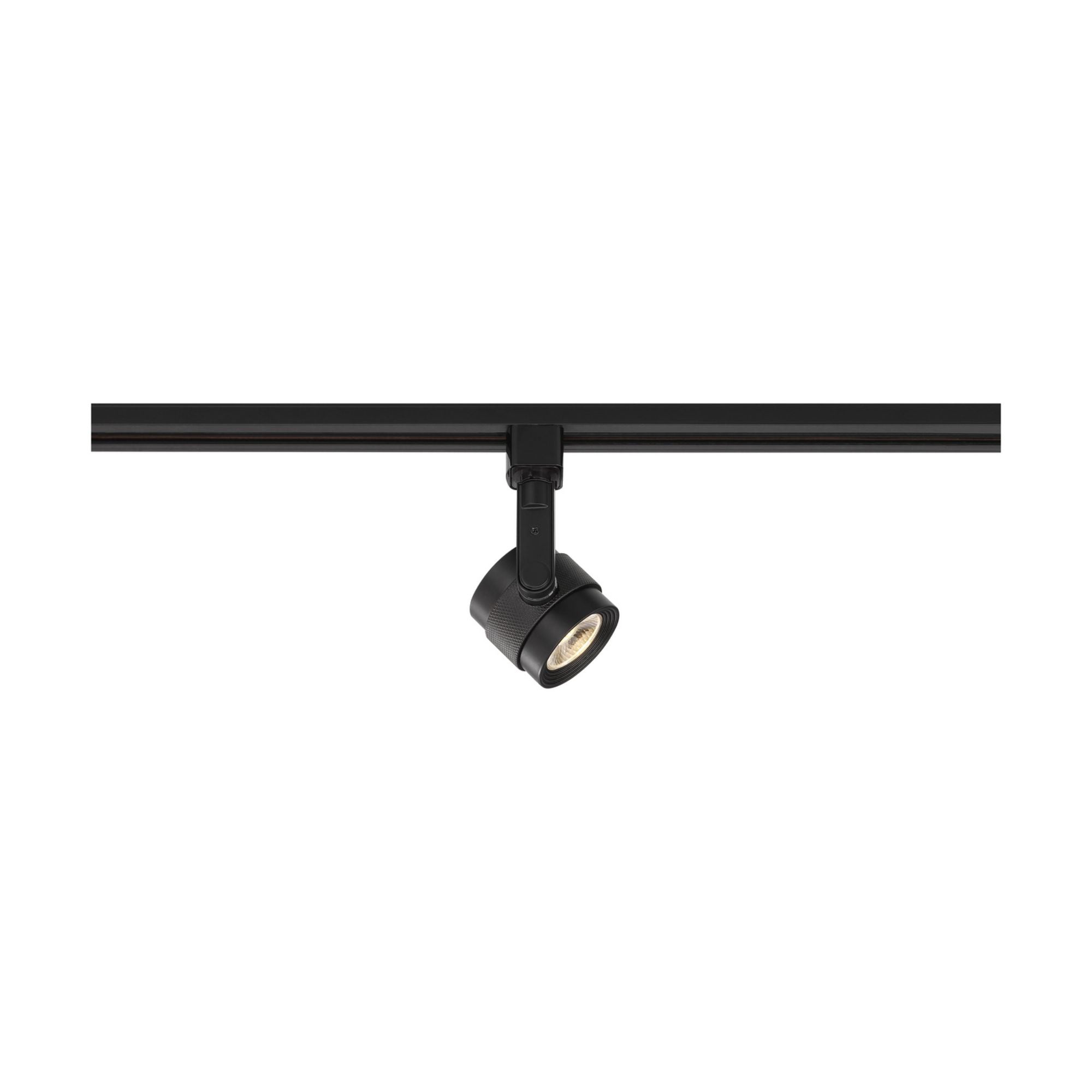

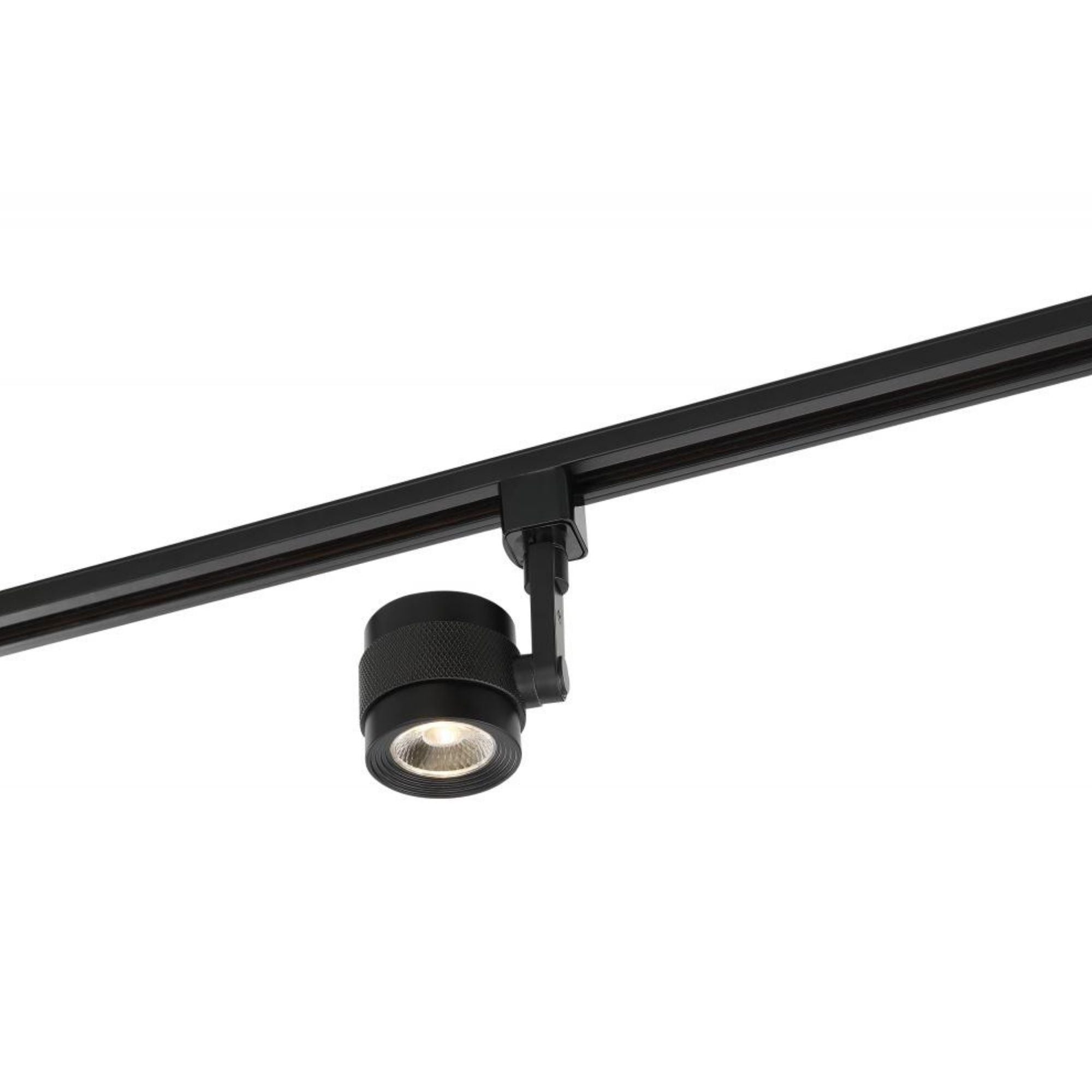

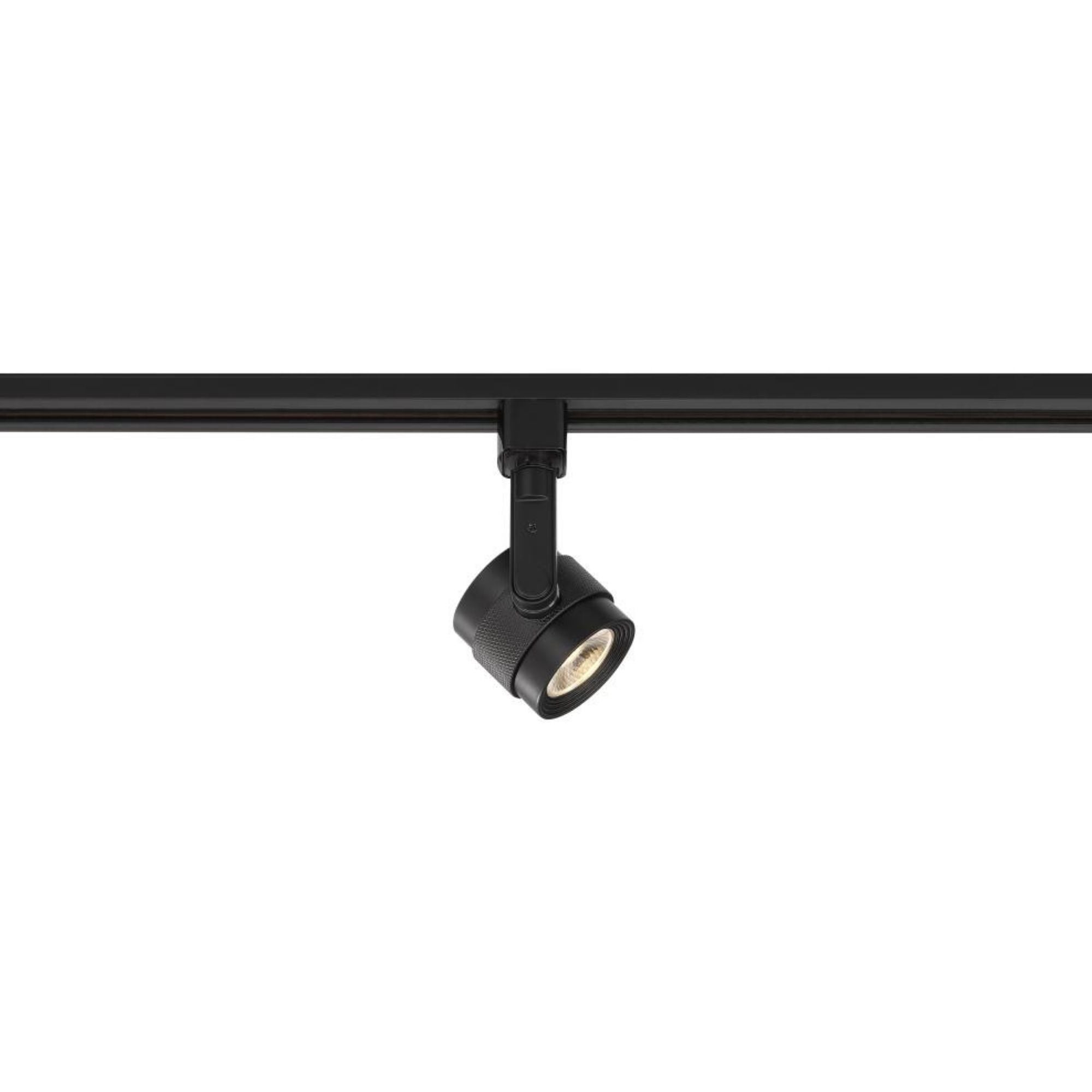

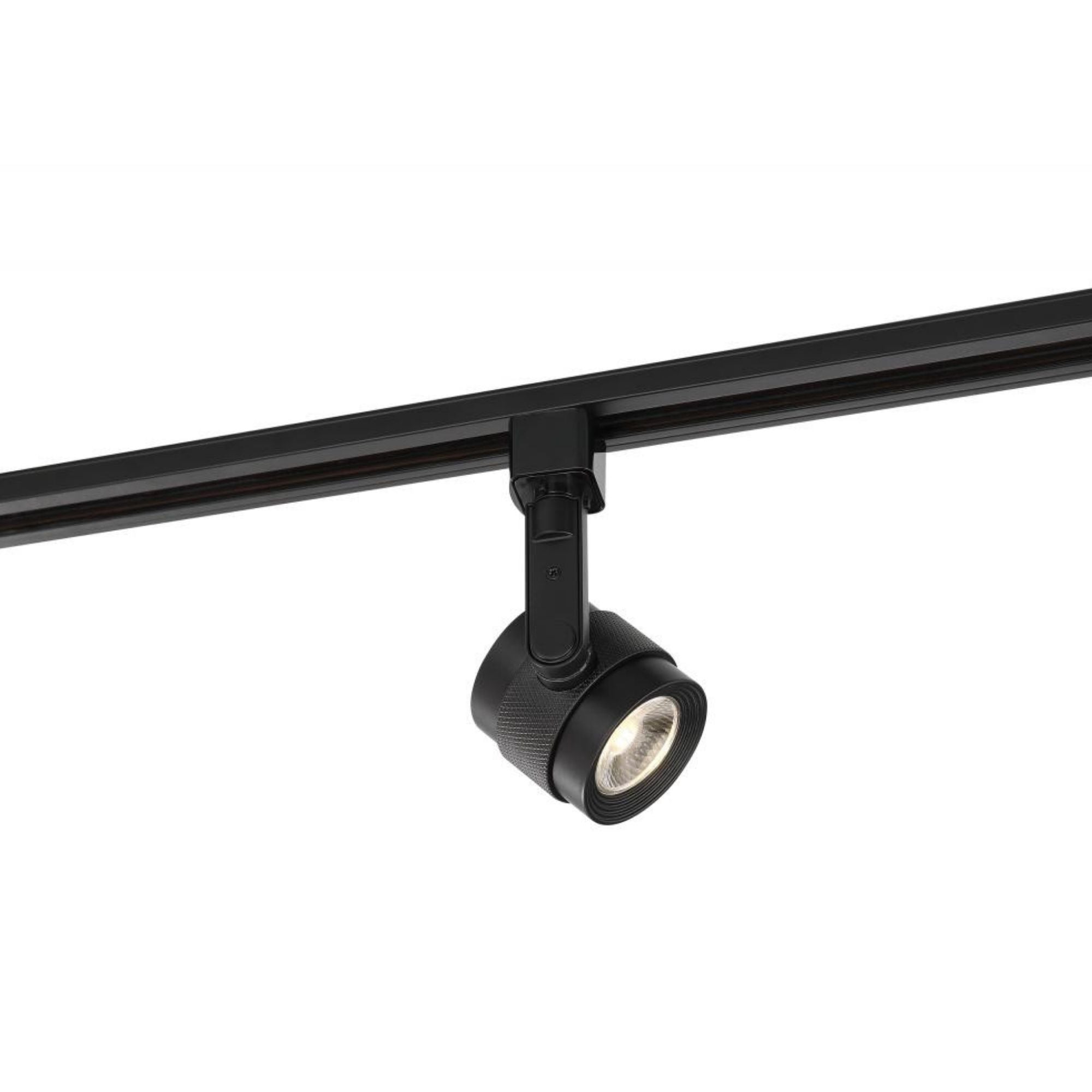

Satco Nuvo TH494 Piston LED Track Head
The Satco Nuvo TH494 combines a black Piston design with a fixed 24° beam for focused artwork and merchandise accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light with 90+ CRI. The lightweight aluminum head offers a compact spotlight profile for residential and commercial interiors.
Key Features
- Track System: H-Type, single-circuit H-track compatibility.
- Design: Piston track head, black finish.
- Light Source: Fixed 12W integrated LED.
- Light Output: 1020 lumens.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam: Fixed 24° spread.
- Construction: Aluminum housing, PMMA lens.
- Electrical: 120V, 60Hz, 0.100A, power factor greater than 0.9.
- Dimming: Compatible 120V phase-cut TRIAC dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use, operating temperature 1.4°F to 113°F.
Construction & Design
The lightweight aluminum housing features a black finish and PMMA lens. The Piston design pairs a compact cylindrical head with a supporting arm, creating a defined spotlight accent that coordinates with dark track layouts.
Light Output & Performance
The Satco Nuvo TH494 delivers 1020 lumens at 12W, with 3000K warm white light and 90+ CRI for detailed color rendering. Its fixed 24° beam concentrates illumination on focal points. Wattage and color temperature are fixed, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH494 operates at 120V, 60Hz, draws 0.100A and has a power factor greater than 0.9. Its H-Type adapter supports single-circuit H-Type (Halo) track lighting runs. Brightness is adjustable with compatible 120V phase-cut TRIAC dimmers. Install in dry indoor locations within the operating temperature range of 1.4°F to 113°F (-17°C to 45°C). Track rails, feeds and connectors are sold separately.
Compatible Accessories
Complete your Piston lighting layout with coordinating black Satco Nuvo track components, sold separately. Choose rail lengths, power feeds and connectors to suit your installation.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

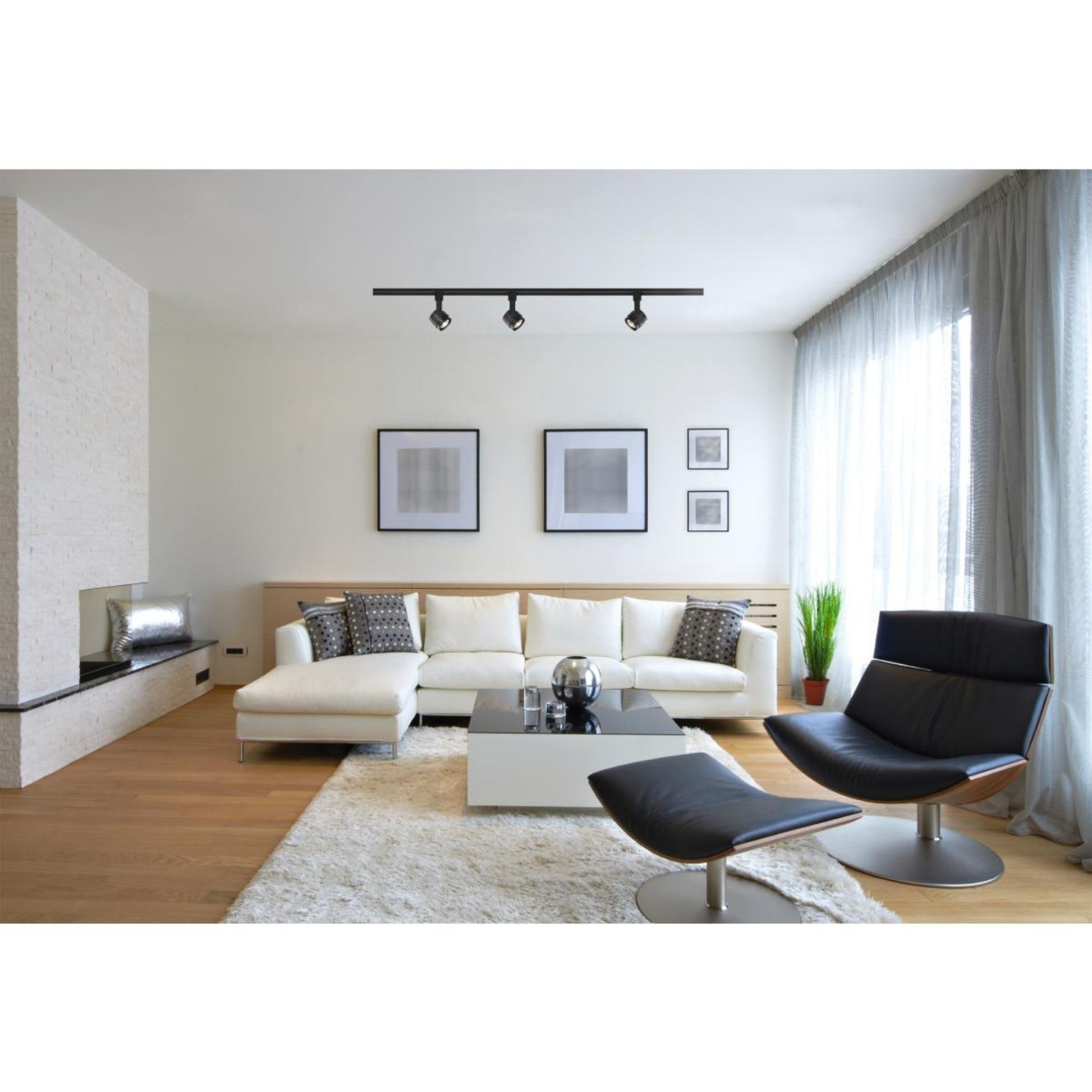

Typical Applications
- Retail merchandise displays.
- Gallery and artwork accents.
- Residential interior focal points.
- Commercial architectural accents.
What's Included
- Satco Nuvo TH494 black Piston track head with integrated LED and H-Type adapter.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the Satco Nuvo TH494 use?
Which track system does the Satco Nuvo TH494 use?
Is the Satco Nuvo TH494 dimmable?
Is the Satco Nuvo TH494 dimmable?
Are wattage and color temperature selectable on the Satco Nuvo TH494?
Are wattage and color temperature selectable on the Satco Nuvo TH494?
Can the beam angle of the Satco Nuvo TH494 be adjusted?
Can the beam angle of the Satco Nuvo TH494 be adjusted?
What light output does the Satco Nuvo TH494 provide?
What light output does the Satco Nuvo TH494 provide?
