Satco Nuvo TH762 Round 8W H-Type LED Track Head 5CCT Dim to Warm 36 Degree Black
Available in stock (1656)
About this item
About this item
- Warm Ambience on Demand: Dedicated 3000K–2000K Dim to Warm mode, phase-cut TRIAC dimming down to 10% with a compatible dimmer.
- Five White Light Settings: Selectable 2700K, 3000K, 3500K, 4000K or 5000K, 90+ CRI.
- Focused Accent Lighting: Fixed 36° beam, 8W, 500–600 lumens, up to 75 lm/W.
- Adjustable Round Design: Black aluminum housing, horizontal and vertical positioning, clear prismatic polycarbonate lens.
- Halo Track Installation: H-Type adapter, 120V, dry indoor use, 50,000-hour rated life.
Description
Description

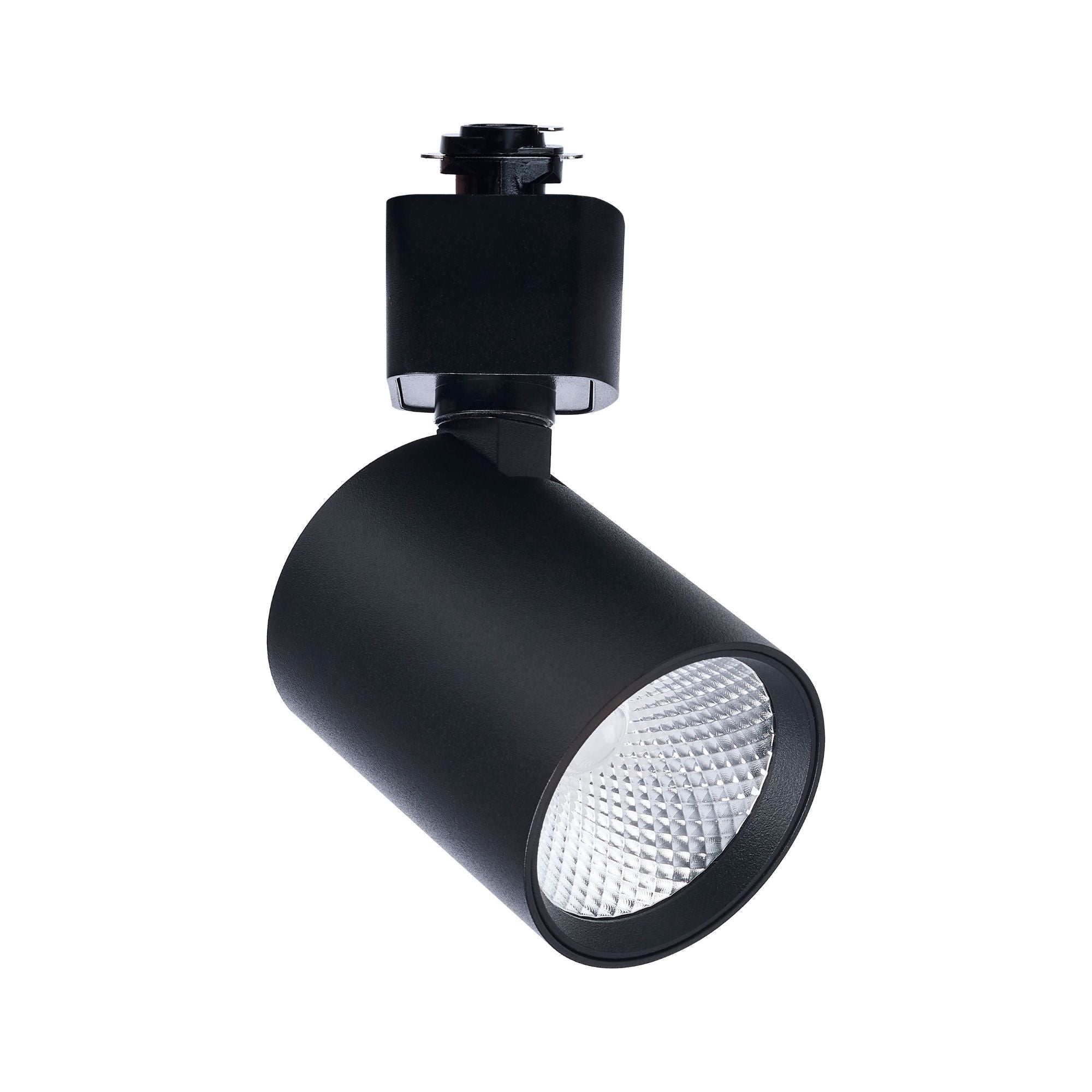

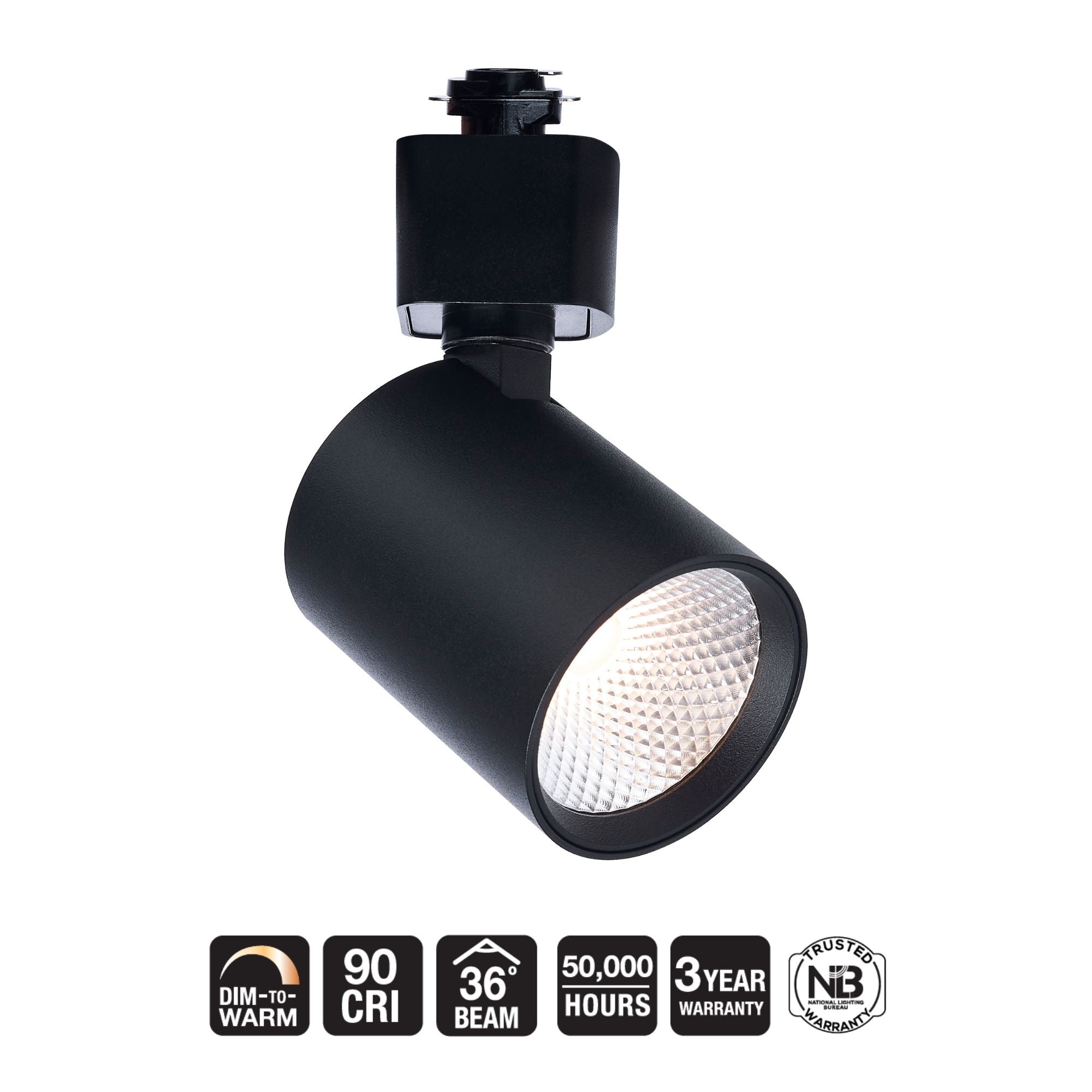

Satco Nuvo TH762 Round Dim to Warm LED Track Head
The Satco Nuvo TH762 pairs a contemporary Black round aluminum housing with five selectable CCT settings and a separate Dim to Warm setting. Its 8W integrated LED delivers 500–600 lumens, up to 600 lumens maximum, through a fixed 36° beam, with 90+ CRI. Select a steady white-light setting for merchandise or tasks, or choose 3000K–2000K Dim to Warm for a warmer glow as brightness decreases. The cylindrical housing offers a softer visual alternative to square heads and coordinates with dark ceilings and black Halo track. Adjustable aiming directs attention toward artwork, shelving or architectural details.
Key Features
- Track Compatibility: H-Type (Halo) track adapter.
- Design: Black round aluminum housing, horizontal and vertical positioning.
- Output: 8W integrated LED, 500–600 lumens, maximum 600 lumens.
- Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
- Dim to Warm: Separate selectable mode, 3000K to 2000K as light dims.
- Color Rendering: 90+ CRI.
- Optics: Fixed 36° beam, clear prismatic polycarbonate lens.
- Dimming: 120V phase-cut TRIAC, down to 10% with a compatible dimmer.
- Efficacy: Up to 75 lm/W.
- Electrical: 120V, 60Hz, 0.07A, power factor greater than 0.92.
- Rated Life & Protection: 50,000 hours, built-in 2.5kV surge protection.
- Location: Dry indoor use, -4°F to 104°F operating temperature.
Construction & Design

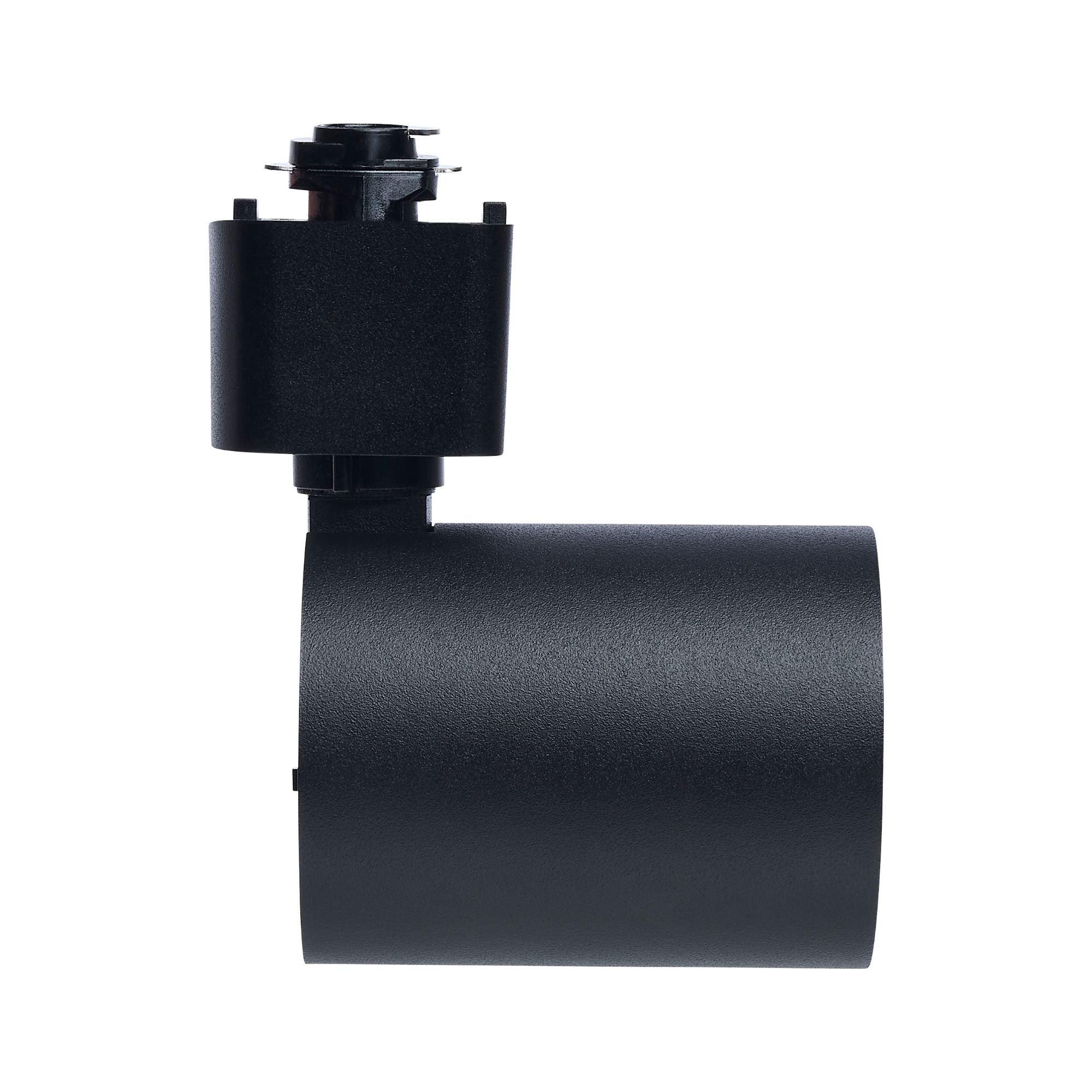

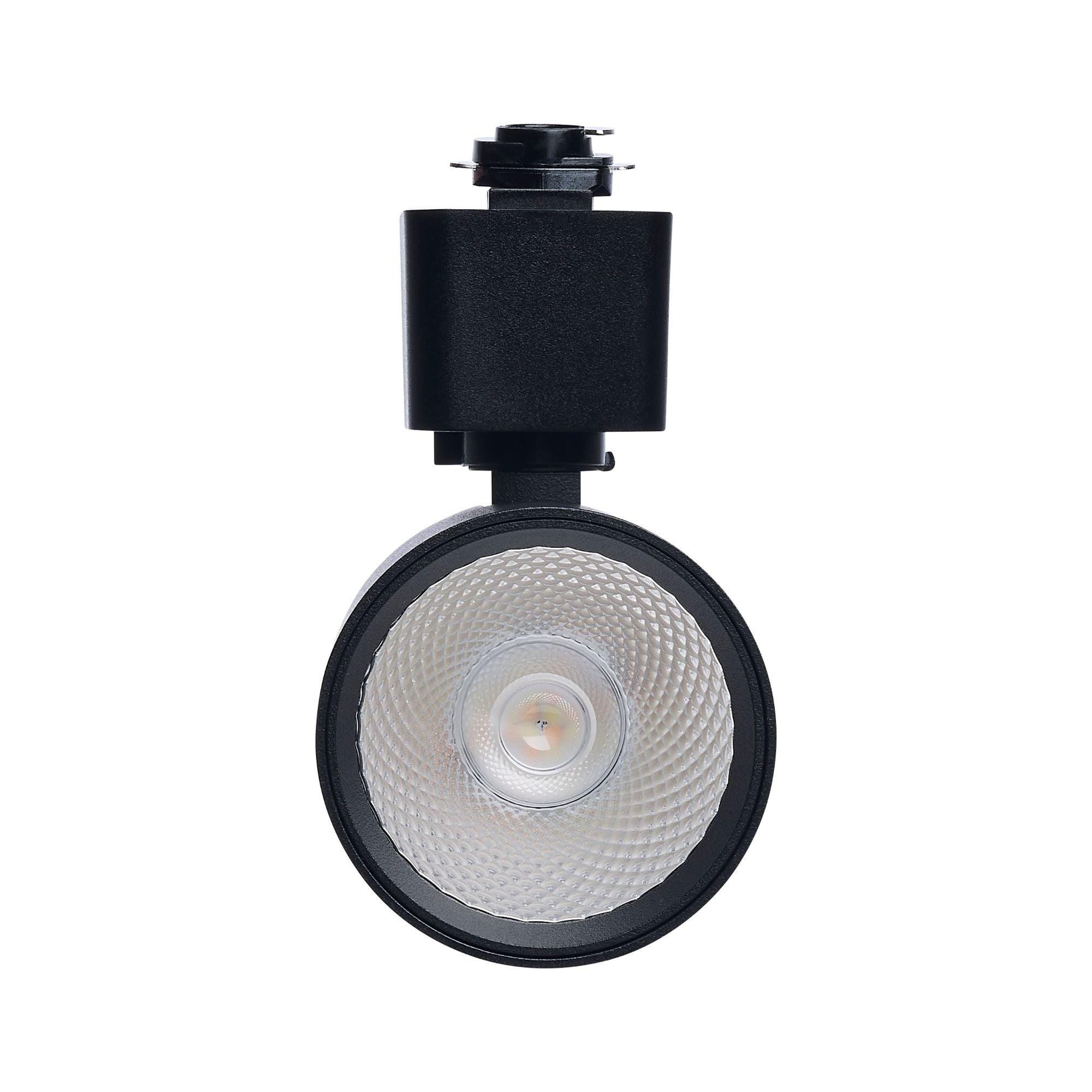

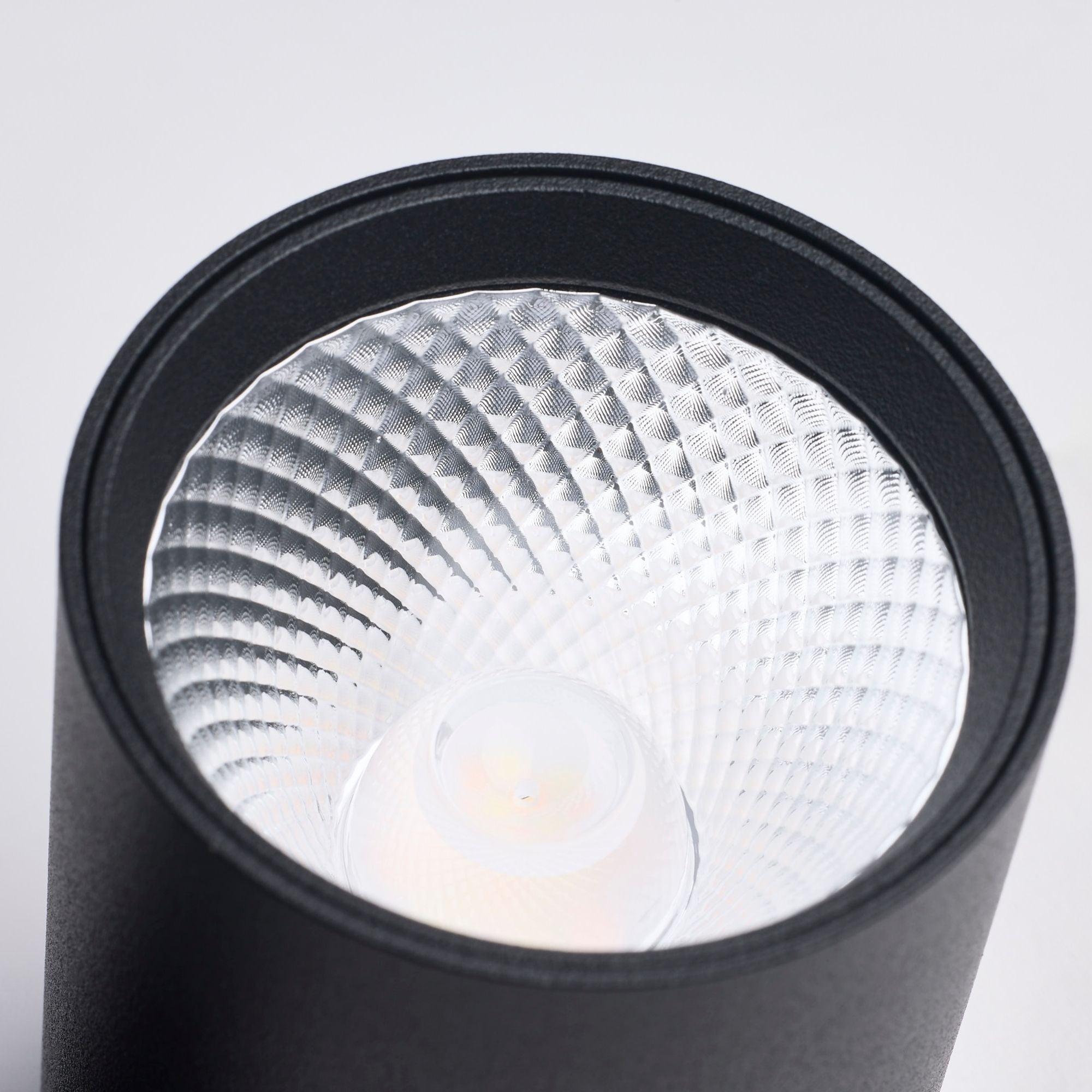

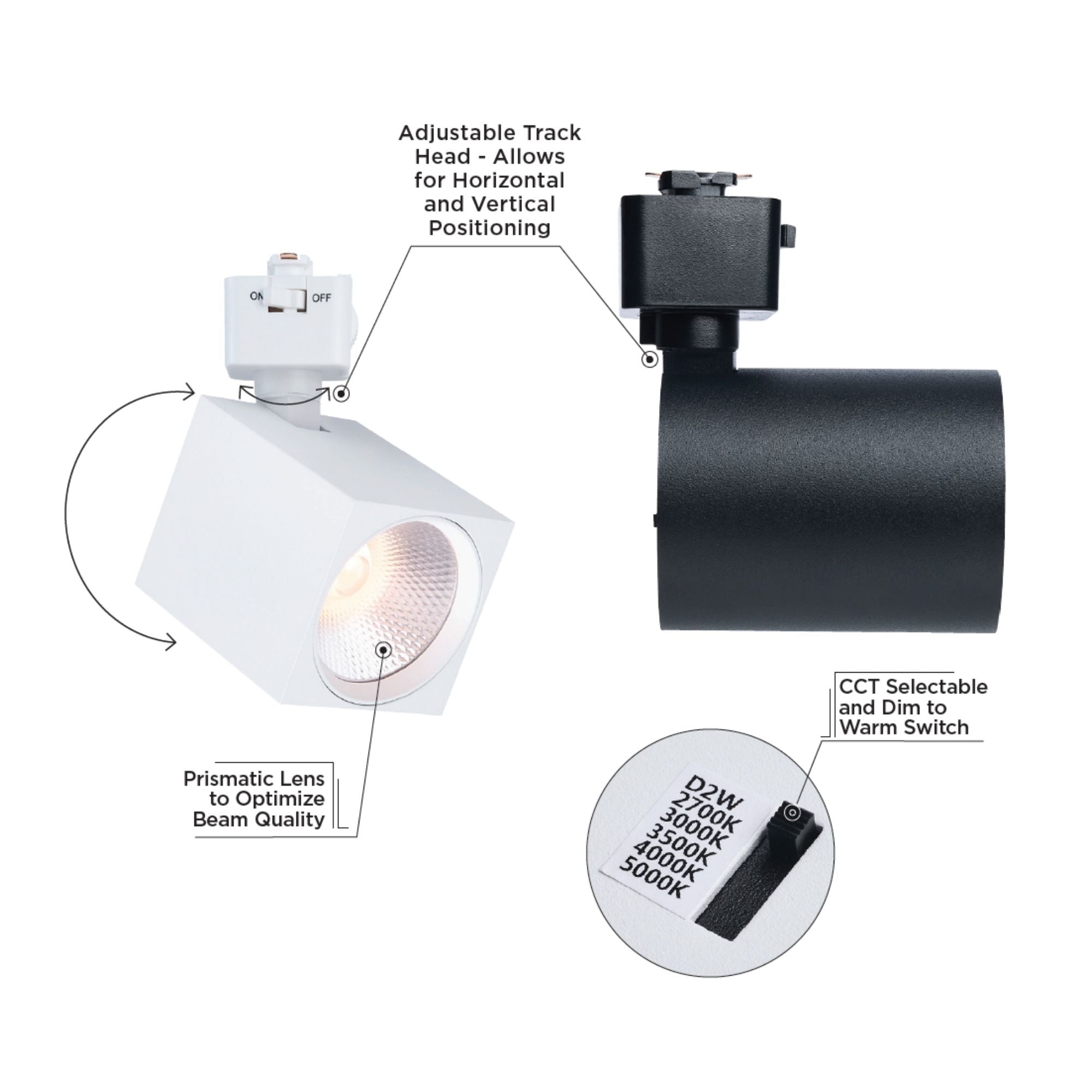

The Black aluminum round housing gives the TH762 a clean cylindrical profile suited to contemporary interiors. Its clear prismatic polycarbonate lens enhances beam quality, while horizontal and vertical positioning help place light where it is needed. Adjusting the head changes the direction of illumination, not its fixed 36° optical spread. Coordinating black track components carry the dark finish through the installation.
Light Output & Performance

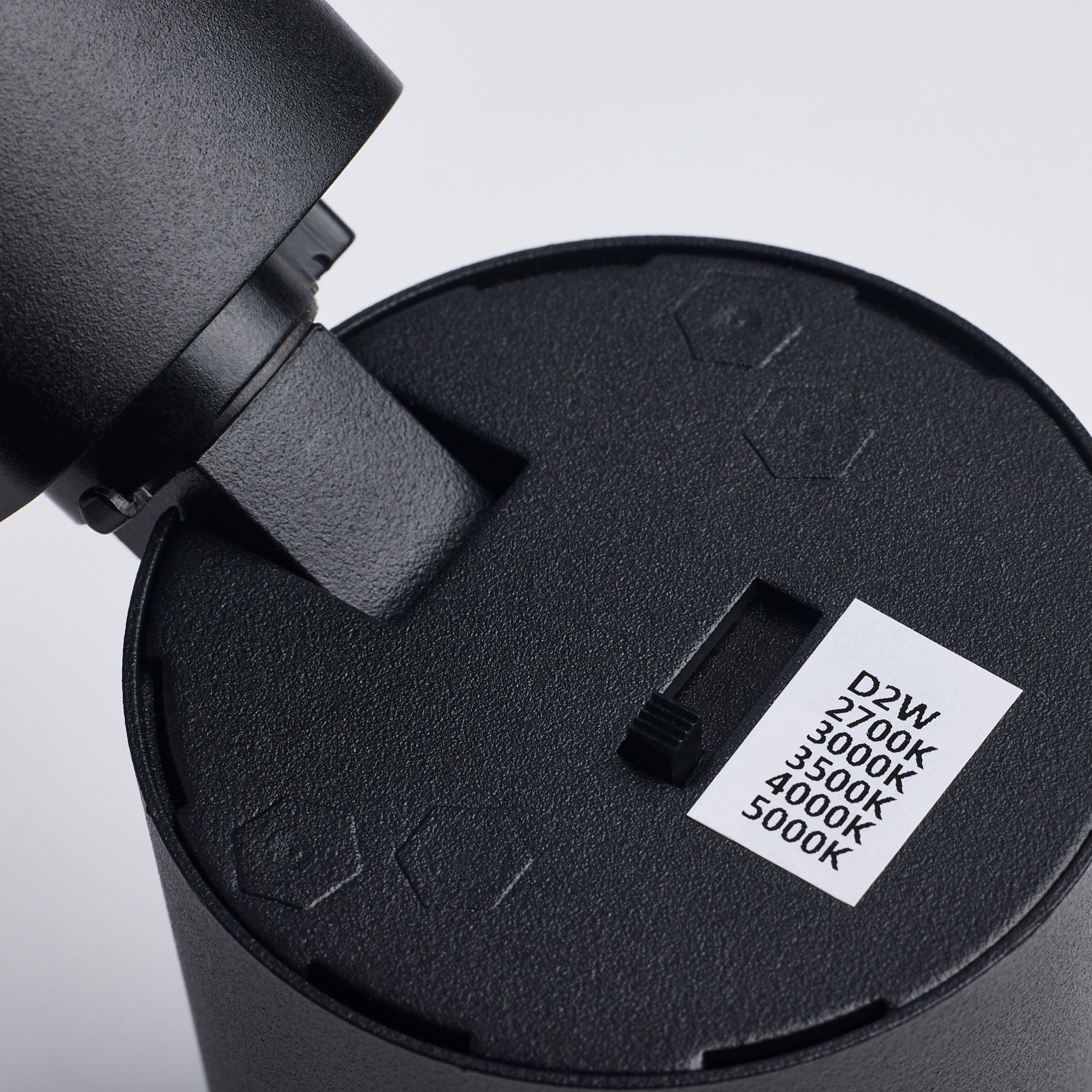

The Satco Nuvo TH762 provides 500–600 lumens from 8W, with up to 75 lm/W efficacy and 90+ CRI. The selection switch offers 2700K, 3000K, 3500K, 4000K and 5000K, plus a dedicated Dim to Warm mode spanning 3000K–2000K. In Dim to Warm mode, the light becomes warmer as it dims, allowing practical illumination to transition to softer room ambience. Phase-cut TRIAC dimming down to 10% requires a compatible dimmer. Rated LED life is 50,000 hours.
Electrical & Installation
The Satco Nuvo TH762 operates at 120V, 60Hz, with 0.07A input current and power factor greater than 0.92. Use its H-Type (Halo) adapter with compatible Halo track in dry indoor locations within the -4°F to 104°F operating range. Built-in 2.5kV surge protection is included. Use a compatible 120V phase-cut TRIAC dimmer for dimming and Dim to Warm operation. Rails, feeds and connectors are sold separately.
Compatible Accessories
Complete your Dim to Warm lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single-circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications
- Restaurant and hospitality accent lighting.

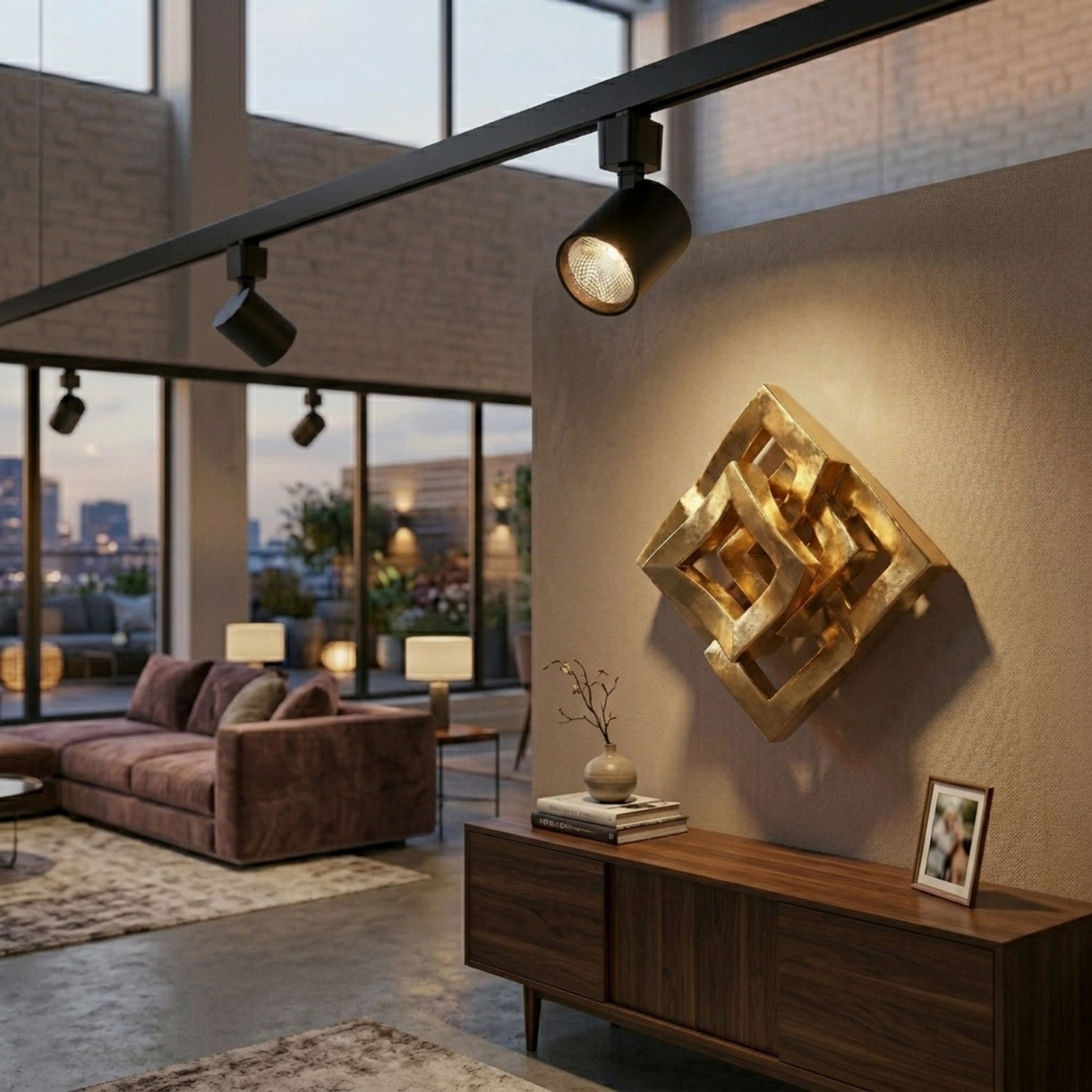

- Residential artwork and shelving.
- Retail merchandise displays.
- Kitchen and office task accents.
What's Included
- Satco Nuvo TH762 Black round track head with integrated LED and H-Type adapter.
Specifications
Specifications

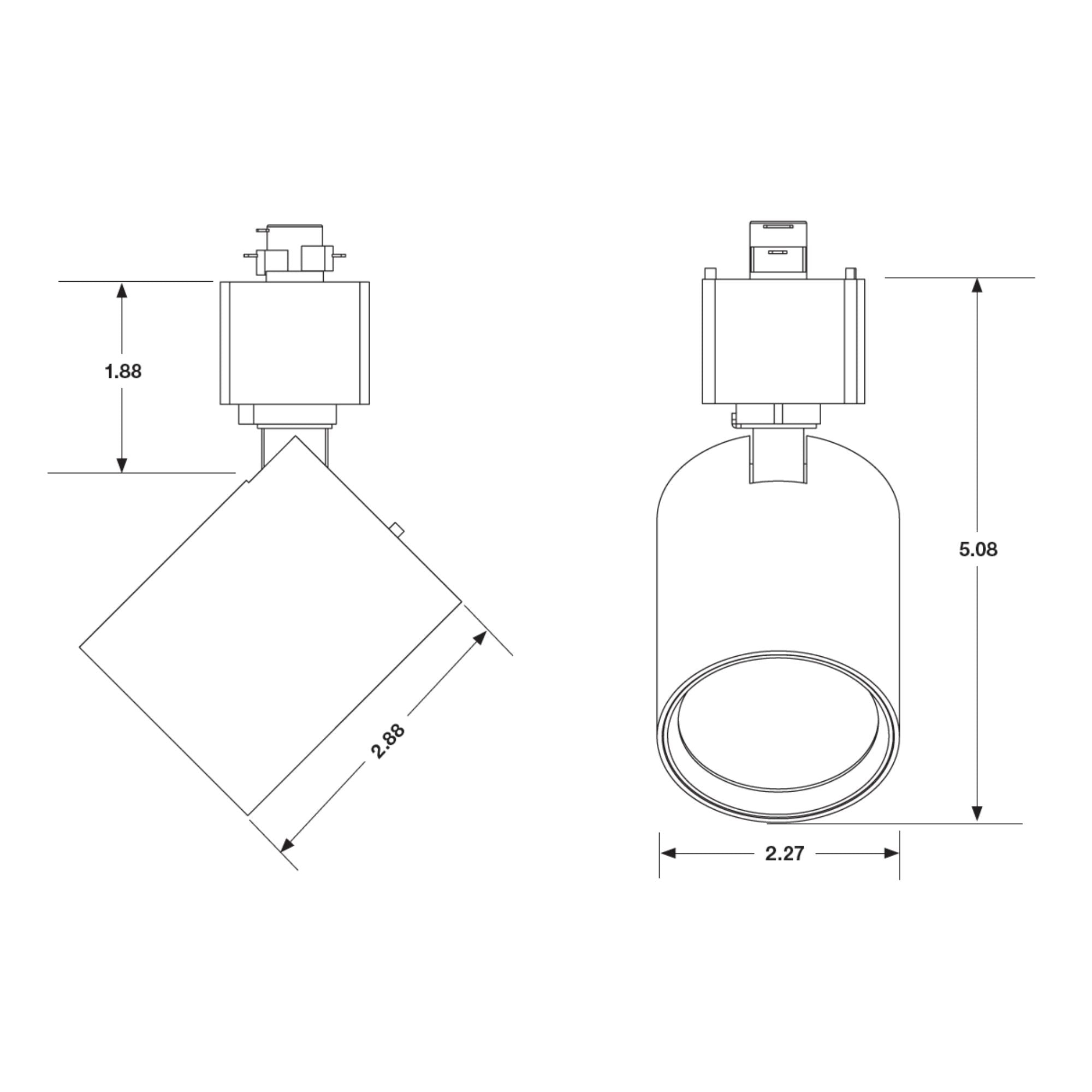

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the Satco Nuvo TH762 use?
Which track system does the Satco Nuvo TH762 use?
How does Dim to Warm work on the Satco Nuvo TH762?
How does Dim to Warm work on the Satco Nuvo TH762?
What selectable color temperatures does the Satco Nuvo TH762 offer?
What selectable color temperatures does the Satco Nuvo TH762 offer?
Can the Satco Nuvo TH762 beam angle be adjusted?
Can the Satco Nuvo TH762 beam angle be adjusted?
What light output does the Satco Nuvo TH762 provide?
What light output does the Satco Nuvo TH762 provide?
