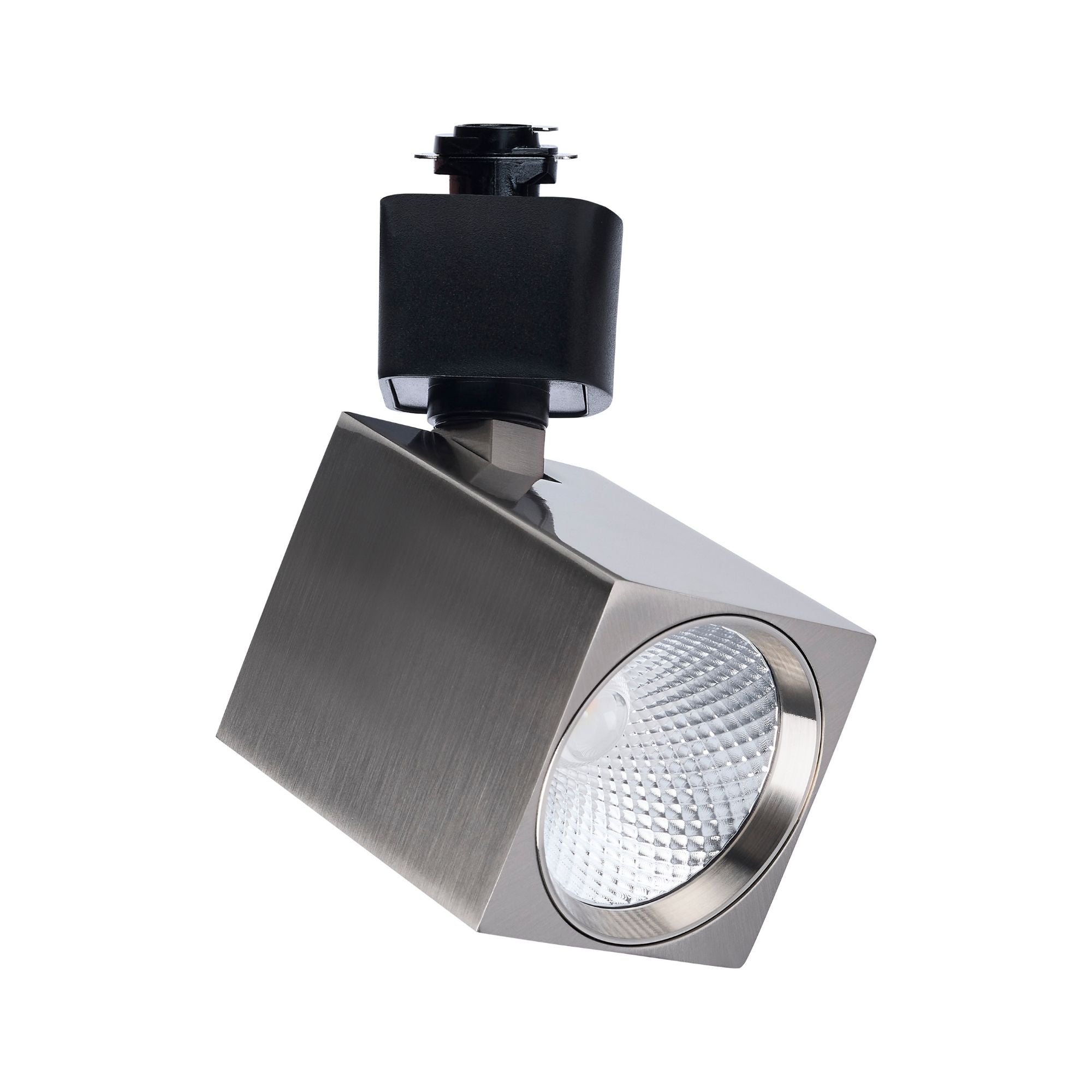

Satco Nuvo TH756 Square Dim to Warm LED Track Head

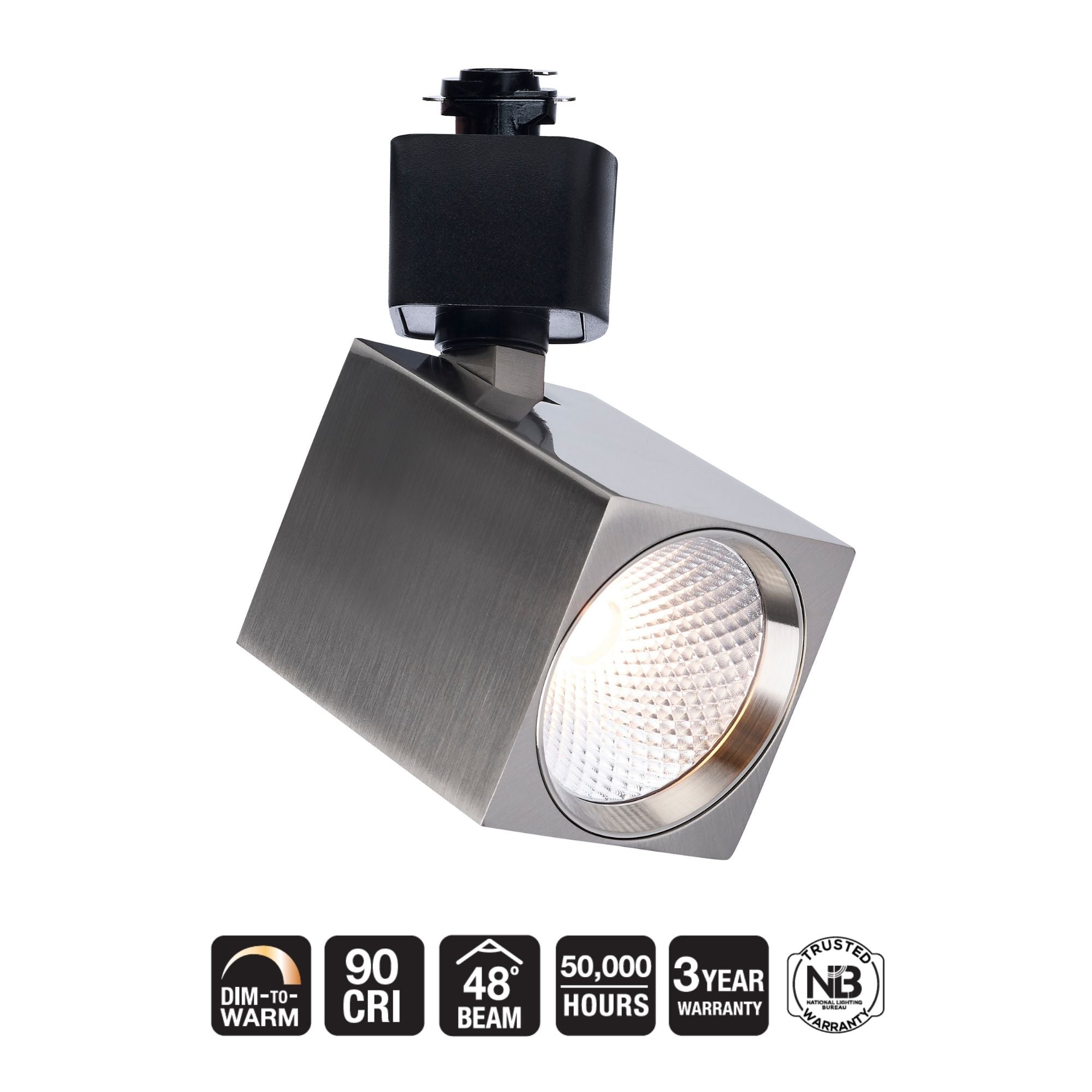

The Satco Nuvo TH756 pairs a contemporary Brushed Nickel square aluminum housing with five selectable CCT settings and a separate Dim to Warm setting. Its 8W integrated LED provides up to 600 lumens through a fixed 48° beam, with 90+ CRI. Select a steady white-light setting for merchandise or tasks, or choose 3000K–2000K Dim to Warm for a warmer glow as brightness decreases. The brushed nickel finish adds a metallic accent to the angular housing and coordinates with nickel Halo rails. Its wider beam offers an alternative to the family's 36° models, while adjustable aiming directs light toward displays or architectural details.

Key Features

• Track Compatibility: H-Type (Halo) track adapter.
• Design: Brushed Nickel square aluminum housing, horizontal and vertical positioning.
• Output: 8W integrated LED, up to 600 lumens.
• Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
• Dim to Warm: Separate selectable mode, 3000K to 2000K as light dims.
• Color Rendering: 90+ CRI.
• Optics: Fixed 48° beam, prismatic polycarbonate lens.
• Dimming: Phase-cut dimming down to 10% with a compatible dimmer.
• Efficacy: Up to 75 lm/W.
• Electrical: 120V, 60Hz, 0.07A, power factor greater than 0.92.
• Rated Life: 50,000 hours.
• Location: Dry indoor use, -4°F to 104°F operating temperature.

Construction & Design

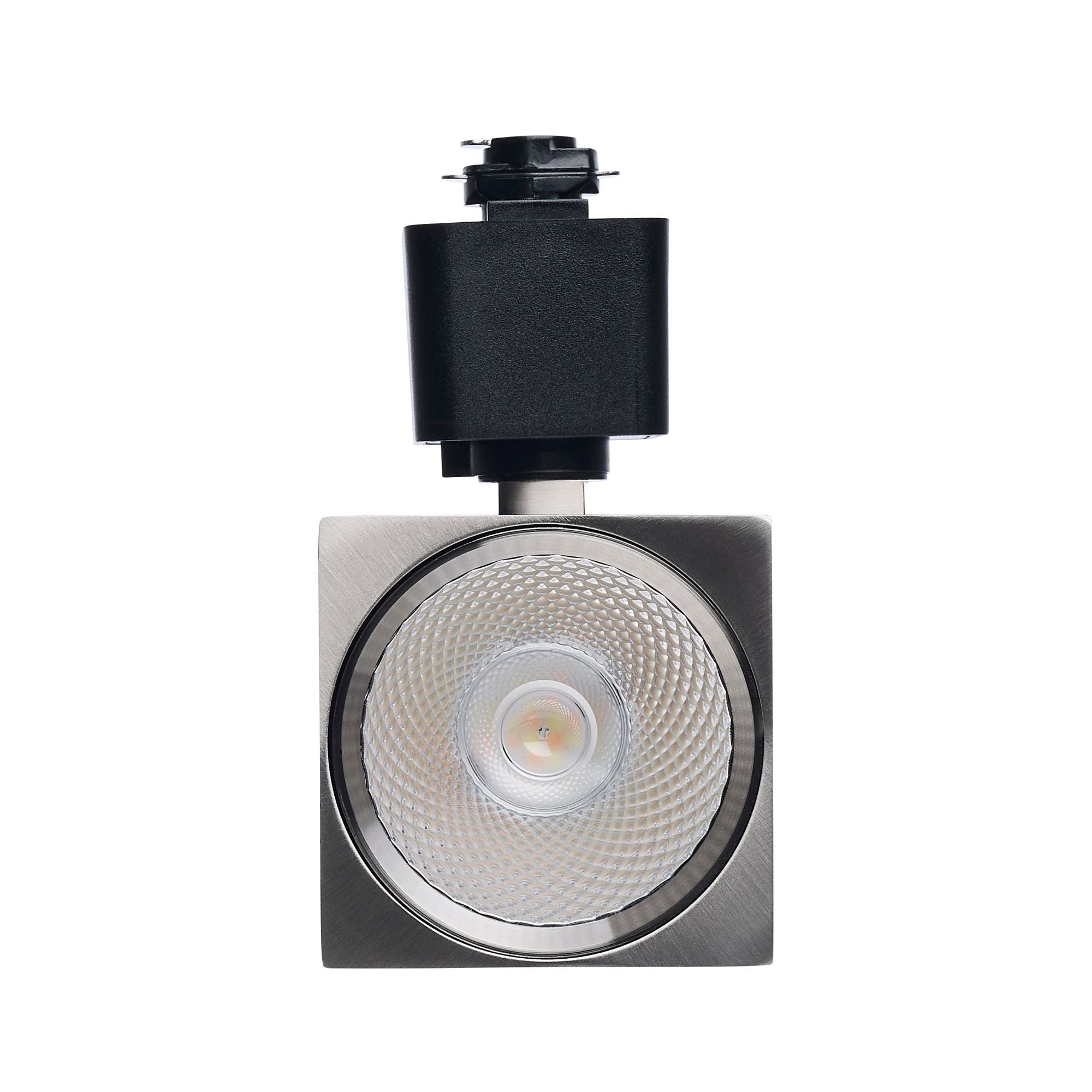

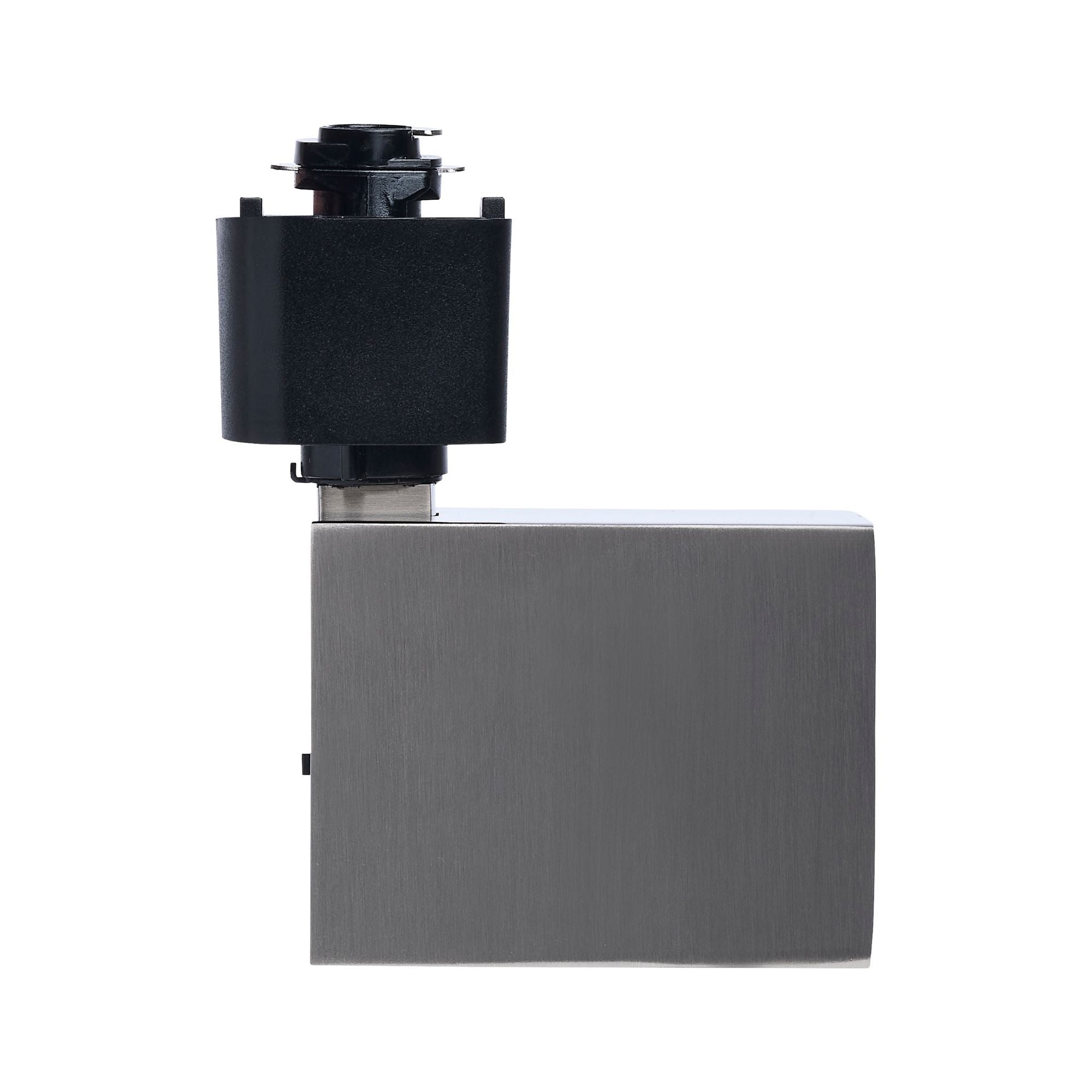

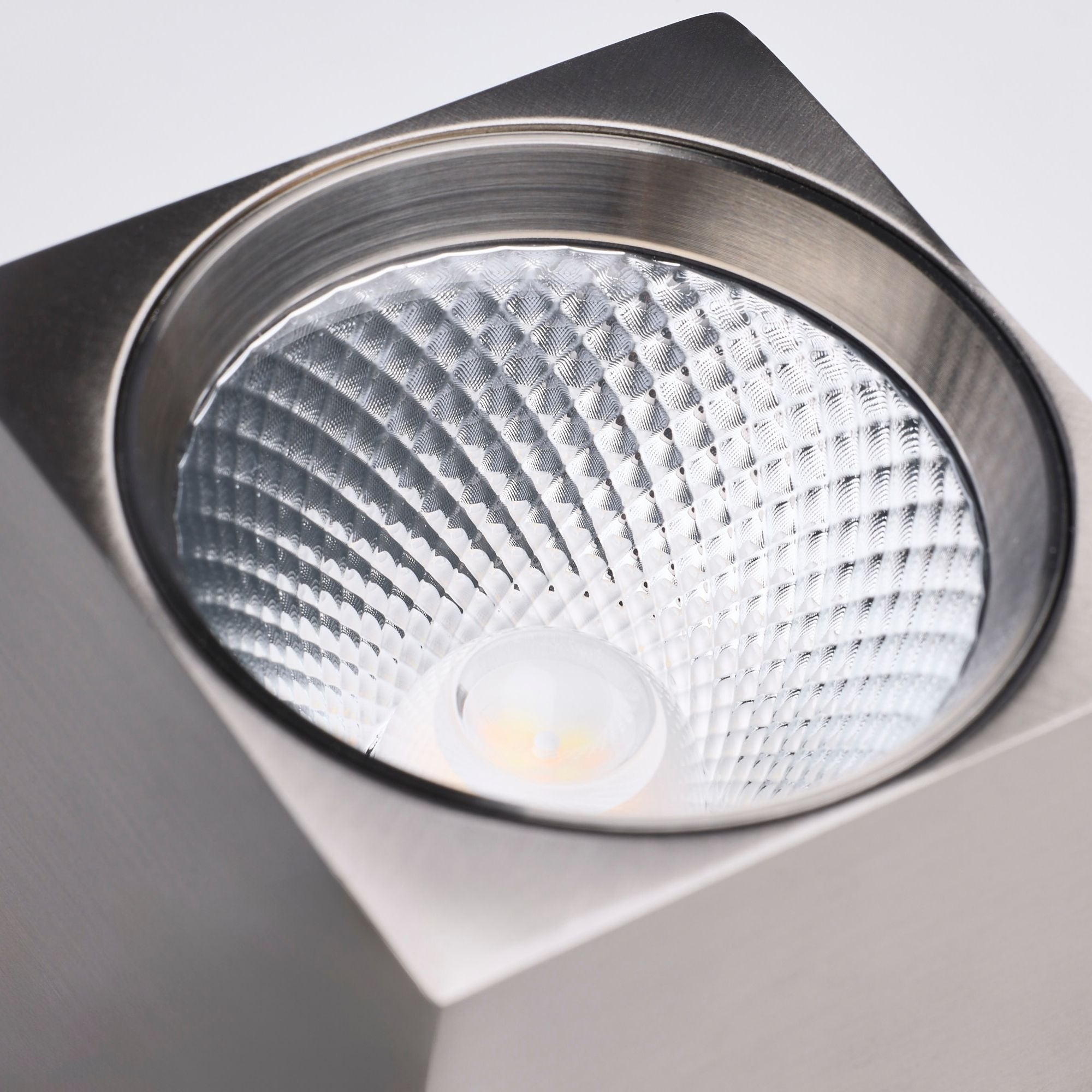

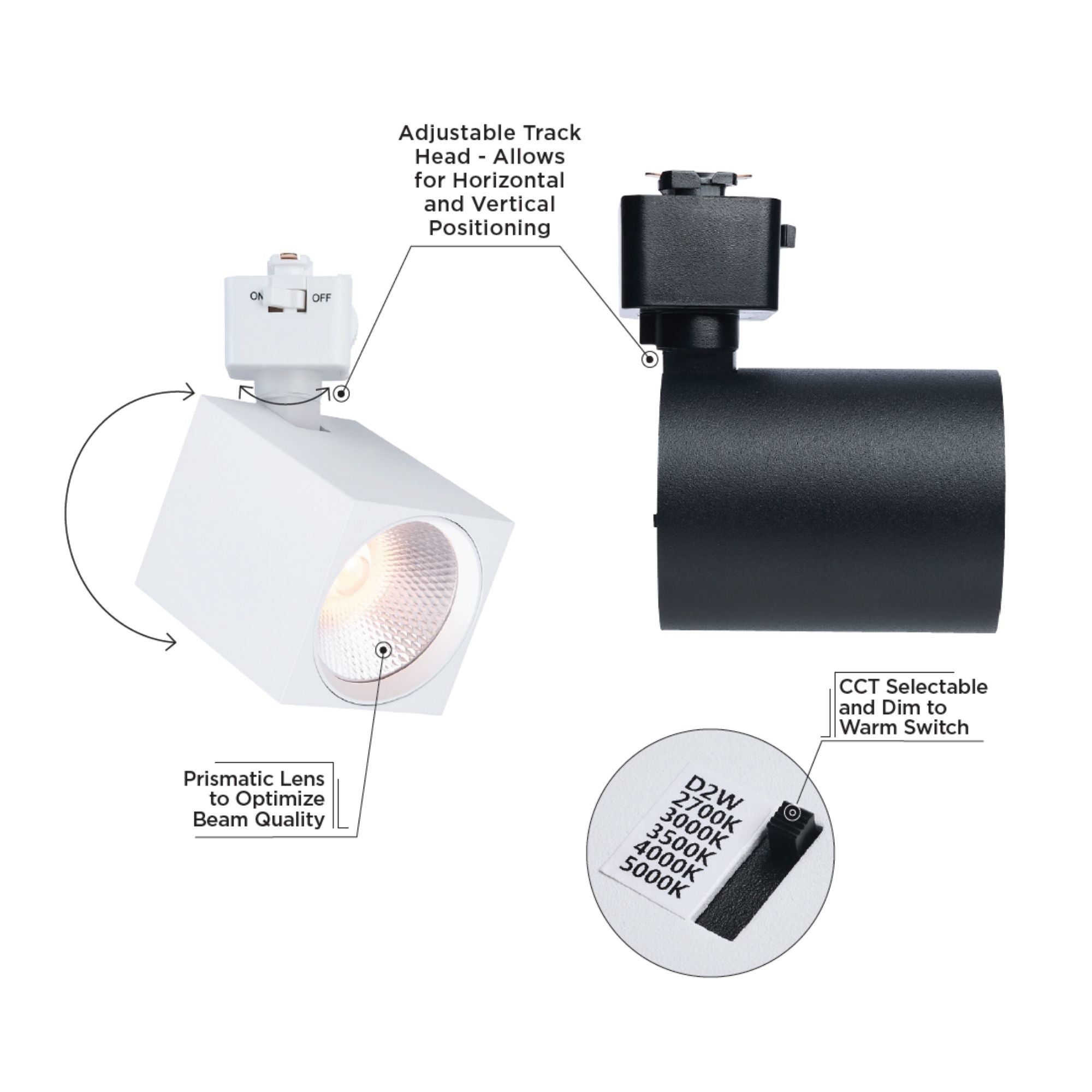

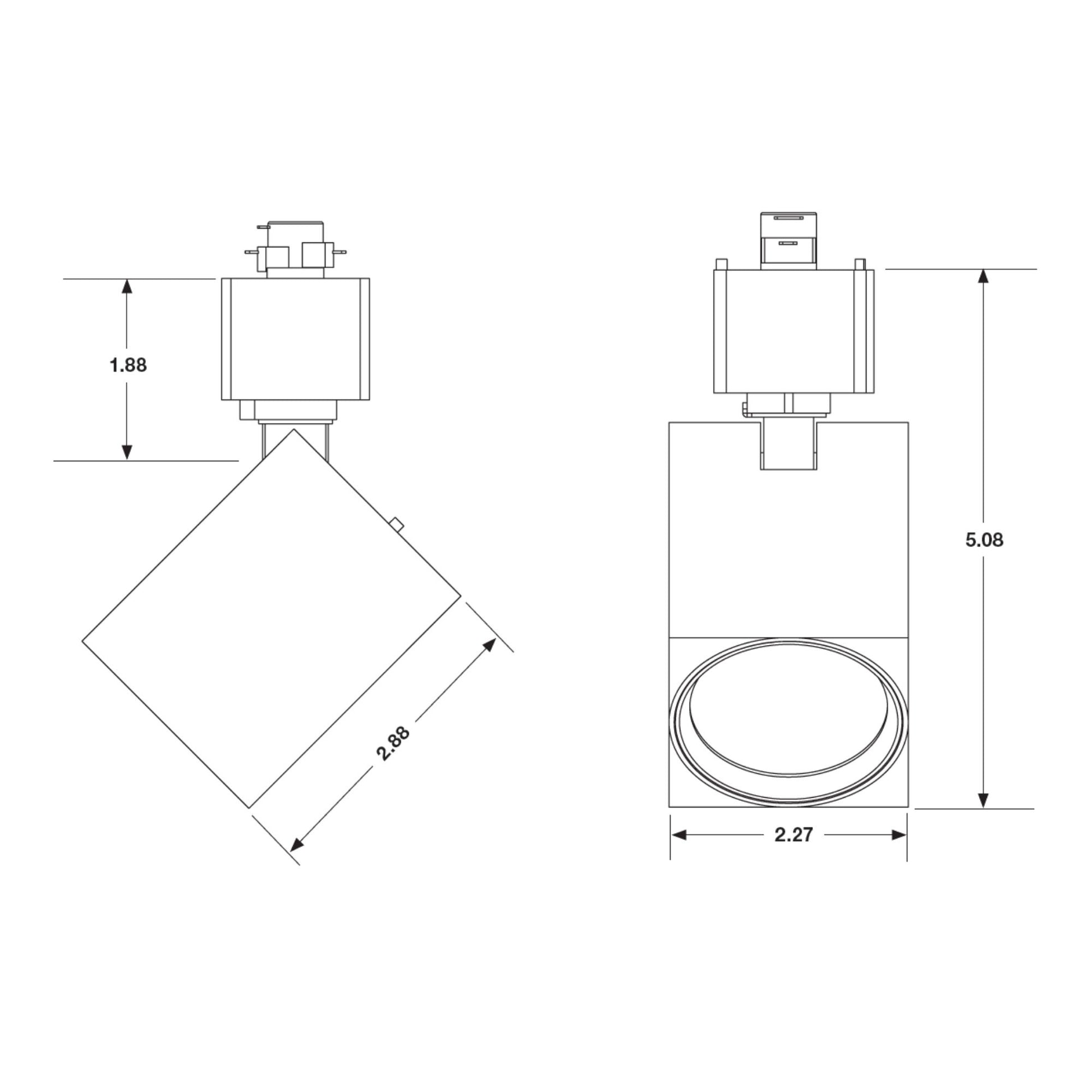

The Brushed Nickel aluminum square housing gives the TH756 a crisp geometric profile suited to clean-lined rooms. Its prismatic polycarbonate lens enhances beam quality, while horizontal and vertical positioning help place light where it is needed. Adjusting the head changes the direction of illumination, not its fixed 48° optical spread. Nickel rails and suspension coordinate with the head; black feeds and connectors provide a mixed-finish layout.

Light Output & Performance

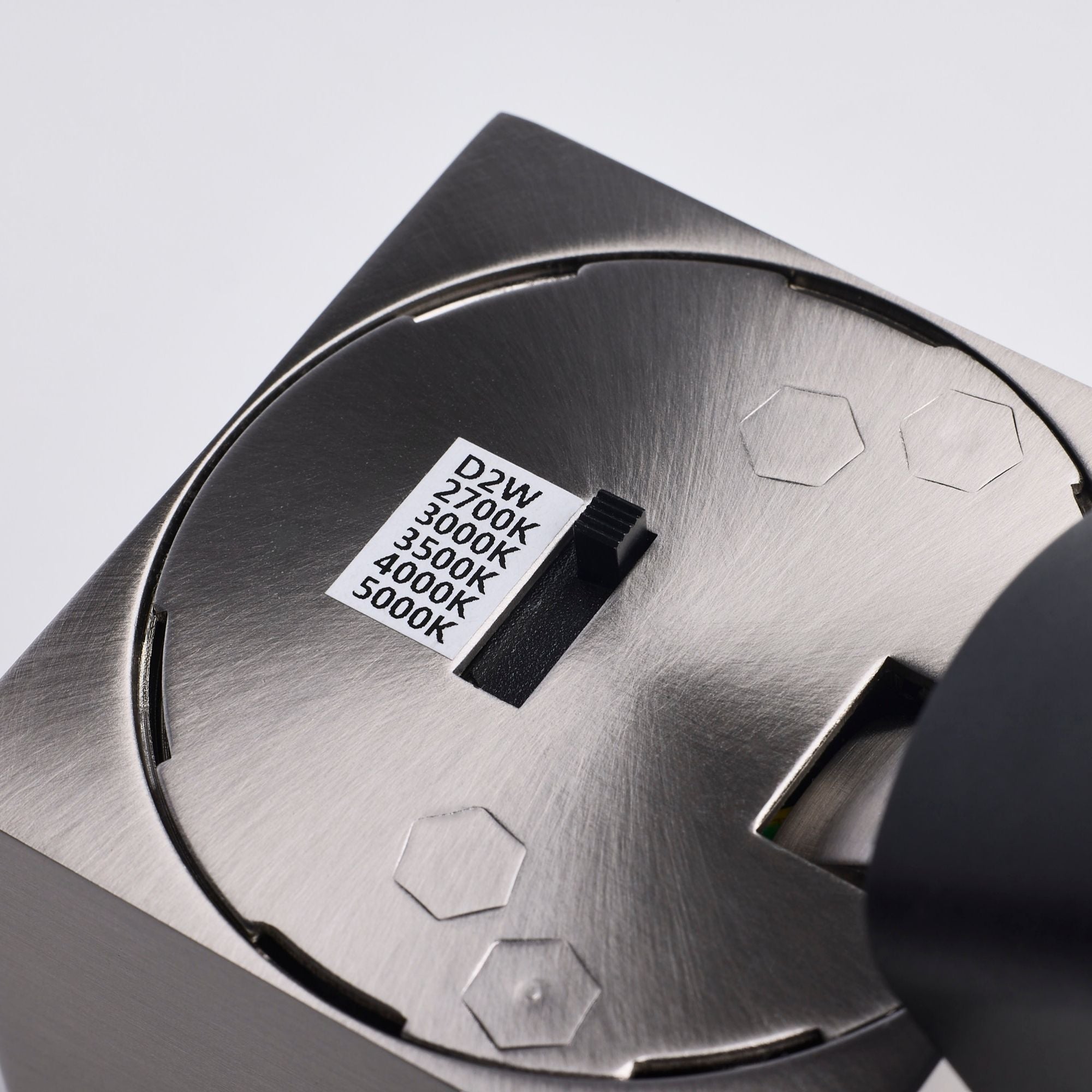

The Satco Nuvo TH756 provides up to 600 lumens from 8W, with up to 75 lm/W efficacy and 90+ CRI. The selection switch offers 2700K, 3000K, 3500K, 4000K and 5000K, plus a dedicated Dim to Warm mode spanning 3000K–2000K. In Dim to Warm mode, the light becomes warmer as it dims, allowing practical illumination to transition to softer room ambience. The fixed 48° beam provides a wider spread than the family's 36° models. Phase-cut dimming down to 10% requires a compatible dimmer. Rated LED life is 50,000 hours.

Electrical & Installation

The Satco Nuvo TH756 operates at 120V, 60Hz, with 0.07A input current and power factor greater than 0.92. Use its H-Type (Halo) adapter with compatible Halo track in dry indoor locations within the -4°F to 104°F operating range. Use a compatible phase-cut dimmer for dimming and Dim to Warm operation. Rails, feeds and connectors are sold separately.

Compatible Accessories

Complete your Dim to Warm lighting arrangement with coordinating Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout. Nickel rails and suspension coordinate with the head; the power feeds and connectors listed below are black for a mixed-finish installation.

• Nickel Track Rails: TR126 (2 ft), TR127 (4 ft), TR128 (6 ft) and TR129 (8 ft), single-circuit H-Type.
• Black Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
• Black Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
• Track Mounting: TP242 nickel aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

Typical Applications

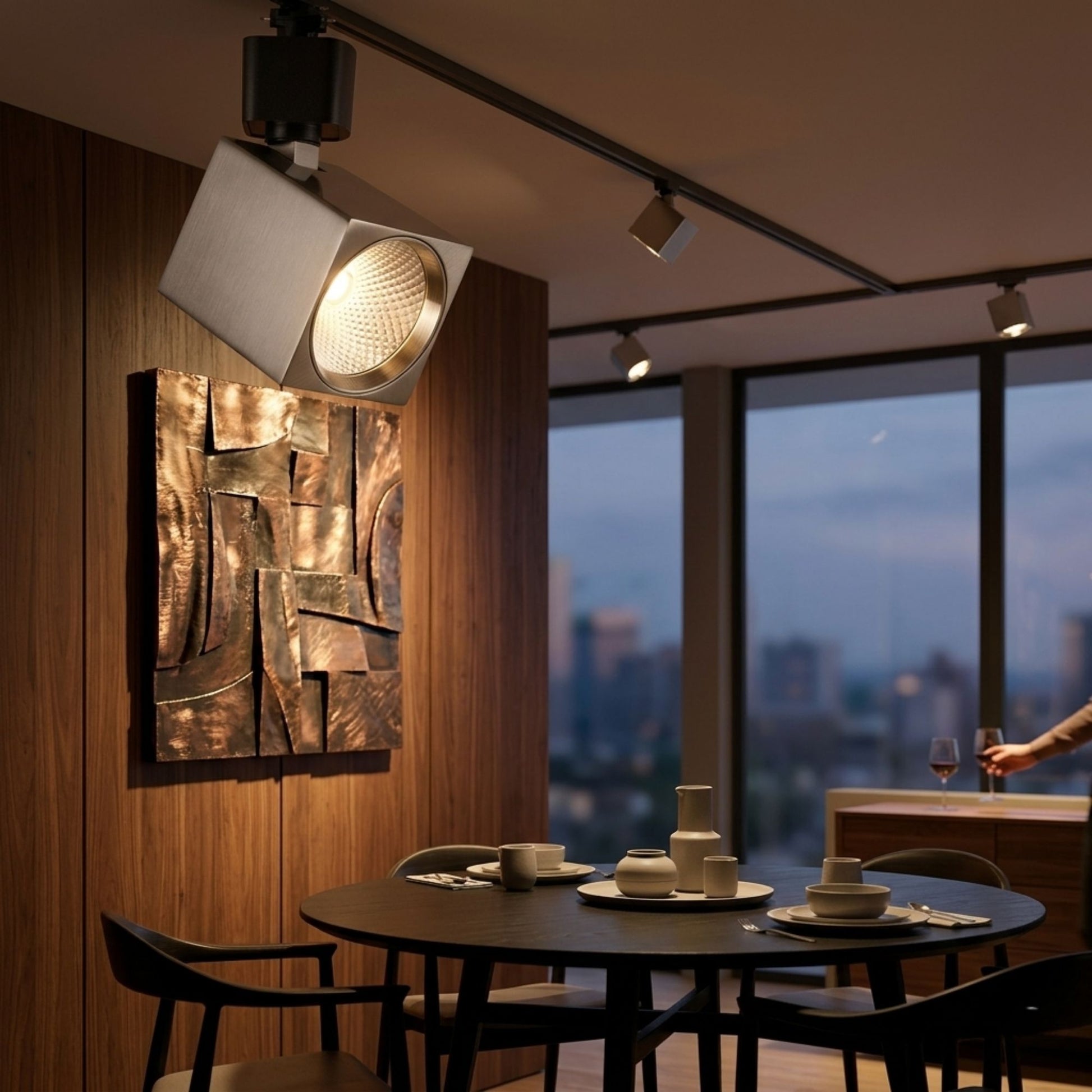

• Restaurant and hospitality accent lighting.
• Residential artwork and shelving.
• Retail merchandise displays.
• Kitchen and office task accents.

What's Included

• Satco Nuvo TH756 Brushed Nickel square track head with integrated LED and H-Type adapter.
