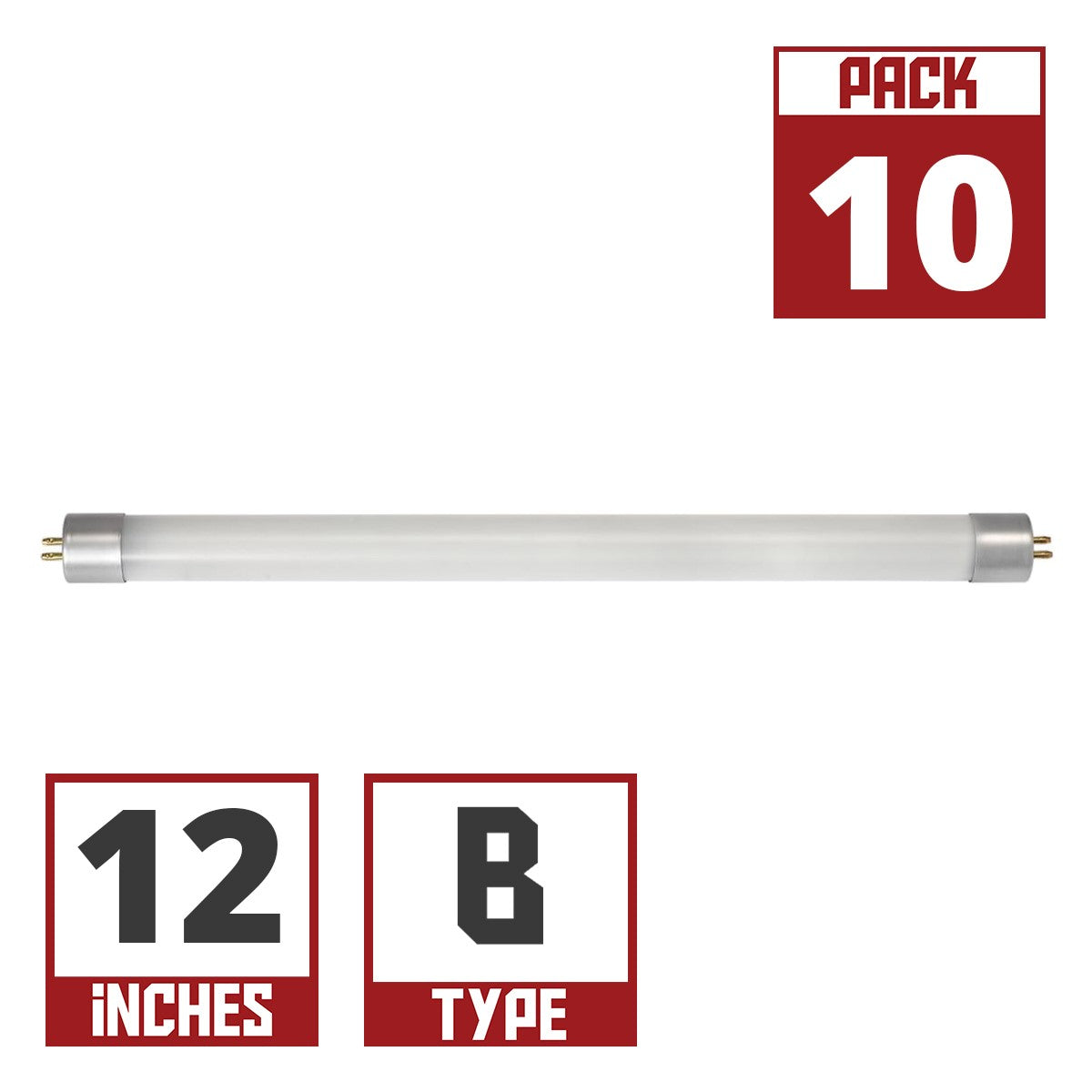

12" Mini T5 LED Tube, 4W, 400 Lumens, F8T5/D Equal, 6500K, Ballast Bypass, Double End
Available in stock (1724)
About this item
About this item
- Energy Efficient: Replaces 8W fluorescent with 4W LED
- Base Type: G5 Miniature Bi-Pin
- Non-Dimmable: Consistent light output
- Ballast Bypass: Direct wire 120-277V line voltage
- High CRI: 80+ for accurate color rendering
We process payments securely and do not store credit card information.
Description
Description

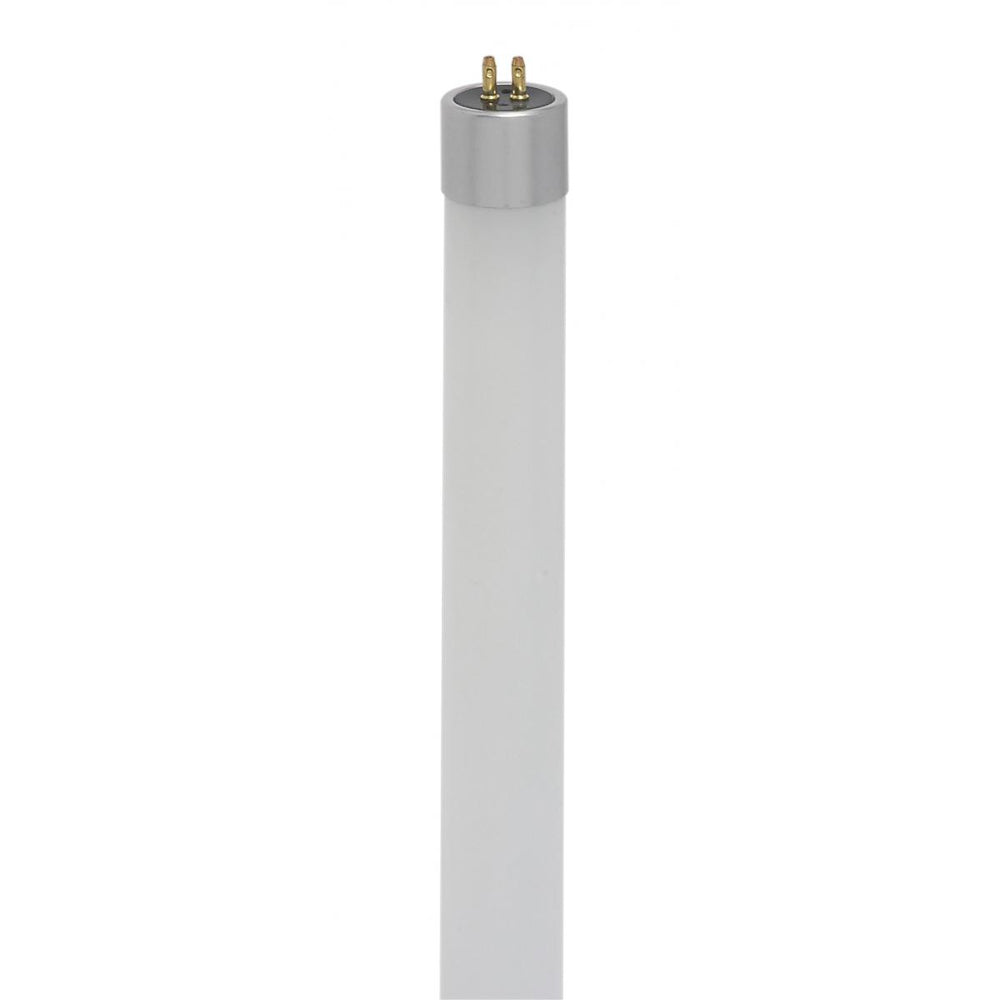

Satco 12" Mini T5 LED Bulb — 4W / 6500K
The Satco S11906 T5 LED bulb features a G5 base and replaces 8W fluorescent lamps with only 4W of power. This LED bulb provides 400 lumens of daylight 6500K light, making it ideal for various applications. The bulb is designed for Type B ballast bypass installations, ensuring easy setup and maintenance.
Key Features
- Base Type: G5 Miniature Bi-Pin
- Bulb Shape: T5
- Wattage Equivalency: 8W Fluorescent
- Enclosed Fixture Rated: False
- Certifications: cULus, ETLus, RoHS Compliant
- Voltage Range: 120-277V
- Beam Angle: 240 degrees
- Surge Protection: 0.5KV built-in
- Operating Temperature: -25C to +45C
- Warranty: 5 years
Construction & Aesthetics
The bulb features a PET-coated glass construction with a frosted finish, providing durability and a wide 240-degree beam angle for optimal light distribution. Its compact size fits seamlessly into existing fixtures.
Electrical & Installation
Designed for direct wire installation, this Type B LED bulb bypasses the ballast, operating on 120-277V line voltage. It is non-dimmable, ensuring consistent light output.
Light Output & Performance
With a light output of 400 lumens and a CRI of 80+, this LED bulb delivers excellent color rendering and a long lifespan of 50,000 hours.
Typical Applications
- Office Lighting
- Retail Displays
- Under Cabinet Lighting
- Task Lighting
- Industrial Facilities
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What base type does the Satco S11906 LED bulb use?
What base type does the Satco S11906 LED bulb use?
Is the Satco S11906 LED bulb dimmable?
Is the Satco S11906 LED bulb dimmable?
Can the Satco S11906 LED bulb be used in enclosed fixtures?
Can the Satco S11906 LED bulb be used in enclosed fixtures?
What is the installation type for the Satco S11906 LED bulb?
What is the installation type for the Satco S11906 LED bulb?
What is the equivalent wattage for the Satco S11906 LED bulb?
What is the equivalent wattage for the Satco S11906 LED bulb?
