2ft LED T8 Tube, 7 Watts, 940 Lumens, 3000K to 6500K, Ballast Bypass, Single|Dual End
2ft LED T8 Tube, 7 Watts, 940 Lumens, 3000K to 6500K, Ballast Bypass, Single|Dual End
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Energy-Efficient Brilliance: 7W delivers 940 lumens, approximately 40% more efficient than conventional F17T8 fluorescent lamps
- 8-CCT Selectable Technology: Choose from eight color temperatures (3000K to 6500K) to adapt to various environments and preferences
- Ballast Bypass Design: Type B installation with single or double-ended line voltage wiring (120-277V) for easy integration
- Superior Light Quality: Frosted glass lens diffuses light evenly with 80 CRI, maintaining consistent illumination without yellowing
- Long-Lasting Performance: 50,000-hour lifespan, TRIAC and ELV dimmable, DLC Listed, UL Classified, 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

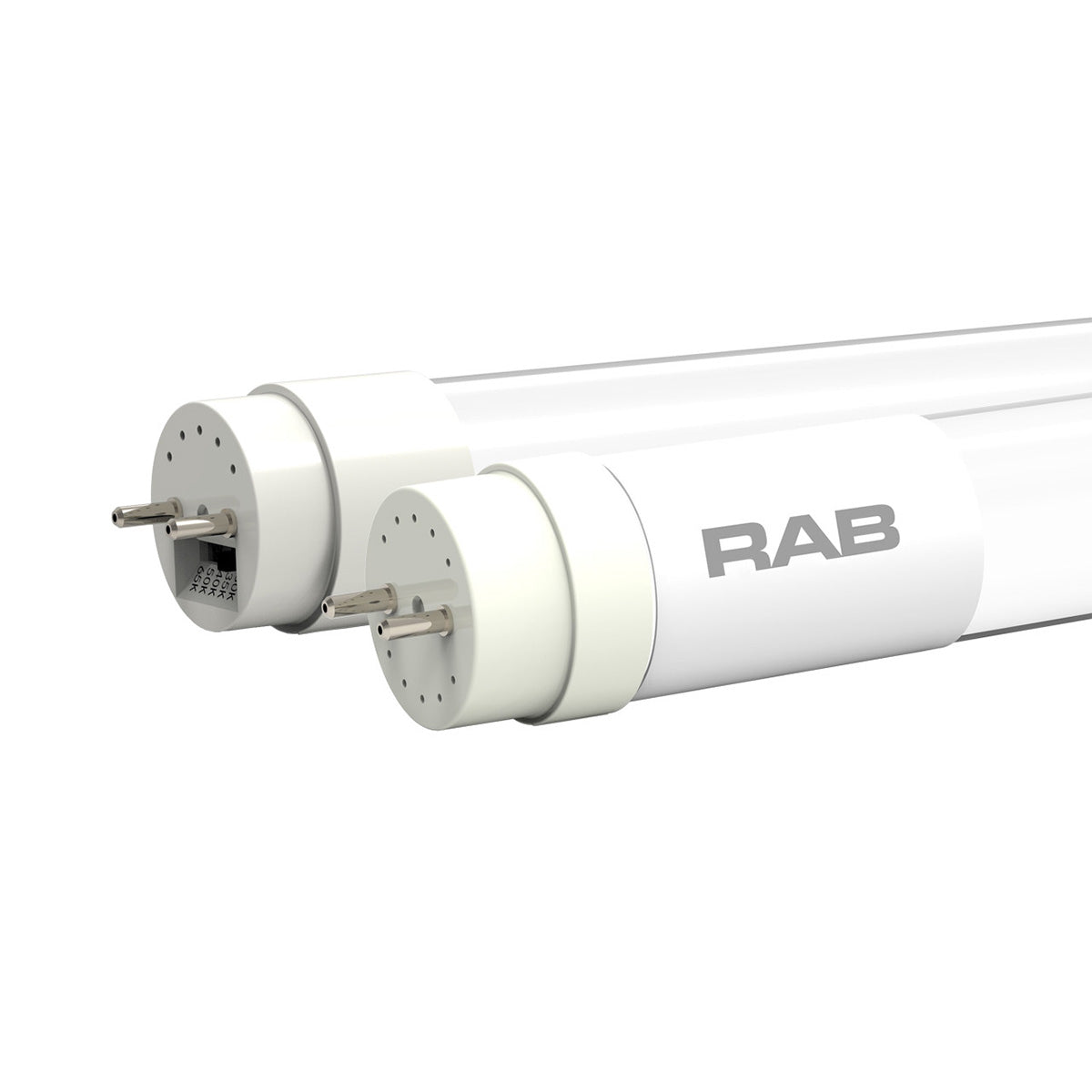

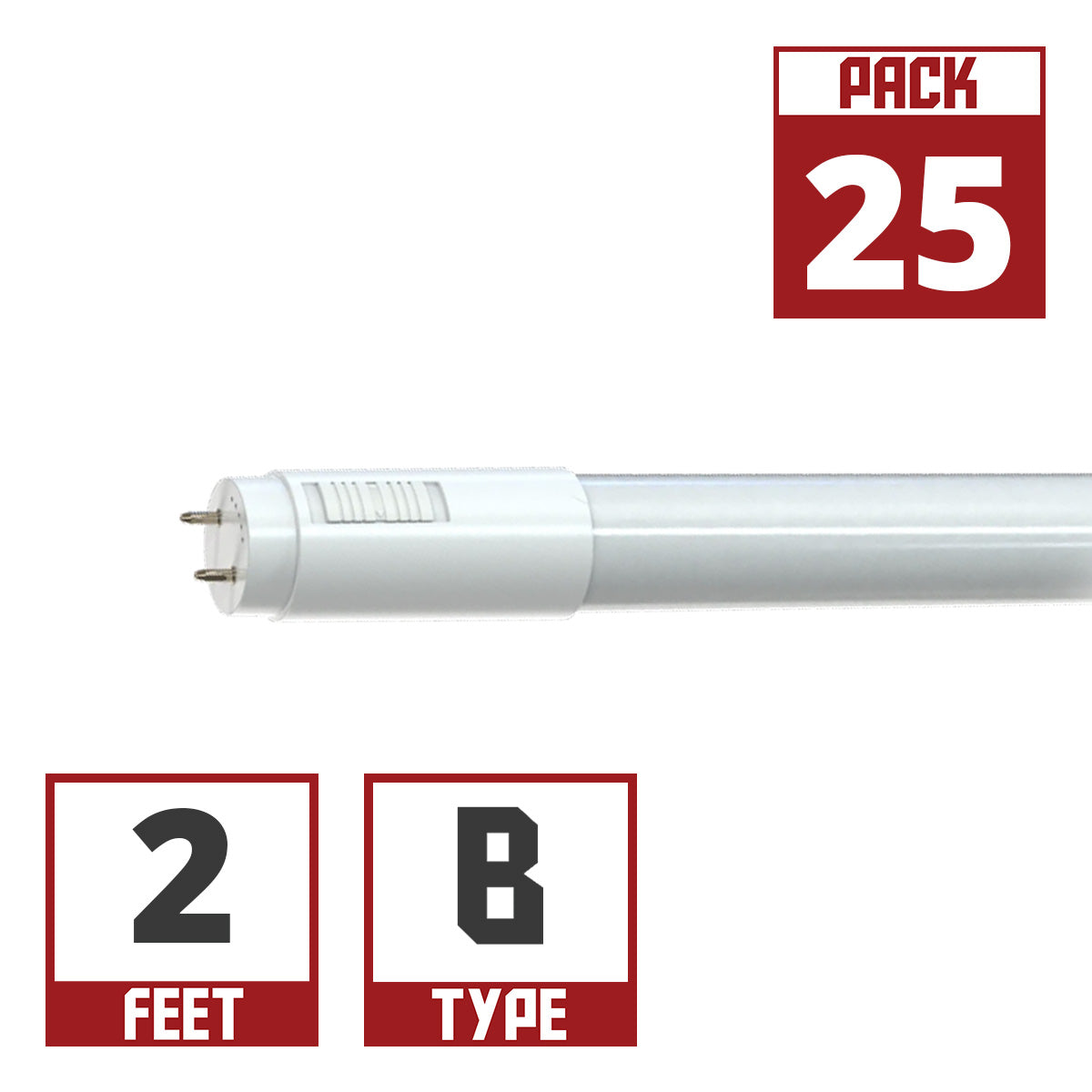

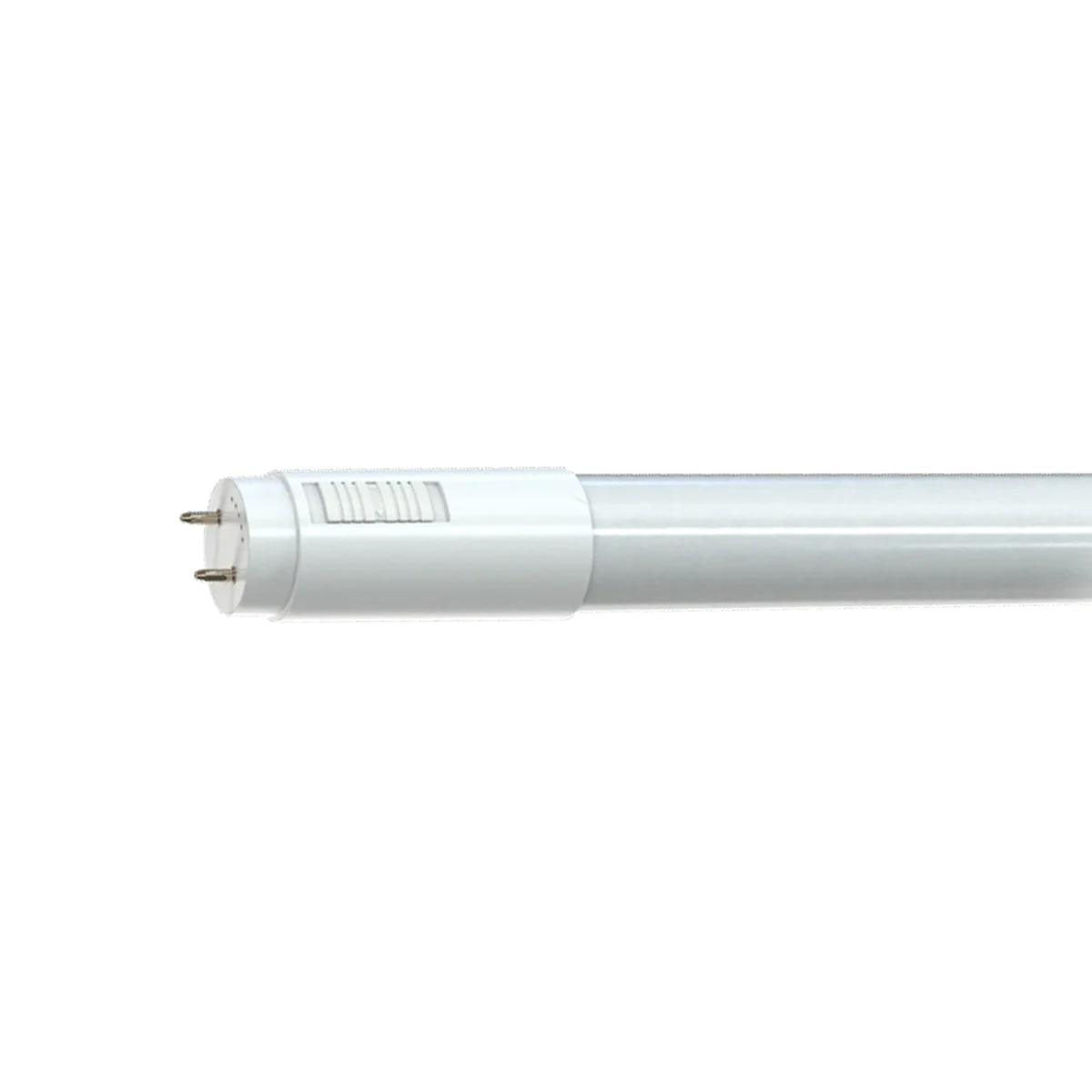

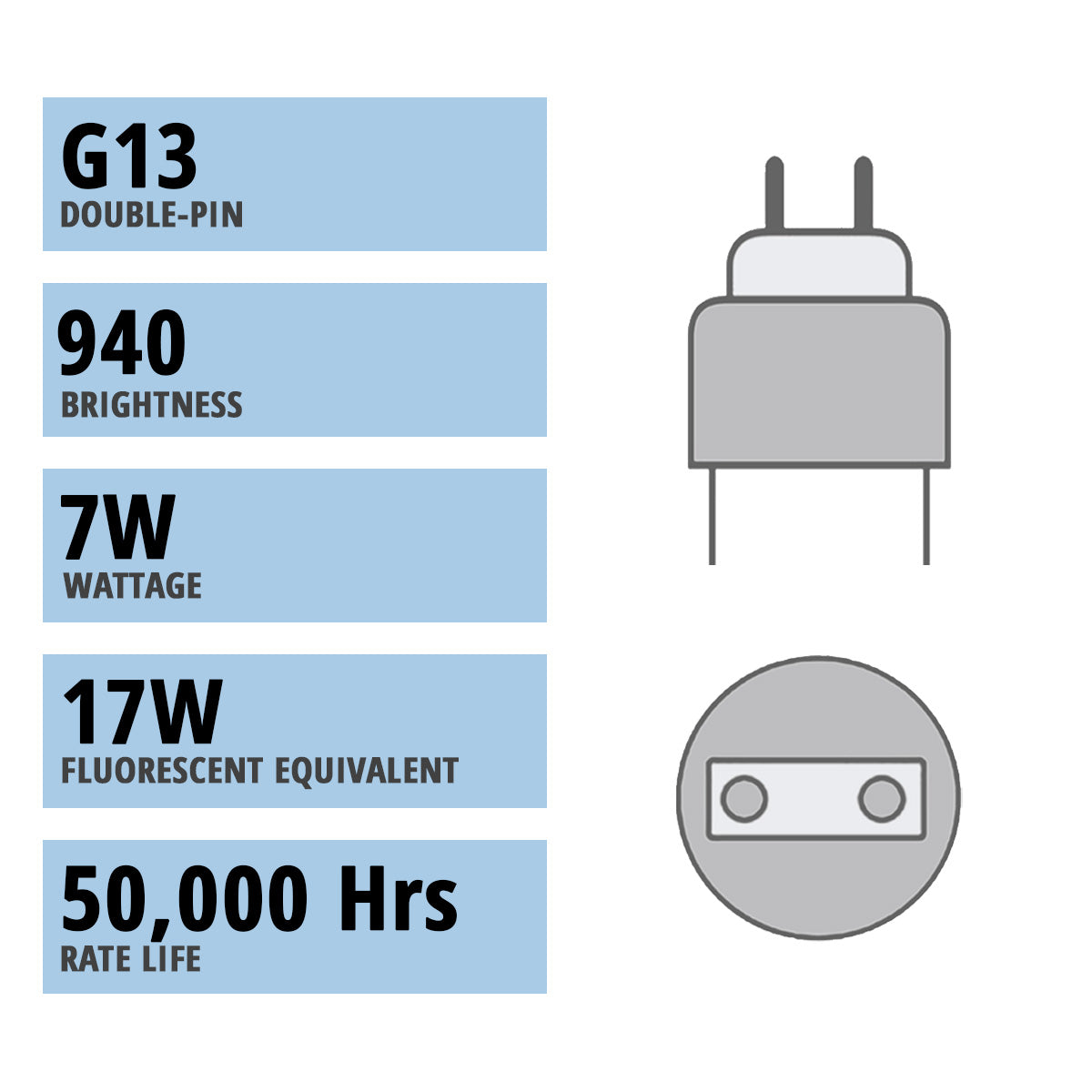

Illuminate your space efficiently with the RAB Lighting T8-7-24G-8CCT-BYP LED tube. This 2ft ballast bypass LED T8 tube delivers 940 lumens with just 7 watts of power consumption, offering approximately 40% more efficiency than conventional T8 lamps.
Key Features:
- Field selectable color temperature: 3000K, 3500K, 4000K, 5000K, and 6500K for customizable lighting to suit any environment

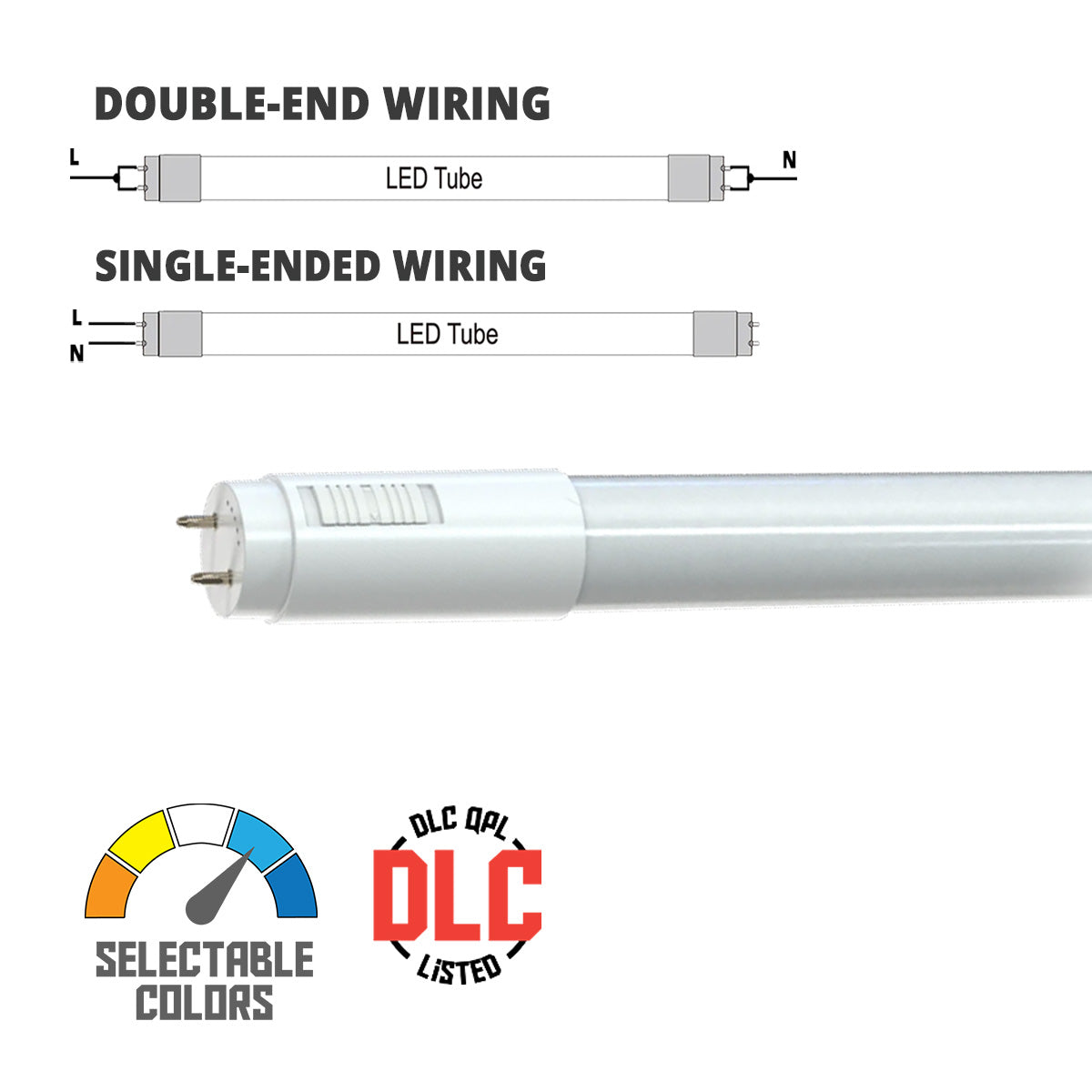

- Ballast bypass design: Compatible with single or double-ended line voltage wiring for easy integration into existing setups
- Superior light quality: Frosted glass lens diffuses light evenly, maintaining consistent illumination without yellowing or shrinkage over time
- 50,000 hours rated life for long-lasting, maintenance-free performance
- TRIAC and ELV dimming capabilities for precise light control
- 120-277V compatibility for diverse applications
- 5 year limited manufacturer warranty for peace of mind
- UL, FCC, NSF, RoHS, and DLC Standard certified for quality and compliance
Experience the future of lighting with RAB's Type B bypass tubes. Their versatile design and superior efficiency make them an ideal replacement for traditional fluorescent T8 lamps, delivering reliable, professional-grade illumination for years to come.
Specifications
Specifications

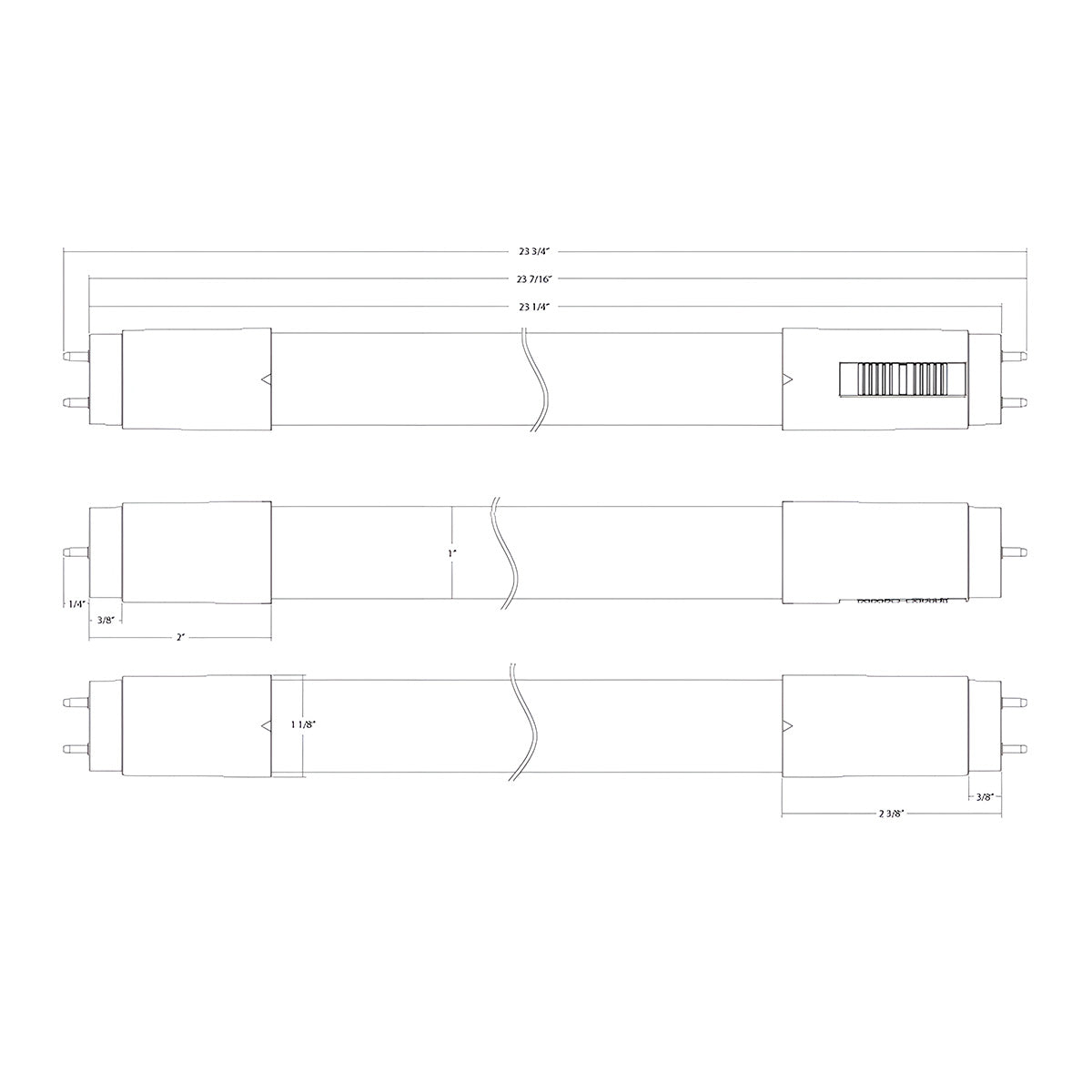

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What does the "T" and the number (T8, T5, T12) mean?
What does the "T" and the number (T8, T5, T12) mean?
The "T" stands for Tubular. The number indicates the diameter of the tube in eighths of an inch. For example, a T8 tube is 8/8ths (1 inch) in diameter, and a T5 tube is 5/8ths of an inch.
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
No. You must use only one type of LED tube light per fixture. Plug-and-Play tubes require the ballast to be connected; Ballast Bypass tubes require the ballast to be removed. Mixing them will damage the bulbs and potentially the fixture.
Will an LED tube work with my old magnetic ballast?
Will an LED tube work with my old magnetic ballast?
Some LED tubes are designed to be compatible with magnetic ballasts, but most modern LED tube lights are optimized for electronic ballasts. It is safest to check the specifications or opt for the Ballast Bypass method.
What is the typical light lifespan of an LED tube?
What is the typical light lifespan of an LED tube?
LED fluorescent replacement lamps are typically rated for 50,000 hours of life, which is significantly longer than the 20,000 to 30,000 hours of traditional fluorescent lamps.
What are the advantages of an LED tube over an LED PL plug-in lamp?
What are the advantages of an LED tube over an LED PL plug-in lamp?
LED tubes provide light linearly and are designed for large troffer fixtures to ensure wide, even light distribution across a large ceiling area. PL lamps are compact and designed for small, recessed downlights.
