9" Mini T5 LED Tube, 3W, 270 Lumens, F6T5/CW Equal, 4000K, Ballast Bypass, Double End
Available in stock (259)
About this item
About this item
- Energy Efficient: Replaces 6W fluorescent with only 3W consumption
- Base Type: G5 Miniature Bi-Pin for secure fit
- Non-Dimmable: Consistent light output without dimming
- Ballast Bypass: Type B direct wire installation
- Long Lifespan: 50,000 hours rated life
We process payments securely and do not store credit card information.
Description
Description

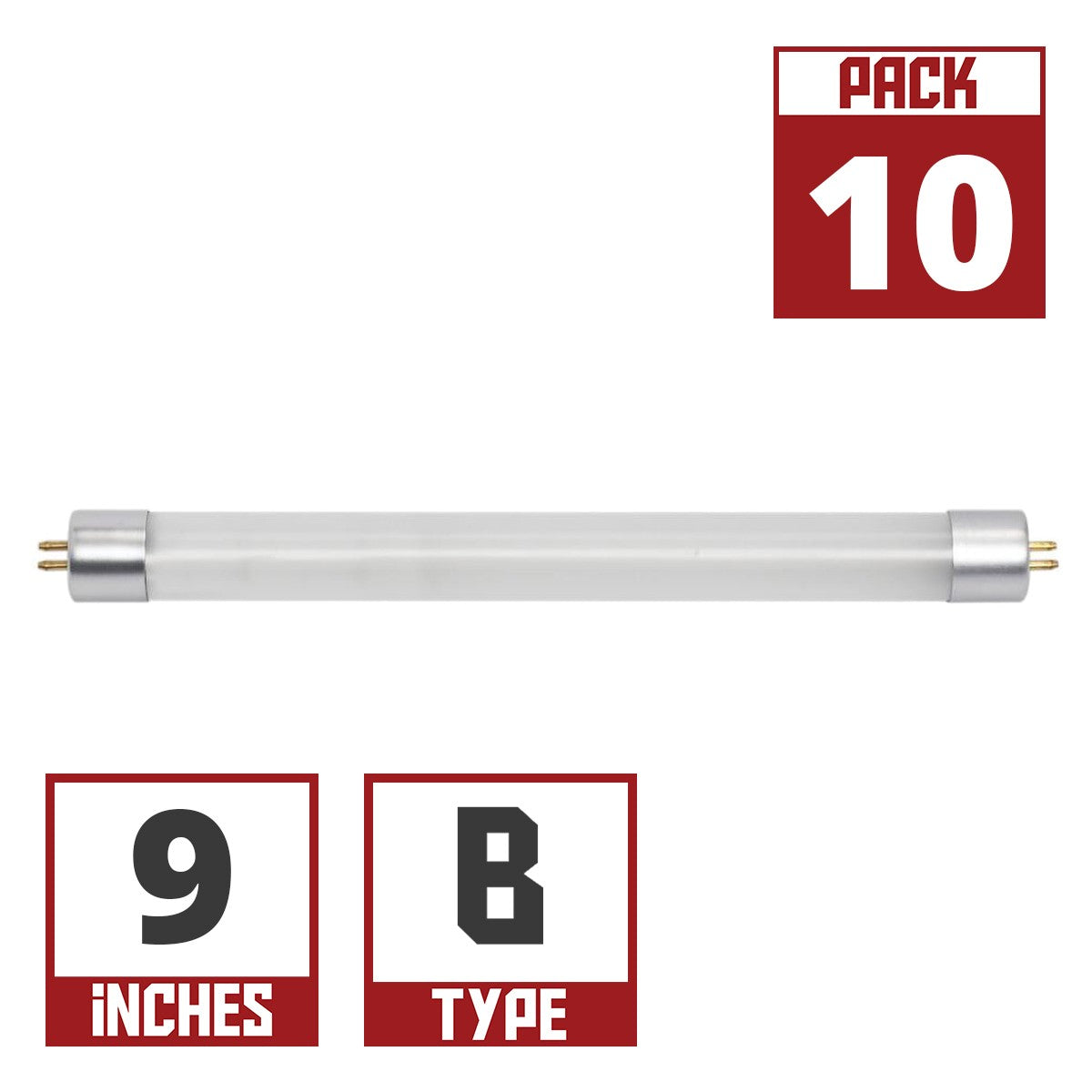

Satco 9" Mini T5 LED Bulb — 3W / 4000K
The Satco S11902 T5 LED bulb is designed to replace 6W fluorescent lamps with a more efficient 3W LED solution. Featuring a G5 base, this bulb delivers 270 lumens of cool white light at 4000K. The Satco T5 LED bulb is ideal for applications requiring a compact and efficient lighting solution.
Key Features
- Base Type: G5 Miniature Bi-Pin
- Bulb Shape: T5
- Wattage Equivalency: Replaces 6W fluorescent
- Enclosed Fixture Rating: Not suitable for enclosed fixtures
- Certifications: cULus, ETLus, RoHS compliant
- Voltage: 120-277V for versatile installation
- Beam Angle: 240 degrees for wide light distribution
- CRI: 80+ for accurate color rendering
- Operating Temperature: -25C to +45C
- Surge Protection: Built-in 0.5KV
- Material: Frosted glass with PET coating
- Installation: Double-ended wiring, direct wire
Construction & Aesthetics
The Satco T5 LED bulb features a frosted glass finish with a PET coating for durability. Its compact design measures 8.91 inches in length and 0.83 inches in diameter, making it suitable for a variety of fixtures.
Electrical & Installation
This bulb operates on 120-277V and requires no ballast, offering a direct wire installation with double-ended wiring. It is non-dimmable, ensuring consistent light output.
Light Output & Performance
With a light output of 270 lumens and a CRI of 80+, this bulb provides clear and accurate lighting. It has a wide 240-degree beam angle and a lifespan of 50,000 hours.
Typical Applications
- Office lighting
- Retail displays
- Under-cabinet lighting
- Task lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What base type does the Satco S11902 LED bulb use?
What base type does the Satco S11902 LED bulb use?
Is the Satco S11902 LED bulb dimmable?
Is the Satco S11902 LED bulb dimmable?
Can the Satco S11902 LED bulb be used in enclosed fixtures?
Can the Satco S11902 LED bulb be used in enclosed fixtures?
What is the installation type for the Satco S11902 LED bulb?
What is the installation type for the Satco S11902 LED bulb?
What is the equivalent wattage for the Satco S11902 LED bulb?
What is the equivalent wattage for the Satco S11902 LED bulb?
