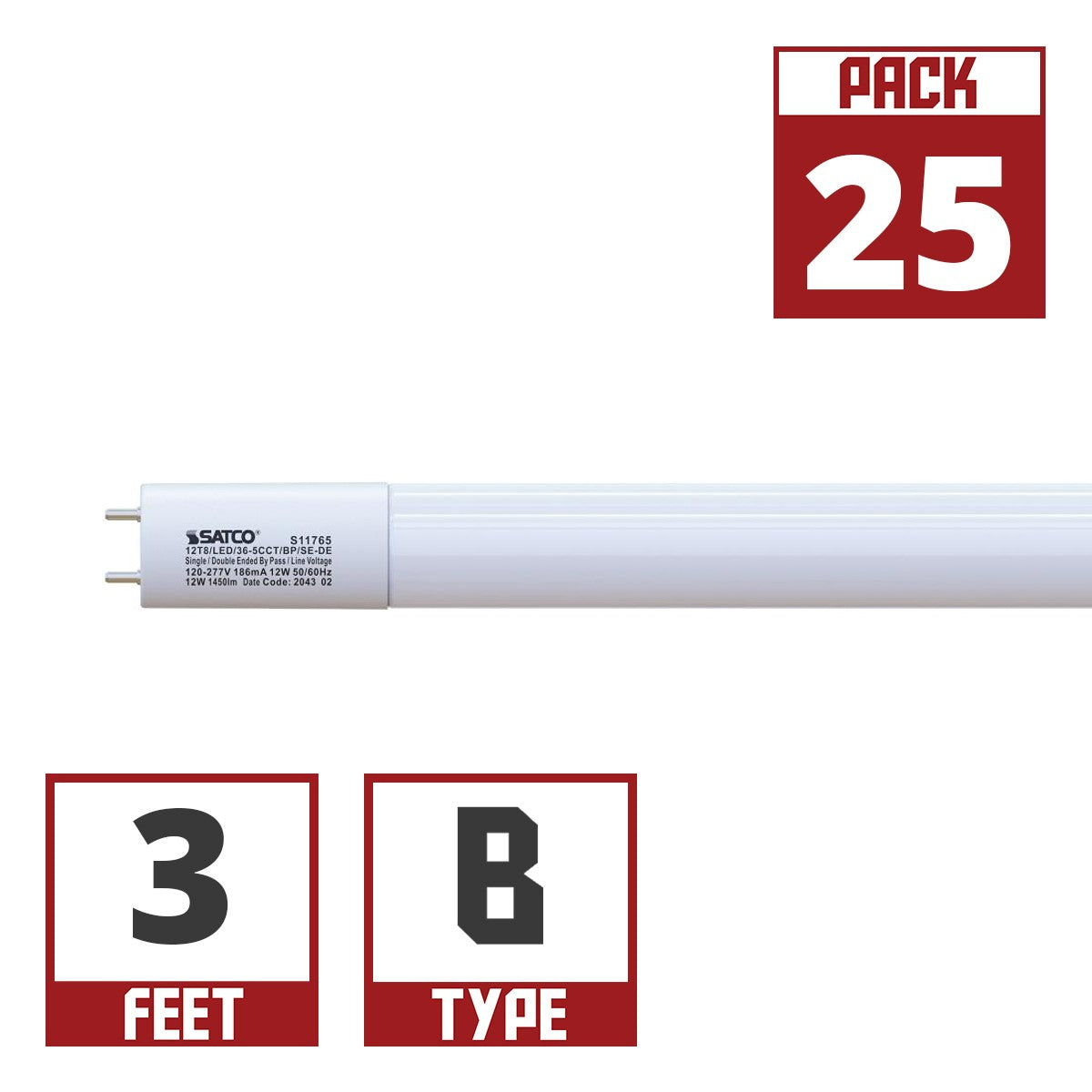

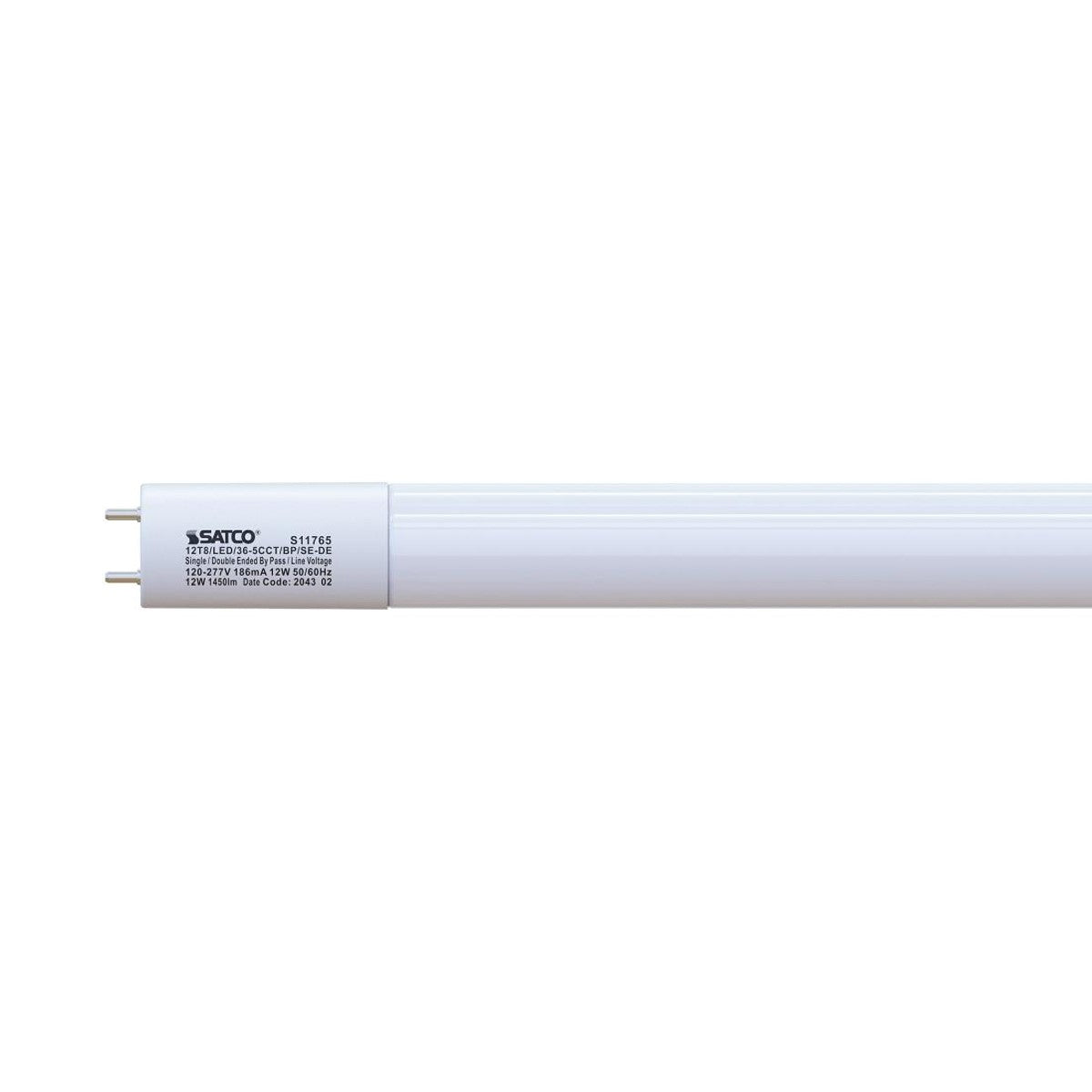

Satco 3FT T8 LED Bulb — 12W / Selectable CCT

The Satco S11765 is a versatile T8 LED bulb designed for G13 base fixtures, offering a 12W power consumption as a direct replacement for 32W fluorescent tubes. This bulb features a selectable CCT range from 3000K to 6500K, making it adaptable to various lighting needs. The Satco T8 LED bulb is ideal for both residential and commercial applications.

Key Features

• MPN: S11765

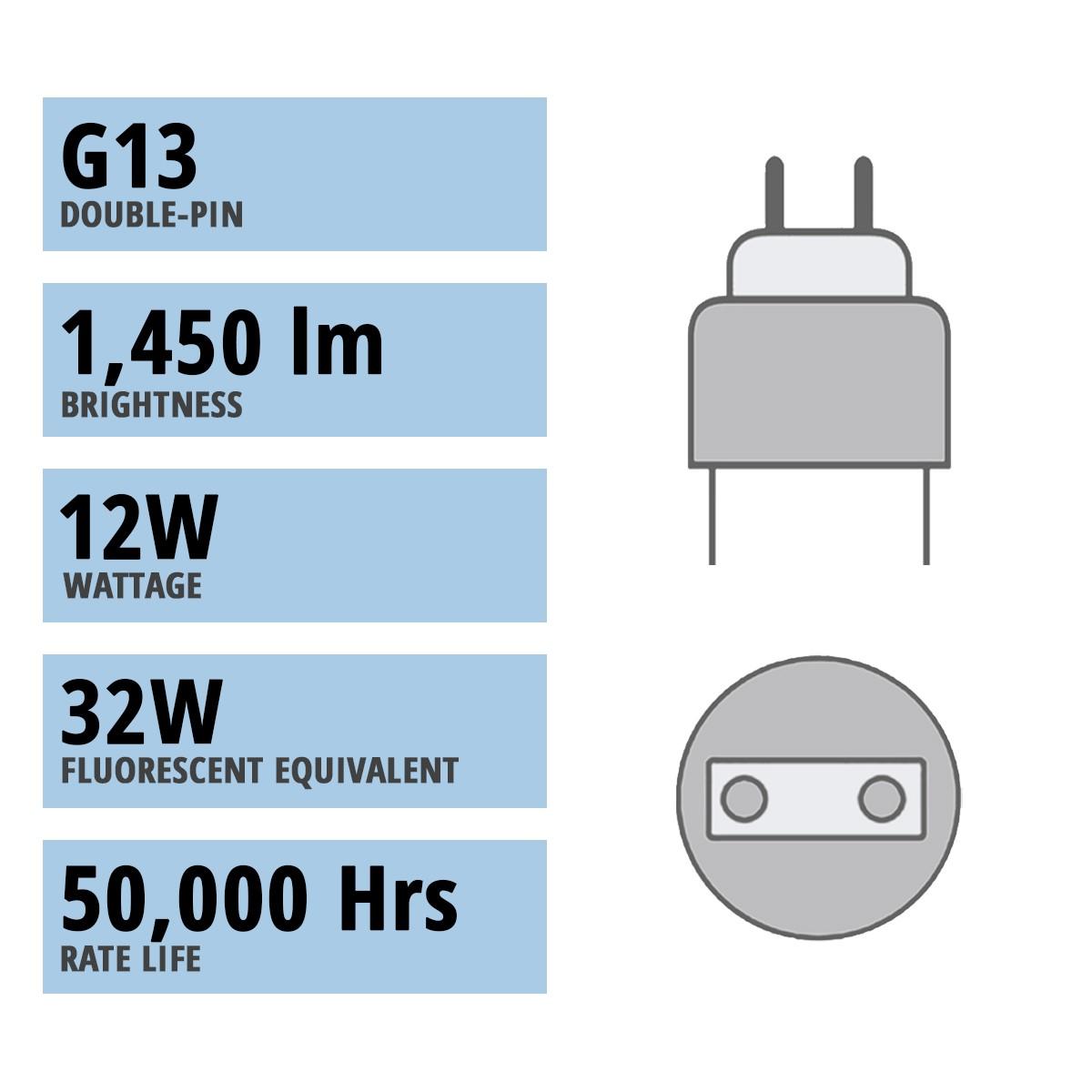

• Base Type: G13 Medium Bi-Pin
• Bulb Shape: T8
• Wattage Equivalency: 32W Fluorescent
• Enclosed Fixture Rated: False
• Certifications: DLC Approved, RoHS Compliant
• Voltage: 120-277V
• CRI: 80+
• Lifespan: 50,000 hours
• Beam Angle: 210 degrees
• Power Factor: 0.9
• Operating Temperature: -20C to +45C

Construction & Aesthetics

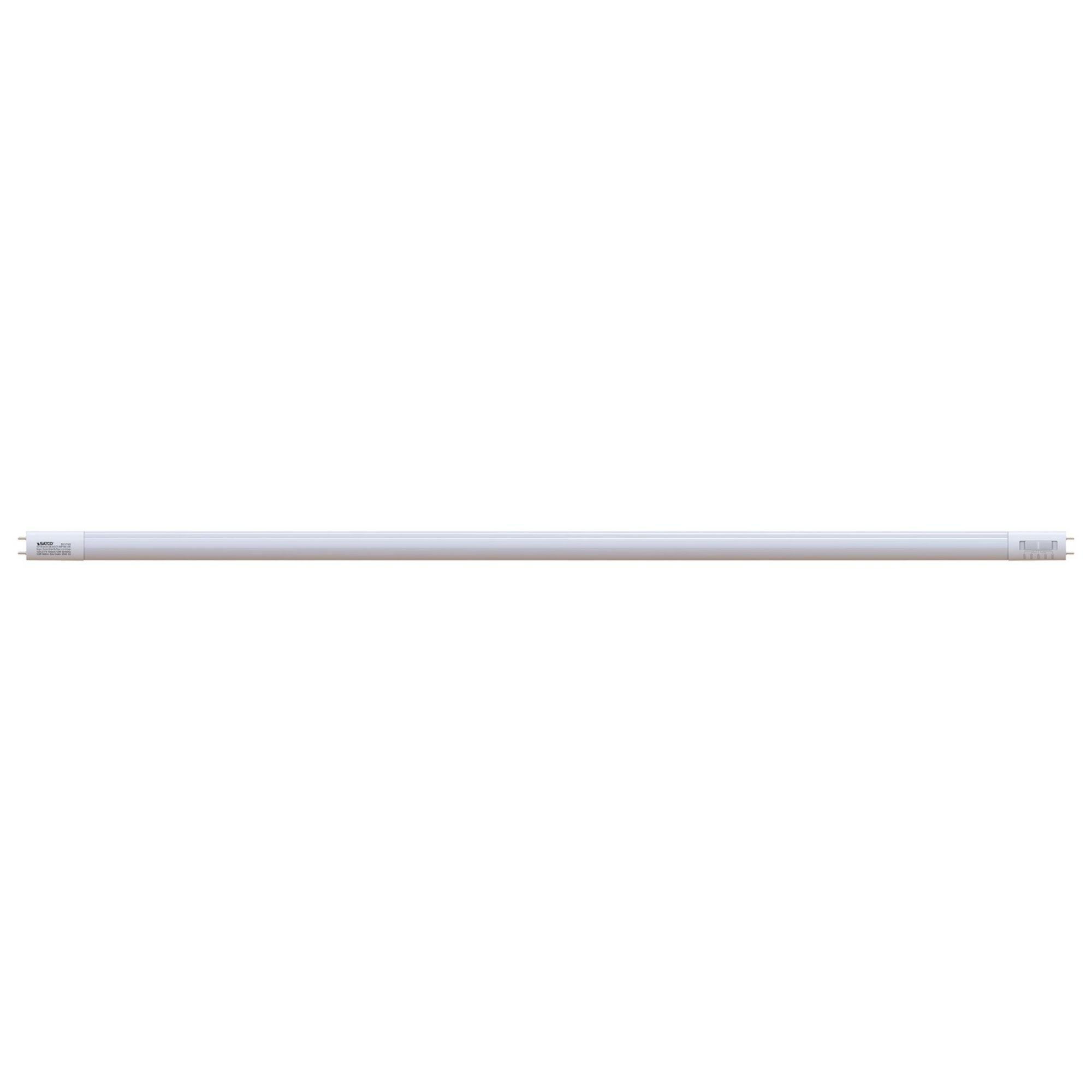

This bulb features a durable construction with a combination of glass and plastic materials, ensuring longevity and reliability. It has a frosted lens finish that provides a soft, diffused light output. The bulb measures 35.17 inches in length and 0.94 inches in diameter, fitting standard T8 fixtures.

Electrical & Installation

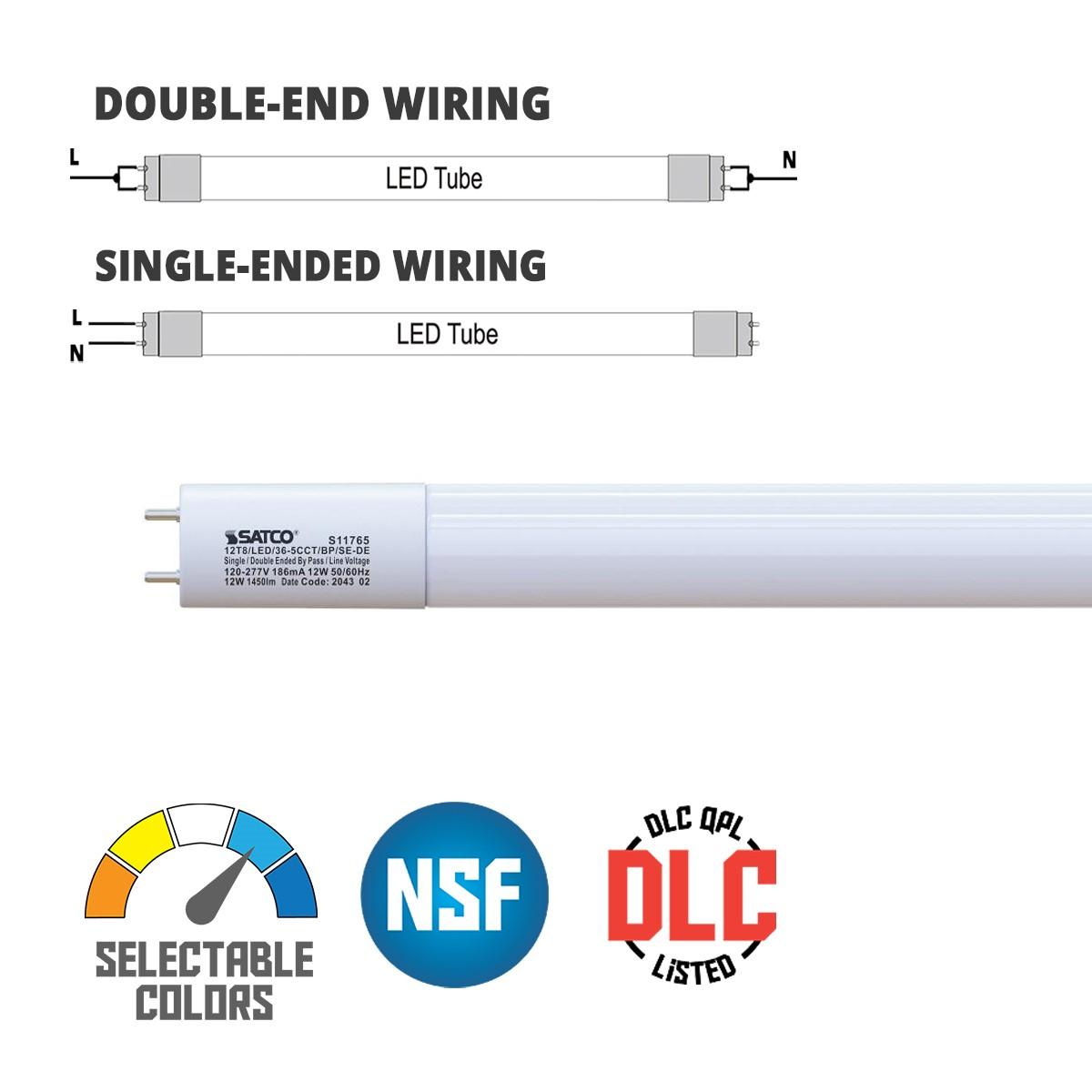

Operating at 120-277V, this T8 LED bulb requires a Type B ballast bypass installation, eliminating the need for an existing ballast. It is not dimmable, ensuring consistent light output. The G13 base allows for easy installation in compatible fixtures.

Light Output & Performance

With a lumen output of up to 1450 lumens and a CRI of 80+, this bulb delivers bright and accurate color rendering. The selectable CCT feature allows users to choose from warm white to daylight settings, enhancing the versatility of the lighting environment.

Typical Applications

• Offices
• Retail Spaces
• Warehouses
• Schools
• Hospitals
