8ft LED T8 Tube, 24W|32W|40W, 5400lm, 3000K to 6500K, FA8/R17d base, Double End, Clear
8ft LED T8 Tube, 24W|32W|40W, 5400lm, 3000K to 6500K, FA8/R17d base, Double End, Clear
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Field-Adjustable Power & CCT: Three selectable wattages (24W/32W/40W) with 3500/4400/5400 lumens and five color temperatures (3000K, 3500K, 4000K, 5000K, 6500K)
- Interchangeable Base System: Compatible with both FA8 and R17D bases for maximum fixture compatibility, replacing up to 96W fluorescent bulbs

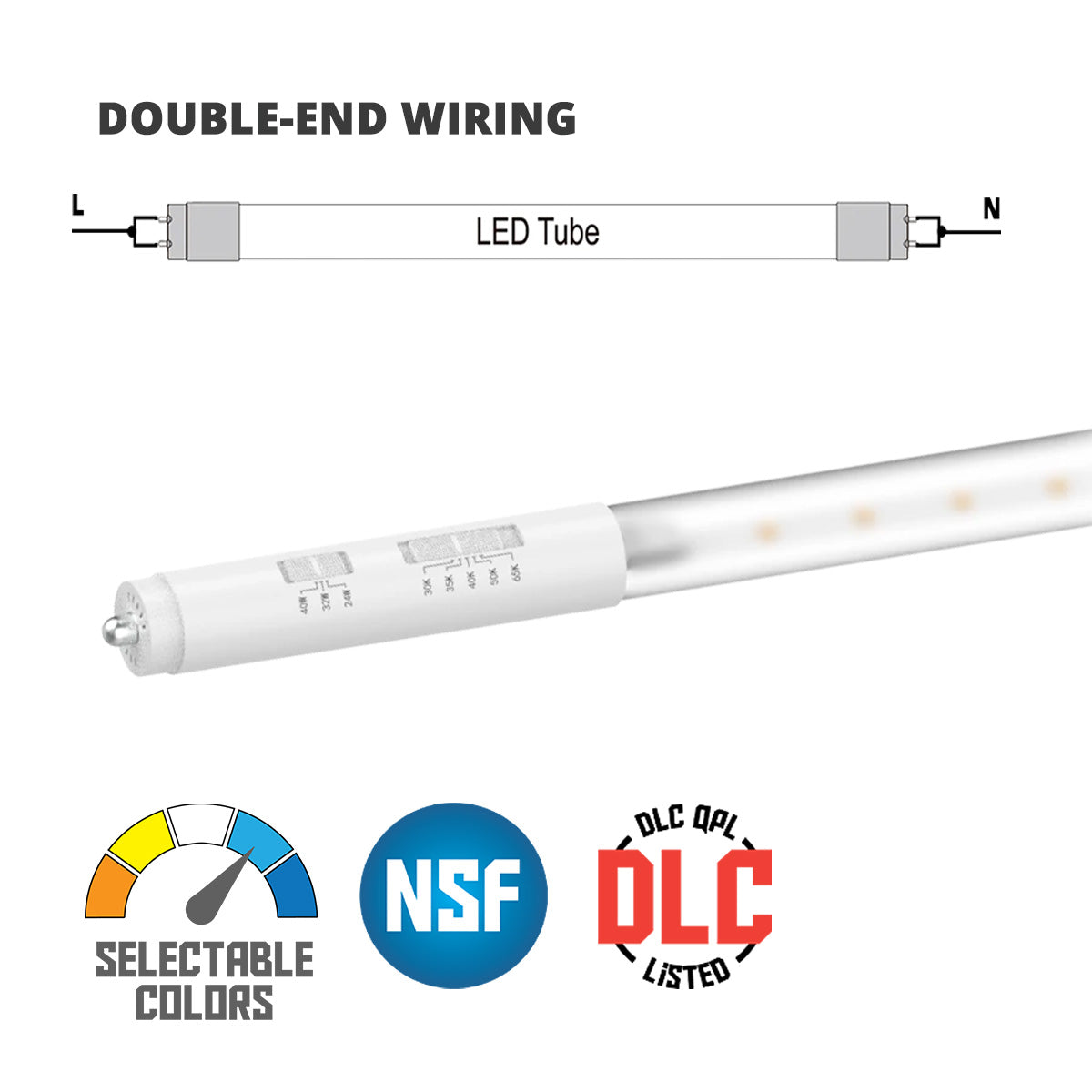

- Flexible Installation: Ballast bypass design with double-ended wiring, 120-277V operation for easy retrofit or new construction
- Clear Glass Design: Maximum light output with 82 CRI for superior color rendering, suitable for enclosed fixtures and damp environments
- Commercial-Grade Quality: 50,000-hour lifespan, 5-year warranty, FCC, RoHS, NSF certified, UL and DLC listed
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Maximize your lighting efficiency with the RAB Lighting T8-96G-DE-BYP-C 8ft LED T8 tube. This premium ballast bypass tube features field-adjustable power settings (24W, 32W, or 40W) and delivers an impressive 5400 lumens with a clear lens for maximum light output, making it the perfect replacement for traditional fluorescent lamps in commercial and industrial applications.
Key Features:
- Field adjustable power: Select between 24W, 32W, or 40W to match your specific lighting requirements
- Field selectable color temperature: 3000K, 3500K, 4000K, 5000K, and 6500K for customizable lighting environments

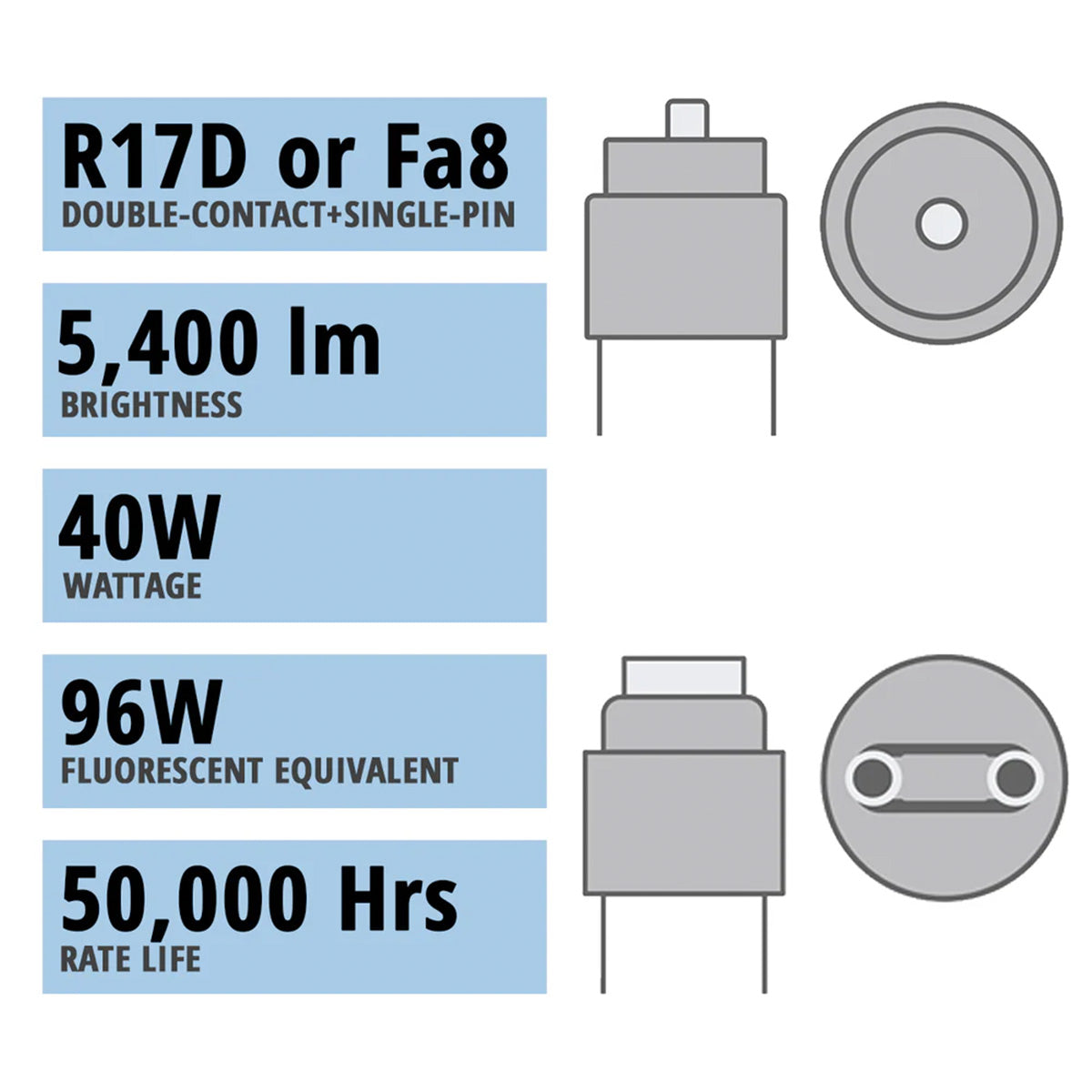

- Interchangeable base type: R17D or FA8 with flexible single or double-ended installation options
- Clear lens for maximum light output and brightness
- Suitable for enclosed fixtures and damp environments
- 50,000 hours rated life for long-lasting, maintenance-free performance
- 5 year limited manufacturer warranty for peace of mind
- UL, FCC, NSF, RoHS, and DLC certified for quality and compliance
The versatile design with interchangeable bases and adjustable power settings makes this 8ft LED tube ideal for retrofitting existing fixtures or new installations. Upgrade to RAB's advanced LED technology for superior efficiency and reliable performance in demanding commercial environments.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What does the "T" and the number (T8, T5, T12) mean?
What does the "T" and the number (T8, T5, T12) mean?
The "T" stands for Tubular. The number indicates the diameter of the tube in eighths of an inch. For example, a T8 tube is 8/8ths (1 inch) in diameter, and a T5 tube is 5/8ths of an inch.
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
No. You must use only one type of LED tube light per fixture. Plug-and-Play tubes require the ballast to be connected; Ballast Bypass tubes require the ballast to be removed. Mixing them will damage the bulbs and potentially the fixture.
Will an LED tube work with my old magnetic ballast?
Will an LED tube work with my old magnetic ballast?
Some LED tubes are designed to be compatible with magnetic ballasts, but most modern LED tube lights are optimized for electronic ballasts. It is safest to check the specifications or opt for the Ballast Bypass method.
What is the typical light lifespan of an LED tube?
What is the typical light lifespan of an LED tube?
LED fluorescent replacement lamps are typically rated for 50,000 hours of life, which is significantly longer than the 20,000 to 30,000 hours of traditional fluorescent lamps.
What are the advantages of an LED tube over an LED PL plug-in lamp?
What are the advantages of an LED tube over an LED PL plug-in lamp?
LED tubes provide light linearly and are designed for large troffer fixtures to ensure wide, even light distribution across a large ceiling area. PL lamps are compact and designed for small, recessed downlights.
