WAC Lighting OCULARC Track Head, H-Type, Dark Bronze, Selectable CCT, 2255 Lumens, 55° Beam Angle
Available in stock (153)
About this item
About this item
- System Compatibility: Designed for H-Type tracks, ensuring seamless integration.
- Beam Angle Options: Comes with 55° pre-installed, 40° interchangeable, and 20° spot beam options.
- Selectable CCT: Features a toolless 5-CCT switch for 2700K to 5000K flexibility.
- High Lumen Output: Delivers up to 2255 lumens, outperforming 100W halogen PAR38.
- Adjustability: Offers 350° horizontal and 90° vertical aiming for precise light direction.
We process payments securely and do not store credit card information.
Description
Description

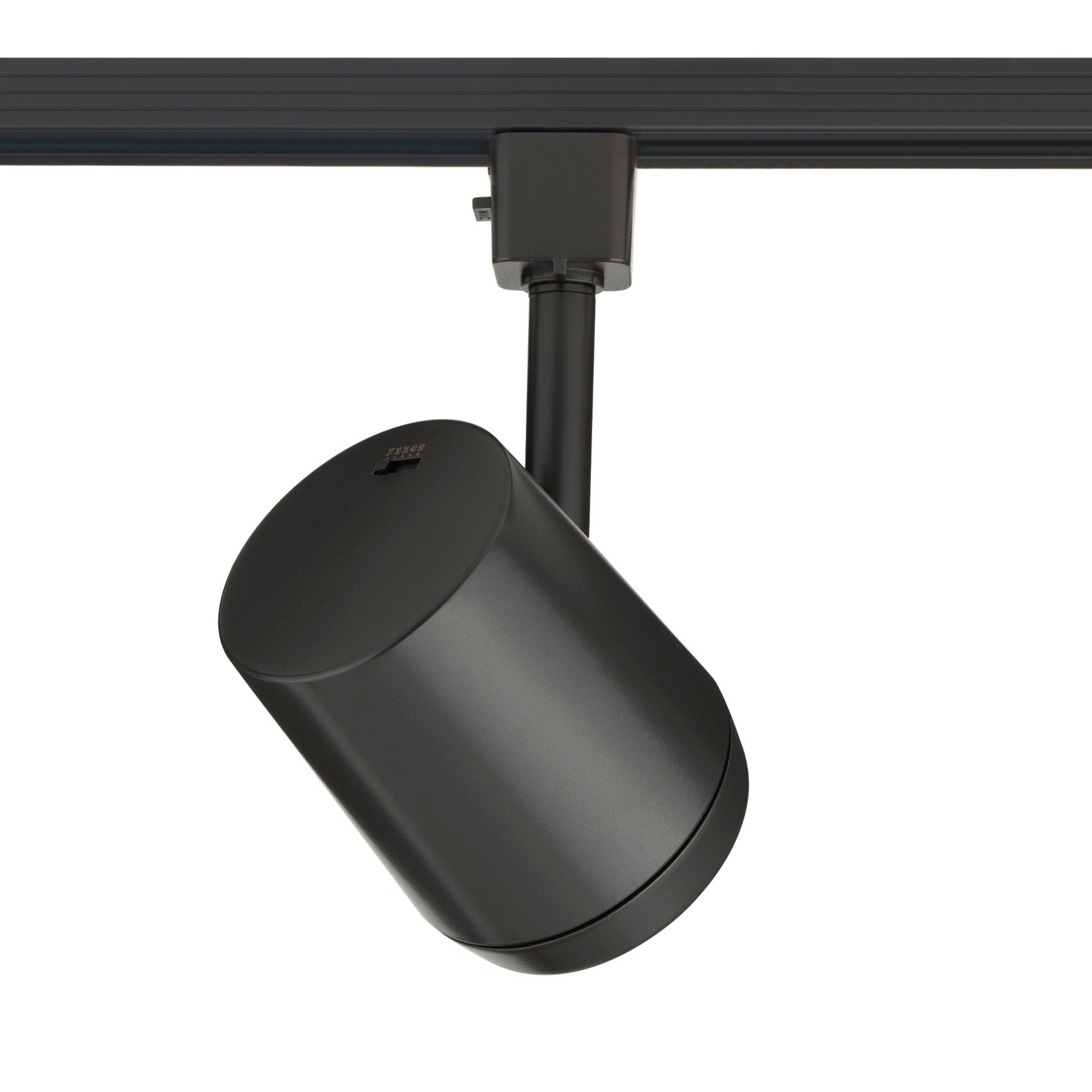

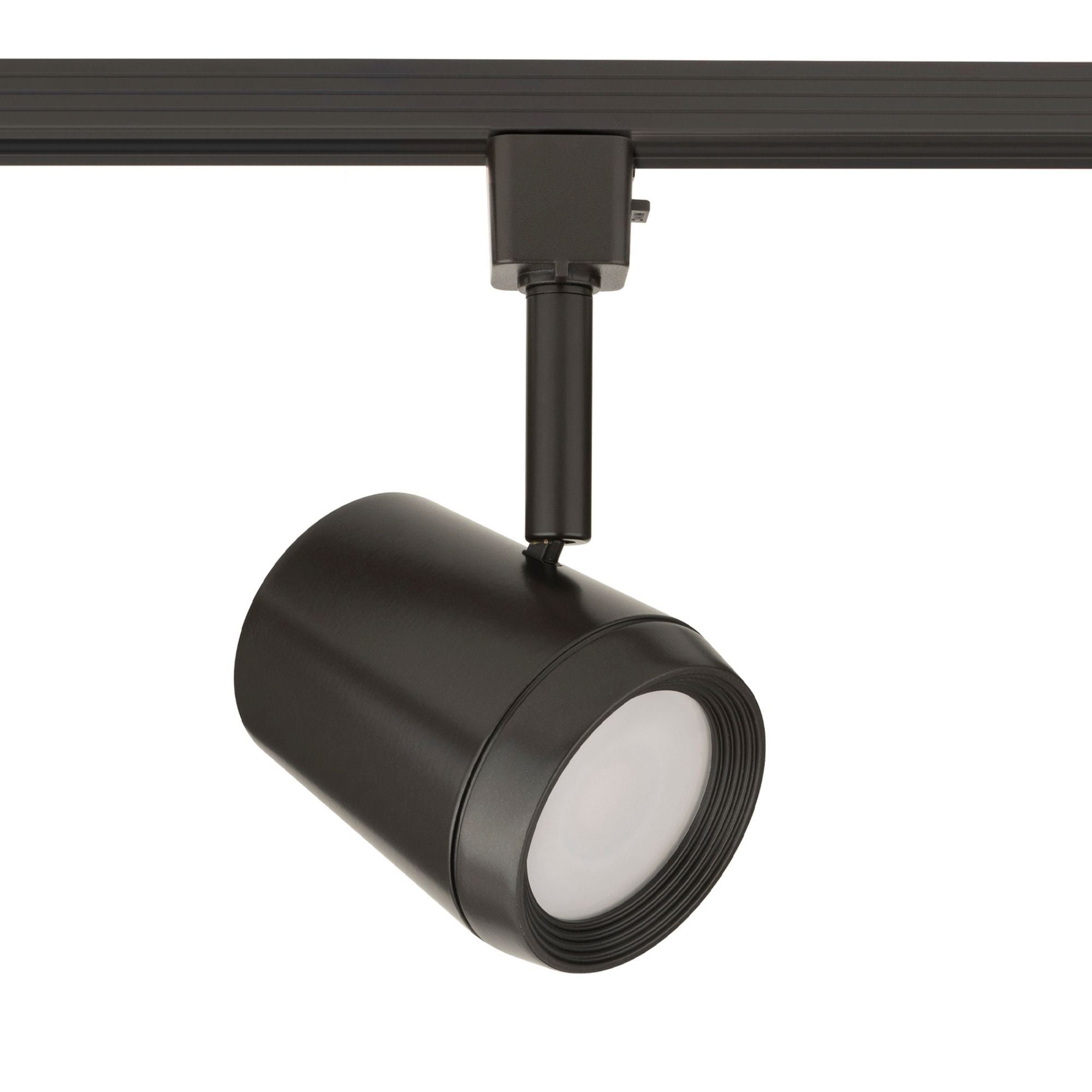

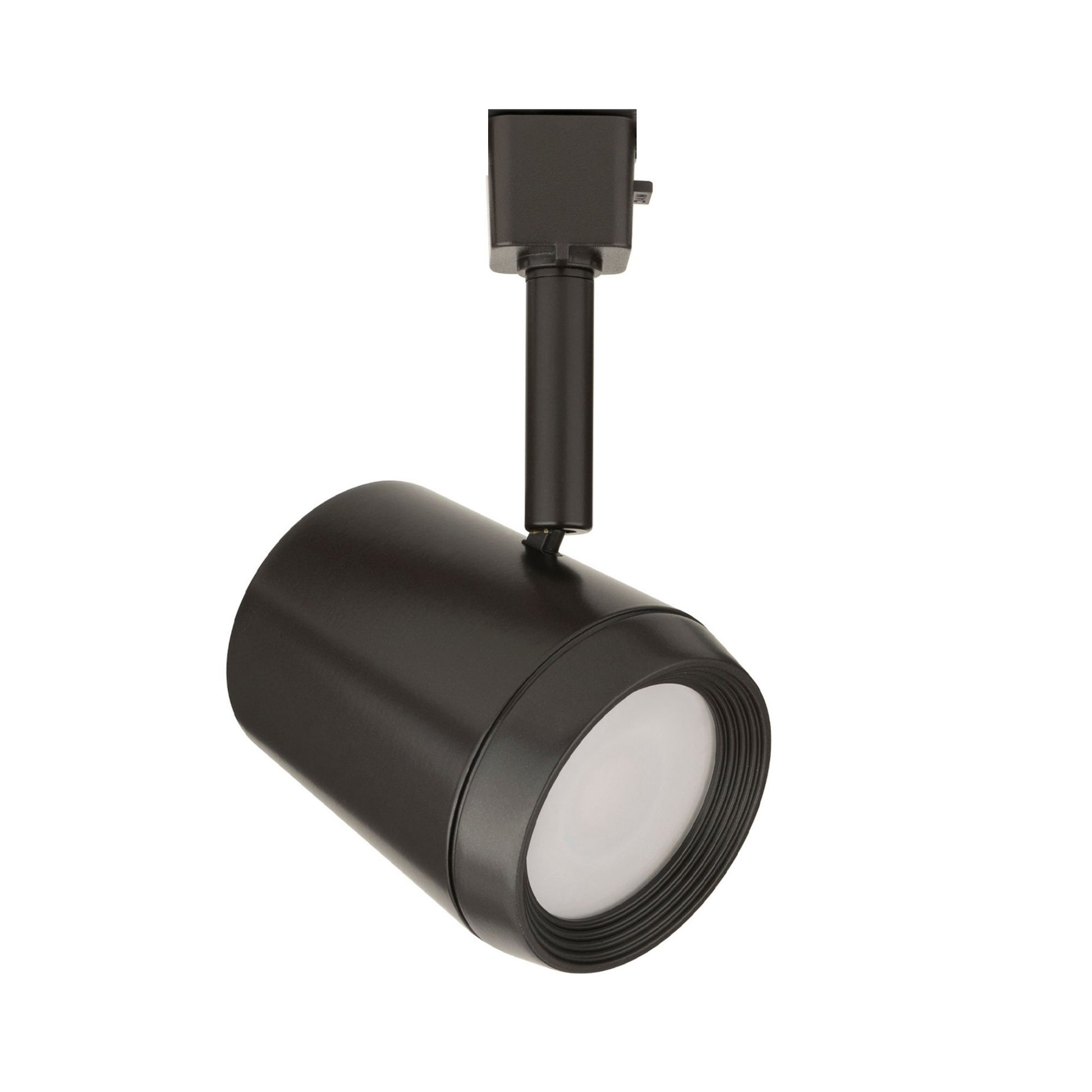

WAC Lighting OCULARC Track Head — Dark Bronze & Selectable CCT
The WAC Lighting H-7030-CS-DB in Dark Bronze is a high-performance track head designed for H-Type systems. This fixture offers a selectable CCT range from 2700K to 5000K and operates at 120V, making it ideal for versatile lighting applications.
Key Features
- Voltage: Operates at 120V with a power factor of 0.98.
- Wattage: Consumes 29W, providing energy-efficient illumination.
- Lumens: Produces a maximum of 2255 lumens for bright lighting.
- CCT Range: Selectable from 2700K to 5000K for customizable ambiance.
- Aiming Angles: Offers 350° horizontal and 90° vertical adjustability.
- Beam Angle: Includes 20°, 40°, and 55° options for varied lighting effects.
- Certifications: ETL & cETL Dry Location Listed, Title 24 JA8 Compliant.
- Track System: Compatible with H-Type tracks only.
Core Design & Adjustability
Constructed from die-cast aluminum with a baffled front cover, this track head is finished in electrostatically powder-coated Dark Bronze. It offers extensive aiming flexibility with 350° horizontal and 90° vertical rotation.
LED Illumination & Performance
Equipped with a high-output COB LED, this fixture delivers 2255 lumens with a CRI of 90+. The selectable CCT feature allows for a range of color temperatures, enhancing its adaptability.
Power, Wiring & Compatibility
Specifically designed for H-Type track systems, this track head operates at 120V and supports ELV or TRIAC dimming from 100% to 10%.

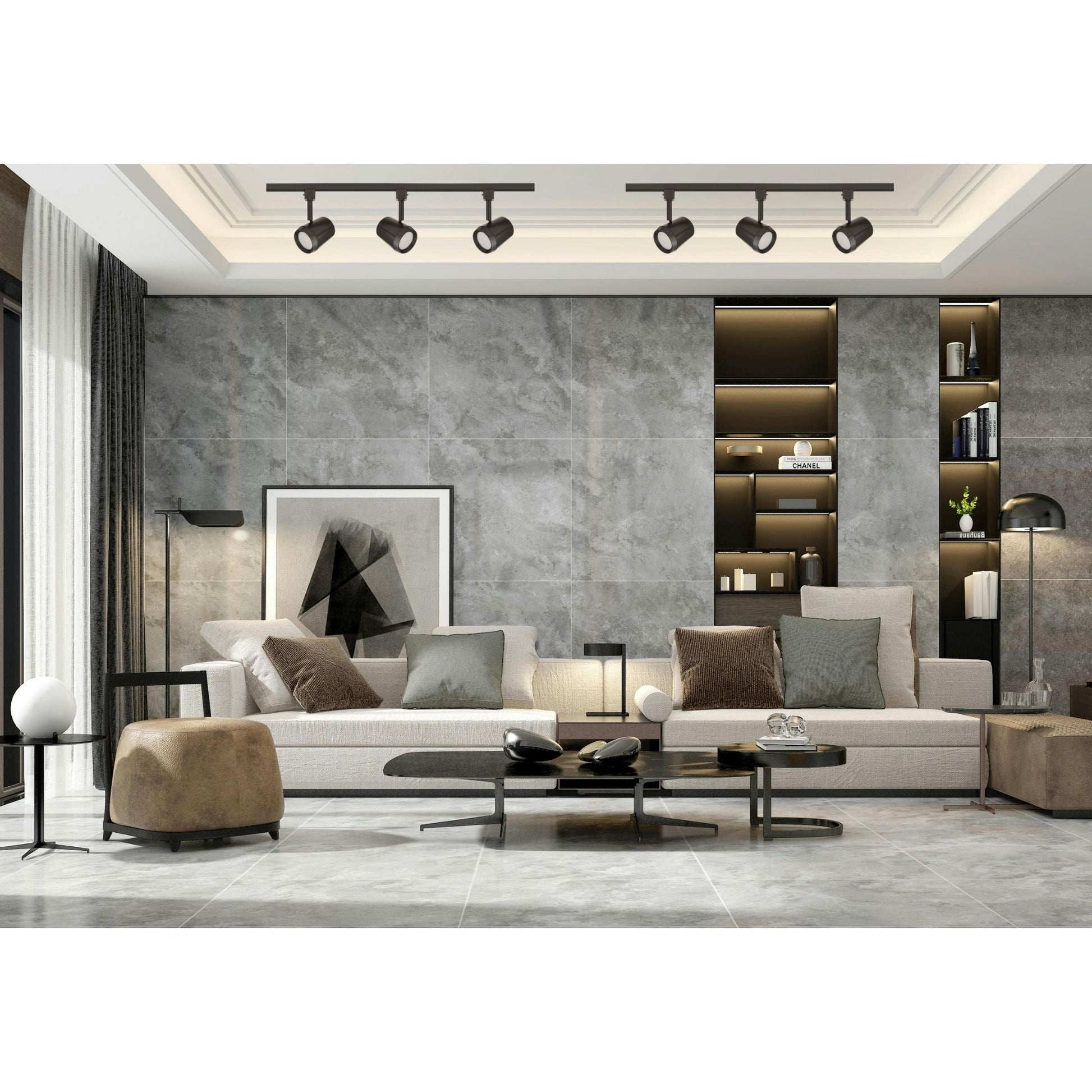

Where This Fixture Works Best
- Retail environments
- High-ceiling residential spaces
- Art galleries
- Commercial showrooms
What's Included
- H-7030-CS-DB Track Head
- 55° Beam Film (pre-installed)
- 40° Interchangeable Beam Film
Specifications
Specifications

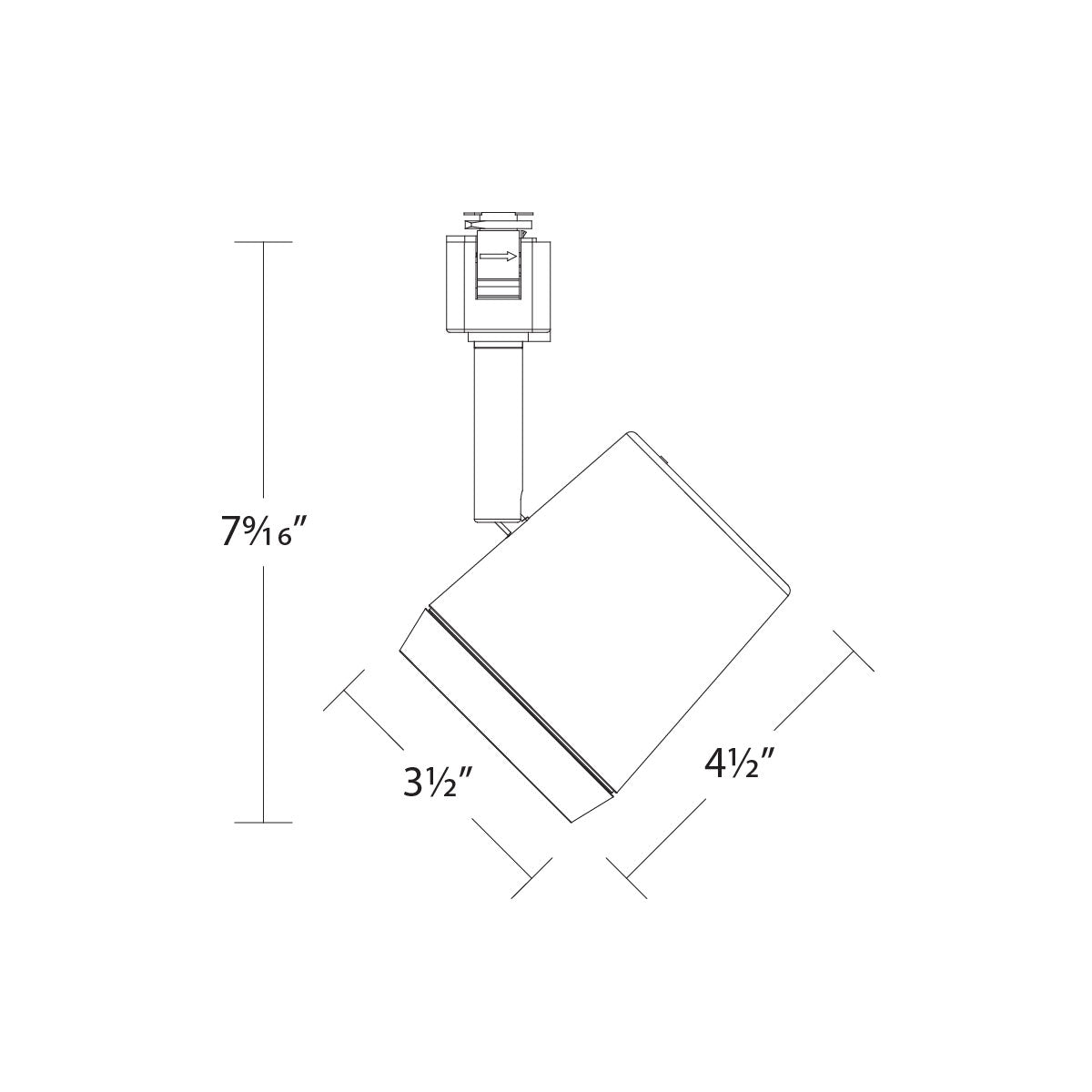

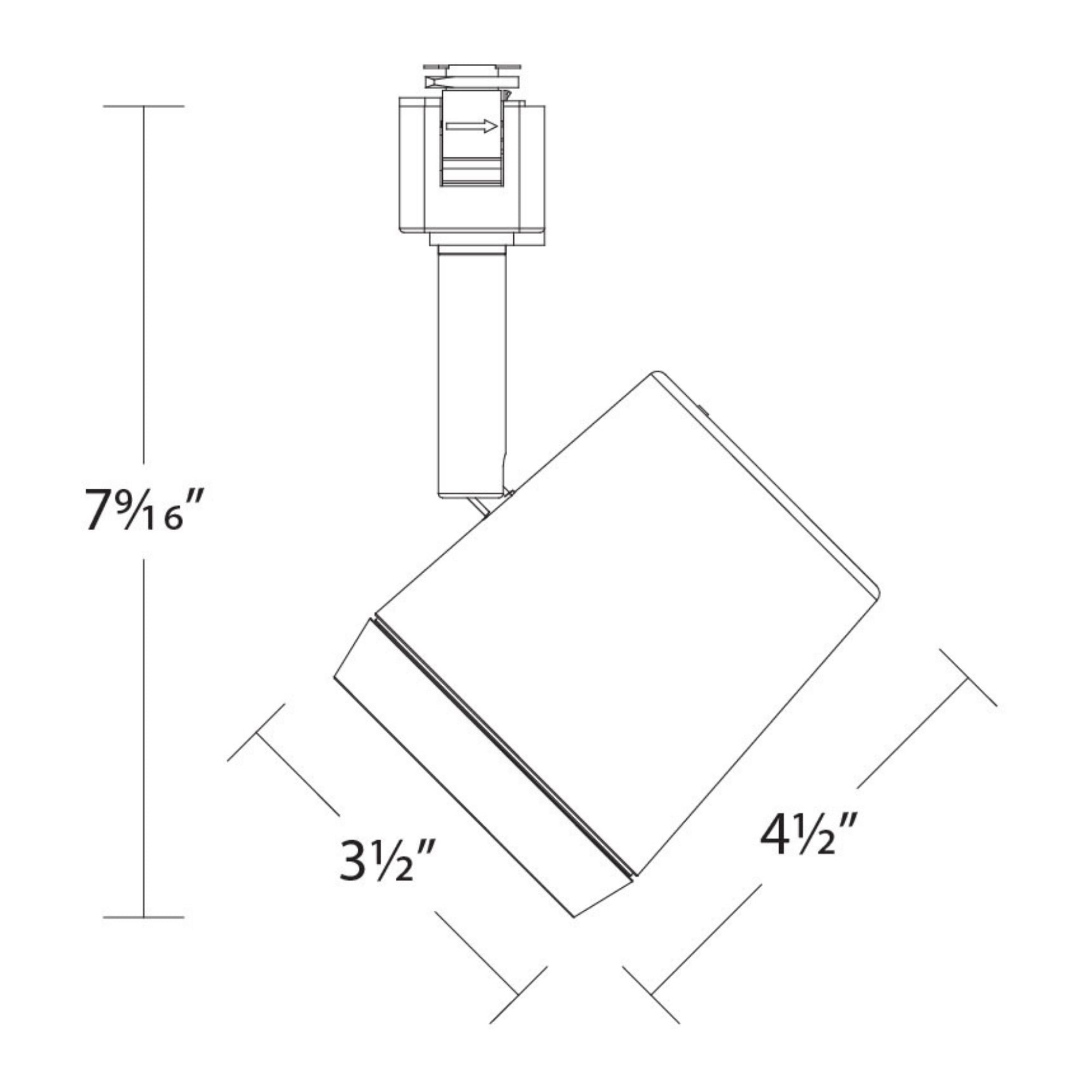

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I use this track head on a Halo track?
Can I use this track head on a Halo track?
Is the color temperature adjustable?
Is the color temperature adjustable?
Does this track head support dimming?
Does this track head support dimming?
What beam angles are available?
What beam angles are available?
What is included with the track head?
What is included with the track head?

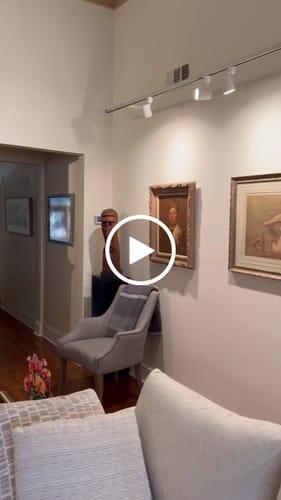

The new Lightolier track heads worked out great for my space. The service from Bees Lighting was also fantastic, which made the entire purchase smooth. Installation was easy, and the fixtures look fantastic, very clean and modern. I'm really happy with the final result and the quality of the light they provide.
