Overview

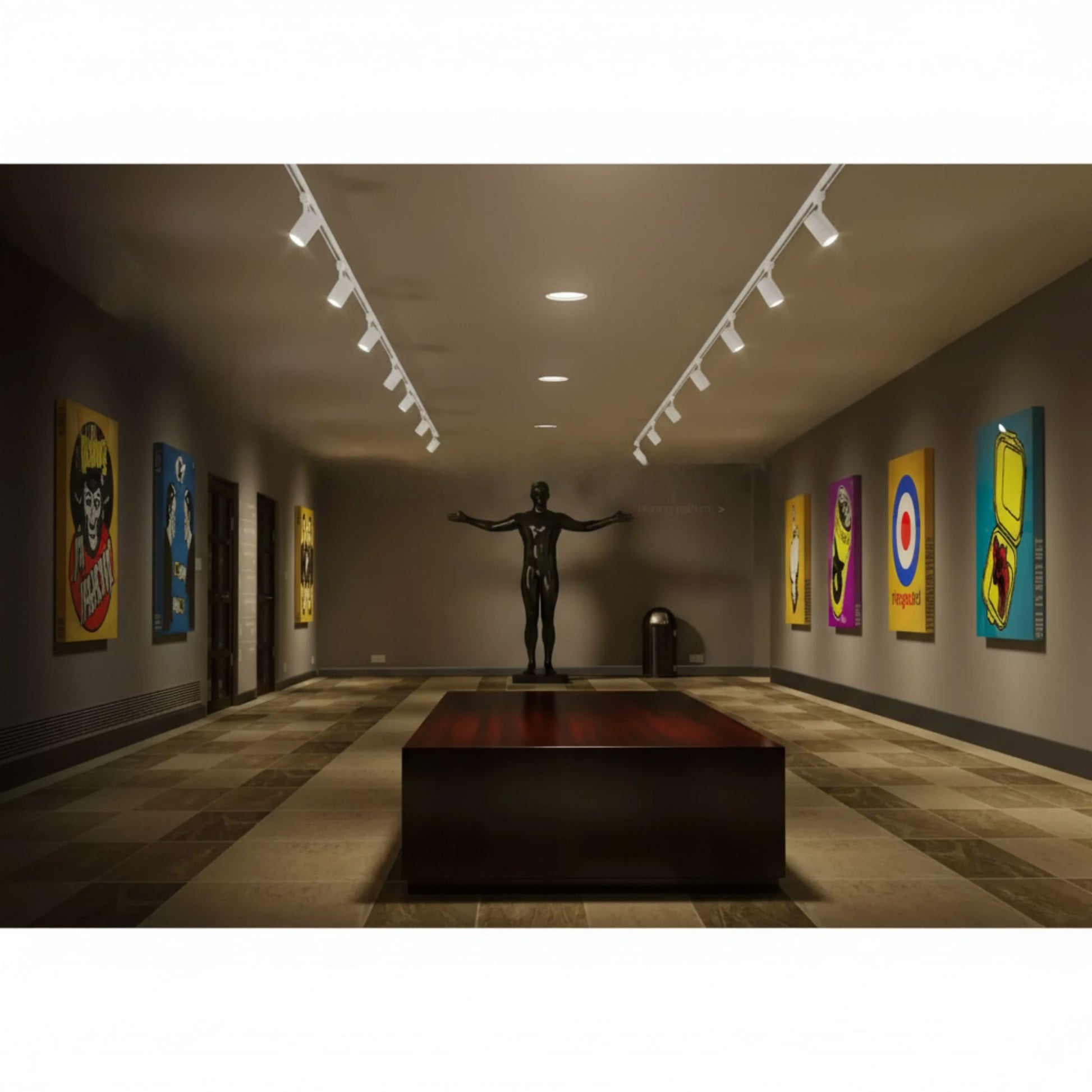

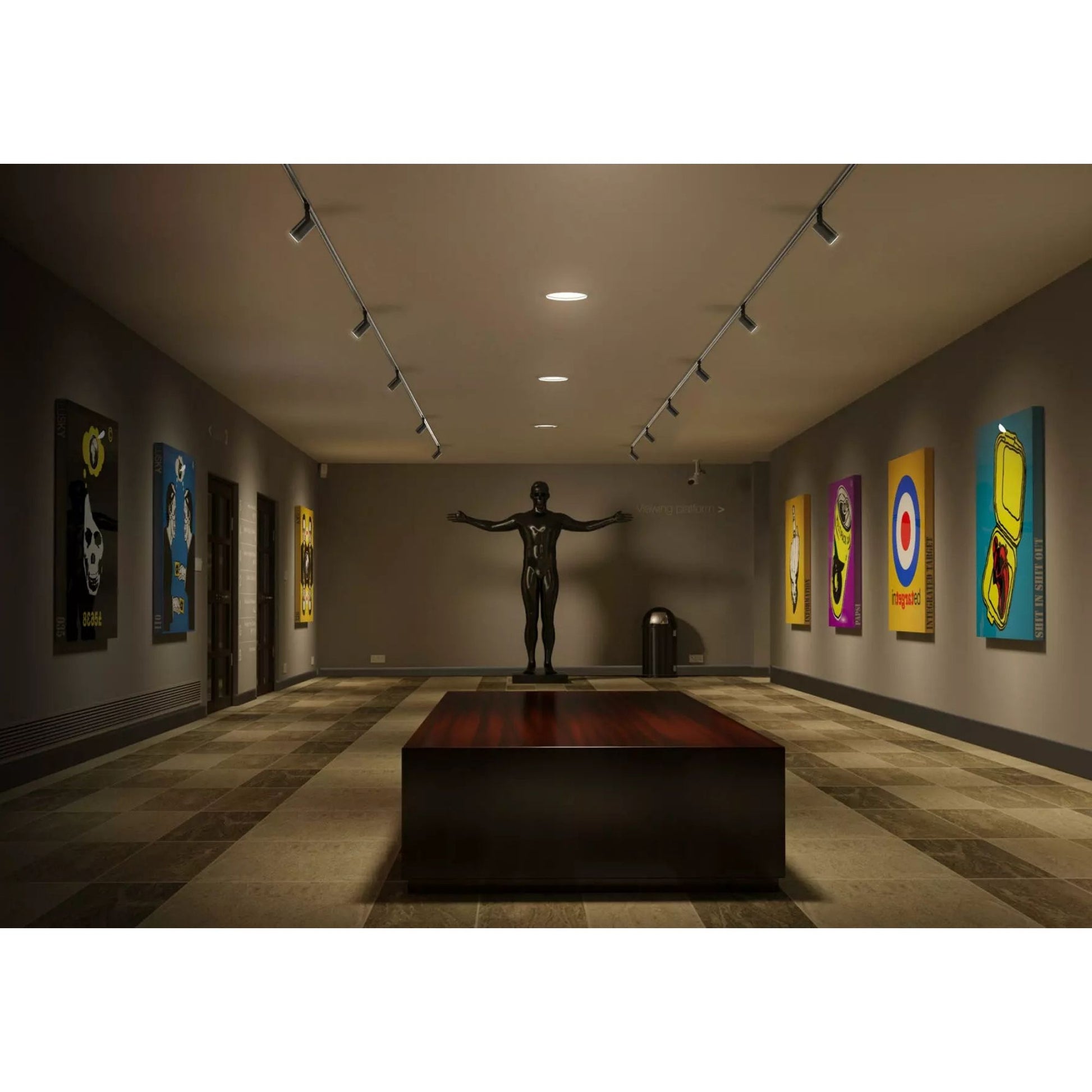

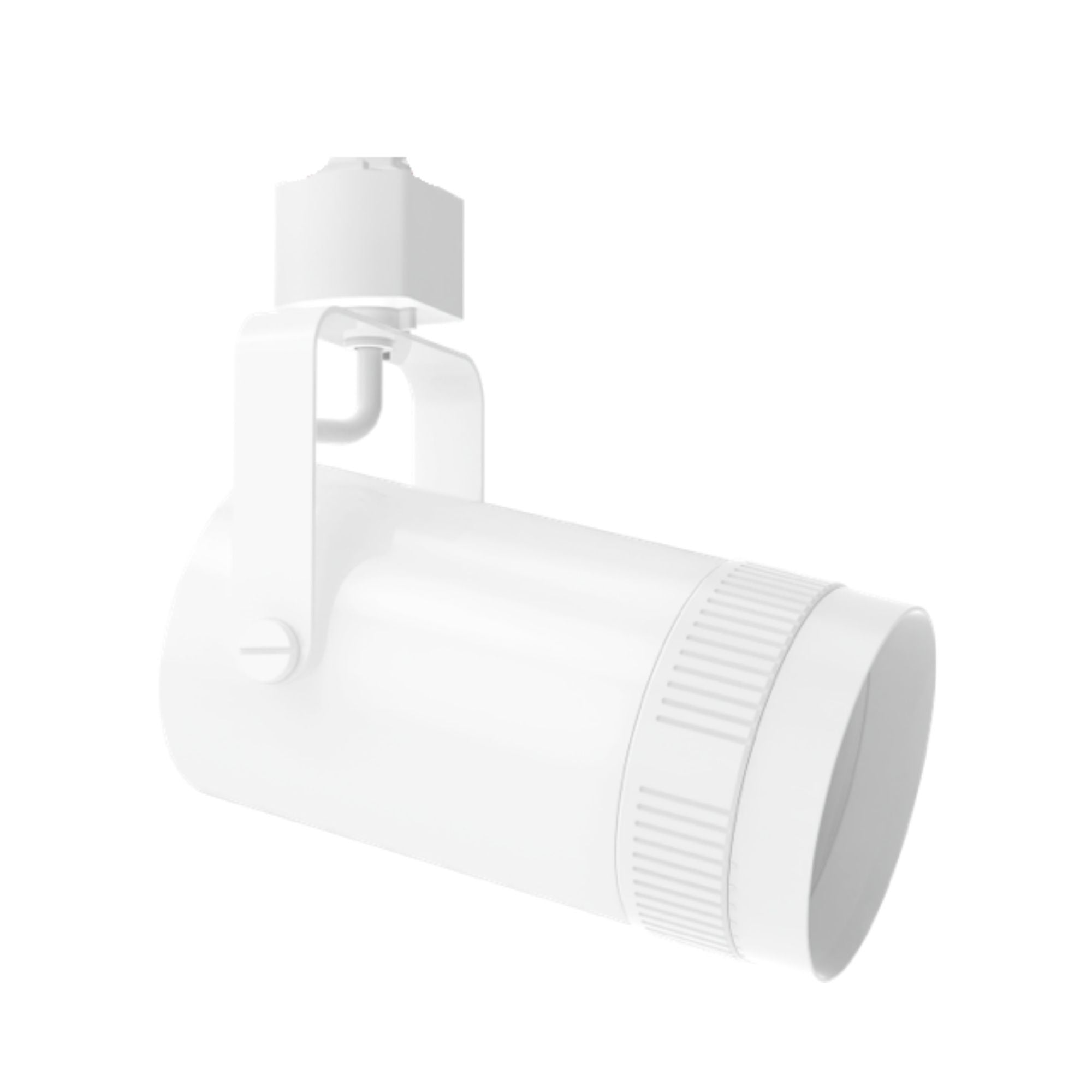

The RAB Lighting TK22L is a large and powerful LED track head from the TRACK22 collection, built for high-output applications. This fixture provides an impressive 3100 lumens of light and offers full control with selectable wattage (30W, 25W, 20W) and 5 CCT options (2700K to 5000K). The integrated adjustable optics allow you to change the beam angle from a narrow 15° to a wide 55°, while the fixture's 350° rotation and 180° swing ensure precise light placement. With a high 90+ CRI and TRIAC dimming capability, this track head is the perfect solution for creating dramatic and dynamic lighting in commercial spaces and galleries.
  • High Lumen Output: Delivers up to a powerful 3100 lumens, making it ideal for high ceilings or large areas.

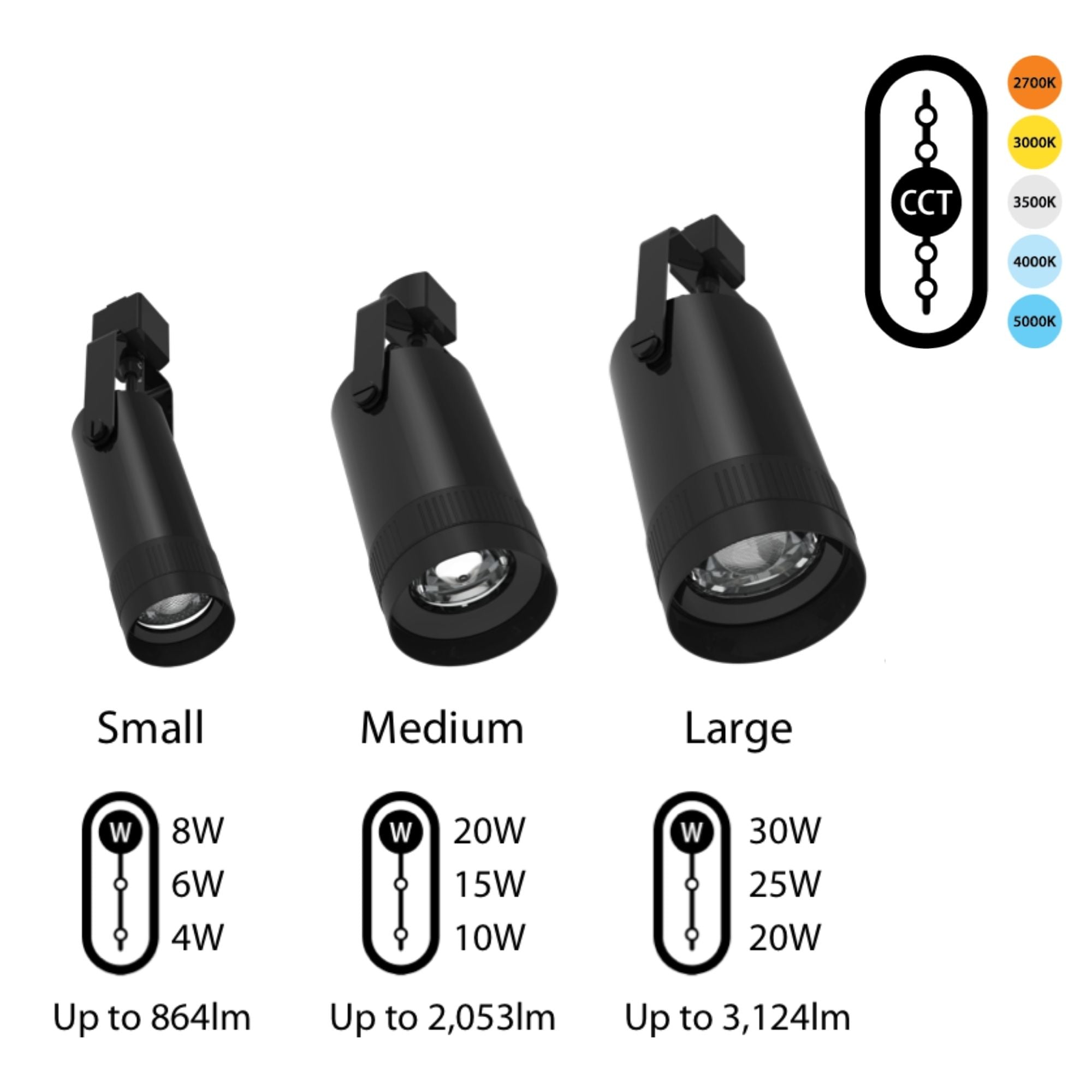

  • Field-Adjustable: Selectable wattage and CCT provide complete on-site customization for any lighting need.
  • Adjustable Optics: The tunable beam angle (15° - 20° - 30° - 40° - 55°) gives you superior control over light distribution.
  • Flexible Aiming: The 350° rotation and 180° swing make it easy to highlight specific objects or areas.

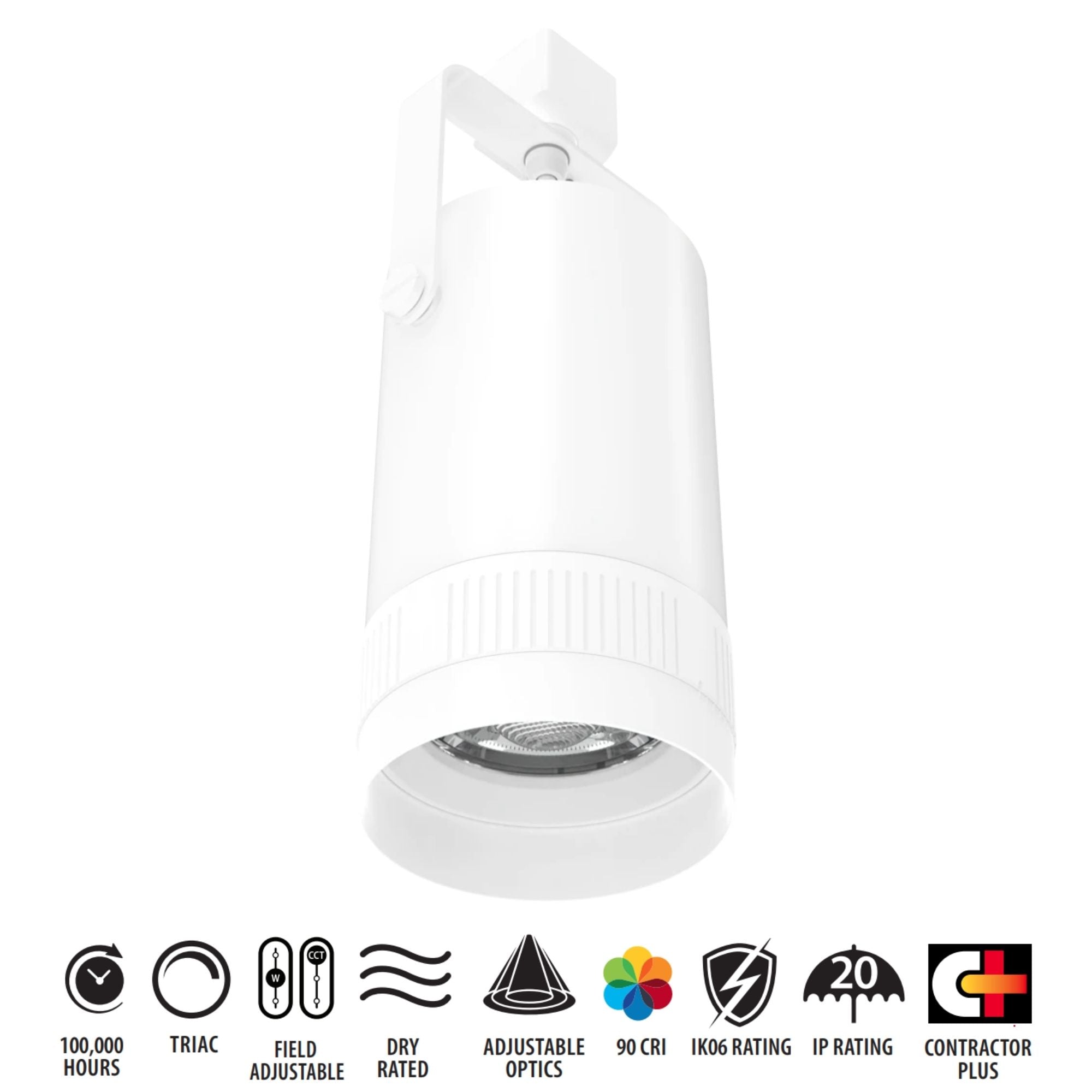

  • Premium Quality: Boasts a 90+ CRI for accurate color rendering and is compatible with standard TRIAC dimmers.

Technical Resources

Specifications

Finish:
White
Size:

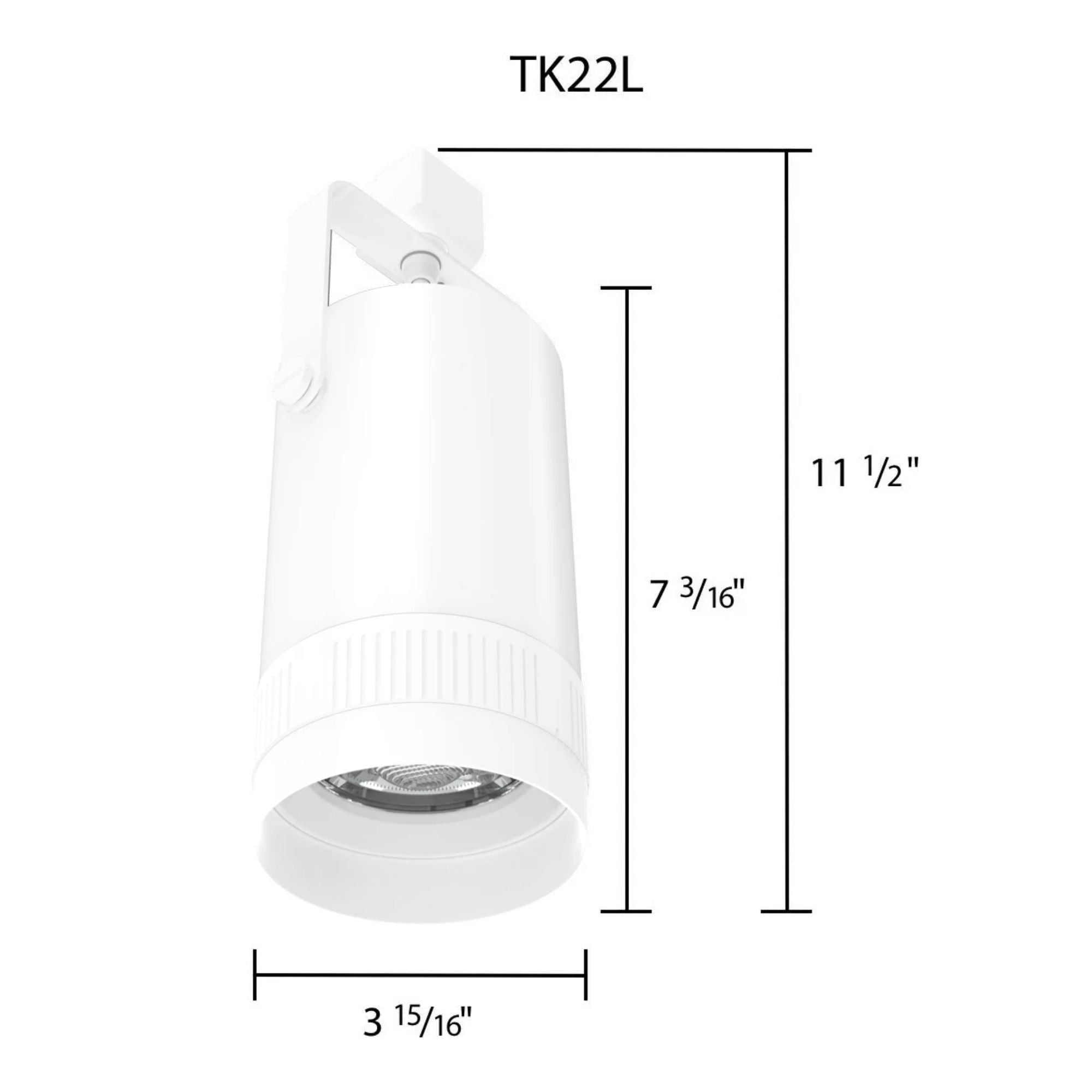

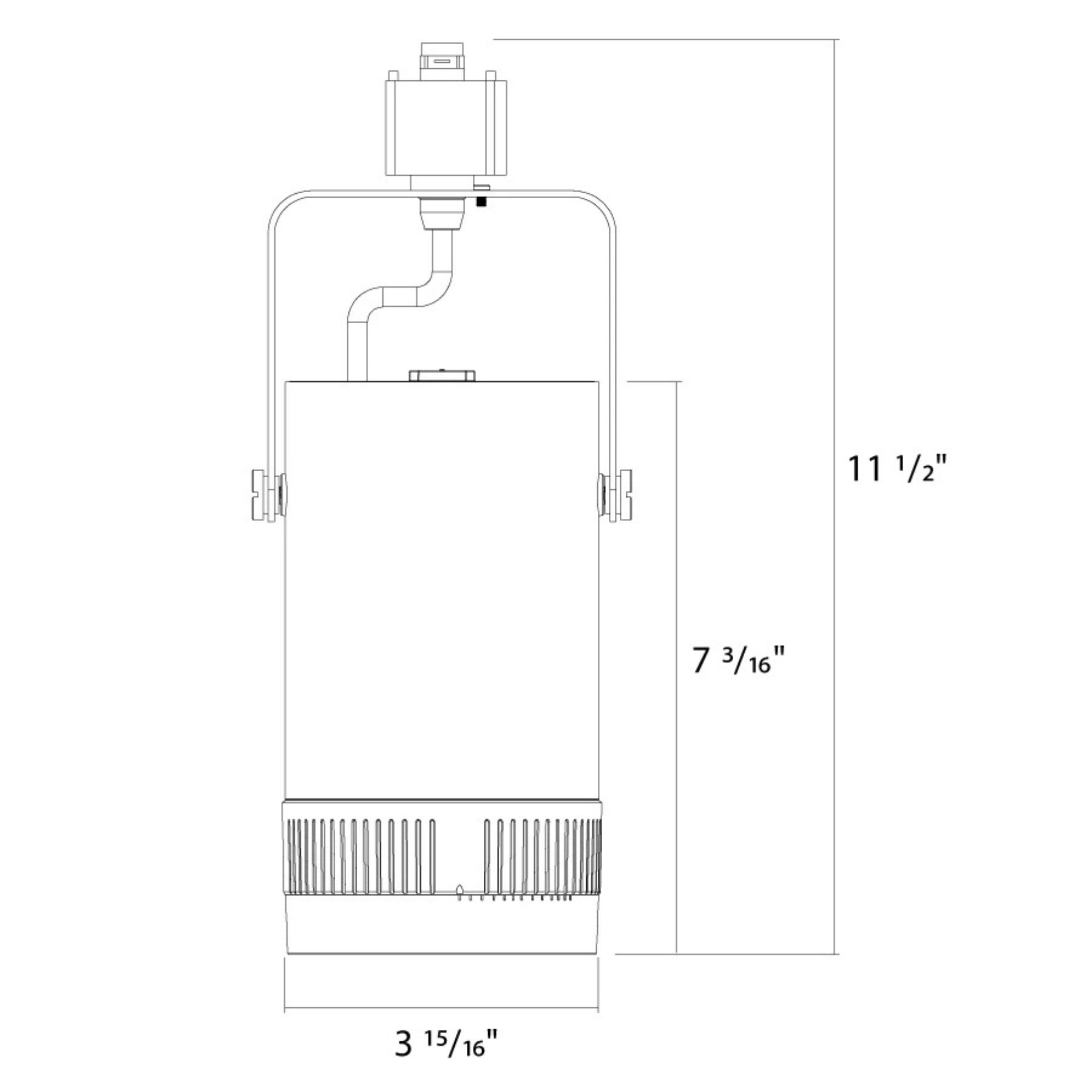

3.3'' L X 3.3'' W X 7.2'' H
Materials:
Aluminum
Lamp Source:
LED Module
Bulb:
Integrated LED
Total Wattage:
30
Lamp Color:
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering:
90
Delivered Lumens:
3124
Lamp Life:
100,000 Hours
