Satco Nuvo TH724 CCT Selectable LED Track Head

The Satco Nuvo TH724 combines a contemporary cylindrical profile in Matte Black with five selectable color temperatures for adaptable interior lighting. Its 30W integrated LED delivers 2100 lumens through a fixed 48° beam, with 90 CRI. Choose 2700K, 3000K, 3500K, 4000K or 5000K using the ColorQuick switch to suit merchandise, artwork or a task area. The matte black finish creates a defined accent against light ceilings or coordinates with darker interiors and black track, while the wider beam offers an alternative to narrowly concentrated accent lighting.

Key Features

• Track System: SATCO H-Type (Halo) track compatibility.

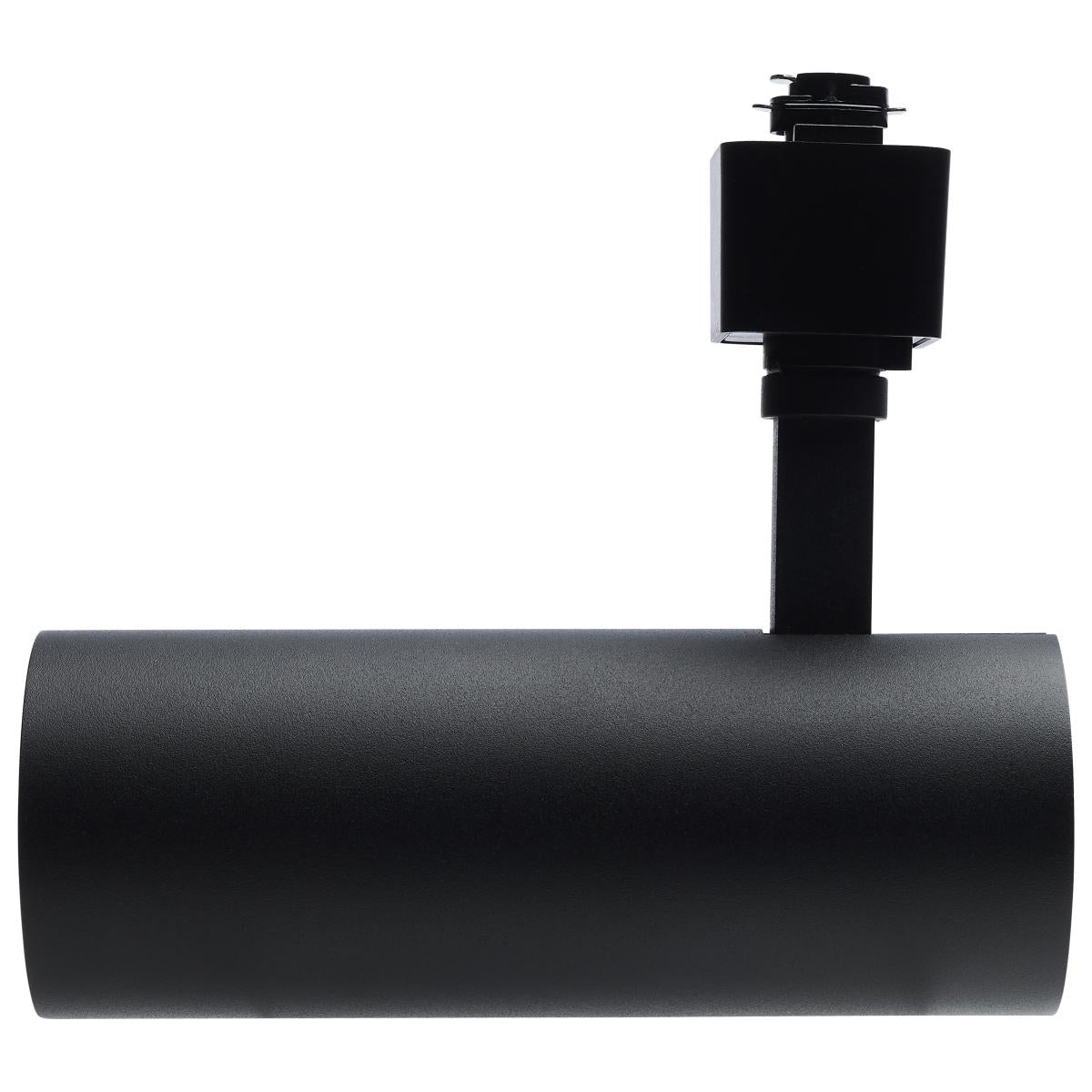

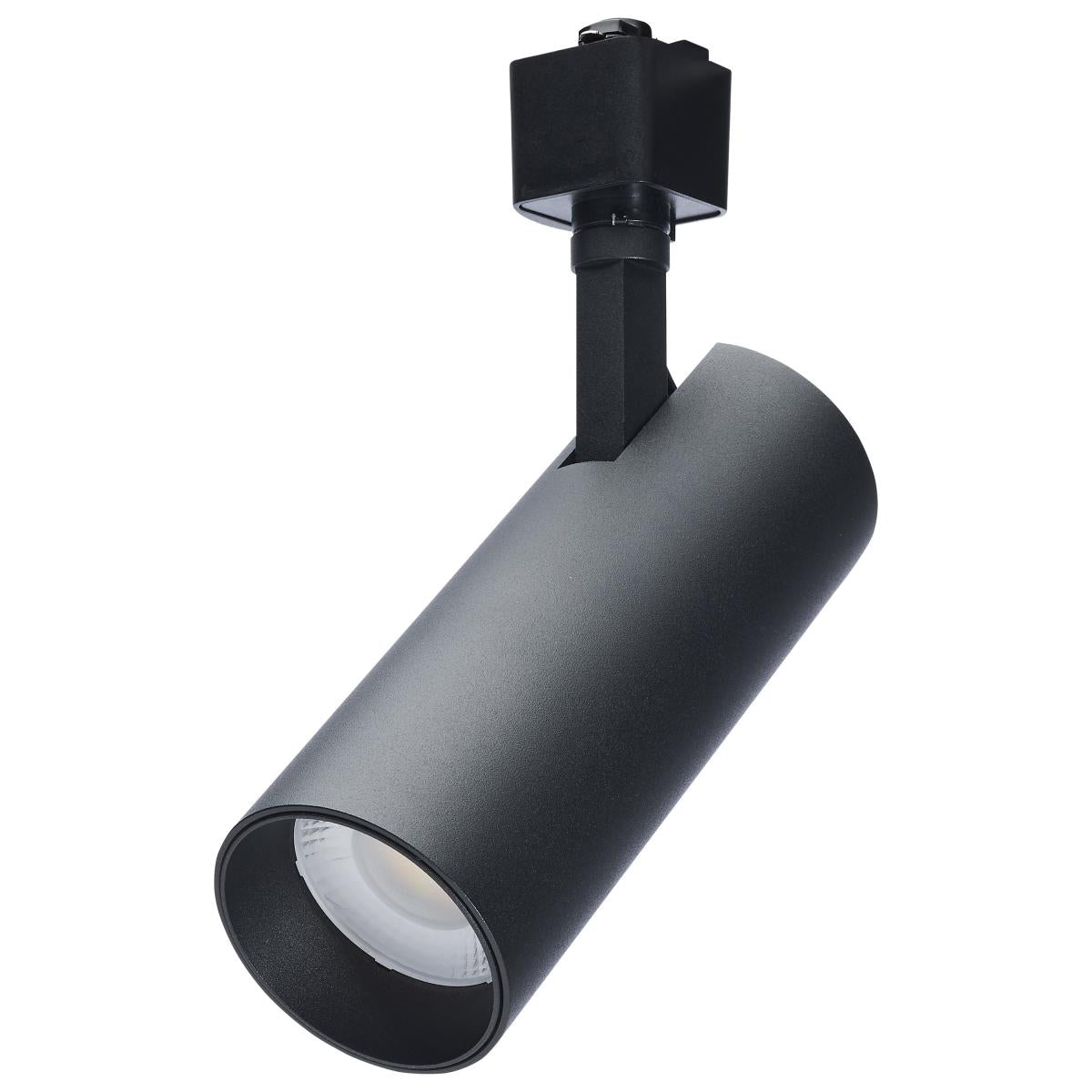

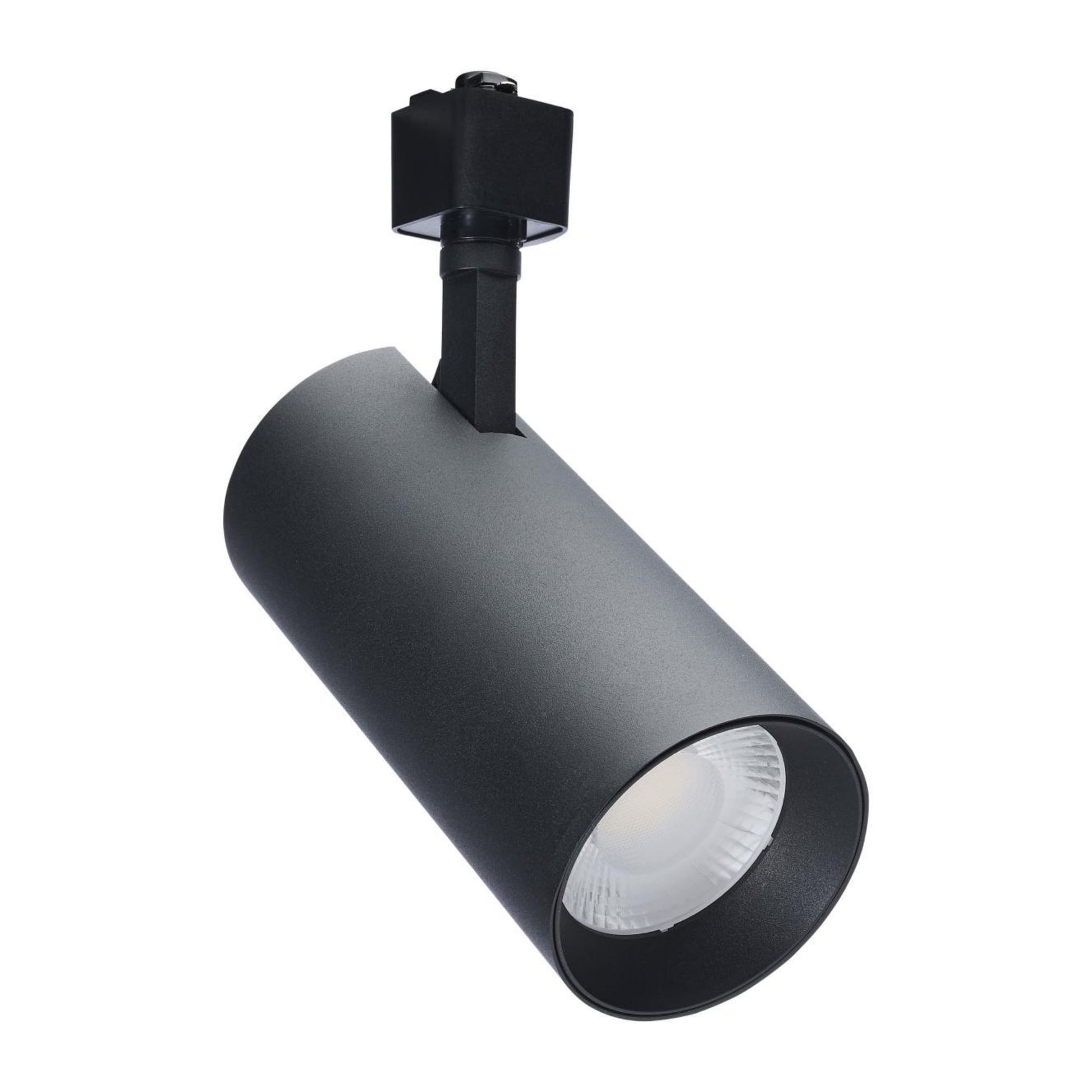

• Design: Matte Black cylindrical head, horizontal and vertical positioning.
• Light Source: 30W integrated LED, 2100 lumens, 70 lm/W.

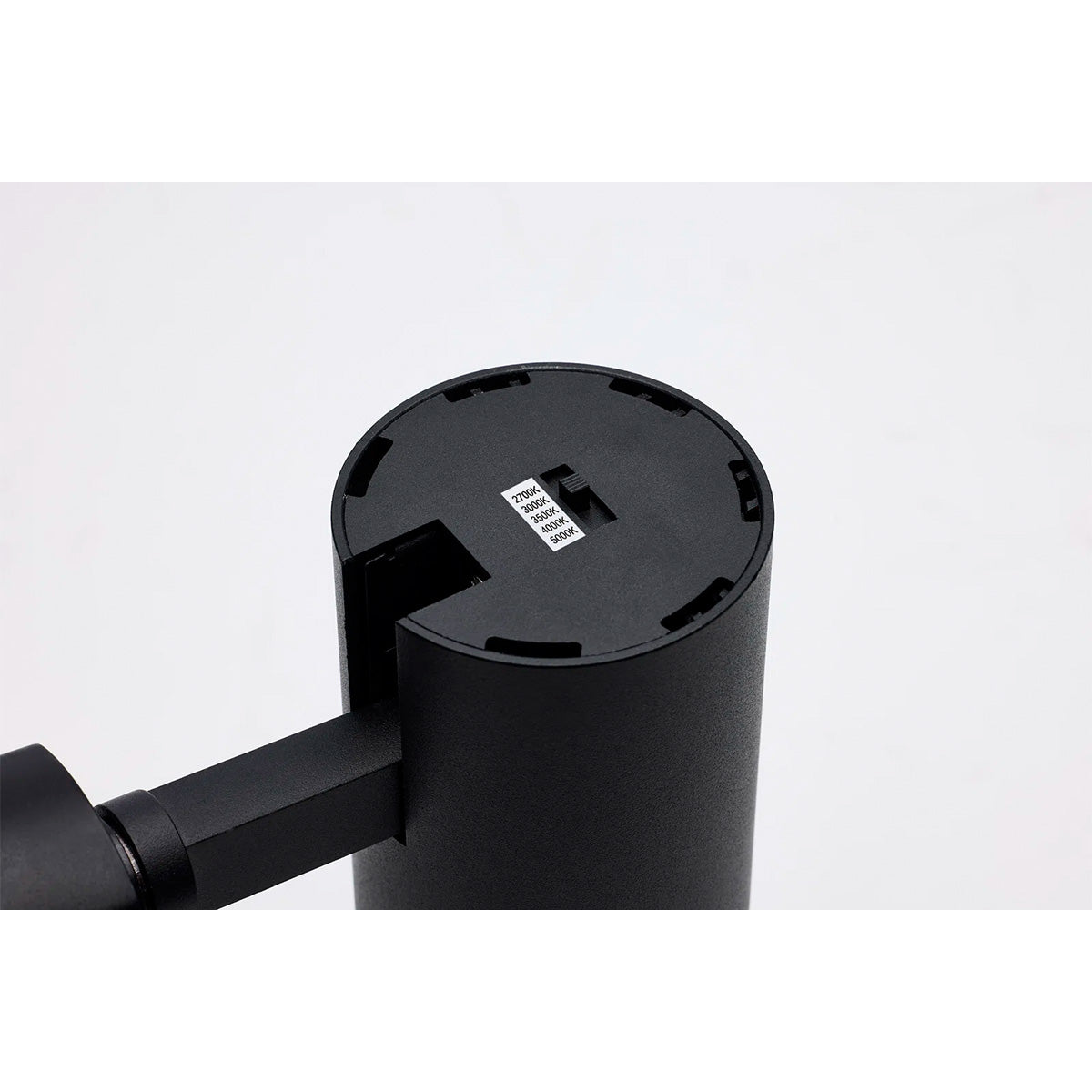

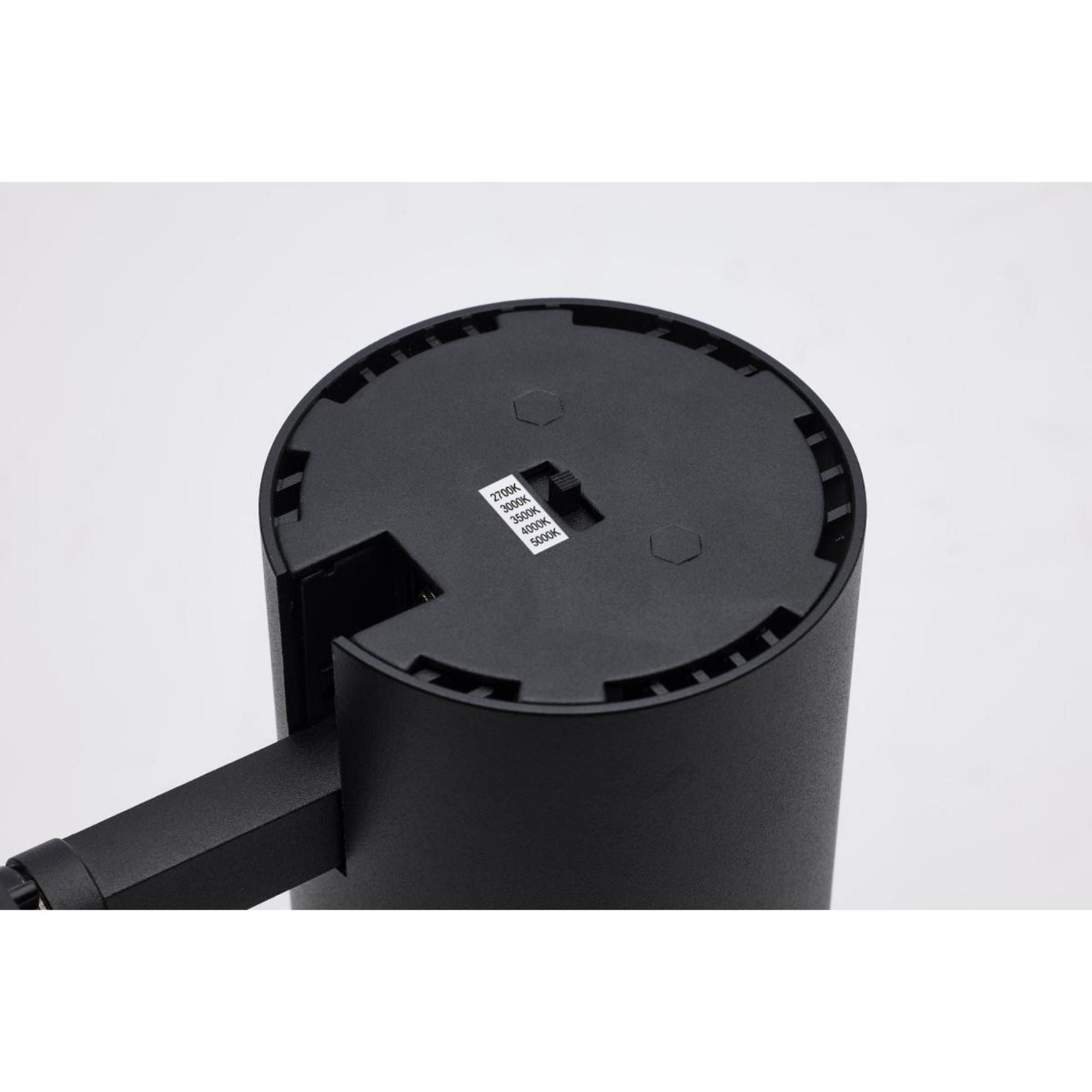

• Color Selection: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K.
• Color Rendering: 90 CRI.

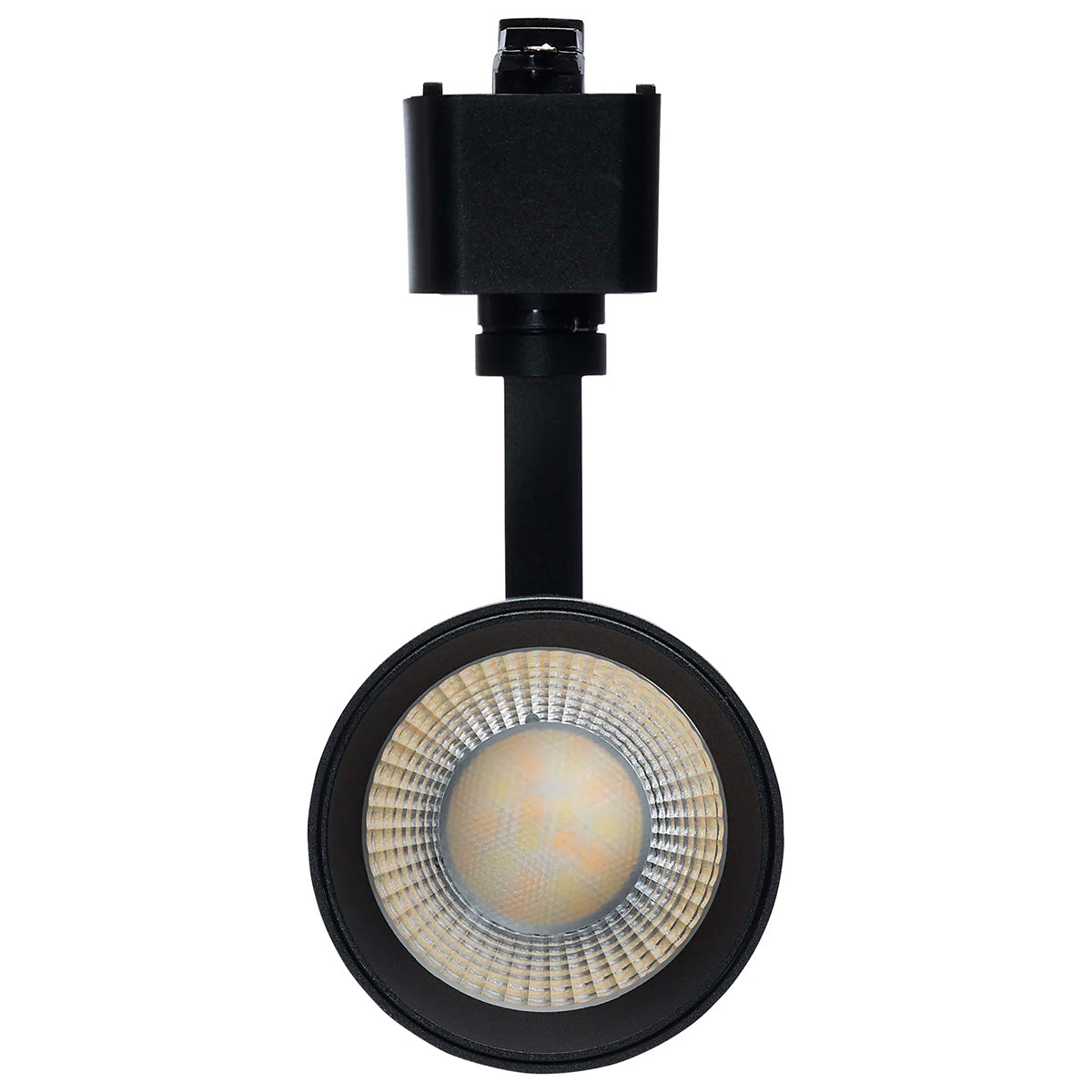

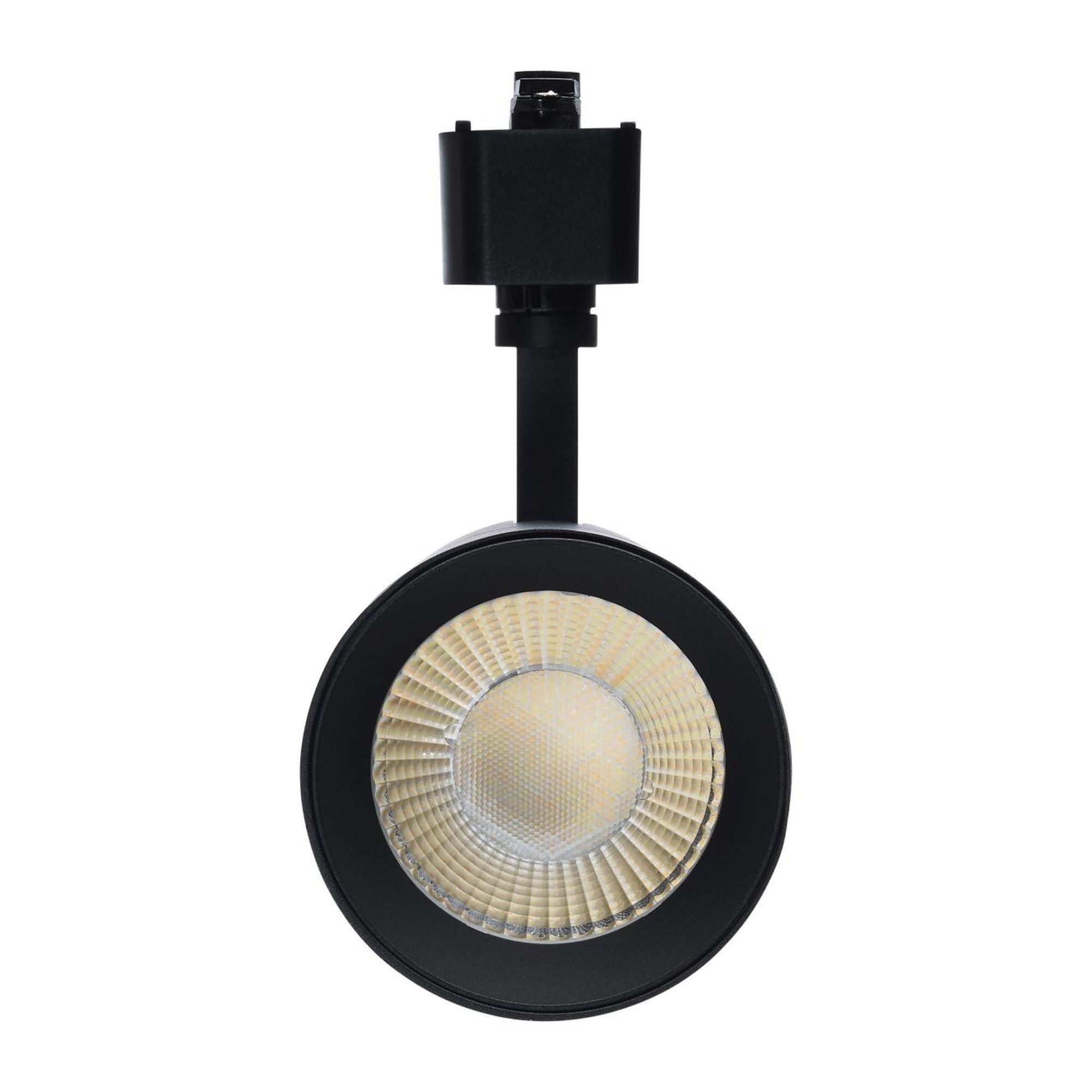

• Optics: Fixed 48° beam, PMMA lens.
• Dimming: Phase-cut dimming down to 10% with a compatible dimmer.
• Construction: Aluminum and steel.

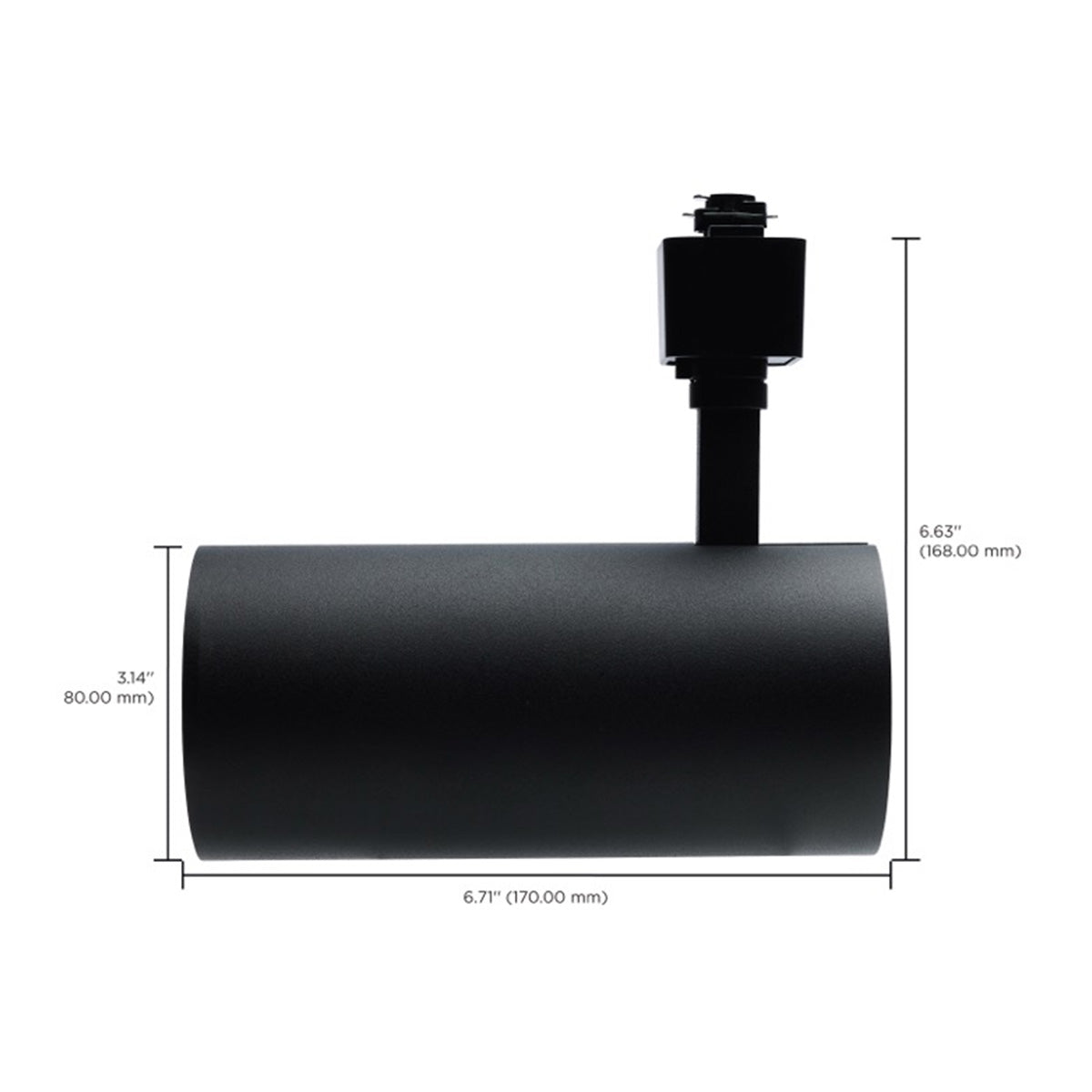

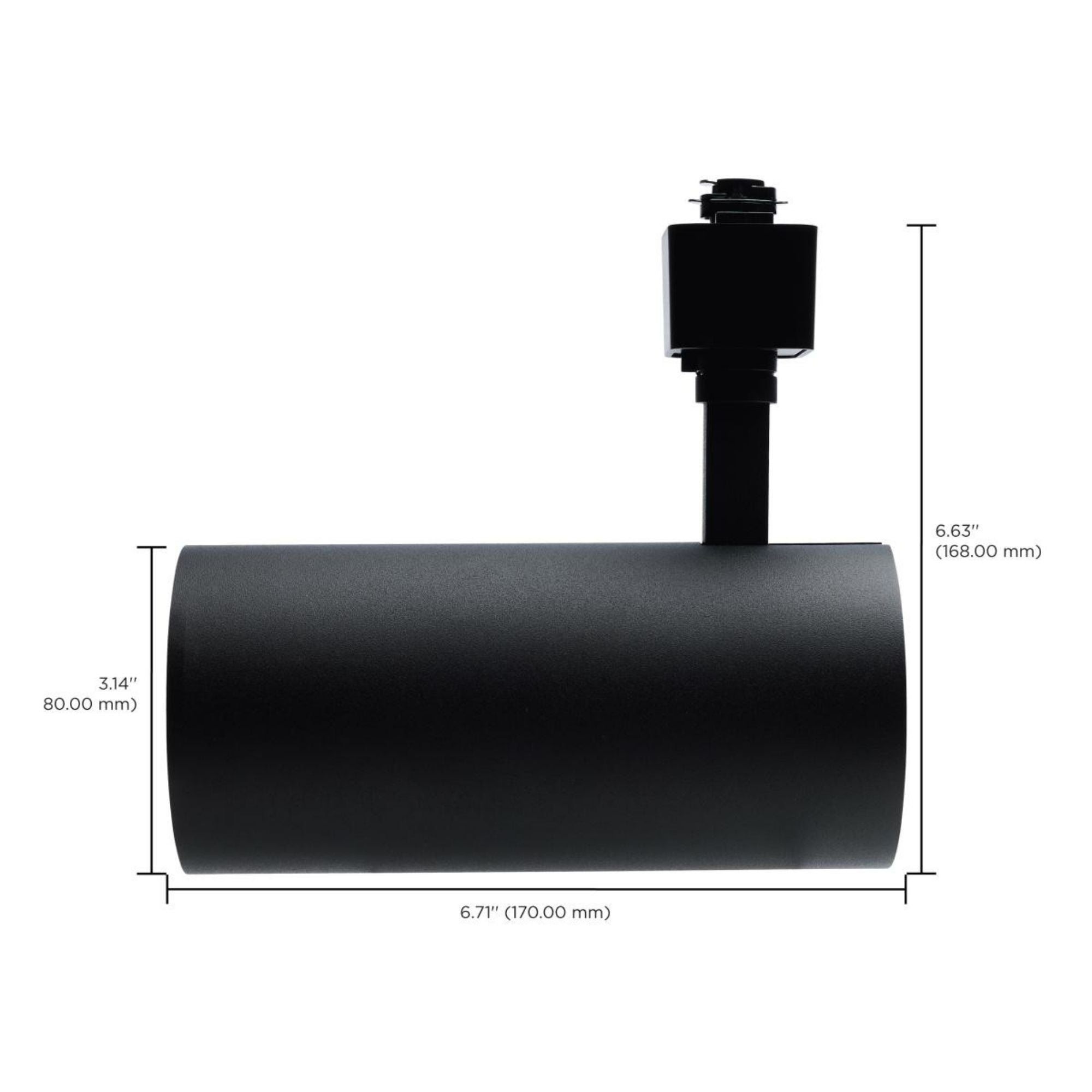

• Dimensions: 6.71 in length, 3.14 in width, 6.63 in height, 9.06 in extension.
• Electrical: 120V, 60Hz, 0.27A, power factor greater than 0.9.
• Rated Life: 30,000 hours.
• Location & Temperature: Dry indoor use, -4°F to 104°F.

Construction & Design

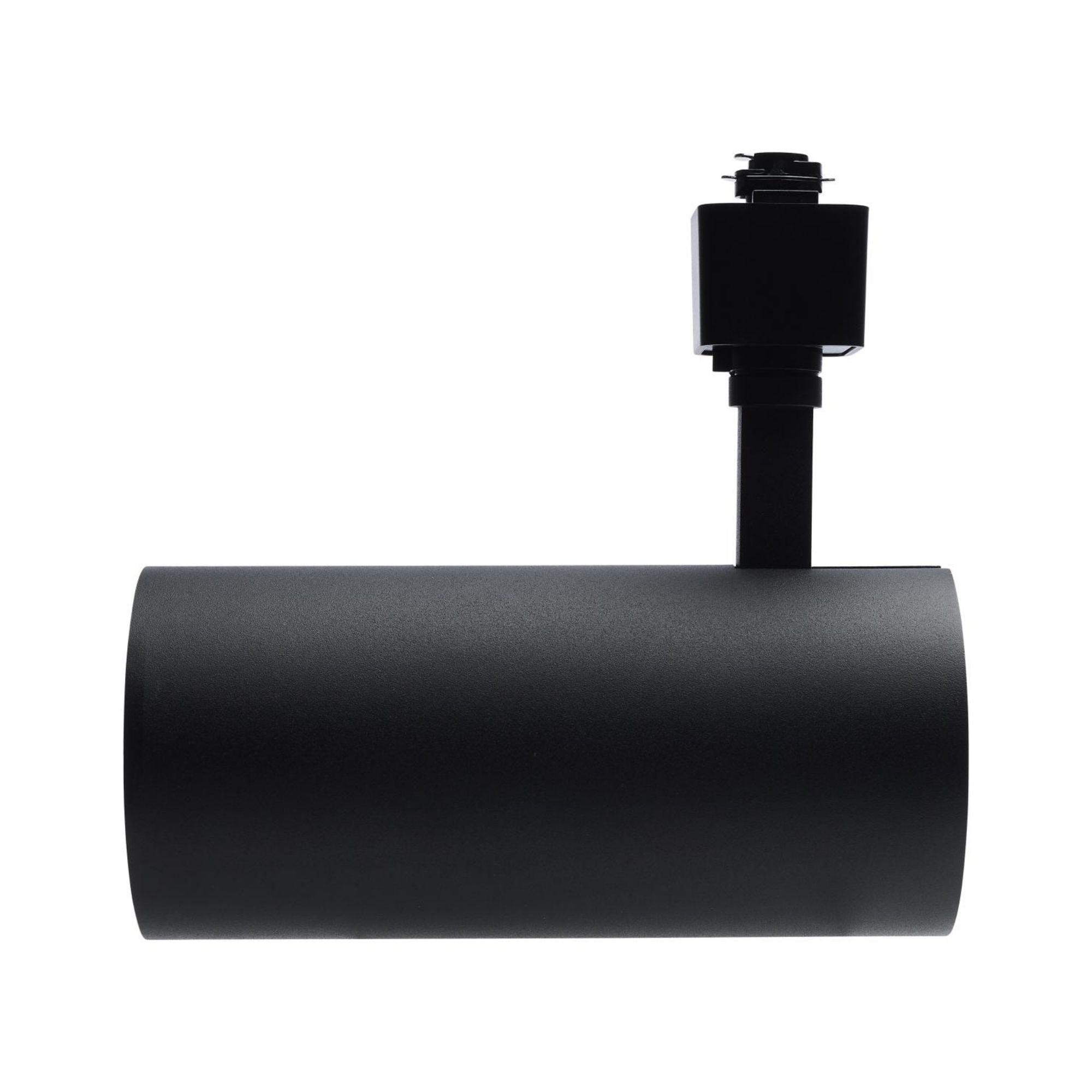

The Matte Black aluminum and steel housing gives this track head a clean cylindrical appearance suited to contemporary interiors. Horizontal and vertical positioning help direct illumination toward a display or architectural detail as the layout changes. A PMMA lens forms the fixed beam; adjusting the head changes its direction rather than its optical spread. Coordinating black track components carry the dark finish throughout the installation.

Light Output & Performance

The Satco Nuvo TH724 produces 2100 lumens from 30W, with 70 lm/W efficacy and 90 CRI. The ColorQuick switch provides five settings: 2700K, 3000K, 3500K, 4000K and 5000K. Its fixed 48° beam supports display, accent and directed task lighting with a wider spread than the family's 36° models. Phase-cut dimming down to 10% with a compatible dimmer allows brightness to be balanced with surrounding illumination. Rated LED life is 30,000 hours.

Electrical & Installation

The Satco Nuvo TH724 operates at 120V, 60Hz, with 0.27A input current and power factor greater than 0.9. Install on SATCO H-Type (Halo) track in dry indoor locations within the -4°F to 104°F operating range. Use a compatible phase-cut dimmer for brightness control. Track rails, power feeds and connectors are sold separately.

Compatible Accessories

Complete your CCT selectable track lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.

• Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single-circuit H-Type.
• Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
• Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
• Track Mounting: TP241 black aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

Typical Applications

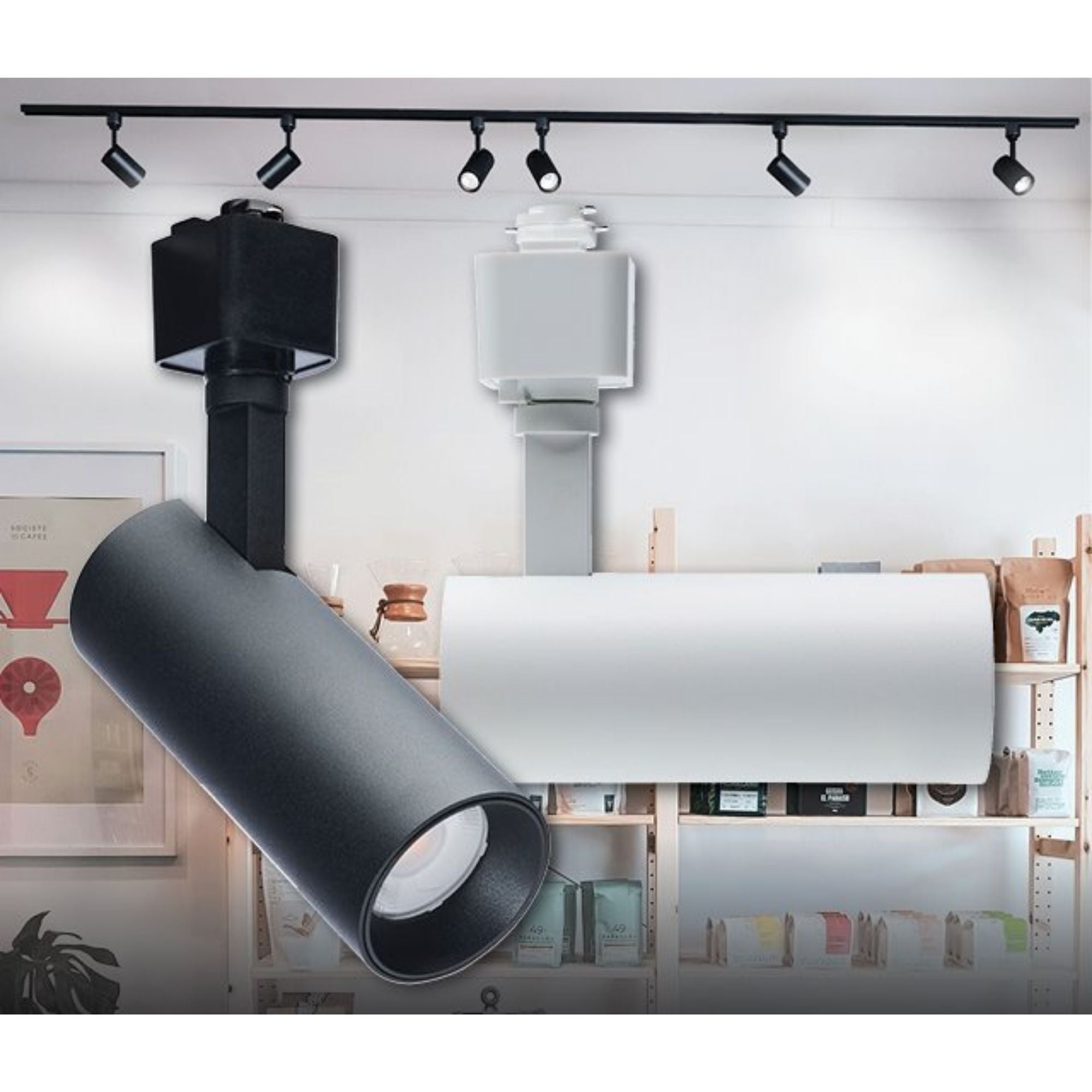

• Retail merchandise and showroom displays.
• Artwork and interior wall accents.
• Directed task lighting.

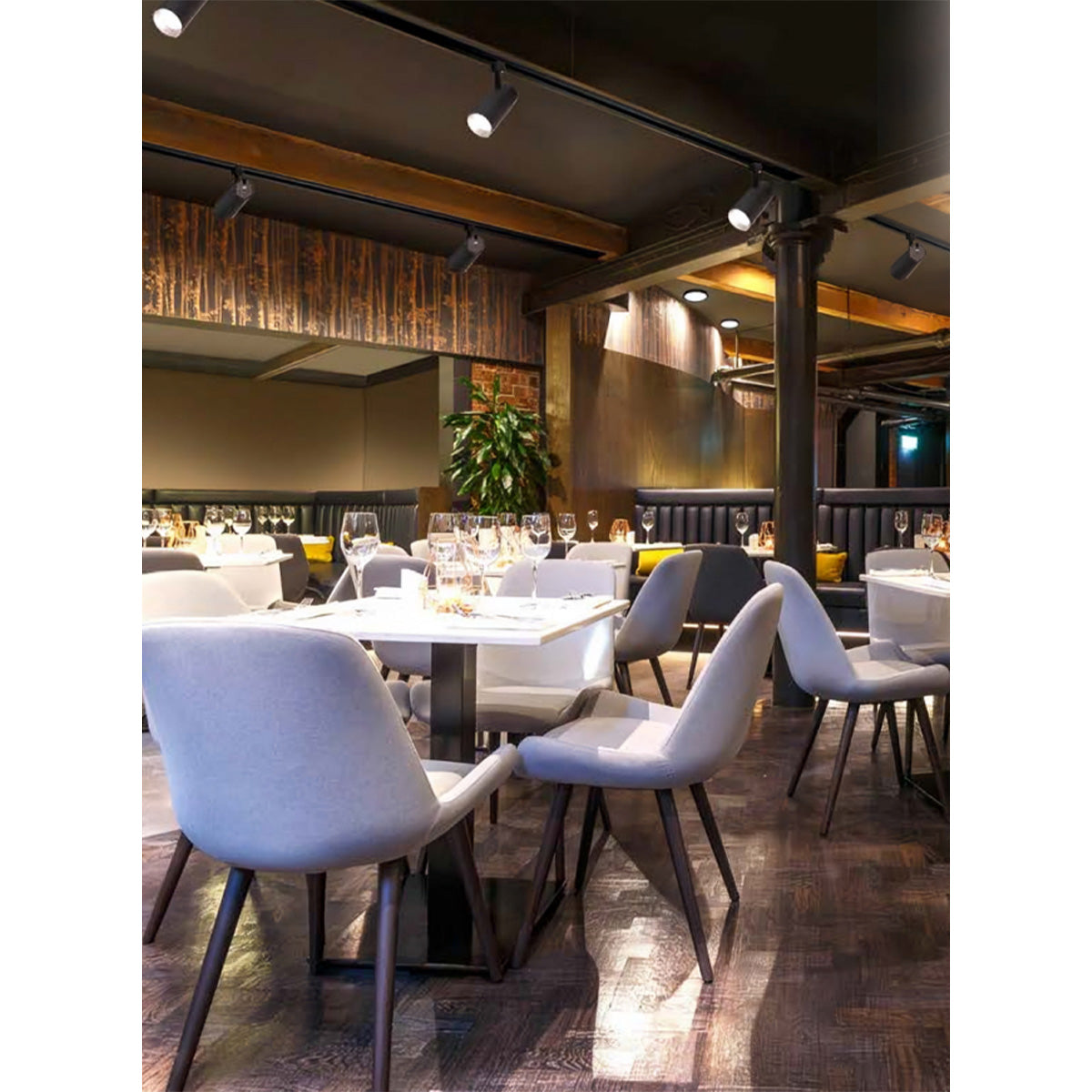

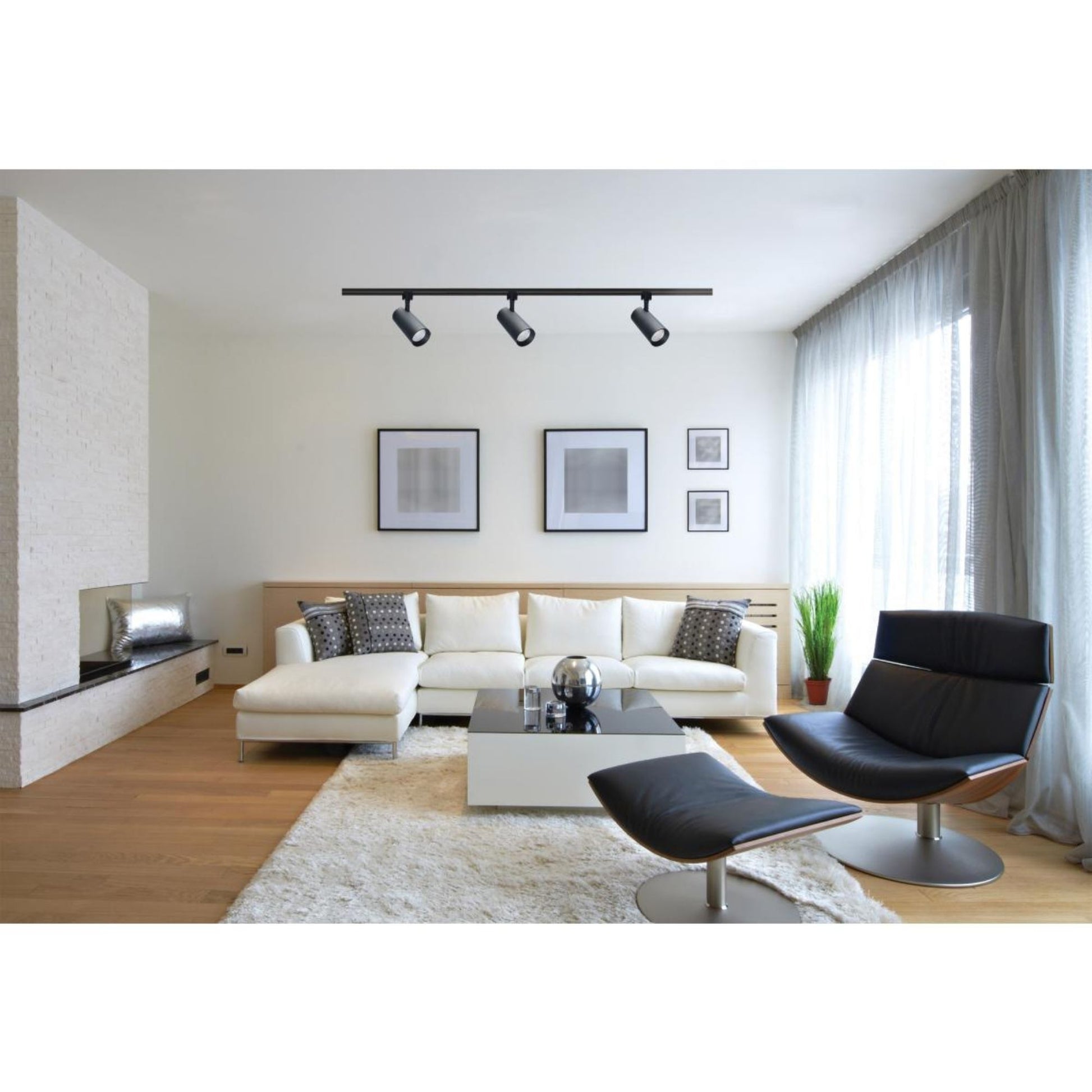

• Residential and hospitality room ambience.

What's Included

• Satco Nuvo TH724 Matte Black track head with integrated LED and H-Type adapter.
